Spare Parts Fixed ladders

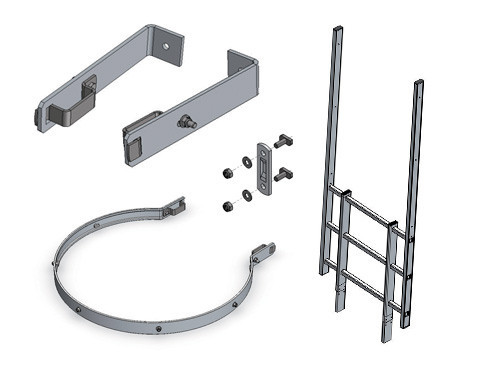

Cage ladders consist of a number of separate parts including arches, stringers, fixing feet, exit sets, which make it possible to adapt them as well as possible to where they are installed. The variety of their places of use, whether it be on a machine or on a building, requires a complete set of parts making it possible to meet the constraints of fixing, the configuration of the premises, the number of exits necessary, the methods of interlocking required by the site. The Echelle Canada cage ladder system includes all the parts and accessories needed to allow all possible configurations by combining side exits, footbridge type exits, complete interlocks, folding platforms, etc. discover our whole range of cage ladder parts and accessories.
display
Adjustable fastening bracket
Aluminium wall support bracket for the crinoline ladder.4 setting fields available.Fastened in solid brackets and fitted on the cladding.
Ladder and longitudinal bars for fixed ladders
Aluminium ladder for vertical ladders.Connecting with each other with aluminium sleeves.Aluminium longitudinal bars, they allow the caging of the user.
Standard fastening legs for crinoline ladders
Pair of fastening legs for the crinoline ladder.Pre-assembled and sold in pairs.To be fastened vertically at every 2.50 m maximum.
Reinforced fastening legs for crinoline ladders
To be placed at the base of each end of flights of suspended crinoline ladders.Sold in pairs.
Straight fastening legs for crinoline ladders
Fastening legs for welding or sealing the crinoline ladder.To fasten vertically at every 2.50 m.Sold in pairs
Adjustable fastening legs for crinoline ladders
Fastening legs allowing to shift the ladder from the façade.To fasten vertically at every 2.50 maximum.Pre-assembled and sold in pairs.
Adjustable fastening leg brackets
Reinforce the adjustable fastening leg brackets at the starting point of suspended flights.To be used with the adjustable legs, reference: 51571 et 51571L
Adjustable fastening bracket
Aluminium wall support bracket for the crinoline ladder.4 setting fields available.Fastened in solid brackets and fitted on the cladding.
Cladding fastening plate
Accessory for fastening the crinoline ladder on the steel cladding.Waterproofing preserved by the use of neoprene washers and sealing tape.Maximum spacing between plates: 2.50 m.
Crinoline ladder exit sticks
Crinoline ladder exit accessories for all access through sky domes, walkways, platforms etc.Also used for descents in sanitation networks, tanks, etc.Available in 3 versions: mounting on rungs, on upr...
Locking operculum kit
Kit that fits on doors and crinoline ladders locking half-doors.
Operculum crinoline locking door
Simple locking door for the crinoline ladder.Available in standard version with circular operculum.
Crinoline locking door without operculum
Prevents ladder access by blocking the first rungs.Attaches to ladder stiles with three hinges.
