Cladding fastening plate
Cladding fastening plate
Standard: NF E85-016/EN ISO 14122-4
Select your reference

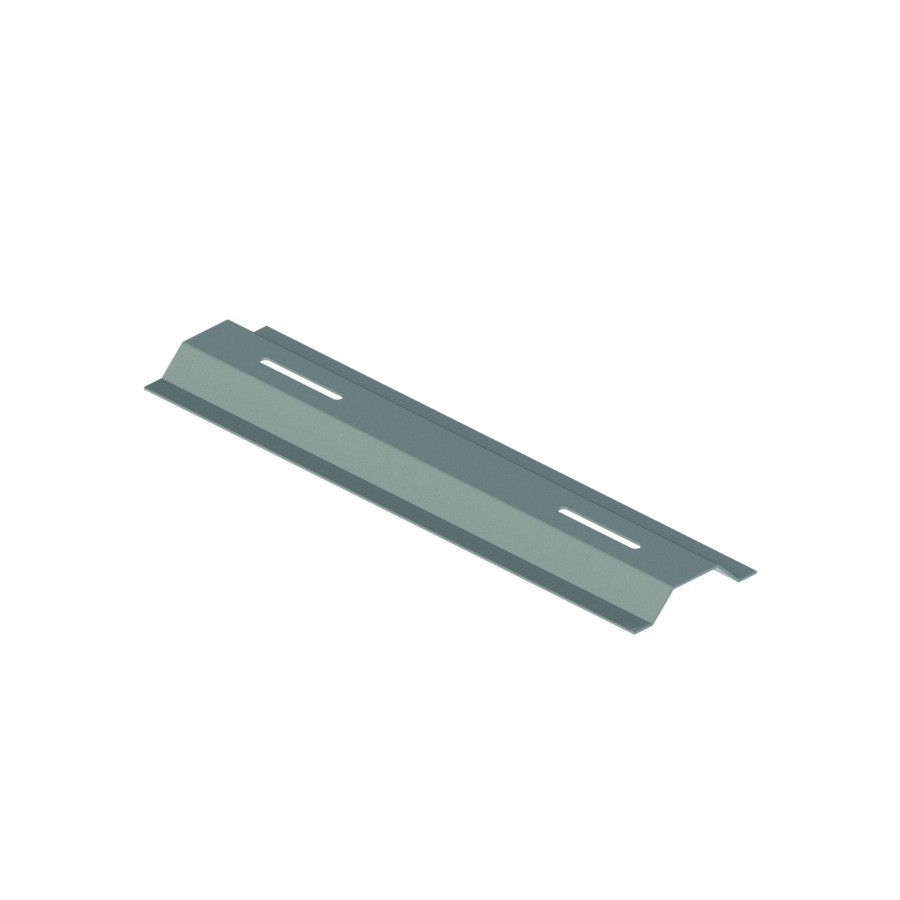

Cladding fastening plate
Advantages and strengths
Avoids the cutting of the steel cladding.
Technical characteristics
| Fastening plate for cladding | |
|---|---|
| Reference : | PLAQUEFIXBARDAGE |
| Weight (lb) | 3,35 lb |
| Sizes ('') | 28 7 '' |
| Matiére | Aluminium |
| Quantity : |
|

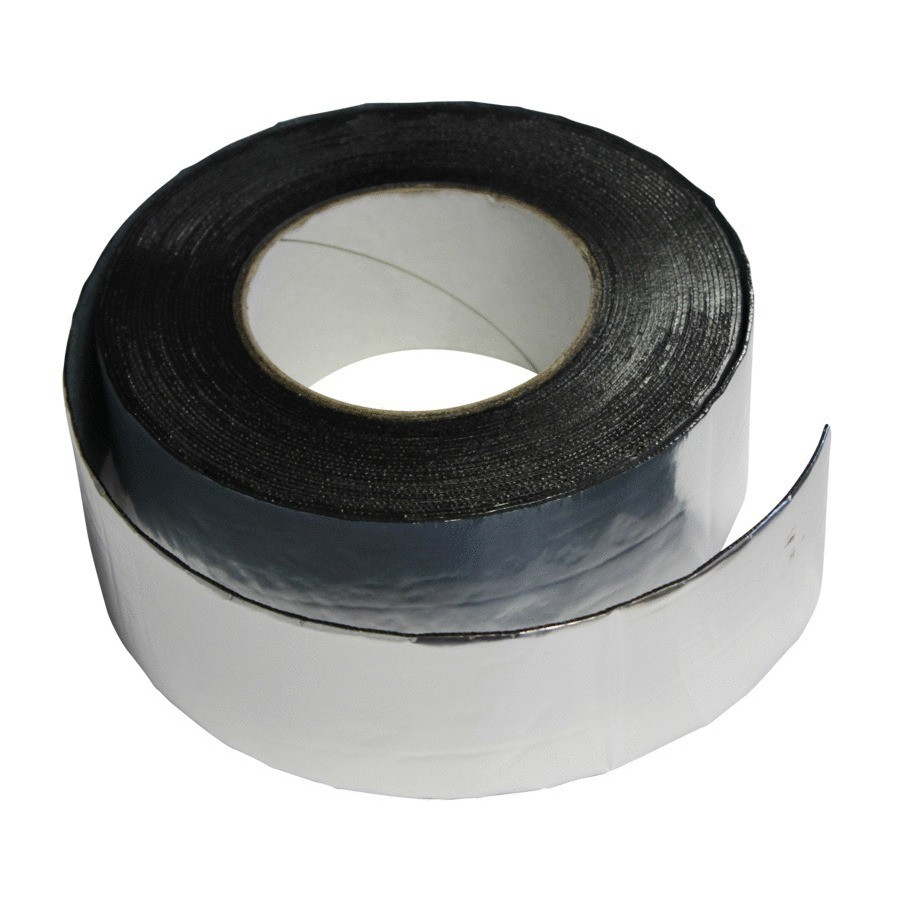

| Roll of sealing tape | |
|---|---|
| Reference : | BANDEETANCH10M |
| Weight (lb) | 0 lb |
| Sizes ('') | 72 '' |
| Matiére | Aluminium |
| Quantity : |
|

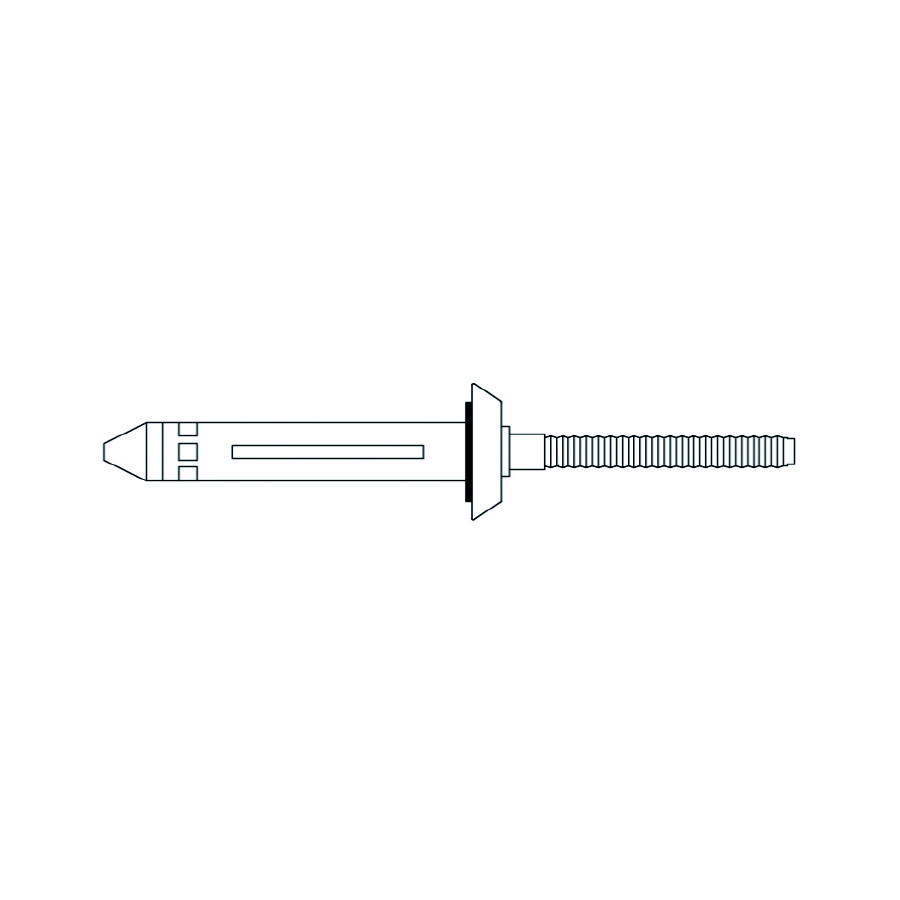

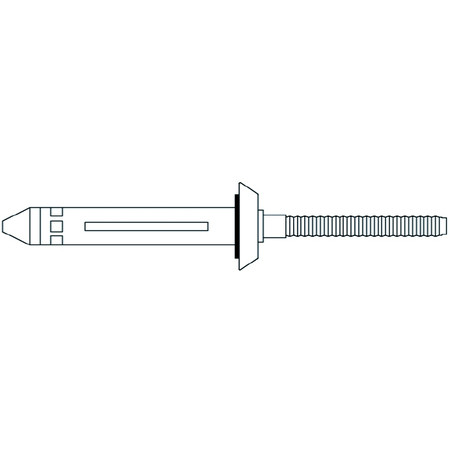

| Aluminium pop rivet 7.7 mm | |
|---|---|
| Reference : | RIVETPOP77 |
| Weight (lb) | 0 lb |
| Sizes ('') | 0,30 '' |
| Matiére | Aluminium |
| Quantity : |
|
| Box of 500 stainless steel self-drilling screws 4.8 x 38 mm | |
|---|---|
| Reference : | A0015413 |
| Weight (lb) | 0 lb |
| Sizes ('') | 0 '' |
| Matiére | Sainless steel |
| Quantity : |
|
| Self-drilling fixing kit (16) for cladding panel | |
|---|---|
| Reference : | A0015625 |
| Weight (lb) | 0 lb |
| Sizes ('') | 0 '' |
| Matiére | Aluminium |
| Quantity : |
|
| Pre-drilled cladding panel with adhered sealing strip | |
|---|---|
| Reference : | A0015710 |
| Weight (lb) | 0 lb |
| Sizes ('') | 0 '' |
| Matiére | Aluminium |
| Quantity : |
|
Use

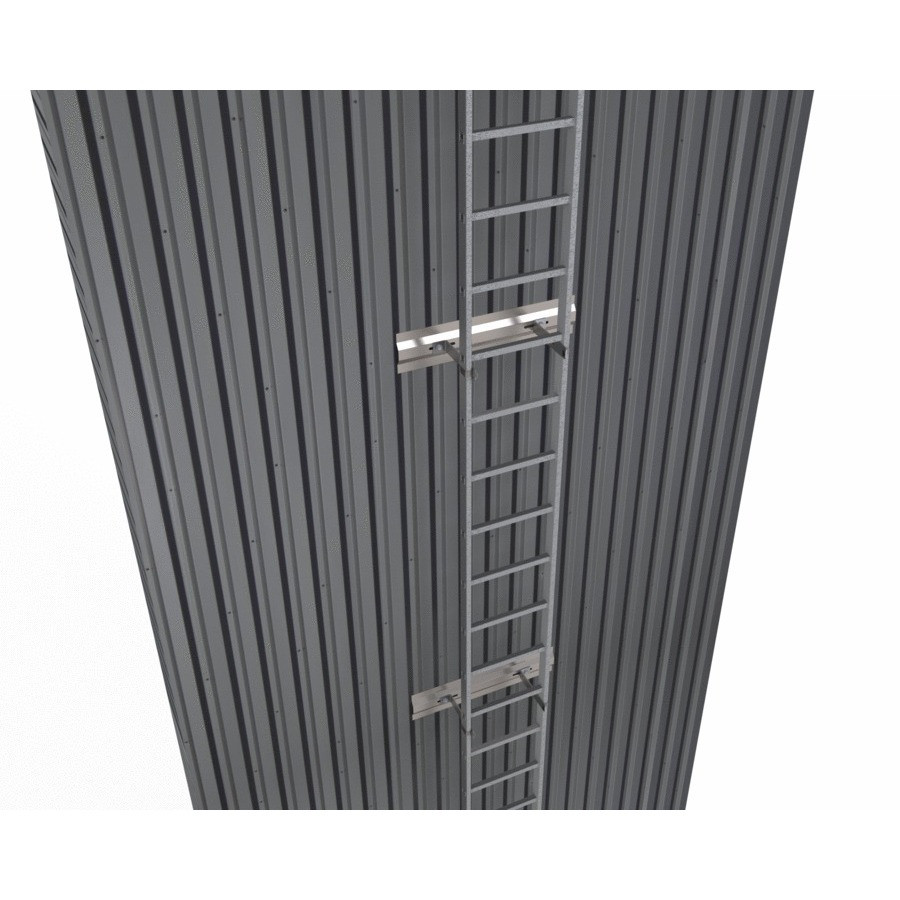

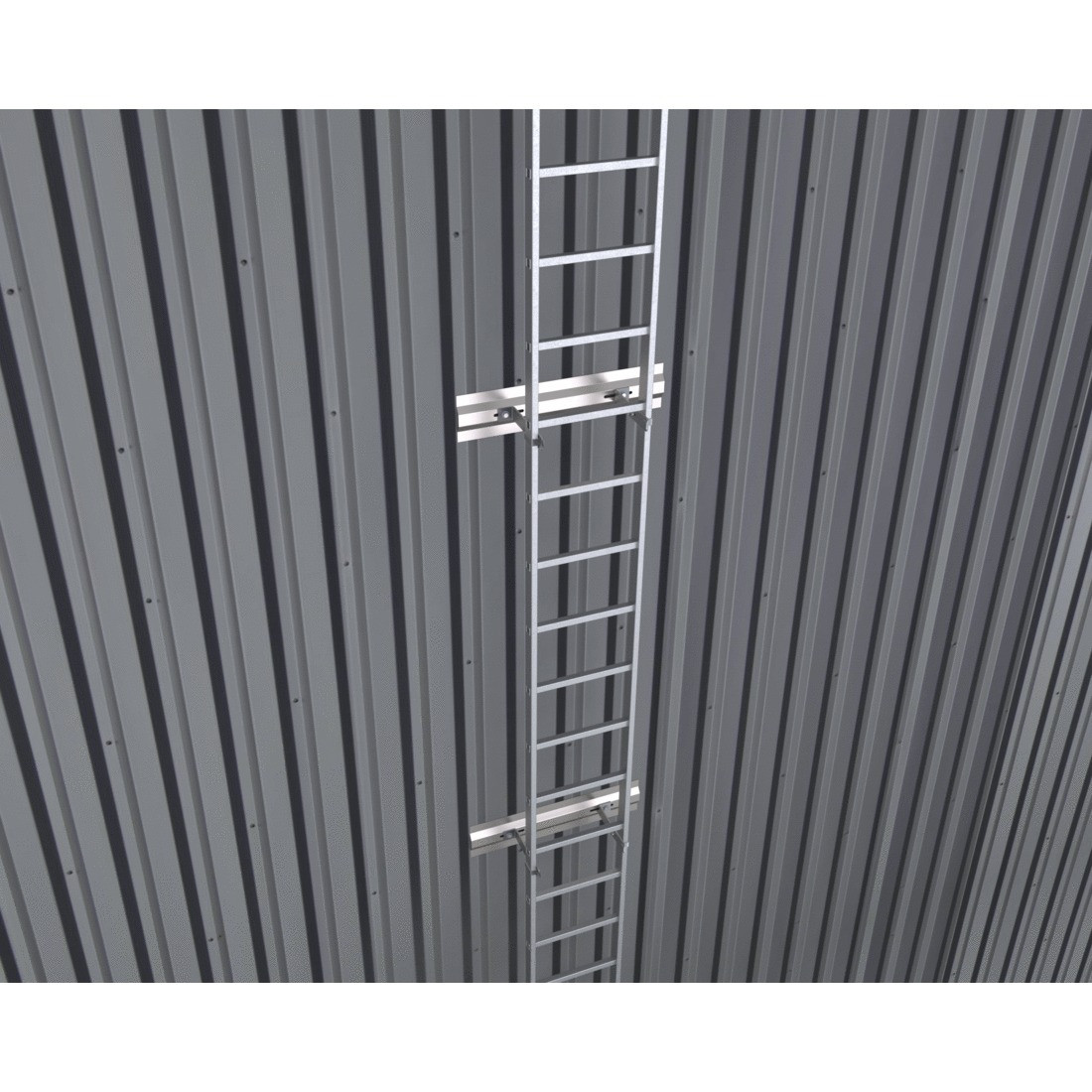

Accessory for fastening the crinoline ladder on the steel cladding.
Waterproofing preserved by the use of neoprene washers and sealing tape.
Maximum spacing between plates: 2.50 m.
Technical description
Plate thickness: 4 mm
Recommended fixing: 8 aluminium pop rivets 7.7 mm or 18 self-drilling screws

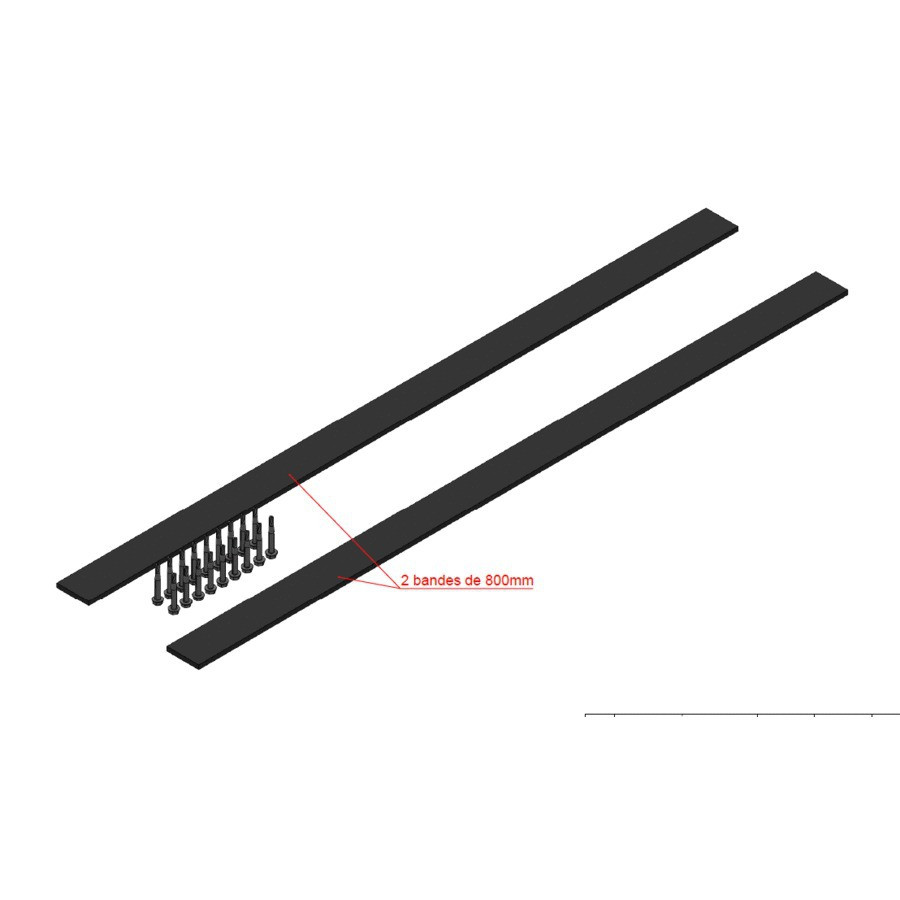

Cladding plate fixing kit available: includes 18 stainless steel self-drilling screws 4.8 x 38 mm and 2 sealing strips of 800 mm
Plate dimensions: 800 x 177 mm
