Adjustable fastening legs for crinoline ladders
Adjustable fastening legs for crinoline ladders

Adjustable fastening legs for crinoline ladders

Standard: NF E85-016/EN ISO 14122-4

Select your reference
+
-

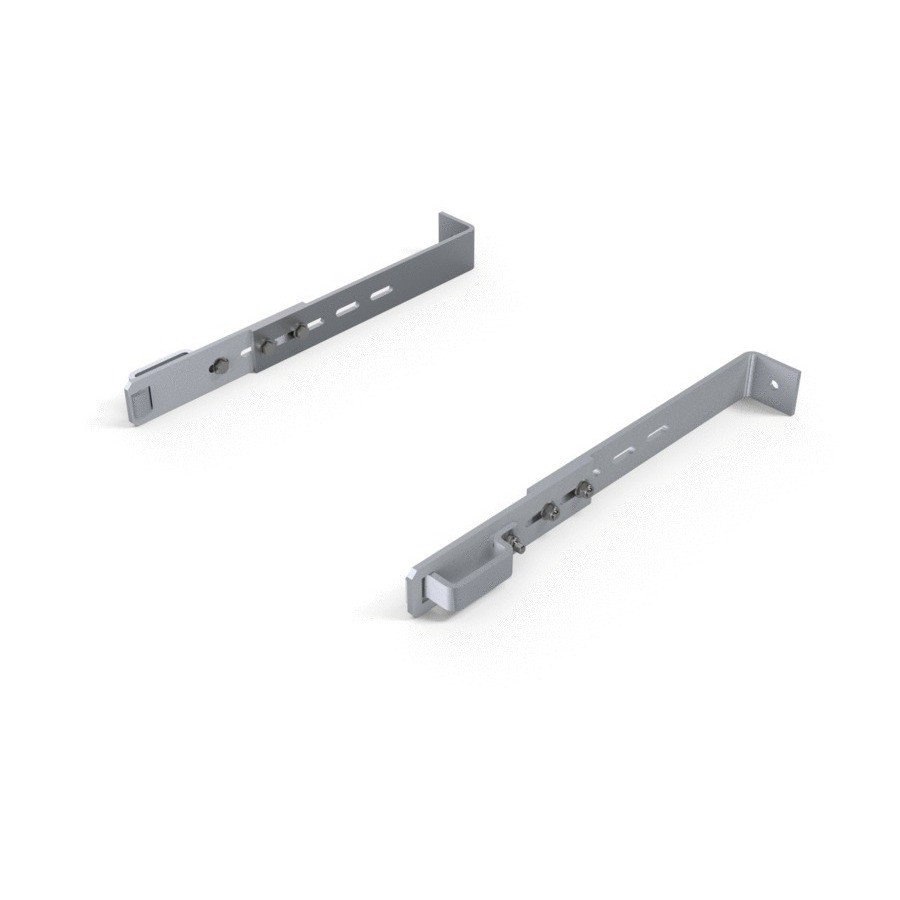

Adjustable fastening legs for crinoline ladders

Technical characteristics

Reference Version Length ('') Spacing ('') Weight (lb) Quantity Quote
Ref. 51571
Code A0002611
Pairs of adjustable mounting brackets 150–270 mm
Stainless steel fasteners 9 - 14 '' 6 - 11 '' 2,20 lb
+
-
Ref. 51571L
Code A0002612
Pairs of adjustable mounting brackets 270–390 mm
Stainless steel fasteners 14 - 19 '' 11 - 15 '' 2,30 lb
+
-
Pairs of adjustable mounting brackets 150–270 mm
Reference : 51571
Version Stainless steel fasteners
Length ('') 9 - 14 ''
Spacing ('') 6 - 11 ''
Weight (lb) 2,20 lb
Quantity :
+
-
Pairs of adjustable mounting brackets 270–390 mm
Reference : 51571L
Version Stainless steel fasteners
Length ('') 14 - 19 ''
Spacing ('') 11 - 15 ''
Weight (lb) 2,30 lb
Quantity :
+
-

Use

Fastening legs allowing to shift the ladder from the façade.

To fasten vertically at every 2.50 maximum.

Pre-assembled and sold in pairs.

Technical description

Made of aluminium


2 adjustment ranges: 150–270 mm and 270–390 mm


Drilling diameter: 11 mm
