Adjustable fastening bracket
Adjustable fastening bracket

Adjustable fastening bracket

Standard: NF E85-016/EN ISO 14122-4

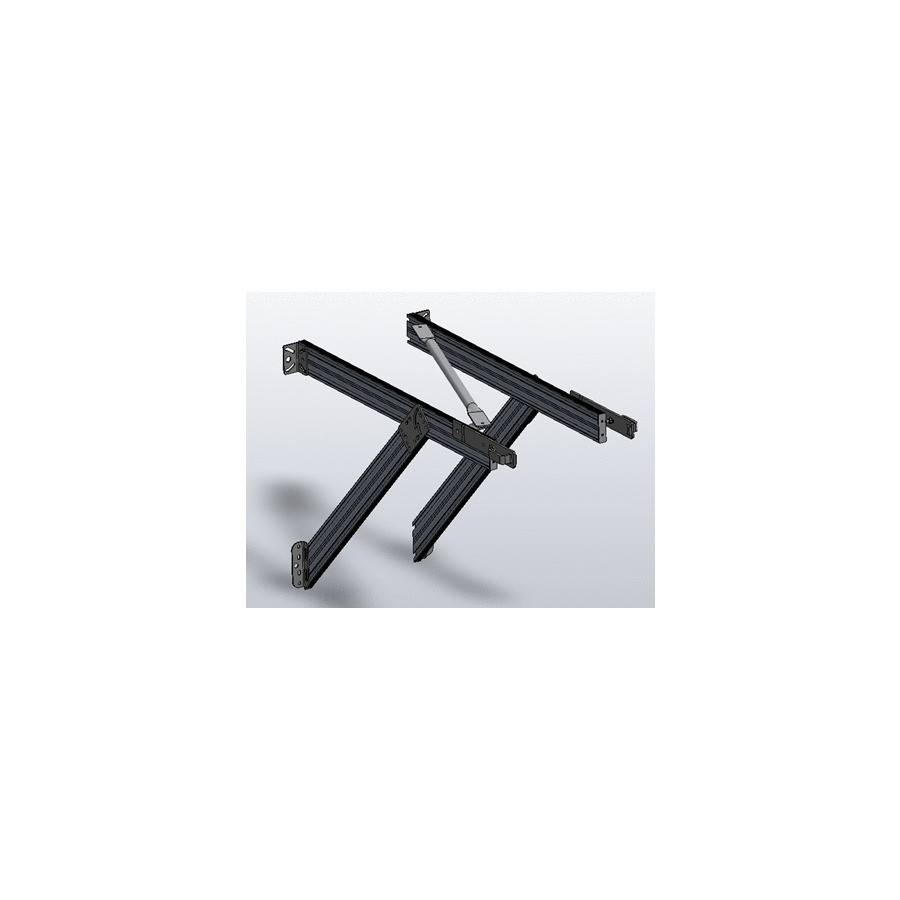

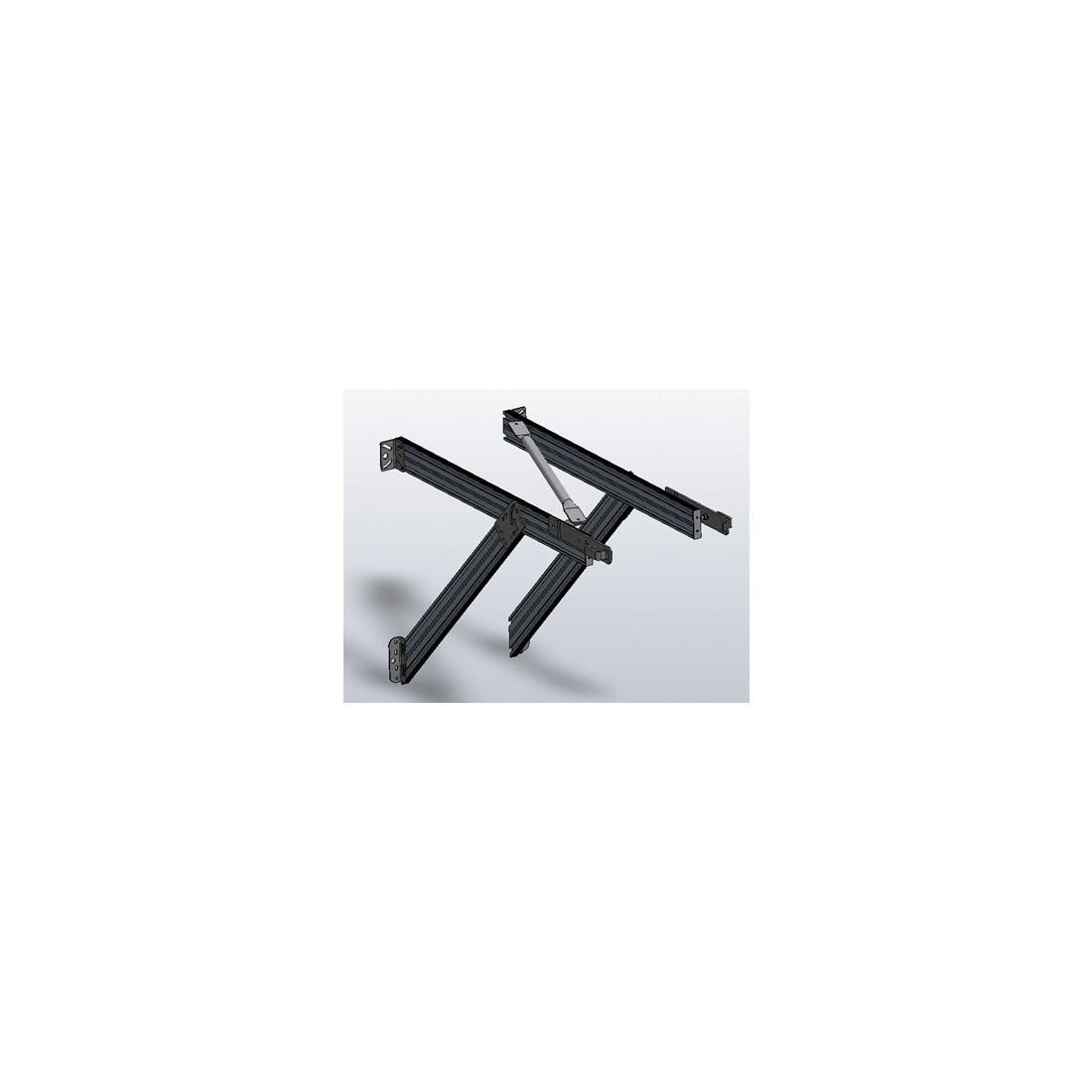

Telescopic fastening bracket for handling large fastening offsets.

Select your reference
+
-

Technical characteristics

Reference Quantity Quote
Ref. A0012422
Code A0012422
Console spéciale
+
-
Console spéciale
Reference : A0012422
Quantity :
+
-

Use

Aluminium wall support bracket for the crinoline ladder.

4 setting fields available.

Fastened in solid brackets and fitted on the cladding.

Technical description

Horizontal boring distance: 420 mm


Vertical boring distance: 250 mm


Max. deflection: 720 mm


Min. deflection: 420 mm
