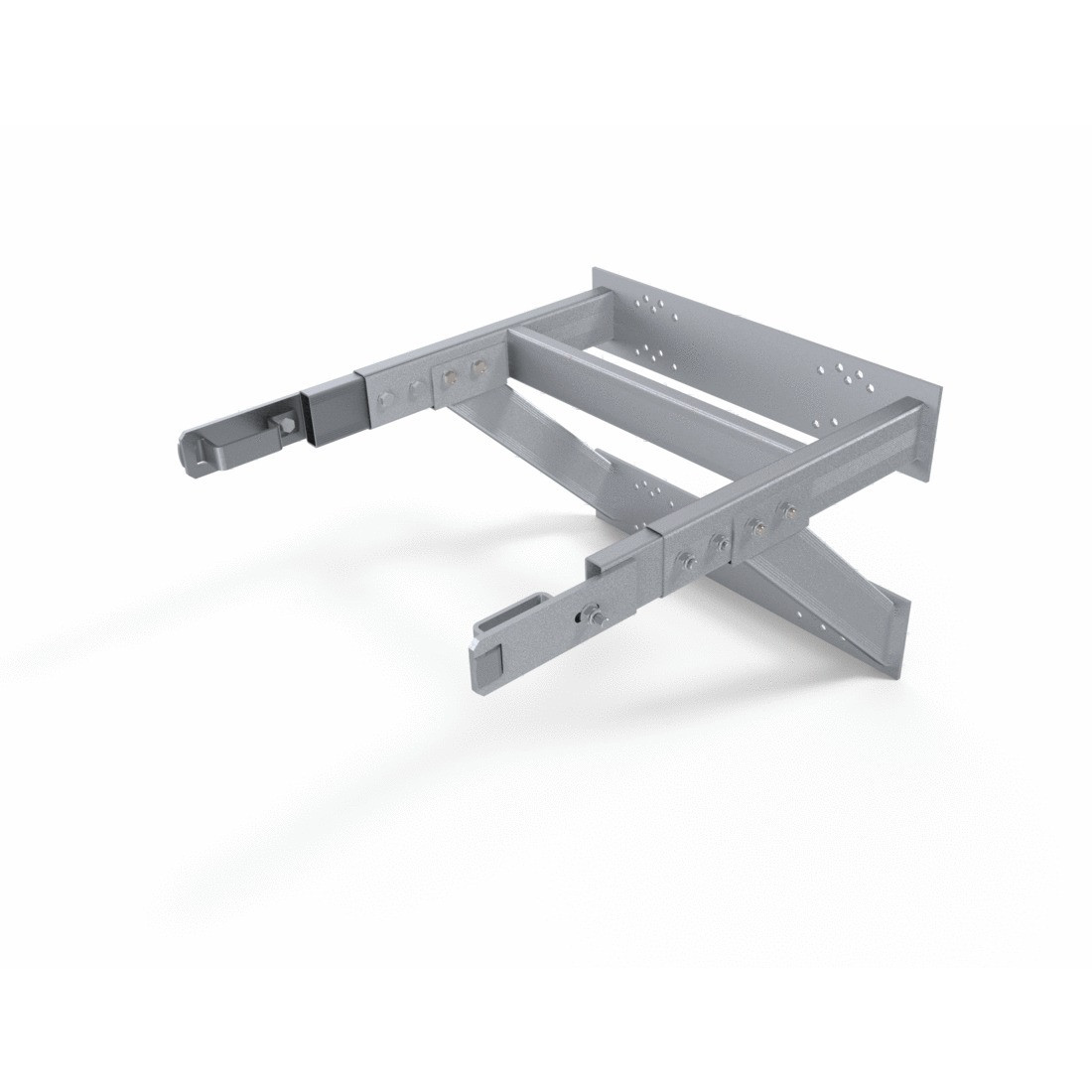

Adjustable fastening bracket
Adjustable fastening bracket

Adjustable fastening bracket

Standard: NF E85-016/EN ISO 14122-4

Telescopic mounting bracket allowing for large offset adjustments.

Select your reference
+
-

Advantages and strengths

Possibilité de déport plus court avec une redécoupe des montants.

Technical characteristics

Reference Spacing (') Weight (lb) Quantity Quote
Ref. 53320
Code A0008236
Adjustable mounting bracket from 350 mm to 720 mm
1 - 2 ' 8,81 lb
+
-
Adjustable mounting bracket from 350 mm to 720 mm
Reference : 53320
Spacing (') 1 - 2 '
Weight (lb) 8,81 lb
Quantity :
+
-

Use

Aluminium wall support bracket for the crinoline ladder.

4 setting fields available.

Fastened in solid brackets and fitted on the cladding.

Technical description

Horizontal drilling distance: 420 mm


Vertical drilling distance: 250 mm


Offset range in current state: from 460 to 720 mm


Minimum offset with post trimming: 350 mm


Recommended fixation per plate (on this adjustable fixing bracket there are 2):


If fixing on cladding: 16 self-drilling screws or 8 aluminum pop rivets (7.7 mm)


If fixing on concrete / others: 2 expansion bolts


Stainless steel fasteners
