Automatic Wall-Mounted Cable Lifeline CONEKT

Warranty 5 years

Standard: EN795:2012/CEN/TS 16415:2013

The CONEKT automatic cable lifeline allows you to work safely at height. Its components are designed to make your movements simple and secure. The smooth sliding of the shuttles along the cable and the automatic CONEKT intermediates also provide optimal user comfort.

Select your reference

Quantity

Advantages and strengths

Time-saving, quick and easy installation, sleek design

Technical characteristics

Reference	Quantity	Quote
Ref. S12 Code A0014058 CONEKT 2-Point Wall End Plate	Quantité maximum disponible pour ce magasin + -
Ref. S13 Code A0014059 CONEKT 4-Point Wall End Plate	Quantité maximum disponible pour ce magasin + -

CONEKT 2-Point Wall End Plate
Reference :	S12
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

CONEKT 4-Point Wall End Plate
Reference :	S13
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

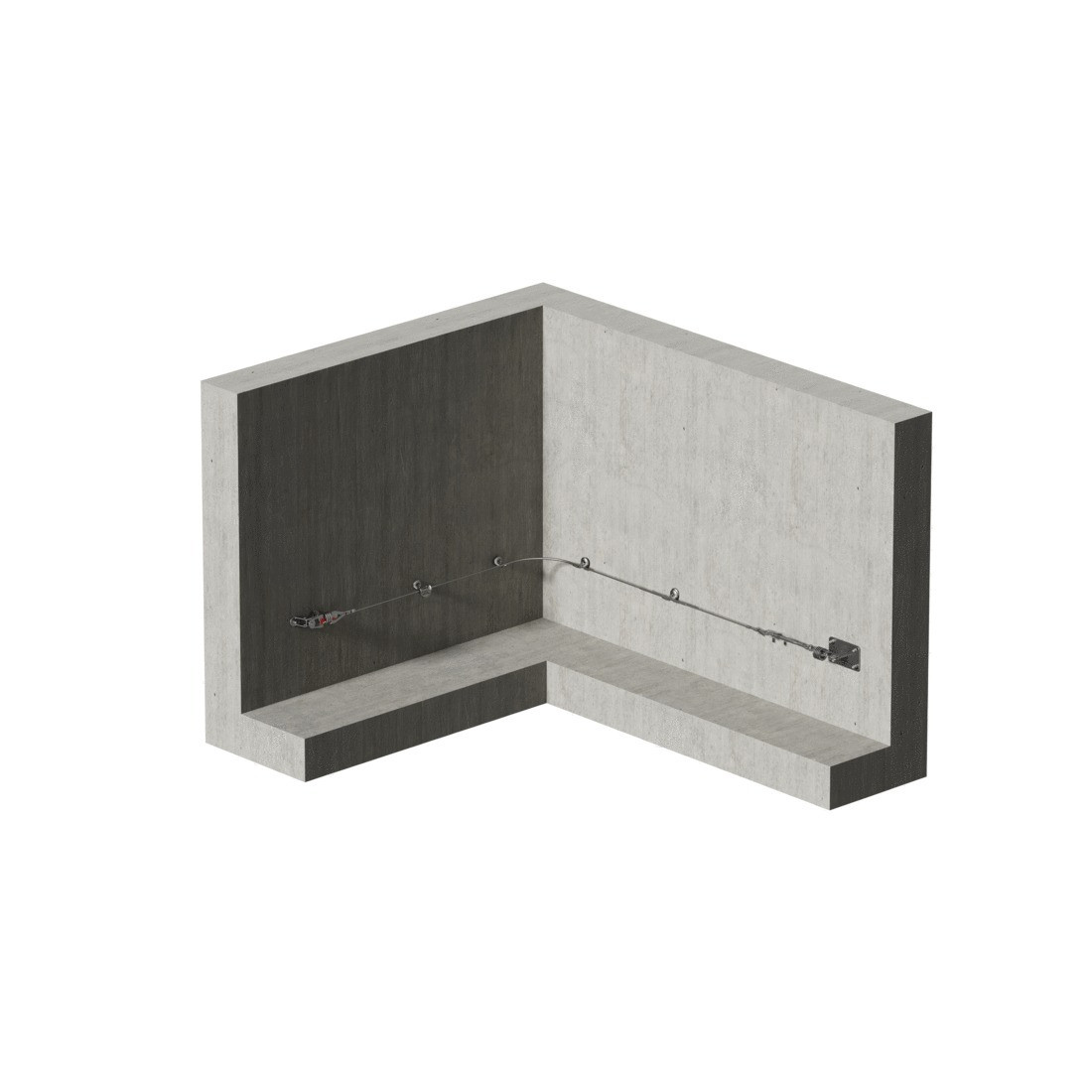

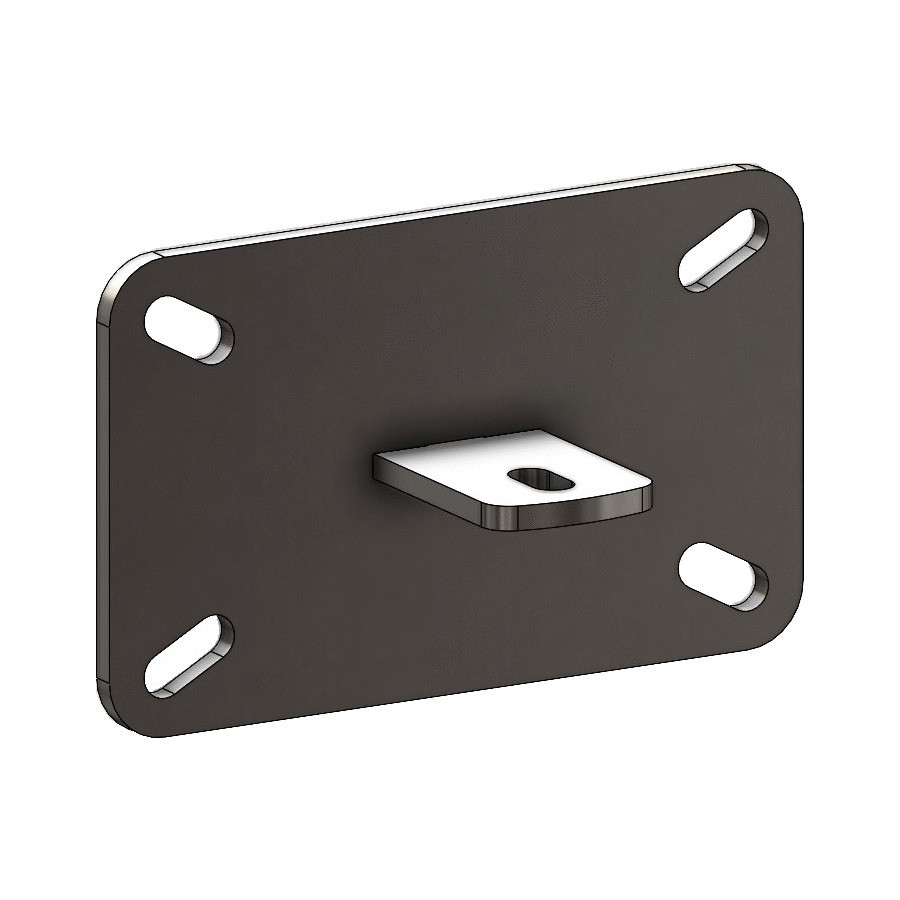

The installation of a CONEKT cable lifeline on a concrete wall is carried out using the S12 or S13 wall end plates, selected according to the type of support.

Technical specifications to be observed:

Spacing between intermediate brackets: 15 m

Maximum of 4 users simultaneously

Periodic inspection at least once every 12 months

Technical description

Can be used with 2 types of shuttles: removable A01 and captive A02.

Documentation

NOT-FR-103 - LDV CAB.PDF

FP CA-EN LDVCA-WALL-C.PDF
