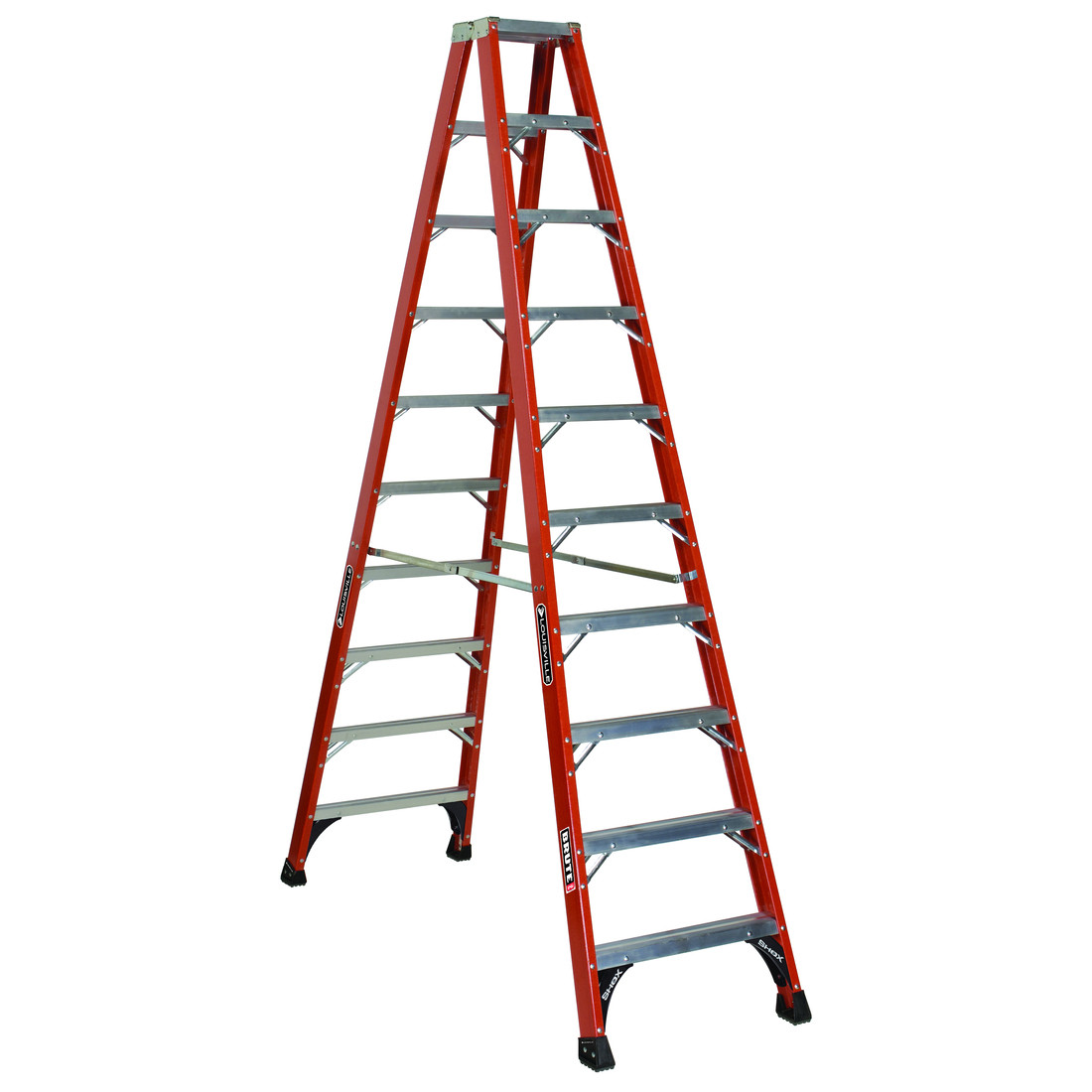

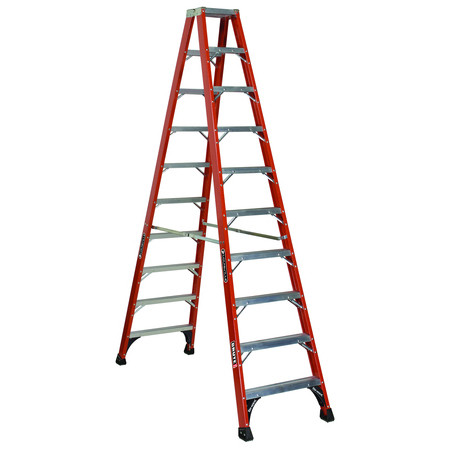

Escabeau double en fibre FM 1400HD - Type 1 AA
Escabeau double en fibre FM 1400HD - Type 1 AA

Escabeau double en fibre FM 1400HD - Type 1 AA

Standard: OSHA/ANSI/CSA

Select your reference
+
-
Escabeau double en fibre FM 1400HD - Type 1 AA

Technical characteristics

Reference Total height (') Base width (') Spacing ('') Weight (lb) Quantity Quote
Ref. FM1404HD
Code AC000143
LL FG TWIN LADDER TIAA 4
4 ' 19 9/16 '' 37 1/2 '' 21,00 lb
+
-
Ref. FM1406HD
Code AC000144
LL FG TWIN LADDER TIAA 6
6 ' 22 9/16 '' 52 5/16 '' 27,00 lb
+
-
Ref. FM1408HD
Code AC000145
LL FG TWIN LADDER TIAA 8
8 ' 25 9/16 '' 67 1/8 '' 36,00 lb
+
-
Ref. FM1414HD
Code AC000146
LL FG TWIN LADDER TIAA 14
14 ' 34 9/16 '' 111 1/2 '' 84,00 lb
+
-
Ref. FM1416HD
Code AC000147
LL FG TWIN LADDER TIAA 16
16 ' 37 9/16 '' 126 5/16 '' 100,00 lb
+
-
LL FG TWIN LADDER TIAA 4
Reference : FM1404HD
Total height (') 4 '
Base width (') 19 9/16 ''
Spacing ('') 37 1/2 ''
Weight (lb) 21,00 lb
Quantity :
+
-
LL FG TWIN LADDER TIAA 6
Reference : FM1406HD
Total height (') 6 '
Base width (') 22 9/16 ''
Spacing ('') 52 5/16 ''
Weight (lb) 27,00 lb
Quantity :
+
-
LL FG TWIN LADDER TIAA 8
Reference : FM1408HD
Total height (') 8 '
Base width (') 25 9/16 ''
Spacing ('') 67 1/8 ''
Weight (lb) 36,00 lb
Quantity :
+
-
LL FG TWIN LADDER TIAA 14
Reference : FM1414HD
Total height (') 14 '
Base width (') 34 9/16 ''
Spacing ('') 111 1/2 ''
Weight (lb) 84,00 lb
Quantity :
+
-
LL FG TWIN LADDER TIAA 16
Reference : FM1416HD
Total height (') 16 '
Base width (') 37 9/16 ''
Spacing ('') 126 5/16 ''
Weight (lb) 100,00 lb
Quantity :
+
-

Use

Class 1AA fibreglass step ladder.

Technical description

Withstands a weight of 160 kg (375 lb)


Attack step reinforced by the SHOX force absorption system


Aluminium spacer bar


Steps protected by a double clinch and reinforced with brackets


Reinforced anti-slip pads


Equipped with a tool carrier shelf


76 mm (3’’) step depth
