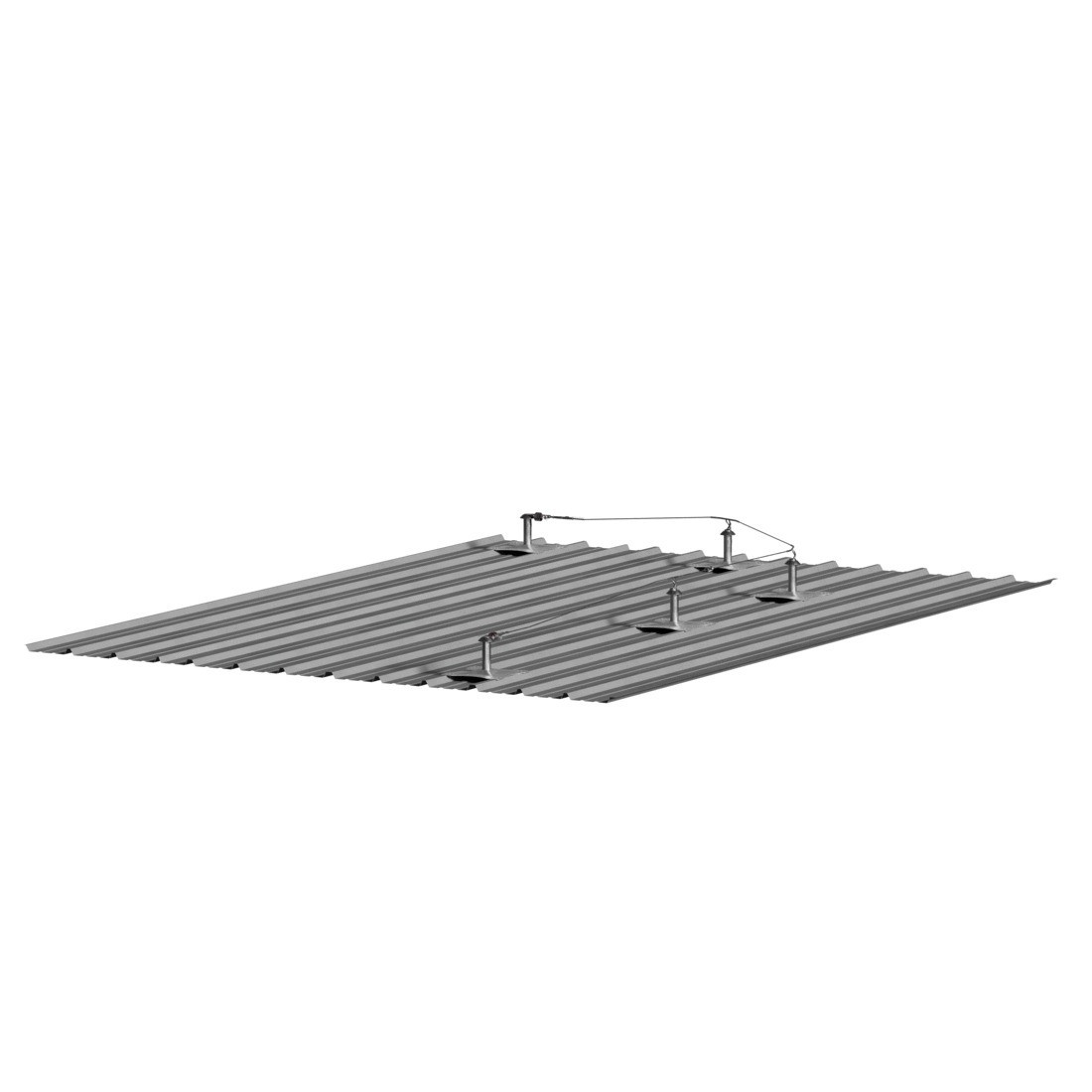

CONEKT automatic cable lifeline on metal roof
Warranty 5 years
The CONEKT automatic cable lifeline allows you to work safely at height. Its components are designed to make movement easy and secure. The smooth gliding of the trolleys along the cable and the CONEKT automatic pass-throughs also offer optimal user comfort.
Advantages and strengths
Time-saving, quick and easy installation, sleek design
Technical characteristics
| Base plate for 2 CONEKT tilting posts | |
|---|---|
| Reference : | PB2 |
| Quantity : |
|

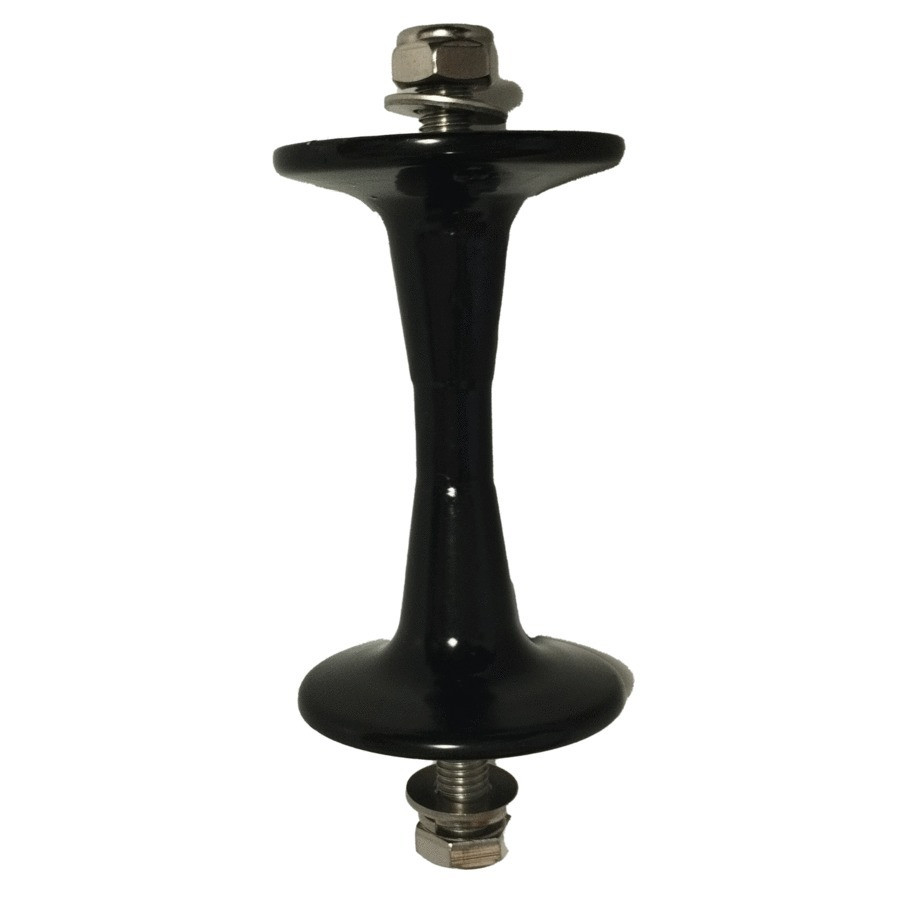

| CONEKT spacer (diabolo) H100mm | |
|---|---|
| Reference : | AD |
| Quantity : |
|

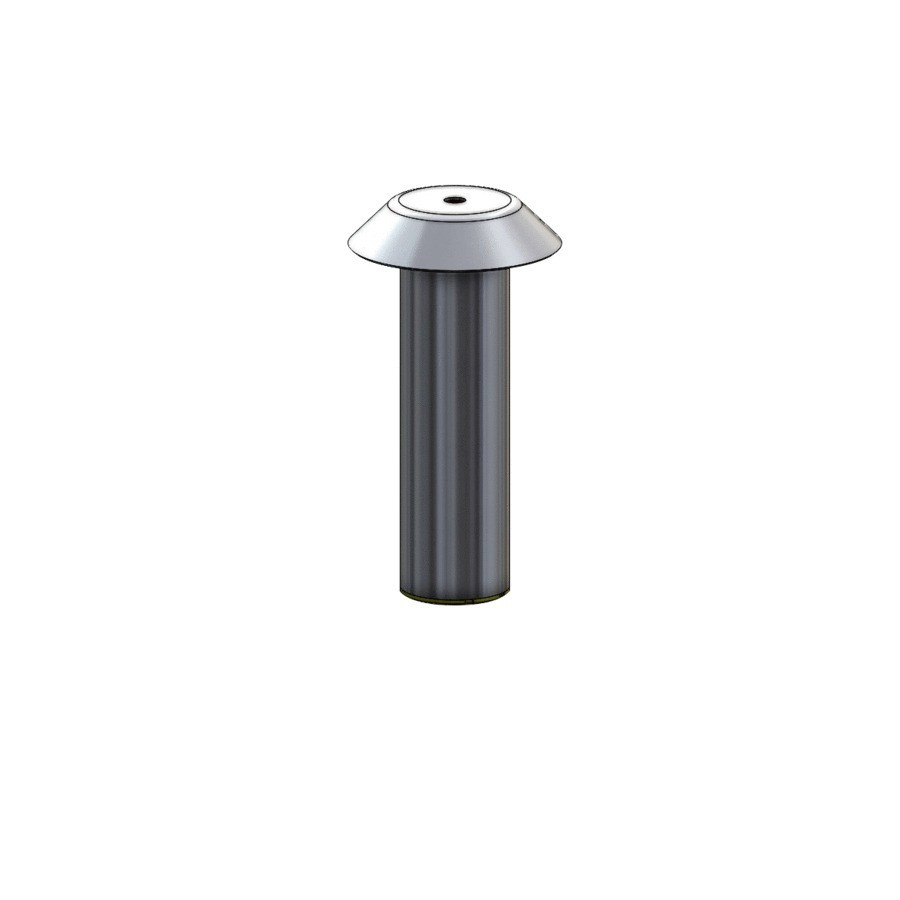

| CONEKT tilting post, H250 mm | |
|---|---|
| Reference : | PB250 |
| Quantity : |
|

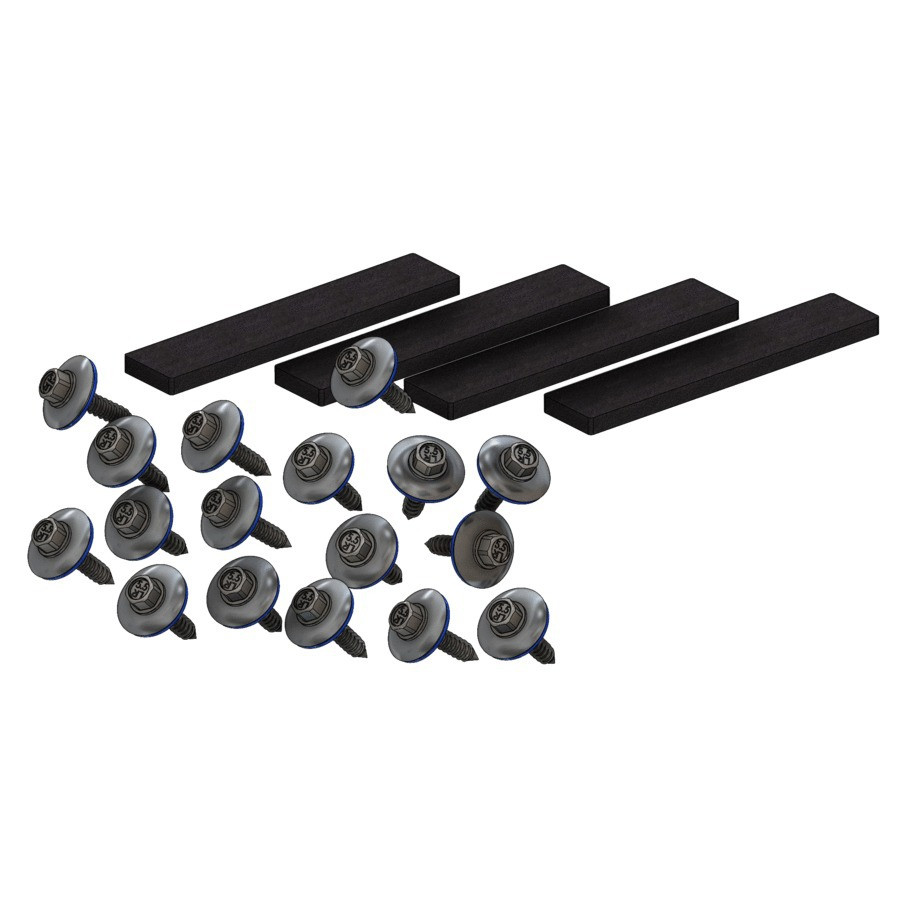

| CONEKT set of 16 self-drilling screws + EPDM strip | |
|---|---|
| Reference : | PBa |
| Quantity : |
|

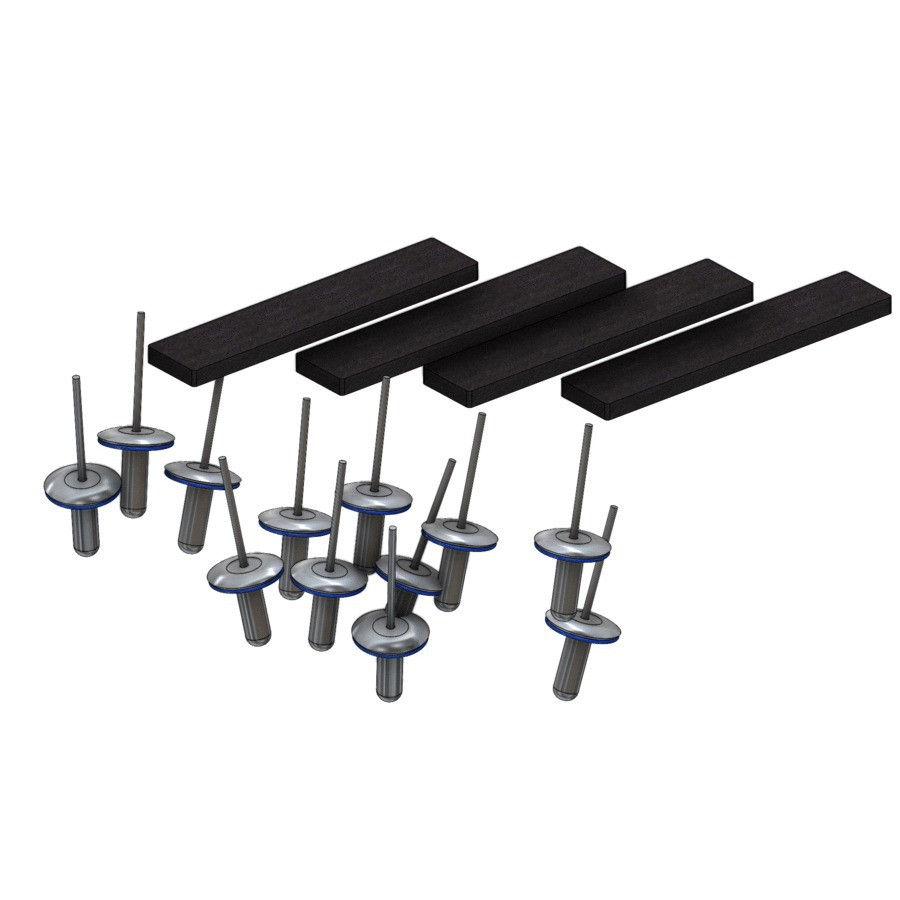

| CONEKT set of 12 rivets + EPDM strip | |
|---|---|
| Reference : | PBr |
| Quantity : |
|

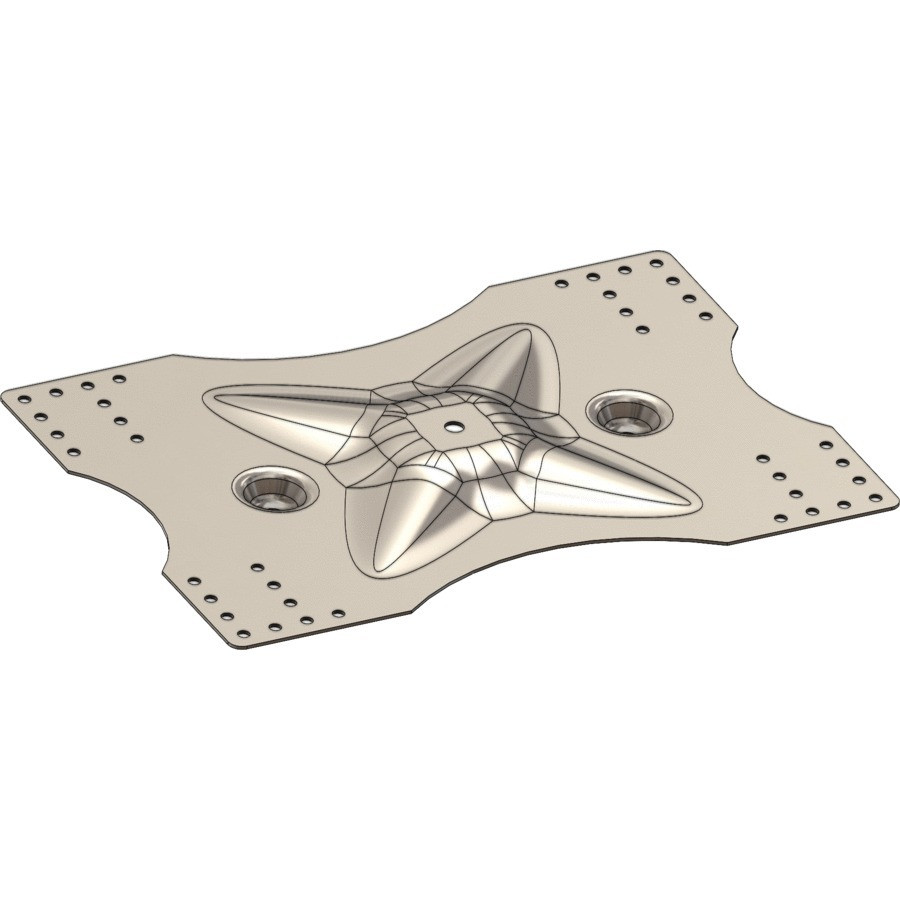

| CONEKT MINI OMEGA stainless steel base plate for metal roof | |
|---|---|
| Reference : | A0014994 |
| Quantity : |
|
Use
The installation of a CONEKT cable lifeline on a dry deck is carried out using the PB2 plate, on which a riser must be added (AD diabolo or PB250 tilting post).
Technical specifications to be observed:
Dry deck thickness ≥ 0.63 mm
Spacing between fixings: 10 - 12 m max
Maximum of 4 users simultaneously
Periodic inspection at least once every 12 months
-
![]()
