Advantages and strengths

Extremely easy assembly; does not bother the workers during emergency rescue situations, for added security.

Technical characteristics

Reference	Load-bearing capacity (lb)	Weight (lb)	Quantity	Quote
Ref. 8308009 Code AC000178 Three-way self-retracting lifeline tripod	310 lb	163,60 lb	Quantité maximum disponible pour ce magasin + -

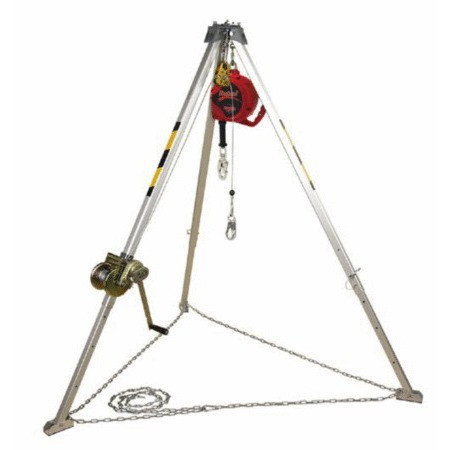

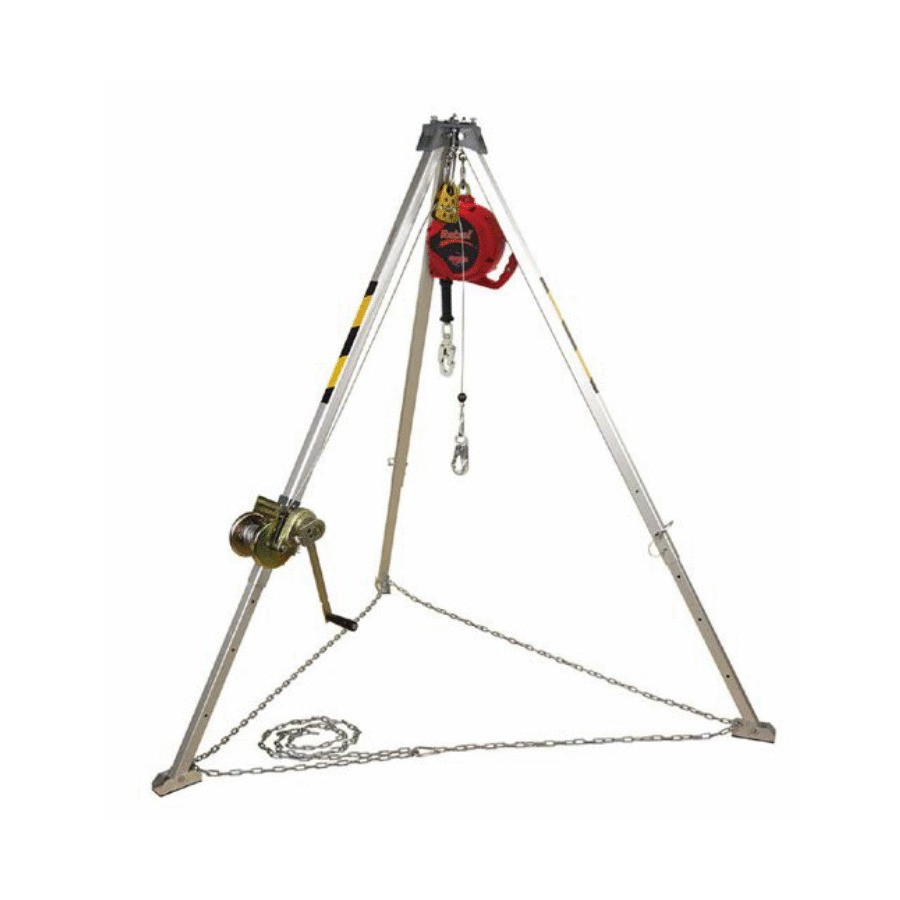

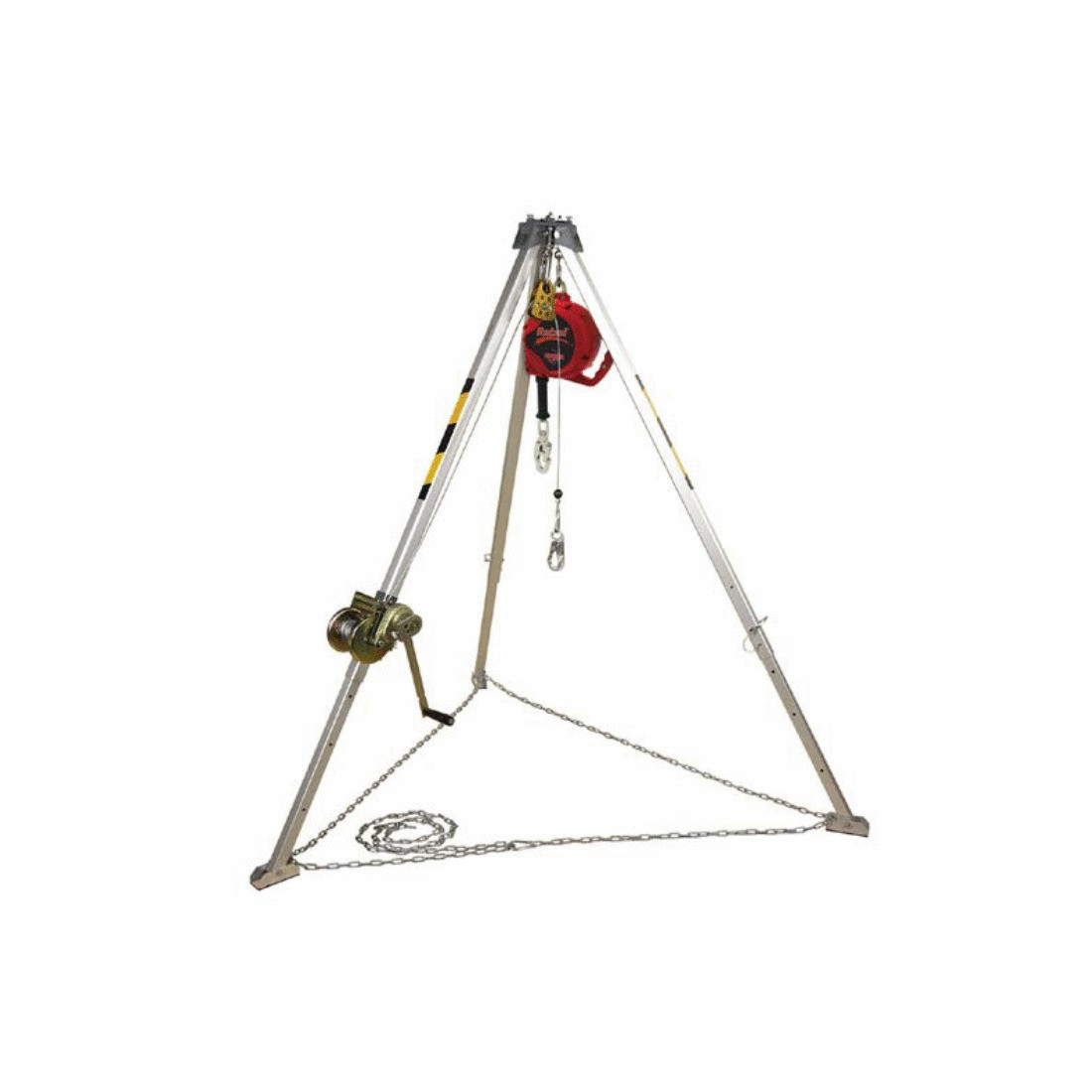

Three-way self-retracting lifeline tripod
Reference :	8308009
Load-bearing capacity (lb)	310 lb
Weight (lb)	163,60 lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

This tripod includes:

- a recovery winch

- a 15 m (50') galvanised three-way self-retracting lifeline with a mounting bracket and a pulley for confined space entrances.

The fastening bracket is used to attach the self-retracting lifeline to the tripod.

Its aluminium construction enables the lightweight and durability of the product.

This tripod is easy to transport, mount and use and is weatherproof, for a longer lifetime.

Its feet are lockable, adjustable and telescopic.

Compact and durable design.

Aluminium tripod of 2,40 m (8)

Capacity : 140 kg (310 lb)

Portable assembly

Galvanised steel lifeline cable, with a length of 15,20 m (50) and a diameter of 5 mm 3/16"

Winch housing : cast aluminium, powder coating
