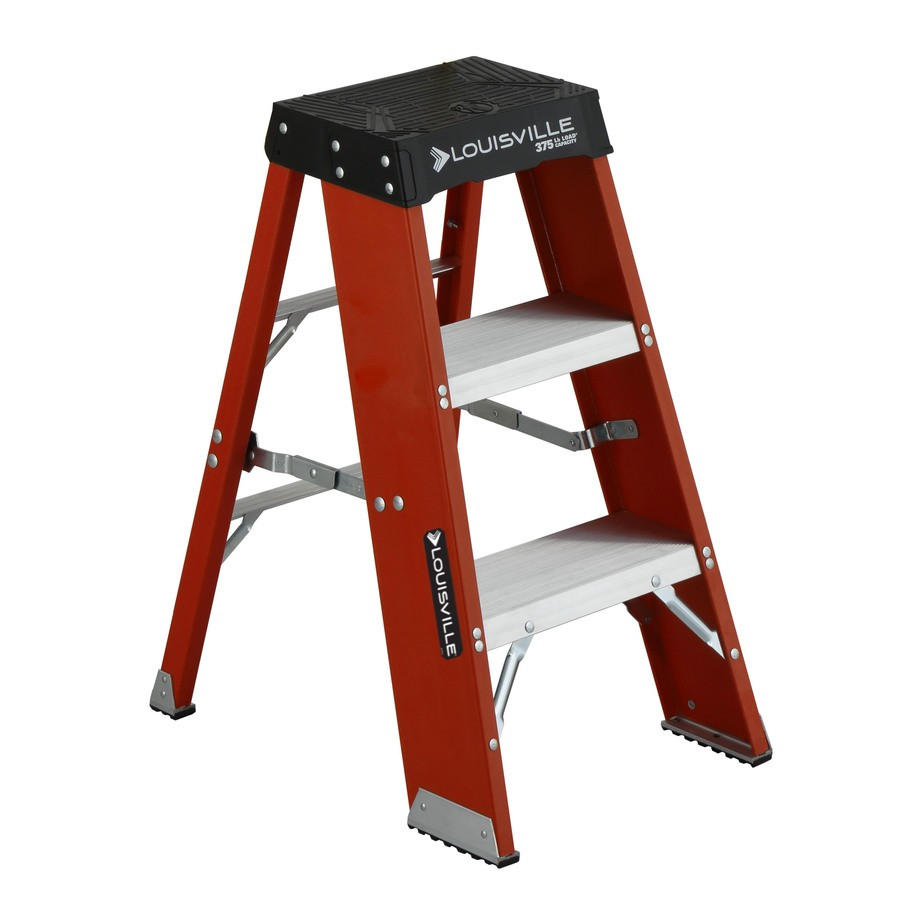

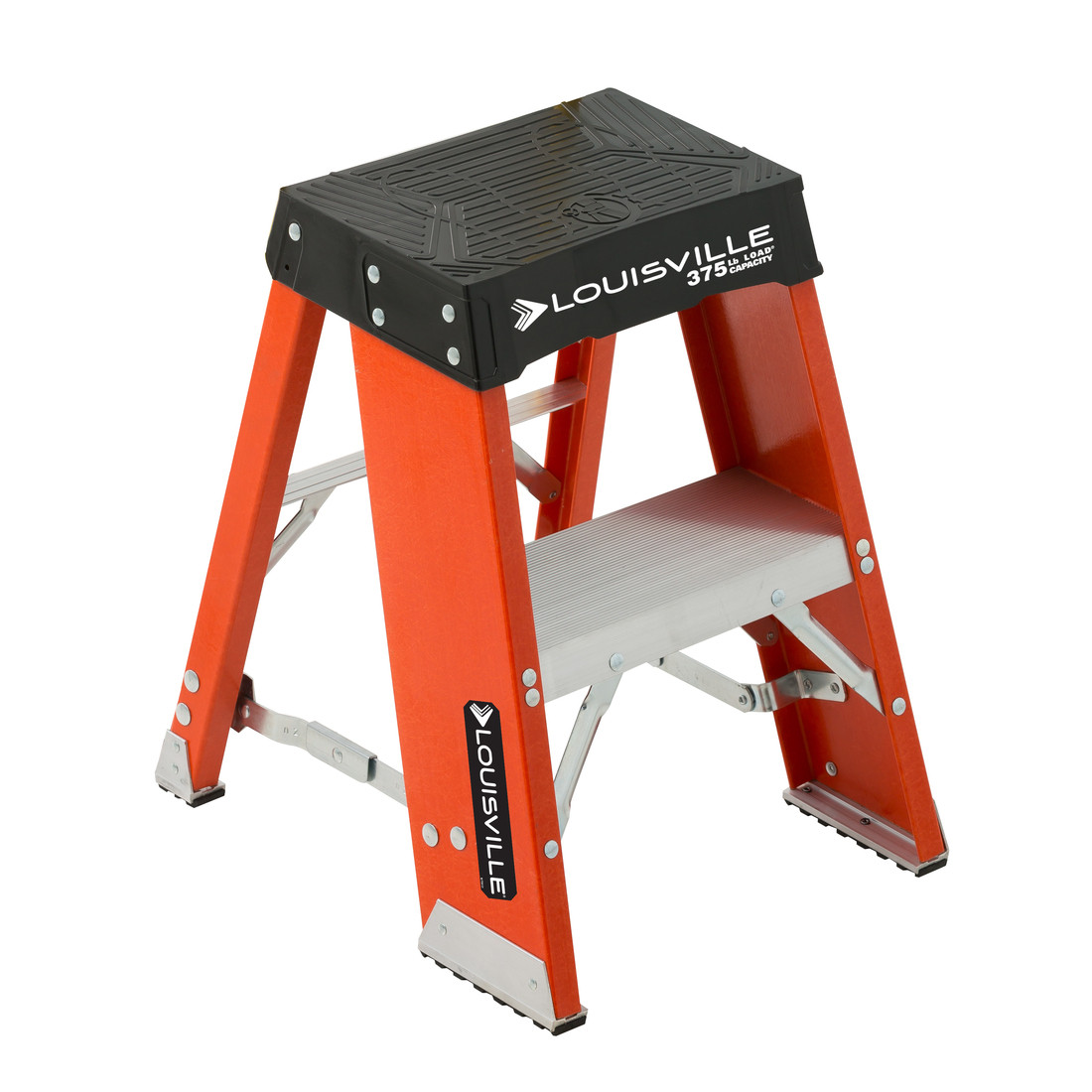

Louisville Ladder: FY8000 Fiberglass Industrial Step Stand (375 lb)

Standard: ANSI A14.5

An extra-heavy-duty fiberglass industrial step stand with a slip-resistant Raptor Top.

Select your reference

Quantity

Louisville Ladder: FY8000 Fiberglass Industrial Step Stand (375 lb)

Advantages and strengths

Extra-heavy-duty fiberglass industrial step stand, 375 lb (170 kg) duty rating, with a slip-resistant Raptor Top.

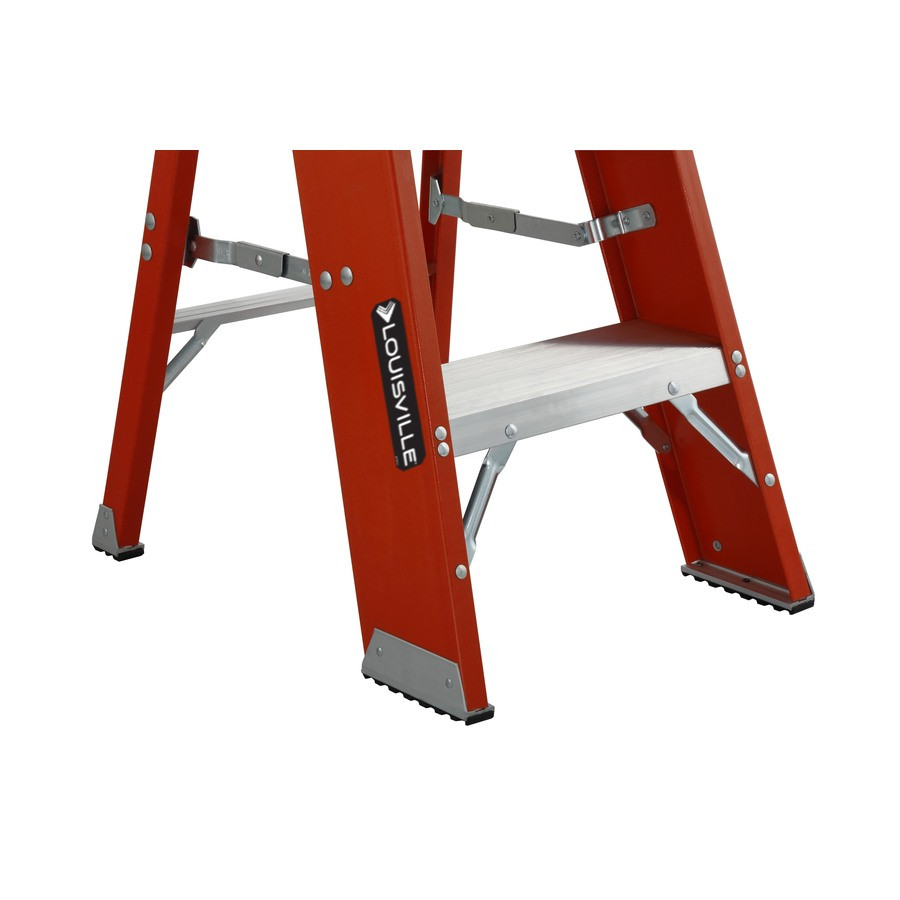

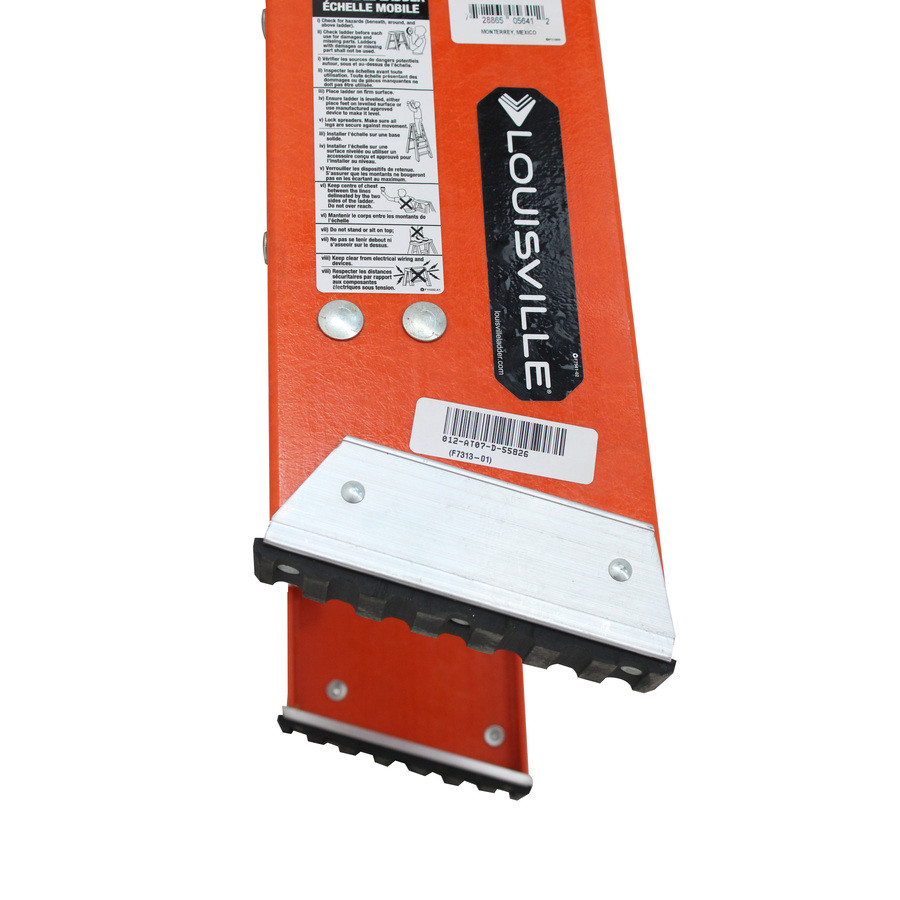

Large metal shoe with slip-resistant tread, heavy-duty steel double-rivet gussets, optional casters and handle.

Technical characteristics

Reference	characteristic.CANADA_HAUTEUR_MARCHEPIED	characteristic.CANADA_HAUTEUR_PORTEE	characteristic.CANADA_PROFONDEUR_MARCHE	characteristic.CANADA_LARGEUR_BASE	characteristic.CANADA_POIDS	Quantity
Ref. FY8001** Model 1	1 ft (0.30 m)	7 ft 8 in (2.34 m)	6 in (15.2 cm)	15 in (38.1 cm)	8 lb (3.6 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FY8002 Model 2	1 ft 11 in (0.58 m)	8 ft 6 in (2.59 m)	6 in (15.2 cm)	17 3/8 in (44.1 cm)	13 lb (5.9 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FY8003 Model 3	2 ft 9 in (0.84 m)	9 ft 5 in (2.87 m)	6 in (15.2 cm)	19 3/4 in (50.2 cm)	19 lb (8.6 kg) lb	Quantité maximum disponible pour ce magasin + -

Model 1
Reference :	FY8001**
characteristic.CANADA_HAUTEUR_MARCHEPIED	1 ft (0.30 m)
characteristic.CANADA_HAUTEUR_PORTEE	7 ft 8 in (2.34 m)
characteristic.CANADA_PROFONDEUR_MARCHE	6 in (15.2 cm)
characteristic.CANADA_LARGEUR_BASE	15 in (38.1 cm)
characteristic.CANADA_POIDS	8 lb (3.6 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Model 2
Reference :	FY8002
characteristic.CANADA_HAUTEUR_MARCHEPIED	1 ft 11 in (0.58 m)
characteristic.CANADA_HAUTEUR_PORTEE	8 ft 6 in (2.59 m)
characteristic.CANADA_PROFONDEUR_MARCHE	6 in (15.2 cm)
characteristic.CANADA_LARGEUR_BASE	17 3/8 in (44.1 cm)
characteristic.CANADA_POIDS	13 lb (5.9 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Model 3
Reference :	FY8003
characteristic.CANADA_HAUTEUR_MARCHEPIED	2 ft 9 in (0.84 m)
characteristic.CANADA_HAUTEUR_PORTEE	9 ft 5 in (2.87 m)
characteristic.CANADA_PROFONDEUR_MARCHE	6 in (15.2 cm)
characteristic.CANADA_LARGEUR_BASE	19 3/4 in (50.2 cm)
characteristic.CANADA_POIDS	19 lb (8.6 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

Extra-heavy-duty strength

With a 375 lb (170 kg) rating, the FY8000 is built for the most demanding industrial and professional uses.

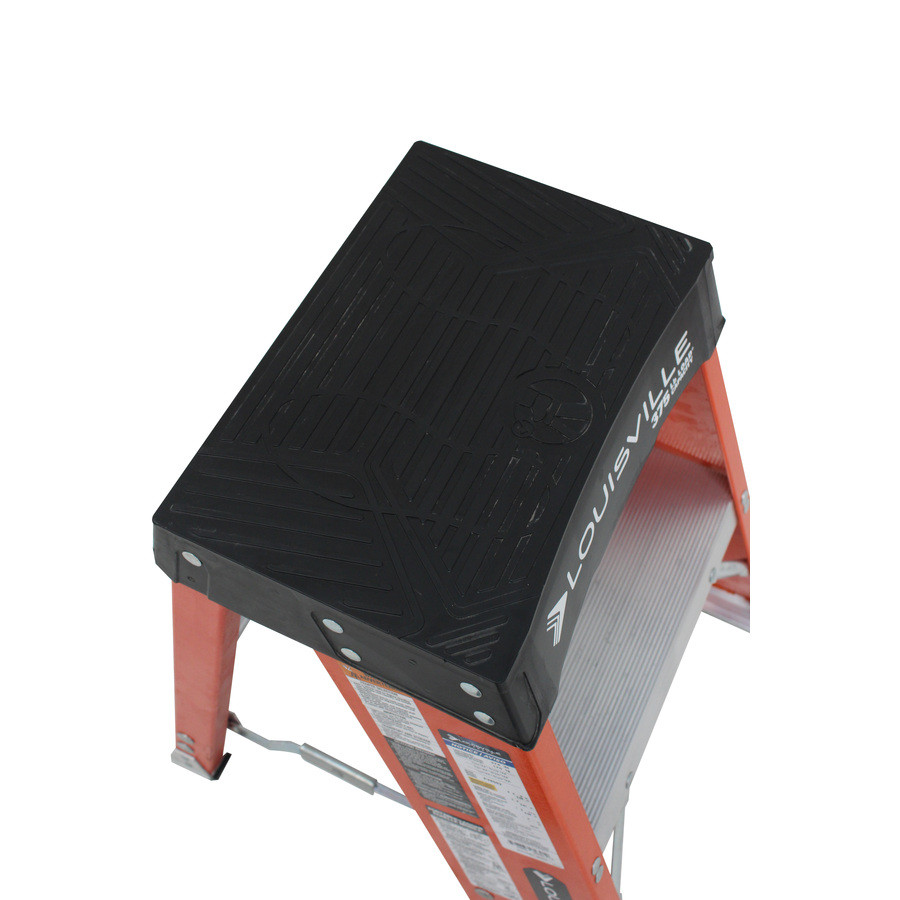

Slip-resistant Raptor Top

The Raptor Top's slip-resistant finish and 6 in (15.2 cm) step depth ensure a stable, safe working position.

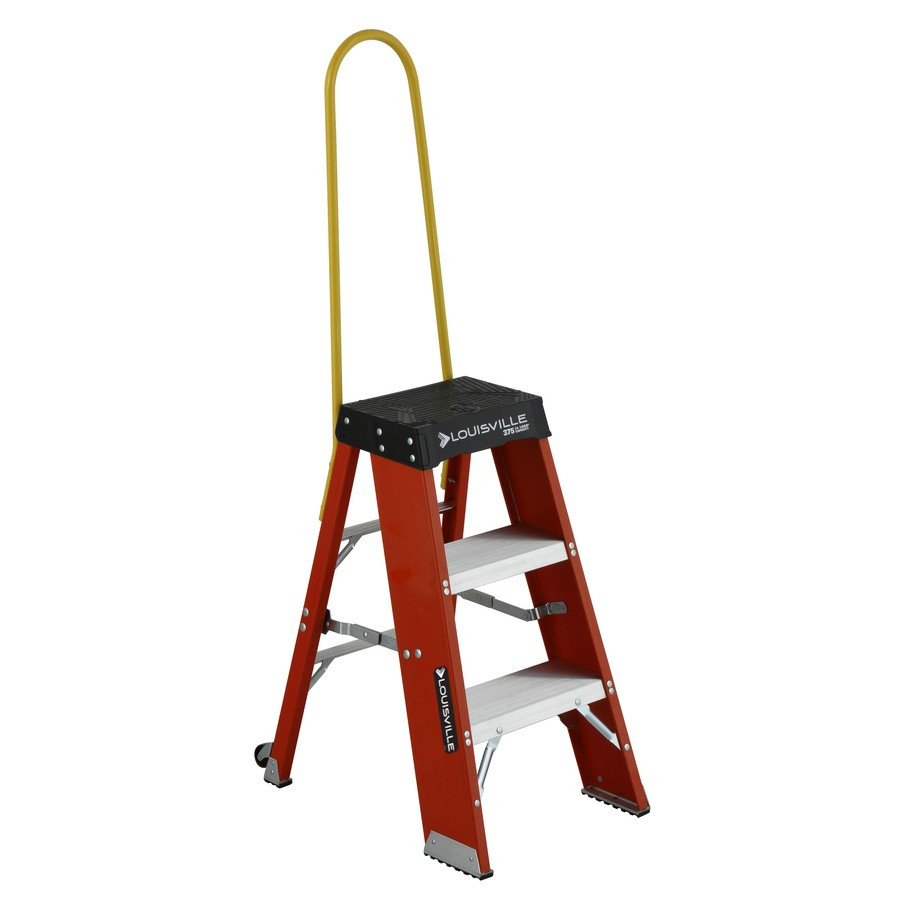

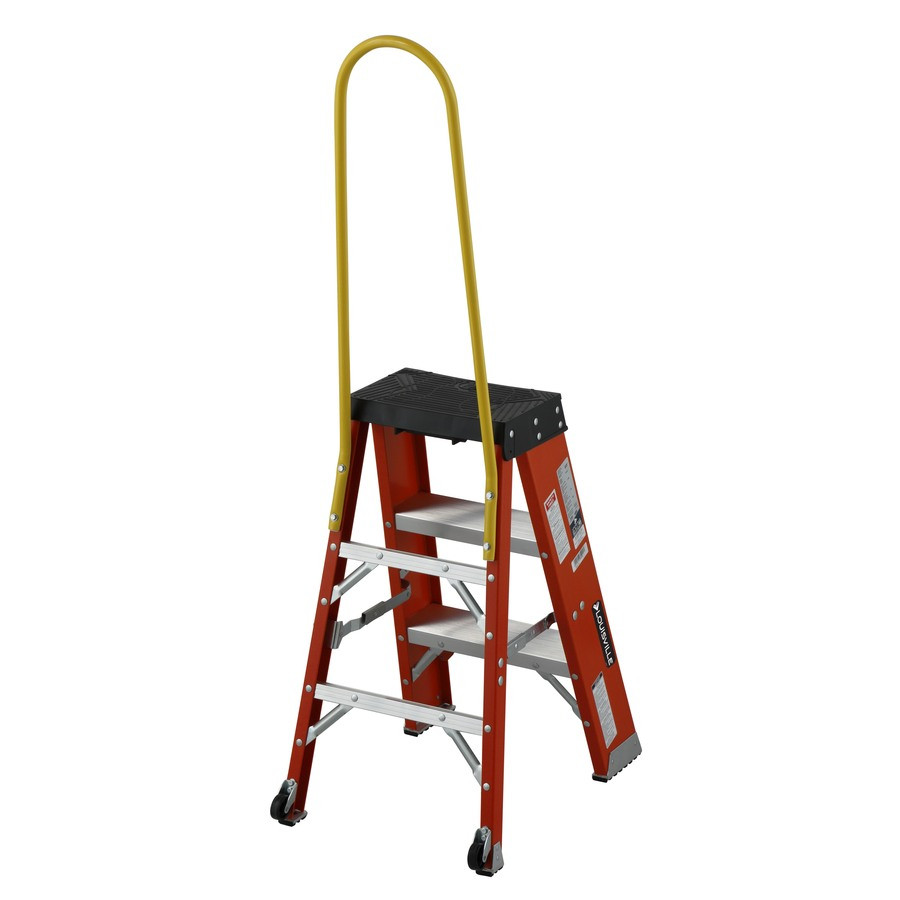

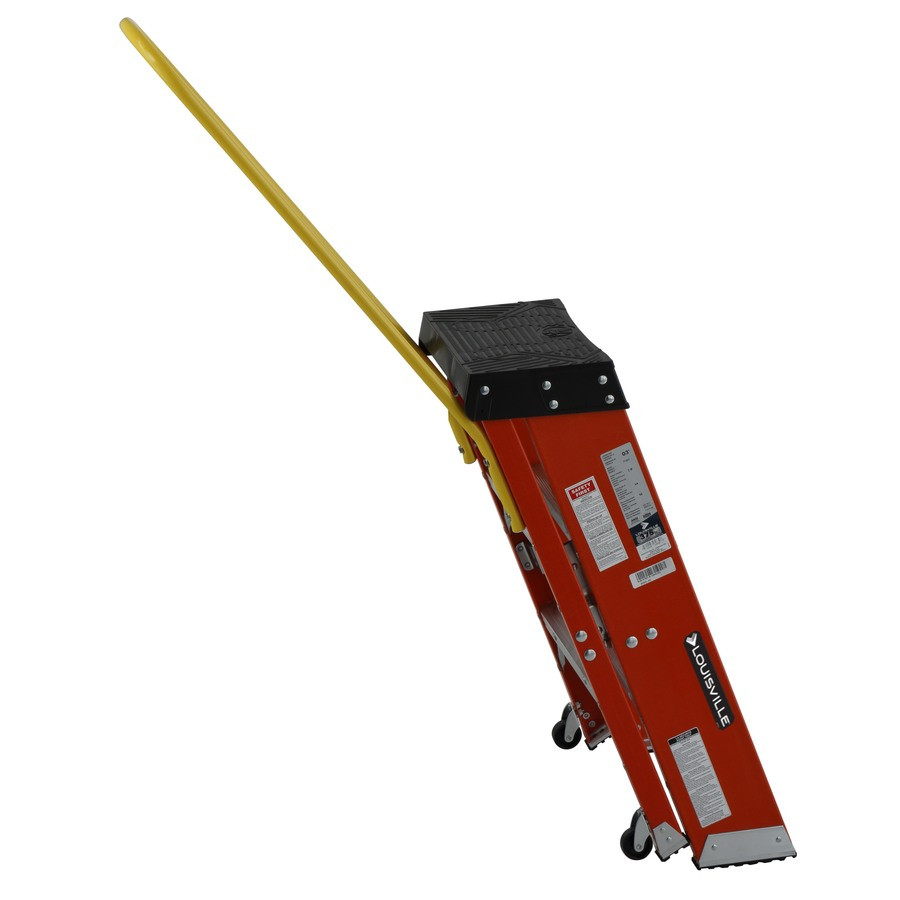

Mobility options

Optional casters and handle (except on the FY8001 model) make it easier to move the step stand around the job site.

Non-conductive

Fiberglass does not conduct electricity when clean and dry, an asset for work near live lines.

Regulatory compliance

Designed to meet or exceed ANSI A14.5 requirements, as well as applicable CSA standards for the Canadian market.
