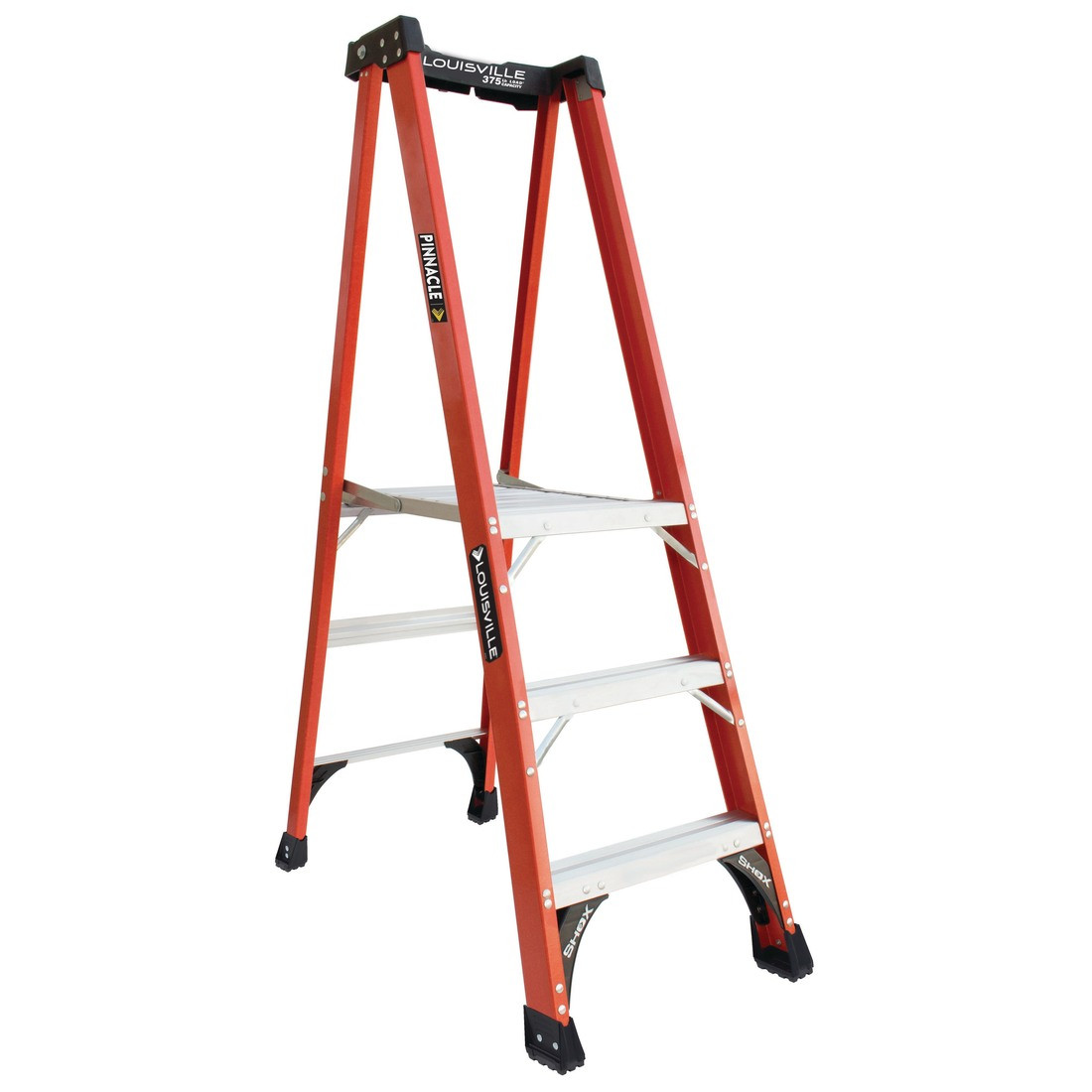

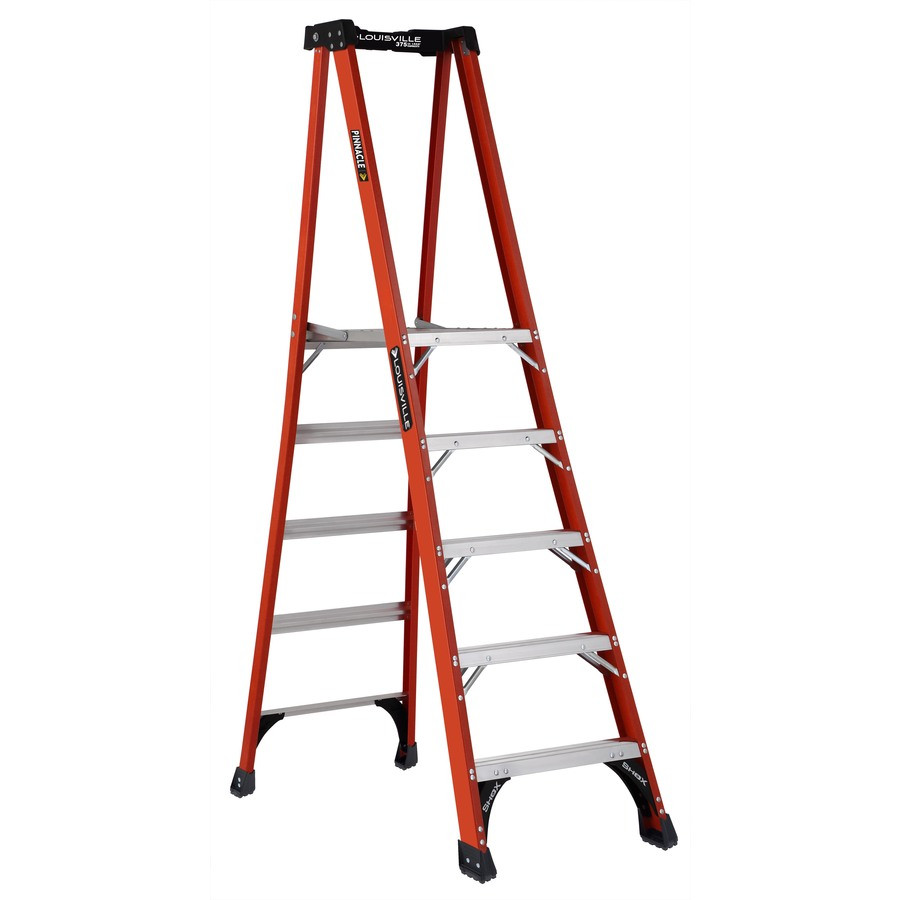

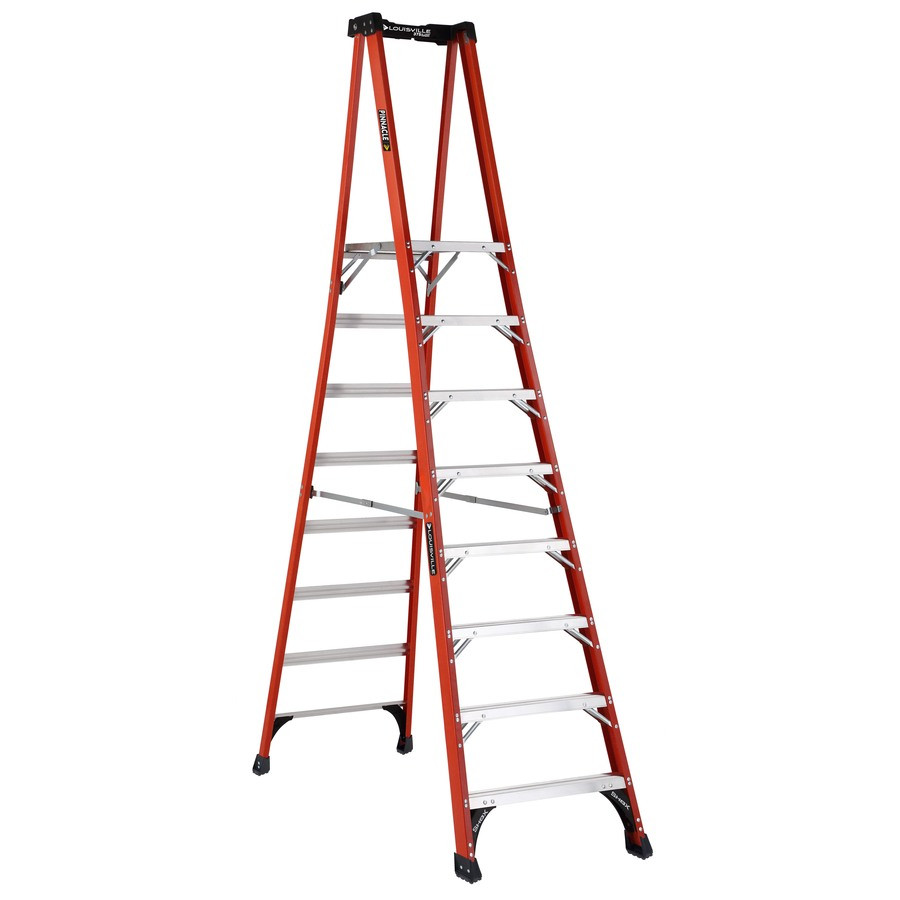

Louisville Ladder: FXP1800HD Pinnacle Platform Ladder (375 lb)

Louisville Ladder: FXP1800HD Pinnacle Platform Ladder (375 lb)

Standard: ANSI A14.5

An extra-heavy-duty platform ladder with a platform 19% larger than competing ladders.

Select your reference

Quantity

Louisville Ladder: FXP1800HD Pinnacle Platform Ladder (375 lb)

Advantages and strengths

Extra-heavy-duty fiberglass platform ladder, 375 lb (170 kg) duty rating, with a platform 19% larger than competing models.
Waist-high handrail, ProTop, SHOX system, and Raptor Boot shoe.

Technical characteristics

Reference	characteristic.CANADA_HAUTEUR_TOTALE	characteristic.CANADA_HAUTEUR_PORTEE	characteristic.CANADA_LARGEUR_BASE	characteristic.CANADA_ECARTEMENT	characteristic.CANADA_POIDS	Quantity
Ref. FXP1802HD Pinnacle 2 ft. Fiberglass Platform Stepladder 2ft	1 ft 11 in (0.58 m)	8 ft 6 in (2.59 m)	21 7/8 in (55.6 cm)	36 in (91.4 cm) cm	20 lb (9.1 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1803HD Pinnacle 2 ft. Fiberglass Platform Stepladder 3ft	2 ft 10 in (0.86 m)	9 ft 5 in (2.87 m)	23 3/8 in (59.4 cm)	42 in (106.7 cm) cm	22 lb (10.0 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1804HD Pinnacle 2 ft. Fiberglass Platform Stepladder 4ft	3 ft 9 in (1.14 m)	10 ft 5 in (3.17 m)	24 7/8 in (63.2 cm)	48 in (121.9 cm) cm	25 lb (11.3 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1806HD Pinnacle 2 ft. Fiberglass Platform Stepladder 6ft	5 ft 8 in (1.73 m)	12 ft 3 in (3.73 m)	27 7/8 in (70.8 cm)	61 1/2 in (156.2 cm) cm	33 lb (15.0 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1808HD Pinnacle 2 ft. Fiberglass Platform Stepladder 8ft	7 ft 7 in (2.31 m)	14 ft 2 in (4.32 m)	30 7/8 in (78.4 cm)	74 in (188.0 cm) cm	50 lb (22.7 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1810HD* Pinnacle 2 ft. Fiberglass Platform Stepladder 10 ft	9 ft 6 in (2.90 m)	16 ft 1 in (4.90 m)	33 7/8 in (86.0 cm)	88 in (223.5 cm) cm	62 lb (28.1 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1812HD* Pinnacle 2 ft. Fiberglass Platform Stepladder 12ft	11 ft 5 in (3.48 m)	18 ft (5.49 m)	36 7/8 in (93.7 cm)	101 1/2 in (257.8 cm) cm	75 lb (34.0 kg) lb	Quantité maximum disponible pour ce magasin + -

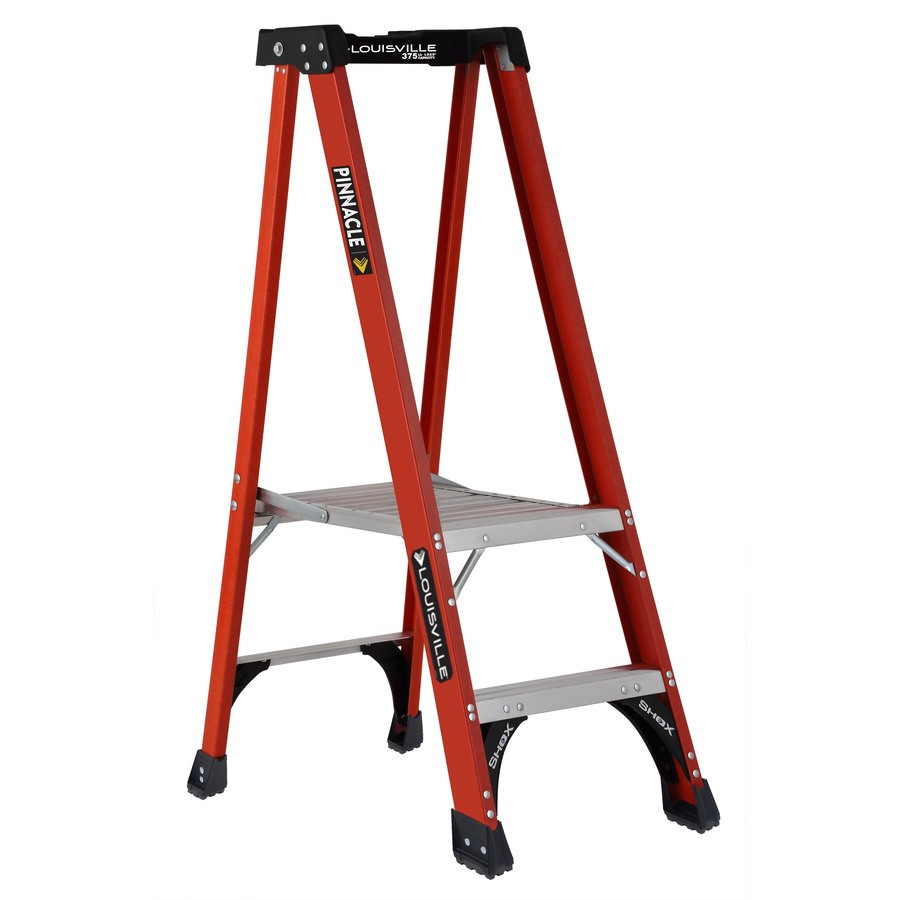

Pinnacle 2 ft. Fiberglass Platform Stepladder 2ft
Reference :	FXP1802HD
characteristic.CANADA_HAUTEUR_TOTALE	1 ft 11 in (0.58 m)
characteristic.CANADA_HAUTEUR_PORTEE	8 ft 6 in (2.59 m)
characteristic.CANADA_LARGEUR_BASE	21 7/8 in (55.6 cm)
characteristic.CANADA_ECARTEMENT	36 in (91.4 cm) cm
characteristic.CANADA_POIDS	20 lb (9.1 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Pinnacle 2 ft. Fiberglass Platform Stepladder 3ft
Reference :	FXP1803HD
characteristic.CANADA_HAUTEUR_TOTALE	2 ft 10 in (0.86 m)
characteristic.CANADA_HAUTEUR_PORTEE	9 ft 5 in (2.87 m)
characteristic.CANADA_LARGEUR_BASE	23 3/8 in (59.4 cm)
characteristic.CANADA_ECARTEMENT	42 in (106.7 cm) cm
characteristic.CANADA_POIDS	22 lb (10.0 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

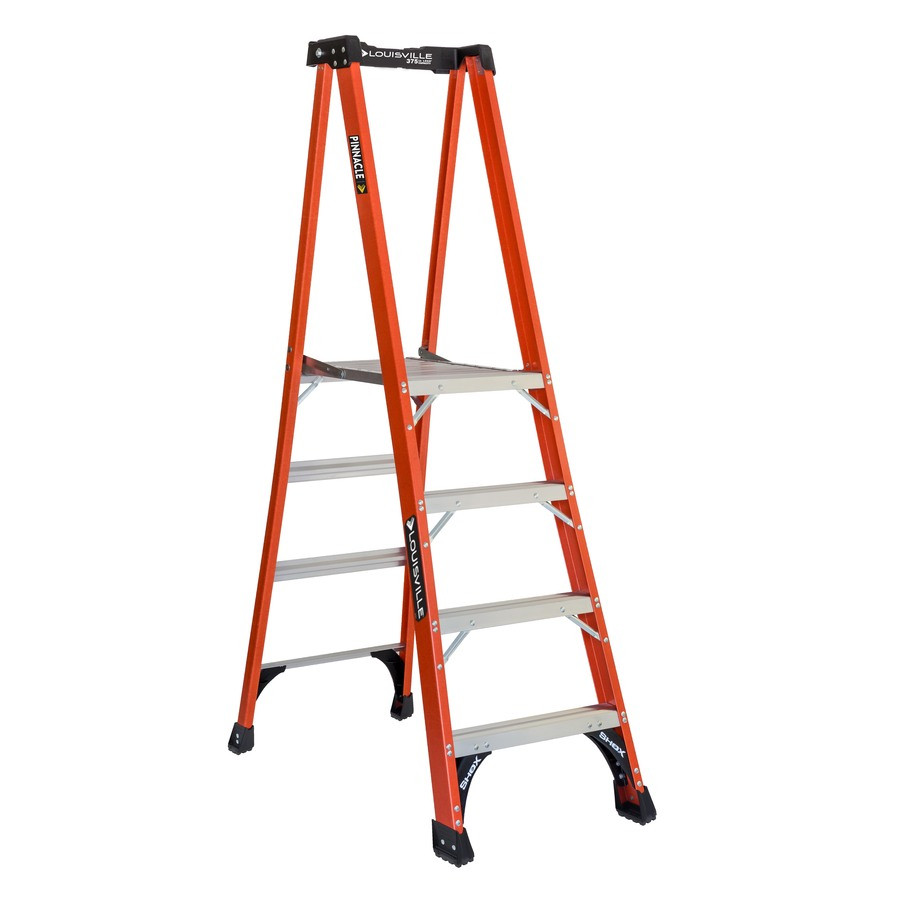

Pinnacle 2 ft. Fiberglass Platform Stepladder 4ft
Reference :	FXP1804HD
characteristic.CANADA_HAUTEUR_TOTALE	3 ft 9 in (1.14 m)
characteristic.CANADA_HAUTEUR_PORTEE	10 ft 5 in (3.17 m)
characteristic.CANADA_LARGEUR_BASE	24 7/8 in (63.2 cm)
characteristic.CANADA_ECARTEMENT	48 in (121.9 cm) cm
characteristic.CANADA_POIDS	25 lb (11.3 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

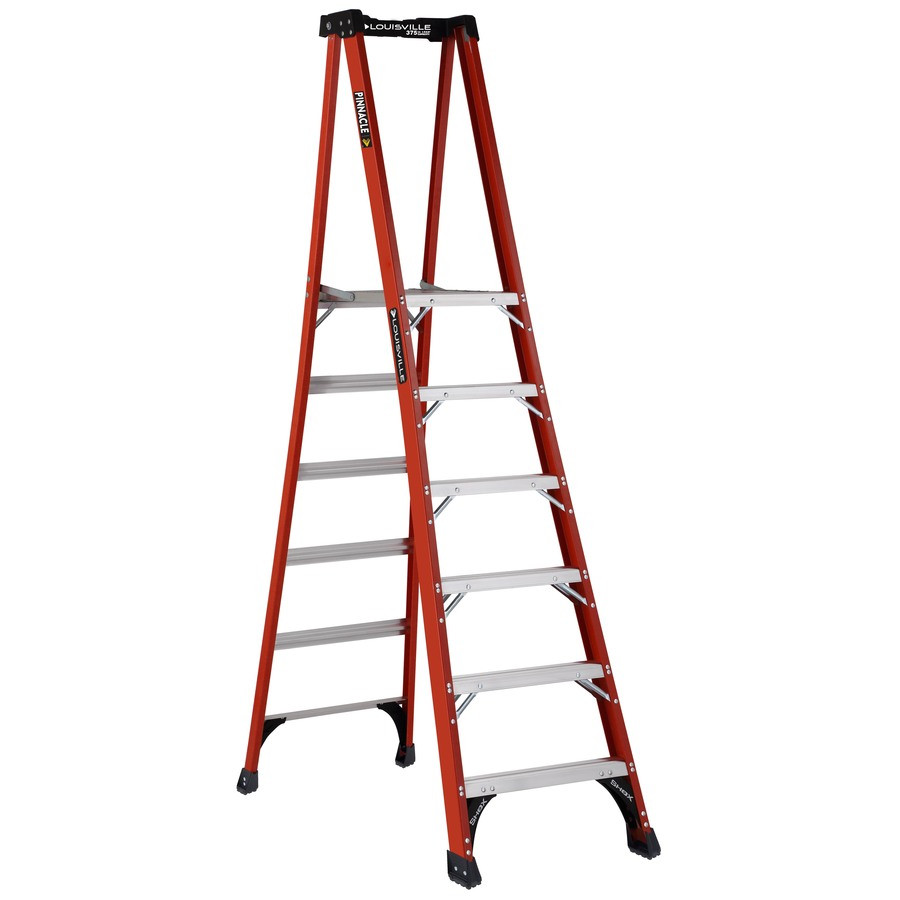

Pinnacle 2 ft. Fiberglass Platform Stepladder 6ft
Reference :	FXP1806HD
characteristic.CANADA_HAUTEUR_TOTALE	5 ft 8 in (1.73 m)
characteristic.CANADA_HAUTEUR_PORTEE	12 ft 3 in (3.73 m)
characteristic.CANADA_LARGEUR_BASE	27 7/8 in (70.8 cm)
characteristic.CANADA_ECARTEMENT	61 1/2 in (156.2 cm) cm
characteristic.CANADA_POIDS	33 lb (15.0 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Pinnacle 2 ft. Fiberglass Platform Stepladder 8ft
Reference :	FXP1808HD
characteristic.CANADA_HAUTEUR_TOTALE	7 ft 7 in (2.31 m)
characteristic.CANADA_HAUTEUR_PORTEE	14 ft 2 in (4.32 m)
characteristic.CANADA_LARGEUR_BASE	30 7/8 in (78.4 cm)
characteristic.CANADA_ECARTEMENT	74 in (188.0 cm) cm
characteristic.CANADA_POIDS	50 lb (22.7 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

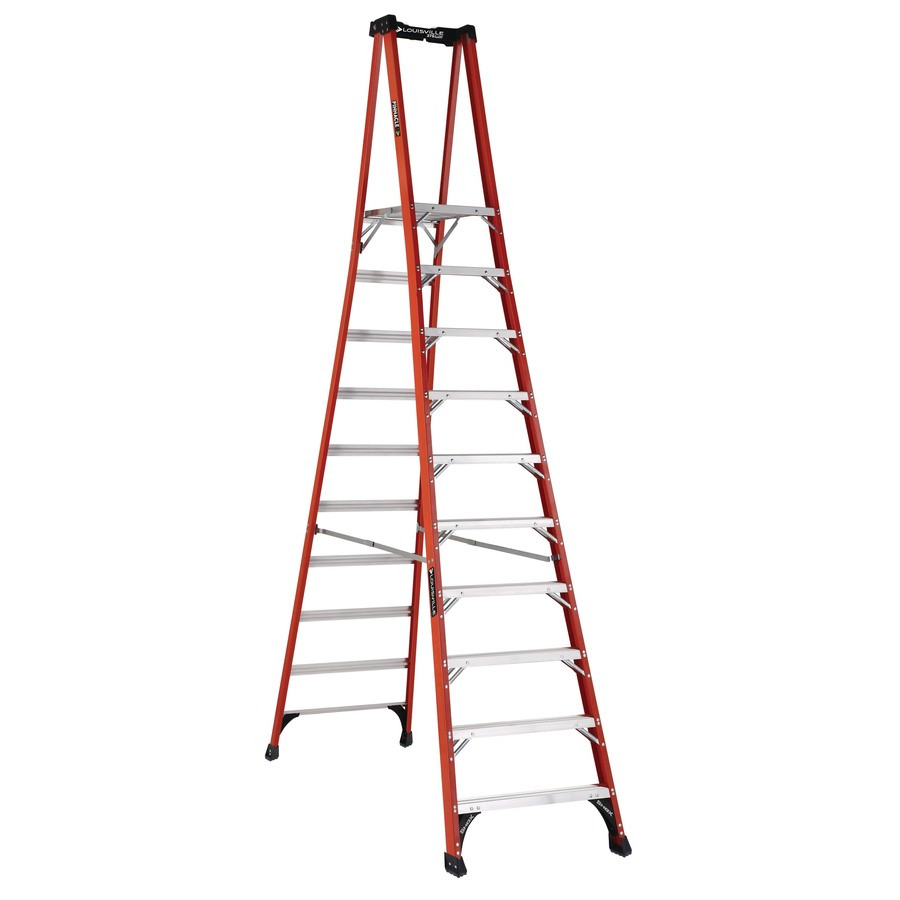

Pinnacle 2 ft. Fiberglass Platform Stepladder 10 ft
Reference :	FXP1810HD*
characteristic.CANADA_HAUTEUR_TOTALE	9 ft 6 in (2.90 m)
characteristic.CANADA_HAUTEUR_PORTEE	16 ft 1 in (4.90 m)
characteristic.CANADA_LARGEUR_BASE	33 7/8 in (86.0 cm)
characteristic.CANADA_ECARTEMENT	88 in (223.5 cm) cm
characteristic.CANADA_POIDS	62 lb (28.1 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

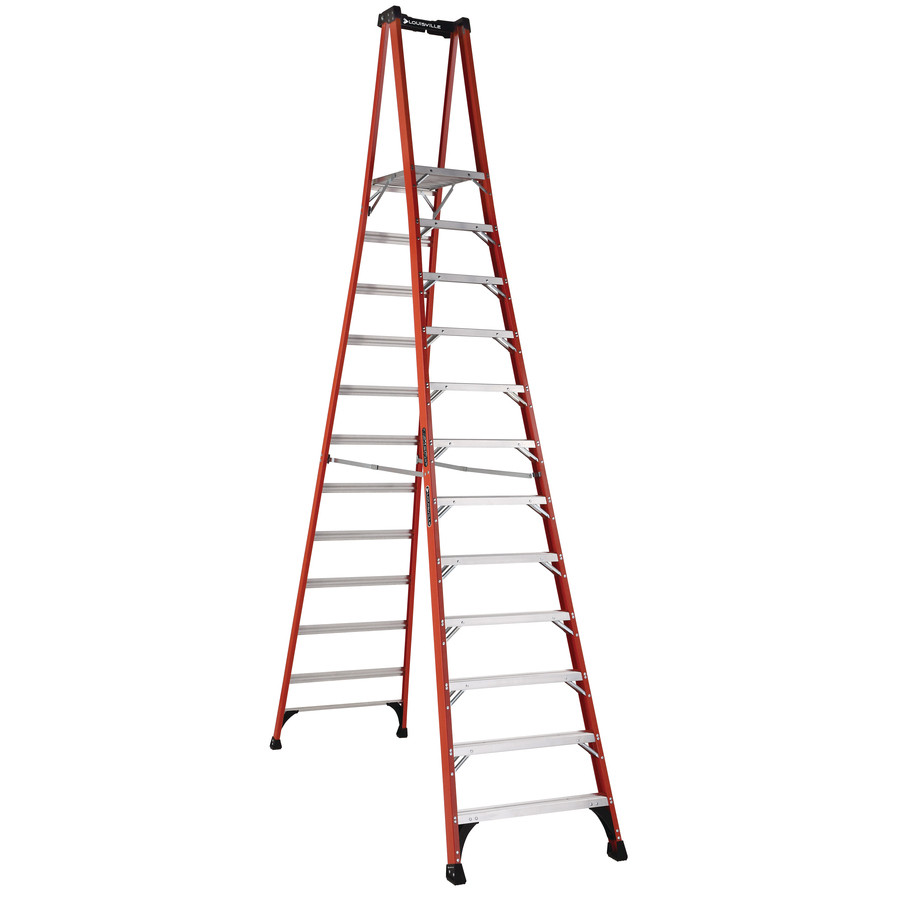

Pinnacle 2 ft. Fiberglass Platform Stepladder 12ft
Reference :	FXP1812HD*
characteristic.CANADA_HAUTEUR_TOTALE	11 ft 5 in (3.48 m)
characteristic.CANADA_HAUTEUR_PORTEE	18 ft (5.49 m)
characteristic.CANADA_LARGEUR_BASE	36 7/8 in (93.7 cm)
characteristic.CANADA_ECARTEMENT	101 1/2 in (257.8 cm) cm
characteristic.CANADA_POIDS	75 lb (34.0 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

Extra-heavy-duty strength

With a 375 lb (170 kg) rating, the FXP1800HD is built for the most demanding industrial and professional uses.

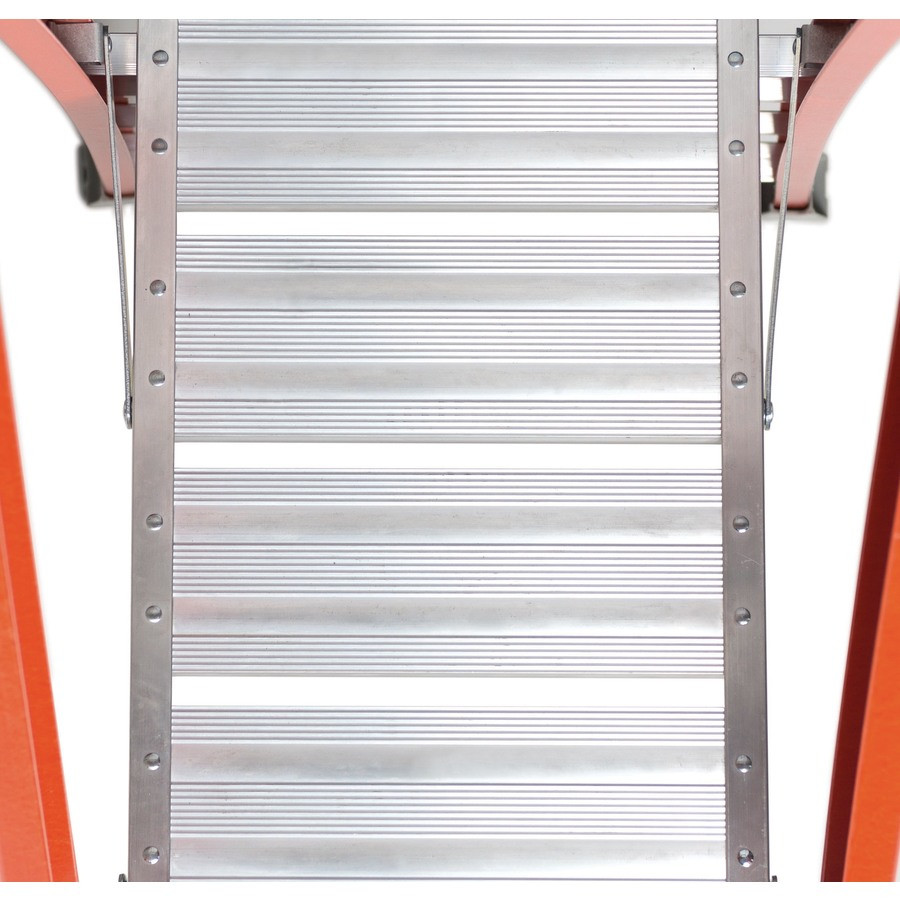

19% larger platform

The FXP1800HD's platform is 19% larger than other leading ladders, for more room and comfort in working position.

Safety handrail

A waist-high handrail surrounds the platform, providing extra support while working.

Non-conductive

Fiberglass does not conduct electricity when clean and dry, an asset for work near live lines.

Regulatory compliance

Designed to meet or exceed ANSI A14.5 requirements, as well as applicable CSA standards for the Canadian market.

*Special rating: manufacturer-tested to 170 kg (375 lb). Step depth: 7.6 cm (3 in) for all models. Maximum reach calculated for a person 1.70 m (5 ft 7 in) tall with a 30 cm (12 in) vertical reach.

Technical description

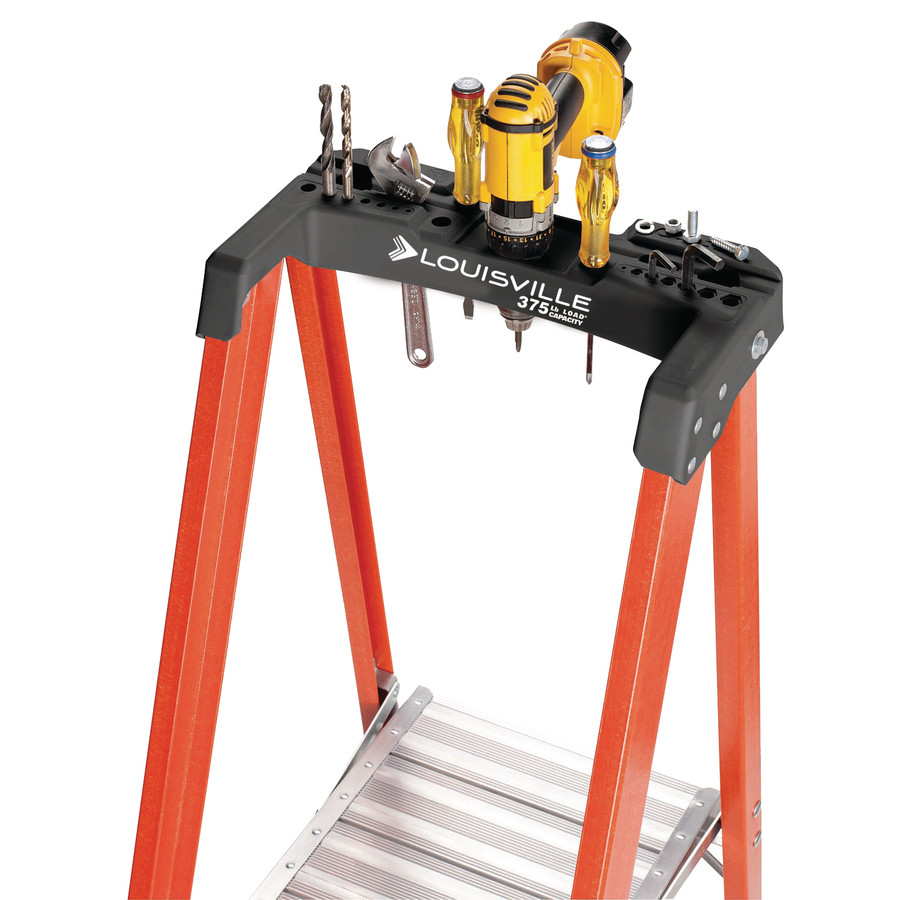

ProTop: multiple tool slots for increased productivity.

19% larger platform vs. other leading ladders.

Waist-high handrail: added comfort.

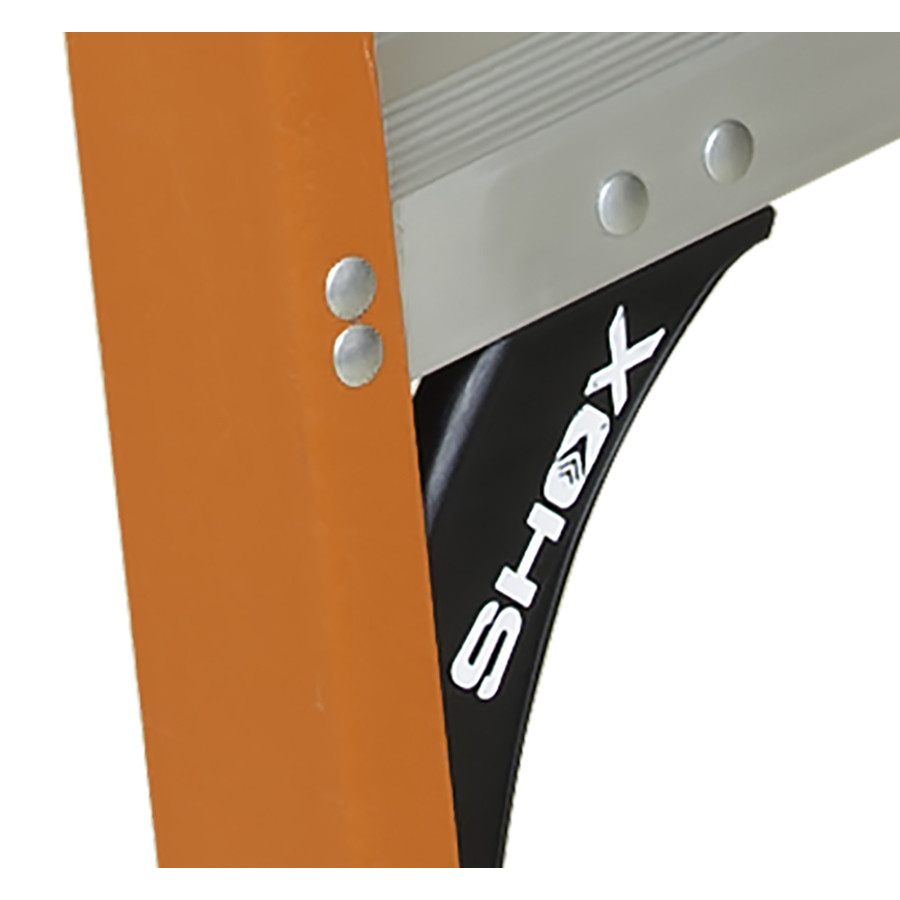

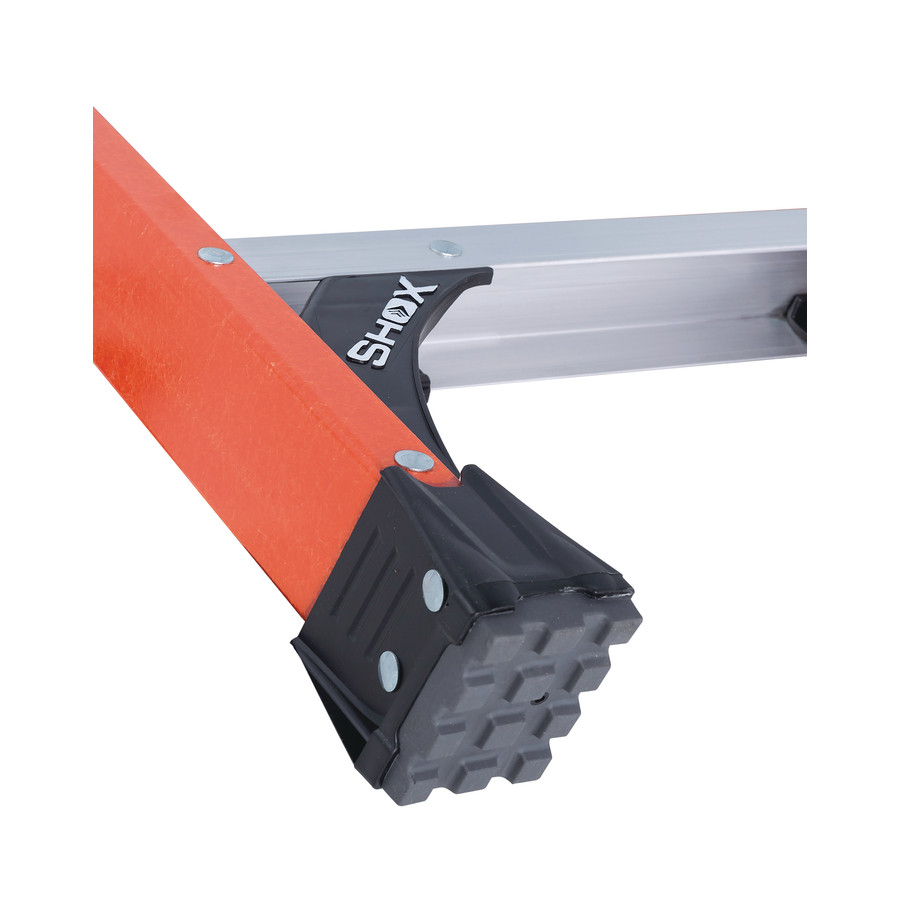

SHOX: advanced impact absorption, protects fiberglass rails.

Raptor Boot shoe: protects fiberglass rails.

Heat transfer top: scratch and UV resistant, no more OSHA fines due to missing duty rating labels.

Not recommended to face the ladder steps while on the platform (manufacturer recommendation).

Duty rating: 375 lb (170 kg), Type IAA, professional and industrial use.
