Louisville Ladder: FXP1700 Pinnacle Platform Ladder (300 lb)

Louisville Ladder: FXP1700 Pinnacle Platform Ladder (300 lb)

Standard: ANSI A14.5

A platform ladder with a wider platform than competing ladders in its class.

Select your reference

Quantity

Louisville Ladder: FXP1700 Pinnacle Platform Ladder (300 lb)

Advantages and strengths

Fiberglass platform ladder, 300 lb (136 kg) duty rating, with a wider platform than competing ladders in its class.
ProTop with multiple tool slots, SHOX system, and Raptor Boot shoe.

Technical characteristics

Reference	characteristic.CANADA_HAUTEUR_PLATEFORME	characteristic.CANADA_PORTEE_MAX_ESCABEAU	characteristic.CANADA_LARGEUR_BASE	characteristic.CANADA_ECARTEMENT	characteristic.CANADA_POIDS	Quantity
Ref. FXP1702 Fiberglass Pinnacle Platform Ladder 2ft	1 ft 11 in (0.58 m)	8 ft 6 in (2.59 m)	21 3/4 in (55.2 cm)	33 in (83.8 cm) cm	18 lb (8.2 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1703 Fiberglass Pinnacle Platform Ladder 3ft	2 ft 10 in (0.86 m)	9 ft 5 in (2.87 m)	23 1/4 in (59.1 cm)	39 in (99.1 cm) cm	21 lb (9.5 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1704 Fiberglass Pinnacle Platform Ladder 4ft	3 ft 9 in (1.14 m)	10 ft 5 in (3.17 m)	24 3/4 in (62.9 cm)	45 in (114.3 cm) cm	24 lb (10.9 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1706 Fiberglass Pinnacle Platform Ladder ft	5 ft 8 in (1.73 m)	12 ft 3 in (3.73 m)	27 3/4 in (70.5 cm)	57 in (144.8 cm) cm	31 lb (14.1 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1708 Fiberglass Pinnacle Platform Ladder 8ft	7 ft 7 in (2.31 m)	14 ft 2 in (4.32 m)	30 3/4 in (78.1 cm)	69 in (175.3 cm) cm	48 lb (21.8 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1710 Fiberglass Pinnacle Platform Ladder 10ft	9 ft 6 in (2.90 m)	16 ft 1 in (4.90 m)	33 3/4 in (85.7 cm)	81 in (205.7 cm) cm	60 lb (27.2 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. FXP1712 Fiberglass Pinnacle Platform Ladder 12	11 ft 5 in (3.48 m)	18 ft (5.49 m)	36 3/4 in (93.3 cm)	92 in (233.7 cm) cm	73 lb (33.1 kg) lb	Quantité maximum disponible pour ce magasin + -

Fiberglass Pinnacle Platform Ladder 2ft
Reference :	FXP1702
characteristic.CANADA_HAUTEUR_PLATEFORME	1 ft 11 in (0.58 m)
characteristic.CANADA_PORTEE_MAX_ESCABEAU	8 ft 6 in (2.59 m)
characteristic.CANADA_LARGEUR_BASE	21 3/4 in (55.2 cm)
characteristic.CANADA_ECARTEMENT	33 in (83.8 cm) cm
characteristic.CANADA_POIDS	18 lb (8.2 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Fiberglass Pinnacle Platform Ladder 3ft
Reference :	FXP1703
characteristic.CANADA_HAUTEUR_PLATEFORME	2 ft 10 in (0.86 m)
characteristic.CANADA_PORTEE_MAX_ESCABEAU	9 ft 5 in (2.87 m)
characteristic.CANADA_LARGEUR_BASE	23 1/4 in (59.1 cm)
characteristic.CANADA_ECARTEMENT	39 in (99.1 cm) cm
characteristic.CANADA_POIDS	21 lb (9.5 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Fiberglass Pinnacle Platform Ladder 4ft
Reference :	FXP1704
characteristic.CANADA_HAUTEUR_PLATEFORME	3 ft 9 in (1.14 m)
characteristic.CANADA_PORTEE_MAX_ESCABEAU	10 ft 5 in (3.17 m)
characteristic.CANADA_LARGEUR_BASE	24 3/4 in (62.9 cm)
characteristic.CANADA_ECARTEMENT	45 in (114.3 cm) cm
characteristic.CANADA_POIDS	24 lb (10.9 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Fiberglass Pinnacle Platform Ladder ft
Reference :	FXP1706
characteristic.CANADA_HAUTEUR_PLATEFORME	5 ft 8 in (1.73 m)
characteristic.CANADA_PORTEE_MAX_ESCABEAU	12 ft 3 in (3.73 m)
characteristic.CANADA_LARGEUR_BASE	27 3/4 in (70.5 cm)
characteristic.CANADA_ECARTEMENT	57 in (144.8 cm) cm
characteristic.CANADA_POIDS	31 lb (14.1 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Fiberglass Pinnacle Platform Ladder 8ft
Reference :	FXP1708
characteristic.CANADA_HAUTEUR_PLATEFORME	7 ft 7 in (2.31 m)
characteristic.CANADA_PORTEE_MAX_ESCABEAU	14 ft 2 in (4.32 m)
characteristic.CANADA_LARGEUR_BASE	30 3/4 in (78.1 cm)
characteristic.CANADA_ECARTEMENT	69 in (175.3 cm) cm
characteristic.CANADA_POIDS	48 lb (21.8 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Fiberglass Pinnacle Platform Ladder 10ft
Reference :	FXP1710
characteristic.CANADA_HAUTEUR_PLATEFORME	9 ft 6 in (2.90 m)
characteristic.CANADA_PORTEE_MAX_ESCABEAU	16 ft 1 in (4.90 m)
characteristic.CANADA_LARGEUR_BASE	33 3/4 in (85.7 cm)
characteristic.CANADA_ECARTEMENT	81 in (205.7 cm) cm
characteristic.CANADA_POIDS	60 lb (27.2 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Fiberglass Pinnacle Platform Ladder 12
Reference :	FXP1712
characteristic.CANADA_HAUTEUR_PLATEFORME	11 ft 5 in (3.48 m)
characteristic.CANADA_PORTEE_MAX_ESCABEAU	18 ft (5.49 m)
characteristic.CANADA_LARGEUR_BASE	36 3/4 in (93.3 cm)
characteristic.CANADA_ECARTEMENT	92 in (233.7 cm) cm
characteristic.CANADA_POIDS	73 lb (33.1 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

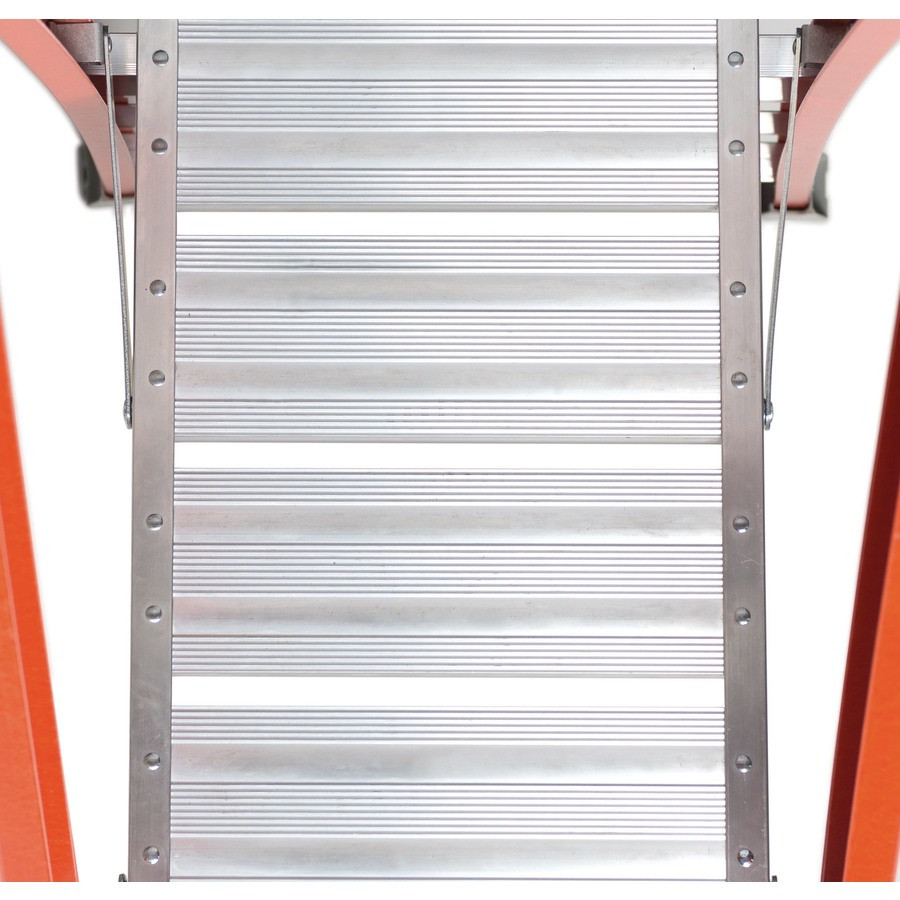

Wider platform

The FXP1700's platform is wider than competing ladders in its class, offering more room and comfort in working position.

Ideal working height

Positioned at tool belt height, the platform puts every tool within effortless reach.

Durability

The heat transfer top resists scratches and UV rays, while the SHOX system and Raptor Boot shoe protect the structure from wear.

Non-conductive

Fiberglass does not conduct electricity when clean and dry, an asset for work near live lines.

Regulatory compliance

Designed to meet or exceed ANSI A14.5 requirements, as well as applicable CSA standards for the Canadian market.

Technical description

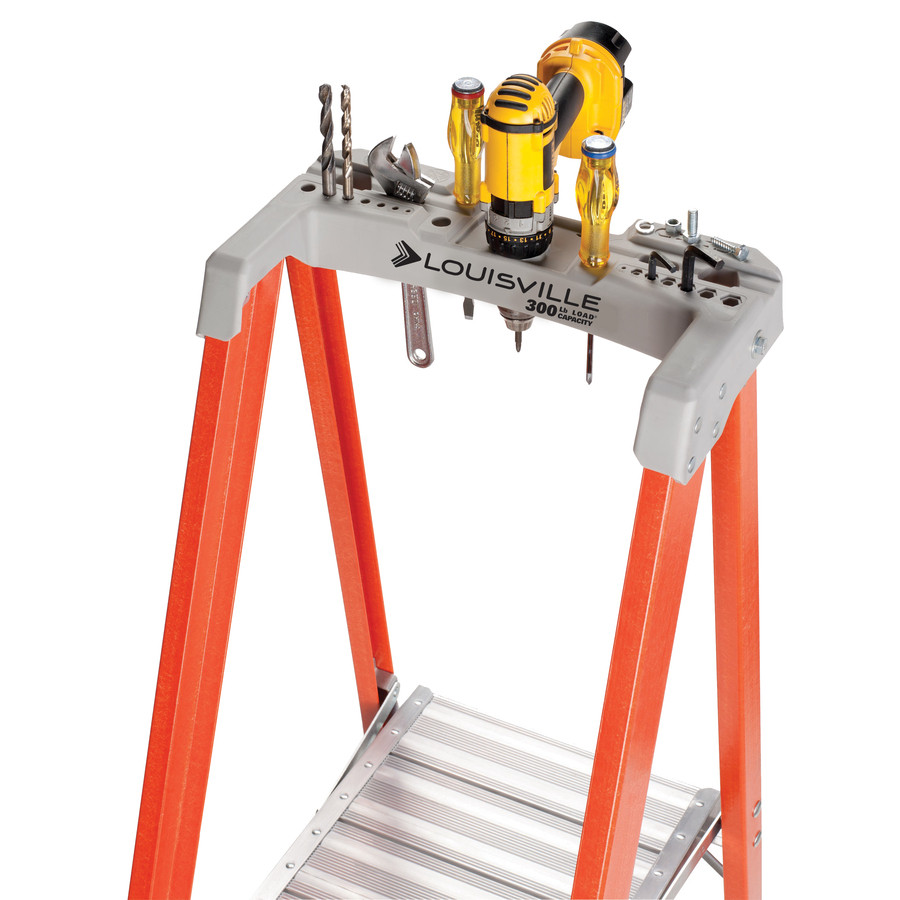

ProTop: multiple tool slots for increased productivity.

Wider platform: added comfort in working position.

Perfect tool belt height: every tool within reach.

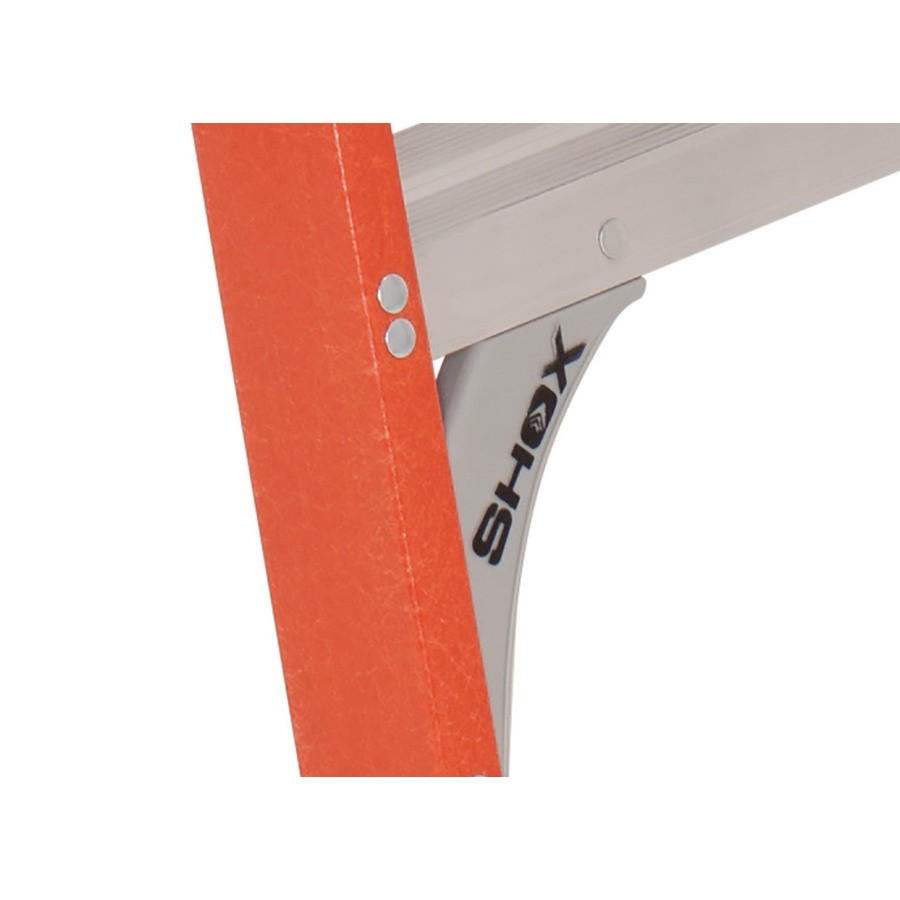

SHOX: advanced impact absorption, protects fiberglass rails.

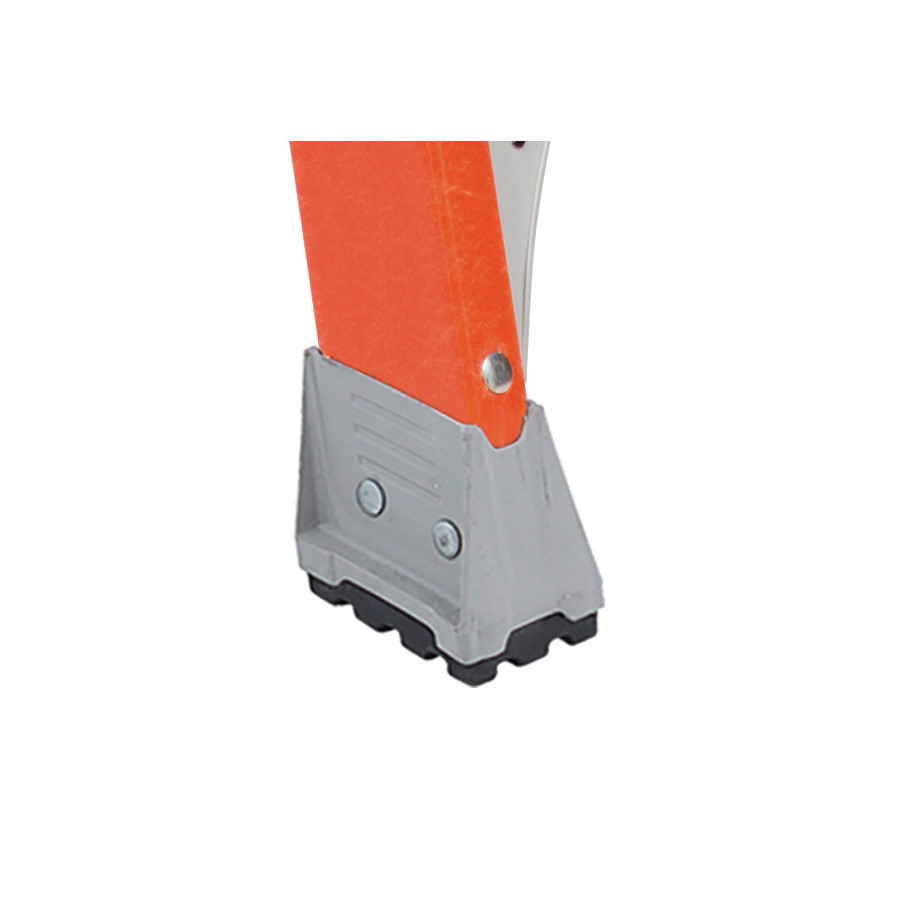

Raptor Boot shoe: protects fiberglass rails.

Heat transfer top: scratch and UV resistant, no more OSHA fines due to missing duty rating labels.

Not recommended to face the ladder steps while on the platform (manufacturer recommendation).

Duty rating: 300 lb (136 kg), Type IA, professional use.
