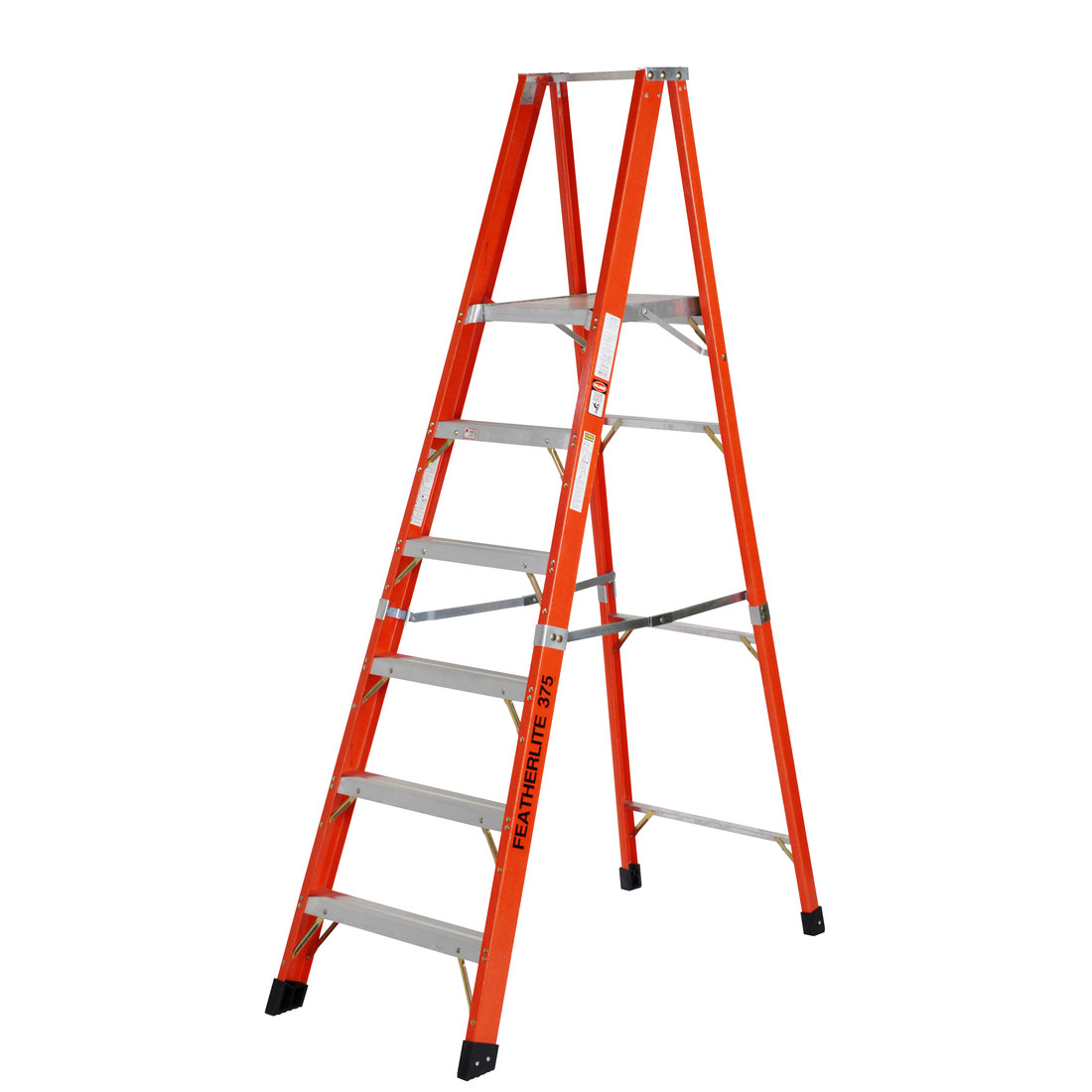

Escabeau à plate-forme en fibre 6500 - Type 1 AA
Technical characteristics
10' TYPE 1AA FG PLATFORM | |
---|---|
Reference : | 6510-AA |
Height ('') | 113 '' |
Base width (') | 29 '' |
Spacing ('') | 67 '' |
Weight (lb) | 42,00 lb |
Quantity : |
|
12' TYPE 1AA FG PLATFORM | |
---|---|
Reference : | 6512-AA |
Height ('') | 135 '' |
Base width (') | 31 '' |
Spacing ('') | 75 '' |
Weight (lb) | 57,00 lb |
Quantity : |
|
4' TYPE 1AA FG PLATFORM | |
---|---|
Reference : | 6504-AA |
Height ('') | 46 '' |
Base width (') | 21 '' |
Spacing ('') | 30 '' |
Weight (lb) | 16,00 lb |
Quantity : |
|
5' TYPE 1AA FG PLATFORM | |
---|---|
Reference : | 6505-AA |
Height ('') | 57 '' |
Base width (') | 23 '' |
Spacing ('') | 36 '' |
Weight (lb) | 21,00 lb |
Quantity : |
|
6' TYPE 1AA FG PLATFORM | |
---|---|
Reference : | 6506-AA |
Height ('') | 68 '' |
Base width (') | 24 '' |
Spacing ('') | 42 '' |
Weight (lb) | 26,00 lb |
Quantity : |
|
7' TYPE 1AA FG PLATFORM | |
---|---|
Reference : | 6507-AA |
Height ('') | 79 '' |
Base width (') | 25 '' |
Spacing ('') | 47 '' |
Weight (lb) | 31,00 lb |
Quantity : |
|
8' TYPE 1AA FG PLATFORM | |
---|---|
Reference : | 6508-AA |
Height ('') | 90 '' |
Base width (') | 26 '' |
Spacing ('') | 53 '' |
Weight (lb) | 34,00 lb |
Quantity : |
|
Use
Uprights made of durable non-conductive C-sections, painted in high-visibility orange.
Large platform providing safety and comfort of works : 355 mm (14'') x 457 mm (18'').
Technical description
76 mm (3) grooved aluminium anti-slip steps of the safest type
Inner spacer bars with sleeves that reinforce the connection to the uprights and protect them
Diagonal galvanised steel reinforcements on each step, for incredible strength and rigidity
Rear spacers with diagonal reinforcements made of galvanised steel, for maximum rigidity
Anti-slip, extra-strong, extra-large rubber feet for a better upright protection and resistance to slipping
