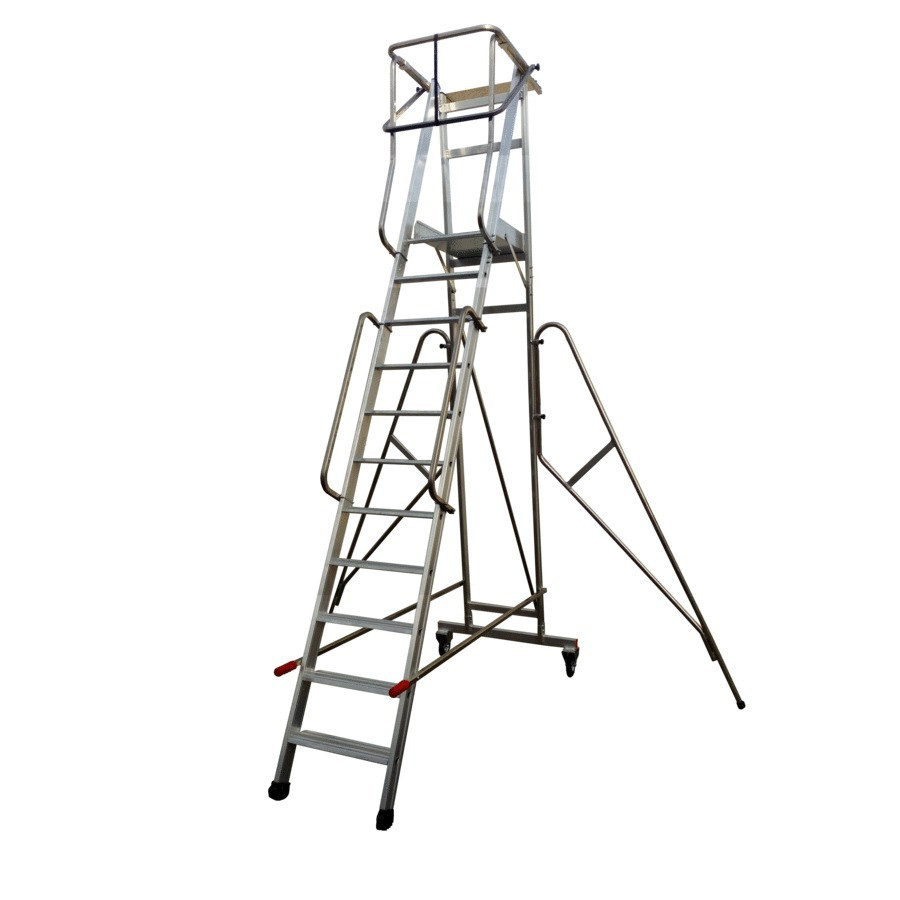

ALTEE platform
ALTEE platform

ALTEE platform

Warranty 2 years
Standard: EN 131-7/ANSI-ASC A14.7

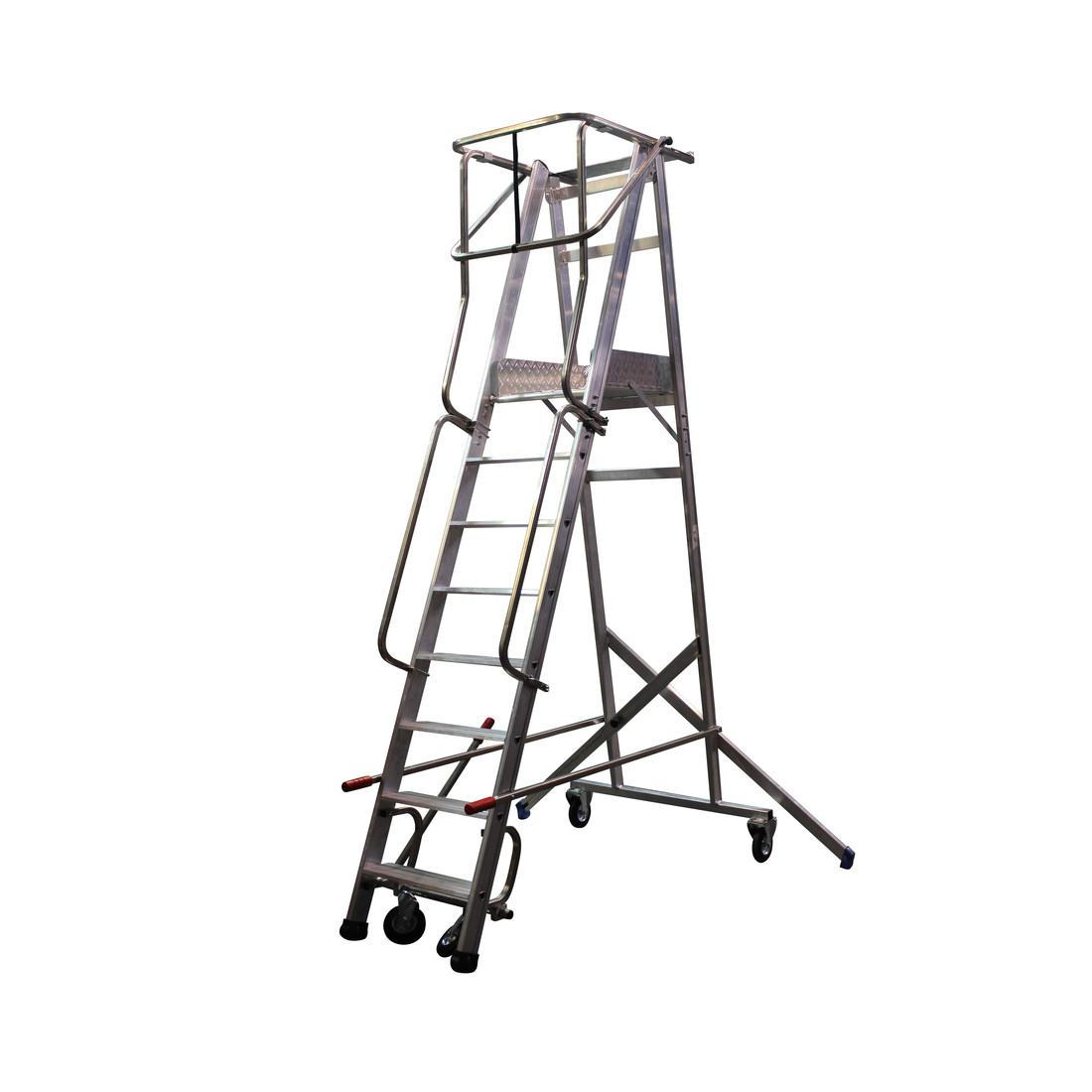

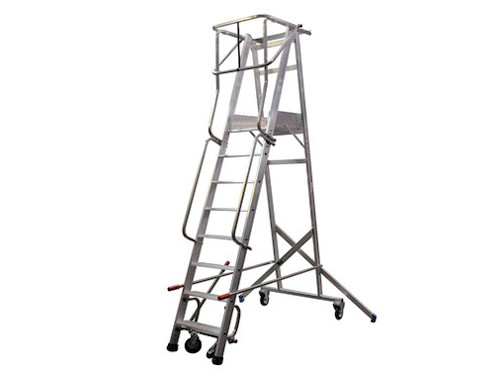

New secure work platform designed for picking and access to storage and shelving areas

Select your reference
+
-

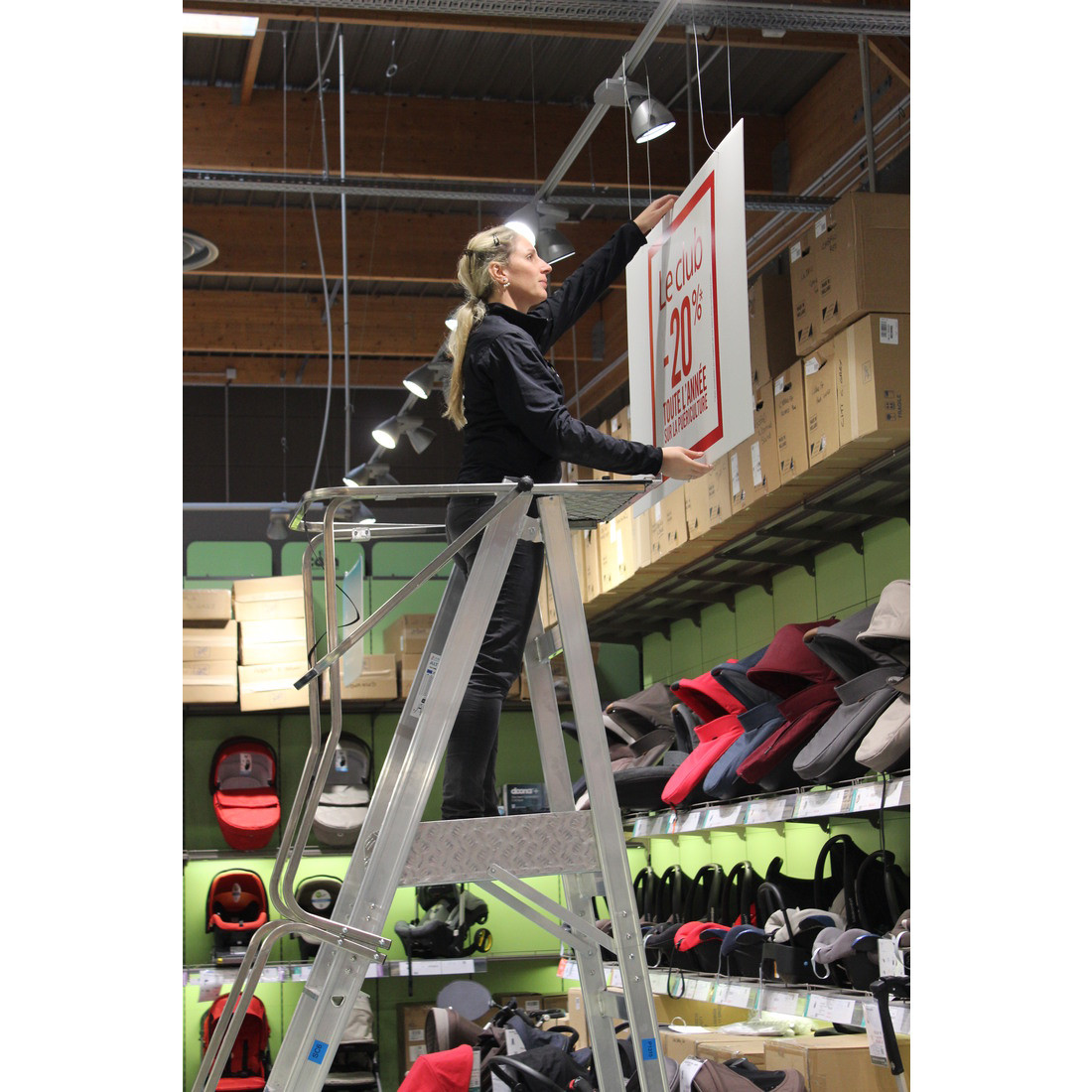

ALTEE platform

Advantages and strengths

Double usage, depending on the position of the guardrails : access equipment and workstation

Technical characteristics

Reference Stabilizer Number of walking Working height (') Width ('') Spacing (') Weight (lb) Quantity Quote
Ref. ALTEE3
Code A0010406
ALTEE3 3-STEP ALTEE PLATFORM
No 3 9 ' 3 '' 4 ' 53,00 lb
+
-
Ref. ALTEE4
Code A0010407
ALTEE4 4-STEP ALTEE PLATFORM
No 4 10 ' 3 '' 4 ' 57,00 lb
+
-
Ref. ALTEE5
Code A0010365
ALTEE5 5-STEP ALTEE PLATFORM
Sliding 5 10 ' 5 '' 4 ' 62,00 lb
+
-
Ref. ALTEE6
Code A0010366
ALTEE6 6-STEP ALTEE PLATFORM
Sliding 6 11 ' 5 '' 5 ' 66,00 lb
+
-
Ref. ALTEE7
Code A0010367
ALTEE7 7-STEP ALTEE PLATFORM
Sliding 7 12 ' 5 '' 5 ' 71,00 lb
+
-
Ref. ALTEE8
Code A0010368
ALTEE8 8-STEP ALTEE PLATFORM
Sliding 8 13 ' 5 '' 6 ' 79,00 lb
+
-
Ref. ALTEE9
Code A0010369
ALTEE9 9-STEP ALTEE PLATFORM
Sliding 9 14 ' 5 '' 6 ' 84,00 lb
+
-
Ref. ALTEE10
Code A0010370
ALTEE10 10-STEP ALTEE PLATFORM
Sliding 10 14 ' 10 '' 7 ' 88,00 lb
+
-
Ref. ALTEE11
Code A0010371
ALTEE11 11-STEP ALTEE PLATFORM
Sliding and side 11 15 ' 10 '' 7 ' 93,00 lb
+
-
Ref. ALTEE12
Code A0010372
ALTEE12 12-STEP ALTEE PLATFORM
Sliding and side 12 16 ' 10 '' 8 ' 97,00 lb
+
-
Ref. ALTEE13
Code A0010408
ALTEE13 13-STEP ALTEE PLATFORM
Sliding and side 13 18 ' 10 '' 9 ' 101,00 lb
+
-
Ref. ALTEE14
Code A0010409
ALTEE14 14-STEP ALTEE PLATFORM
Sliding and side 14 18 ' 10 '' 9 ' 106,00 lb
+
-
Ref. ALTEE15
Code A0010410
ALTEE15 15-STEP ALTEE PLATFORM
Sliding and side 15 19 ' 10 '' 9 ' 110,00 lb
+
-
Ref. ALTEEBRAS
Code A0010373
ALTEE ROLLING ARM
0 0 0 ' 0 '' 0 ' 0 lb
+
-
ALTEE3 3-STEP ALTEE PLATFORM
Reference : ALTEE3
Stabilizer No
Number of walking 3
Working height (') 9 '
Width ('') 3 ''
Spacing (') 4 '
Weight (lb) 53,00 lb
Quantity :
+
-
Add to quote
ALTEE4 4-STEP ALTEE PLATFORM
Reference : ALTEE4
Stabilizer No
Number of walking 4
Working height (') 10 '
Width ('') 3 ''
Spacing (') 4 '
Weight (lb) 57,00 lb
Quantity :
+
-
Add to quote
ALTEE5 5-STEP ALTEE PLATFORM
Reference : ALTEE5
Stabilizer Sliding
Number of walking 5
Working height (') 10 '
Width ('') 5 ''
Spacing (') 4 '
Weight (lb) 62,00 lb
Quantity :
+
-
Add to quote
ALTEE6 6-STEP ALTEE PLATFORM
Reference : ALTEE6
Stabilizer Sliding
Number of walking 6
Working height (') 11 '
Width ('') 5 ''
Spacing (') 5 '
Weight (lb) 66,00 lb
Quantity :
+
-
Add to quote
ALTEE7 7-STEP ALTEE PLATFORM
Reference : ALTEE7
Stabilizer Sliding
Number of walking 7
Working height (') 12 '
Width ('') 5 ''
Spacing (') 5 '
Weight (lb) 71,00 lb
Quantity :
+
-
Add to quote
ALTEE8 8-STEP ALTEE PLATFORM
Reference : ALTEE8
Stabilizer Sliding
Number of walking 8
Working height (') 13 '
Width ('') 5 ''
Spacing (') 6 '
Weight (lb) 79,00 lb
Quantity :
+
-
Add to quote
ALTEE9 9-STEP ALTEE PLATFORM
Reference : ALTEE9
Stabilizer Sliding
Number of walking 9
Working height (') 14 '
Width ('') 5 ''
Spacing (') 6 '
Weight (lb) 84,00 lb
Quantity :
+
-
Add to quote
ALTEE10 10-STEP ALTEE PLATFORM
Reference : ALTEE10
Stabilizer Sliding
Number of walking 10
Working height (') 14 '
Width ('') 10 ''
Spacing (') 7 '
Weight (lb) 88,00 lb
Quantity :
+
-
Add to quote
ALTEE11 11-STEP ALTEE PLATFORM
Reference : ALTEE11
Stabilizer Sliding and side
Number of walking 11
Working height (') 15 '
Width ('') 10 ''
Spacing (') 7 '
Weight (lb) 93,00 lb
Quantity :
+
-
Add to quote
ALTEE12 12-STEP ALTEE PLATFORM
Reference : ALTEE12
Stabilizer Sliding and side
Number of walking 12
Working height (') 16 '
Width ('') 10 ''
Spacing (') 8 '
Weight (lb) 97,00 lb
Quantity :
+
-
Add to quote
ALTEE13 13-STEP ALTEE PLATFORM
Reference : ALTEE13
Stabilizer Sliding and side
Number of walking 13
Working height (') 18 '
Width ('') 10 ''
Spacing (') 9 '
Weight (lb) 101,00 lb
Quantity :
+
-
Add to quote
ALTEE14 14-STEP ALTEE PLATFORM
Reference : ALTEE14
Stabilizer Sliding and side
Number of walking 14
Working height (') 18 '
Width ('') 10 ''
Spacing (') 9 '
Weight (lb) 106,00 lb
Quantity :
+
-
Add to quote
ALTEE15 15-STEP ALTEE PLATFORM
Reference : ALTEE15
Stabilizer Sliding and side
Number of walking 15
Working height (') 19 '
Width ('') 10 ''
Spacing (') 9 '
Weight (lb) 110,00 lb
Quantity :
+
-
Add to quote
ALTEE ROLLING ARM
Reference : ALTEEBRAS
Stabilizer 0
Number of walking 0
Working height (') 0 '
Width ('') 0 ''
Spacing (') 0 '
Weight (lb) 0 lb
Quantity :
+
-
Add to quote

Use

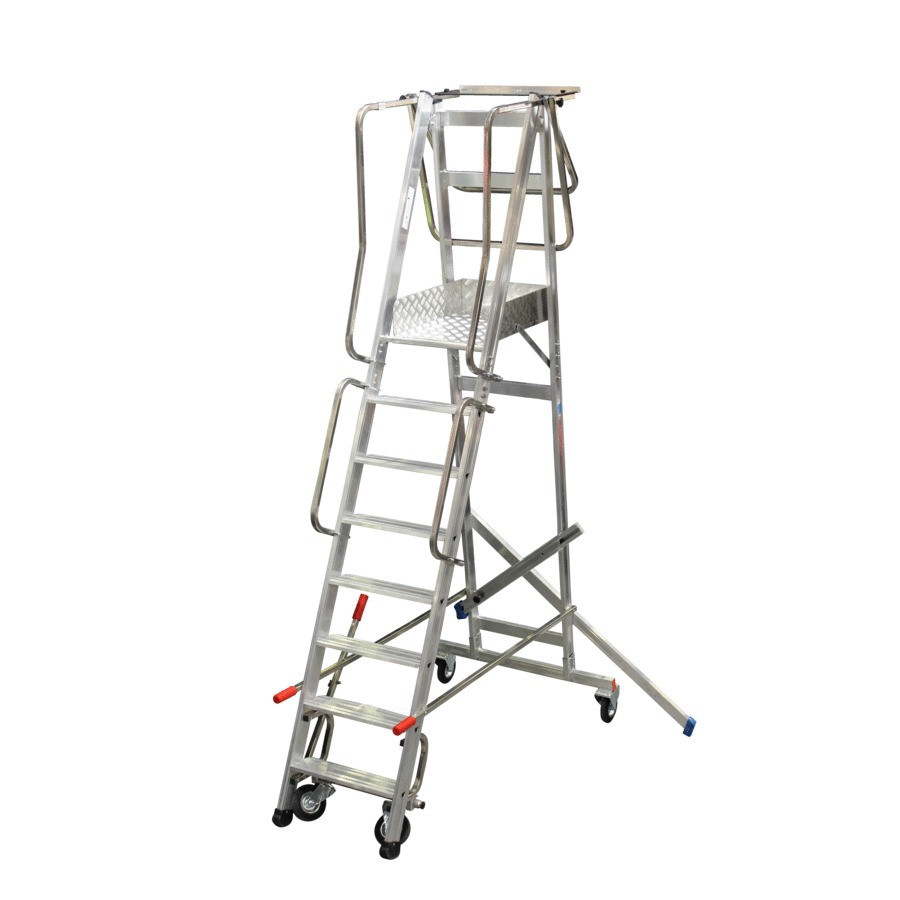

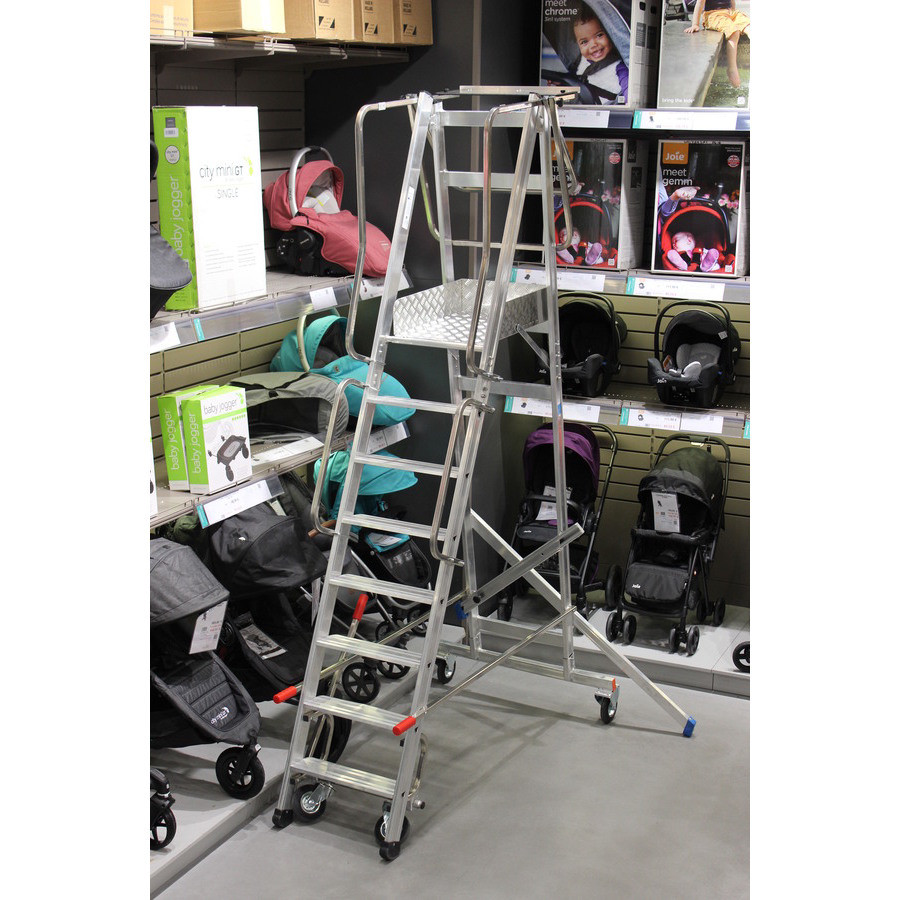

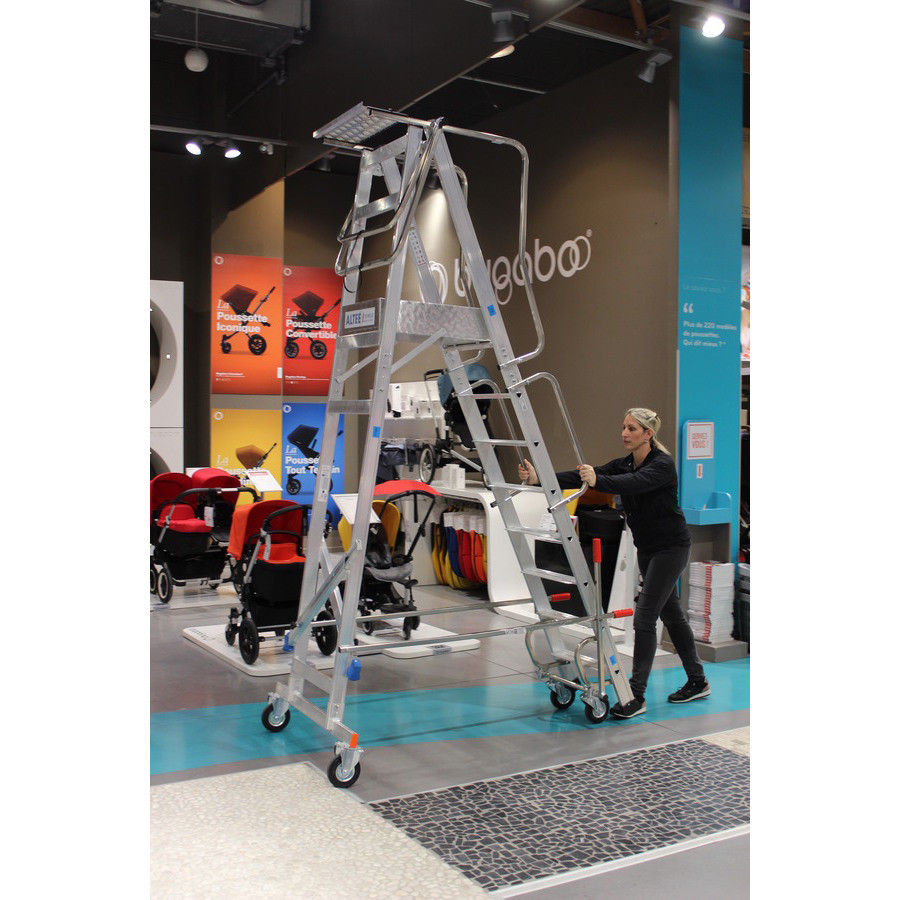

Innovative platform with a double tilting guardrail with 2 positions :

- in front of the platform, to create an access equipment

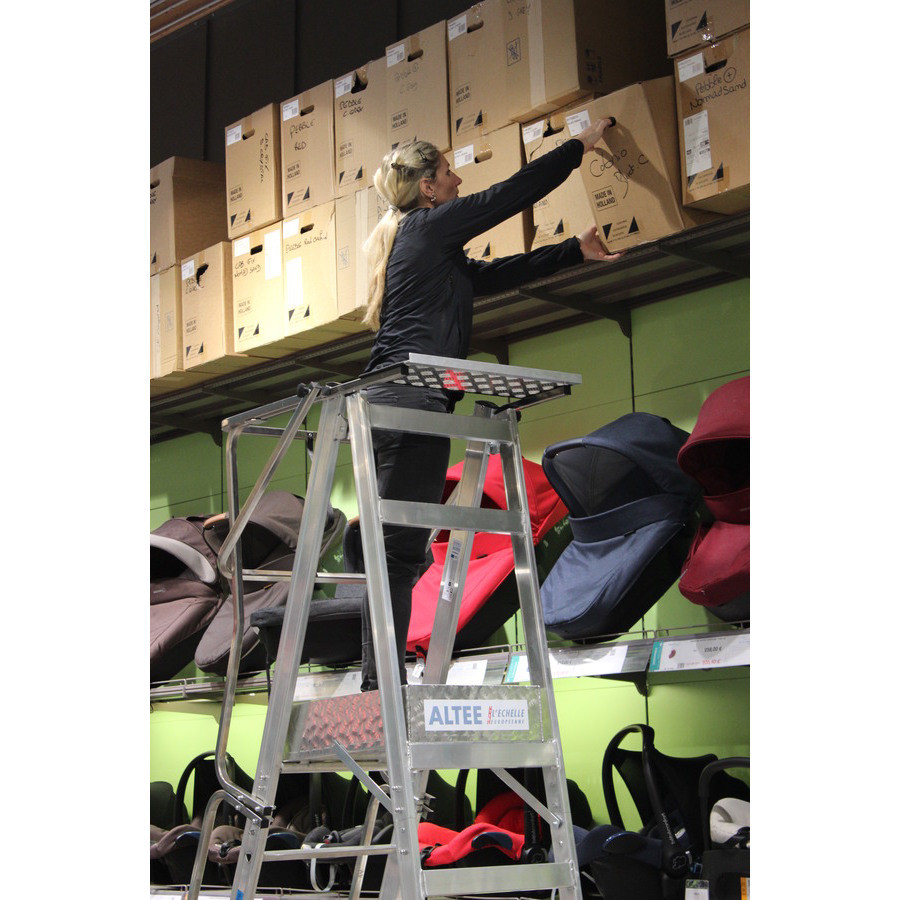

- behind the user, to create a station

From step 3 to step 15, all heights for all types of shelving : from 2,75 to 5,75 m (9' à 19') working height.

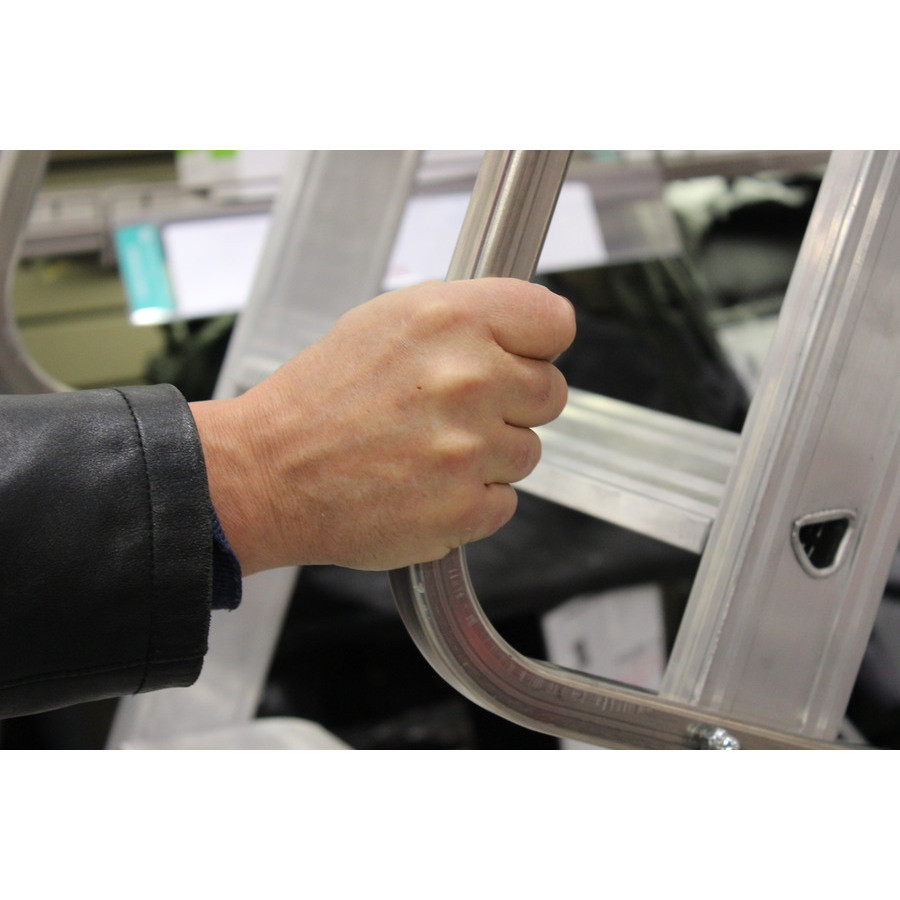

Easily accessible, the platform is equipped with handrails to facilitate the climbing.

130 mm (5") deep anti-slip step for greater comfort.

Technical description

Step position (mm) : 600 (24")


Tilting : 68°

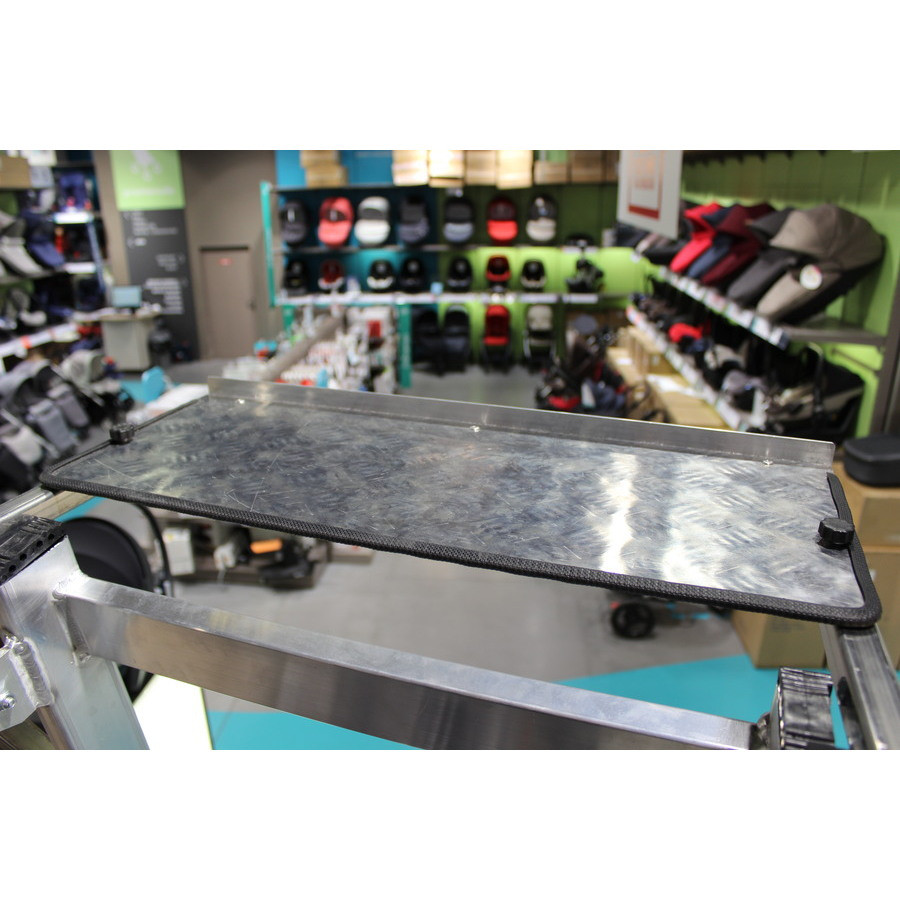

Platform sizes (mm) : 600 x 450 (24"x17")

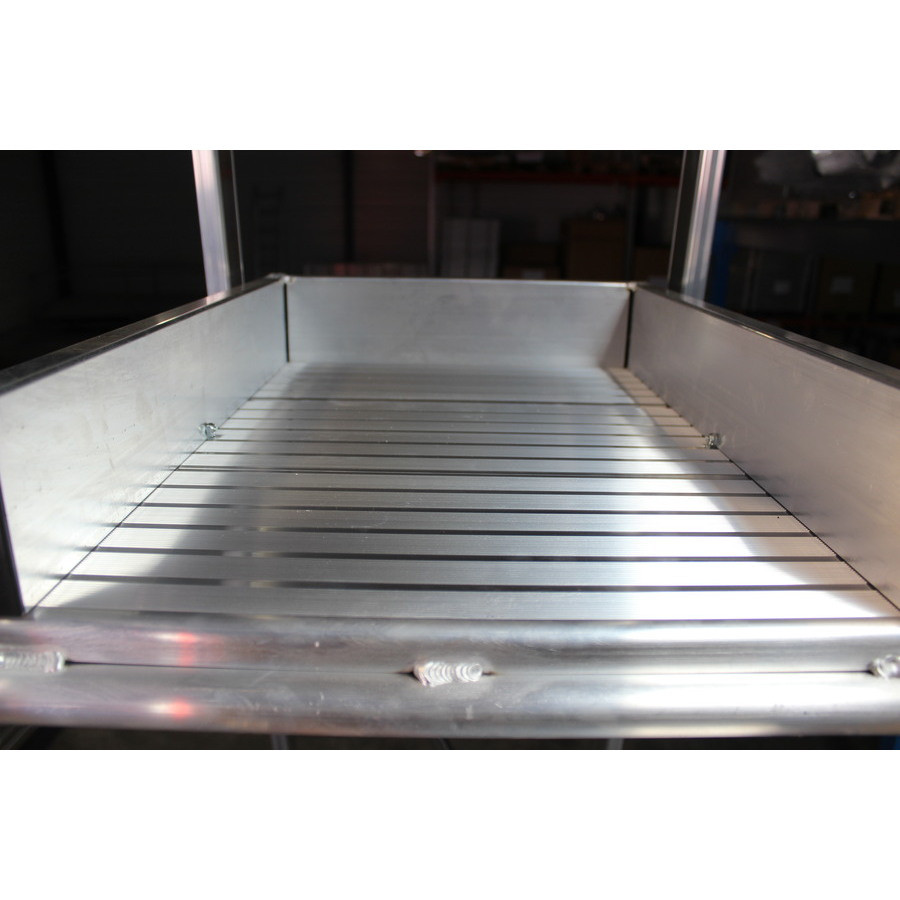

Tool carrier shelf (mm) : 600 x 180 (24"x7")

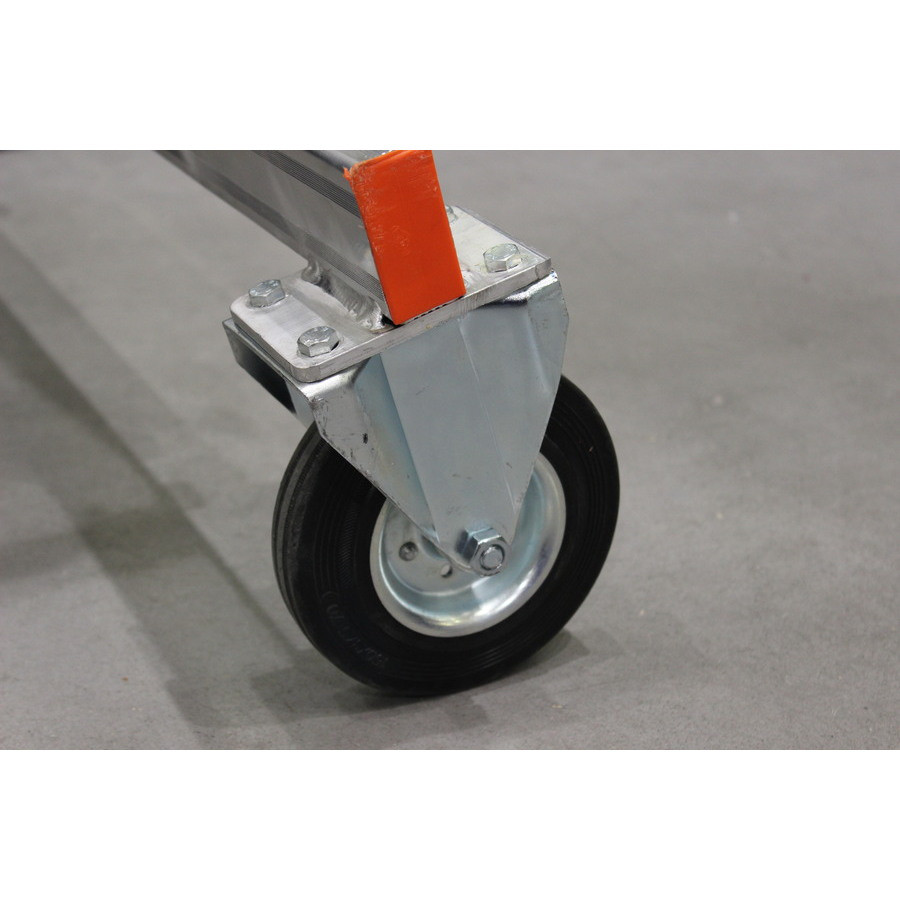

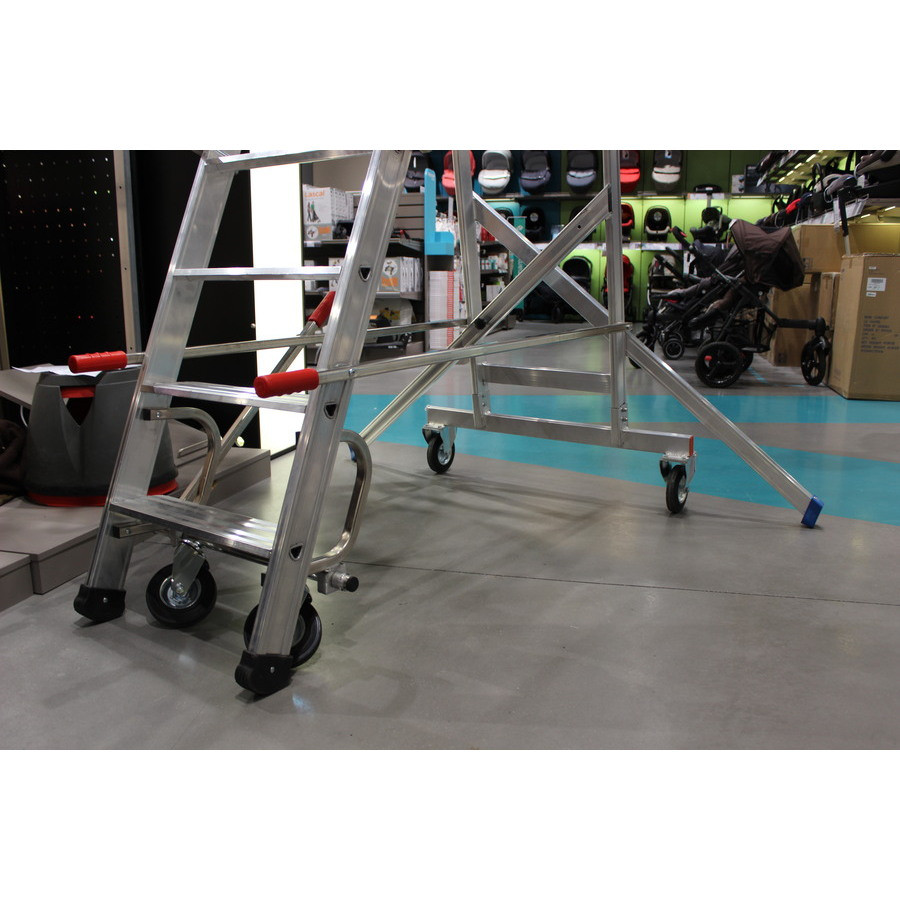

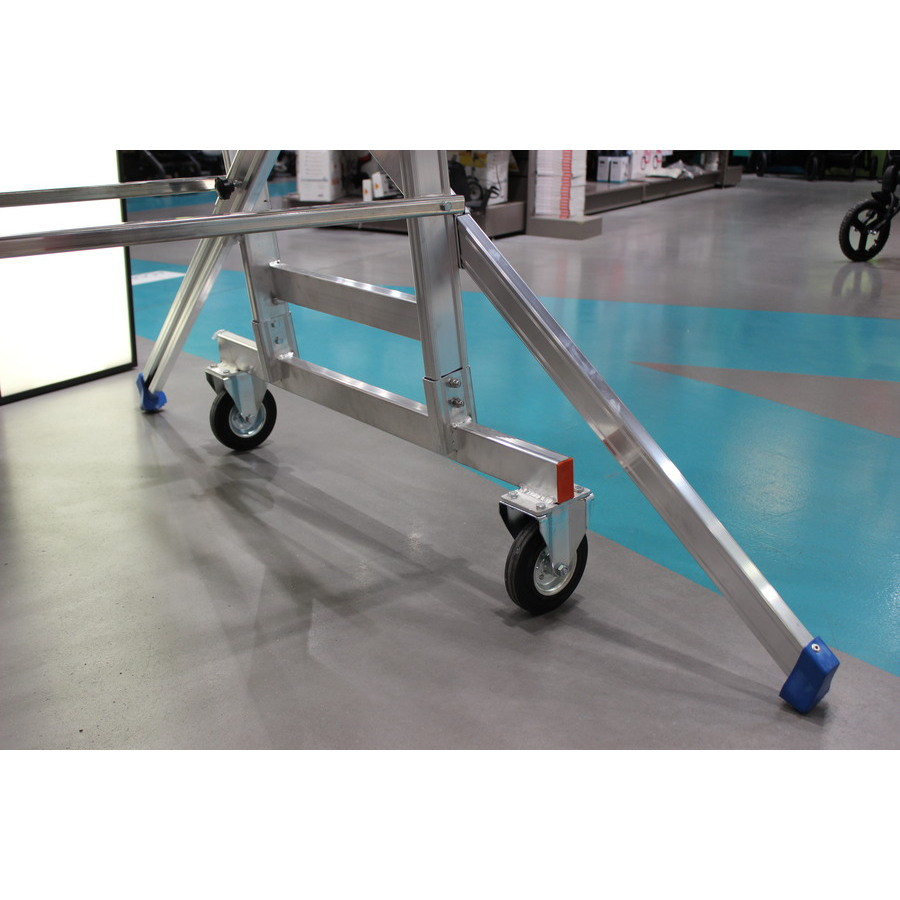

Wheel diameter (mm) : 150 (6")

Documentation

1953418 NOT - C16 NO.PDF
347209 ATTESTATION DE.PDF
6334143 NOTICE DE MO.PDF
FP ALTEE EN 20-02-24.PDF
