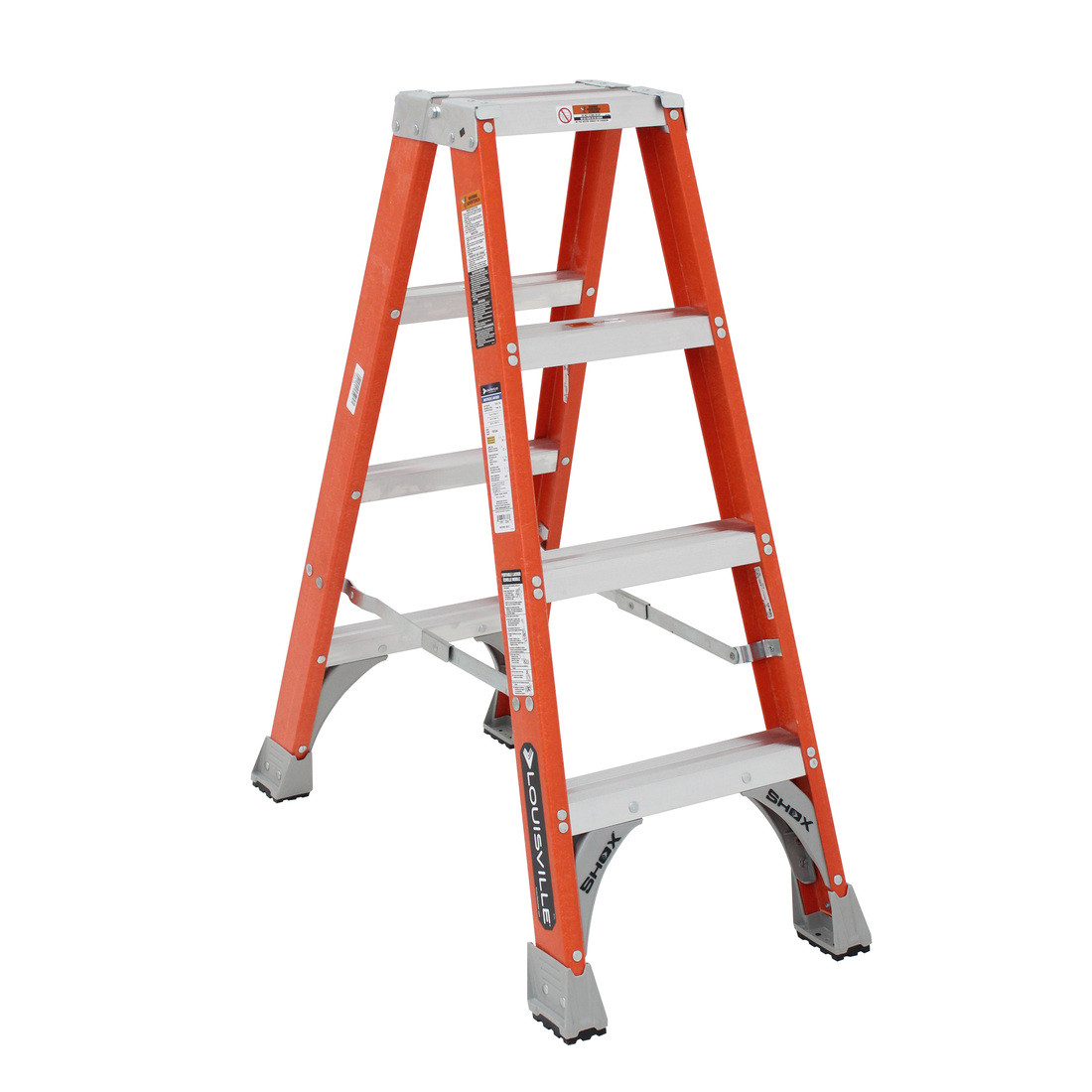

Louisville Ladder: FM1500 Fiberglass Twin Front Ladder (300 lb)
A twin front ladder allowing two people to work simultaneously on the same ladder.
Advantages and strengths
Fiberglass twin front ladder, 300 lb (136 kg) duty rating per side, for two simultaneous users.
Heavy-gauge steel hinges, inside spreader braces, double-rivet construction, SHOX system, and Raptor Boot shoe.
Technical characteristics

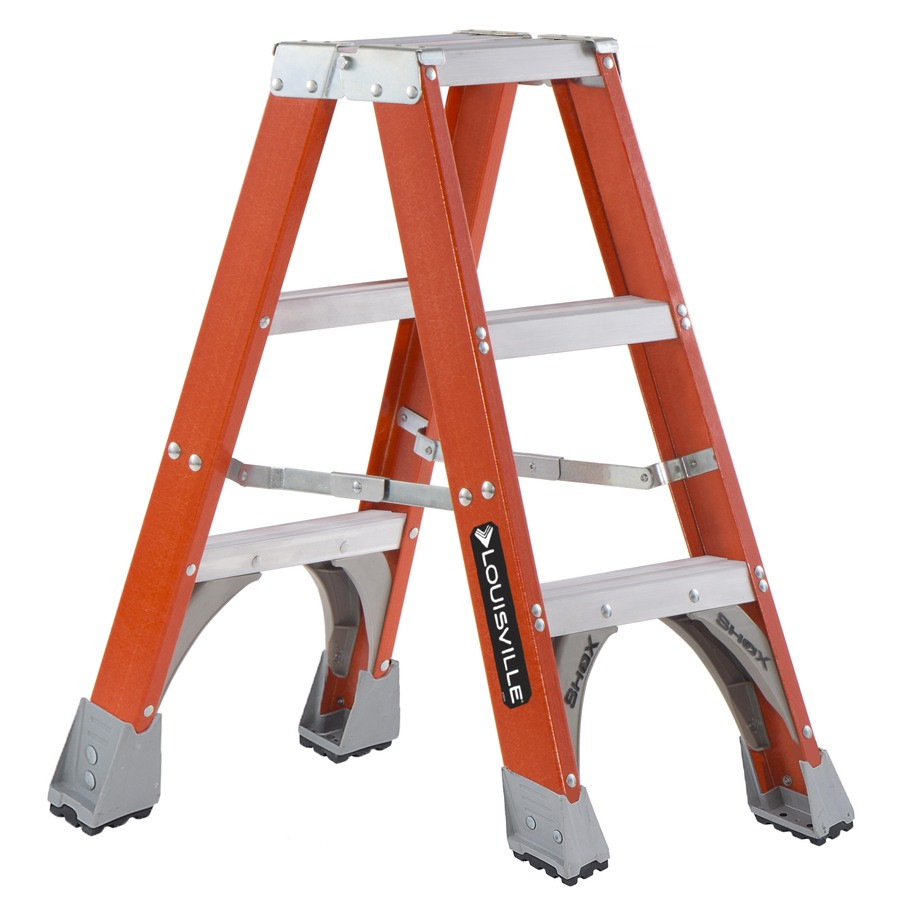

| Twin Front Ladder 3ft | |
|---|---|
| Reference : | FM1503 |
| characteristic.CANADA_HAUTEUR_TOTALE | 3 ft (0.91 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 7 ft 6 in (2.29 m) |
| characteristic.CANADA_LARGEUR_BASE | 17 3/4 in (45.1 cm) |
| characteristic.CANADA_ECARTEMENT | 31 in (78.7 cm) cm |
| characteristic.CANADA_POIDS | 15 lb (6.8 kg) lb |
| Quantity : |
|

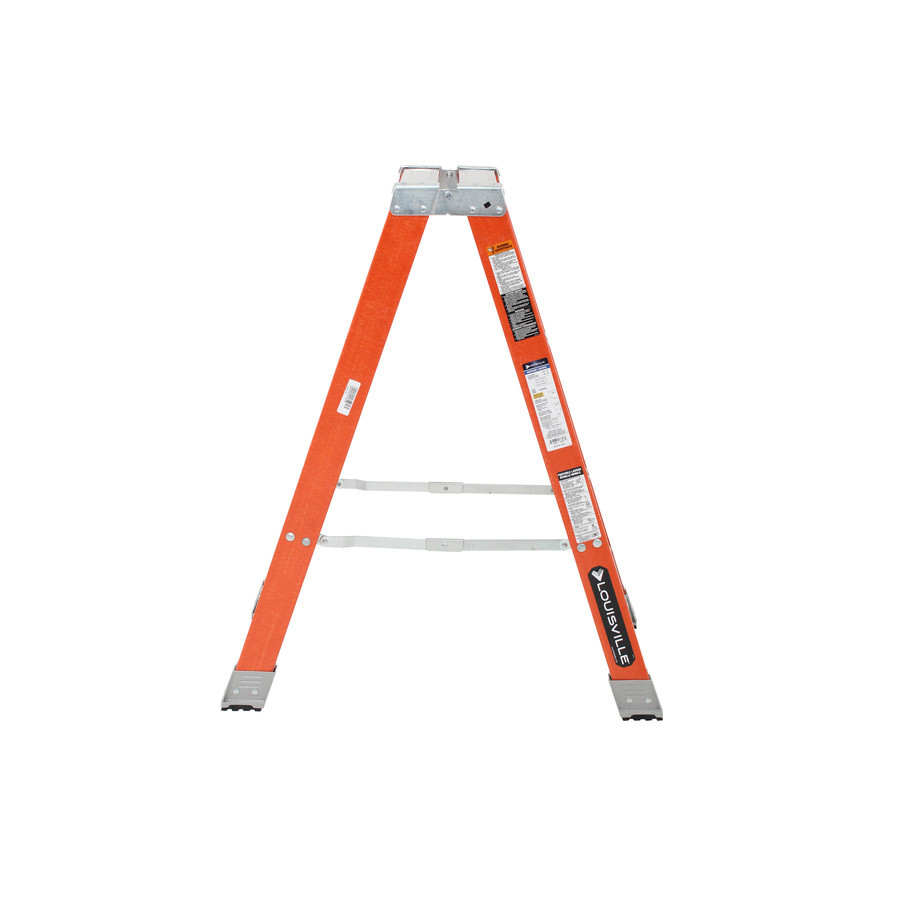

| Twin Front Ladder 4ft | |
|---|---|
| Reference : | FM1504 |
| characteristic.CANADA_HAUTEUR_TOTALE | 4 ft (1.22 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 8 ft 6 in (2.59 m) |
| characteristic.CANADA_LARGEUR_BASE | 18 3/4 in (47.6 cm) |
| characteristic.CANADA_ECARTEMENT | 37 7/8 in (96.2 cm) cm |
| characteristic.CANADA_POIDS | 19 lb (8.6 kg) lb |
| Quantity : |
|

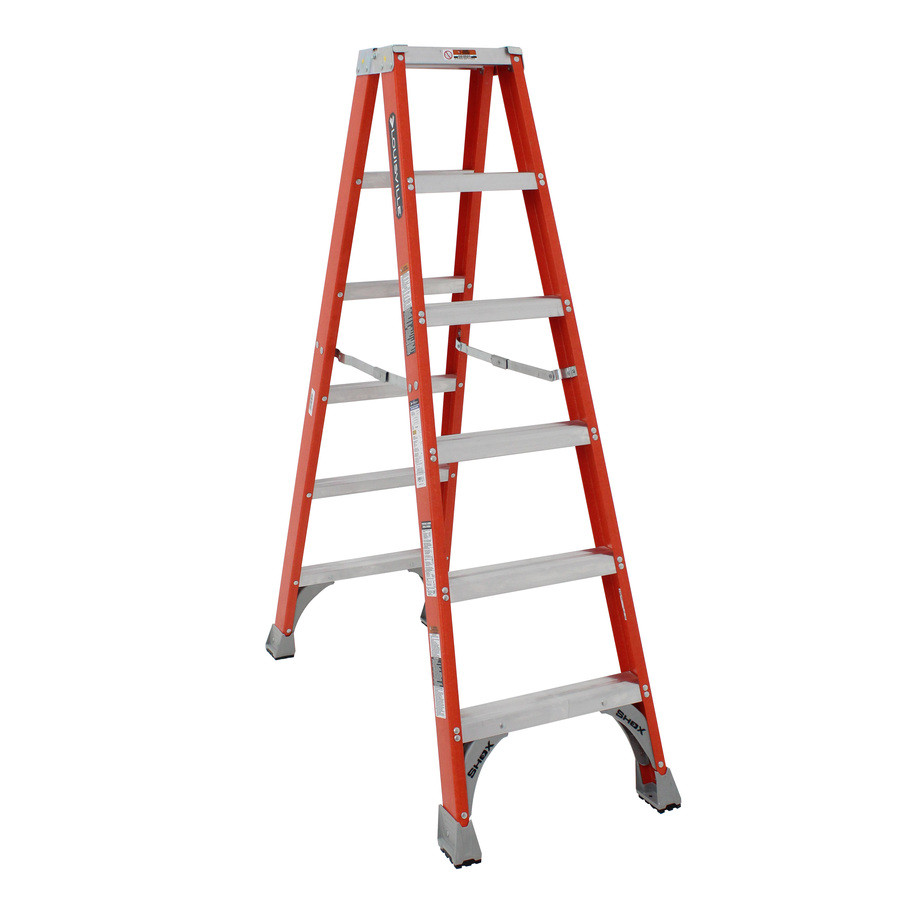

| Twin Front Ladder 6ft | |
|---|---|
| Reference : | FM1506 |
| characteristic.CANADA_HAUTEUR_TOTALE | 6 ft (1.83 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 10 ft 5 in (3.17 m) |
| characteristic.CANADA_LARGEUR_BASE | 22 1/2 in (57.1 cm) |
| characteristic.CANADA_ECARTEMENT | 53 3/4 in (136.5 cm) cm |
| characteristic.CANADA_POIDS | 26 lb (11.8 kg) lb |
| Quantity : |
|

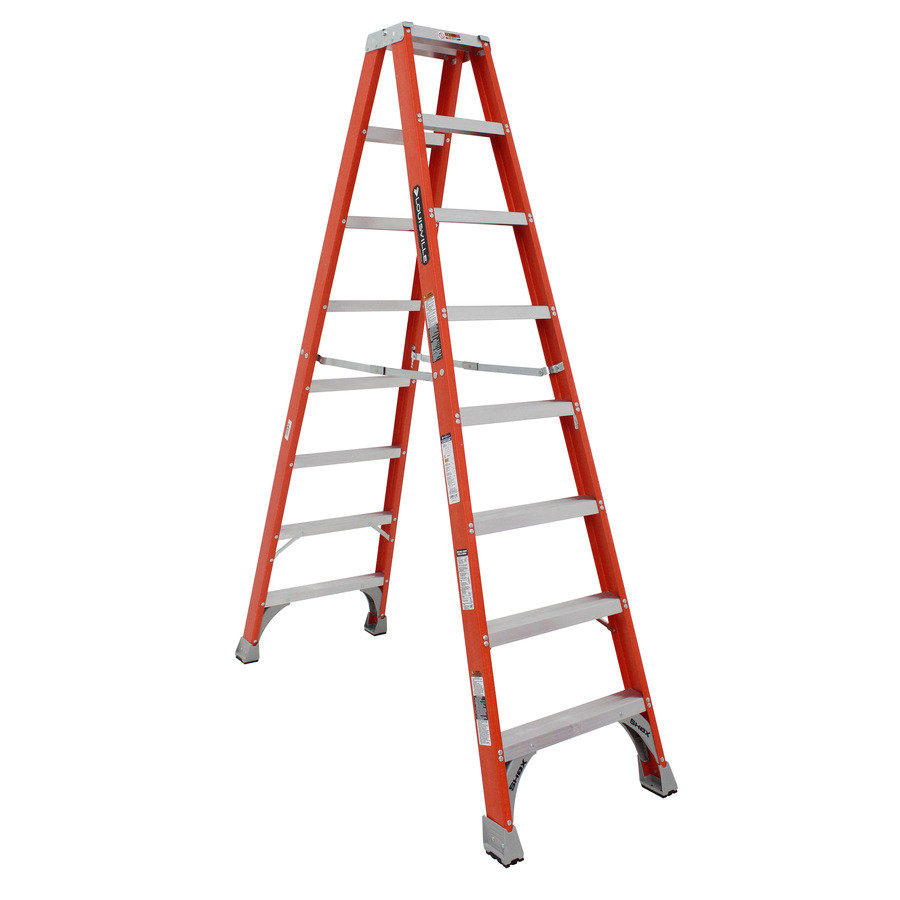

| Twin Front Ladder 8ft | |
|---|---|
| Reference : | FM1508 |
| characteristic.CANADA_HAUTEUR_TOTALE | 8 ft (2.44 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 12 ft 3 in (3.73 m) |
| characteristic.CANADA_LARGEUR_BASE | 25 1/4 in (64.1 cm) |
| characteristic.CANADA_ECARTEMENT | 68 3/8 in (173.7 cm) cm |
| characteristic.CANADA_POIDS | 35 lb (15.9 kg) lb |
| Quantity : |
|

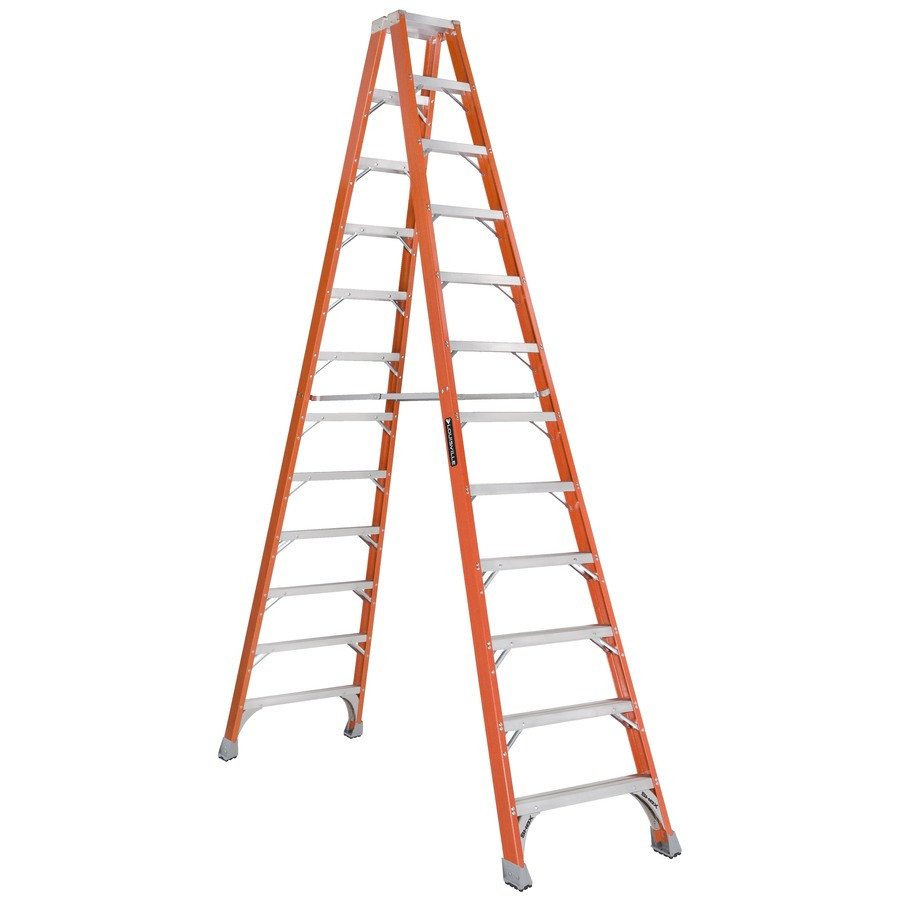

| Twin Front Ladder 10ft | |
|---|---|
| Reference : | FM1510 |
| characteristic.CANADA_HAUTEUR_TOTALE | 10 ft (3.05 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 14 ft 2 in (4.32 m) |
| characteristic.CANADA_LARGEUR_BASE | 27 3/4 in (70.5 cm) |
| characteristic.CANADA_ECARTEMENT | 83 7/8 in (213.0 cm) cm |
| characteristic.CANADA_POIDS | 44 lb (20.0 kg) lb |
| Quantity : |
|
Use

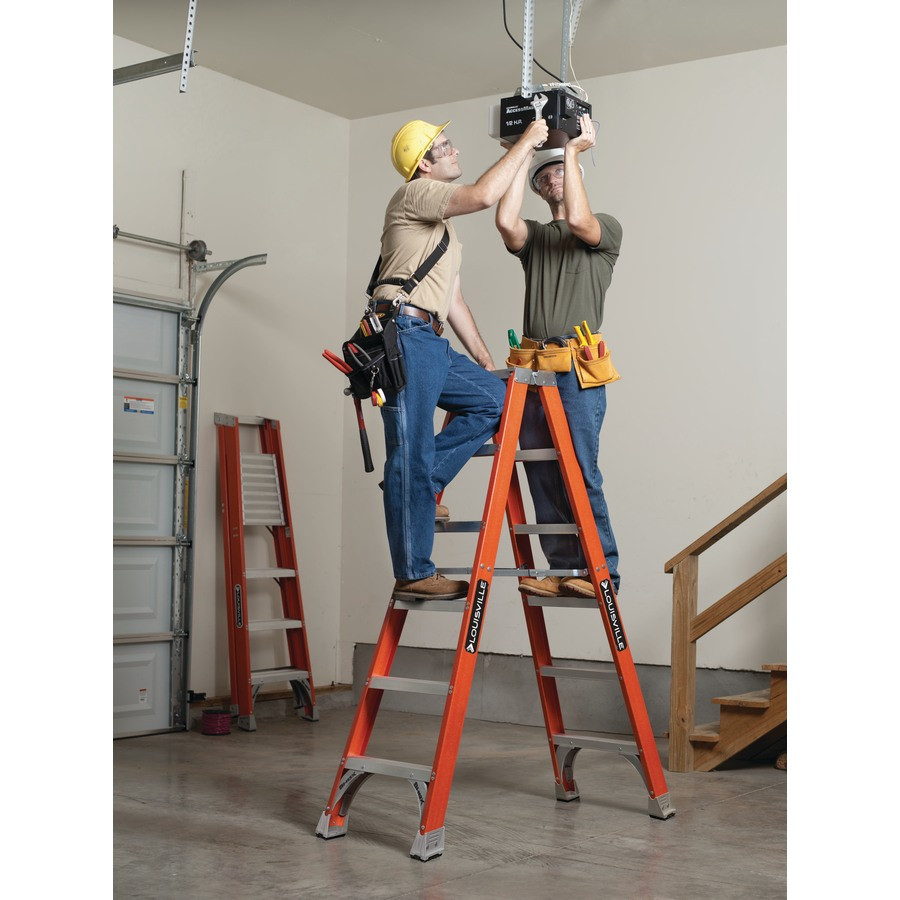

Two simultaneous users
The FM1500 allows two people to work at the same time on opposite sides of the ladder, each side supporting up to 300 lb (136 kg).
Rugged construction
Heavy-gauge steel hinges and double-rivet construction ensure stable, durable use.
SHOX protection
The SHOX system and Raptor Boot shoe protect the fiberglass rails against normal wear and impact.
Non-conductive
Fiberglass does not conduct electricity when clean and dry, an asset for work near live lines.
Regulatory compliance
Designed to meet or exceed ANSI A14.5 requirements, as well as applicable CSA standards for the Canadian market.
Technical description

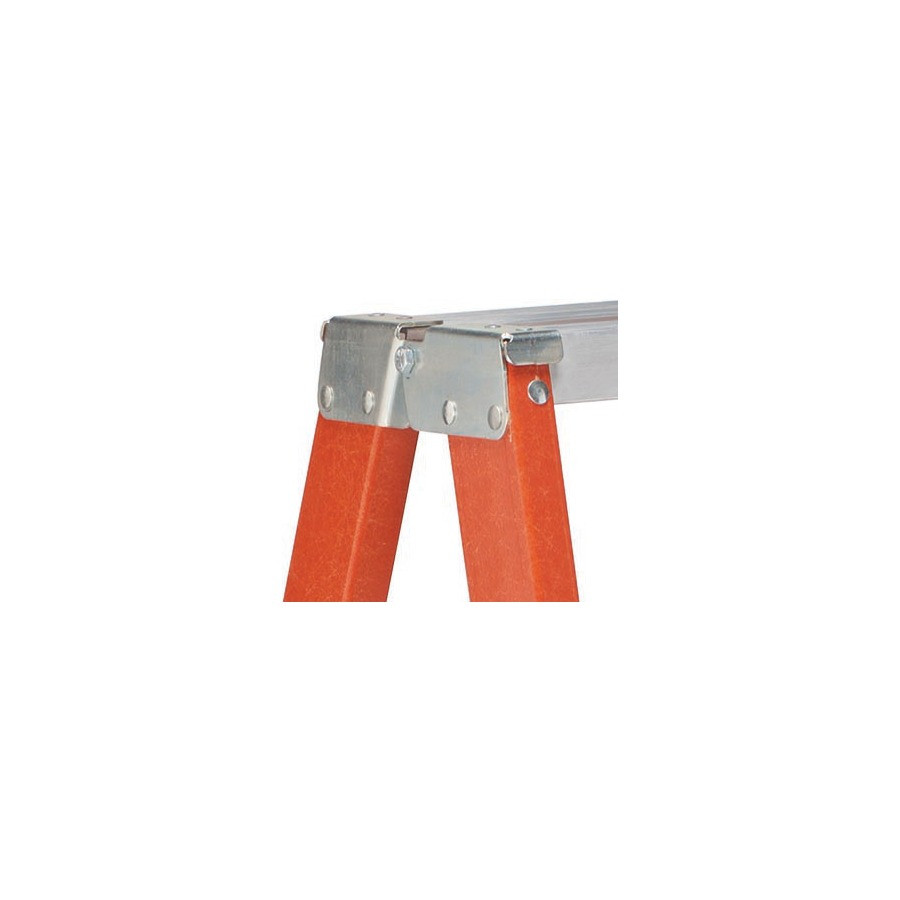

Heavy-gauge steel hinges: increased durability.

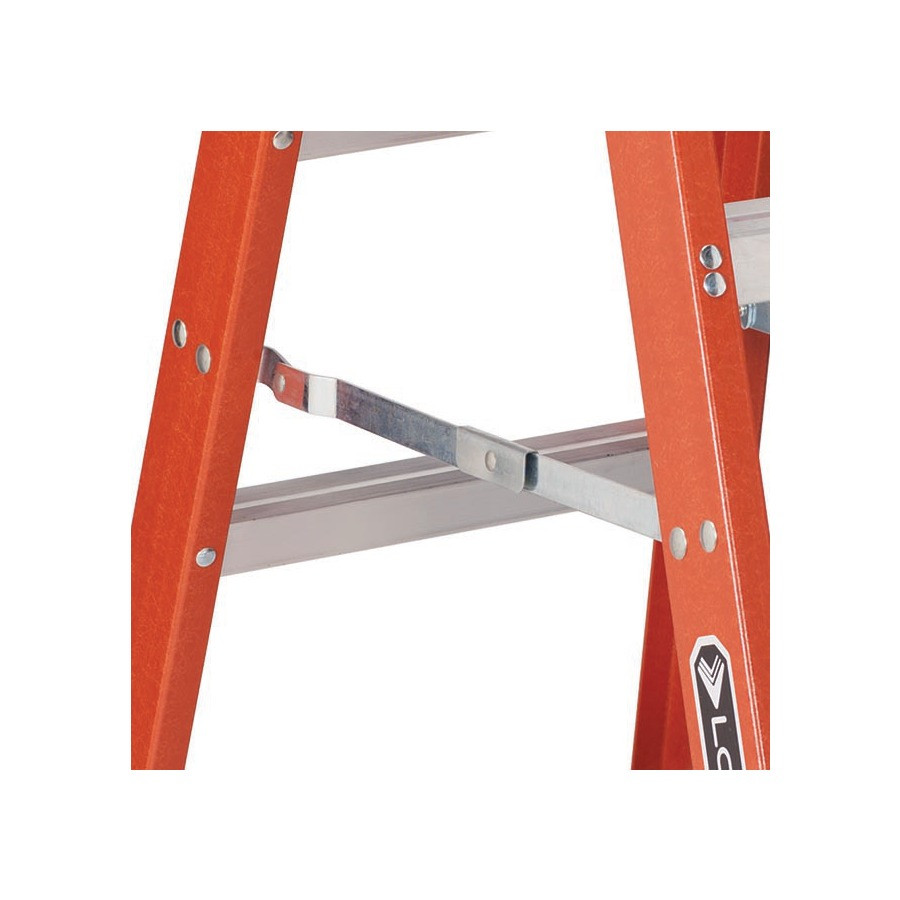

Inside spreader braces: protect braces during transport.

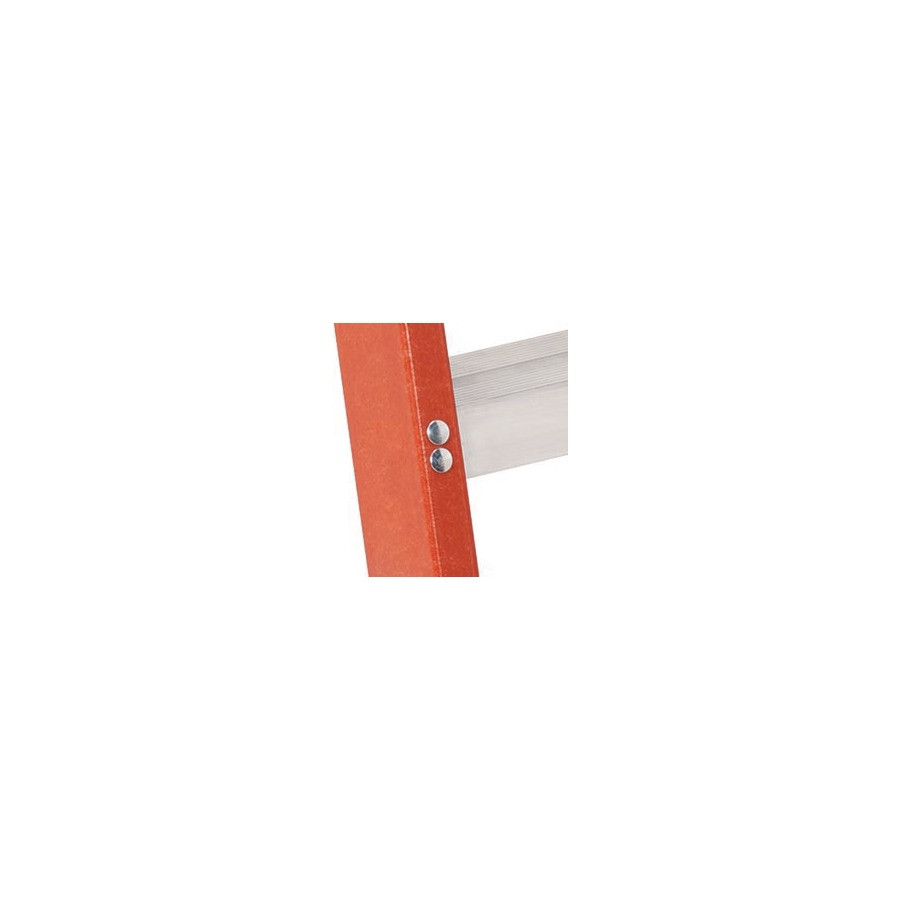

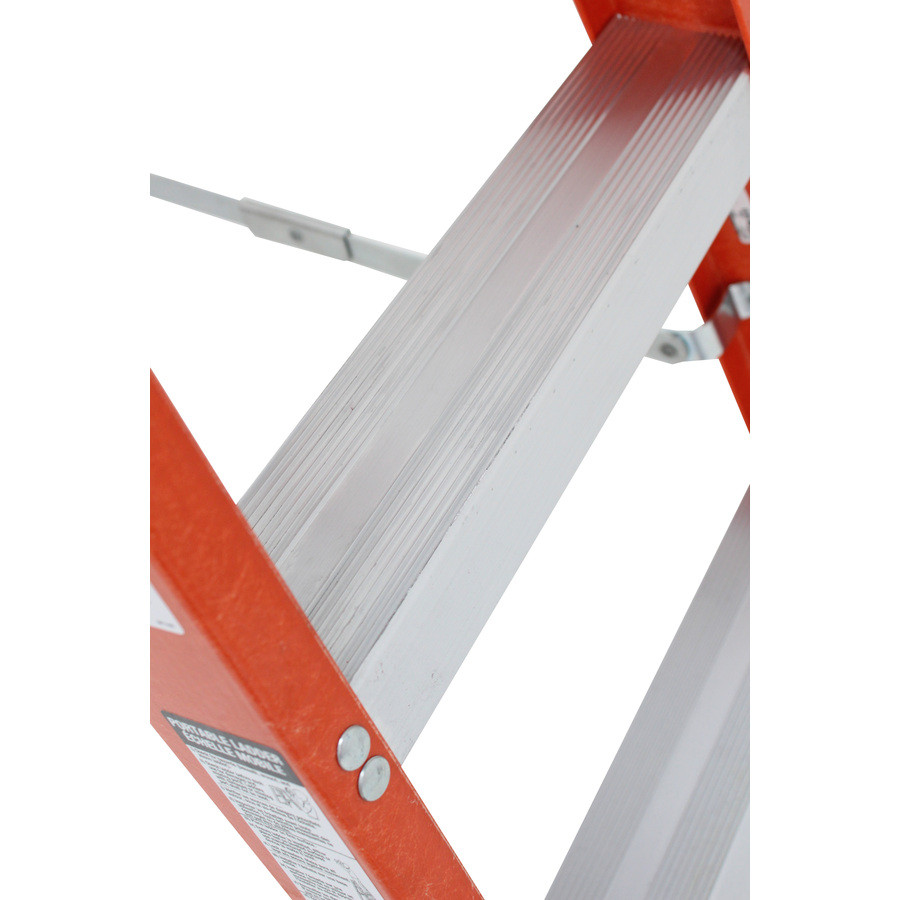

Double-rivet construction: increased rigidity and stability.

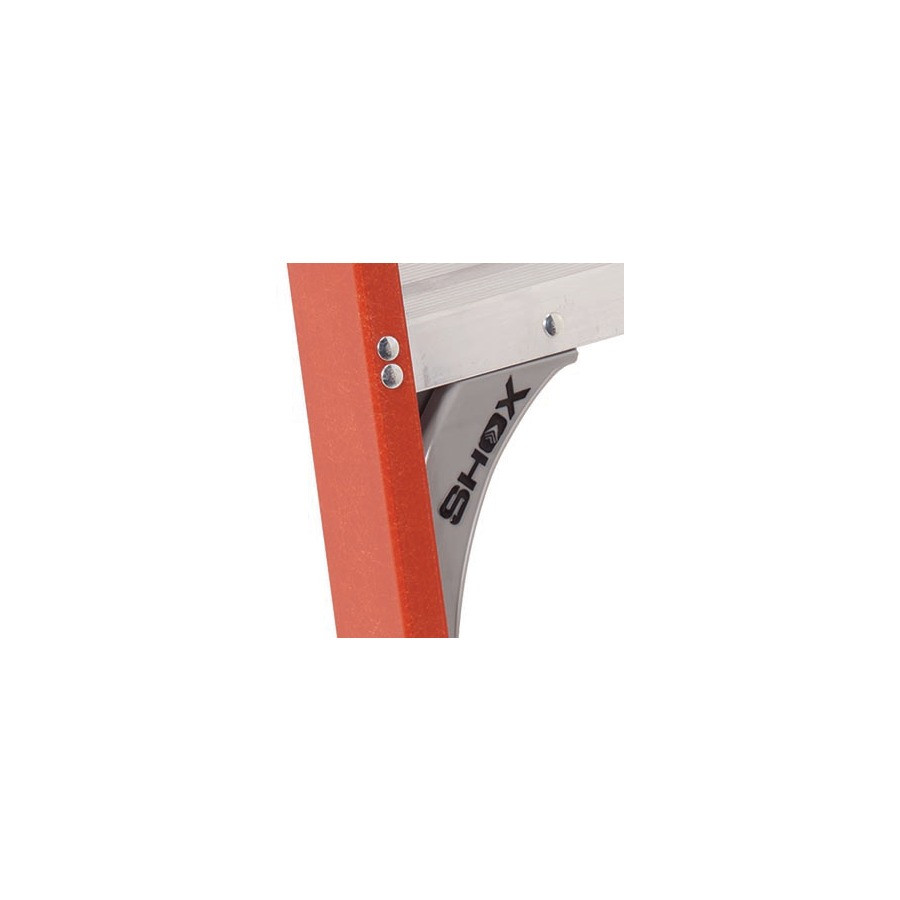

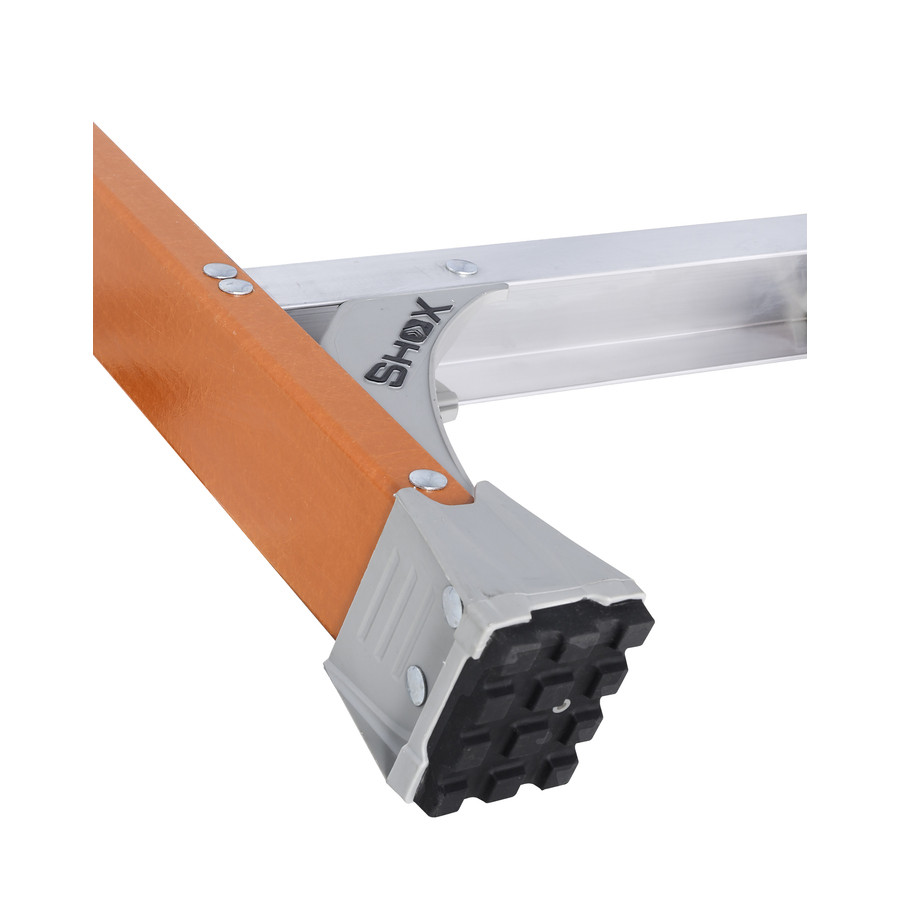

SHOX: advanced impact absorption, protects fiberglass rails.
Raptor Boot shoe: protects fiberglass rails.
Both sides of twin front ladders can be used simultaneously by one person plus materials; the duty rating is per side.
Duty rating: 300 lb (136 kg) per side, Type IA, professional use.
