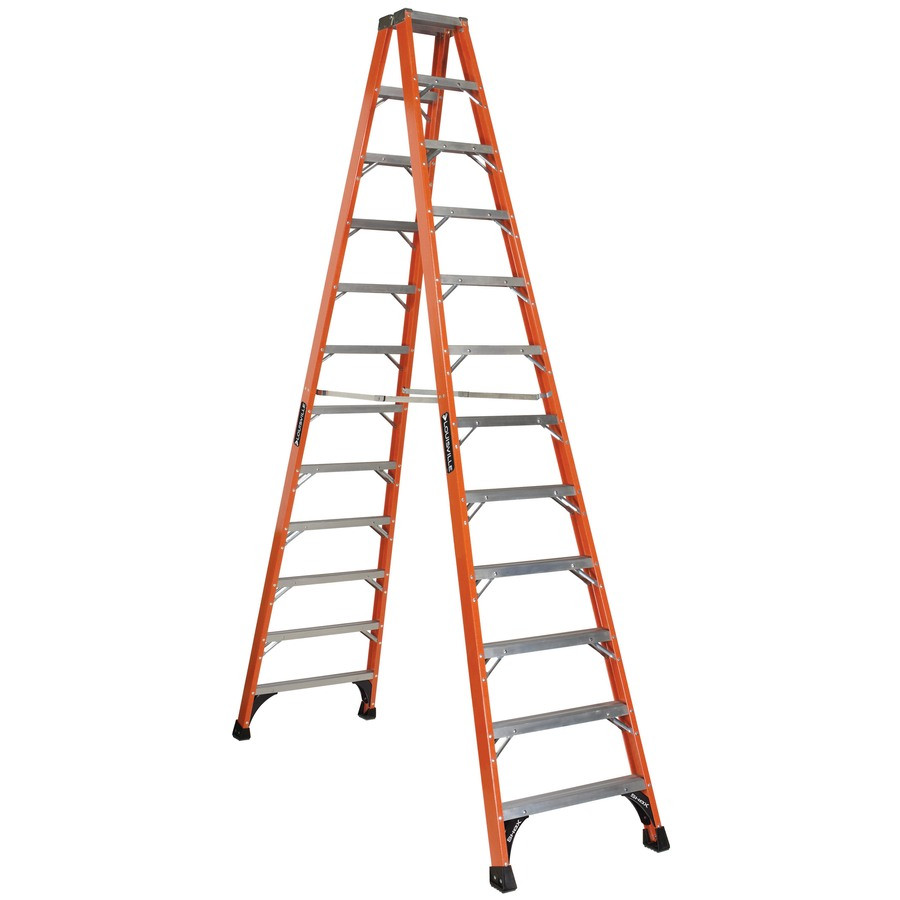

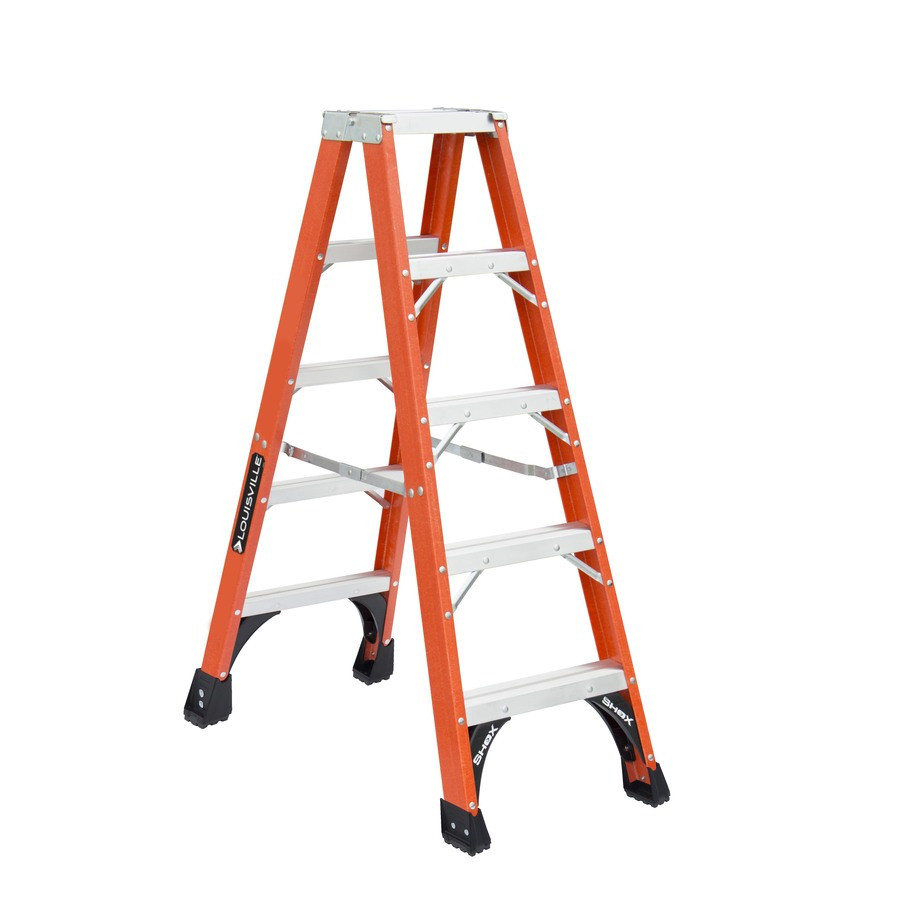

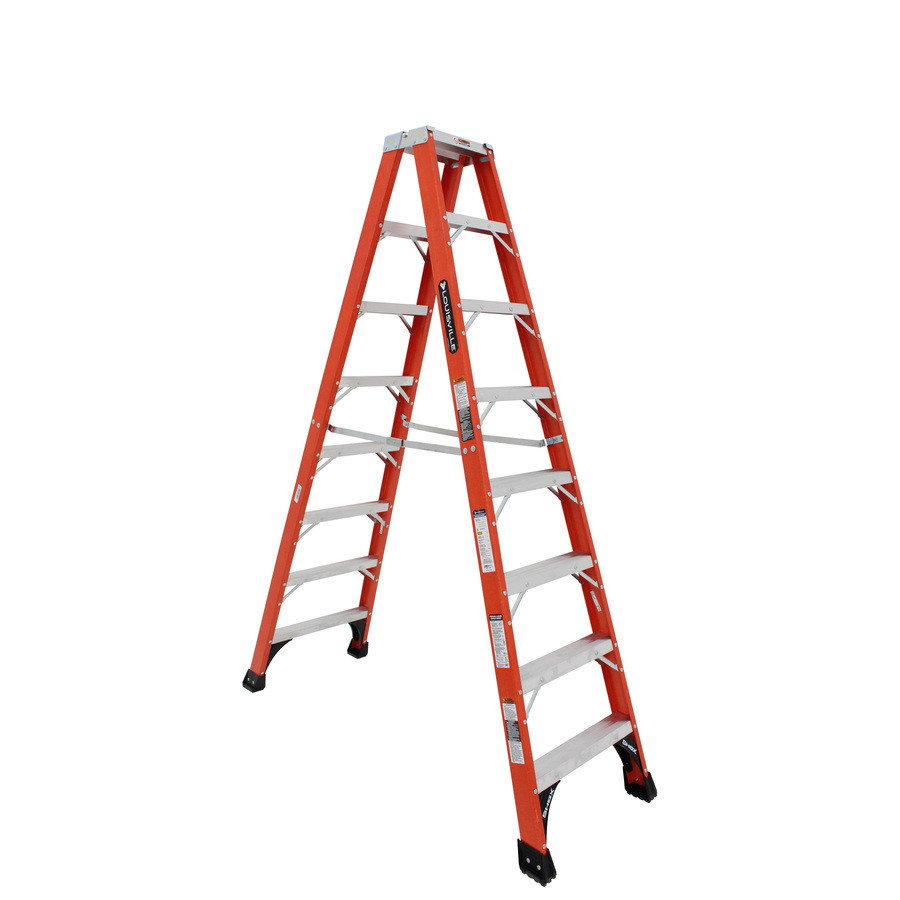

Louisville Ladder: FM1400HD Fiberglass Twin Front Ladder (375 lb)
An extra-heavy-duty twin front ladder, allowing two people to work simultaneously on the same ladder.
Advantages and strengths
Extra-heavy-duty fiberglass twin front ladder, 375 lb (170 kg) duty rating per side, for two simultaneous users.
Heavy-duty metal top, inside spreader braces, reinforced gussets, SHOX system, and Raptor Boot shoe.
Technical characteristics

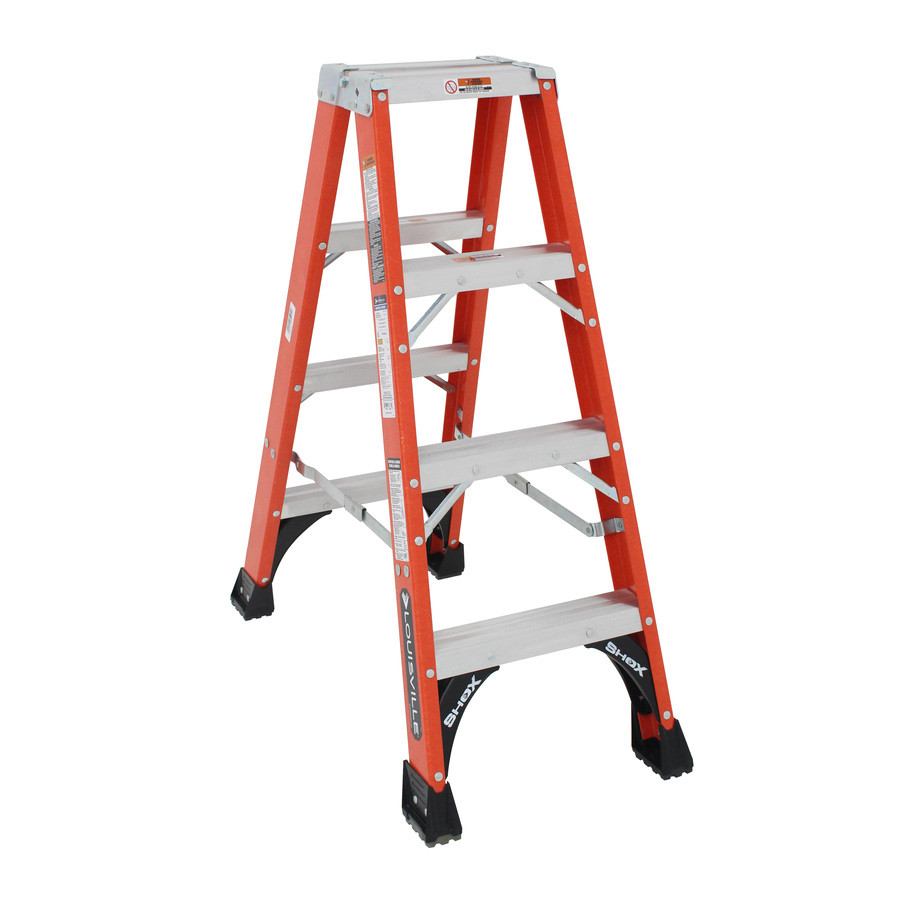

| Fiberglass Twin Front Ladder4 ft | |
|---|---|
| Reference : | FM1404HD |
| characteristic.CANADA_HAUTEUR_TOTALE | 4 ft (1.22 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 8 ft 6 in (2.59 m) |
| characteristic.CANADA_LARGEUR_BASE | 19 3/8 in (49.2 cm) |
| characteristic.CANADA_ECARTEMENT | 38 3/8 in (97.5 cm) cm |
| characteristic.CANADA_POIDS | 19 lb (8.6 kg) lb |
| Quantity : |
|

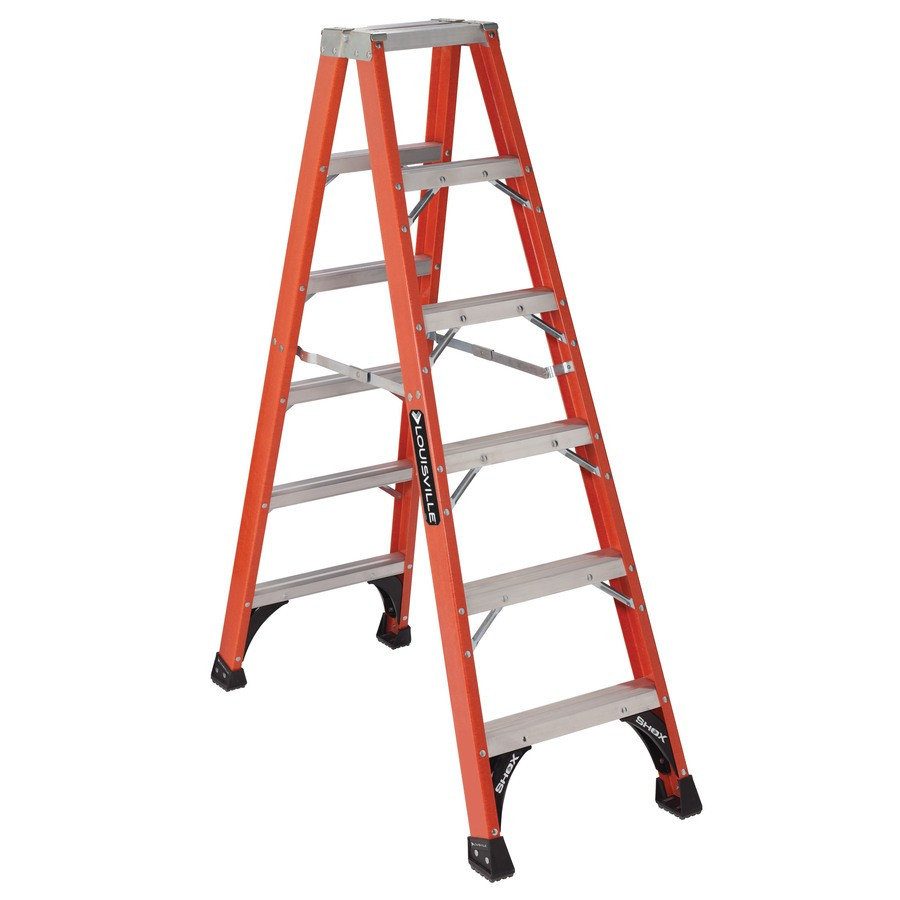

| Fiberglass Twin Front Ladder 6ft | |
|---|---|
| Reference : | FM1406HD |
| characteristic.CANADA_HAUTEUR_TOTALE | 6 ft (1.83 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 10 ft 4 in (3.15 m) |
| characteristic.CANADA_LARGEUR_BASE | 22 1/2 in (57.1 cm) |
| characteristic.CANADA_ECARTEMENT | 54 in (137.2 cm) cm |
| characteristic.CANADA_POIDS | 26 lb (11.8 kg) lb |
| Quantity : |
|

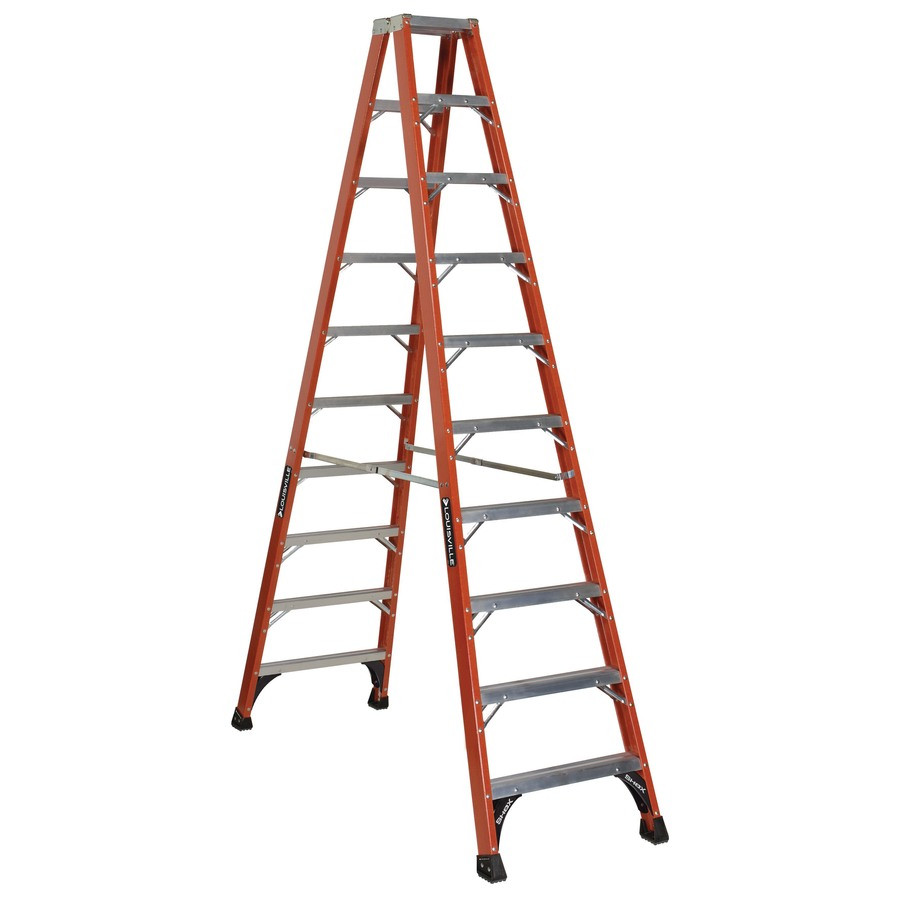

| Fiberglass Twin Front Ladder 8ft | |
|---|---|
| Reference : | FM1408HD |
| characteristic.CANADA_HAUTEUR_TOTALE | 8 ft (2.44 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 12 ft 3 in (3.73 m) |
| characteristic.CANADA_LARGEUR_BASE | 25 3/8 in (64.5 cm) |
| characteristic.CANADA_ECARTEMENT | 68 1/2 in (174.0 cm) cm |
| characteristic.CANADA_POIDS | 38 lb (17.2 kg) lb |
| Quantity : |
|
| Fiberglass Twin Front Ladder 10ft | |
|---|---|
| Reference : | FM1410HD |
| characteristic.CANADA_HAUTEUR_TOTALE | 10 ft (3.05 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 14 ft 2 in (4.32 m) |
| characteristic.CANADA_LARGEUR_BASE | 28 3/8 in (72.1 cm) |
| characteristic.CANADA_ECARTEMENT | 83 1/8 in (211.1 cm) cm |
| characteristic.CANADA_POIDS | 54 lb (24.5 kg) lb |
| Quantity : |
|

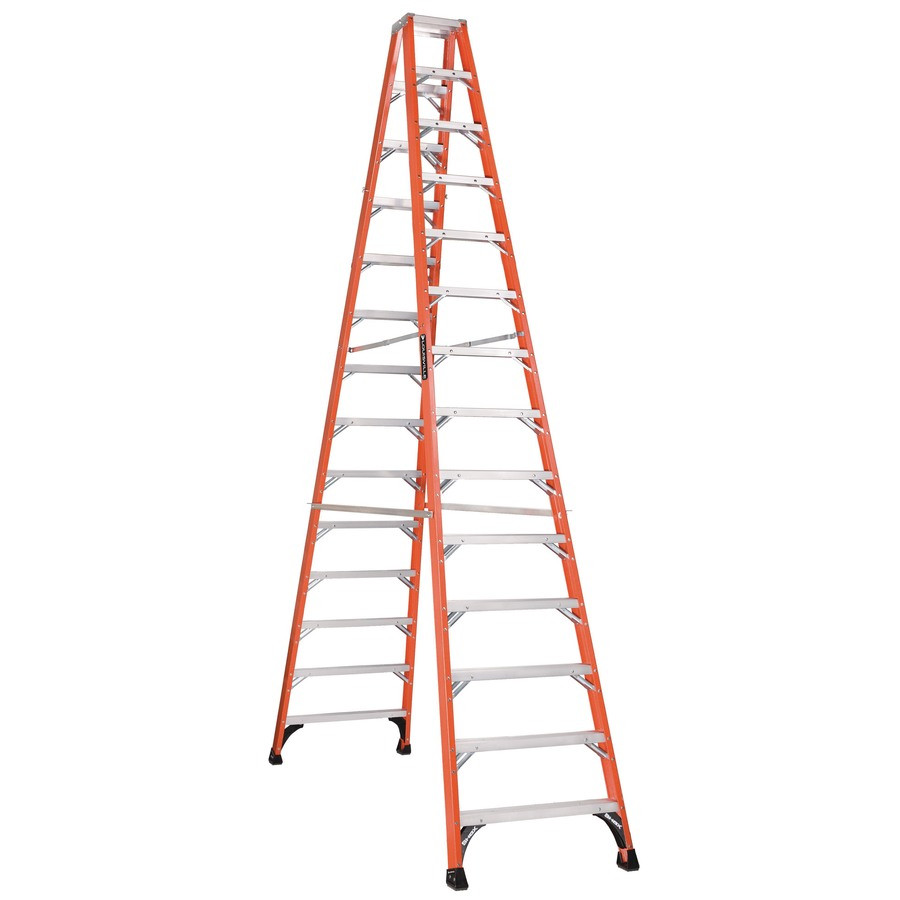

| Fiberglass Twin Front Ladder 12ft | |
|---|---|
| Reference : | FM1412HD |
| characteristic.CANADA_HAUTEUR_TOTALE | 12 ft (3.66 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 16 ft 1 in (4.90 m) |
| characteristic.CANADA_LARGEUR_BASE | 31 1/2 in (80.0 cm) |
| characteristic.CANADA_ECARTEMENT | 97 13/16 in (248.4 cm) cm |
| characteristic.CANADA_POIDS | 75 lb (34.0 kg) lb |
| Quantity : |
|
| Fiberglass Twin Front Ladder 14ft | |
|---|---|
| Reference : | FM1414HD* |
| characteristic.CANADA_HAUTEUR_TOTALE | 14 ft (4.27 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 18 ft (5.49 m) |
| characteristic.CANADA_LARGEUR_BASE | 34 1/2 in (87.6 cm) |
| characteristic.CANADA_ECARTEMENT | 113 3/8 in (288.0 cm) cm |
| characteristic.CANADA_POIDS | 84 lb (38.1 kg) lb |
| Quantity : |
|

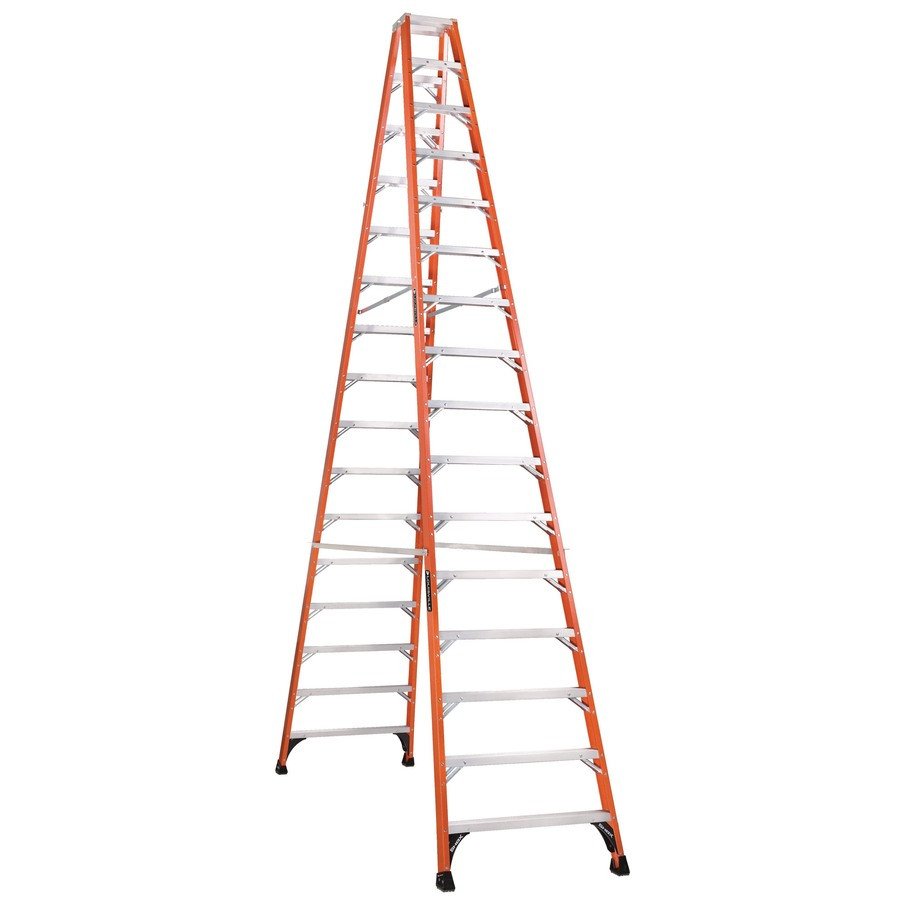

| Fiberglass Twin Front Ladder 16ft | |
|---|---|
| Reference : | FM1416HD* |
| characteristic.CANADA_HAUTEUR_TOTALE | 16 ft (4.88 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 19 ft 11 in (6.07 m) |
| characteristic.CANADA_LARGEUR_BASE | 37 3/8 in (94.9 cm) |
| characteristic.CANADA_ECARTEMENT | 37 3/8 in (94.9 cm) cm |
| characteristic.CANADA_POIDS | 100 lb (45.4 kg) lb |
| Quantity : |
|
Use
Two simultaneous users
The FM1400HD allows two people to work at the same time on opposite sides of the ladder, each side supporting up to 375 lb (170 kg).
Extra-heavy-duty strength
The heavy-duty metal top, inside spreader braces, and reinforced gussets ensure stable, durable use in industrial environments.
SHOX protection
The SHOX system and Raptor Boot shoe protect the fiberglass rails against normal wear and impact.
Non-conductive
Fiberglass does not conduct electricity when clean and dry, an asset for work near live lines.
Regulatory compliance
Designed to meet or exceed ANSI A14.5 requirements, as well as applicable CSA standards for the Canadian market.
*Duty rating for 14-16 ft sizes exceeds OSHA standards. Maximum reach calculated for a 1.70 m (5 ft 7 in) person with a 30 cm (12 in) vertical reach.
Technical description

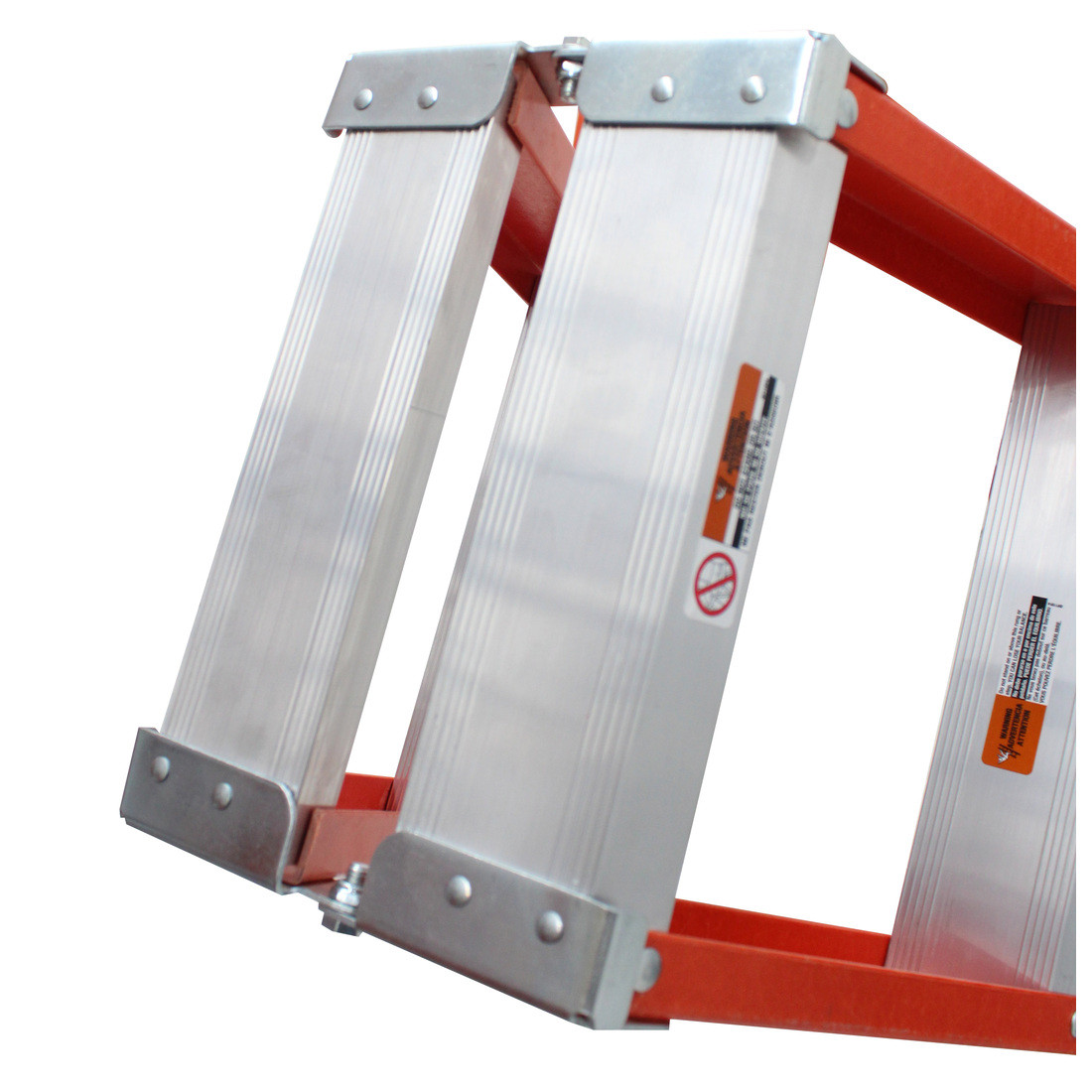

Heavy-duty metal top: increased durability.

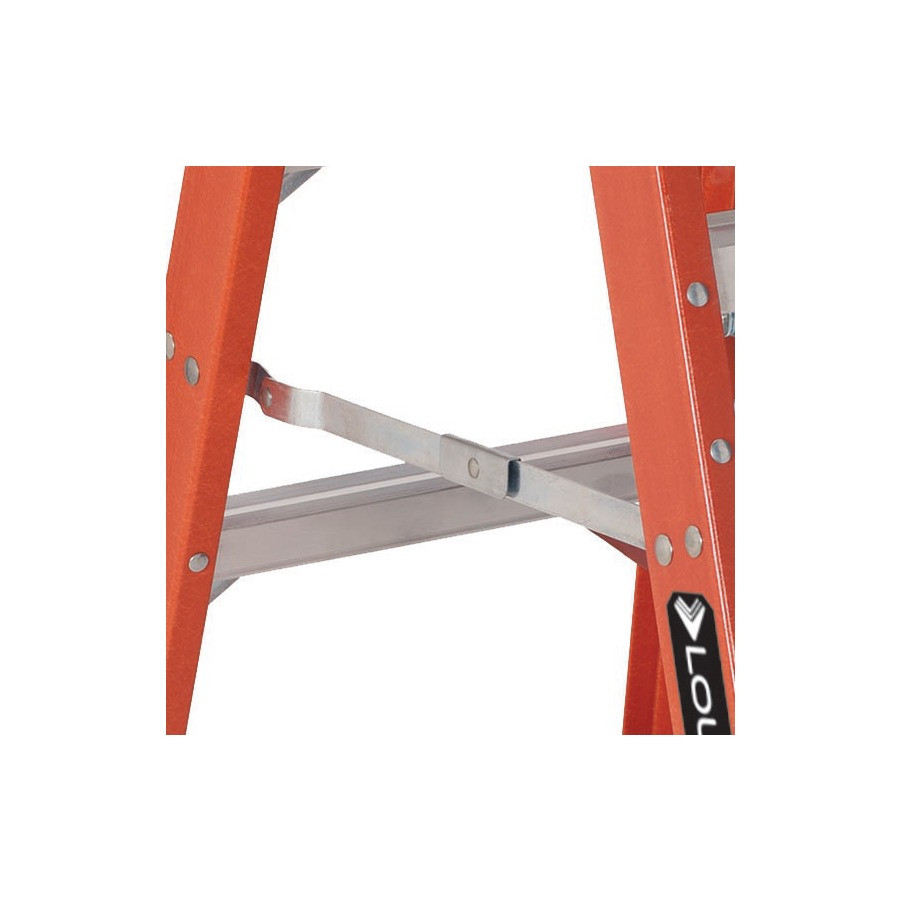

Inside spreader braces: protect braces during transport.

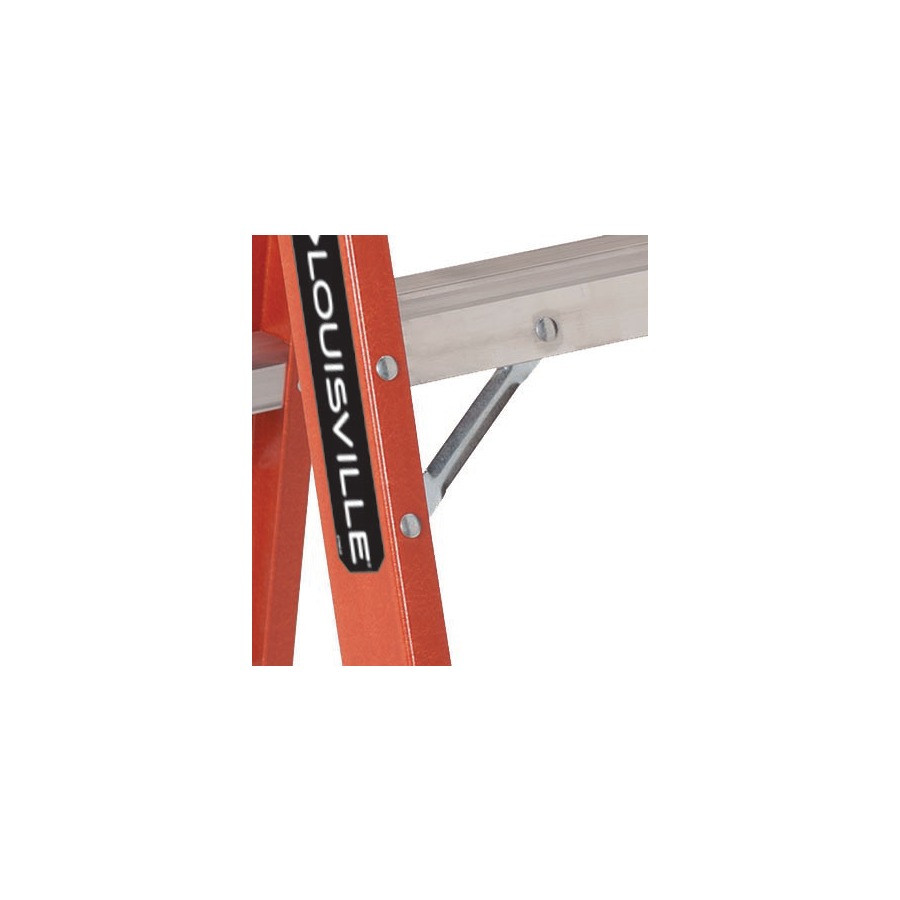

Heavy-duty steel gusset bracing: increased rigidity and stability.

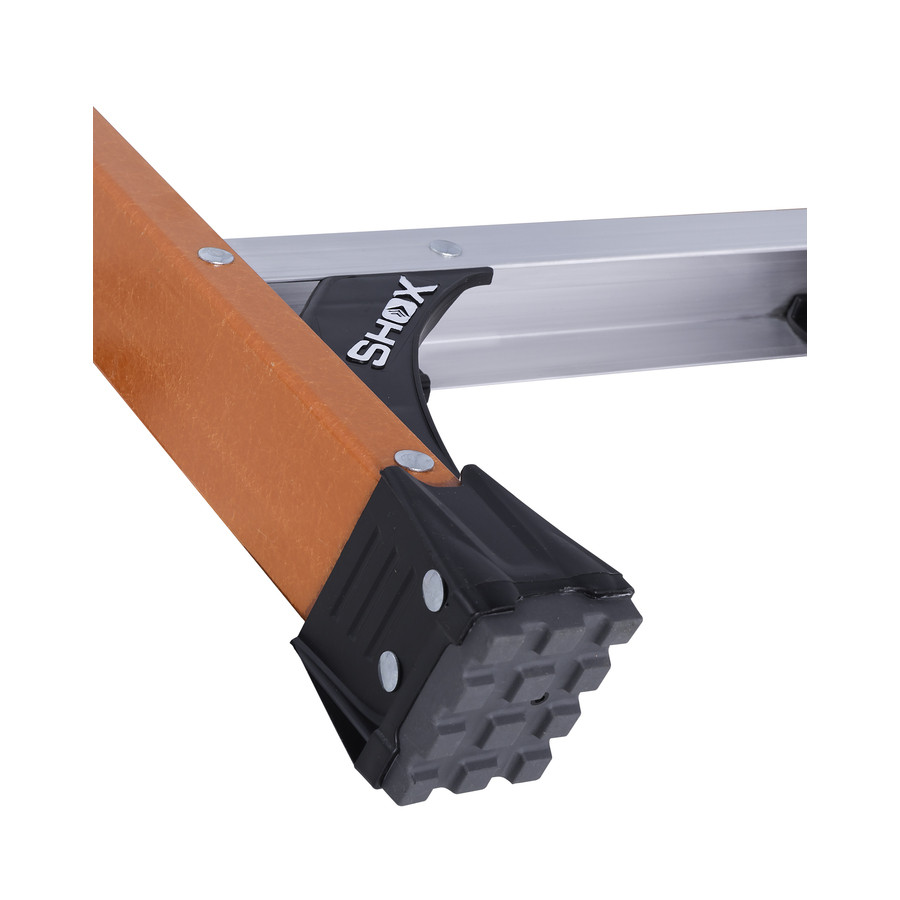

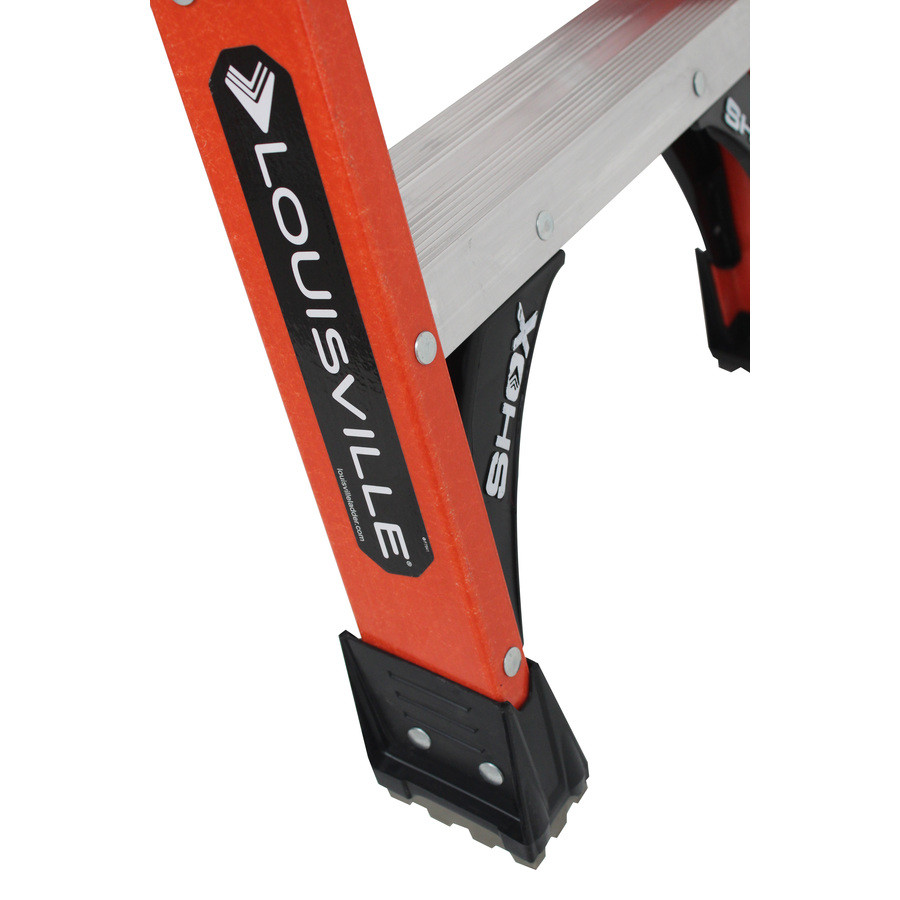

SHOX: advanced impact absorption, protects fiberglass rails.
Raptor Boot shoe: protects fiberglass rails.
Both sides of twin front ladders can be used simultaneously by one person plus materials; the duty rating is per side.
Duty rating: 375 lb (170 kg) per side, Type IAA, professional and industrial use.
