Staircase SWING

Staircase SWING

The choice of a glass ramp.

Select your reference
+
-

Technical characteristics

Reference Quantity Quote
Ref. SWING
Code A0001840
SWING suspended wooden staircase
+
-

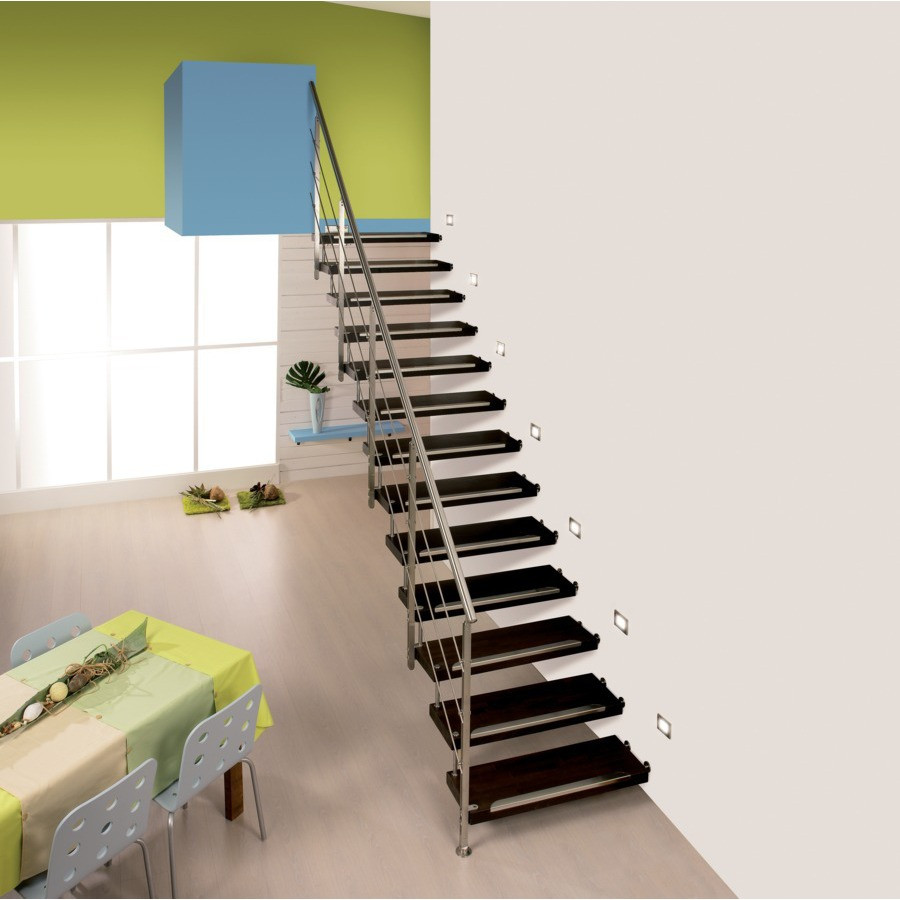

Ref. SWINGJAZZ
Code A0001841
Suspended wooden staircase SWING version railing Jazz
+
-
Ref. SWINGVIEW
Code A0001853
Suspended wooden staircase SWING version railing Jazz
+
-
Ref. SWINGVIEWDEKO
Code A0001854
Wooden staircase SWING railing version View Deko
+
-
Ref. SWINGLIMON
Code A0001849
SWING suspended wooden staircase with stringers
+
-
Ref. SWINGLIMONJAZZ
Code A0001850
Wooden suspended staircase SWING with stringer version Jazz balustrade
+
-
Ref. SWINGLIMONVIEW
Code A0001851
Wooden staircase SWING with stringer version View
+
-
Ref. SWINGLIMONVIEWDEKO
Code A0001852
Wooden staircase SWING with handrail version View Deko
+
-
SWING suspended wooden staircase
Reference : SWING
Quantity :
+
-
Suspended wooden staircase SWING version railing Jazz
Reference : SWINGJAZZ
Quantity :
+
-
Suspended wooden staircase SWING version railing Jazz
Reference : SWINGVIEW
Quantity :
+
-
Wooden staircase SWING railing version View Deko
Reference : SWINGVIEWDEKO
Quantity :
+
-
SWING suspended wooden staircase with stringers
Reference : SWINGLIMON
Quantity :
+
-
Wooden suspended staircase SWING with stringer version Jazz balustrade
Reference : SWINGLIMONJAZZ
Quantity :
+
-
Wooden staircase SWING with stringer version View
Reference : SWINGLIMONVIEW
Quantity :
+
-
Wooden staircase SWING with handrail version View Deko
Reference : SWINGLIMONVIEWDEKO
Quantity :
+
-

Use

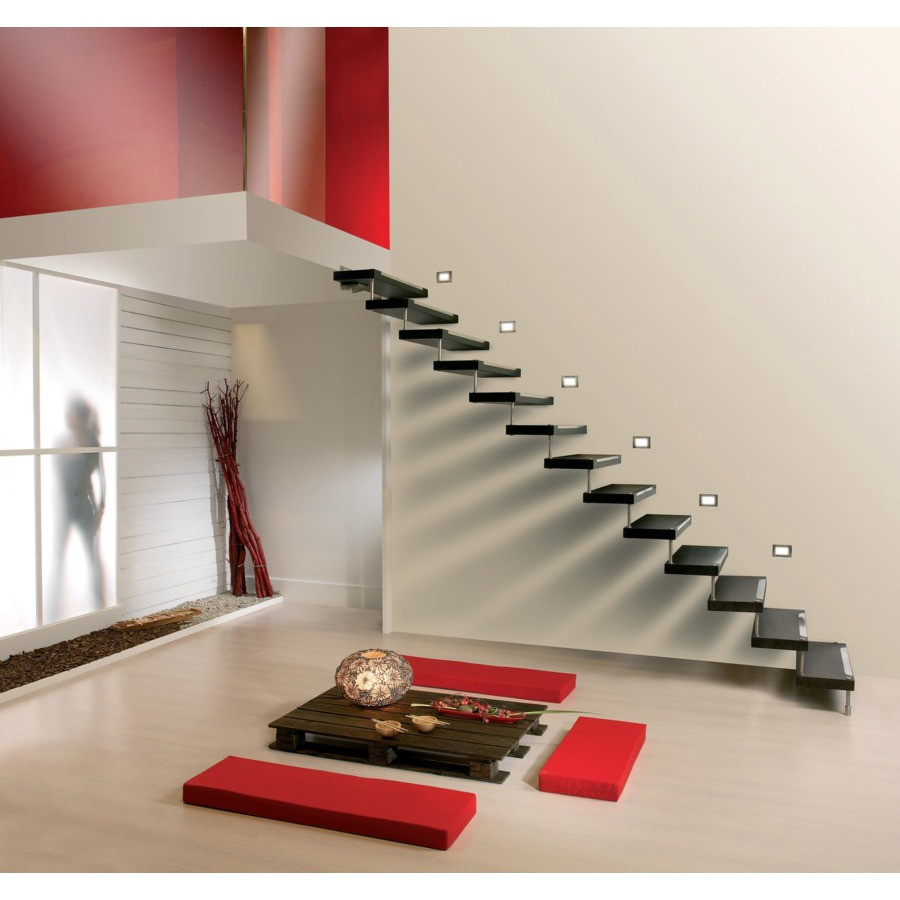

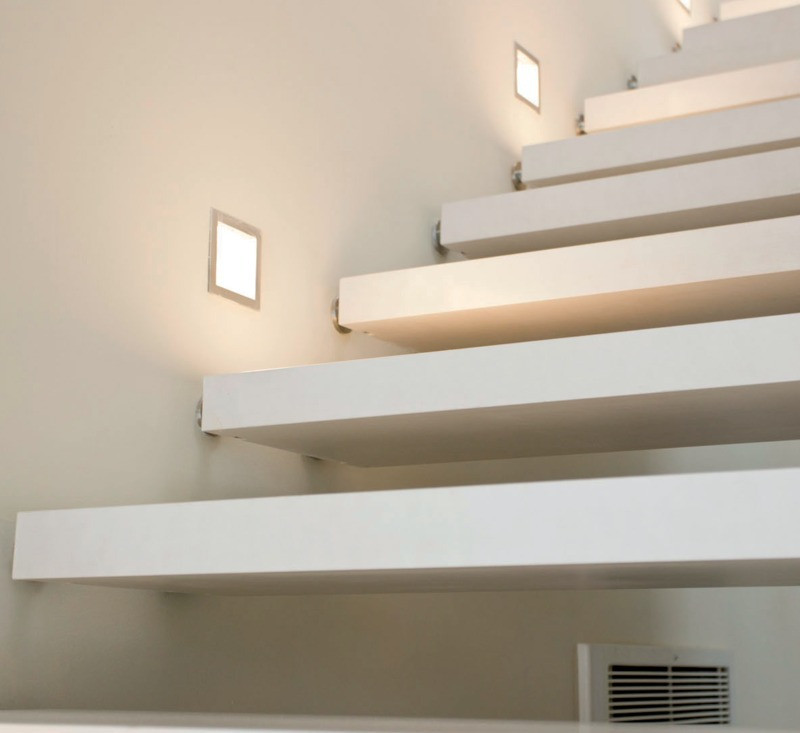

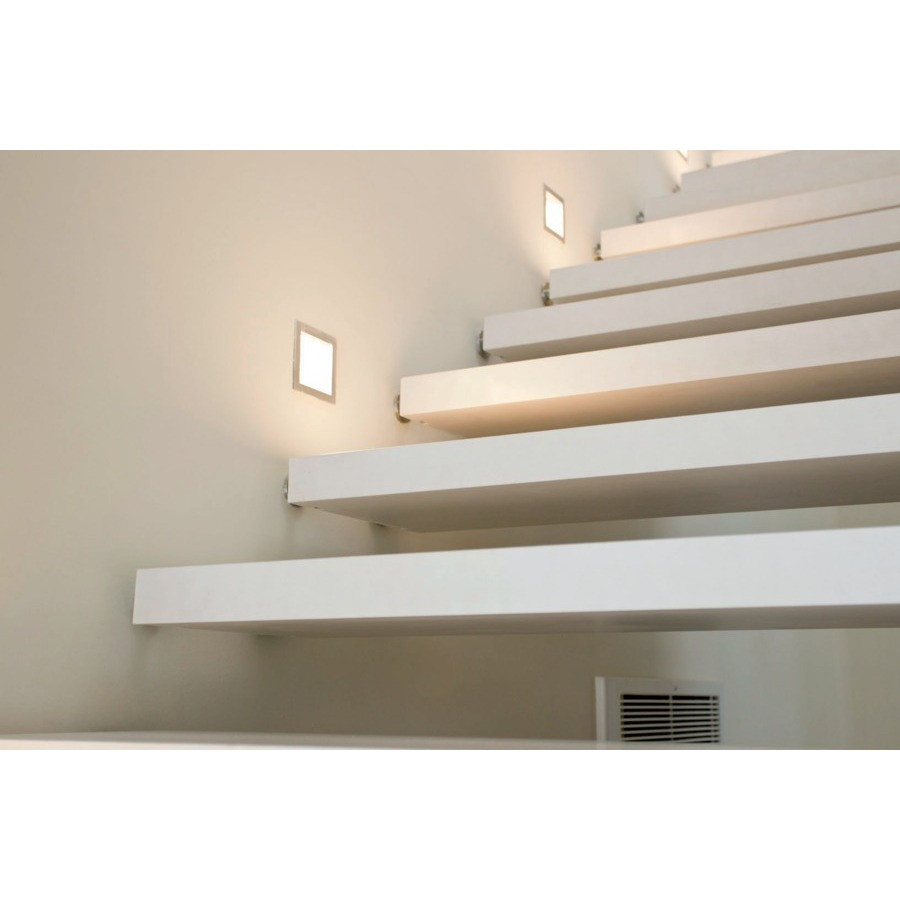

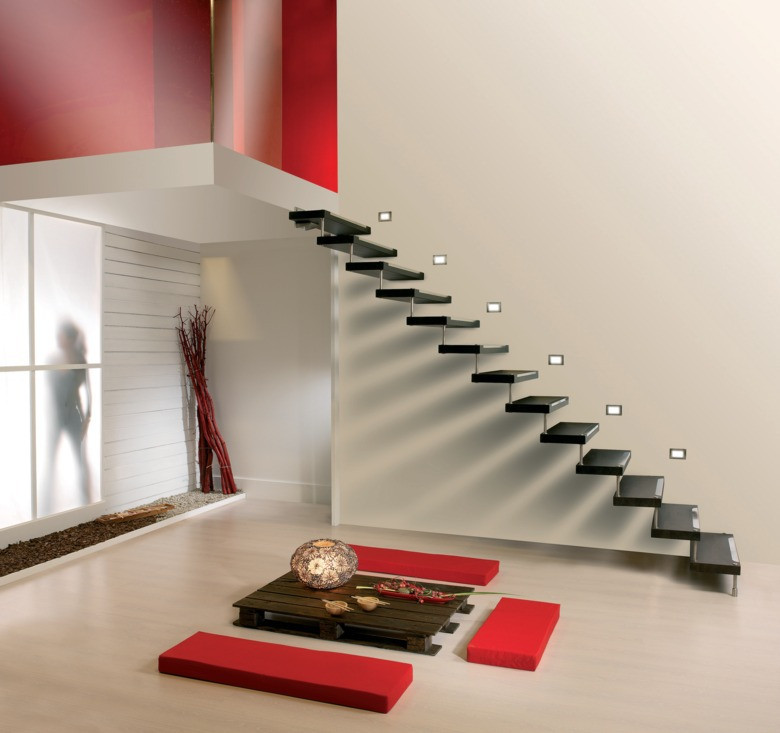

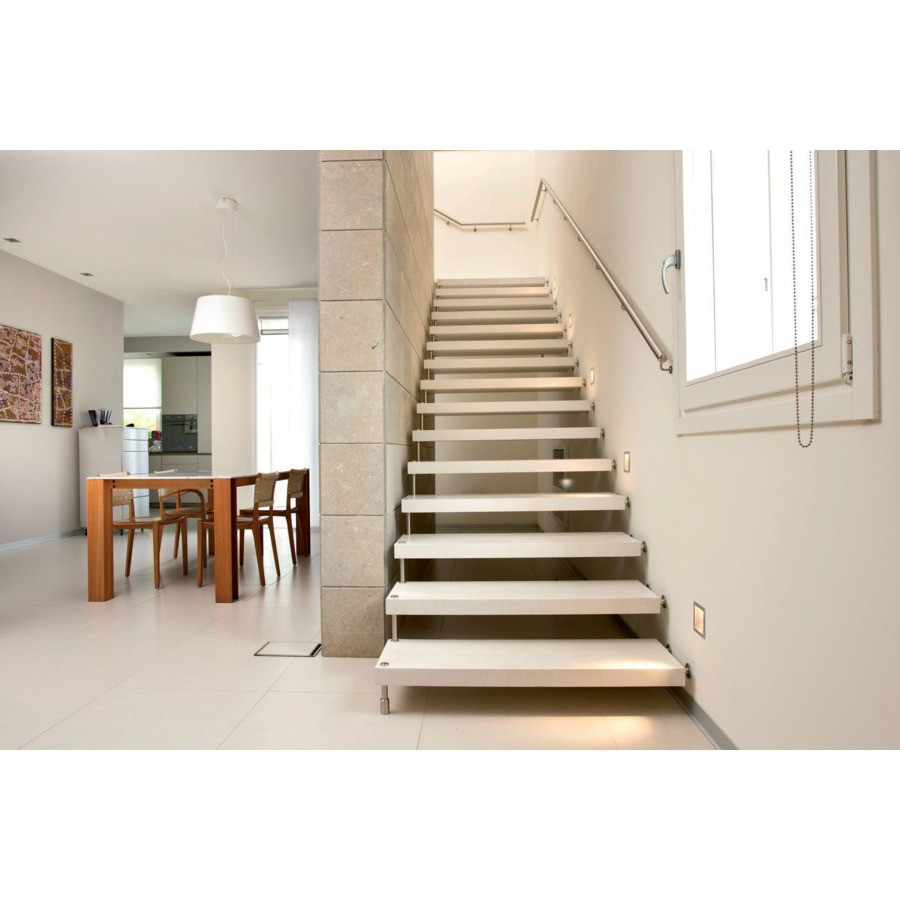

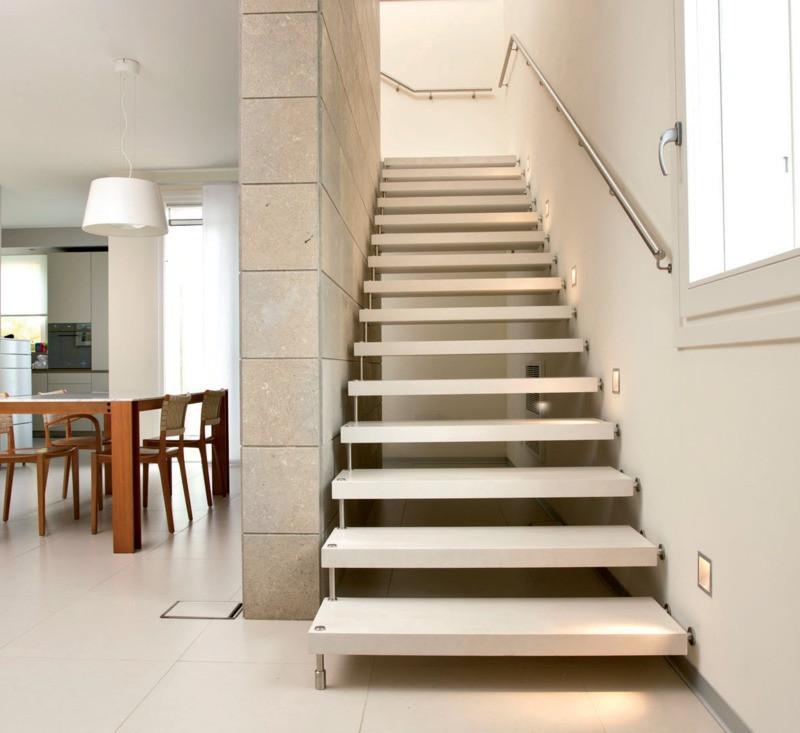

Suspended staircase with wooden steps bringing a modern style to the interior.Very trendy, this staircase is fastened on a non-insulated load-bearing wall.Allows for straight and 1/4 turn configurations.

Technical description

STRUCTURE Structure free suspended staircase, fastening on a non-insulated load-bearing wall


STEPS Standard laminated beech wood, 60 mm thick Stainless steel step nose, on wooden steps


AVAILABLE COLOURS natural beech, light oak, whitened, light walnut, medium walnut, dark walnut, wengé, whitened


AVAILABLE TREADS: 220 - 230 - 240 - 250 - 260 mm

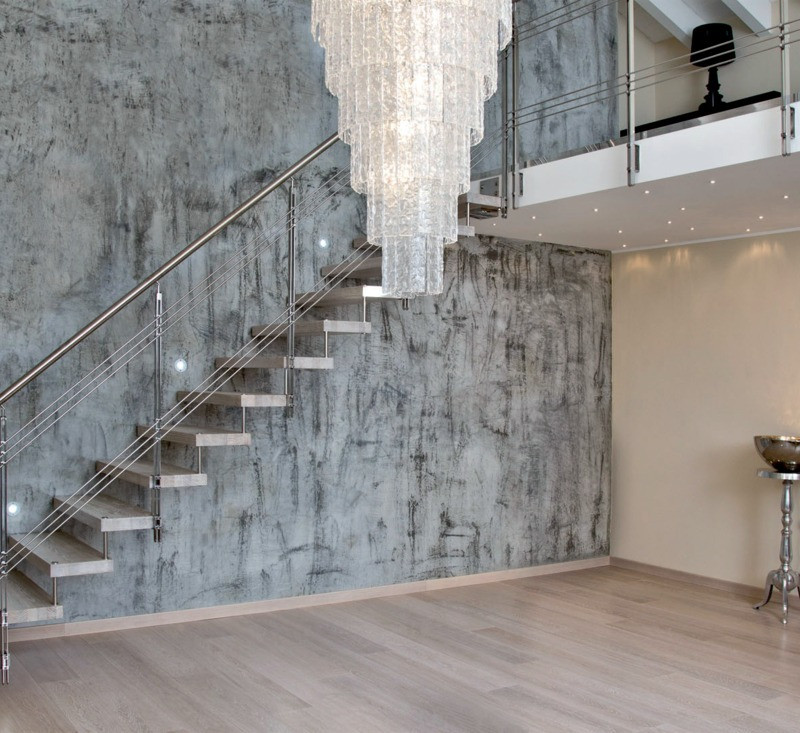

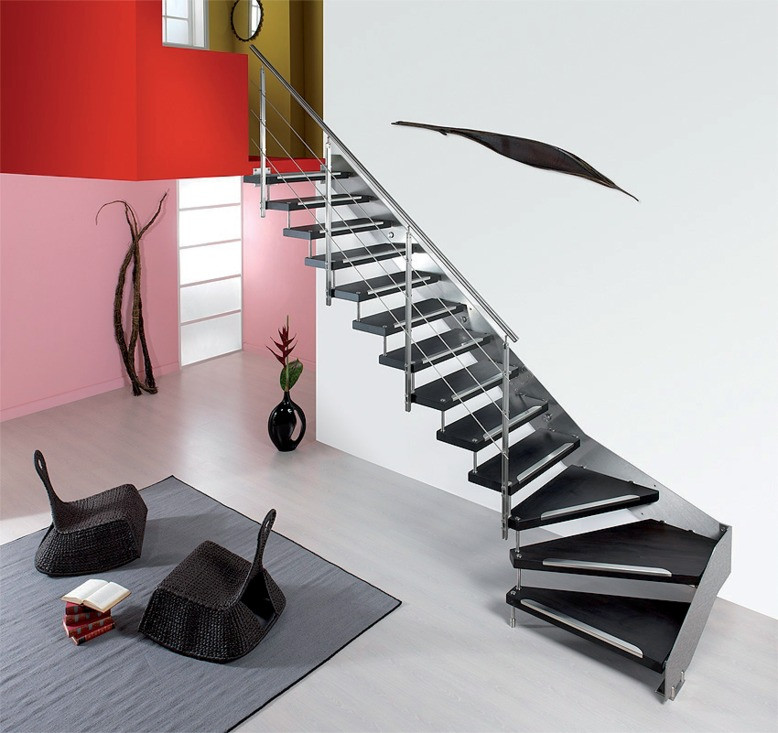

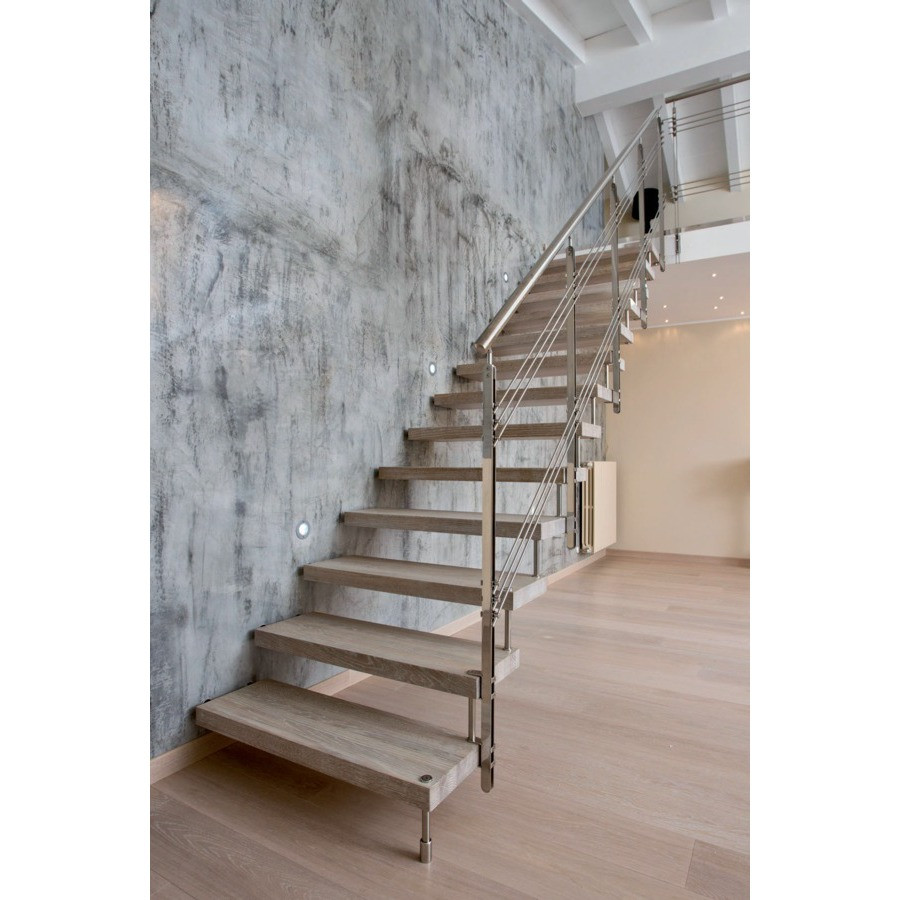

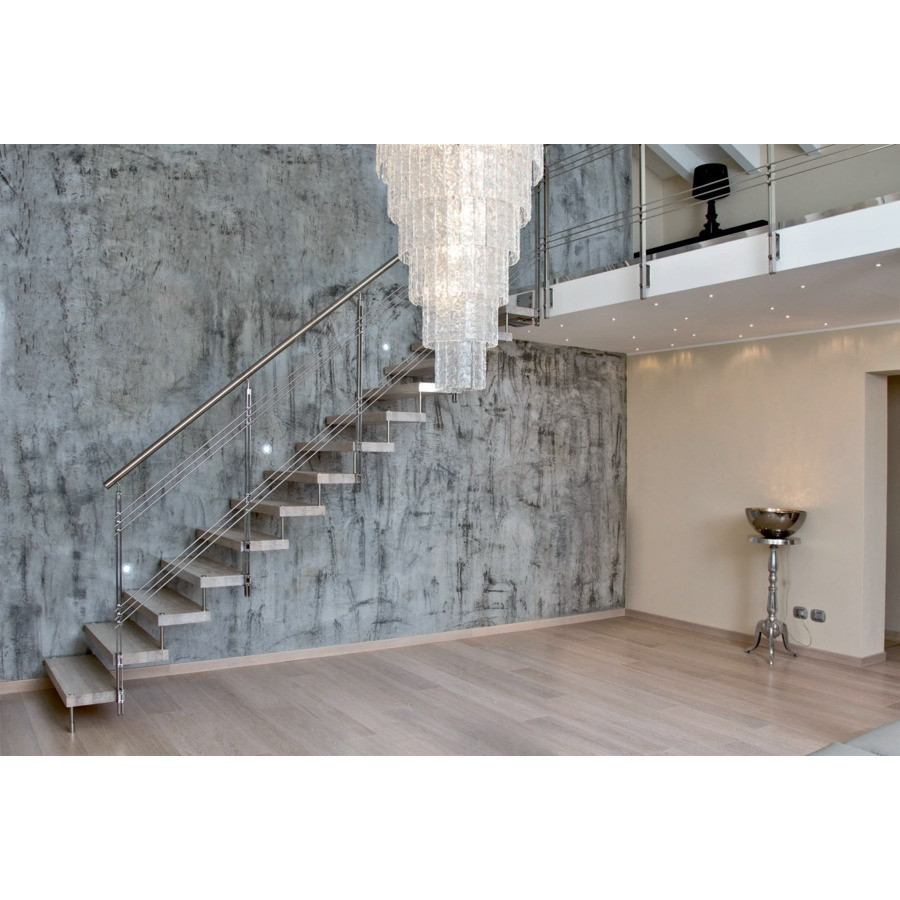

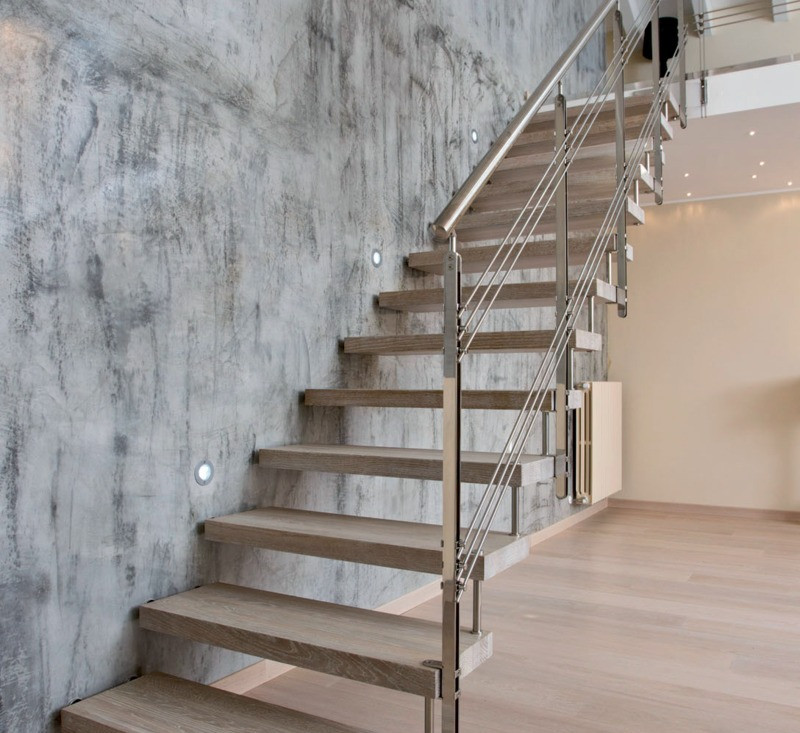

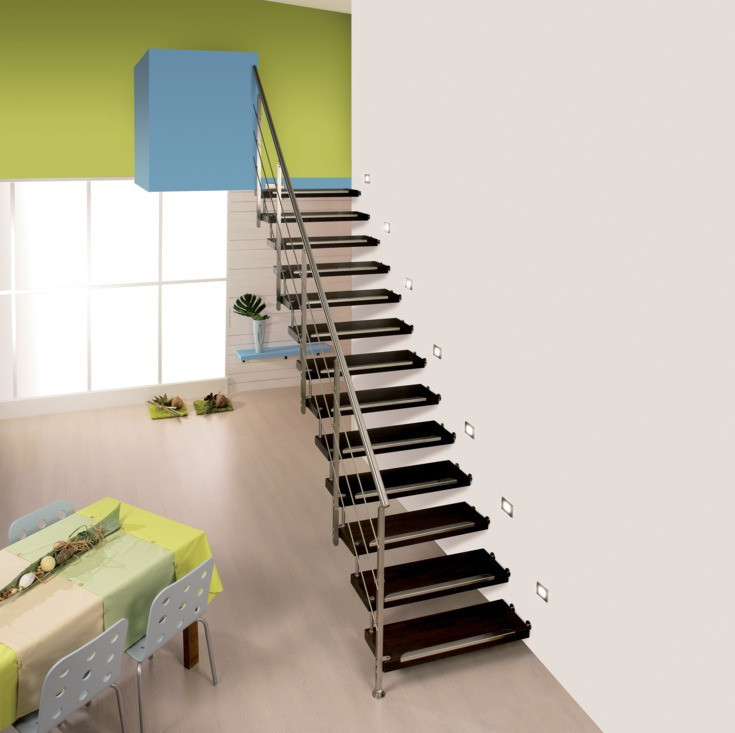

JAZZ RAMP Double flat iron made of 30 x 5 mm stainless steel and 3 to 9 stainless steel rails, 8 mm Ø

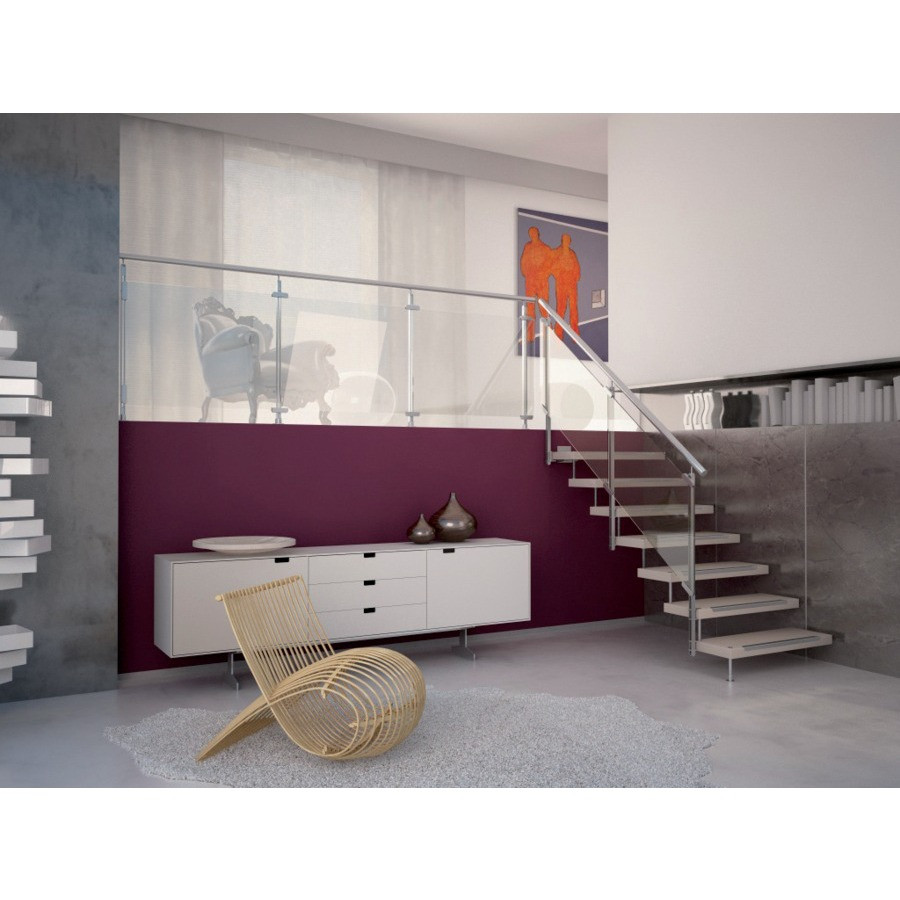

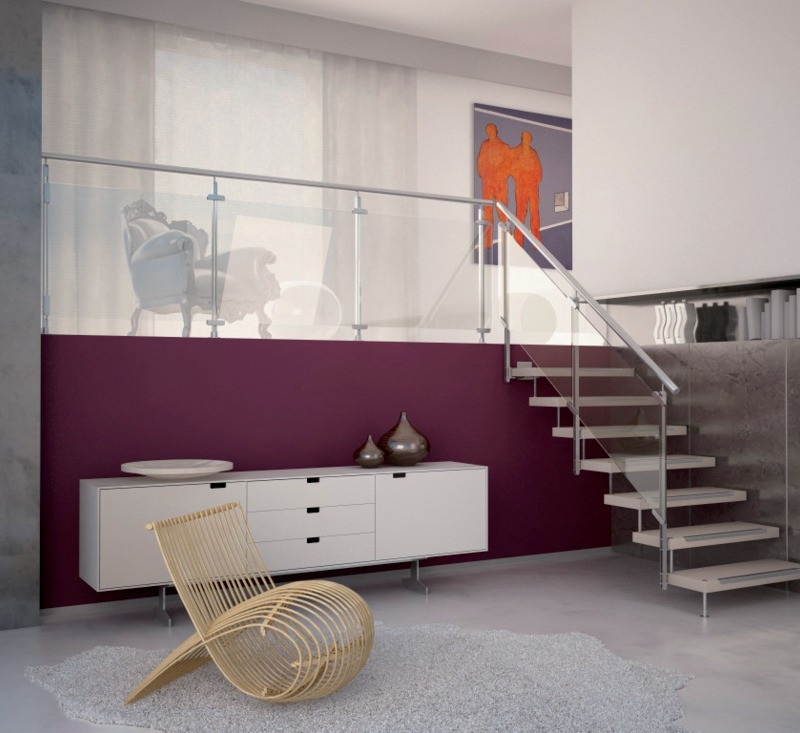

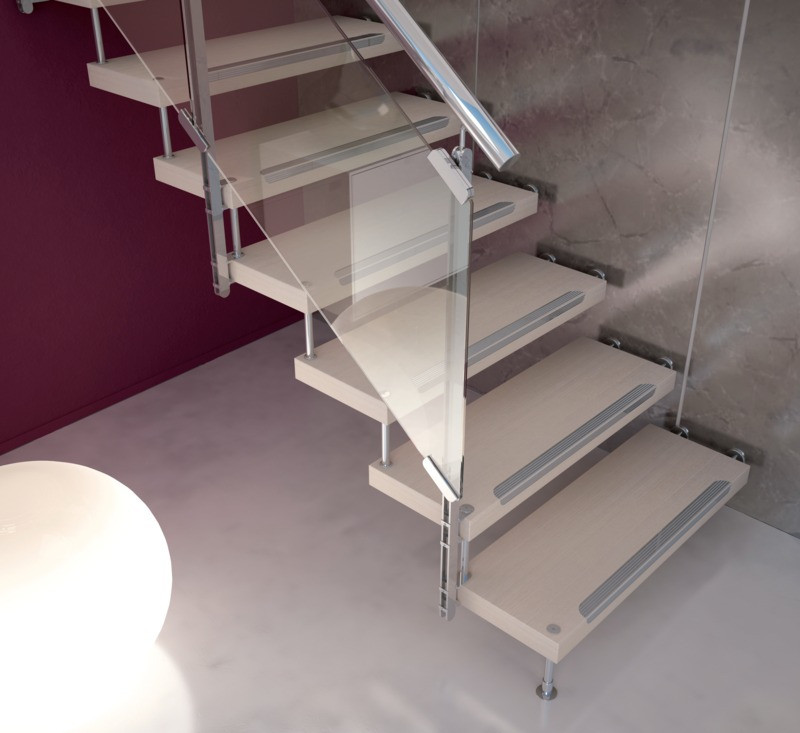

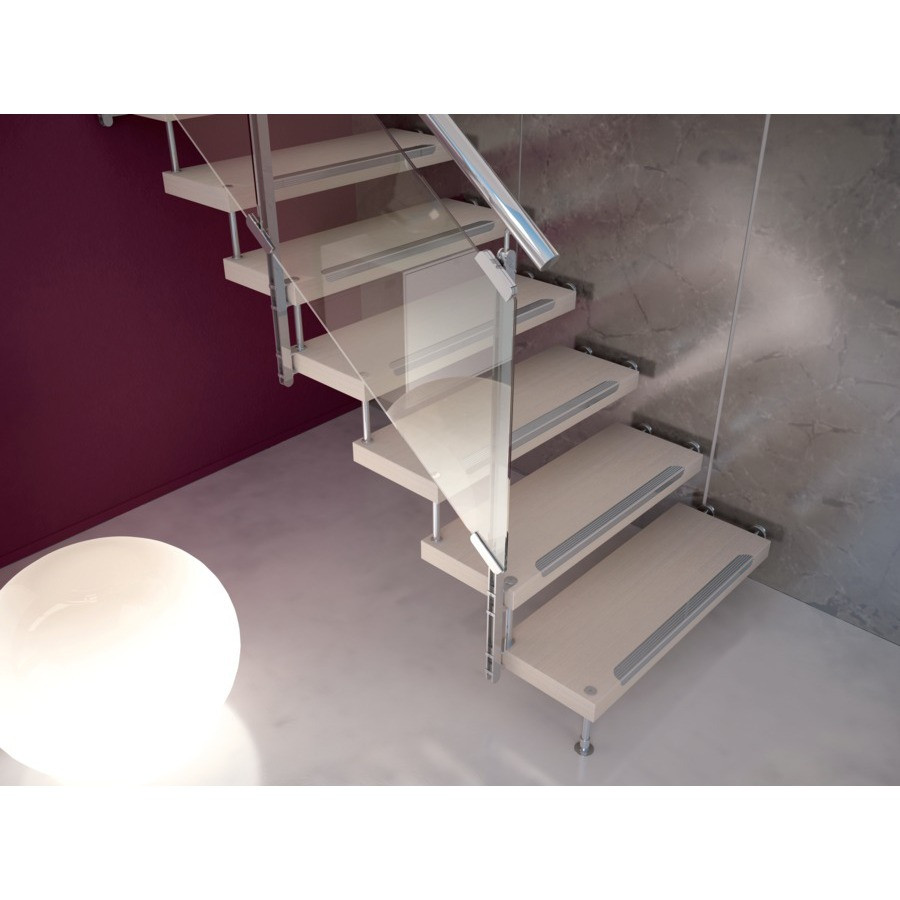

VIEW RAMP Double flat iron made of 30 x 5 mm stainless steel and tempered and laminated glass panels, 4 + 4 mm thick

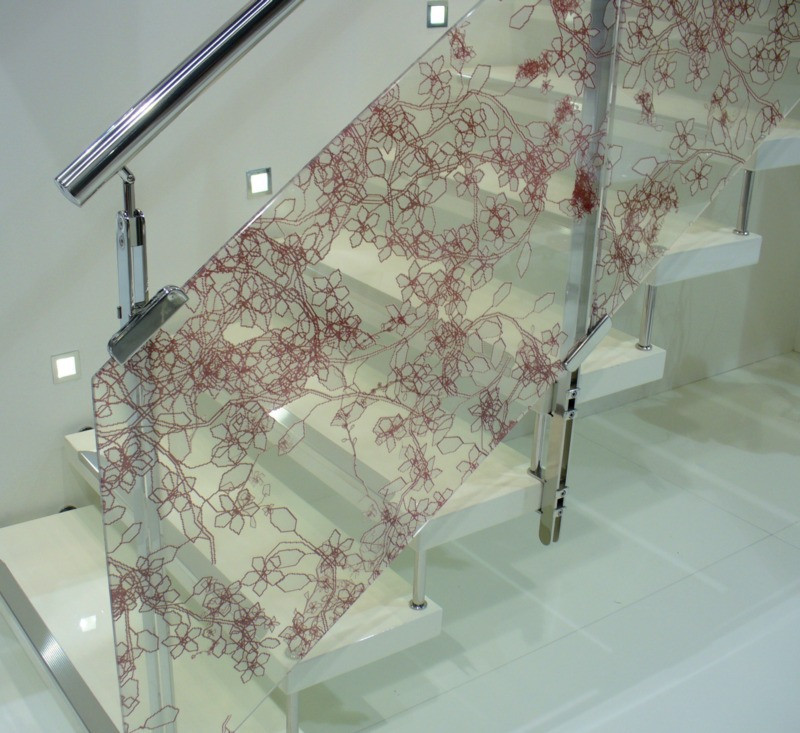

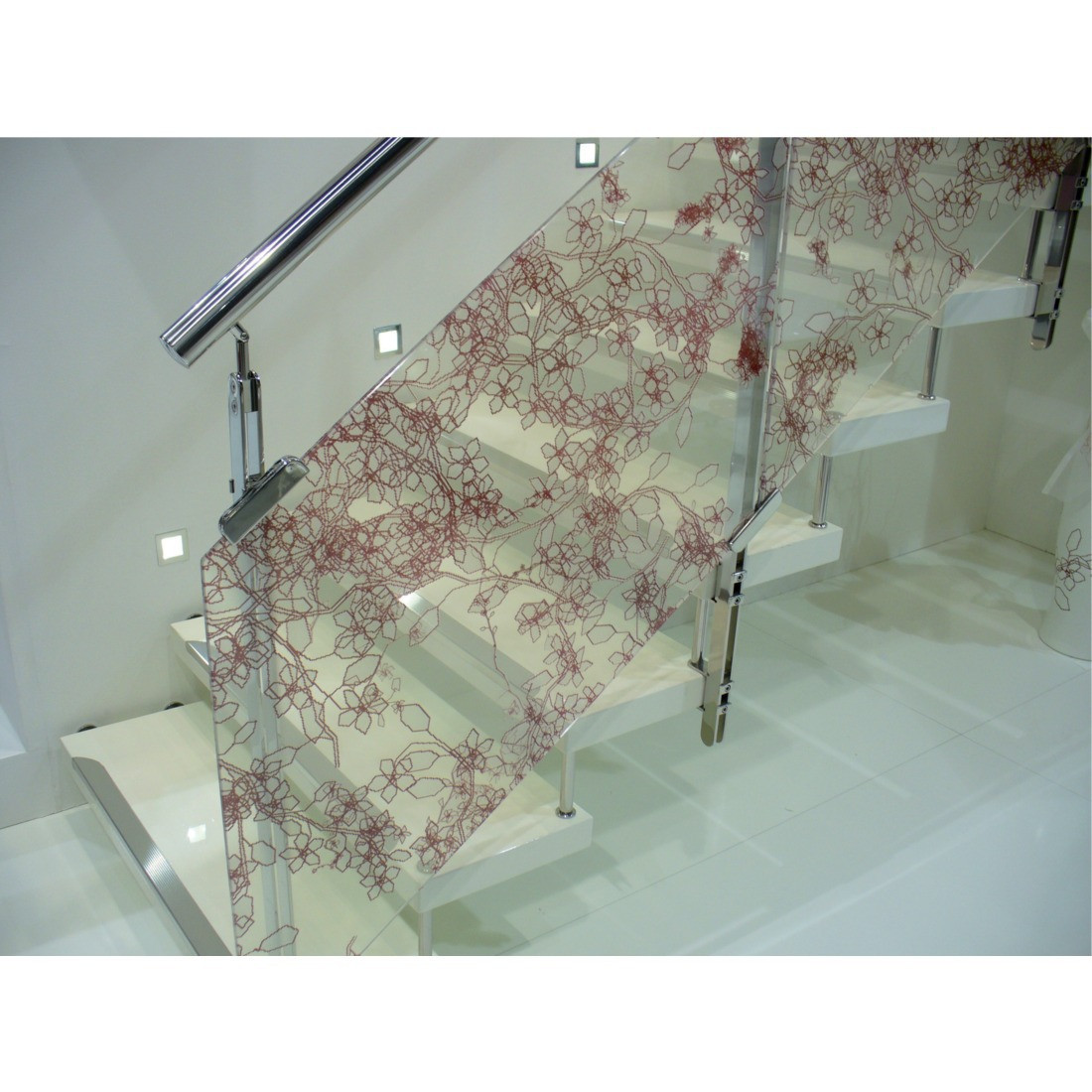

VIEW DEKO Ramp Double flat iron made of 30 x 5 mm stainless steel and tempered and laminated glass panels, 4 + 4 mm thick, with fabric inside Tubular handrail in beech wood, 48 mm Ø or stainless steel or iron, 42 mm Ø


OPTIONS ON REQUEST Special treads, between 270 and 280 mm
