Advantages and strengths

Ships fully assembled, ready for installation. L-shaped plates for quick fixing. Termocover: patented insulating device.

Technical characteristics

Reference	Quantity	Quote
Ref. ESCAMOTABLEMOT Code A0013226 Retractable staircase model Motora	Quantité maximum disponible pour ce magasin + -

Retractable staircase model Motora
Reference :	ESCAMOTABLEMOT
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

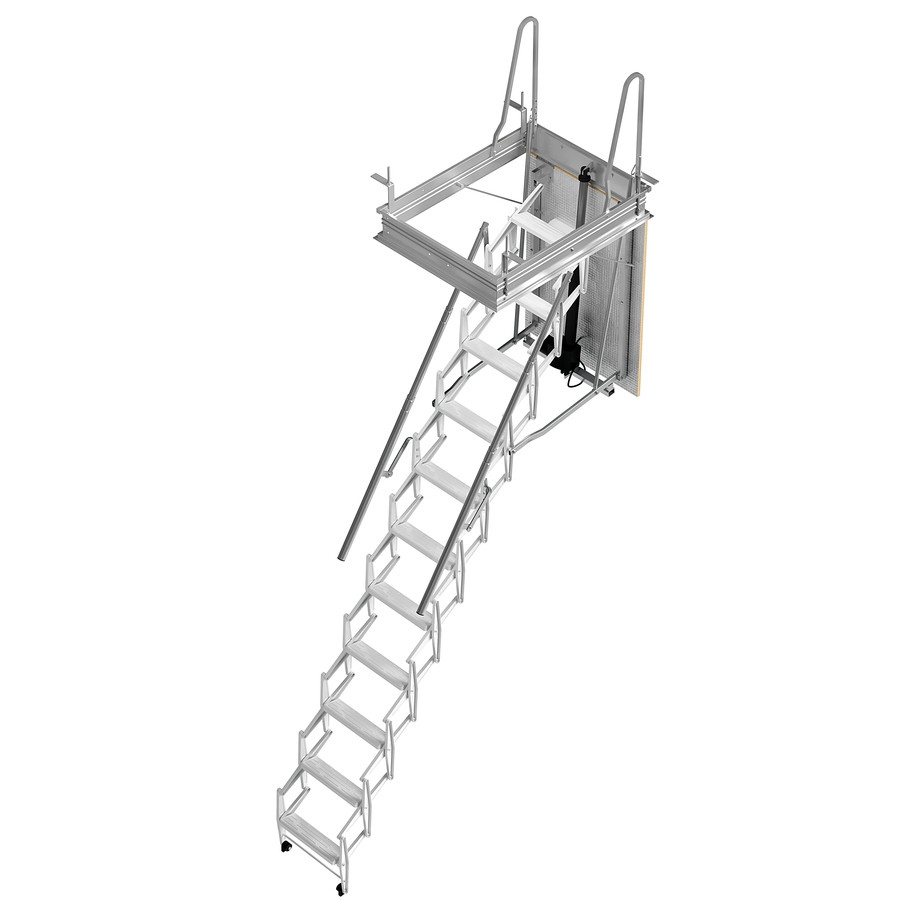

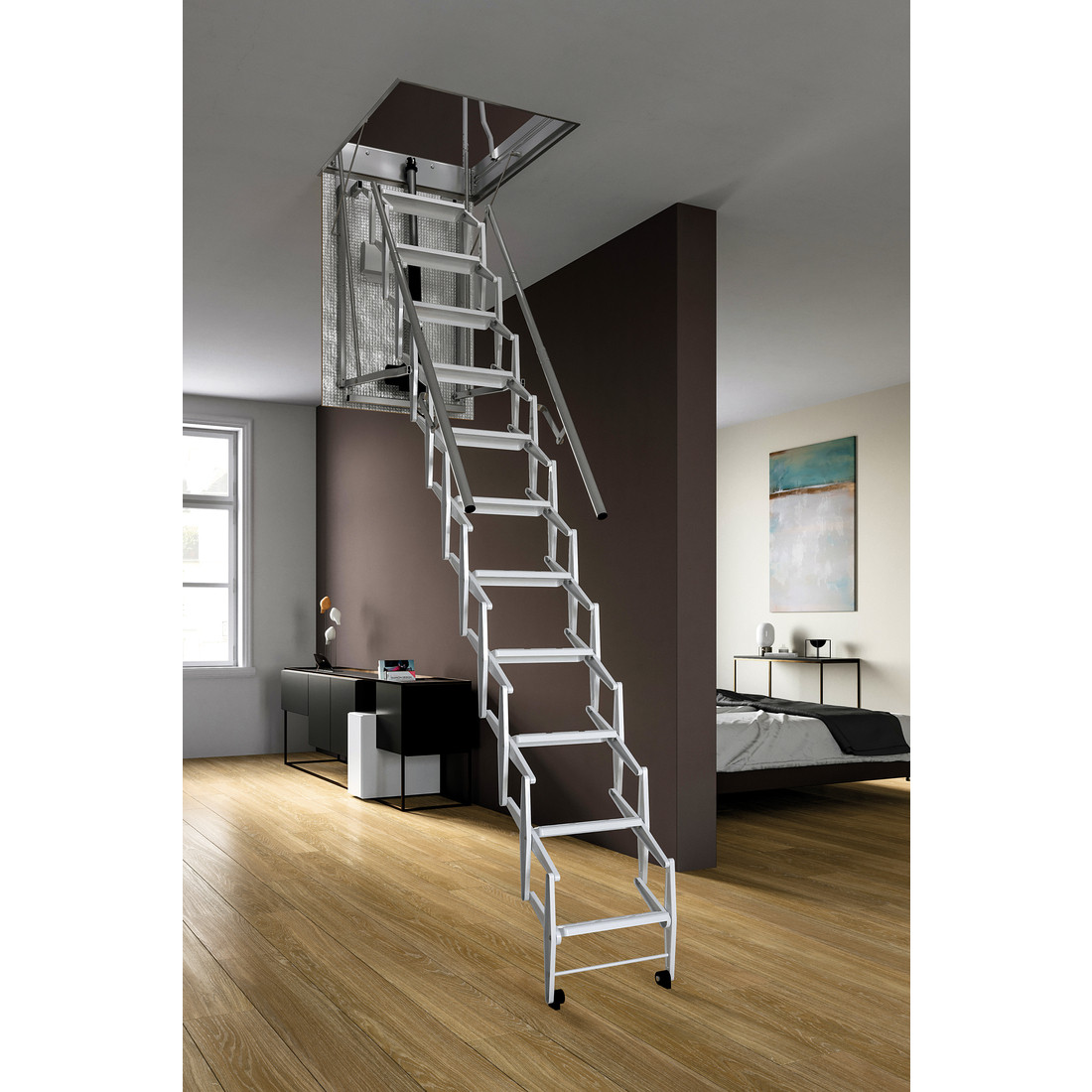

The Motora insulated electric accordion retractable staircase is made up of 11 steps in white varnished stamped steel sheet and a box in steel sheet treated with electrolytic zinc plating.

The mobile structure is united by axes allowing a fluid and precise electromechanical movement.

The hatch is fitted with motor release screws for manual opening in the event of a power failure.

Technical description

Extended exit handles (H 55 m)

Double telescopic handrail

Stabilization rod for the stair inclination at 65°

Mobile step set in 15/10 stamped steel painted in white RAL 9010

Steel axes for safer and more precise movement

Non-slip step

Floor support feet

Height: 3 m (For any height greater than 3 m and non-standard hatch dimensions, please contact us)

Casing made of 10/10 galvanized sheet steel with 12/10 reinforcing angles and motor attachment plate

Damping springs for easy opening and closing

Premium plywood poplar panel mat, 15mm thick with insulation

Electric motor (220Vac 240W) with release screw for manual opening

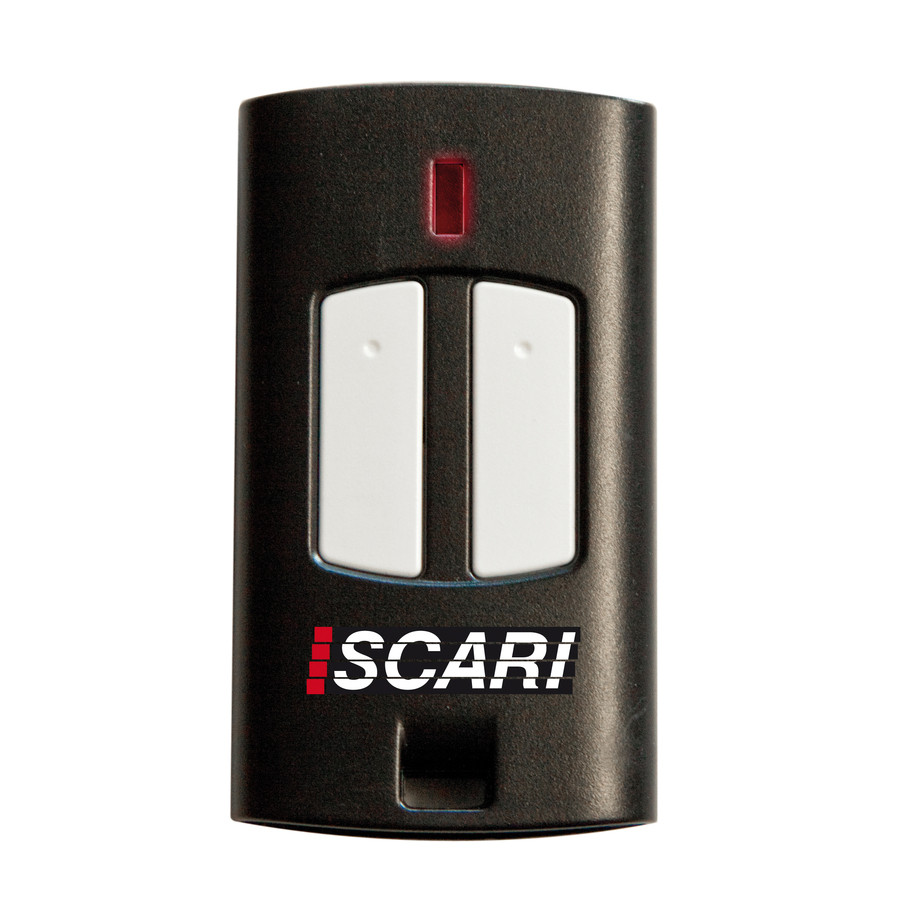

Remote control for opening and closing

Certified thermal transmittance of the entire box for the scissor stairs of 1.1 W/m2K

Maximum load 150 kg. Tested with static load of 260 kg

Documentation

MOTORA.PDF

00 NOTICE MOTORA FR F.PDF
