Railing DIAMANT

Railing DIAMANT

Standard: P 01-012/P 01-013

Select your reference
+
-

Advantages and strengths

Quick and easy to install. Excellent quality/price ratio.

Technical characteristics

Reference Quantity Quote
Ref. DIAMANTDCPR
Code A0012867
Guardrail diamant
+
-
Guardrail diamant
Reference : DIAMANTDCPR
Quantity :
+
-

Use

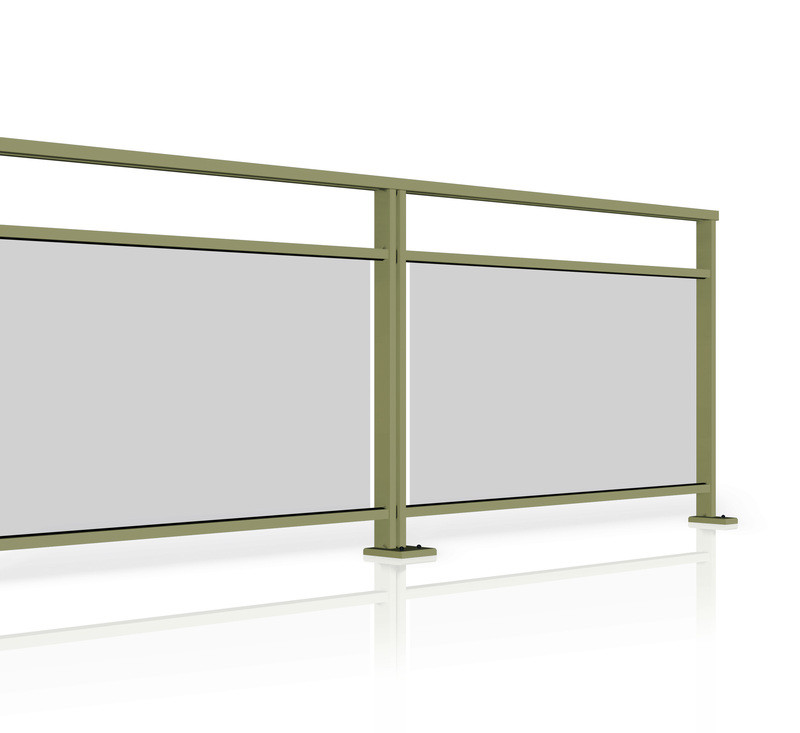

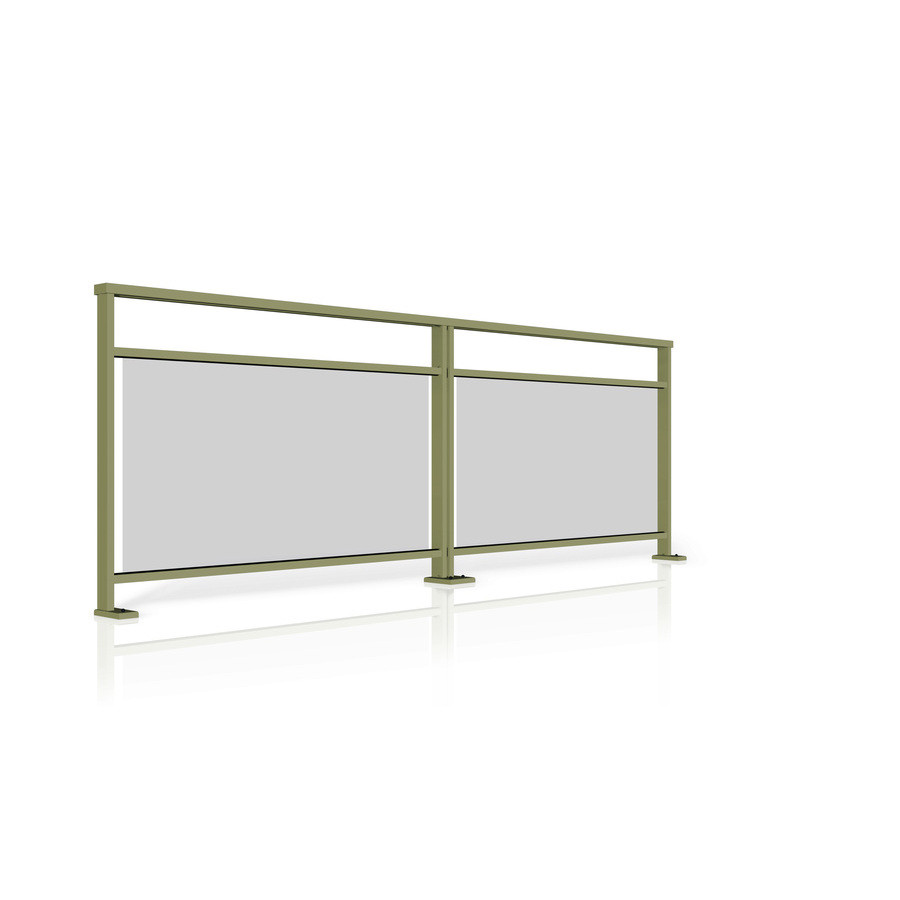

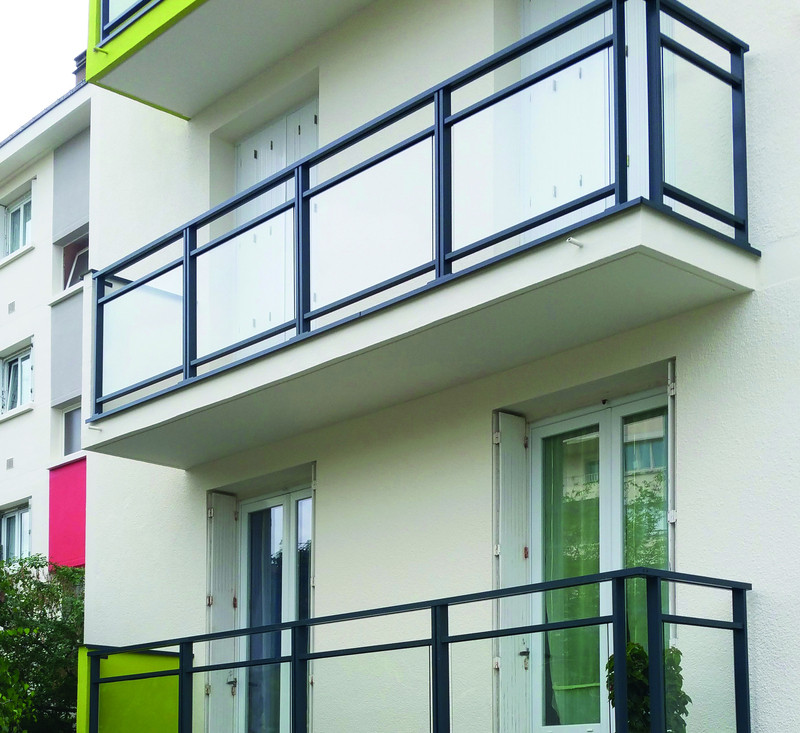

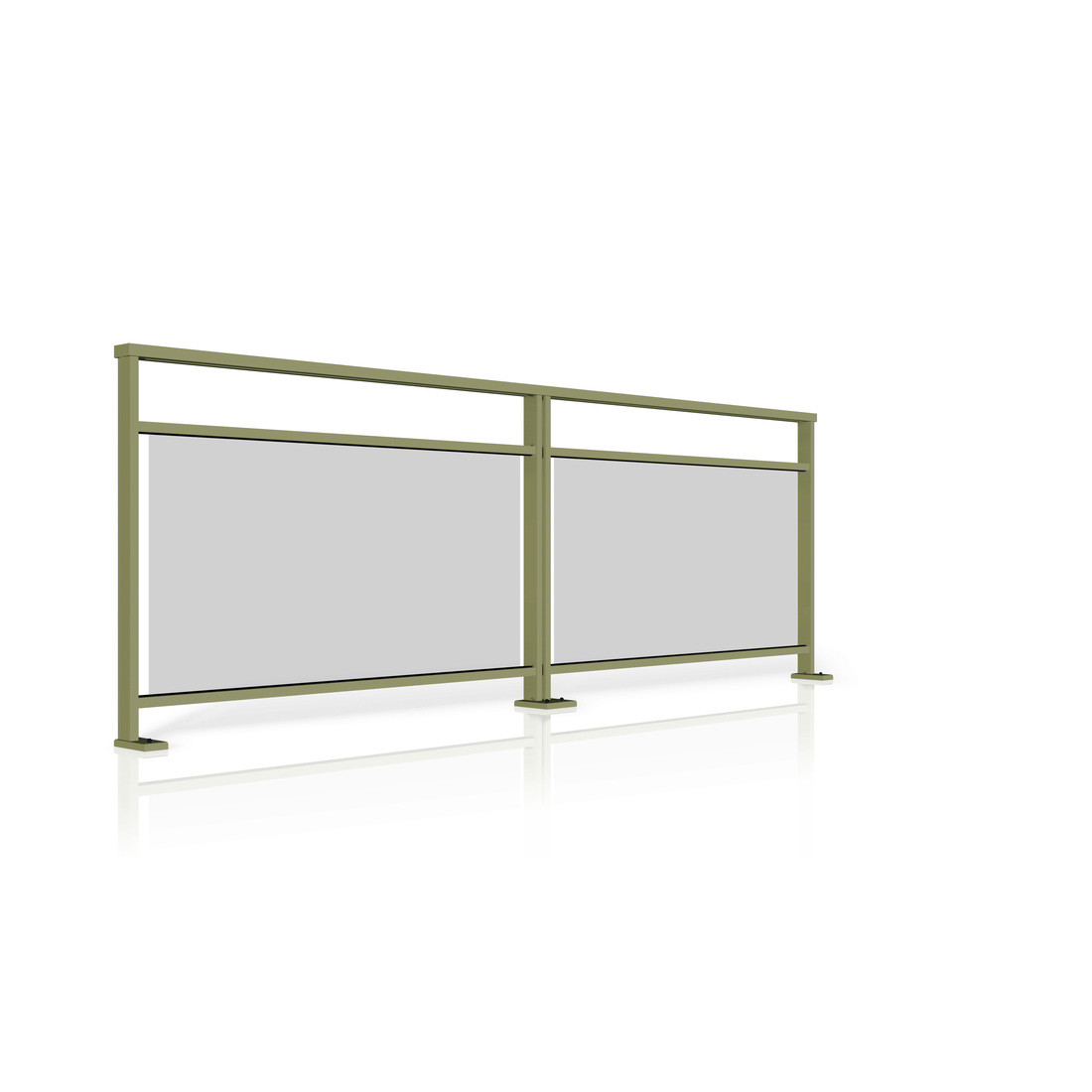

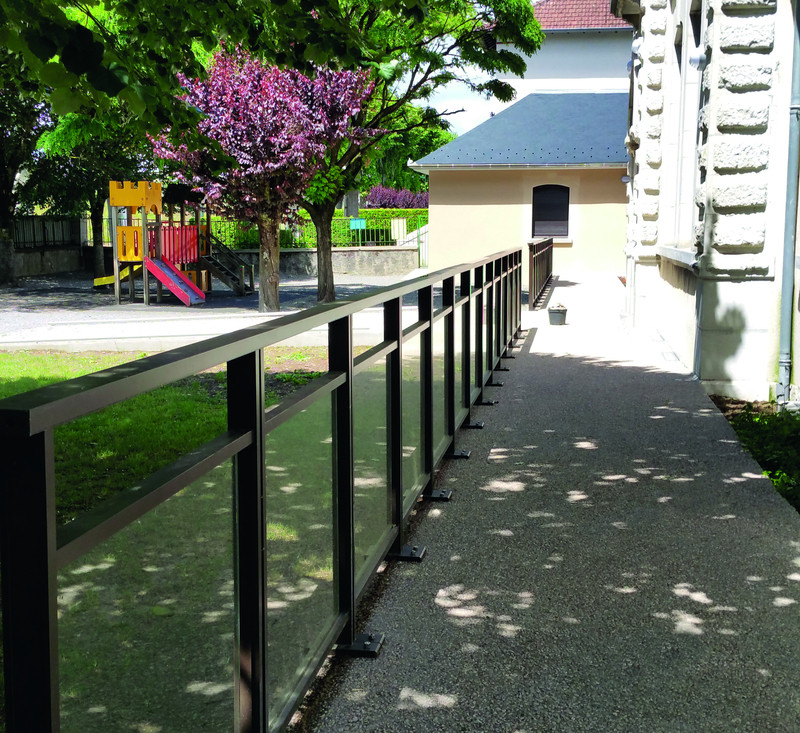

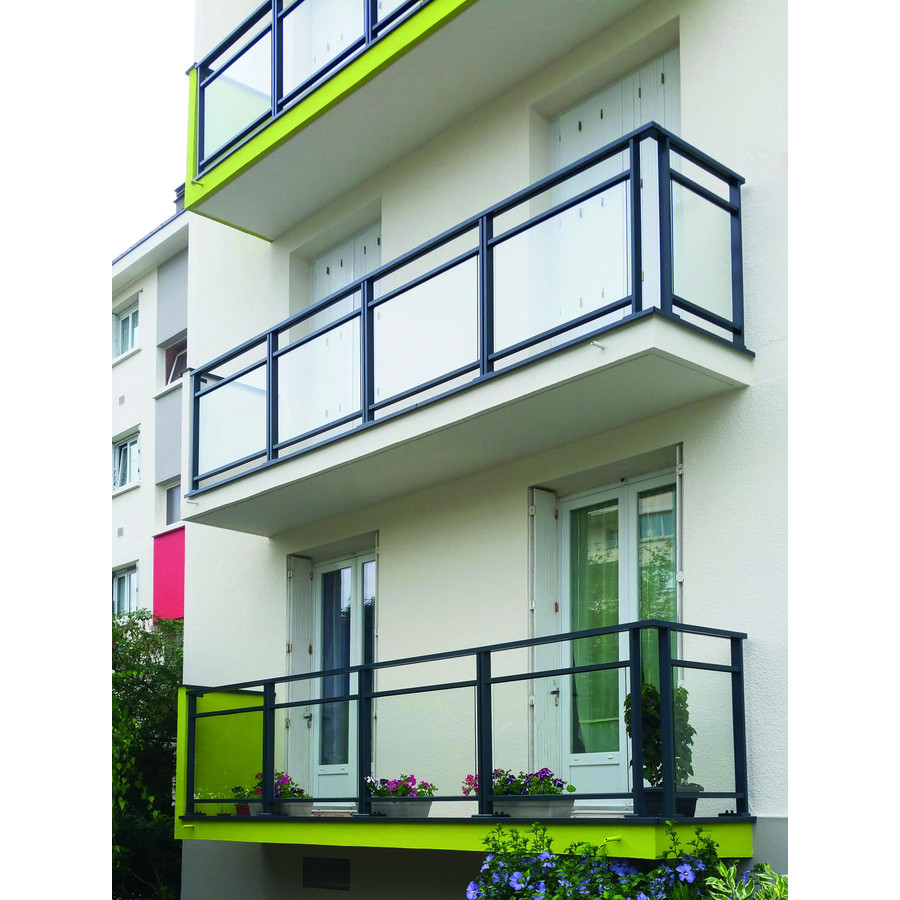

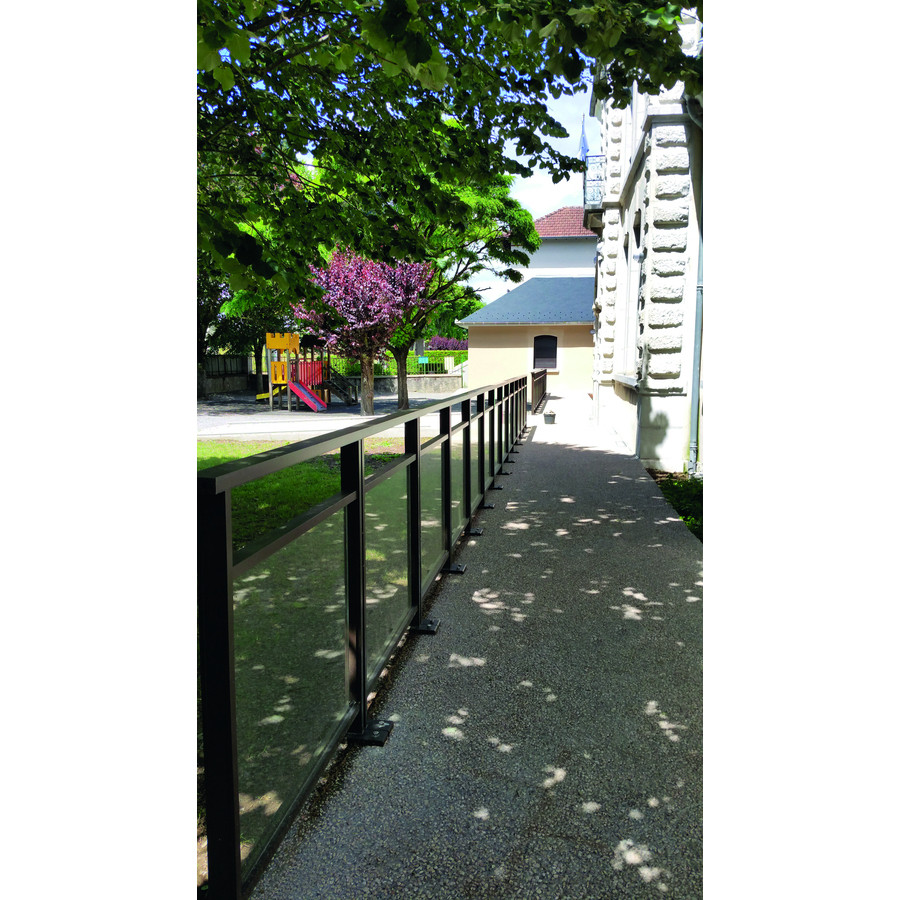

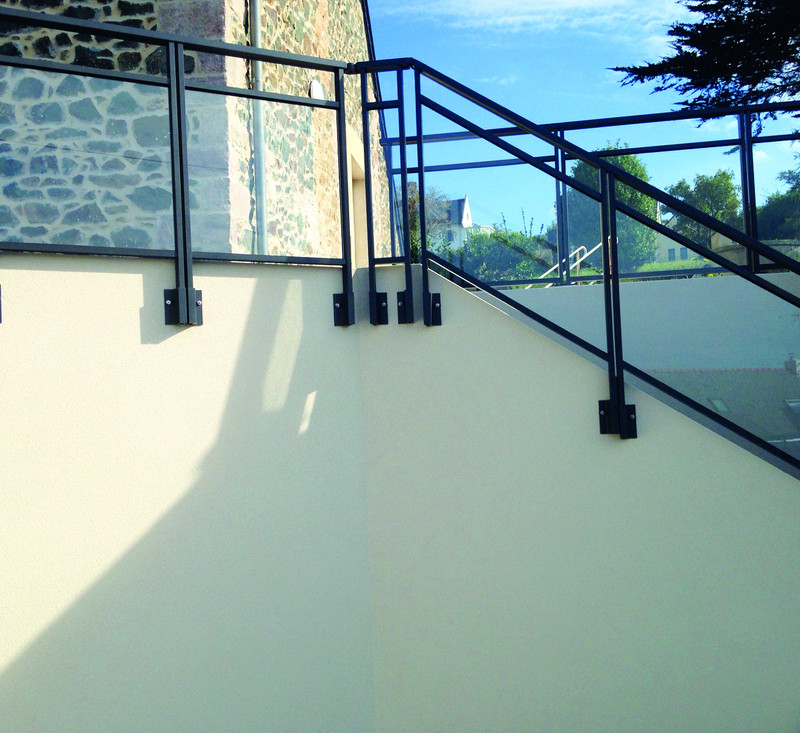

DIAMANT aluminum railing with space under the handrail.

7 year warranty.

Technical description

Glazing filling 44.2 clear (other glazing possible) taken in a portfolio seal in lower and upper rectangular rail 27 x 50 mm


Rectangular handrail 74 x 32 mm (also available with round handrail diameter 50 mm)

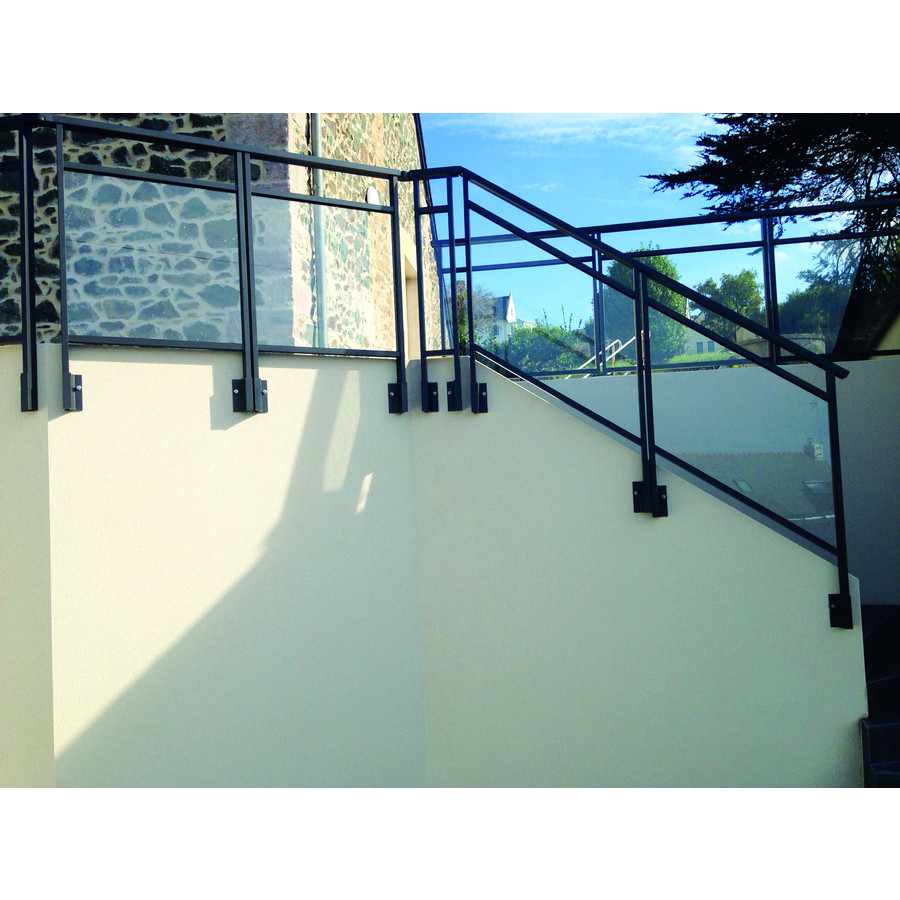

Fixing on slab by plate 150 x 70 x 18 mm or slab nose by plate 73 x 80 x 160 mm


Double posts 62 x 23 mm spaced 16 mm


Thermo-lacquered aluminium: RAL label Qualicoat
