Climb-N-Go Motorized System

Standard: CSA S269.2-16/OSHA 1926.452(W)

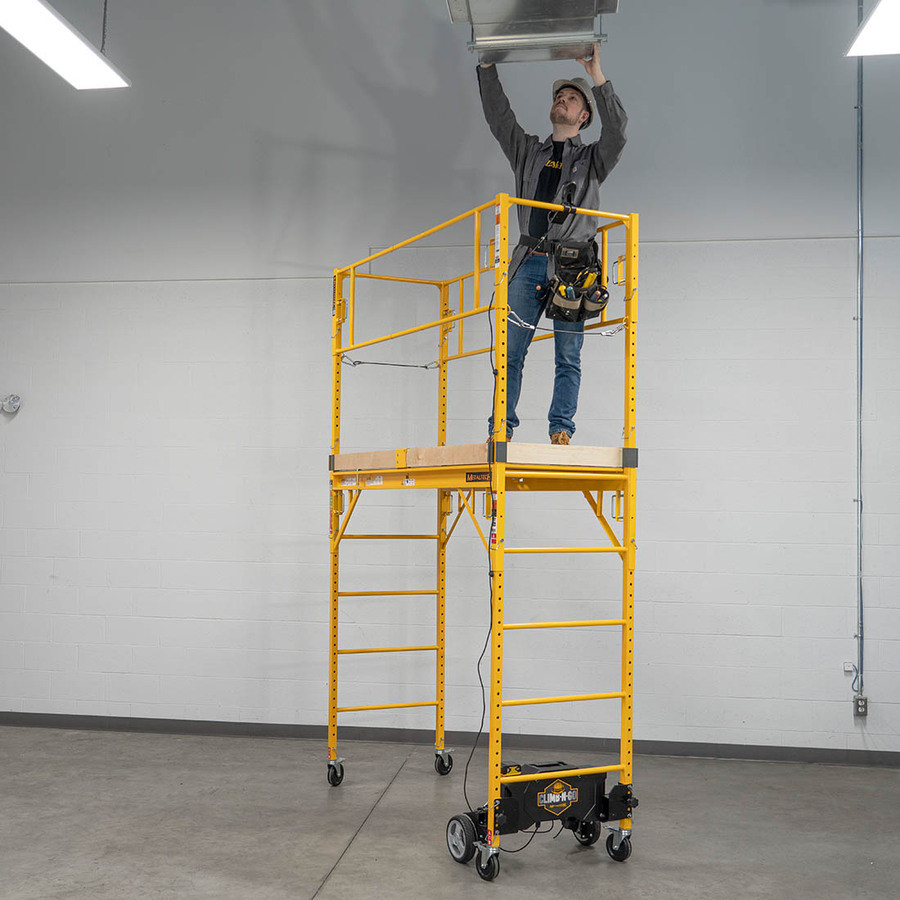

A motorized system that lets you move a Baker scaffold without climbing down, with a 4,500 ft range.

Select your reference

Quantity

Advantages and strengths

Motorized system that lets you move a Baker scaffold without climbing down, 4,500 ft (1372 m) range, 500 lb (227 kg) hauling capacity.

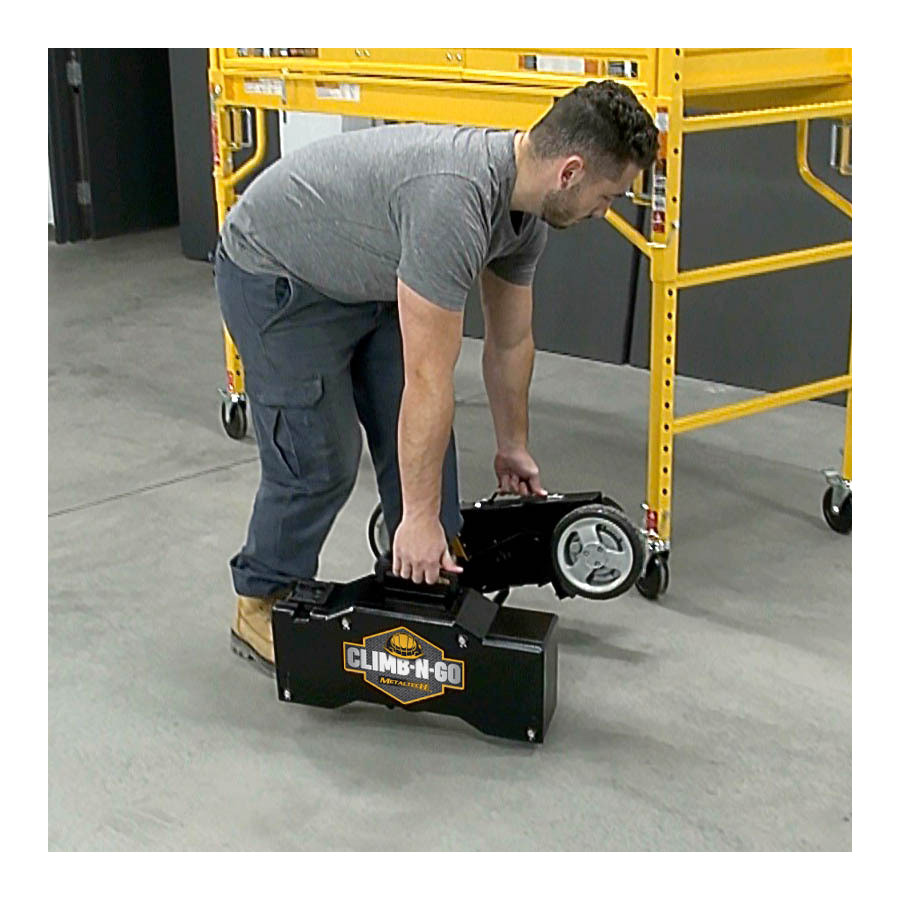

Fast, simple installation, automatic wheel-locking system, multidirectional control handle mountable on a rung or guardrail.
Compatible with all Metaltech Baker scaffolds (steel, aluminum, and fiberglass); lighter and more compact than a lift, no hoist required.

Technical characteristics

Reference	characteristic.CANADA_DIMENSION	characteristic.CANADA_POIDS	characteristic.CANADA_AUTONOMIE	characteristic.CANADA_CAPACITE_TRACTAGE	Quantity	Quote
Ref. I-CNG Système de motorisation Climb-N-Go	28.75 x 18 x 18 in (73 x 45.7 x 45.7 cm)	55.1 lb (25 kg) lb	4,500 ft (1,372 m)	500 lb (226.79 kg)	Quantité maximum disponible pour ce magasin + -

Système de motorisation Climb-N-Go
Reference :	I-CNG
characteristic.CANADA_DIMENSION	28.75 x 18 x 18 in (73 x 45.7 x 45.7 cm)
characteristic.CANADA_POIDS	55.1 lb (25 kg) lb
characteristic.CANADA_AUTONOMIE	4,500 ft (1,372 m)
characteristic.CANADA_CAPACITE_TRACTAGE	500 lb (226.79 kg)
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

Increased efficiency

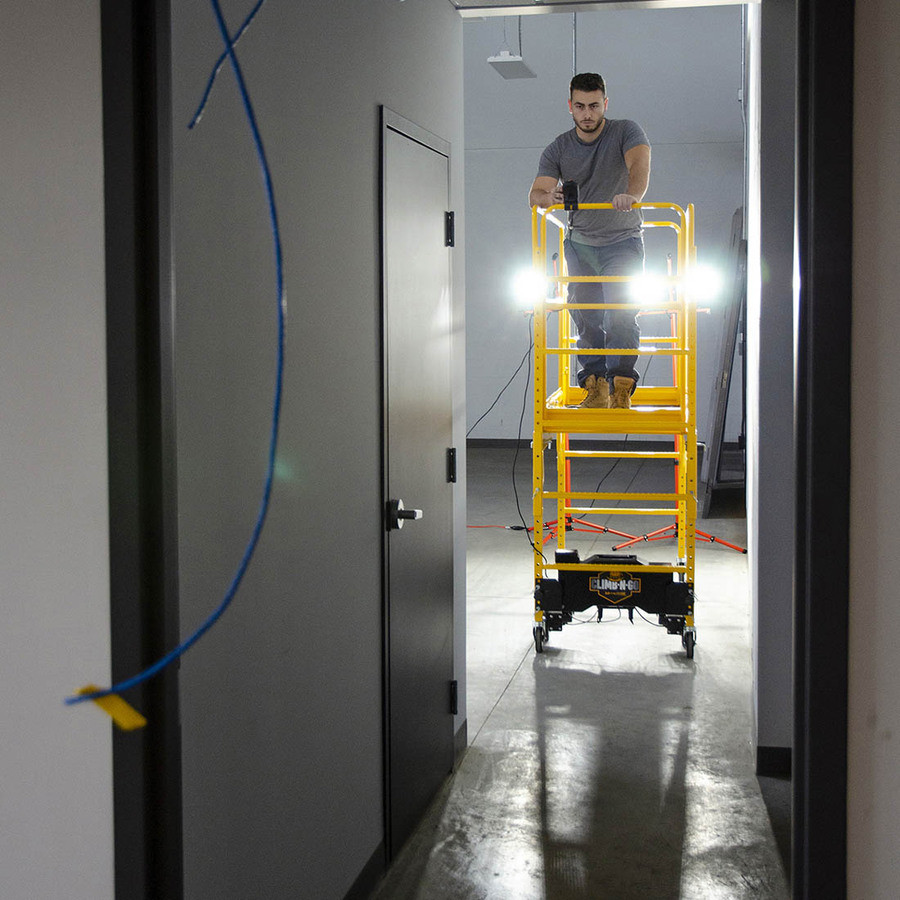

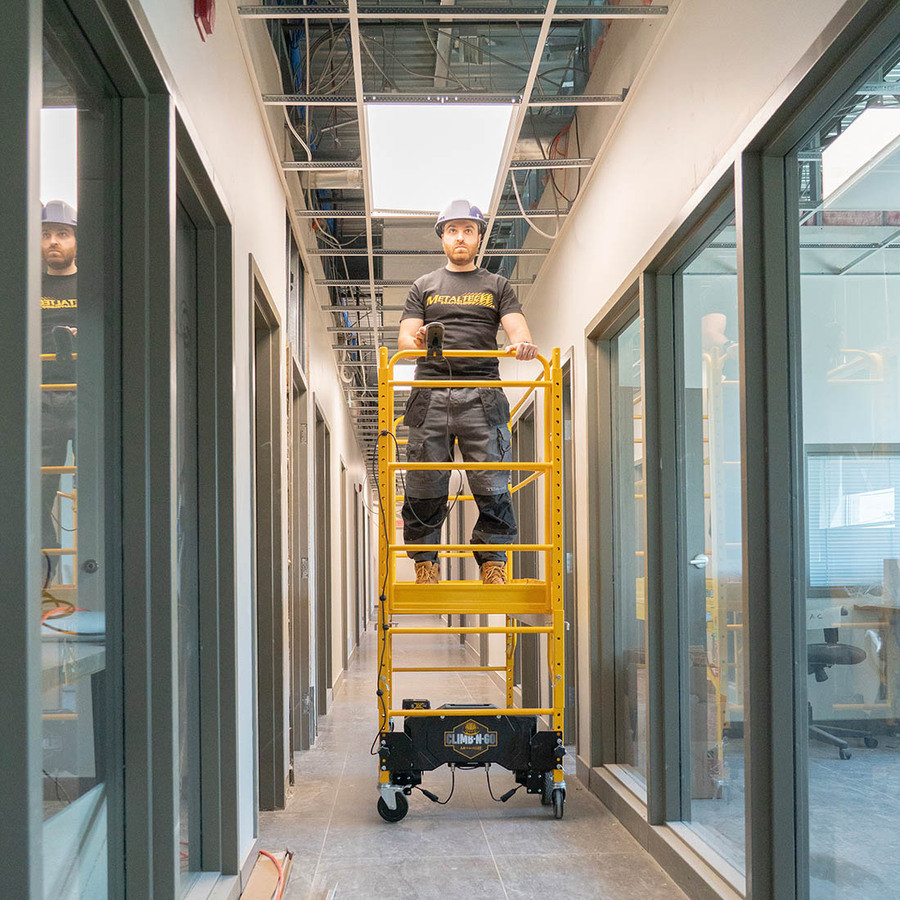

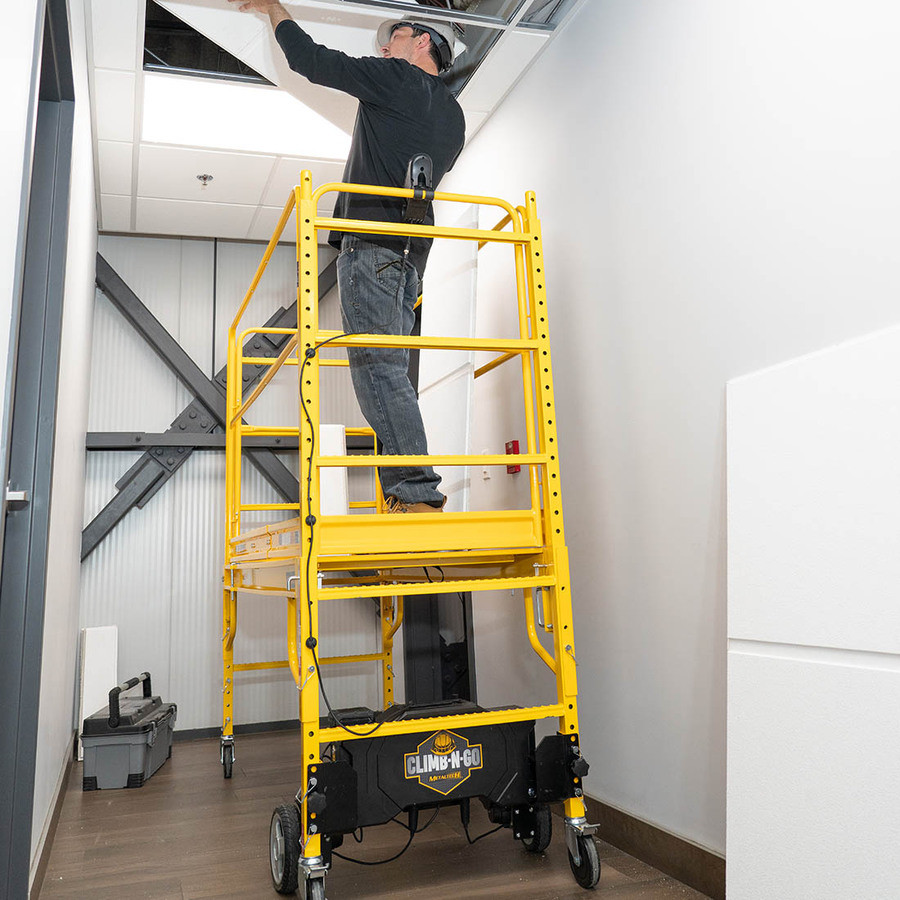

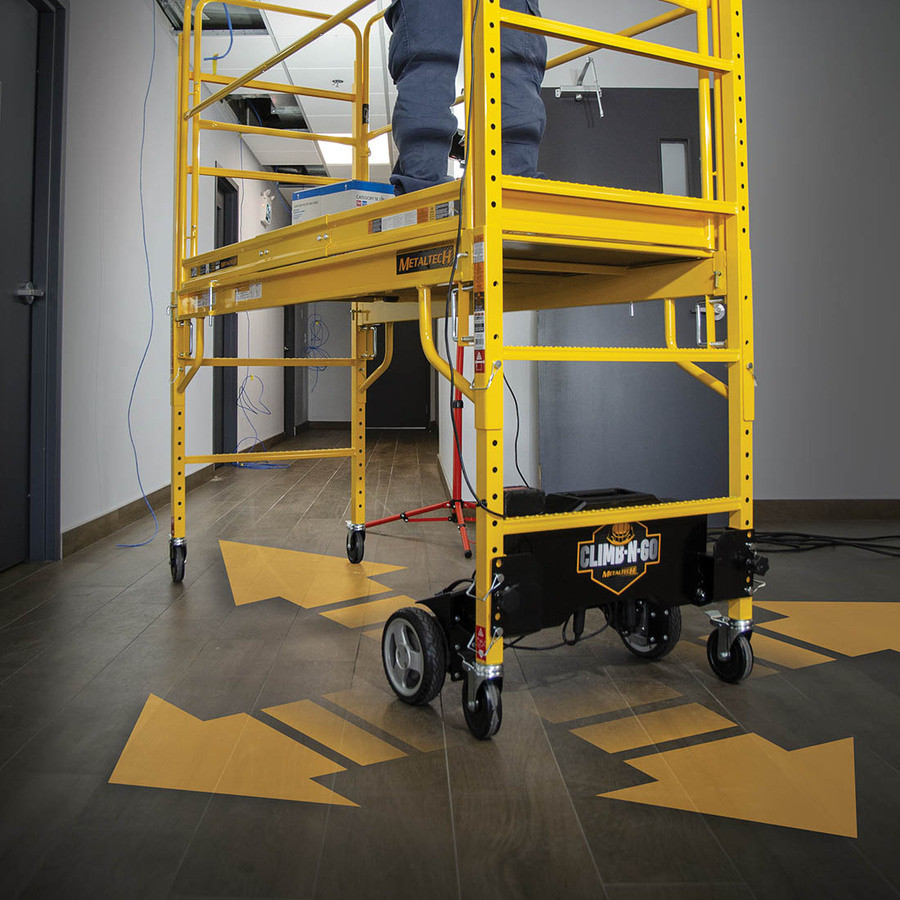

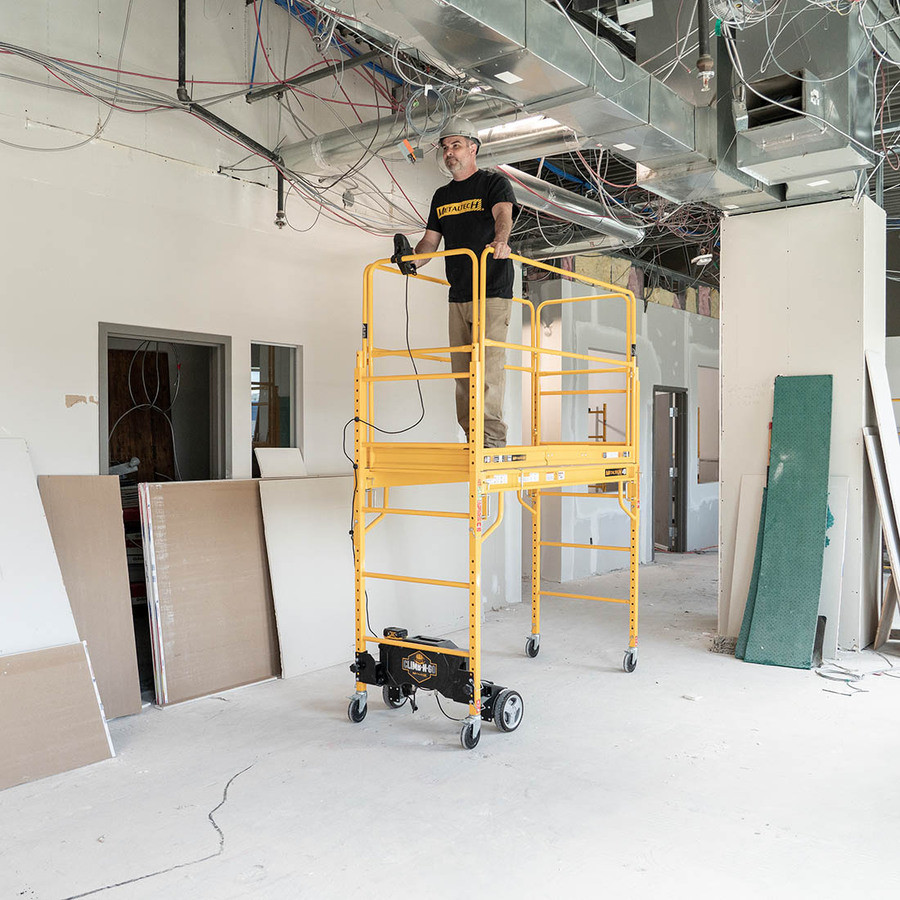

The Climb-N-Go eliminates the need to climb down from the scaffold with every move, a significant time saver on indoor job sites.

Compatible with the full Baker range

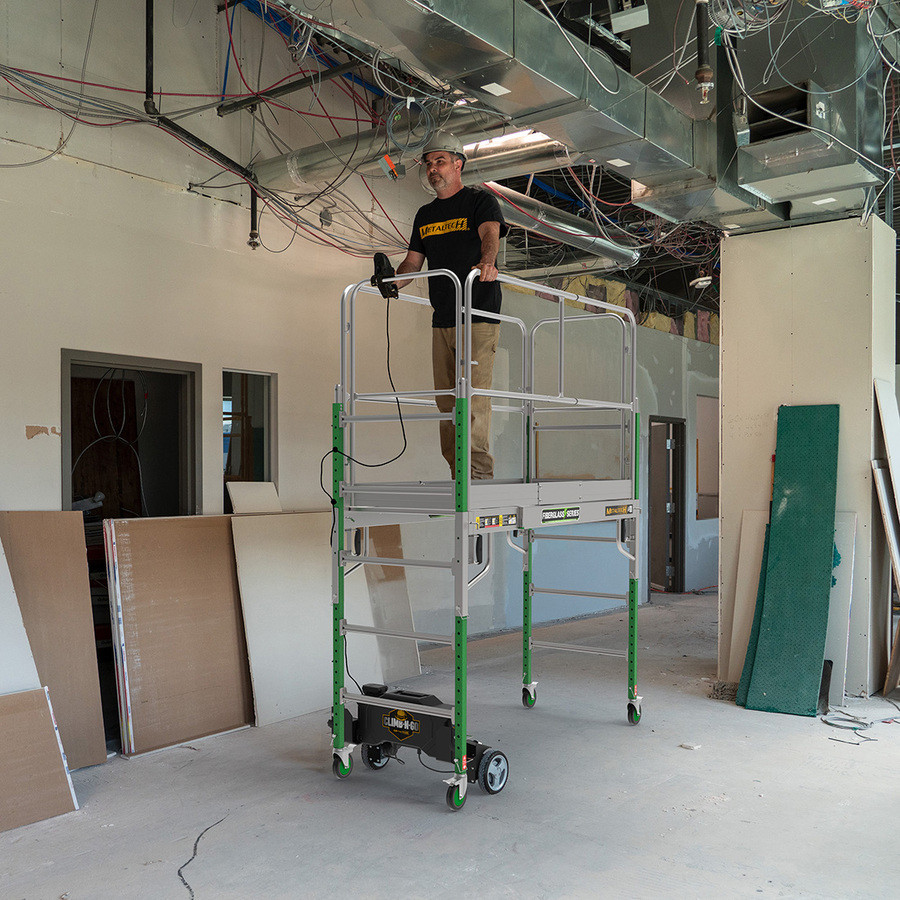

The Climb-N-Go installs on all Metaltech Baker scaffolds, whether steel (Jobsite Series, BuildMan), aluminum (Alu Series), or fiberglass.

Built-in safety

The automatic wheel-locking system engages whenever the motor is not in use, for safe operation at all times.

Usage limits

The Climb-N-Go is used with a single Baker unit (stacking prohibited), indoors, on a single floor, and on level ground (maximum 3° slope).

Regulatory compliance

Compliant with CSA S269.2-16 and OSHA 1926.452(W) standards.

Technical description

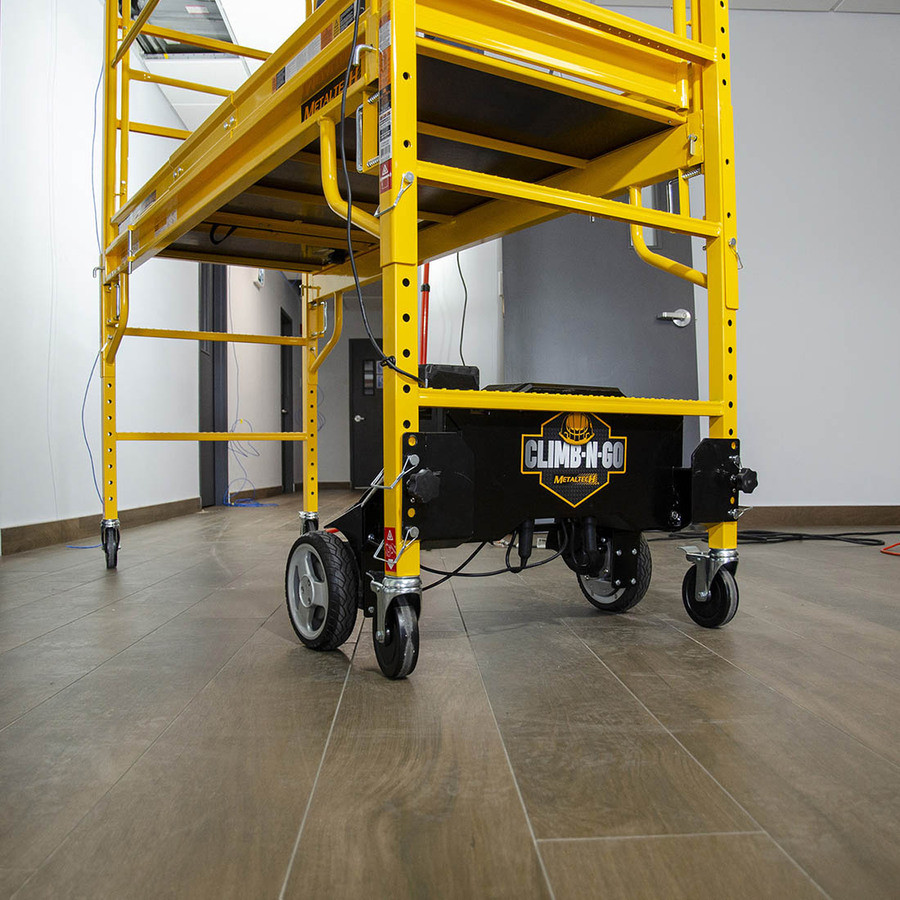

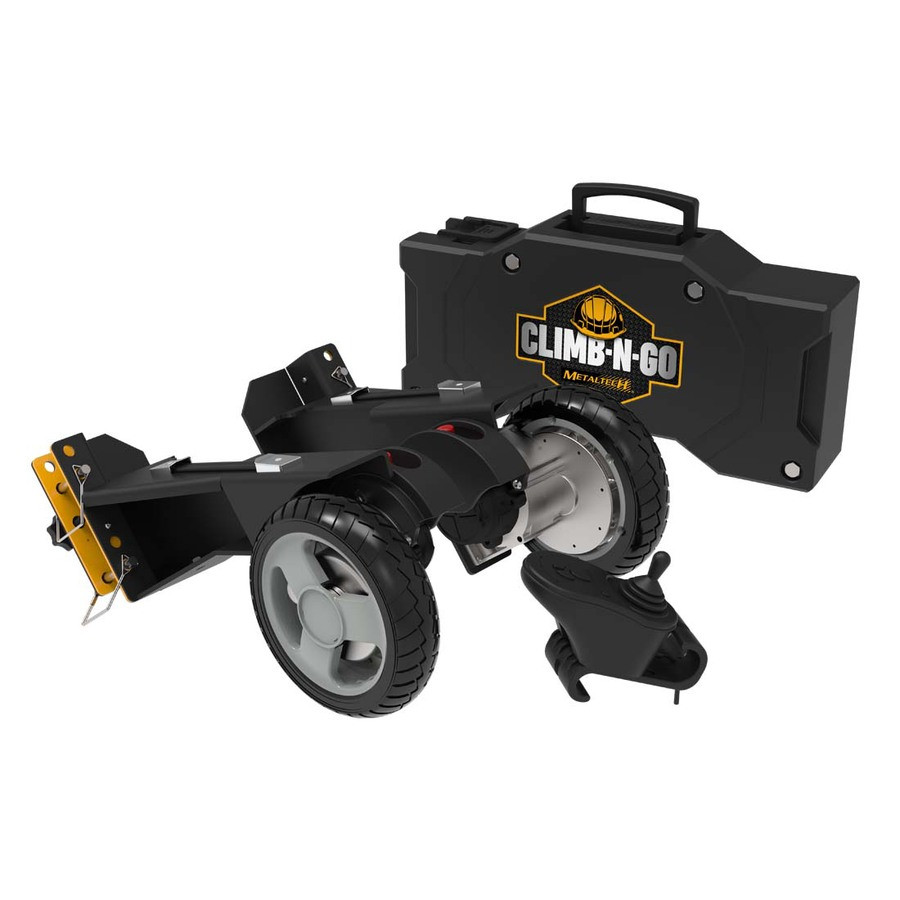

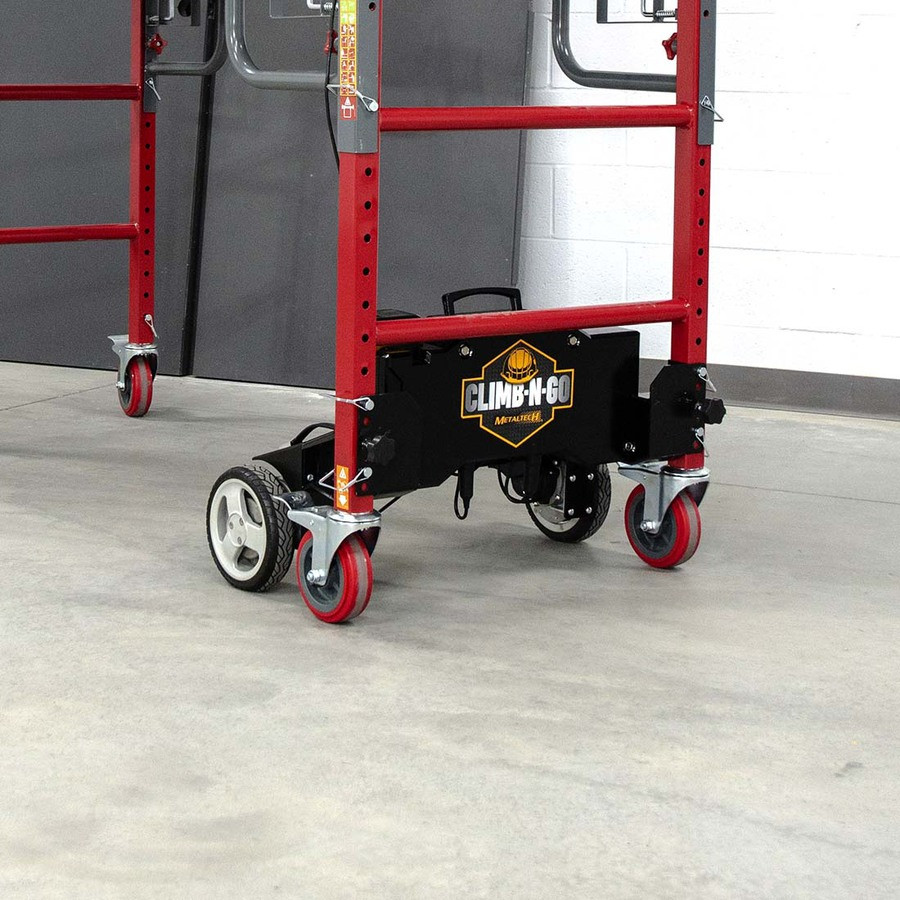

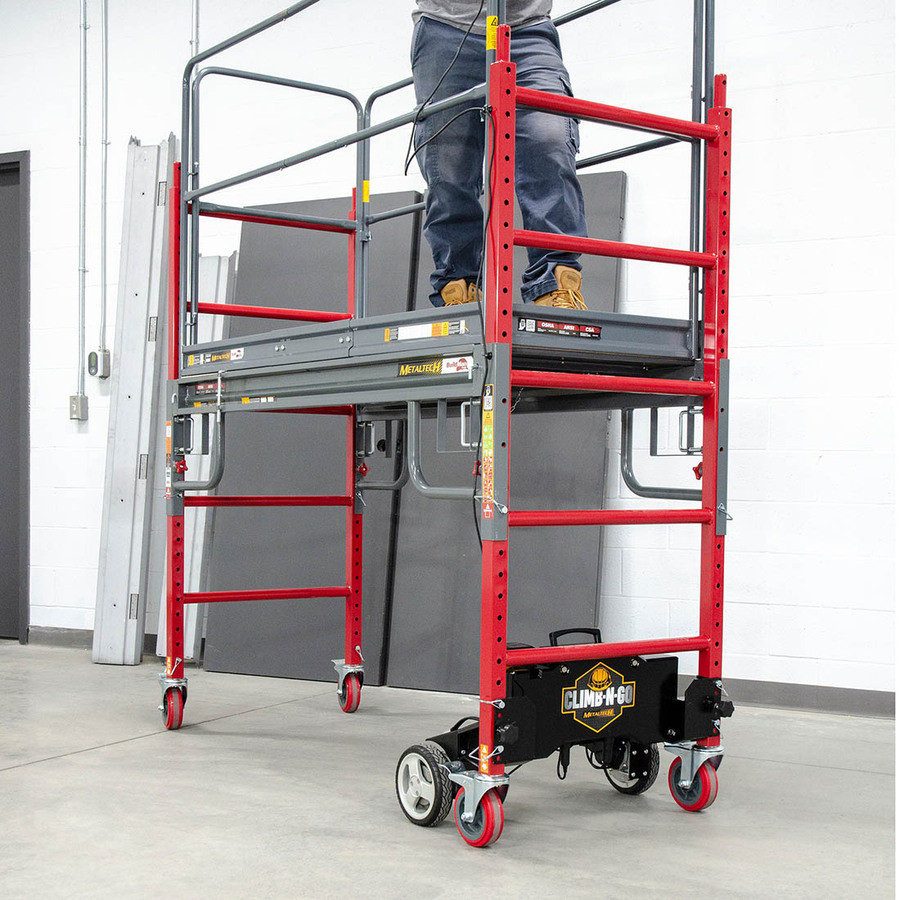

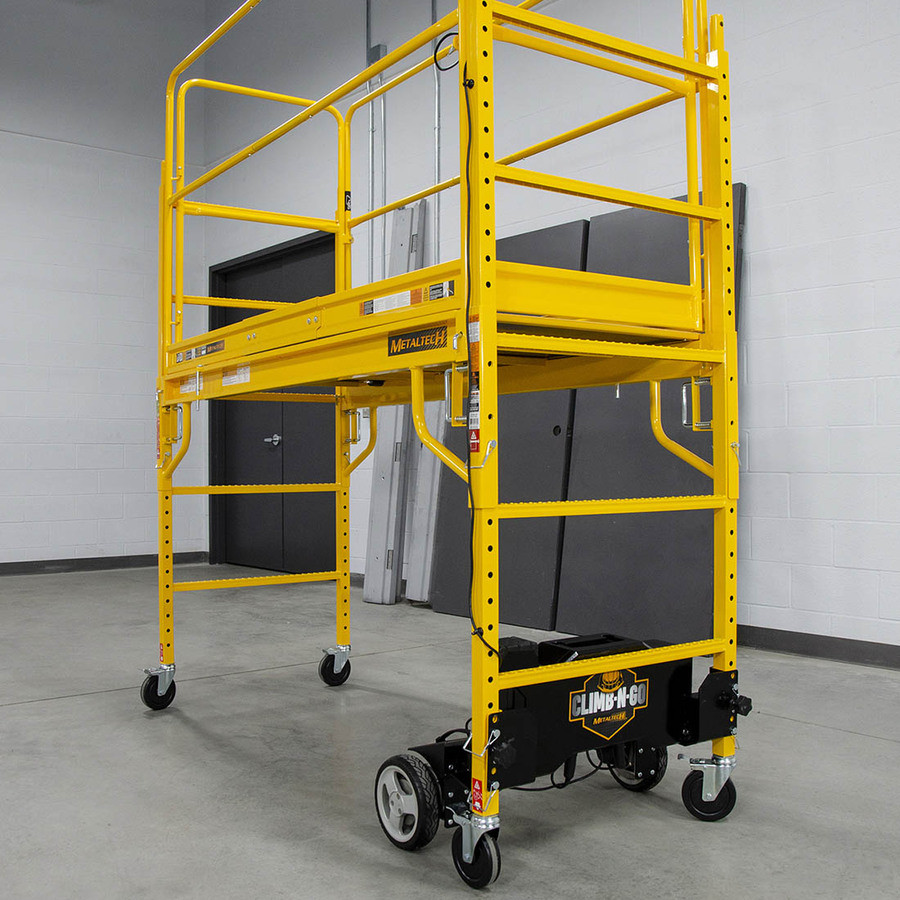

Powerful electric motor, wheels install on the base of the scaffold.

Automatic wheel-locking safety system.

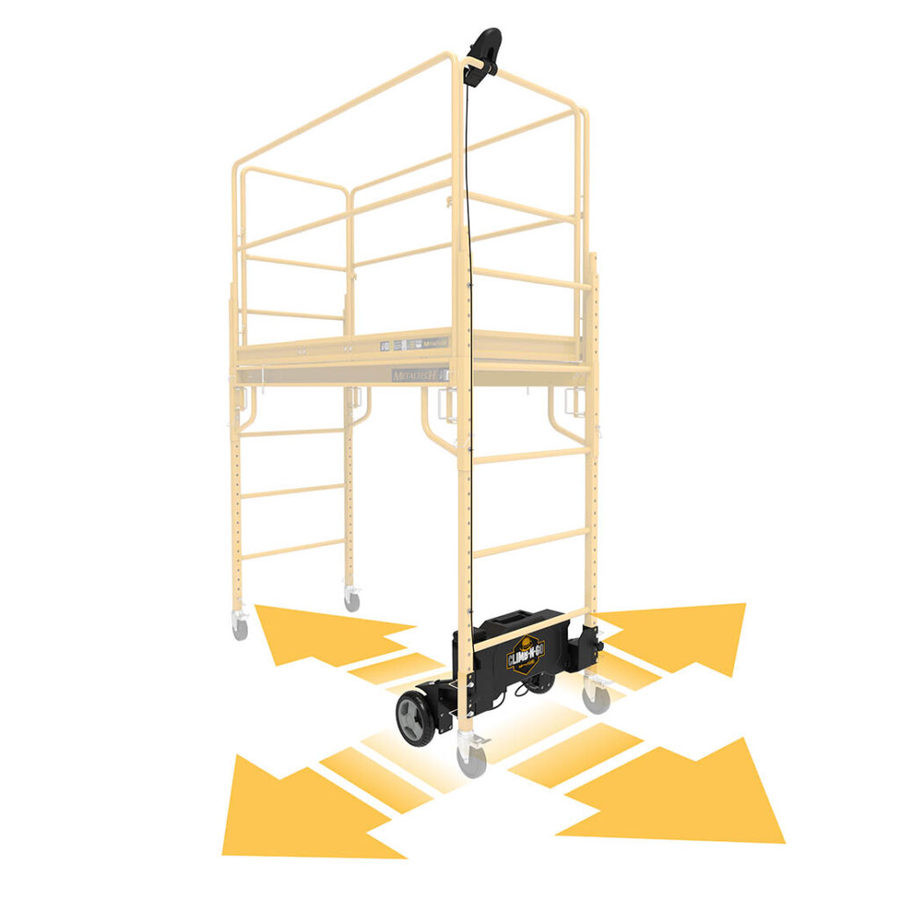

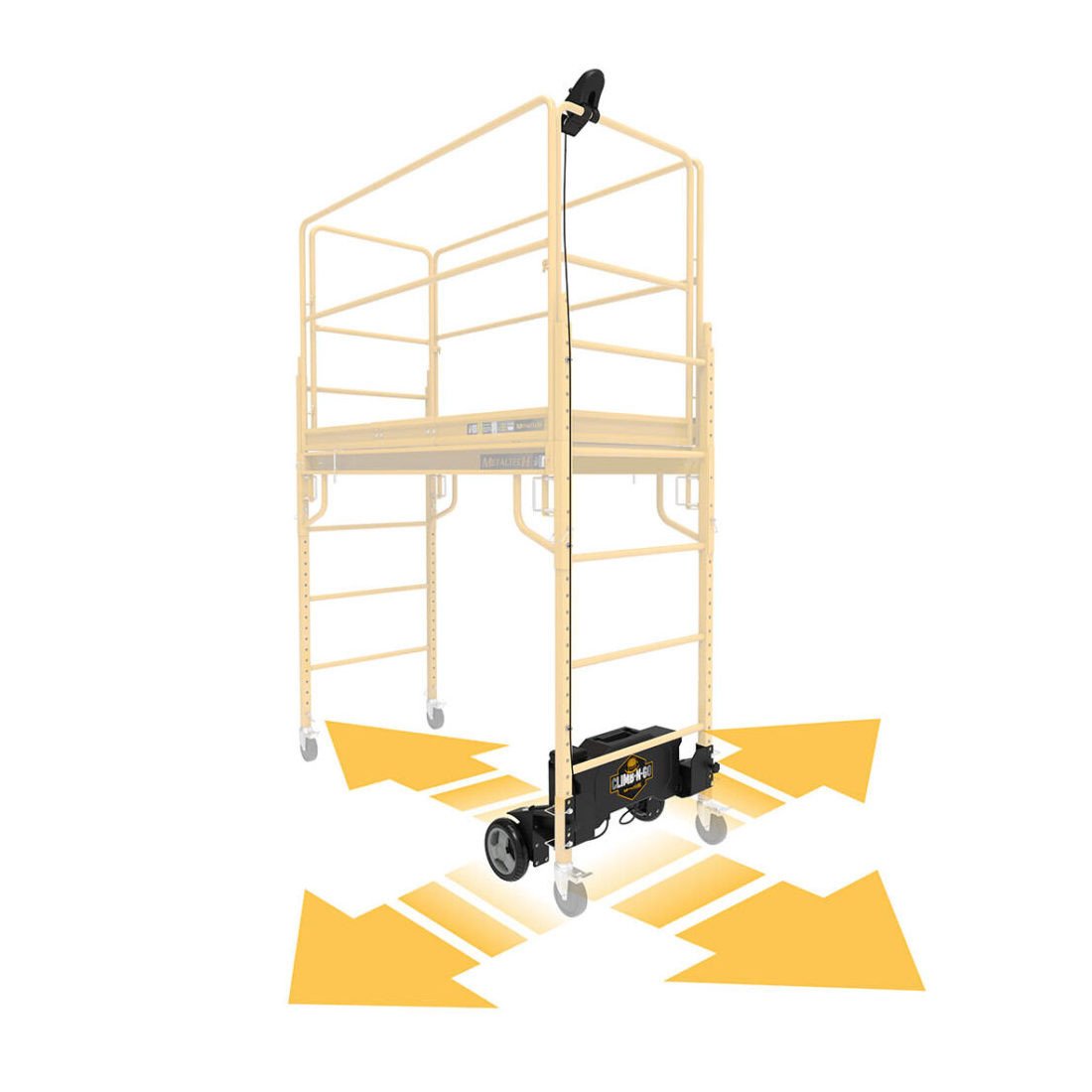

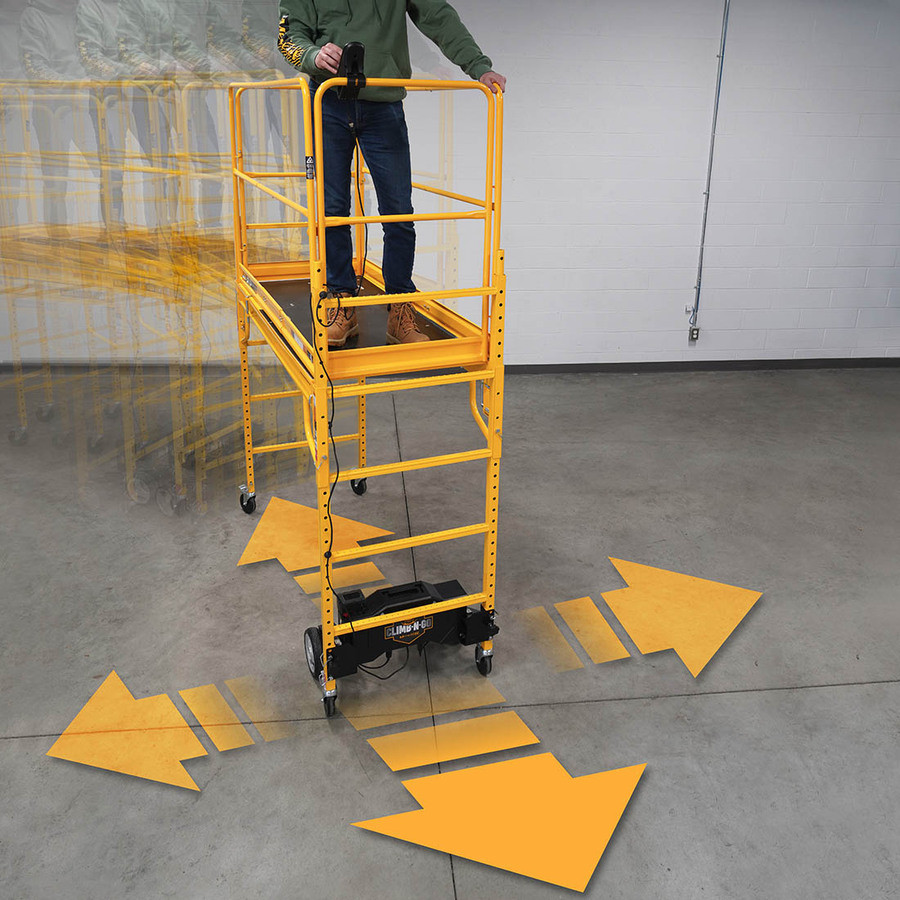

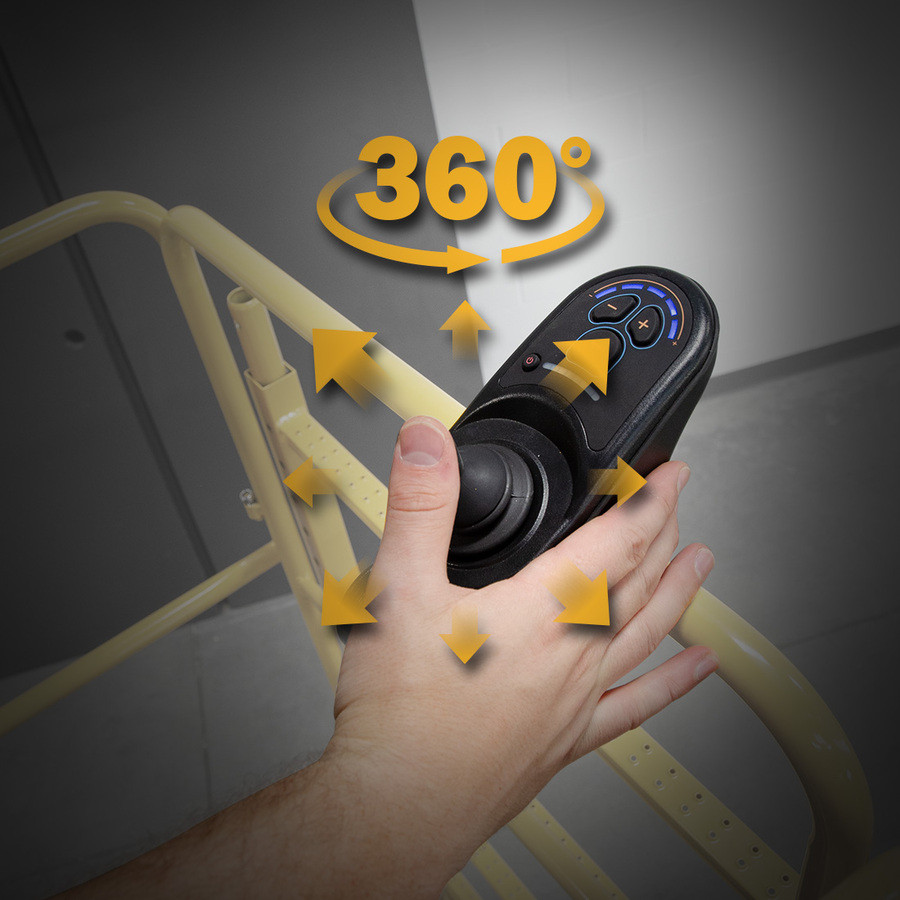

Multidirectional control handle, mountable on a rung or the guardrail.

Range: 4,500 ft (1372 m), tested with a 20V 4.0 Ah battery.

Hauling capacity: 500 lb (227 kg).

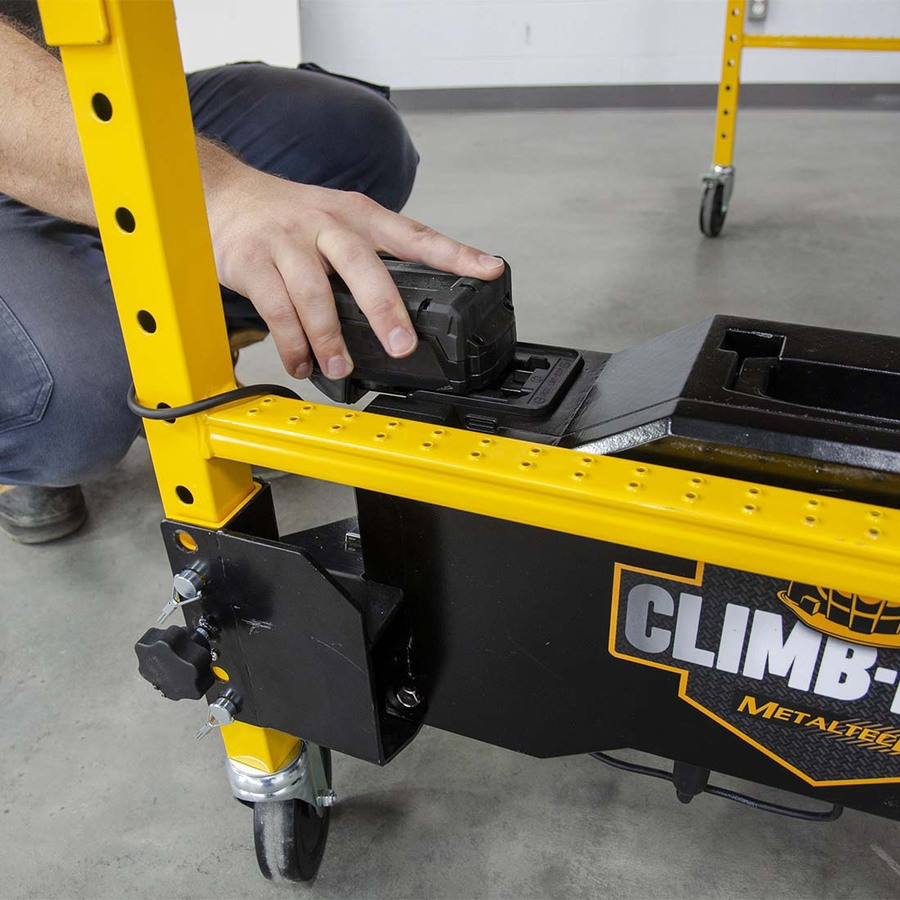

Powered by an 18-21V battery (not included), compatible with DEWALT, MAKITA, MILWAUKEE, STANLEY (18V), PORTER CABLE, BLACK & DECKER, BOSCH, and RIDGID (RIDGID adapter not included). All trademarks mentioned are the property of their respective owners; Metaltech is not affiliated with any of them.

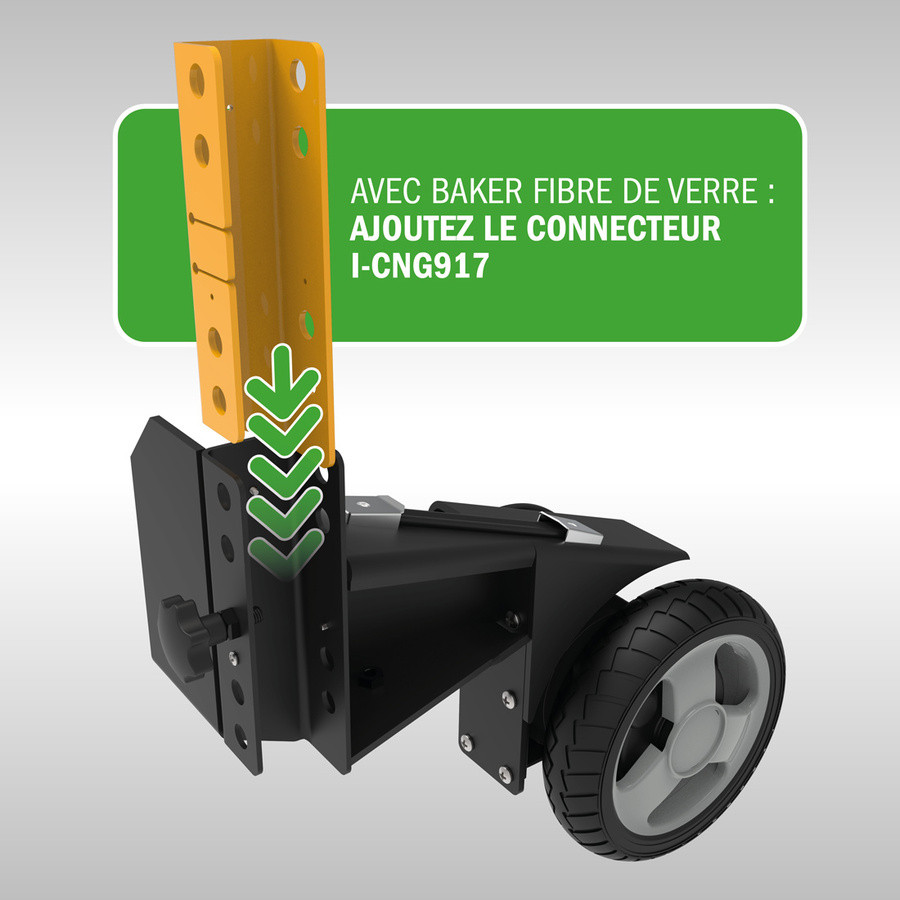

Compatible with: Jobsite Series 6' Baker (I-CISC), Jobsite Series Safeclimb (I-CISCH1), Jobsite Series 6' Baker access trap door (I-CISCTP), Jobsite Series Perry Style (I-CISCPY), ScaffoldBench 6' Baker 4-in-1 (I-CISCMT), Alu Series 6' Baker (I-CAISC), BuildMan 6' Baker (I-BMSS), Jobsite Series heavy-duty Baker (I-CISCDW), fiberglass 6' Baker access trap door scaffold (I-CFISC).

CSA S269.2-16 and OSHA 1926.452(W) compliant.

The Climb-N-Go can only be used with a single 6 ft Baker scaffold (stacking prohibited), indoors only, on a single floor, on level ground (maximum 3° slope). Outriggers cannot be installed while the Climb-N-Go is in place. Not water resistant. Canadian patent 3,179,633.
