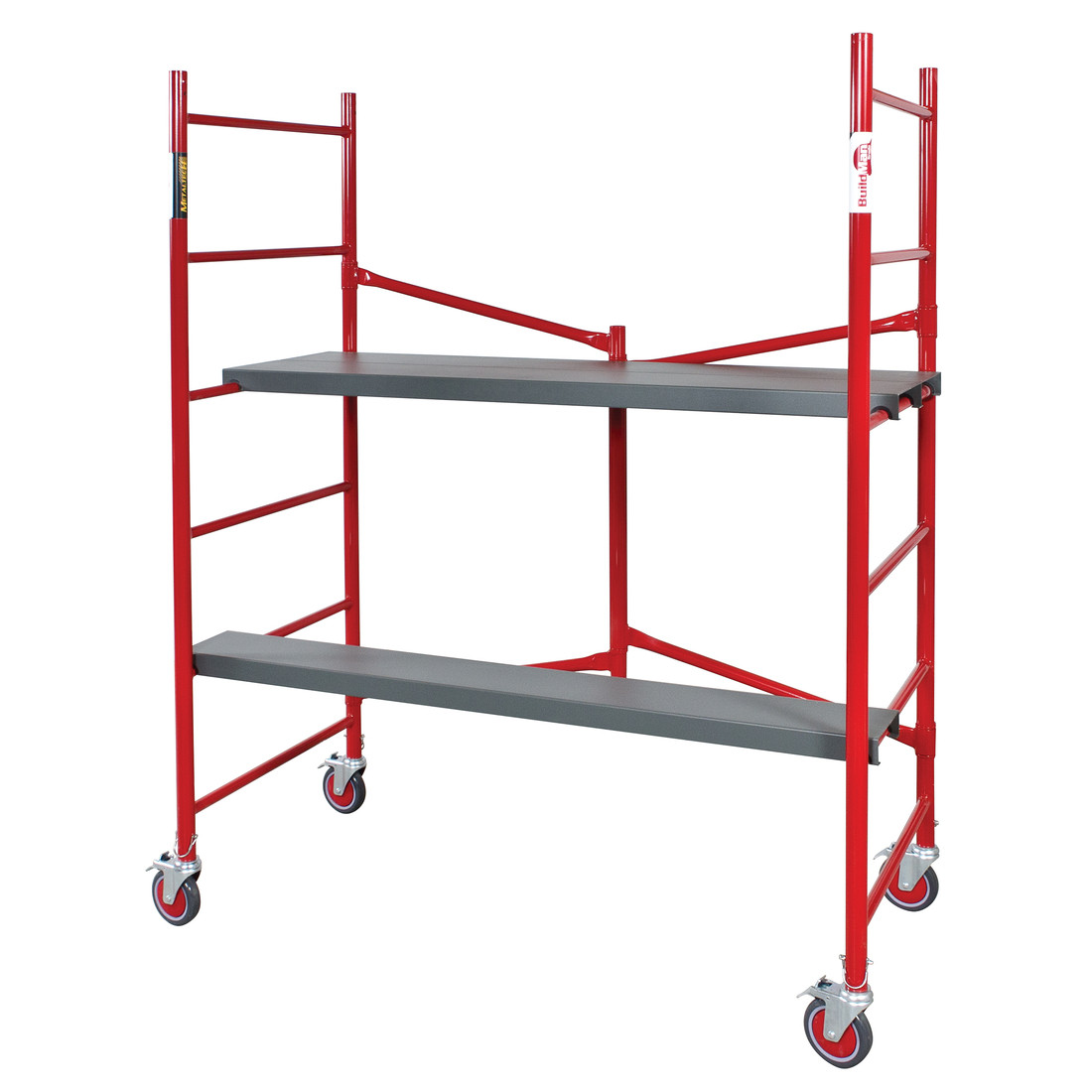

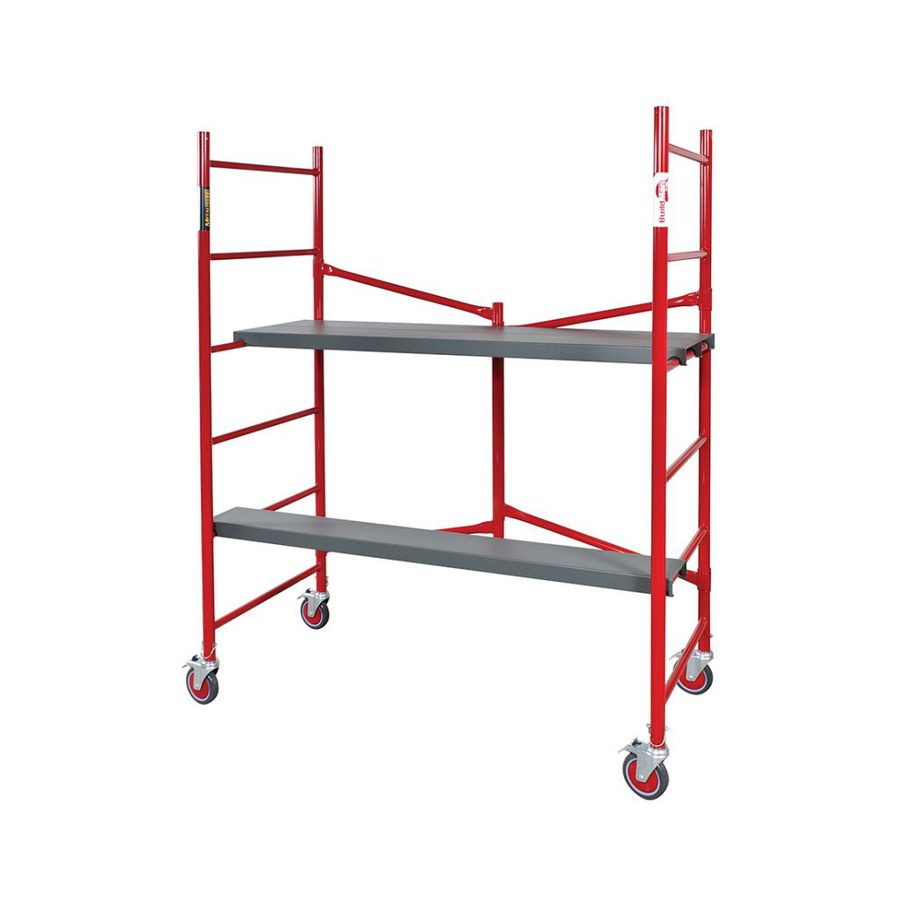

I-BM6S BuildMan 6 ft Portable Folding Scaffold (1,000 lb)

Standard: CSA/ANSI/OSHA

A portable folding scaffold with 6 working heights, converting into a cart for transport.

Select your reference

Quantity

I-BM6S BuildMan 6 ft Portable Folding Scaffold (1,000 lb)

Advantages and strengths

BuildMan class portable folding scaffold, 1,000 lb (454 kg) load capacity, with 6 adjustable working heights.
Assembles in 2 minutes with no tools, folds flat for compact storage, and doubles as a transport cart for equipment and heavy loads.
Stackable up to 2 units for an 18 ft (5.5 m) reach.

Technical characteristics

Reference	characteristic.CANADA_HAUTEUR_PLATEFORME	characteristic.CANADA_HAUTEUR_TRAVAIL	characteristic.CANADA_HAUTEUR_PORTEE	characteristic.CANADA_CAPACITE_CHARGE	characteristic.CANADA_POIDS	Quantity	Quote
Ref. I-BM6S Portable Folding Scaffold - Position 6	71.75 in (182.3 cm)	74 in (188 cm)	7 ft 2 in (2.18 m)	1,000 lb (454 kg)	124.6 lb (56.5 kg) lb	Quantité maximum disponible pour ce magasin + -

Portable Folding Scaffold - Position 6
Reference :	I-BM6S
characteristic.CANADA_HAUTEUR_PLATEFORME	71.75 in (182.3 cm)
characteristic.CANADA_HAUTEUR_TRAVAIL	74 in (188 cm)
characteristic.CANADA_HAUTEUR_PORTEE	7 ft 2 in (2.18 m)
characteristic.CANADA_CAPACITE_CHARGE	1,000 lb (454 kg)
characteristic.CANADA_POIDS	124.6 lb (56.5 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

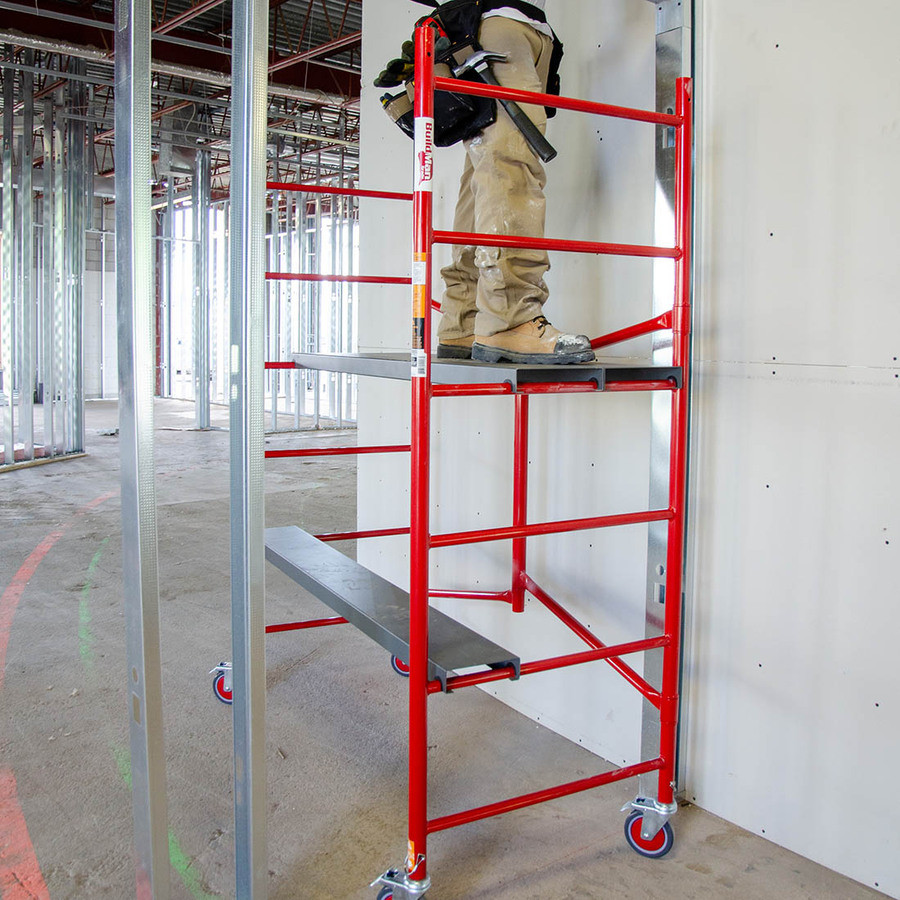

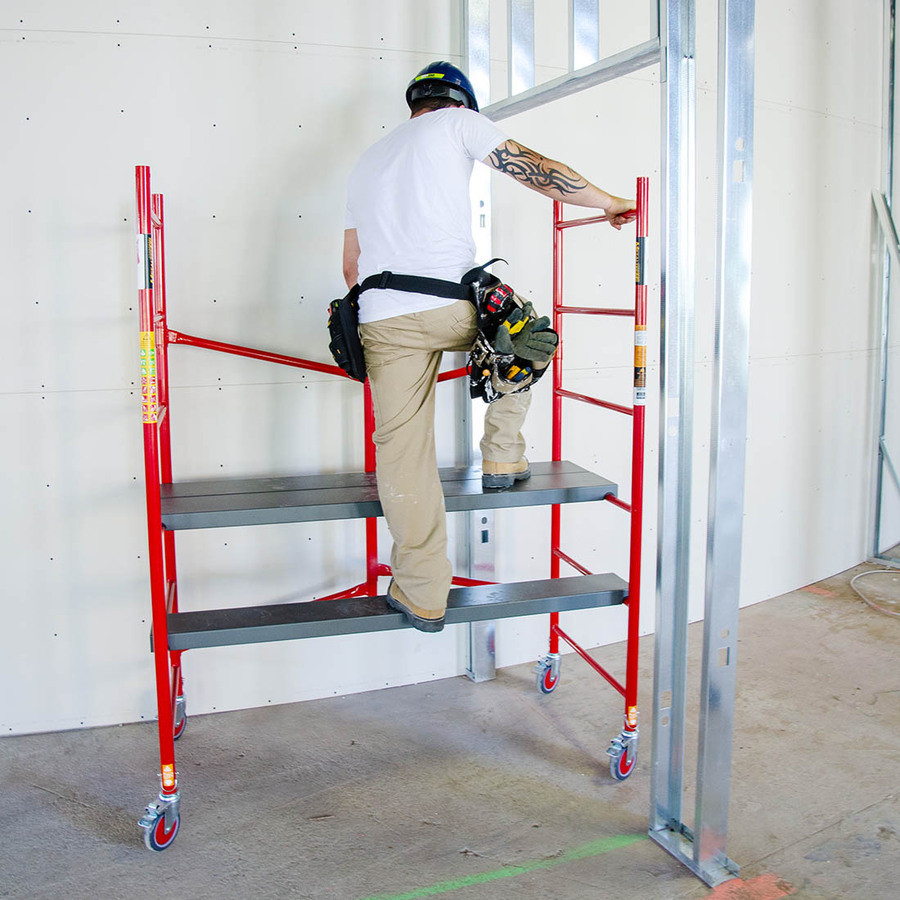

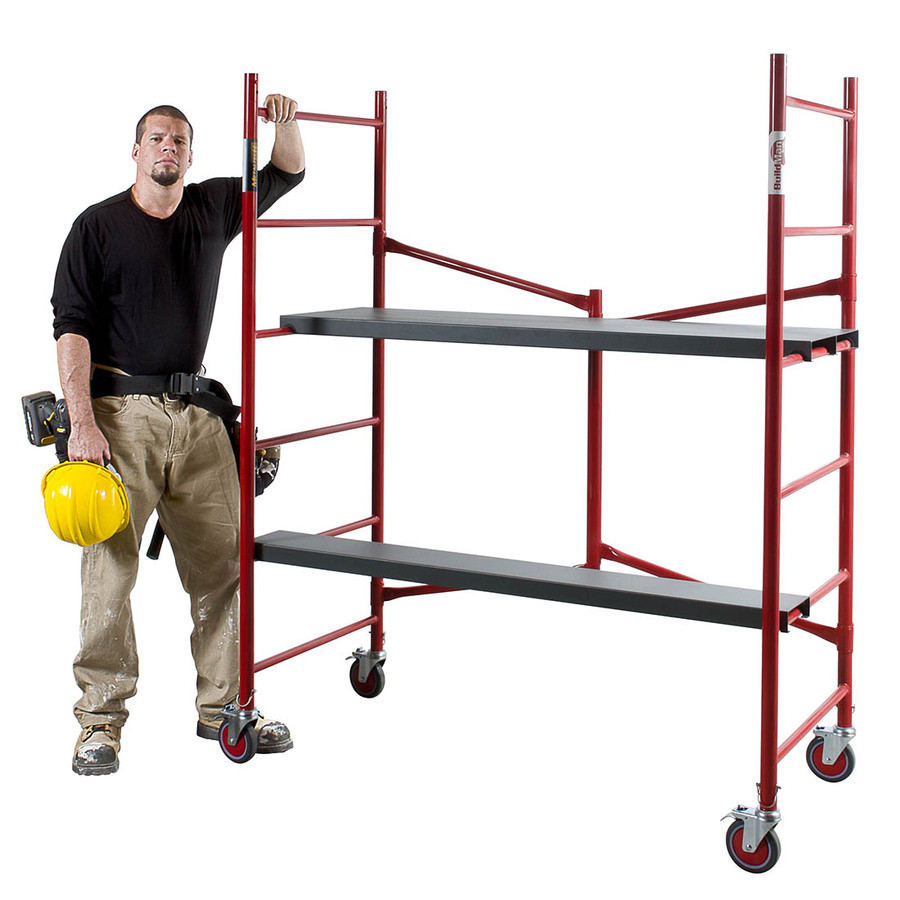

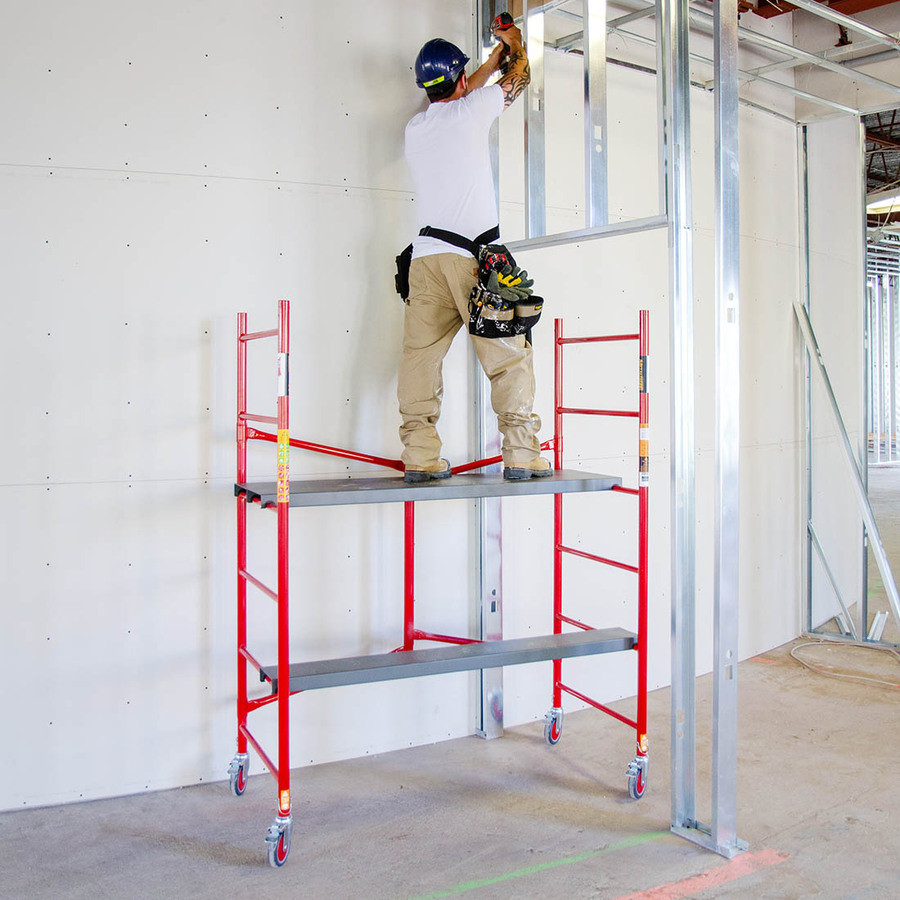

6 working heights

The I-BM6S offers 6 adjustable platform positions from 11.75 to 71.75 in (29.9 to 182.3 cm), to precisely match the task at hand.

Fast assembly

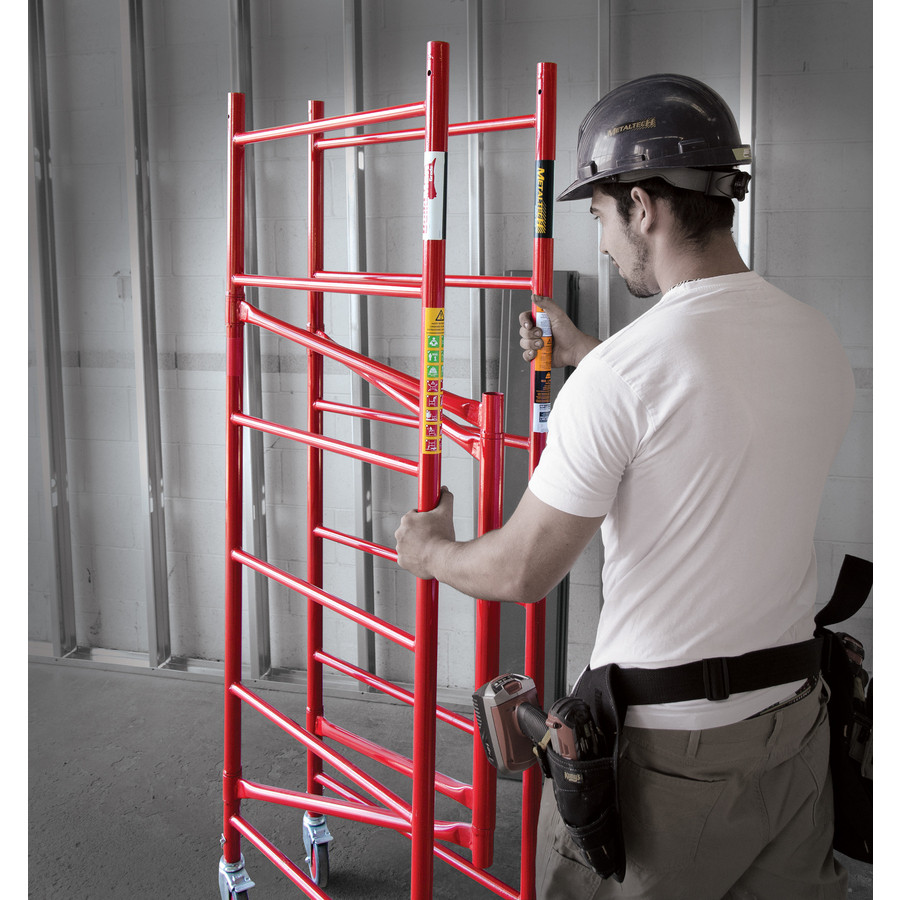

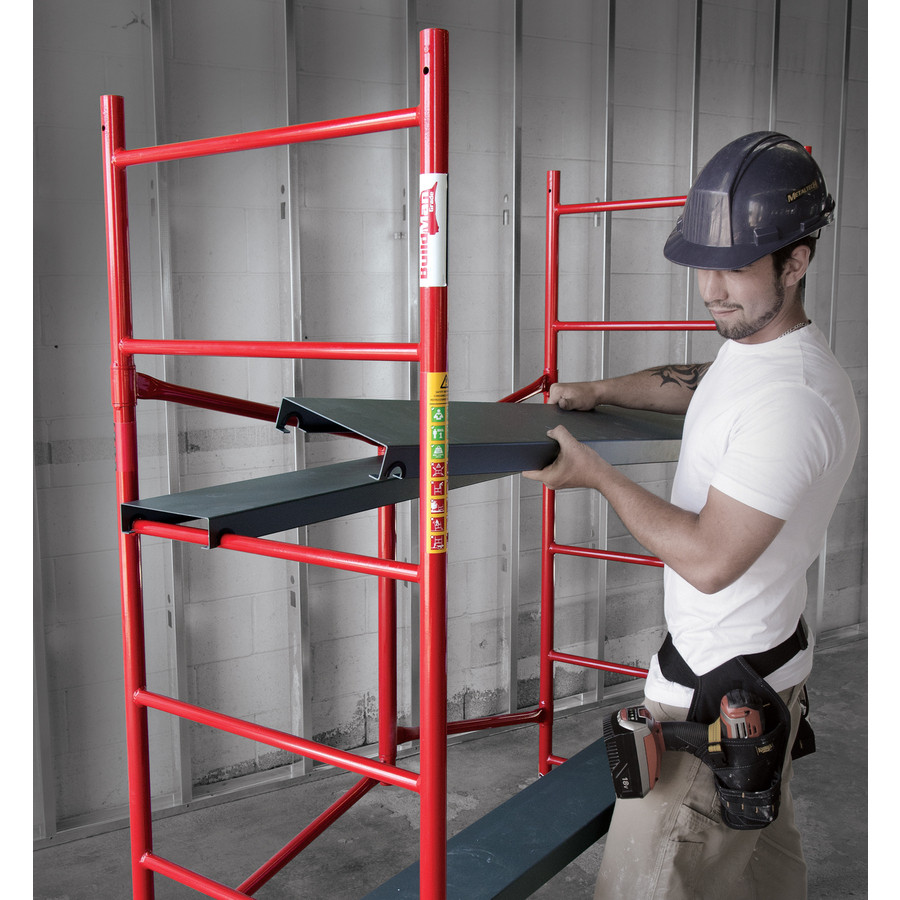

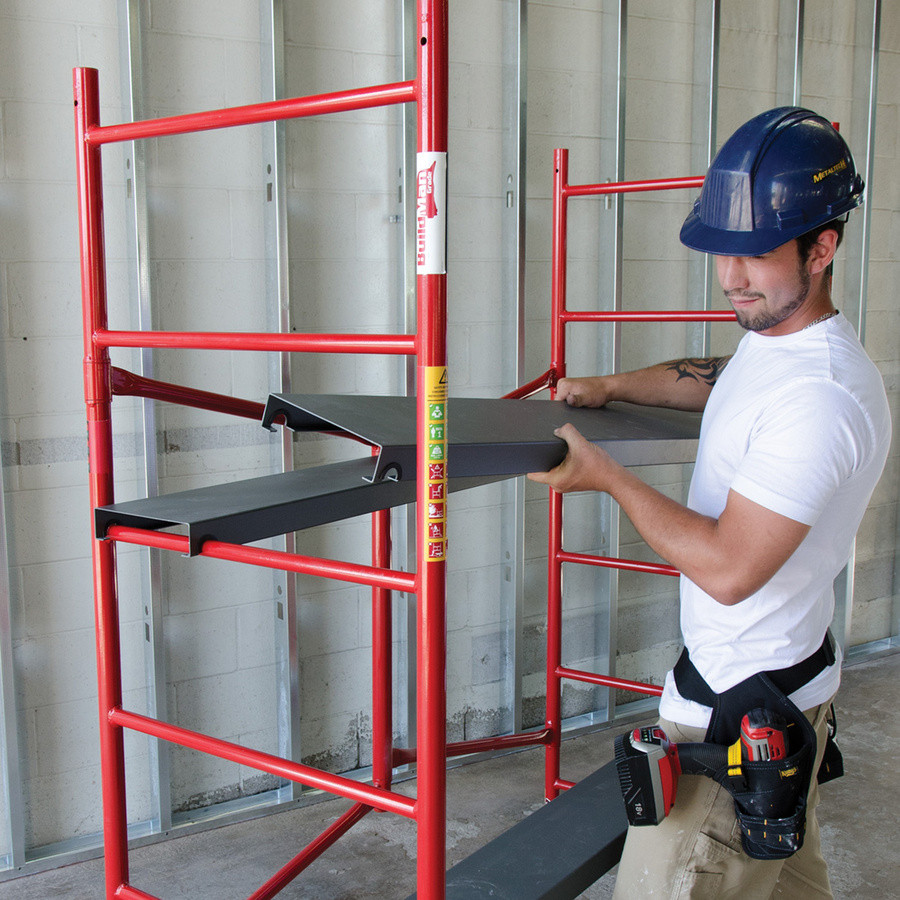

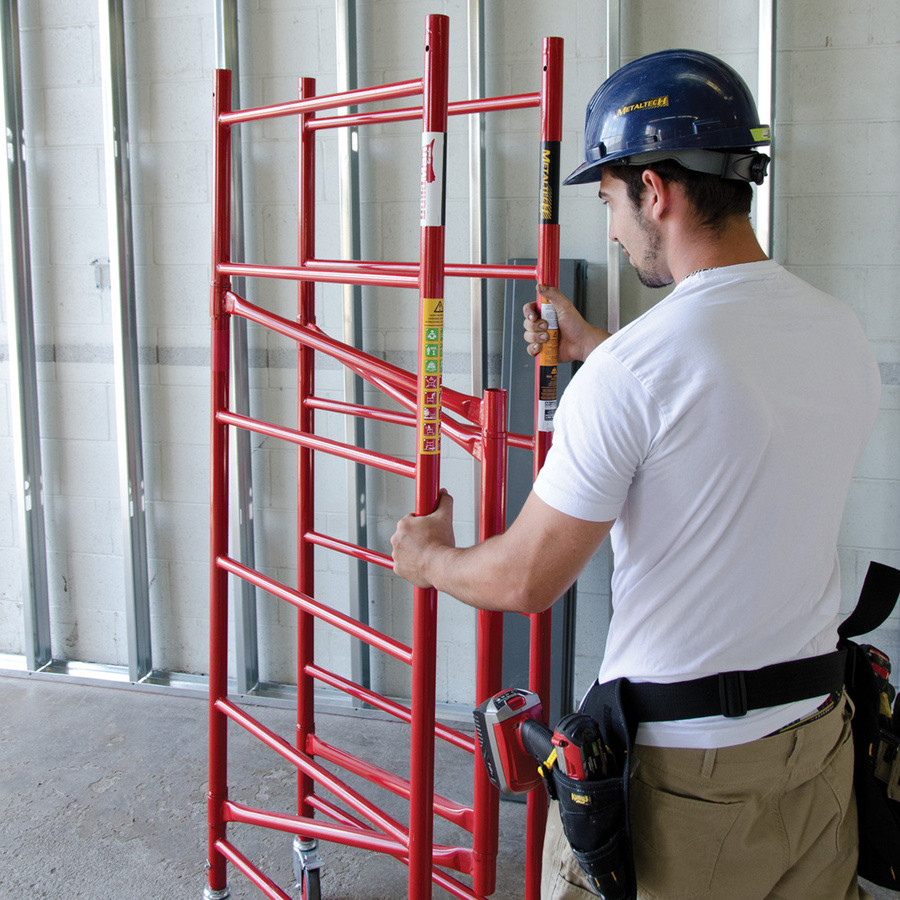

No tools required: the I-BM6S assembles in 2 minutes and folds flat for compact storage and easy transport.

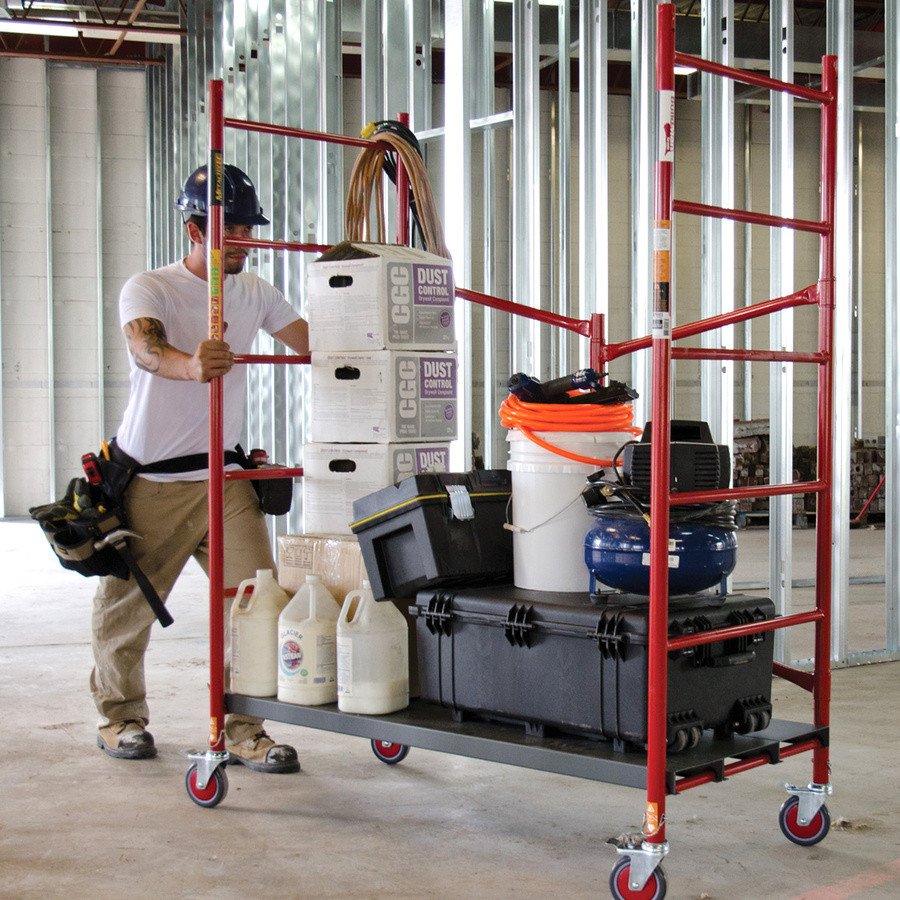

Dual use: scaffold and cart

Once folded, the I-BM6S doubles as a cart to transport equipment and heavy loads, up to 1,000 lb (454 kg), to and from the job site.

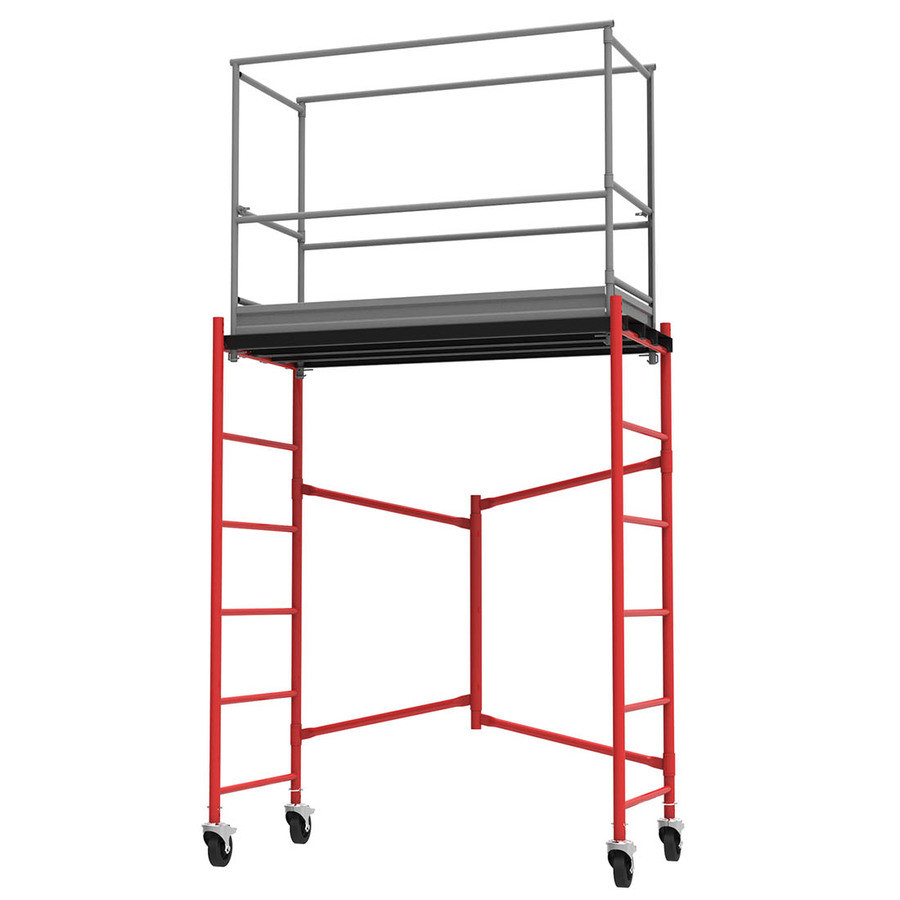

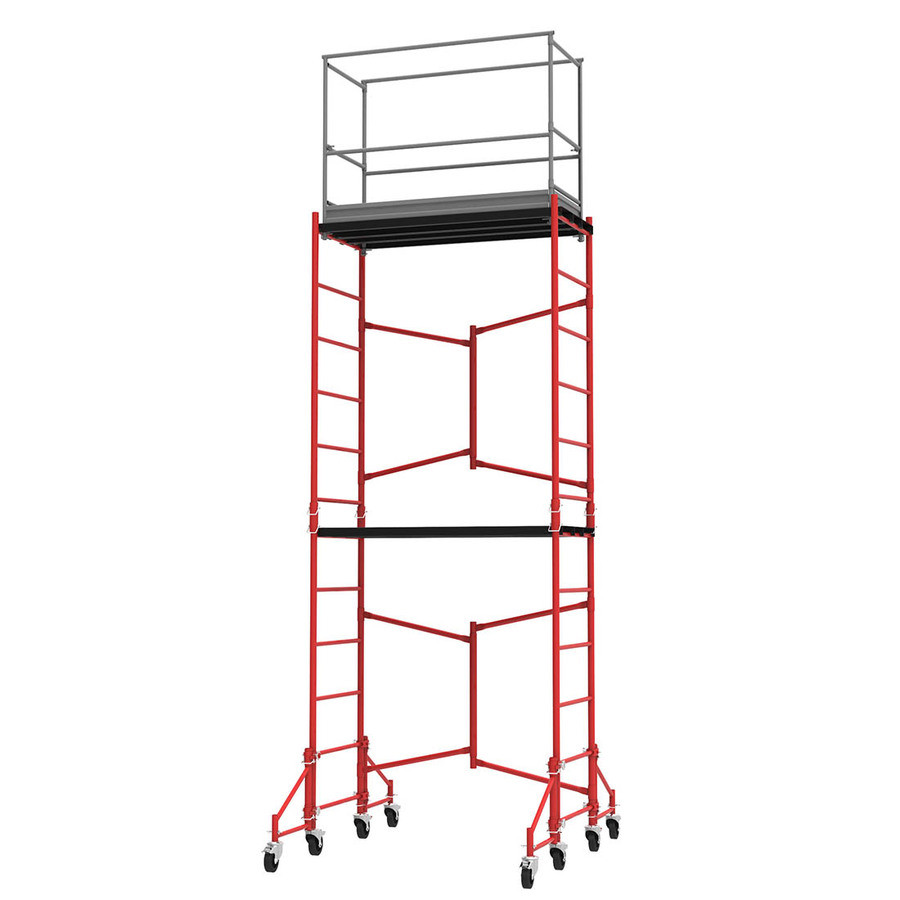

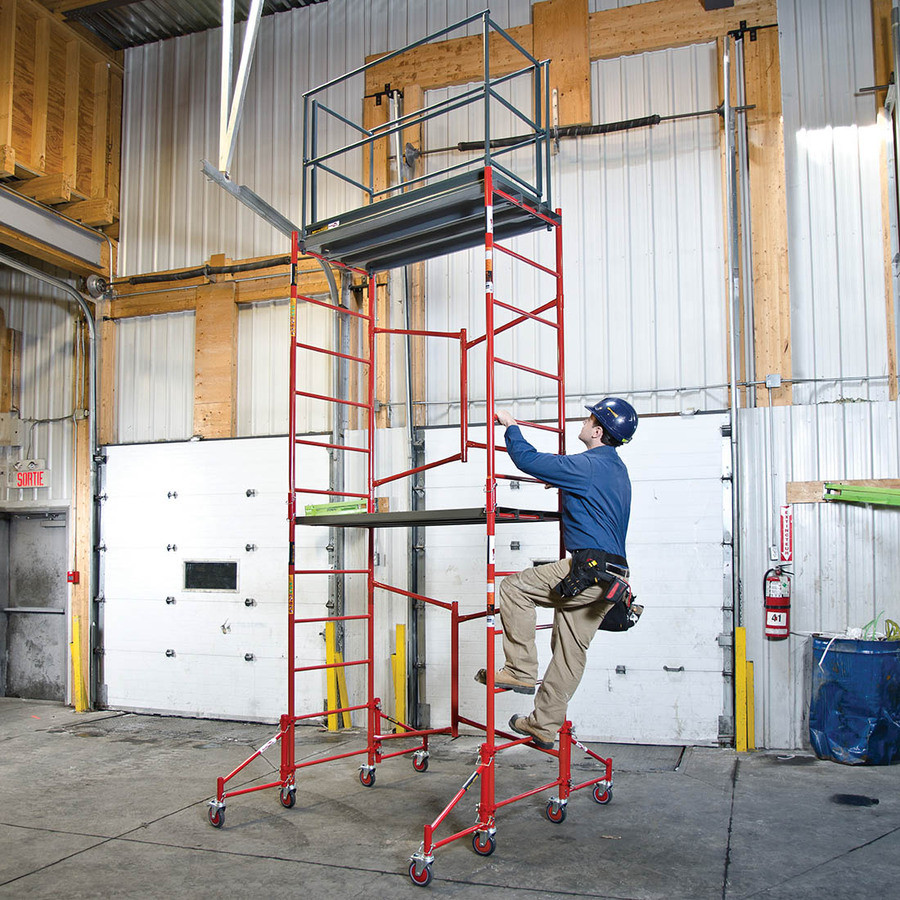

Stackable up to 18 ft

The I-BM6S can be stacked up to 2 units high to reach an 18 ft (5.5 m) reach.

Regulatory compliance

Compliant with ANSI, CSA, and OSHA standards.

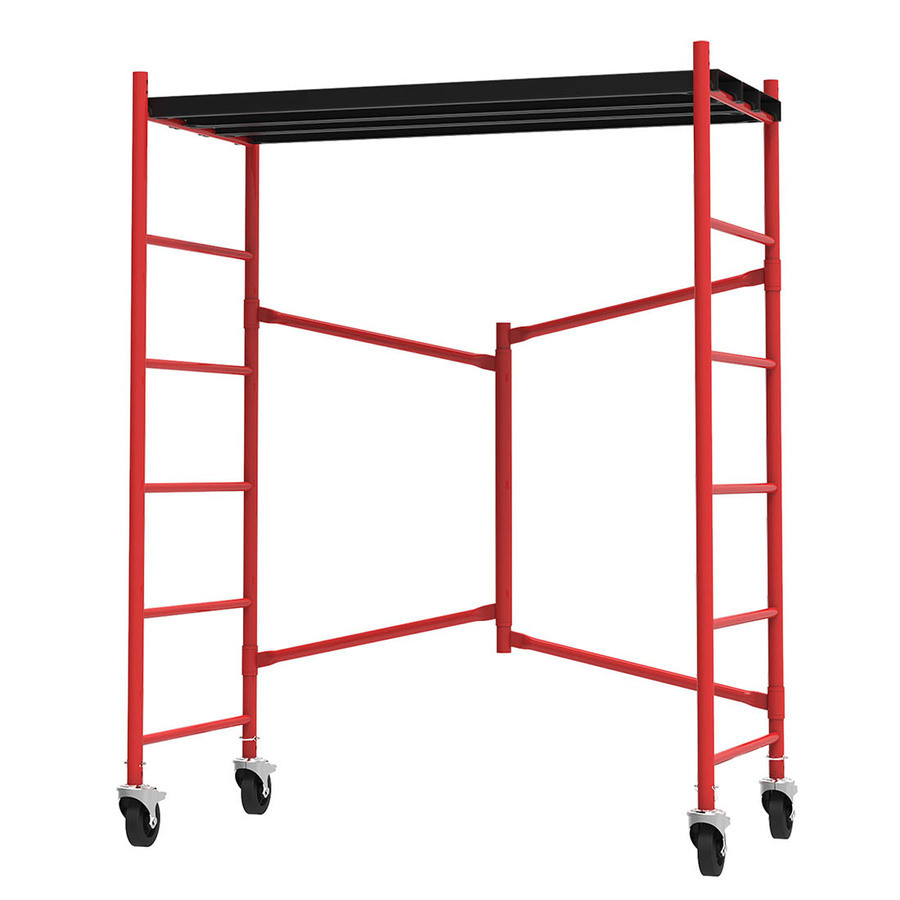

Technical description

3 slip-resistant 14-gauge steel platforms.

1.5 in (3.8 cm) round tube structure, 16-gauge steel.

Heavy-duty 5 in (13 cm) double-locking casters.

Powder-coated finish.

Assembled dimensions: 59.25 x 30 x 74 in (150.5 x 76.2 x 188 cm).

Package dimensions: 70 x 31.25 x 6 in (177.8 x 79.4 x 15.2 cm).

Load capacity: 1,000 lb (454 kg), combining user and material weight. Large platforms: max. 375 lb (170 kg); small platform: max. 250 lb (113 kg).

6 platform heights: 11.75 to 71.75 in (29.9 to 182.3 cm).

Stackable up to 2 units for 18 ft (5.5 m) reach.

ANSI, CSA, and OSHA compliant.
