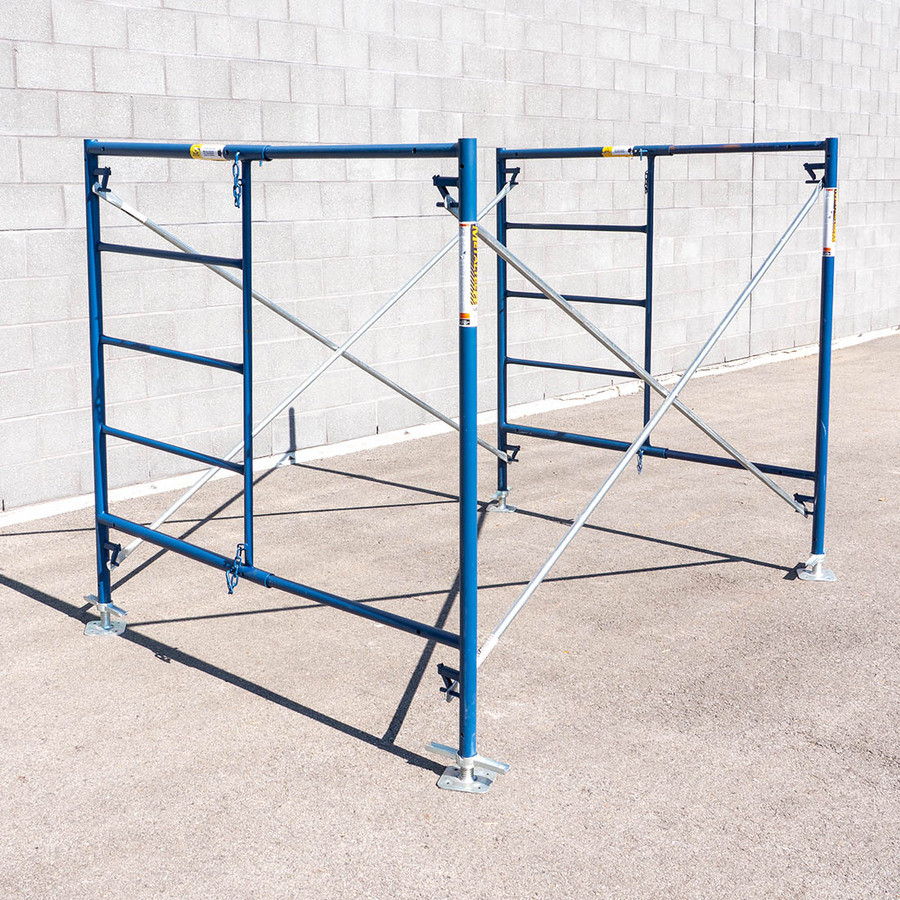

Saferstack standard steel frames
Saferstack standard steel frames

Saferstack standard steel frames

Standard: ANSI/CSA/OSHA

Select your reference
+
-
Saferstack standard steel frames

Technical characteristics

Reference Sizes ('') Weight (lb) Quantity Quote
Ref. M-MF60EPS
Code AC000224
Cadre standard extensible SAFERSTACK
60 x 36 / 60 '' 49,80 lb
+
-
Ref. M-MF3660PS
Code AC000217
Cadre standard SAFERSTACK 36"x60"
36 x 60 '' 31,80 lb
+
-
Ref. M-MF4860PS
Code AC000218
Cadre standard SAFERSTACK 48"x60"
48 x 60 '' 36,00 lb
+
-
Ref. M-MF6030PS
Code AC000223
Cadre standard SAFERSTACK 60"x30"
60 x 30 '' 31,80 lb
+
-
Ref. M-MF6048PS
Code AC000222
Cadre standard SAFERSTACK 60"x48"
60 x 48 '' 37,80 lb
+
-
Ref. M-MF6060PS
Code AC000219
Cadre standard SAFERSTACK 60"x60"
60 x 60 '' 40,80 lb
+
-
Ref. M-MF7260PS
Code AC000220
Cadre standard SAFERSTACK 72"x60"
72 x 60 '' 42,80 lb
+
-
Ref. M-MF7660PS
Code AC000221
Cadre standard SAFERSTACK 76"x60"
76 x 60 '' 45,80 lb
+
-
Cadre standard extensible SAFERSTACK
Reference : M-MF60EPS
Sizes ('') 60 x 36 / 60 ''
Weight (lb) 49,80 lb
Quantity :
+
-
Cadre standard SAFERSTACK 36"x60"
Reference : M-MF3660PS
Sizes ('') 36 x 60 ''
Weight (lb) 31,80 lb
Quantity :
+
-
Cadre standard SAFERSTACK 48"x60"
Reference : M-MF4860PS
Sizes ('') 48 x 60 ''
Weight (lb) 36,00 lb
Quantity :
+
-
Cadre standard SAFERSTACK 60"x30"
Reference : M-MF6030PS
Sizes ('') 60 x 30 ''
Weight (lb) 31,80 lb
Quantity :
+
-
Cadre standard SAFERSTACK 60"x48"
Reference : M-MF6048PS
Sizes ('') 60 x 48 ''
Weight (lb) 37,80 lb
Quantity :
+
-
Cadre standard SAFERSTACK 60"x60"
Reference : M-MF6060PS
Sizes ('') 60 x 60 ''
Weight (lb) 40,80 lb
Quantity :
+
-
Cadre standard SAFERSTACK 72"x60"
Reference : M-MF7260PS
Sizes ('') 72 x 60 ''
Weight (lb) 42,80 lb
Quantity :
+
-
Cadre standard SAFERSTACK 76"x60"
Reference : M-MF7660PS
Sizes ('') 76 x 60 ''
Weight (lb) 45,80 lb
Quantity :
+
-

Use

Range of SAFERSTACK scaffolding frames bringing a highly important gain in storage and transport.

With these frames, stack 100 frames or put 70 beforehand.

Frame structure made of powder coated steel tubes.

Technical description

Diameter of the upright tubes : 4,30 mm (1,69 in.) - 13 gauge


Diameter of the transom tubes : 2,50 mm (1 in.) - 16 gauge


Pins and springs included in the frames

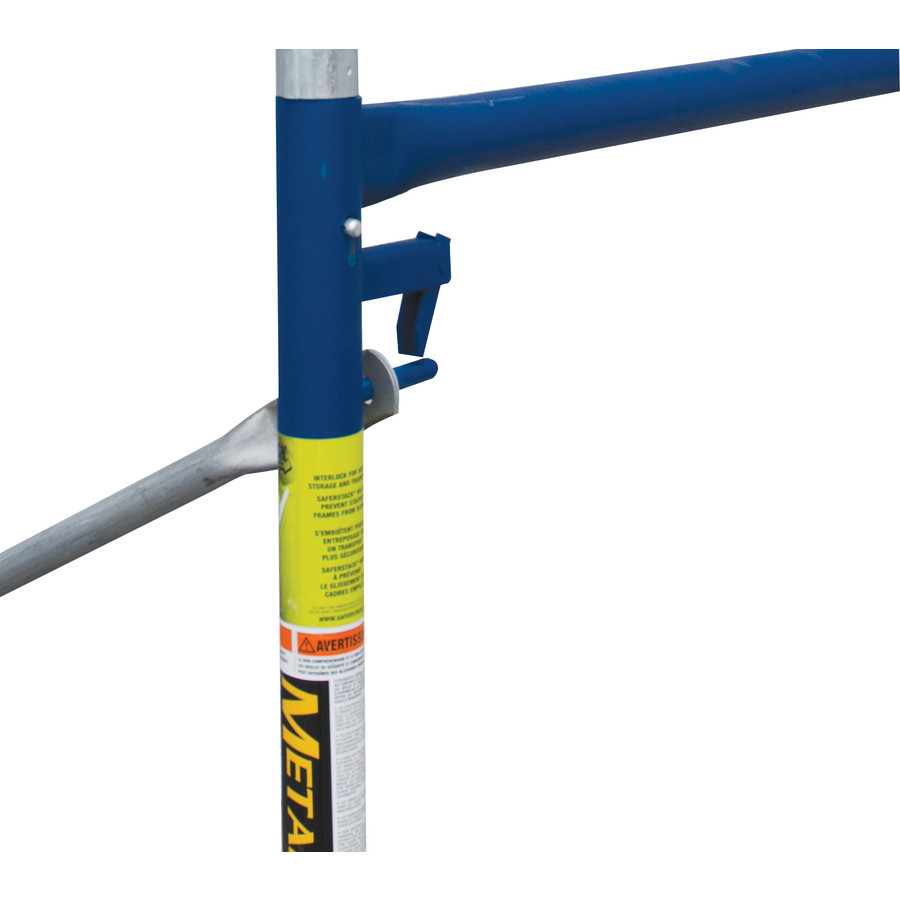

Gravity locking connection system


Also available in galvanised steel


Other type of latch available : flap or slide rail locking
