Saferstack arch frame
SaferStack arch scaffold frames, available with or without an integrated ladder, providing clear passage under the scaffold.
Advantages and strengths
Powder-coated steel tube structure, arch shape for clear passage under the scaffold.

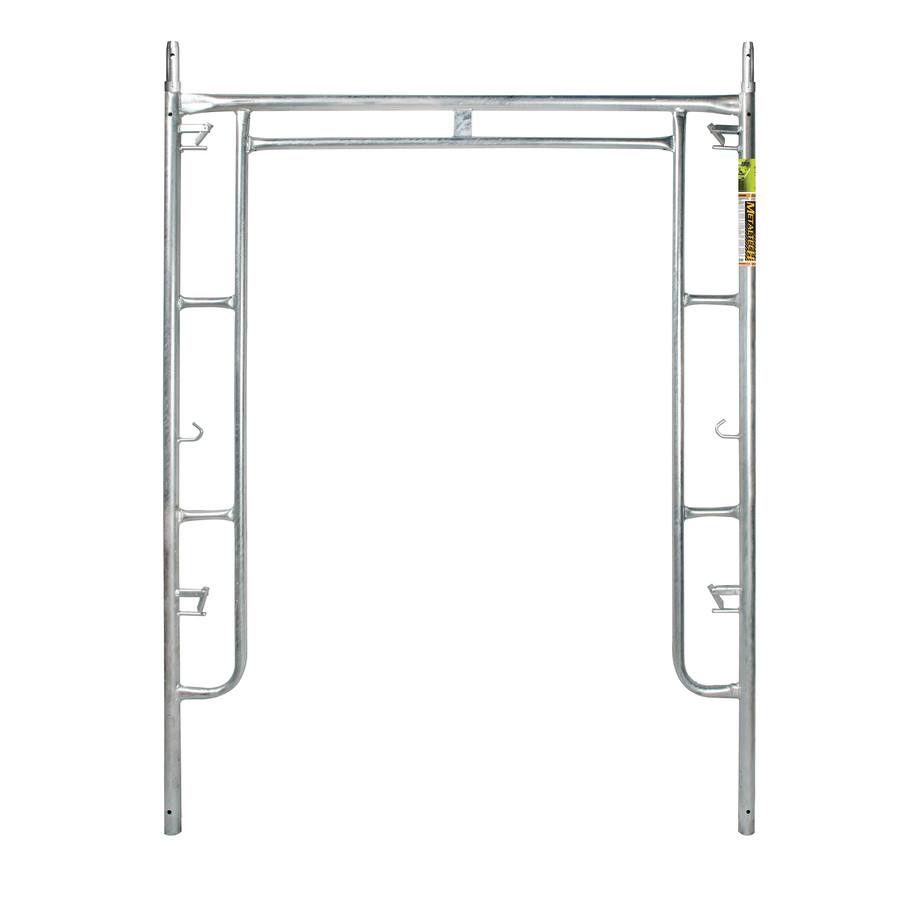

Upright tube diameter: 4.3 mm (1.69 in), 13 gauge. Crossbar tube diameter: 2.5 cm (1 in), 16 gauge. Coupling pins and springs included. Gravity-lock connection system (other latch types available: flip-lock or slide-lock). Also available in galvanized steel, in addition to powder-coated.

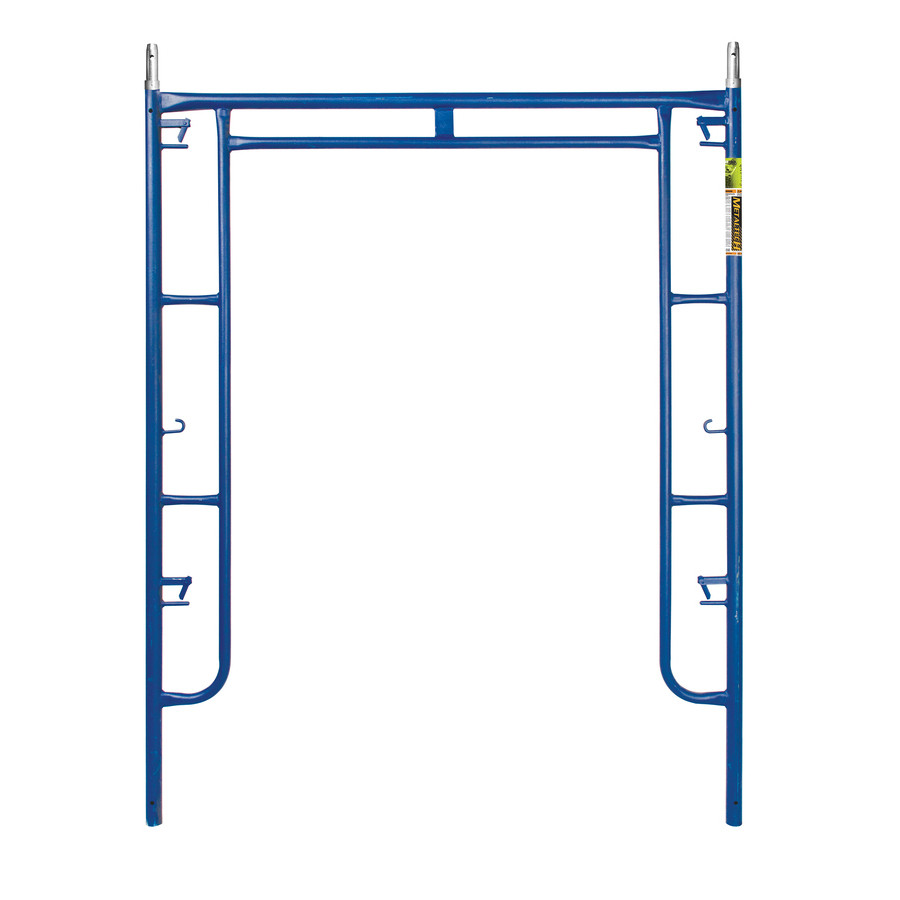

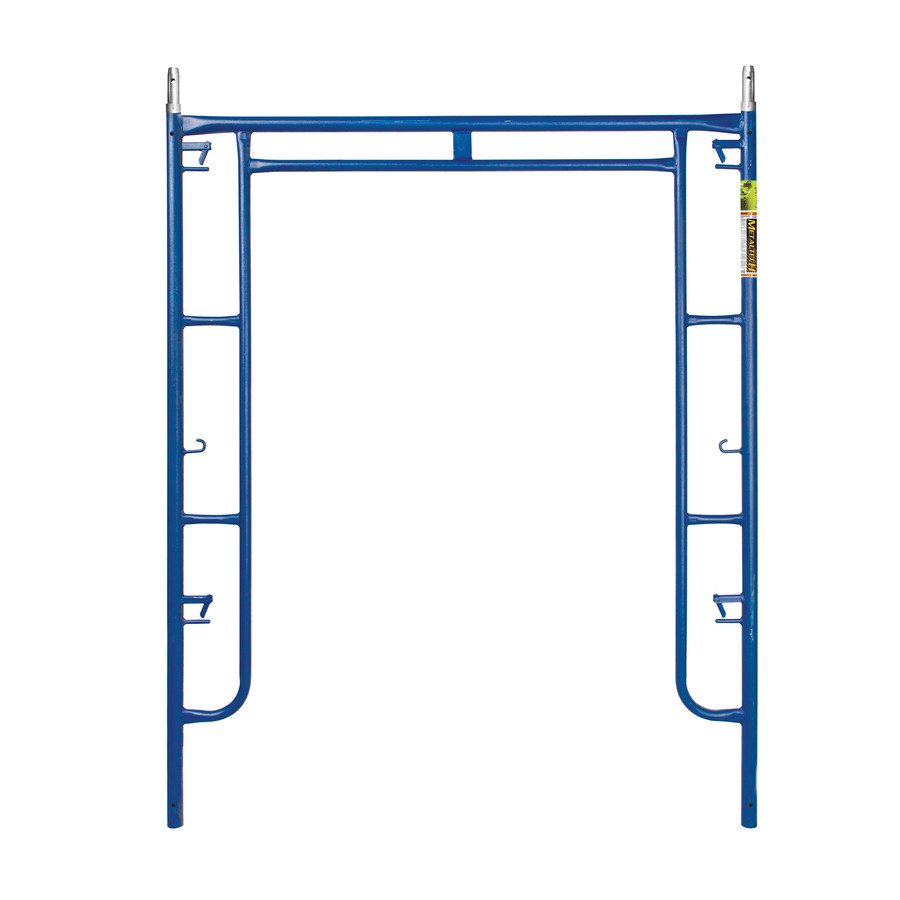

Available with an integrated ladder (LPS models) or without (PS models).
ANSI, CSA, and OSHA compliant.
Technical characteristics
| SaferStack Arch Frames 76"x60" | |
|---|---|
| Reference : | M-MA7660LPS |
| Sizes ('') | 76 x 60 '' |
| Weight (lb) | 52,80 lb |
| Quantity : |
|
| SaferStack Arch Frames 78"x60" | |
|---|---|
| Reference : | M-MA7860LPS |
| Sizes ('') | 78 x 60 '' |
| Weight (lb) | 53,50 lb |
| Quantity : |
|
| SaferStack Arch Frames 76"x60" | |
|---|---|
| Reference : | M-MA7660PS |
| Sizes ('') | 76 x 60 '' |
| Weight (lb) | 46,80 lb |
| Quantity : |
|
| SaferStack Arch Frames 78"x60" | |
|---|---|
| Reference : | M-MA7860PS |
| Sizes ('') | 78 x 60 '' |
| Weight (lb) | 47,30 lb |
| Quantity : |
|
Use
Clear passage
The arch shape of SaferStack frames provides clear passage under the scaffold, ideal for pedestrian, door, or vehicle access.
With or without integrated ladder

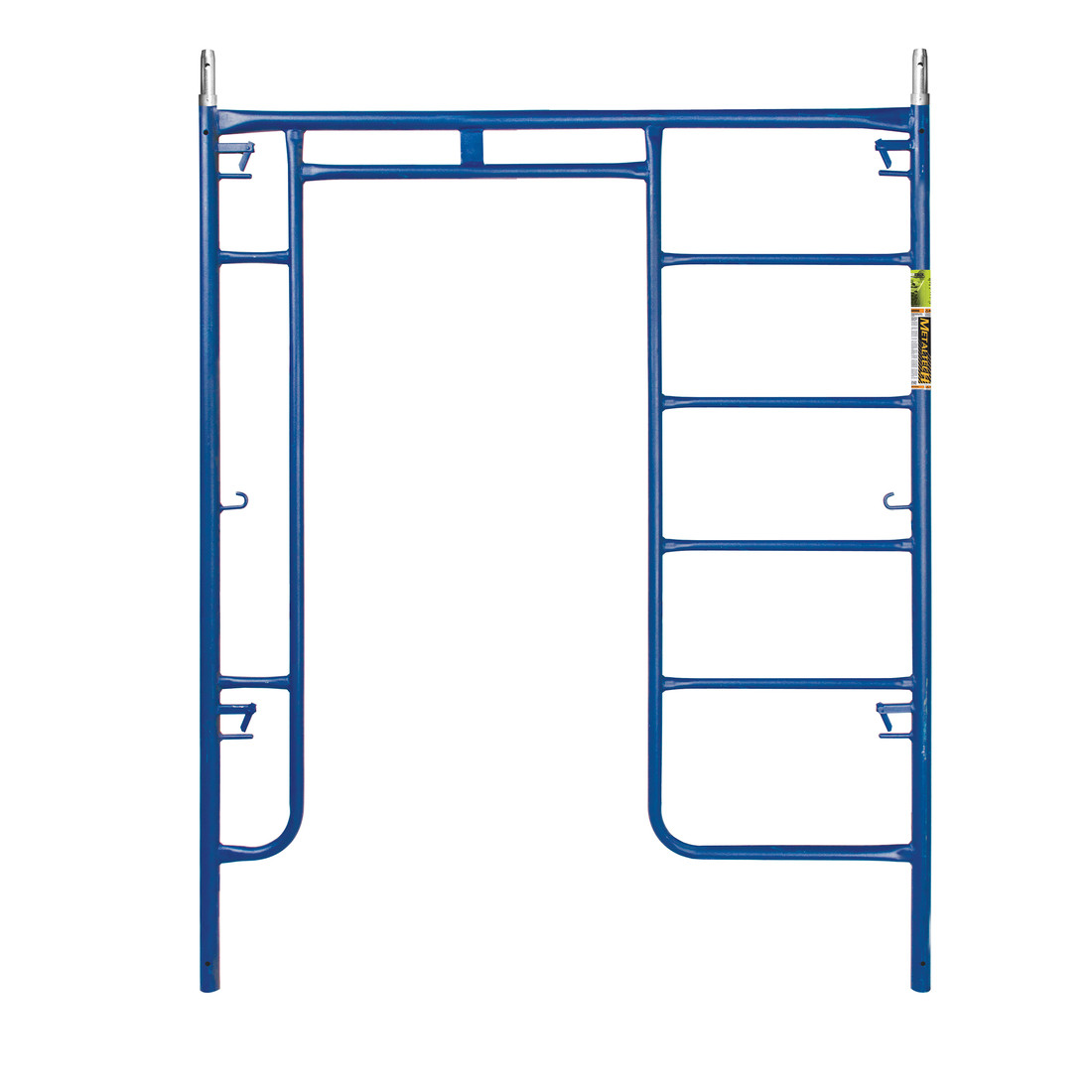

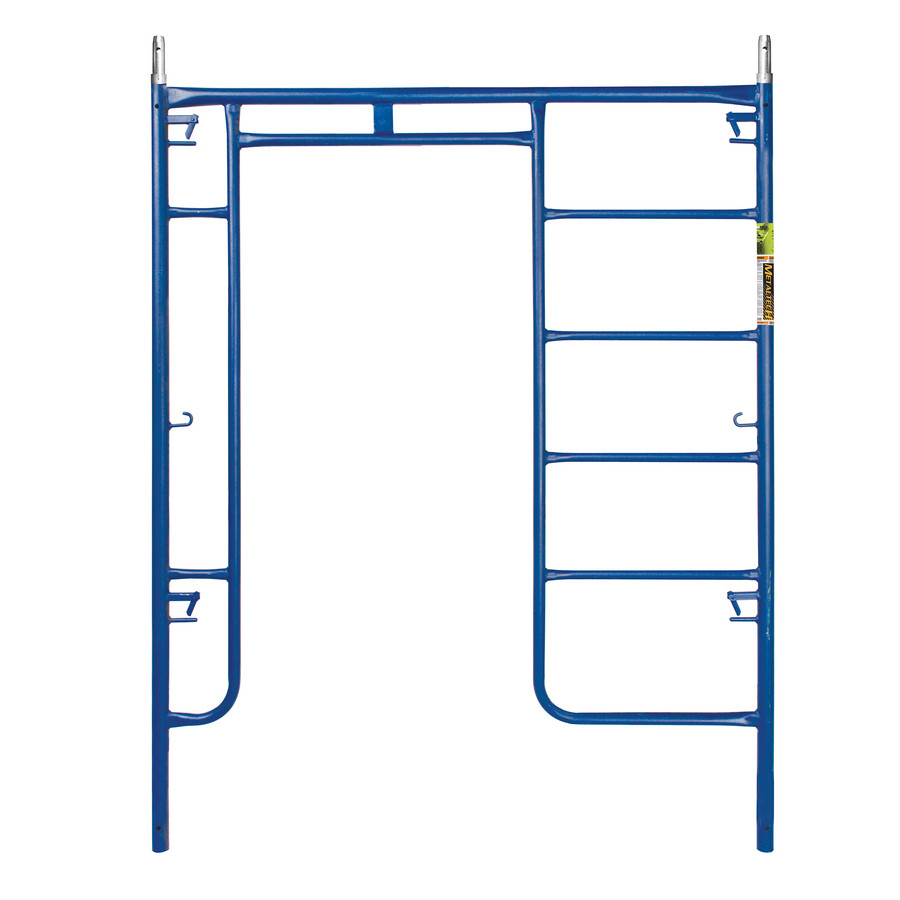

Available with an integrated ladder (LPS) for direct access to the platform, or without a ladder (PS) for use with a separate access point.
SaferStack space savings
Like all SaferStack frames, these models benefit from the patented design allowing storage and transport space savings.
Regulatory compliance
Compliant with ANSI, CSA, and OSHA standards.
Technical description
Powder-coated steel tube structure, arch shape for clear passage under the scaffold.
Upright tube diameter: 4.3 mm (1.69 in), 13 gauge. Crossbar tube diameter: 2.5 cm (1 in), 16 gauge. Coupling pins and springs included. Gravity-lock connection system (other latch types available: flip-lock or slide-lock). Also available in galvanized steel, in addition to powder-coated.
Available with an integrated ladder (LPS models) or without (PS models).
ANSI, CSA, and OSHA compliant.
