Metaltech Self-Supporting Guardrail System - Standard
Metaltech Self-Supporting Guardrail System - Standard

Metaltech Self-Supporting Guardrail System - Standard

Warranty 10 years
Standard: CBNC/CNESST/OSHA

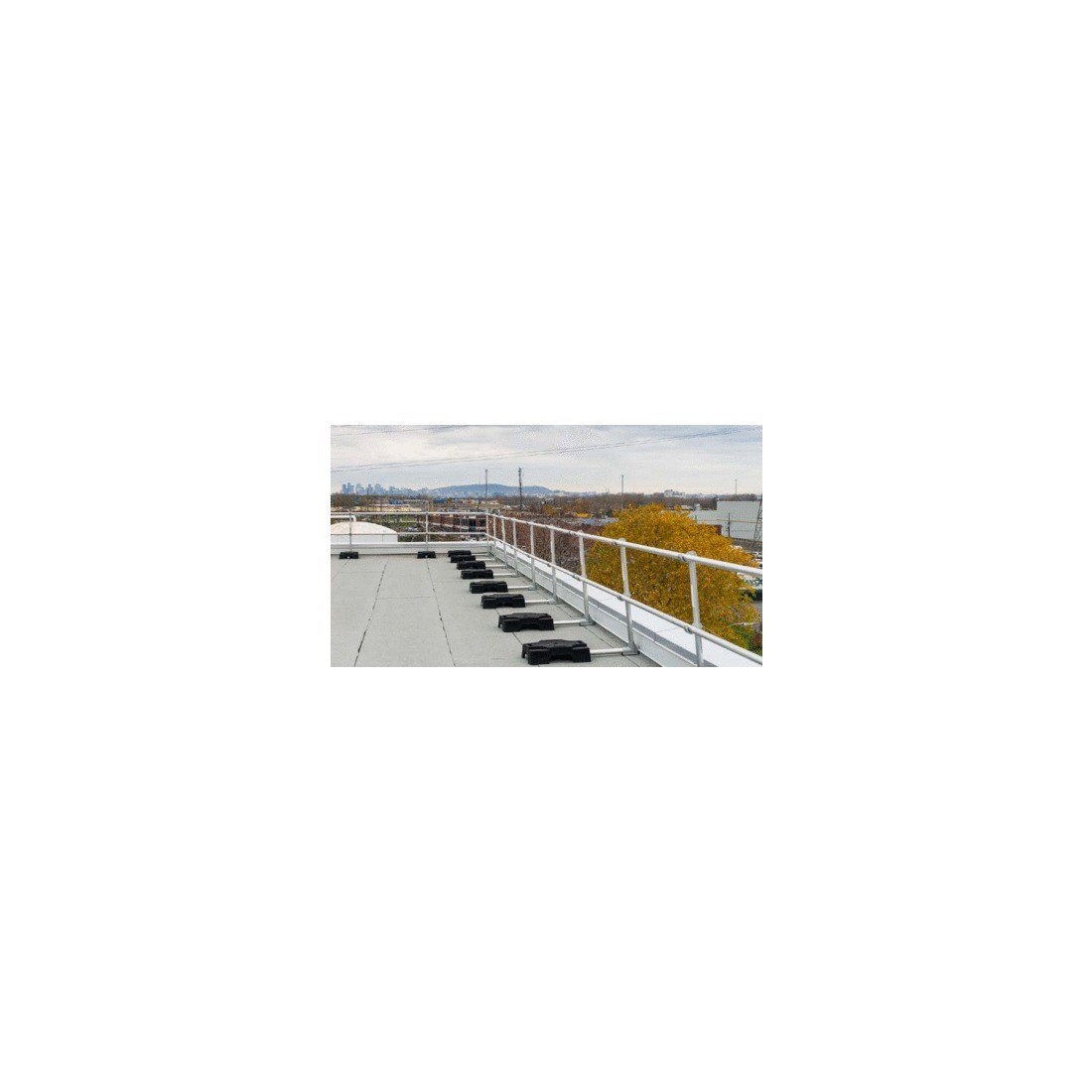

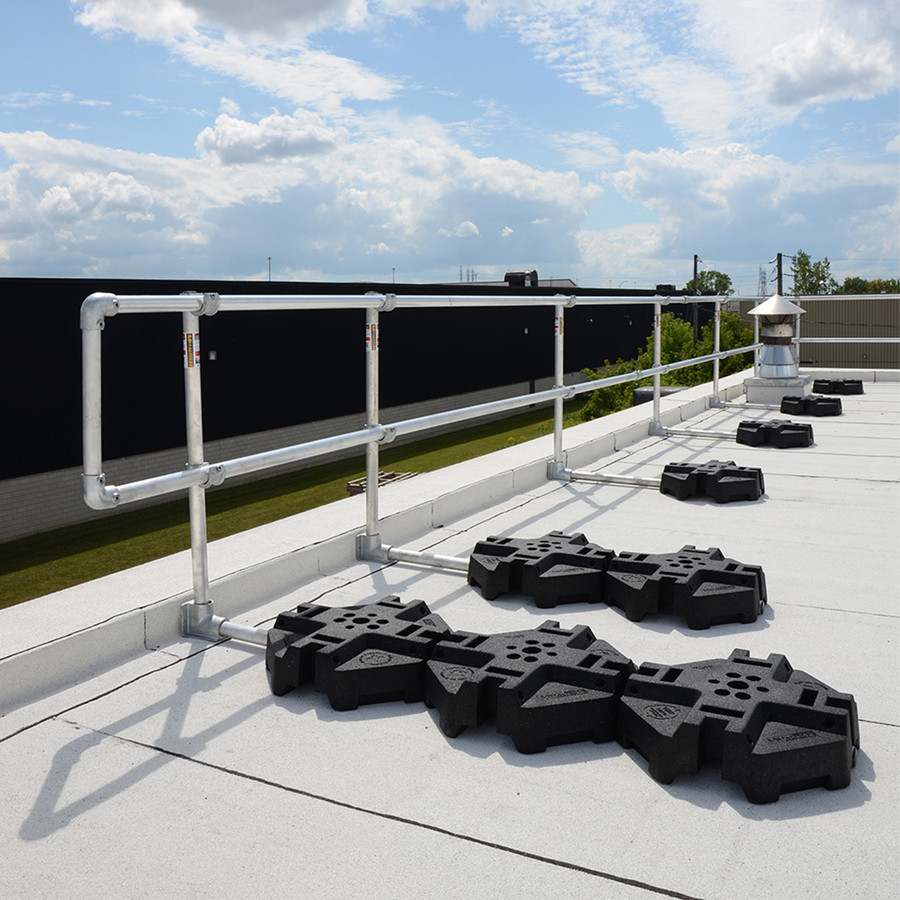

A self-supporting guardrail in a linear configuration, protecting a wide roof perimeter with no drilling.

Select your reference
+
-
Metaltech Self-Supporting Guardrail System - Standard

Advantages and strengths

Installed directly on the roof, with no additional membrane. Moulded handle for easy transport. Ultra-light for easy assembly.

Technical characteristics

Reference Quantity Quote
Ref.
+
-
Reference :
Quantity :
+
-

Use

Install the Standard system whenever work is carried out within the first 10 ft of the roof edge. Its linear configuration makes it the most efficient solution for protecting a long distance or securing access to a roof ladder, temporarily or permanently.

Choose the M-MTGS120K kit for standard installation, or the taller M-MTGD120K kit to secure a snow-removal zone. Both kits install with no welding or drilling, using few tools.

Technical description

Recycled rubber


Patented design


Aluminium 6061-T6


Outer diameter: 0.05 m (1.9")


Minimum length: 3 m (120")


Height: 1 m (39")


Max. distance between the posts: 2 m (78")


Ceiling to floor return: not required


Counterweight: 22.70 kg (50 lb/base)


Fittings - material: galvanised steel


Hardware: stainless steel


Tightening torque:13.60 kg (30 lb/pi) 9 kg (CL201: 20 lb/pi)
