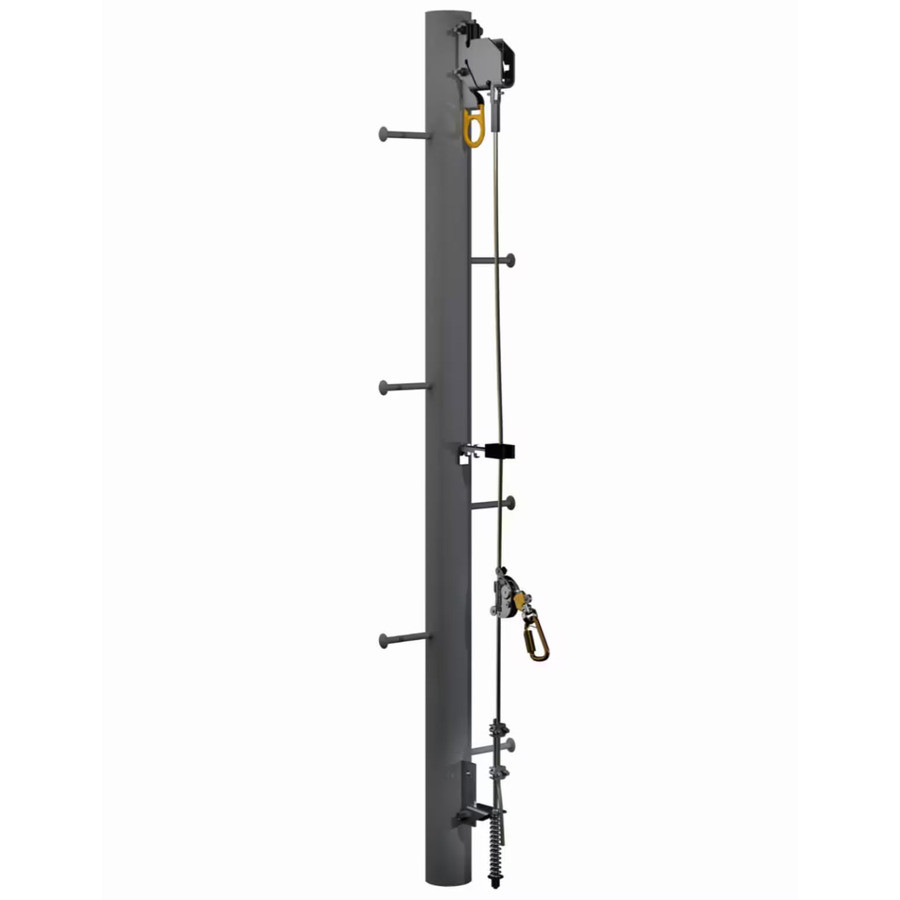

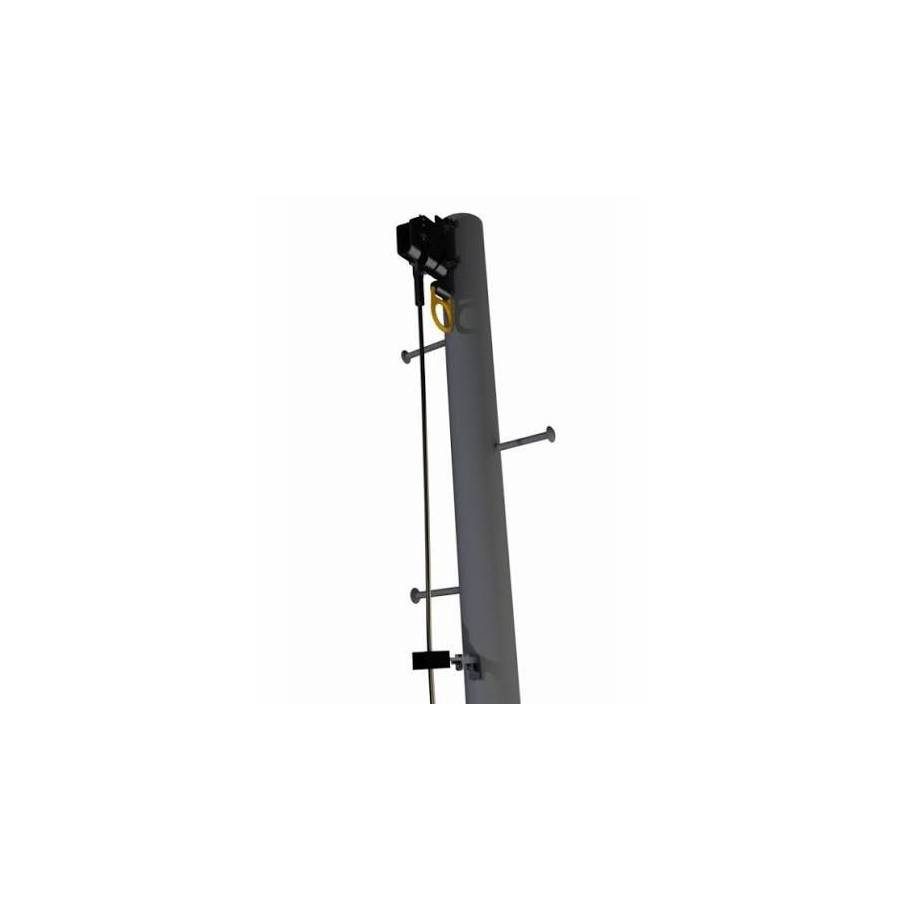

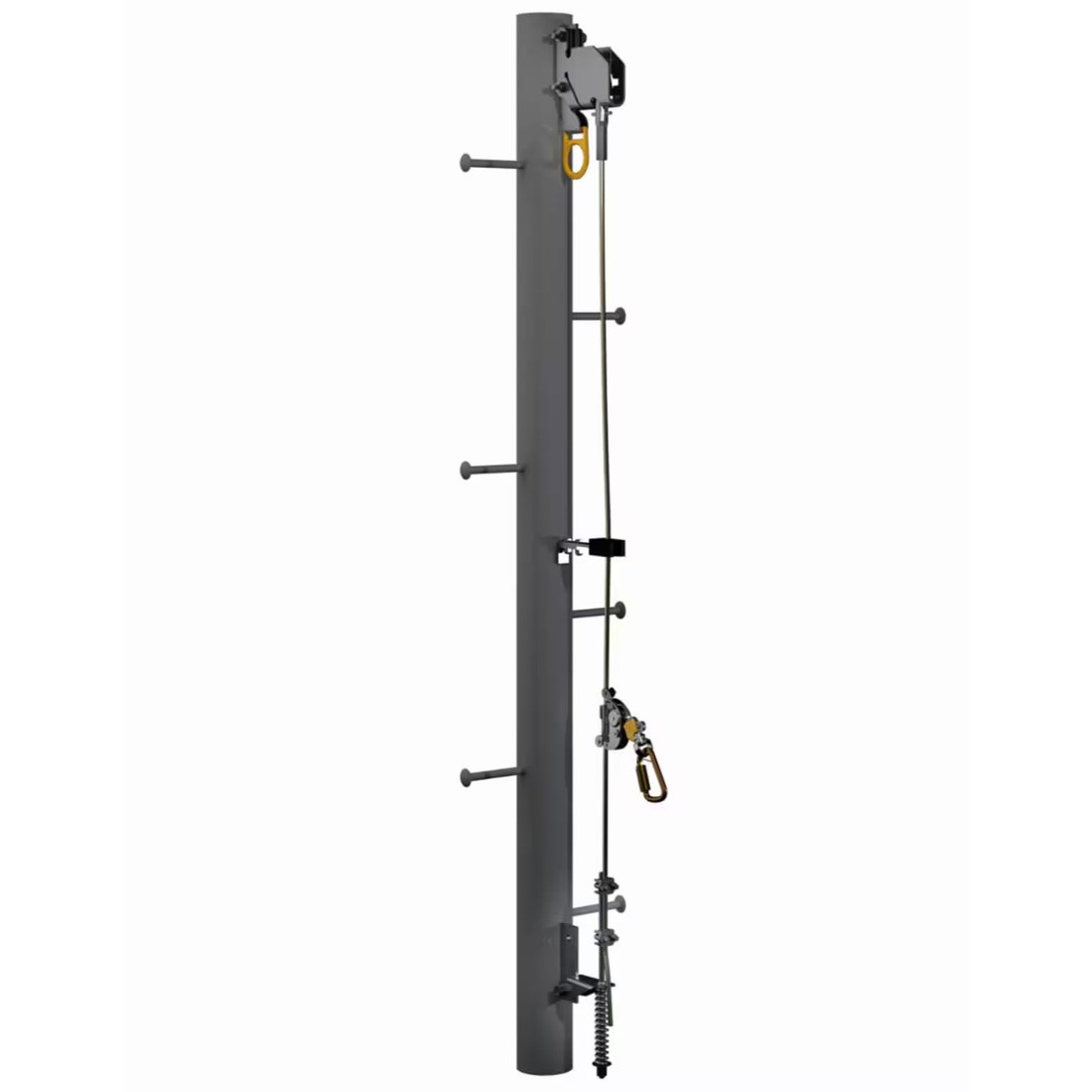

Vertical Cable Safety System for Poles and Masts
Vertical cable safety system for single poles and masts: permanent fall protection for tubular structures without ladder rungs.
Advantages and strengths

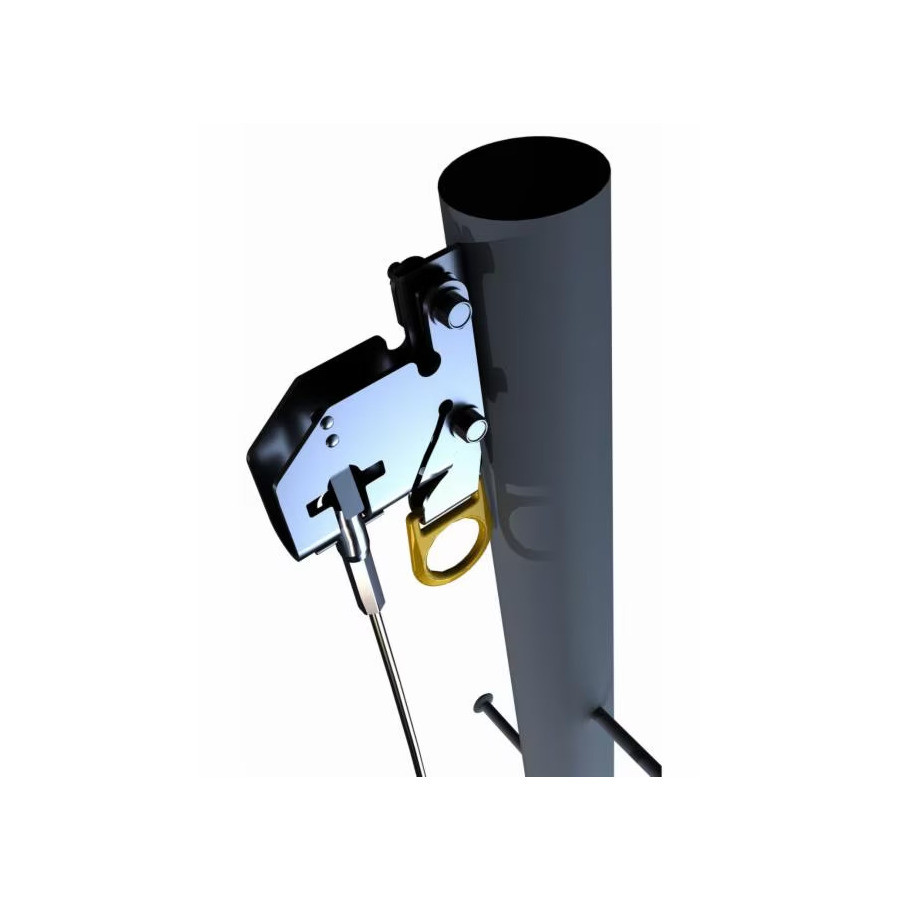

Designed for single-pole structures masts, pylons, electrical or telecom poles the Lad-Saf Monopole system uses specialized brackets for direct mounting on the pole, without rungs. Up to 4 users can be connected simultaneously; the Lad-Saf X2 cable sleeve follows the user during ascent and locks automatically and instantly in the event of a fall, hands-free.
The pre-swaged high-strength steel cable termination simplifies installation and is maintenance-free. An integrated energy absorber and tension indicator protect the user and the structure and confirm correct installation. Available in galvanized or stainless steel for corrosive environments, the system is compliant with the OSHA Walking-Working Surfaces regulation and compatible with the Lad-Saf X3 (6160054) and X2 (6160030) cable sleeves.
Technical characteristics
| Galvanized Steel | |
|---|---|
| Reference : | 6116634 |
| characteristic.CANADA_CONFIG | Top + Bottom Brackets for Pole |
| characteristic.CANADA_UTILISATEURS | 4 |
| characteristic.CANADA_MATERIAU | Galvanized Steel |
| Quantity : |
|
| Top + Bottom Brackets for Pole - Stainless Steel | |
|---|---|
| Reference : | 6116638 |
| characteristic.CANADA_CONFIG | Top + Bottom Brackets for Pole |
| characteristic.CANADA_UTILISATEURS | 4 |
| characteristic.CANADA_MATERIAU | Acier inoxydable |
| Quantity : |
|
Use
Technical description
Vertical cable safety system with 9.5 mm (3/8 in) steel cable for single-pole mounting.
Lad-Saf X2 automatic-locking cable sleeve.
Integrated energy absorber and tension indicator.
Up to 4 simultaneous users.
Available in galvanized or stainless steel.
Cable ordered separately based on required length.
