CONEKT Vertical Lifeline
Warranty 5 years
The CONEKT Vertical Lifeline easily adapts to all vertical ladder rung formats, as well as directly to an anchor point (see manual).
Advantages and strengths
Lightweight product, easy and quick to install. Universal mounting on all types of rungs.
Technical characteristics
| CONEKT Vertical Lifeline Kit | |
|---|---|
| Reference : | A0015439 |
| Quantity : |
|
| 8mm 316L Stainless Steel Cable - Price per meter | |
|---|---|
| Reference : | EEHL500B |
| Quantity : |
|
| Intermediate Support in Stainless Steel | |
|---|---|
| Reference : | EESVSUPPORT |
| Quantity : |
|
| Front Exit Bar | |
|---|---|
| Reference : | FLEEXFVSF |
| Quantity : |
|
| Lateral Exit Bar | |
|---|---|
| Reference : | FLEEXFVSL |
| Quantity : |
|
| Kit of 5 Ladder Mounting Brackets | |
|---|---|
| Reference : | FLEEXFVFE |
| Quantity : |
|
| Ladder Exit Reinforcements | |
|---|---|
| Reference : | FLEEXVRS |
| Quantity : |
|
| Ladder Reinforcements | |
|---|---|
| Reference : | FLEEXVFVRE |
| Quantity : |
|
| Lower Supports | |
|---|---|
| Reference : | FLEEXFVSI |
| Quantity : |
|
| Stainless Steel Slider | |
|---|---|
| Reference : | EESVAC351COULISSEAUINOX |
| Quantity : |
|
Use
It can be installed in just a few minutes thanks to a brand-new, innovative locking system.
Designed for access to telecommunication networks, industrial installations, wind turbines, and more.
Connection possible at any point of the cable thanks to its specific unidirectional locking shuttle, which activates only when the operator requires it. The equipment includes a cable tension control device at the bottom. Refined finishes ensure perfect integration with architectural constraints. Connection parts are made of stainless steel.
Optional:

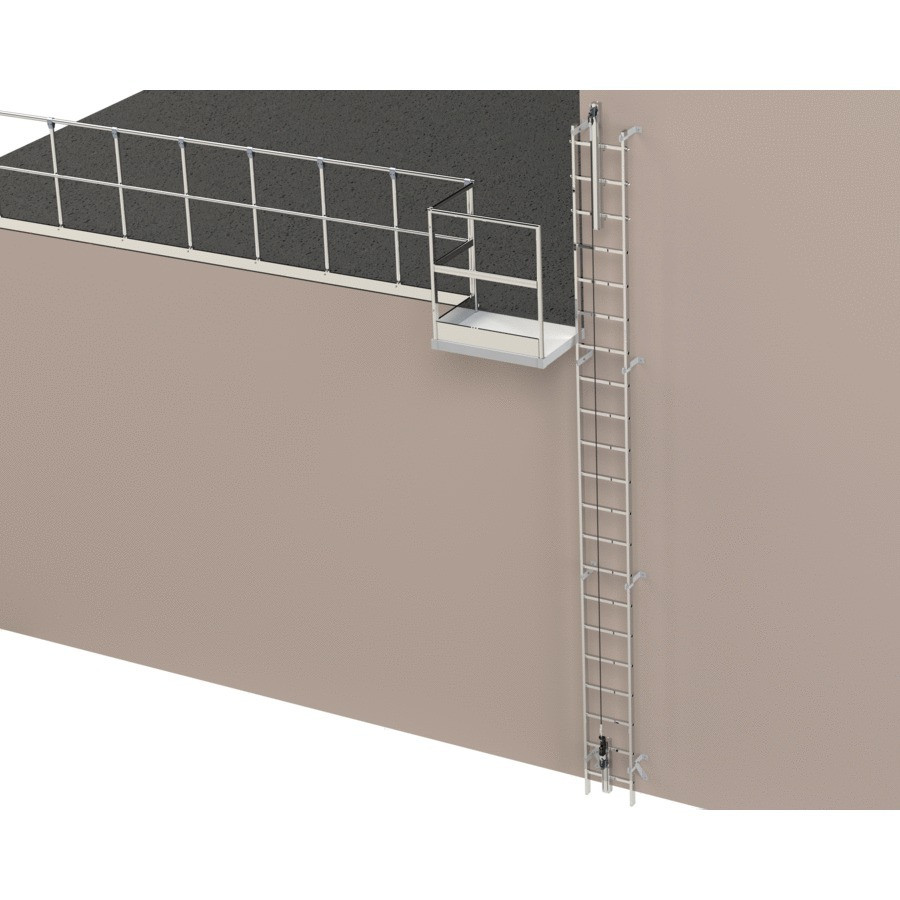

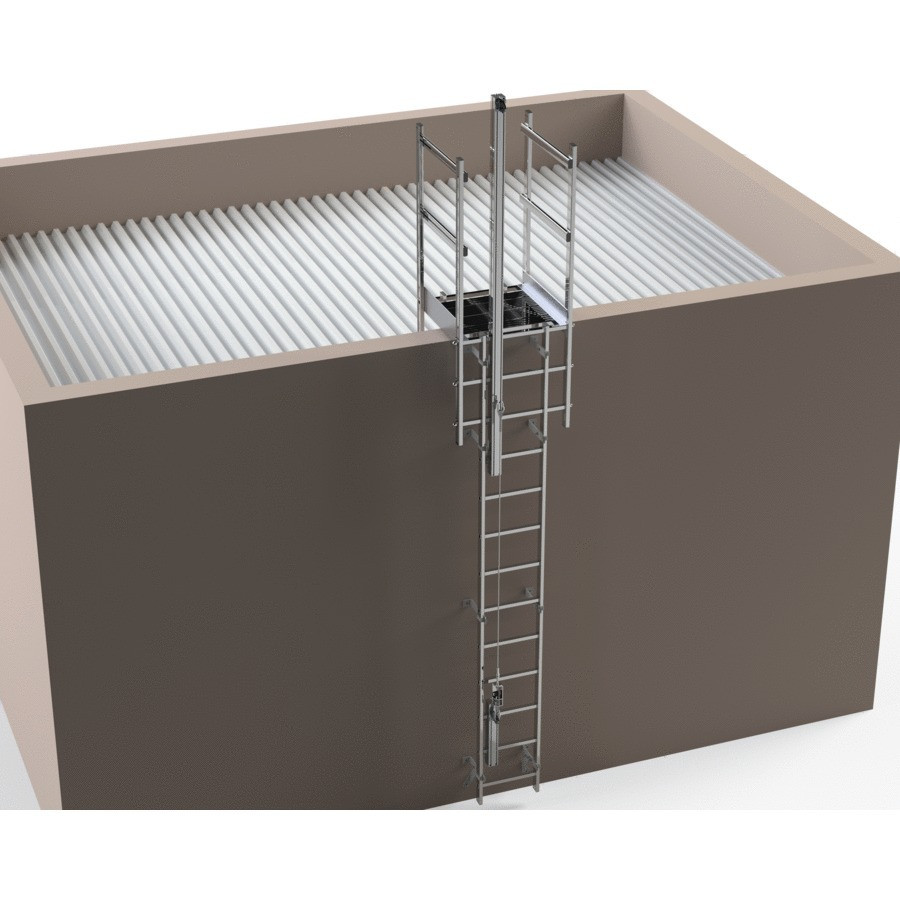

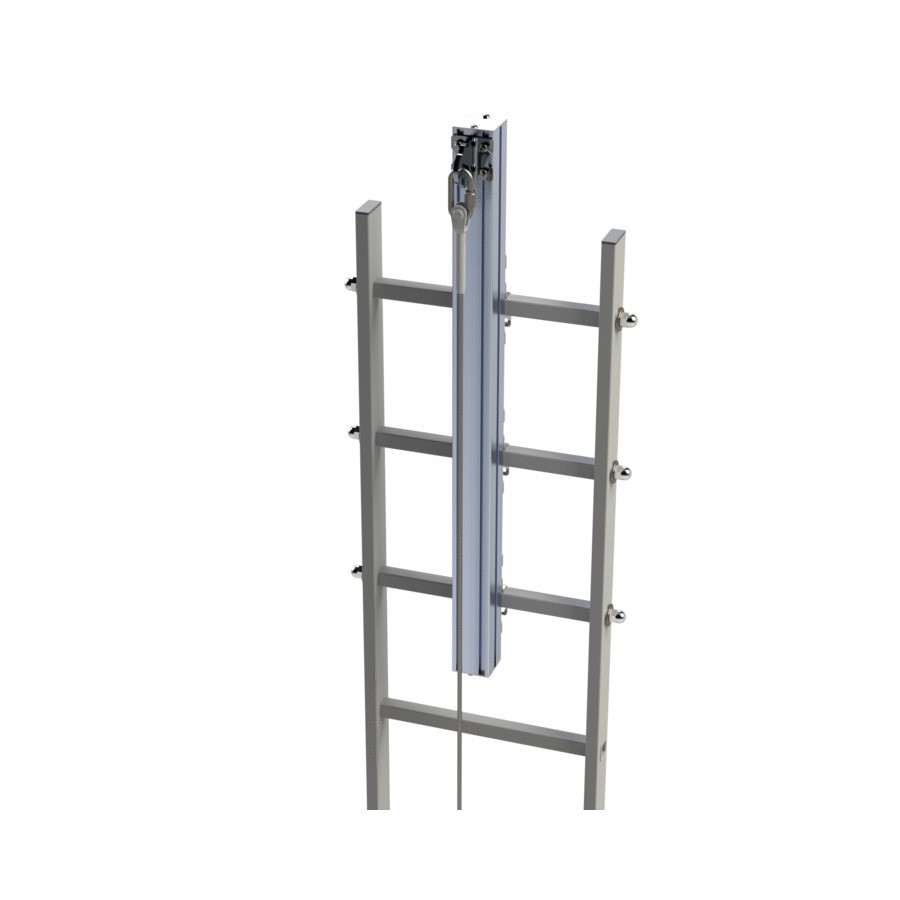

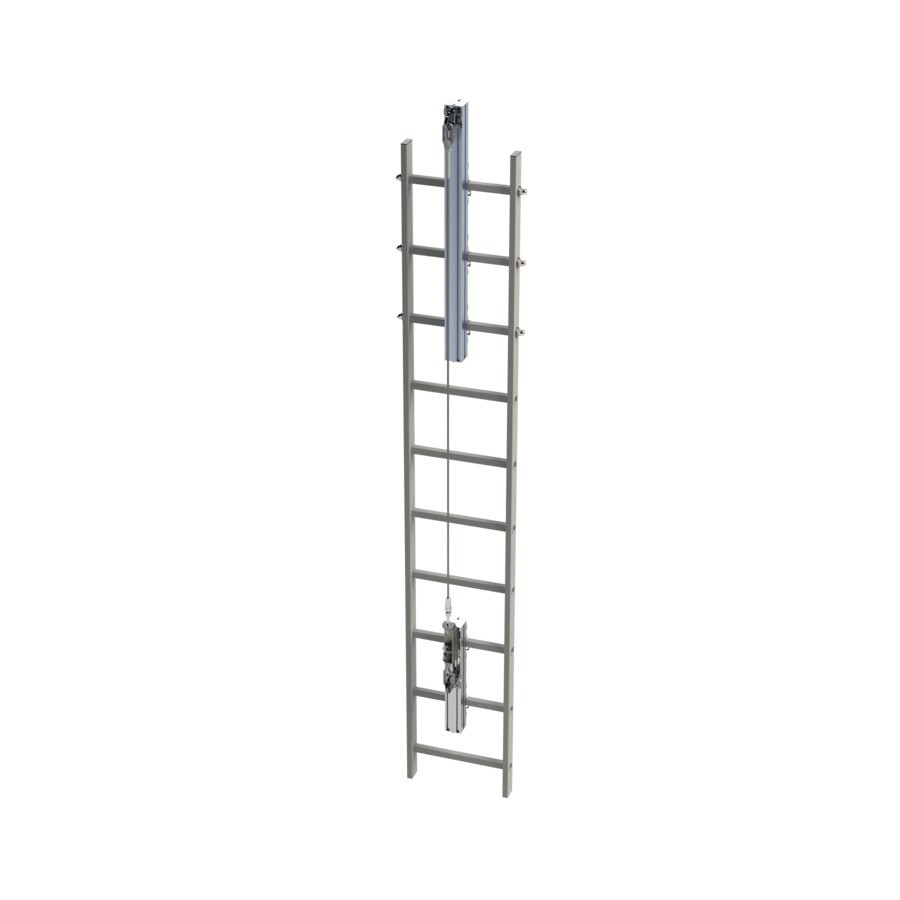

When installed with the ladder fixing option, the CONEKT lifeline can be positioned either with a top front exit or a side exit, depending on the chosen anchor bar. The cable is guided at the start and end of the ladder by anchor bars fixed onto the ladder rungs.

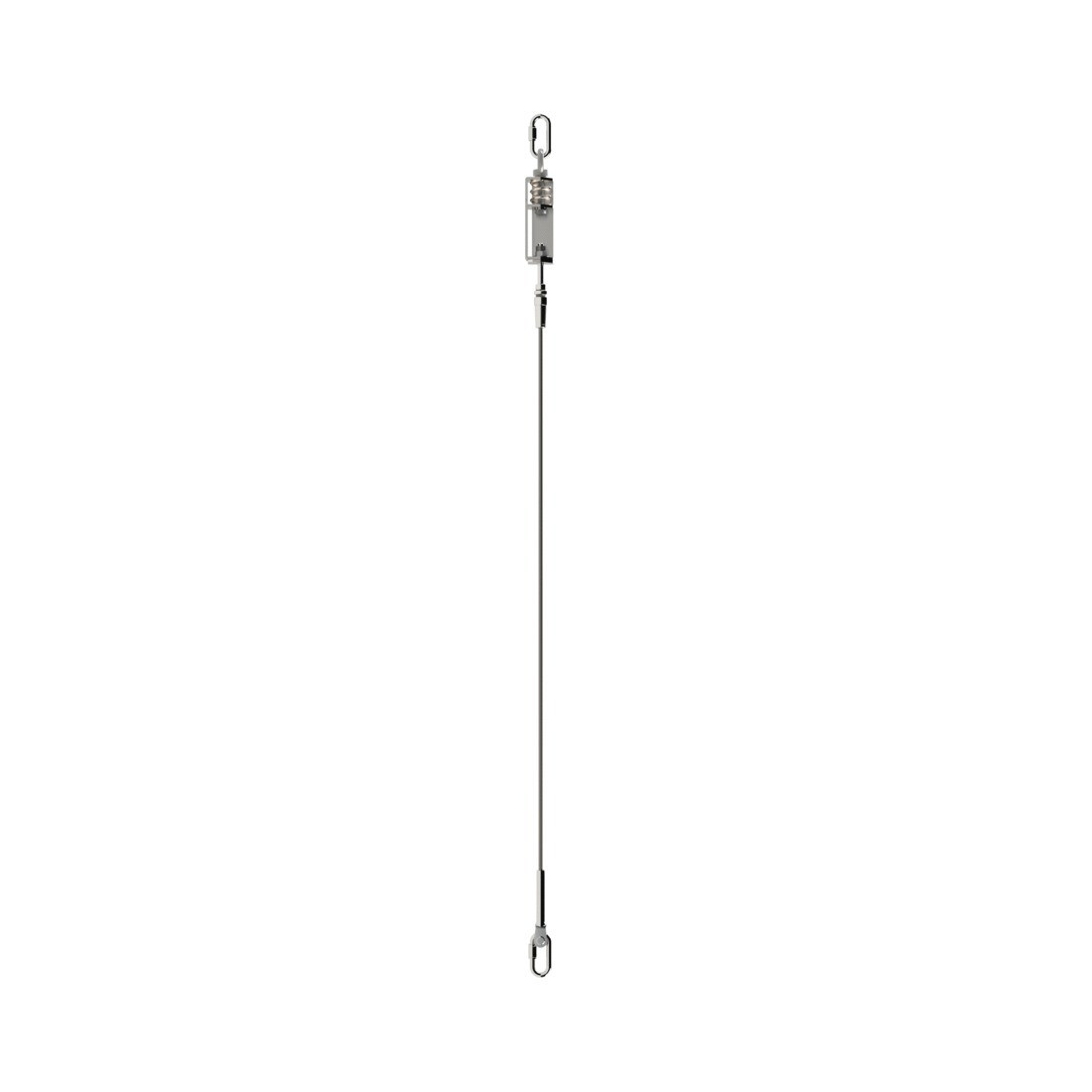

Composition of the CONEKT vertical lifeline kit:
- Tension device
- Crimp terminals
- Stainless steel connector
- Regulatory information label
Cable diameter: 8 mm
Guiding cable support every 10 m

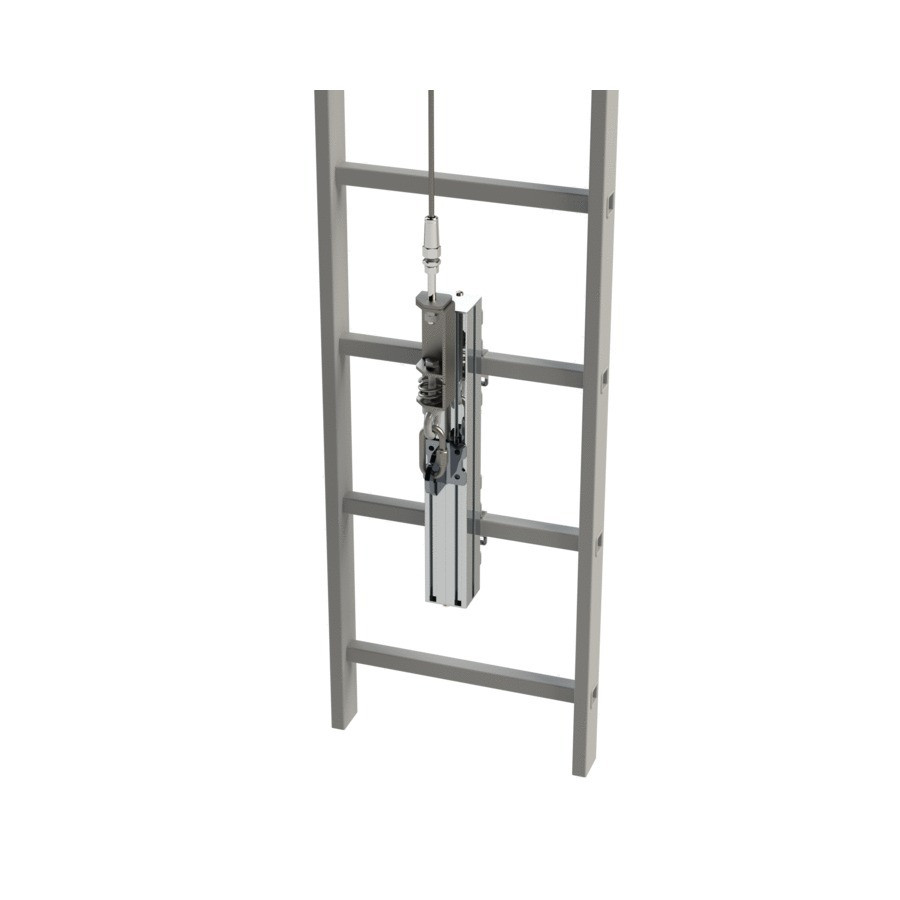

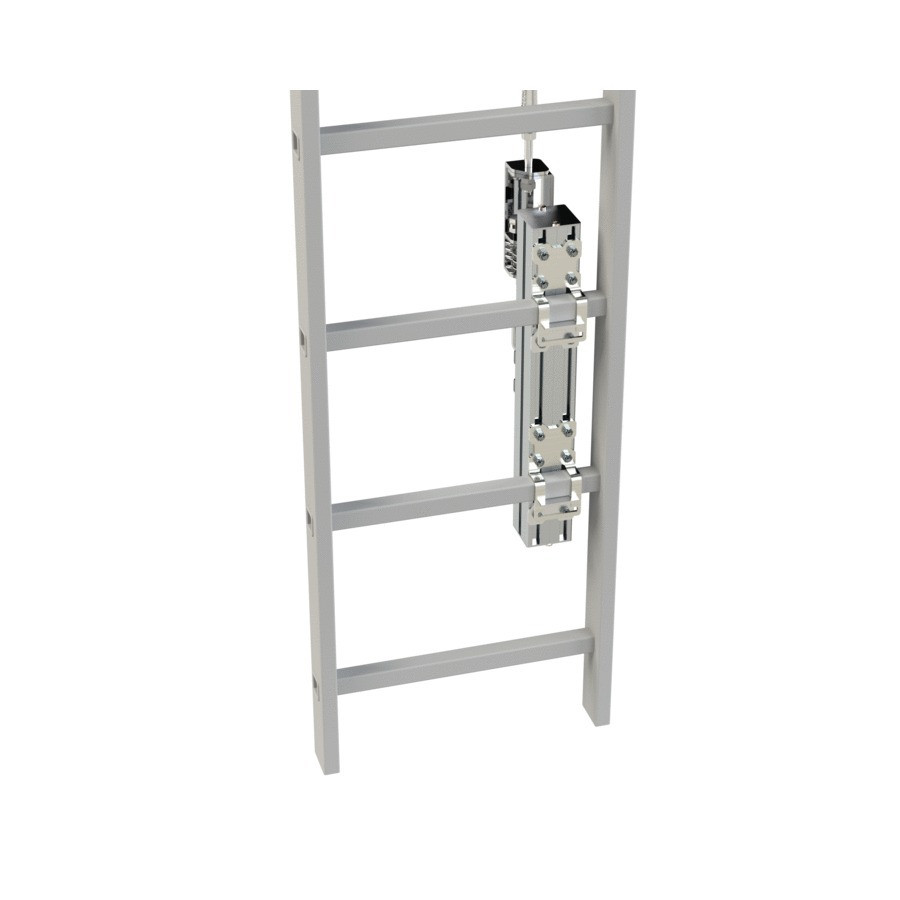

Shuttle equipped with an energy absorber
Material of the cable, lifeline components, internal support, and hardware: 316L stainless steel

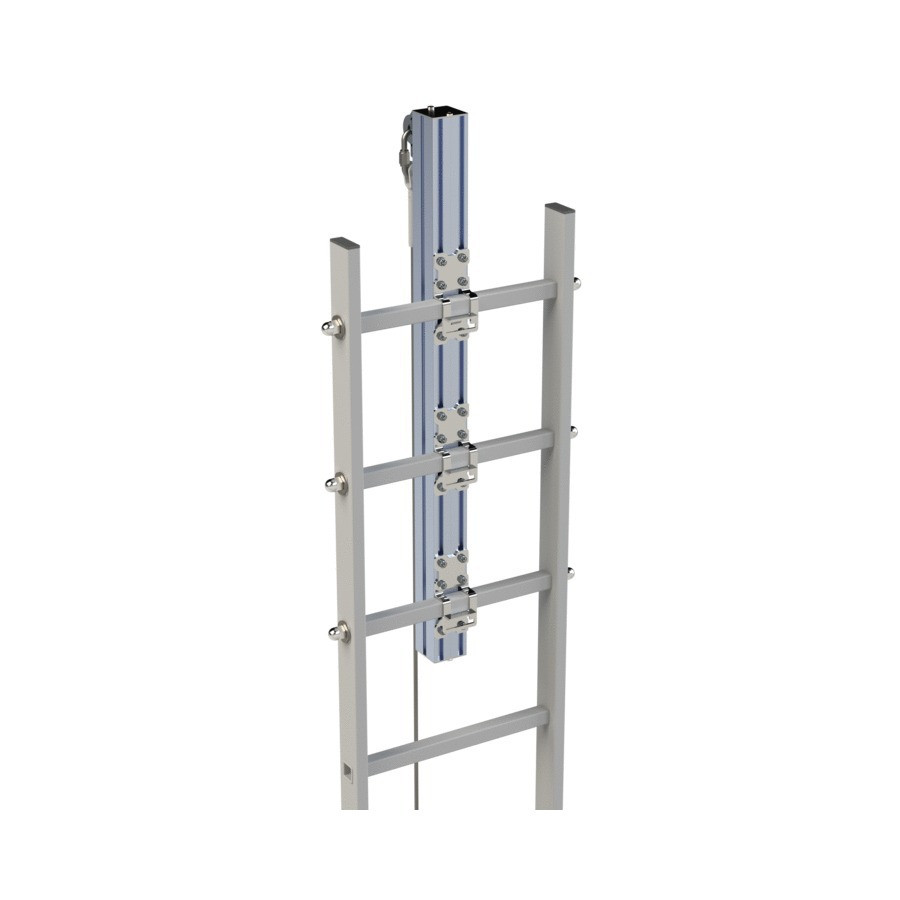

Ladder fixing option
Compatible with all ladder rungs
Fixing on round rungs** from 20 mm to 31 mm in diameter
Fixing on square rungs** from 25 mm to 31 mm max
Material of upper and lower anchor bars: aluminium
** Ladder compliant with NF EN 14122-4 or NFE 85-016 standards
Technical description
The lifeline is separate from the interfaces, running from one quick link to another. The attachment to the ladder is made between two Type A anchor points.
Cable diameter: 8 mm
Guiding cable retention every 10 m
Carriage equipped with an energy absorber
Material of the cable, lifeline components, inner support, and fasteners: 316L stainless steel
Ladder Mounting Option
Adapts to all rungs
Mounting on round rungs** with diameters from 20 mm to 31 mm
Mounting on square rungs** from 25 mm to a maximum of 31 mm
Material of the lower and upper anchor bars: aluminum
** Ladder compliant with NF EN 14122-4 or NFE 85-016 standards
-
![]()
