SafeAccess horizontal rail lifeline

SafeAccess horizontal rail lifeline

Standard: EN 795 type D/EN 1808:2010

Horizontal non-deformable rail lifeline for industrial applications.

Select your reference
+
-

Advantages and strengths

Ideal for maintenance of residential and industrial façades, as well as for access to courtyards.

Technical characteristics

Reference Quantity Quote
Ref. SAFEACCESS
SafeAccess horizontal rail lifeline
+
-
SafeAccess horizontal rail lifeline
Reference : SAFEACCESS
Quantity :
+
-

Use

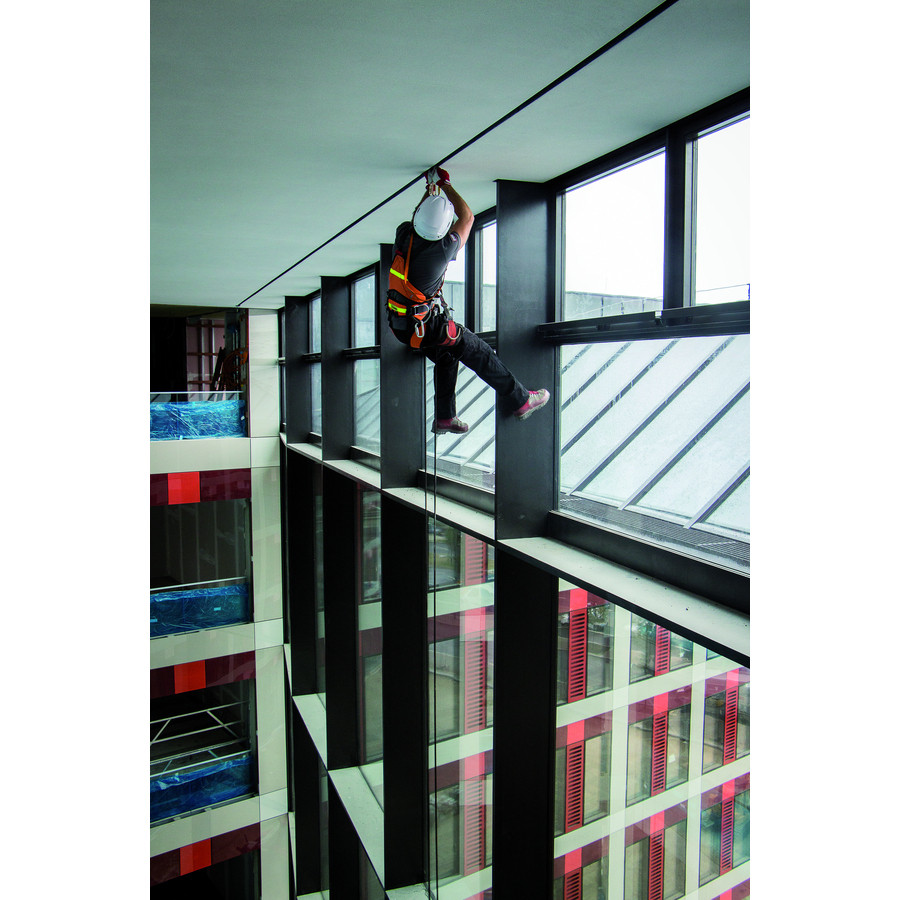

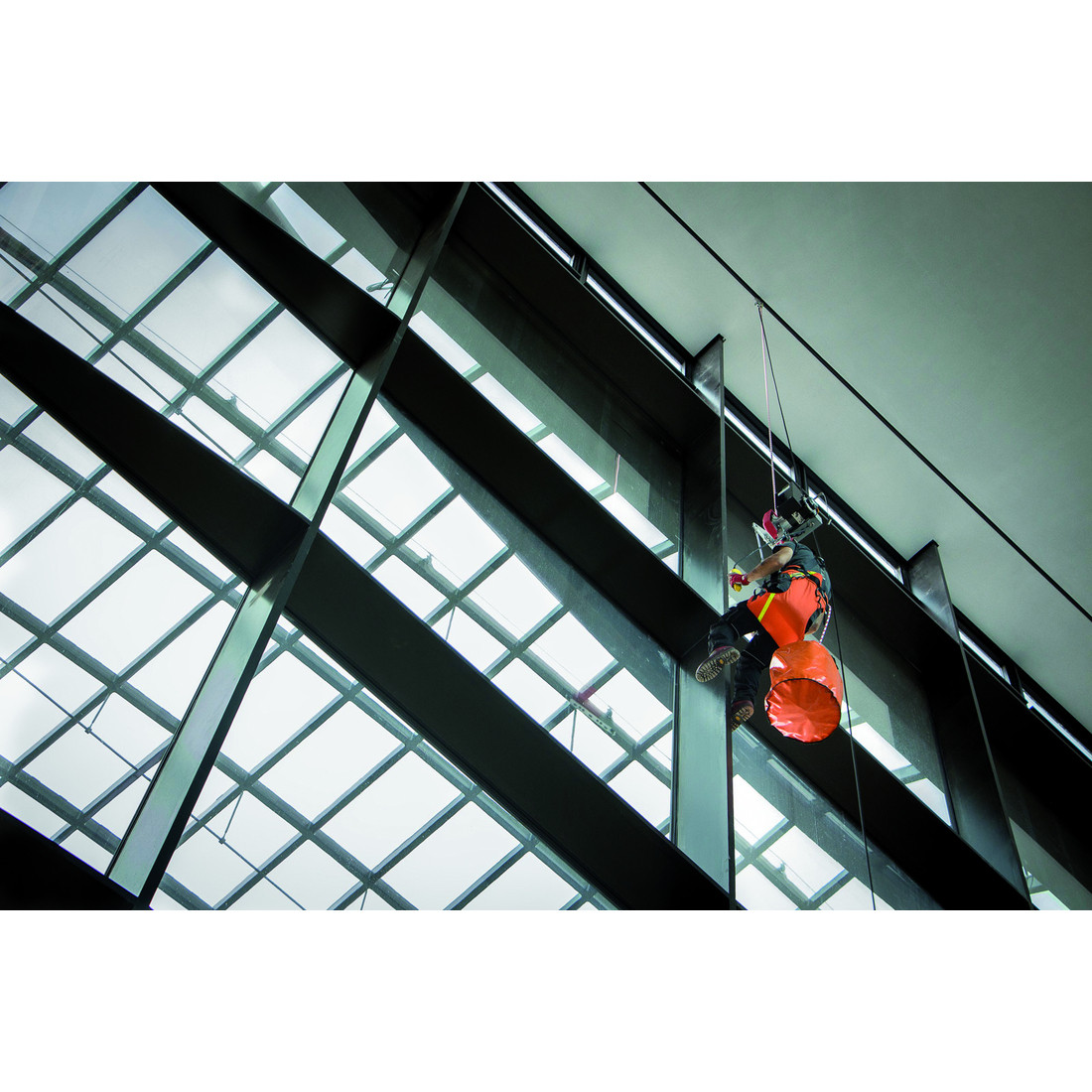

SafeAccess is a height access system for the maintenance and cleaning of façades.

Depending on the configuration, a rope worker or a nacelle can be hung on the rail.

The rail allows the movement on the area by means of a mobile anchor point.

The system is ATEX certified for potentially explosive environments.

It may be equipped with different types of mobile anchors:

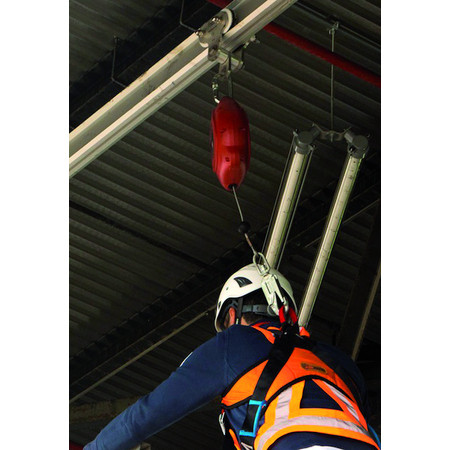

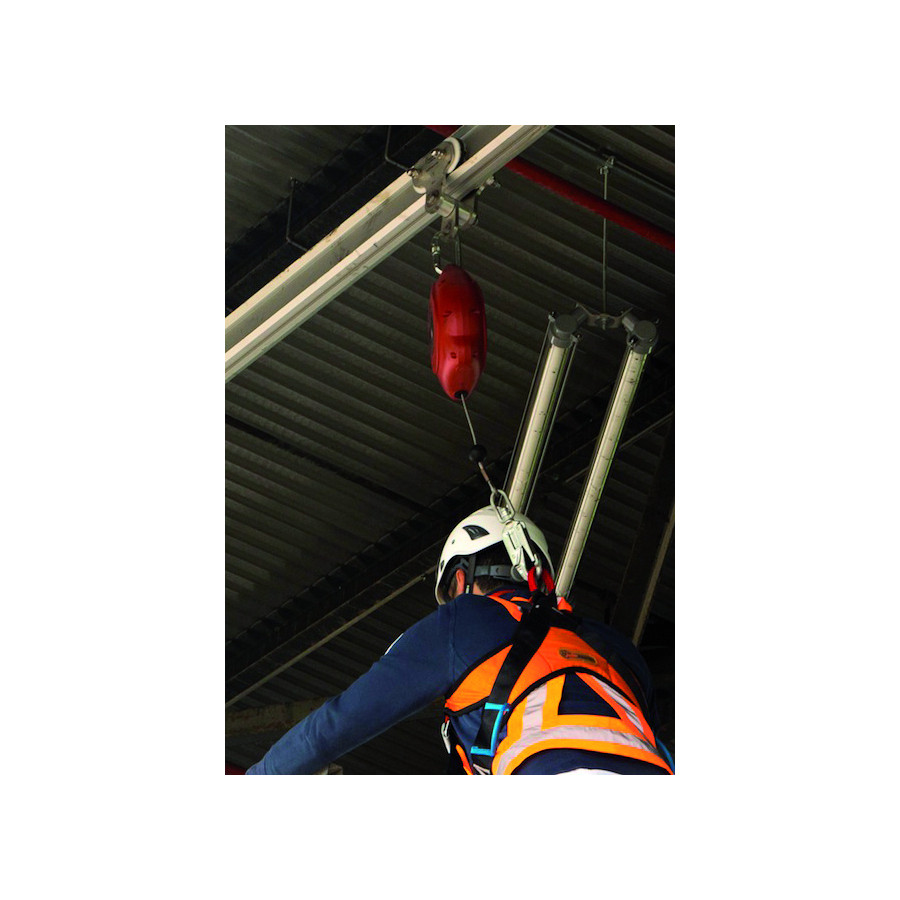

- NAV2 mobile fall arrest anchor point

- NAV7 suspension works trolley

- NAV4 motorised horizontal translation trolley

- Manually operated trolley, by rope and pulley.

Technical description

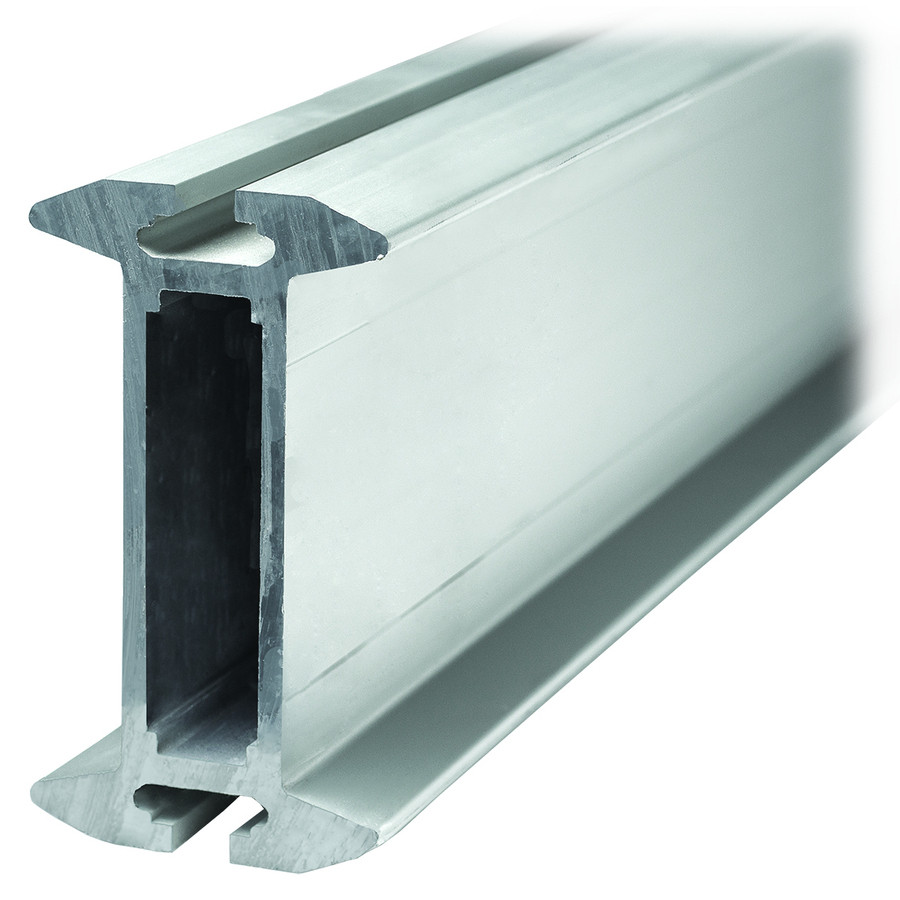

EN AW 6060T66 aluminium rail, RAL7040 grey powdercoated, resistant to the marine environment

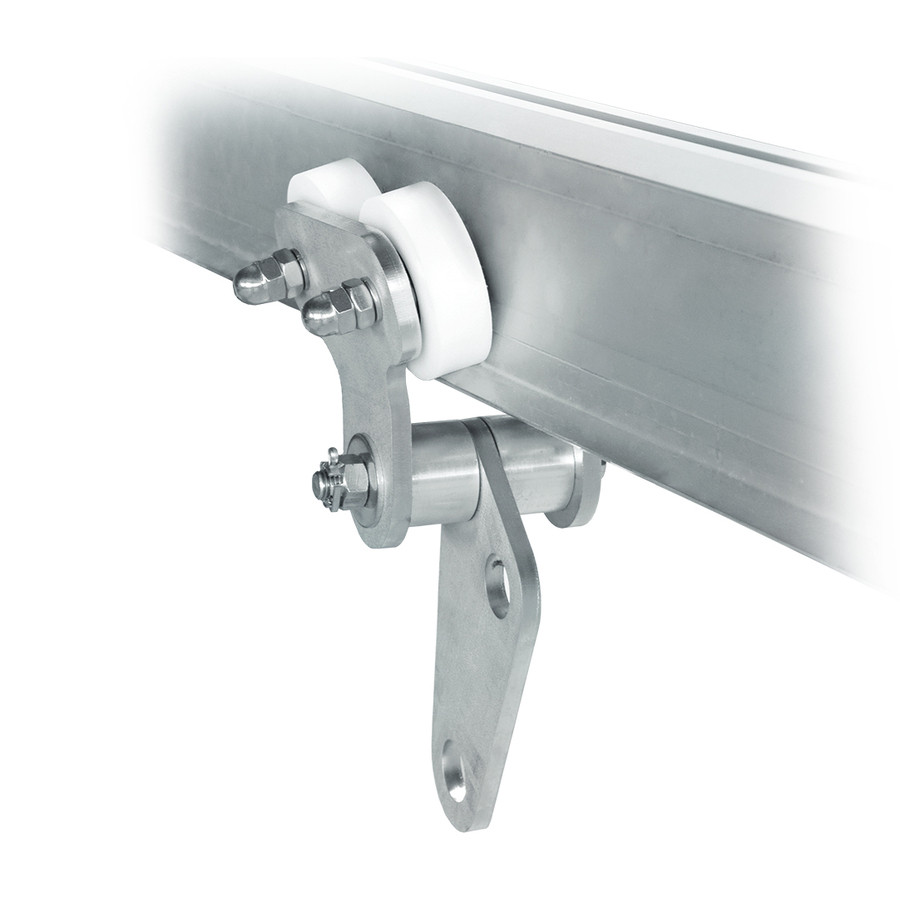

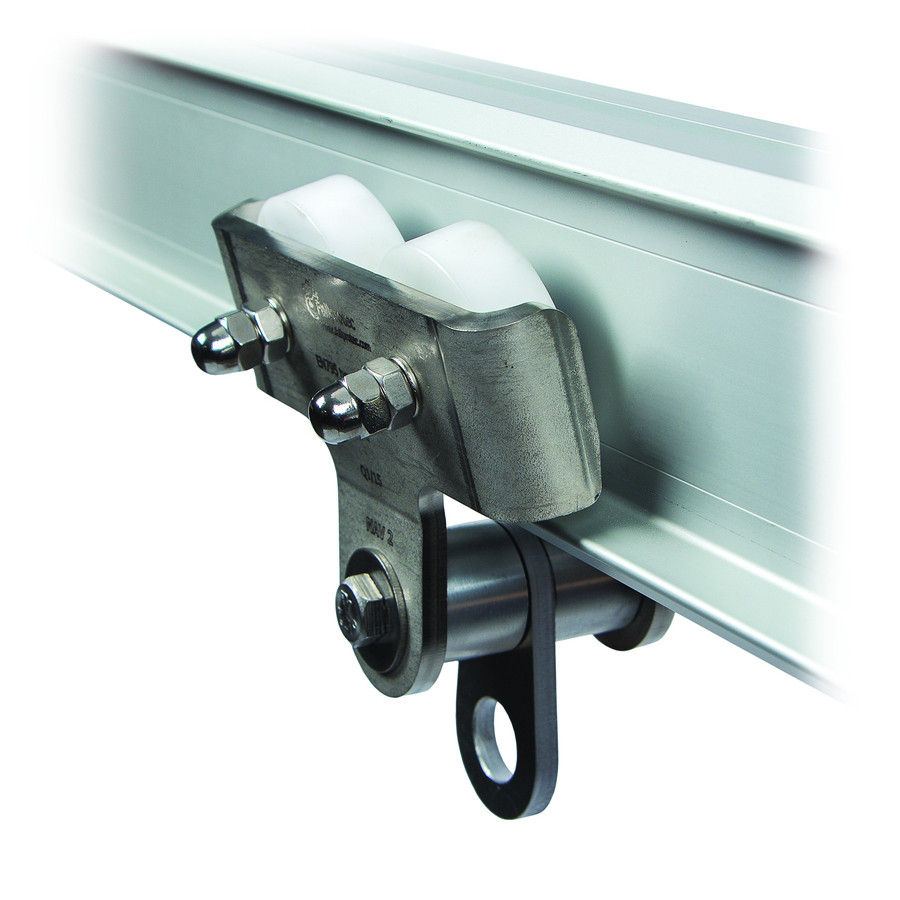

AISI 304 stainless steel trolley

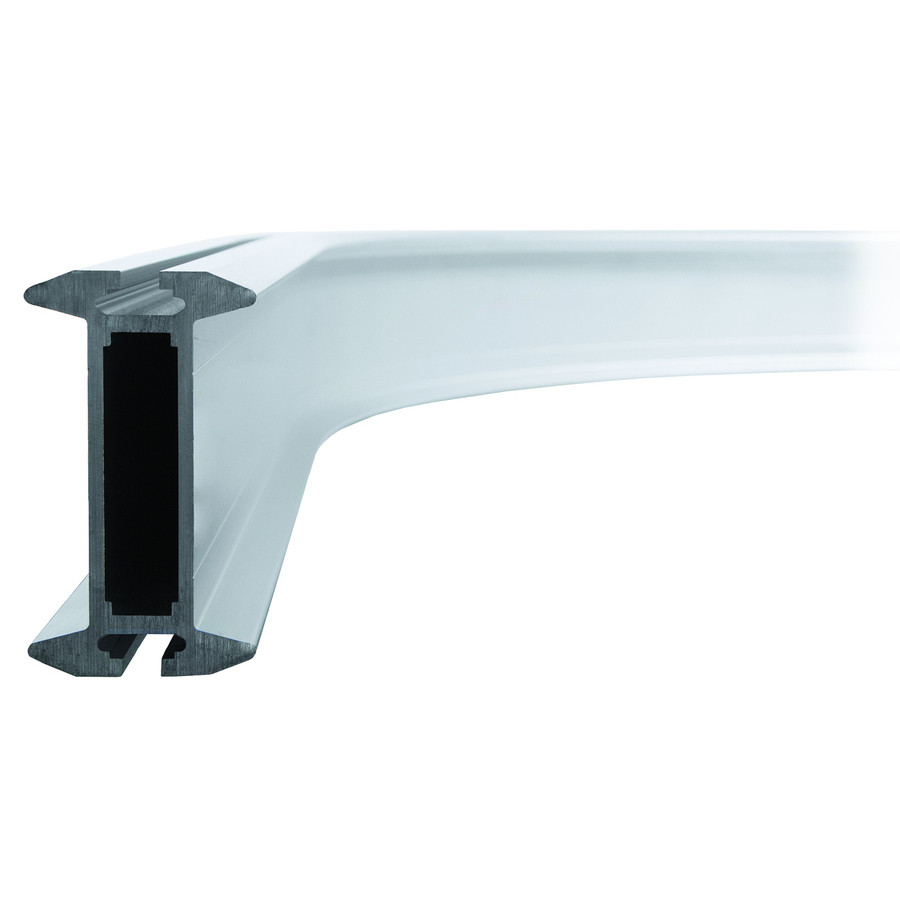

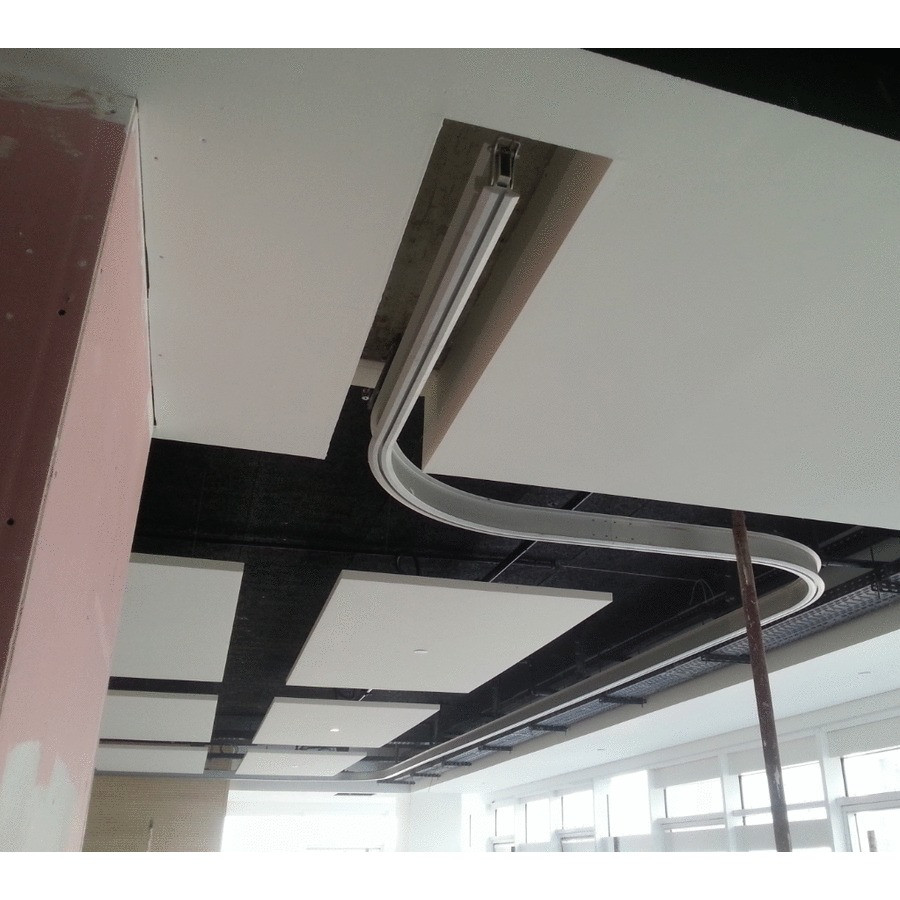

Custom bendable (shelve of min. 600 mm) (23.6’’)


Low weight of 5kg/m for maximum inertia (11 lb/')


Adaptable to all types of architectures from a height of 12 to 250 m (39’4’’ to 820’)
