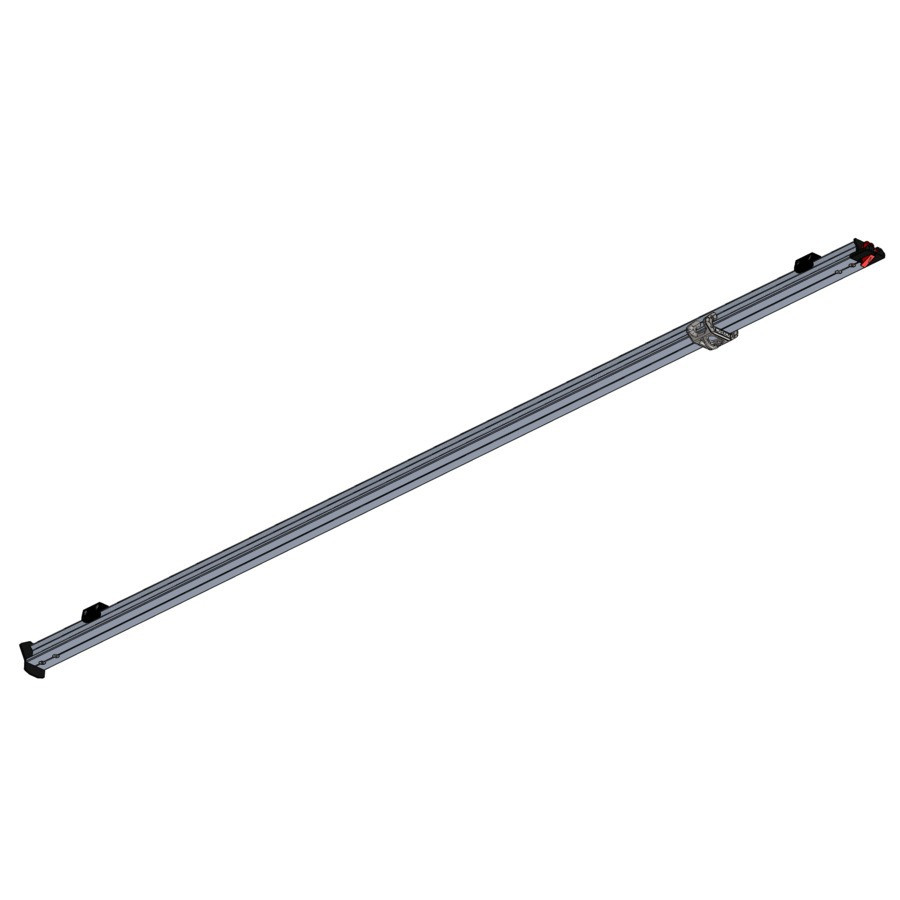

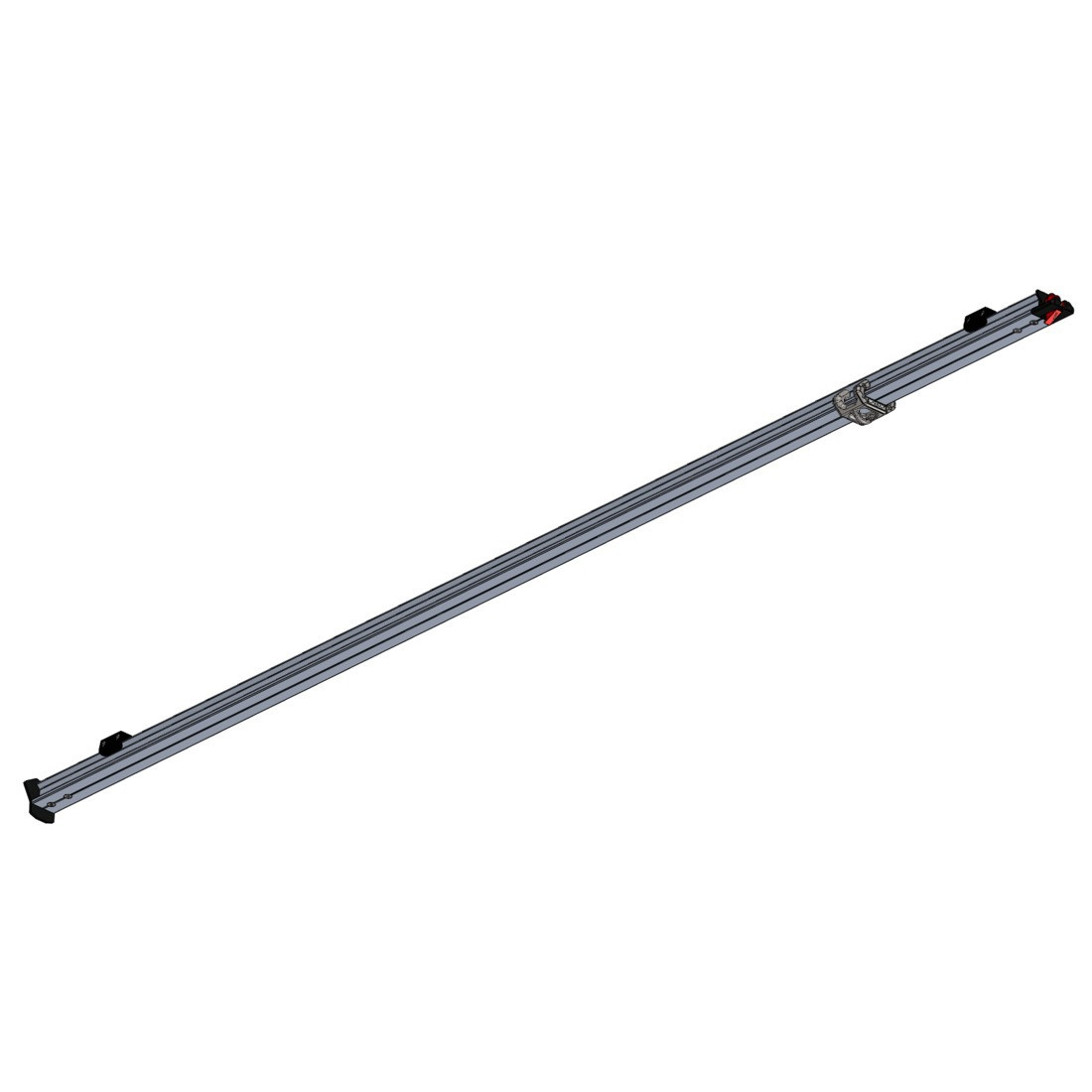

CONEKT rail lifeline on concrete ceiling
Warranty 5 years
The CONEKT rail lifeline allows you to work safely at height. Thanks to its controlled deflection, it can easily be installed in low-clearance environments. The rigidity of the rail also provides optimal comfort during movement.
Advantages and strengths
Simple and quick-to-install range, clean design, no distance rule between fixing and splice.
Technical characteristics

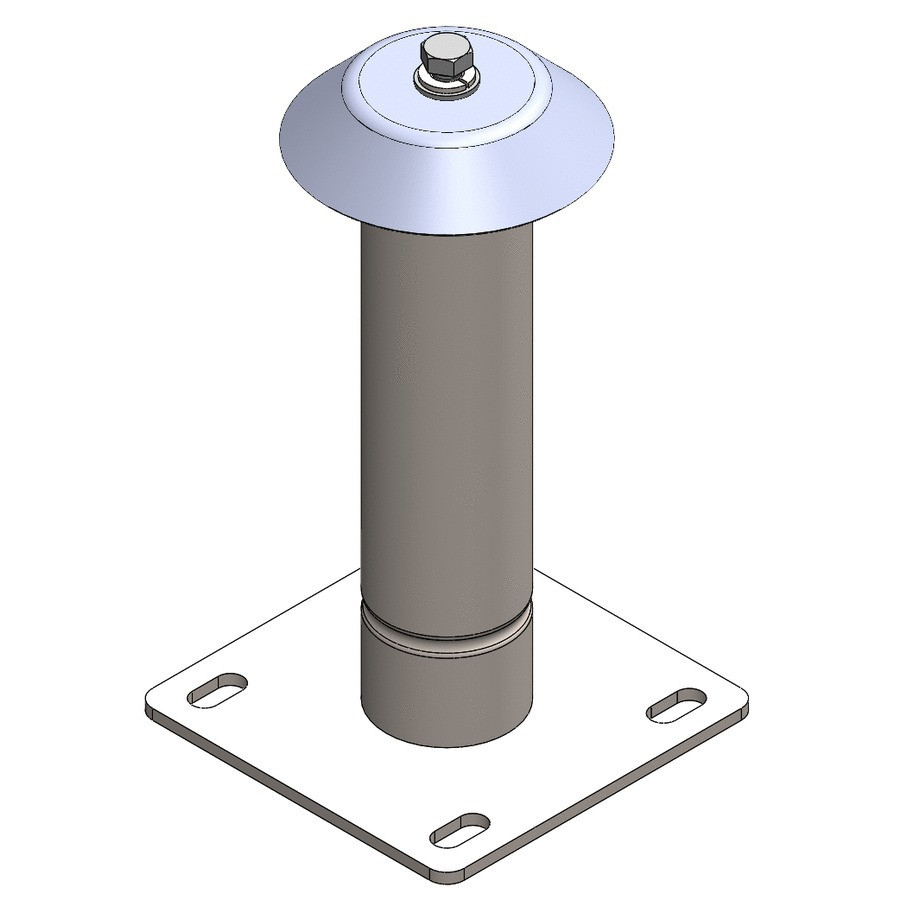

| CONEKT rigid concrete post Height 300 mm | |
|---|---|
| Reference : | P300 |
| Matiére | Steel |
| Quantity : |
|

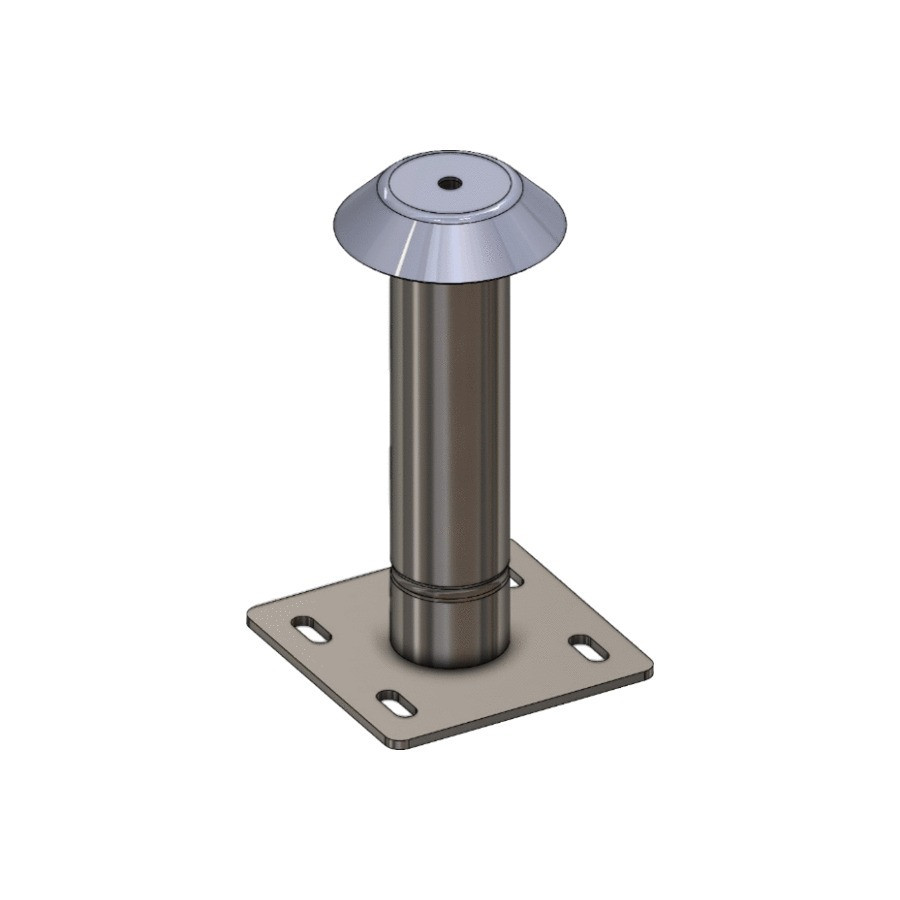

| CONEKT rigid concrete post Height 500 mm | |
|---|---|
| Reference : | P500 |
| Matiére | Steel |
| Quantity : |
|

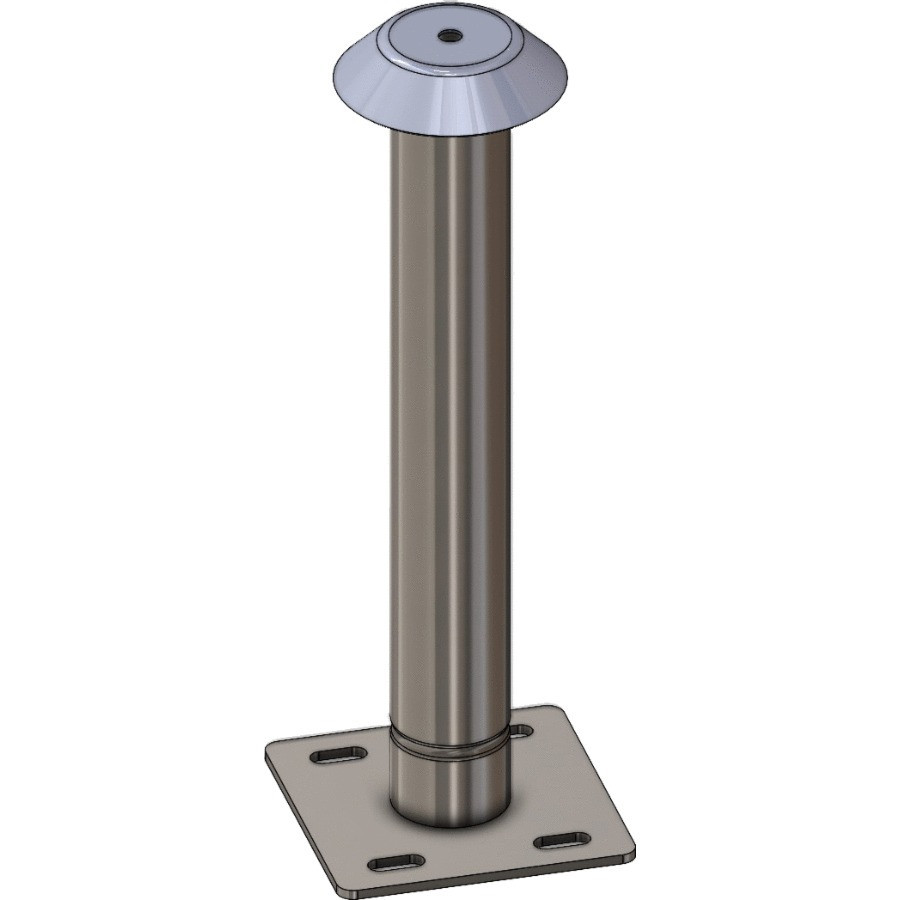

| CONEKT rigid concrete post Height 700 mm | |
|---|---|
| Reference : | P700 |
| Matiére | Steel |
| Quantity : |
|
| CONEKT rigid concrete post Height 1000 mm | |
|---|---|
| Reference : | P1000 |
| Matiére | Steel |
| Quantity : |
|

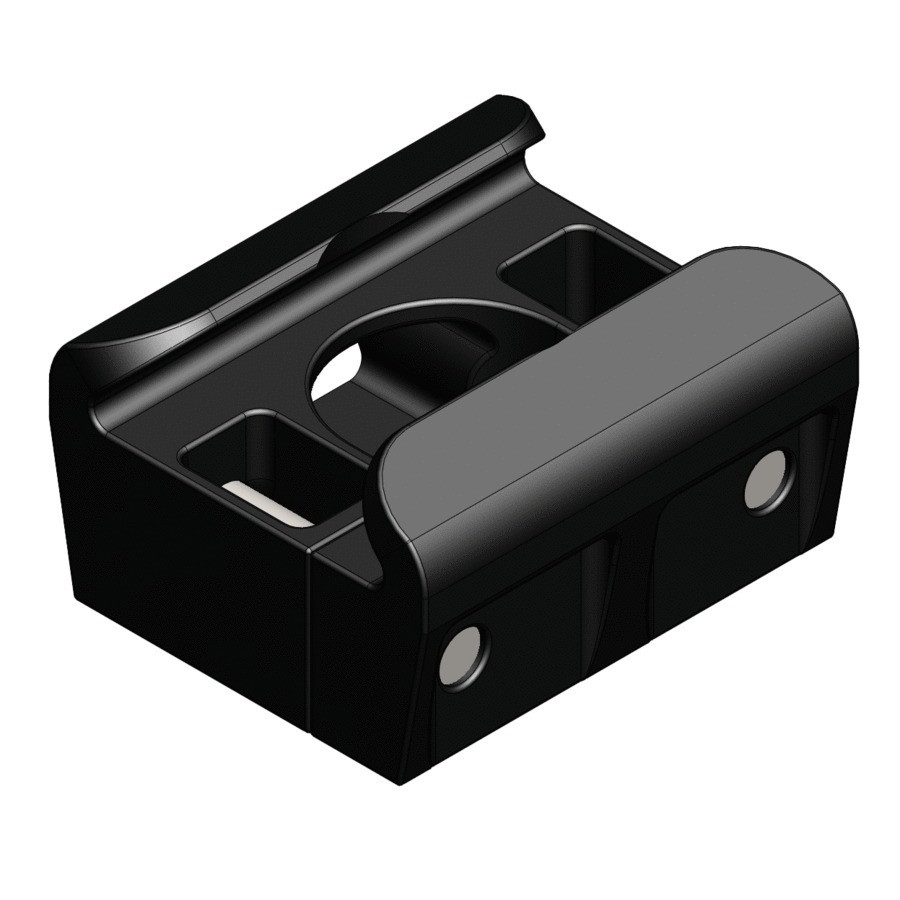

| CONEKT short rail fixing | |
|---|---|
| Reference : | R25 |
| Matiére | Stainless Steel |
| Quantity : |
|

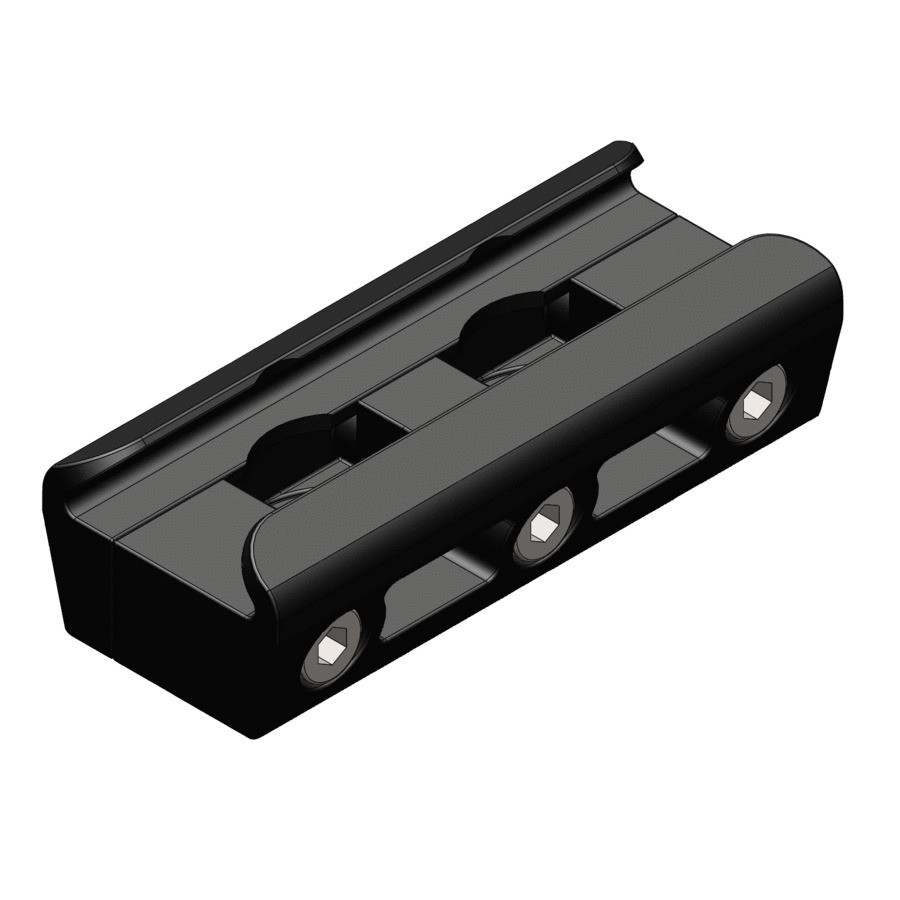

| CONEKT wide rail fixing | |
|---|---|
| Reference : | R25XL |
| Matiére | Stainless Steel |
| Quantity : |
|
Use
Installation of a CONEKT rail lifeline on a concrete wall is done via:
- the short rail fixing R25 or the wide rail fixing R25XL to attach the rail directly to the concrete wall
- rigid concrete posts P300 or P500 if elevation is required
Technical specifications to observe:
Ceiling use with standard or XL rail
Spacing between fixings with standard rail: max 5 m; if suspended, fixings every 2.5 m
Spacing between fixings with XL rail: 6 m; if suspended: 5 m
Maximum 4 users simultaneously / 2 users if suspended
Periodic inspection at least once every 12 months
Technical description
Rigid lifeline made of anodized aluminum
CONEKT rails and lifeline components have no sharp edges that could damage lanyards or ropes
-
![]()
