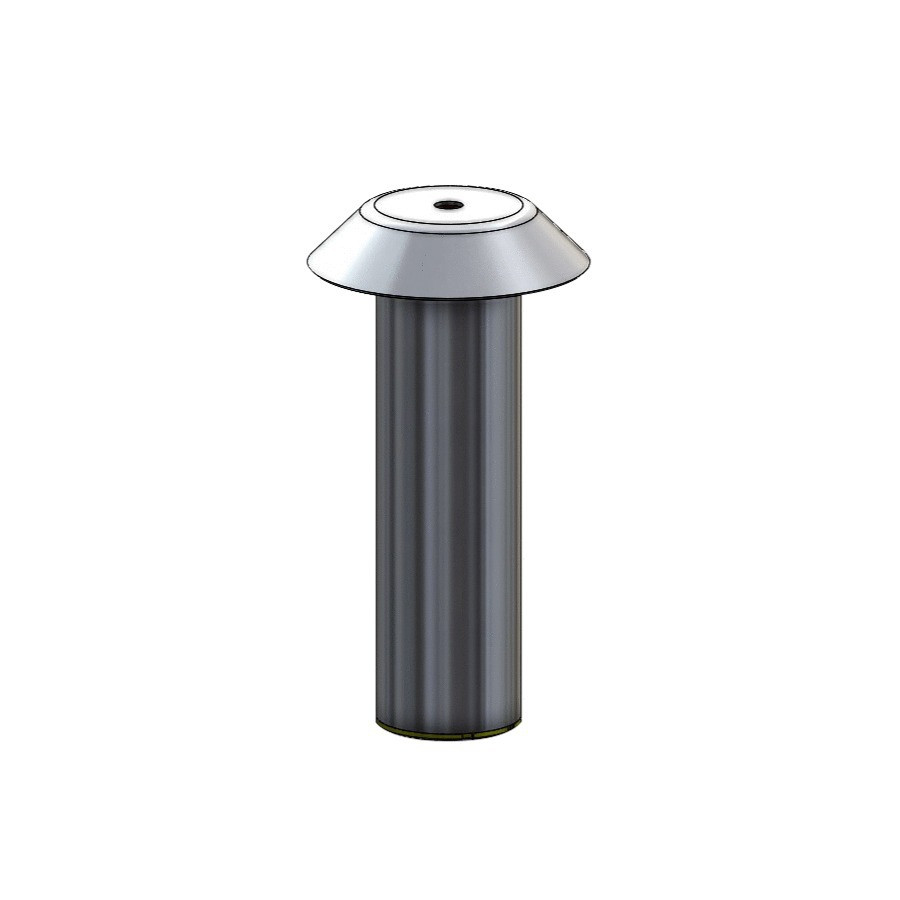

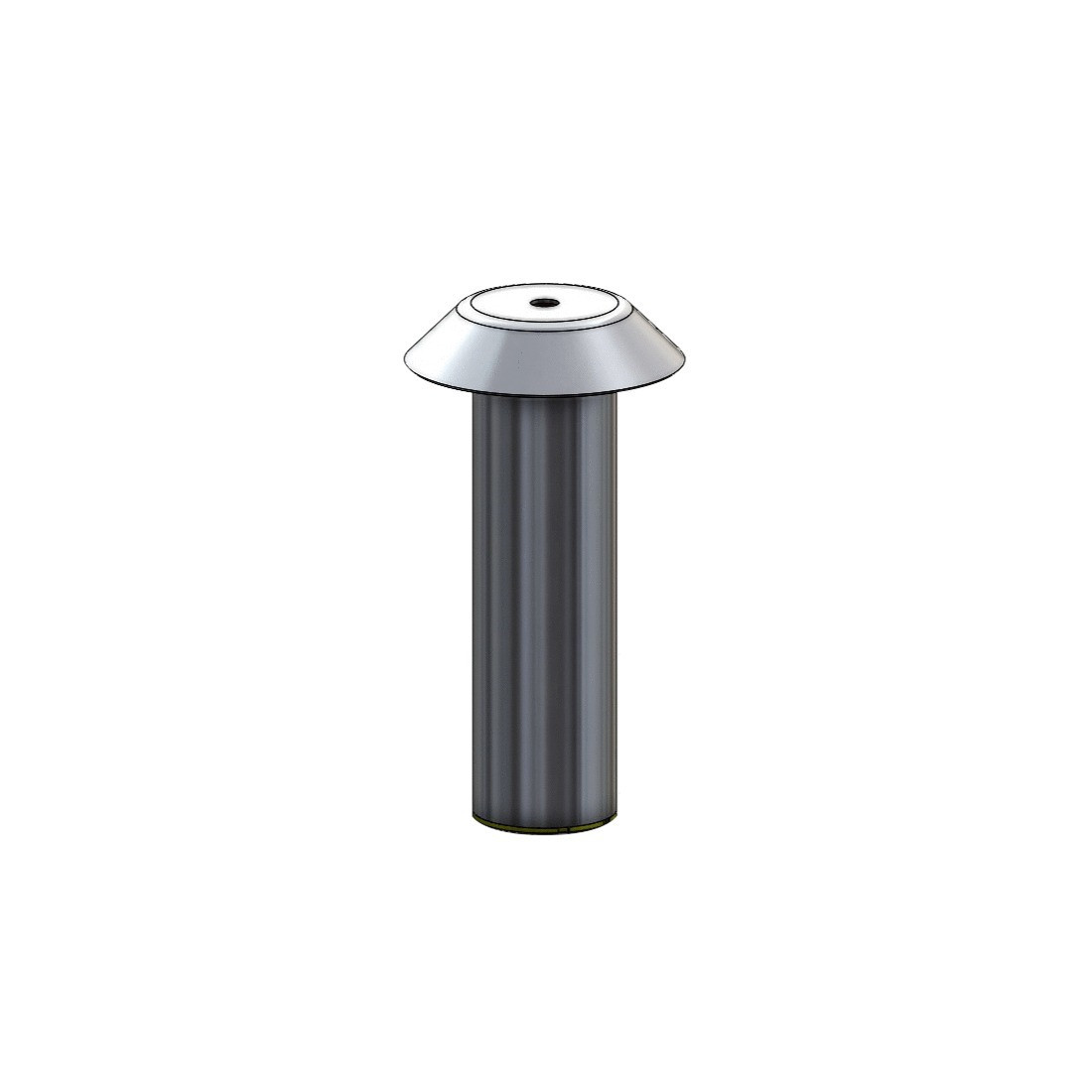

CONEKT Tilting Post H250mm

Warranty 5 years

Standard: EN795:2012/TS16415:2013 Type C

Permet de limiter les effets de couple et donc de garantir la résistance des fixations sur couvertures.

Select your reference

Quantity

Technical characteristics

Reference	Quantity	Quote
Ref. PB250 Code A0014093 CONEKT Tilting Post H250mm	Quantité maximum disponible pour ce magasin + -

CONEKT Tilting Post H250mm
Reference :	PB250
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

When a load greater than 170 daN (382 lbf) is applied to the top of the post, the breakaway elements fail and the post extends by 40 mm (1.6 in). The aluminum tube is then released and the M12 rod bends. As a result, the lifeline deflection increases significantly. It is therefore recommended to reduce the spacing between intermediate support points to limit this deflection. A maximum spacing of 10 m (32 ft 10 in) is recommended.

Height: 250 mm (9.8 in)

Material: S235 steel with hot-dip galvanization; aluminum tube and collar

Strength: Breakaway element failure load: 170 daN (382 lbf) / Post resistance: 2500 daN (5,620 lbf)

Weight: 1.5 kg (3.3 lb)

Technical description

Composition: S235 steel + hot-dip galvanisation; aluminium tube and collar included

Weight: 1.5 kg
