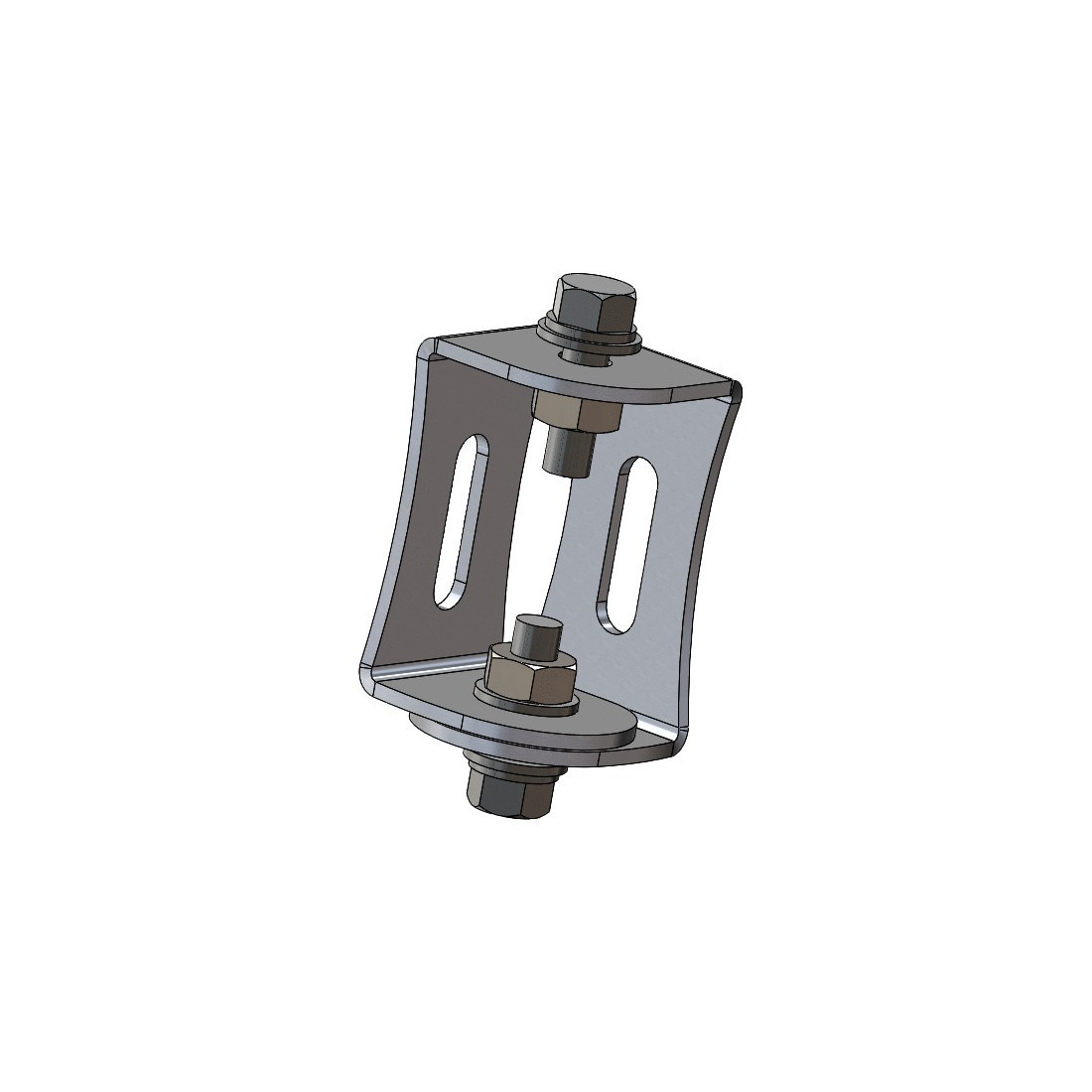

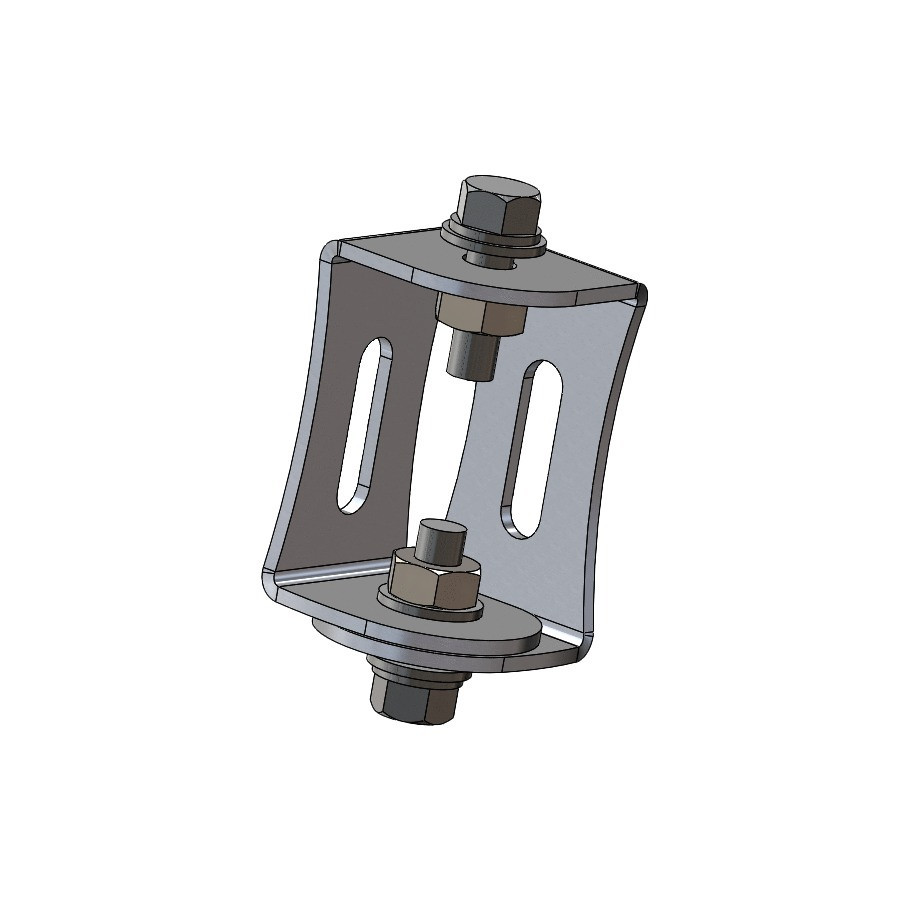

CONEKT Riser H100
CONEKT Riser H100

CONEKT Riser H100

Warranty 5 years
Standard: EN795:2012/TS16415:2013 Type A,C et D

Permet de rehausser les éléments d'une ligne de vie ou un ancrage de 100mm.

Select your reference
+
-

Technical characteristics

Reference Quantity Quote
Ref. A0015750
Code A0015750
CONEKT Riser H100
+
-
CONEKT Riser H100
Reference : A0015750
Quantity :
+
-

Use

The RH100 is designed to support CONEKT rail and cable lifelines, as well as any CONEKT anchor point compliant with EN 795 Type A, C, or D.

FINISH:

304 stainless steel + shot blasting

FIXING METHOD:

to be mounted on CONEKT interfaces PB1, PB2, PB4, ICJD, ICZ, ICA or MINI OMEGA using an M12 x 40 stainless steel bolt

PERFORMANCE:

Deformation resistance: 4 kN

Ultimate strength: 22.5 kN

Technical description

FINISH:


304 stainless steel + shot blasting


FIXING METHOD:


to be mounted on CONEKT interfaces PB1, PB2, PB4, ICJD, ICZ, ICA or MINI OMEGA using an M12 x 40 stainless steel bolt


PERFORMANCE:


Deformation resistance: 4 kN


Ultimate strength: 22.5 kN
