CONEKT Plate for 2 swivels
CONEKT Plate for 2 swivels

CONEKT Plate for 2 swivels

Standard: EN795:2012/TS16415:2013 Type C

This lifeline and anchor point interface is compatible with most standing seam roofs, for slopes compliant with DTU 40.35.

Select your reference
+
-

Technical characteristics

Reference Quantity Quote
Ref. PB2
Code A0014091
CONEKT Plate for 2 swivels
+
-
Ref. PBr
Code A0014103
Conekt Lot de 12 rivets + bande epdm
+
-
Ref. PBa
Code A0014102
Conekt Lot de 16 vis autoforeuses + bande epdm
+
-
CONEKT Plate for 2 swivels
Reference : PB2
Quantity :
+
-
Conekt Lot de 12 rivets + bande epdm
Reference : PBr
Quantity :
+
-
Conekt Lot de 16 vis autoforeuses + bande epdm
Reference : PBa
Quantity :
+
-

Use

The trapezoidal steel deck must be ≥ 0.63 mm thick and have a trapezoidal profile. (For other types, please contact us).

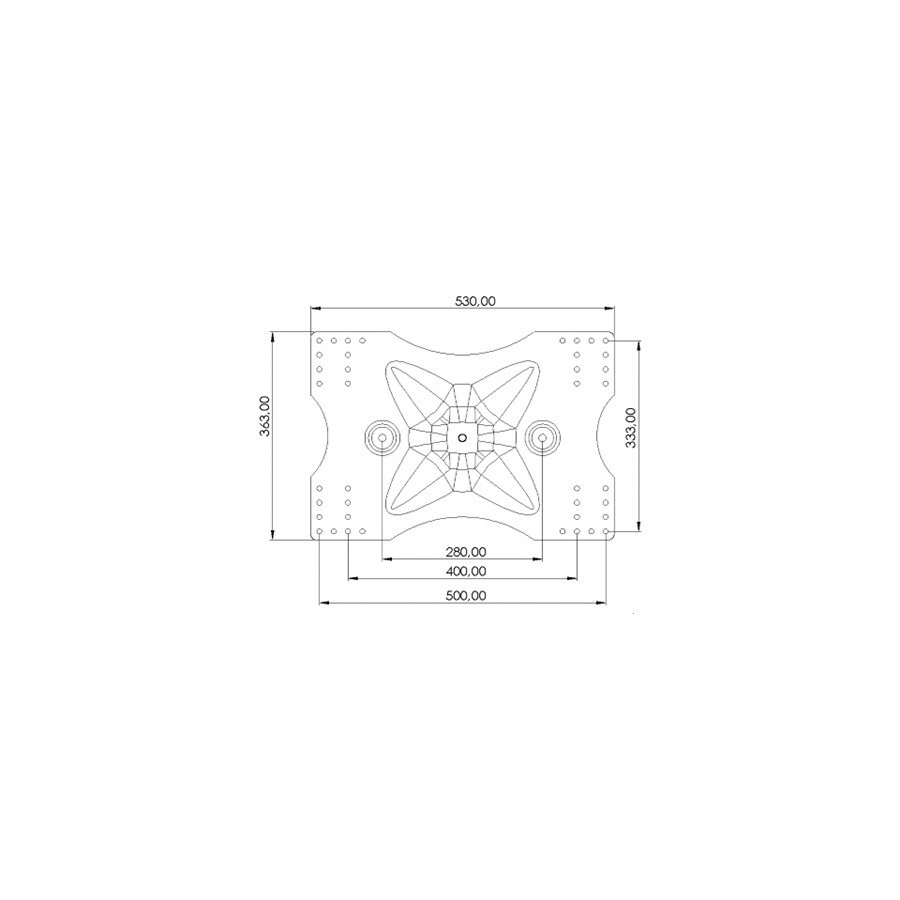

This product is standardized for wave widths of 500 mm, 400 mm, 333 mm, 250 mm and 200 mm.

This interface is installed using a set of 12 rivets (PBr) or a set of 16 self-drilling screws (PBa).

Composition: S235 steel + hot-dip galvanization

Weight: 4 kg

Technical description

Composition: S235 steel + hot-dip galvanization


Weight: 4 kg
