CONEKT Interface on Zinc Roof

Warranty 5 years

Standard: EN795:2012

The ICZ interface has been specifically developed for installing CONEKT fall protection systems on zinc roofs. It is ideally suited for securing traditional Parisian Haussmann-style zinc rooftops against fall hazards.

Select your reference

Quantity

Technical characteristics

Reference	Quantity	Quote
Ref. ICZ Code A0014104 CONEKT Interface on Zinc Roof	Quantité maximum disponible pour ce magasin + -

CONEKT Interface on Zinc Roof
Reference :	ICZ
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

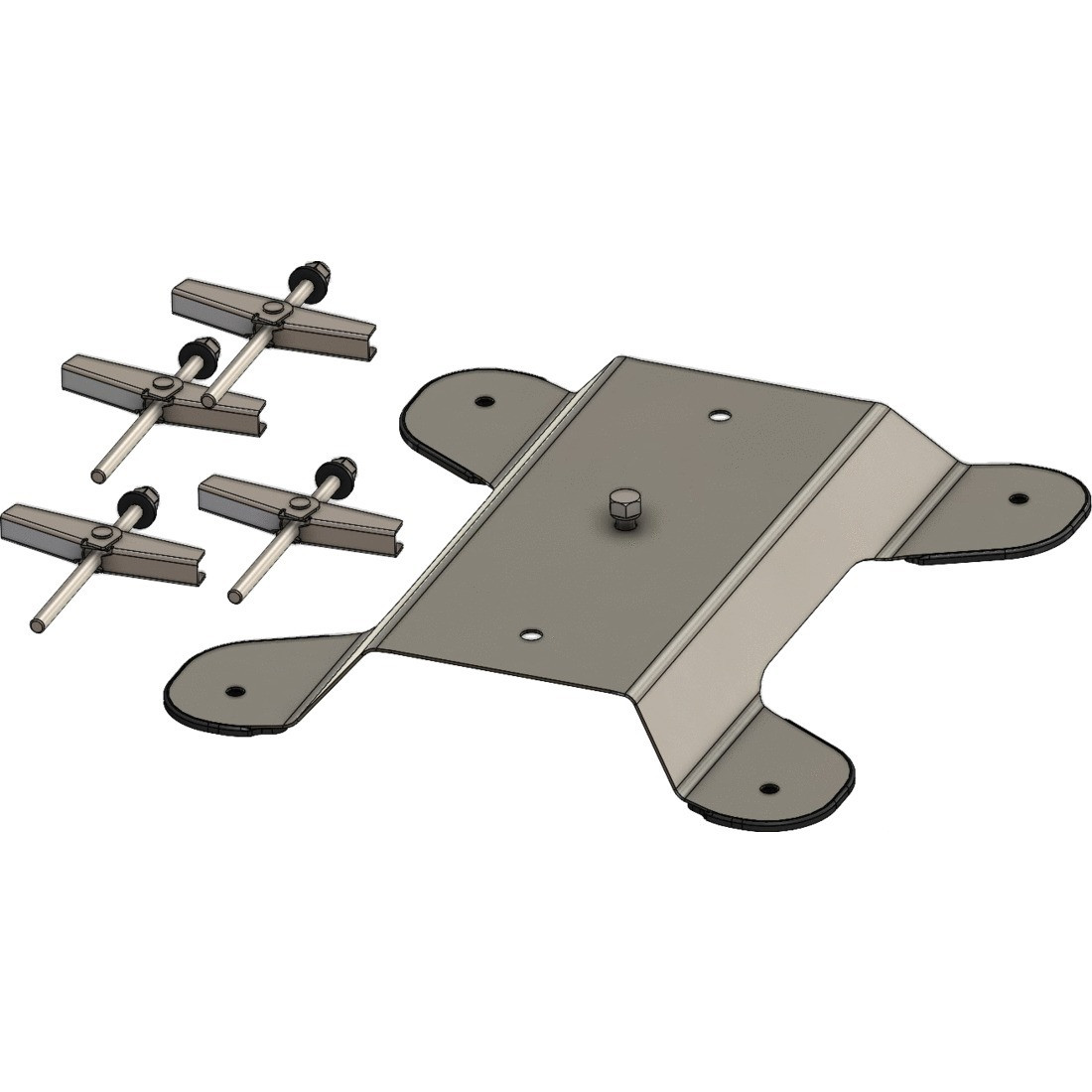

These mounting plates are installed using four M10 stainless steel 304 toggle bolts.

Supplied with the interface: 180 mm (7.1 in) stainless steel toggle anchors, stainless steel cap nuts, sealing washer and four EPDM seals.

Installation is carried out directly on the waterproofing system without any access required from below. The RH100 riser or PB250 pivoting posts can be mounted on the interface to raise the lifeline. These components are essential at the beginning of the lifeline for positioning the S03 energy absorber or the S04 tensioner.

Technical description

Composition: S235 steel + hot-dip galvanization

Weight: 4.6 kg
