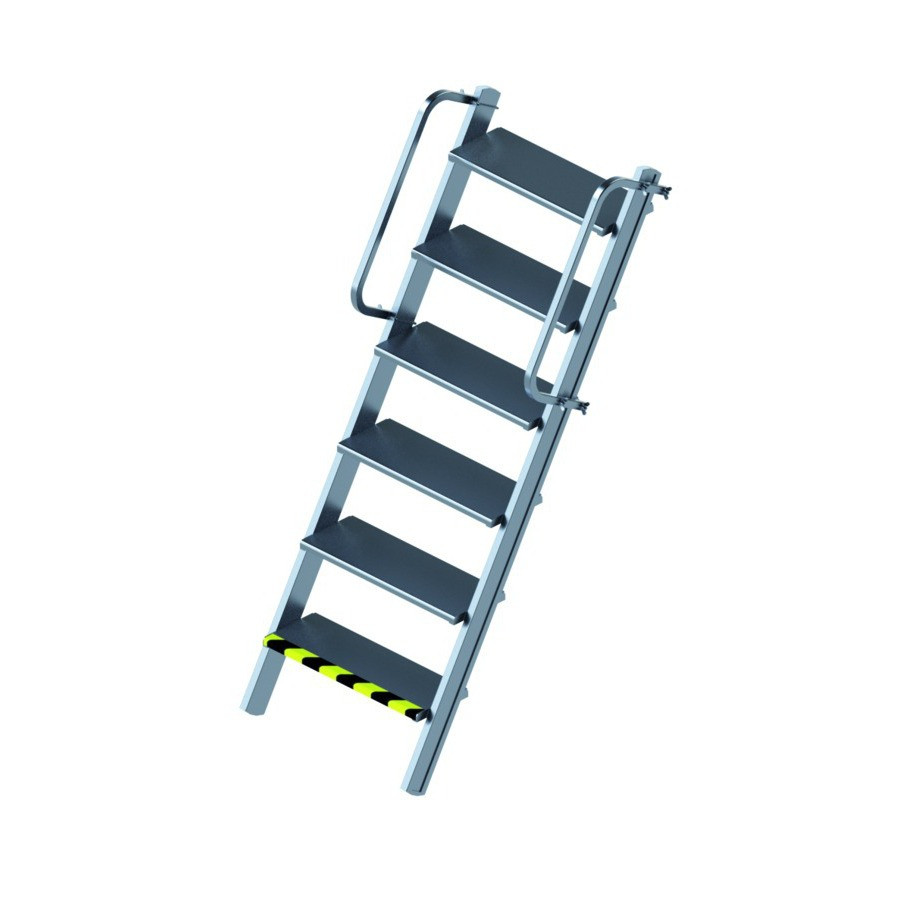

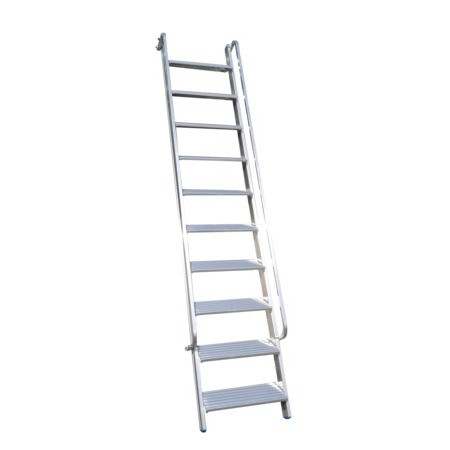

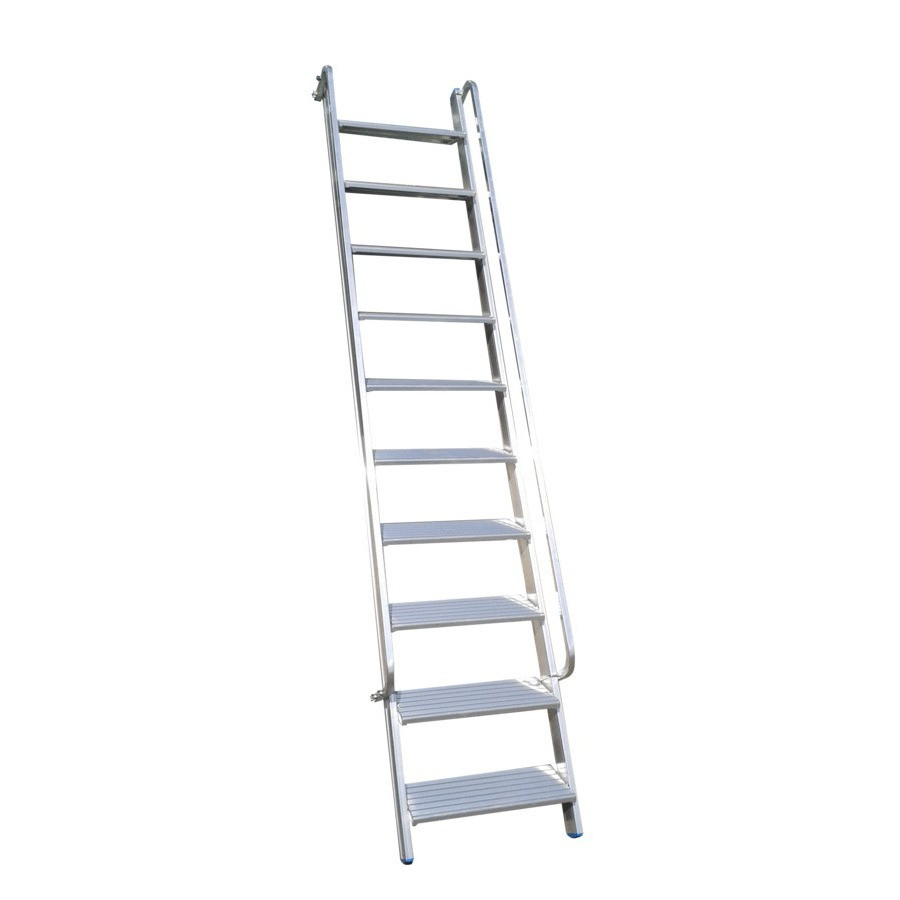

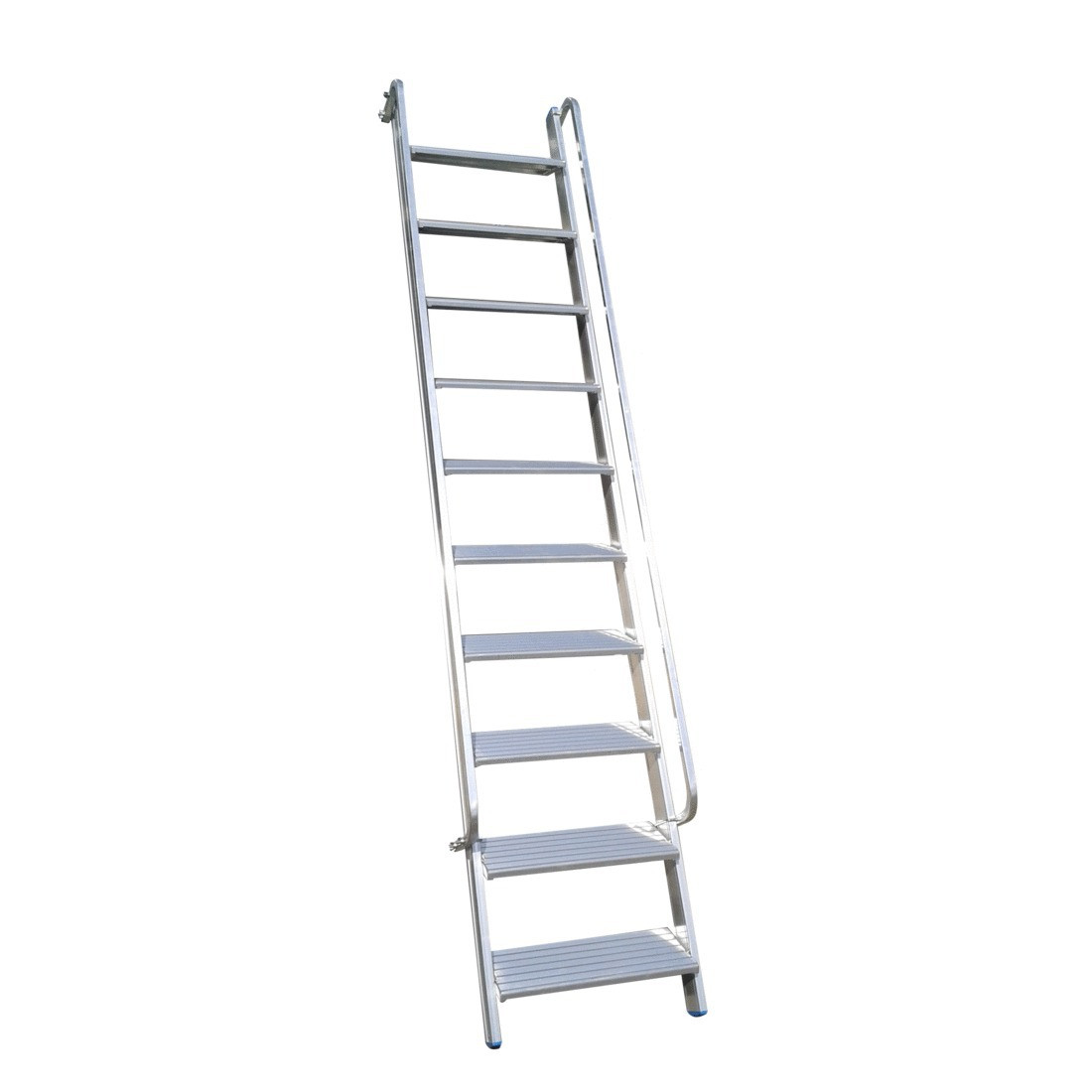

Access ladder with 200 mm deep steps
Access ladder with 200 mm deep steps

Access ladder with 200 mm deep steps

Warranty 1 year
Standard: EN 14122

STEP WIDTH 600 mm (23.6 in) Safe access ladder supplied with handrails as standard. Provides access to heights ranging from 1.60 m (5 ft 3 in) to 4.10 m (13 ft 5 in).

Select your reference
+
-
Access ladder with 200 mm deep steps

Advantages and strengths

Designed for frequent access.

Technical characteristics

Reference Number of walking Support height ('') Length ('') Width ('') Spacing ('') Weight (lb) Matiére Quantity Quote
Ref. LEEVEL200606RL
Code A0007785
200 MM DEEP ACCESS STEP LADDERS 6 STEPS
6 63 '' 73 '' 28 '' 39 '' 22,00 lb Aluminium
+
-
Ref. LEEVEL200607RL
Code A0007786
200 MM DEEP ACCESS STEP LADDERS 7 STEPS
7 72 '' 84 '' 28 '' 45 '' 22,00 lb Aluminium
+
-
Ref. LEEVEL200608RL
Code A0007787
200 MM DEEP ACCESS STEP LADDERS 8 STEPS
8 82 '' 96 '' 28 '' 50 '' 31,00 lb Aluminium
+
-
Ref. LEEVEL200609RL
Code A0007788
200 MM DEEP ACCESS STEP LADDERS 9 STEPS
9 92 '' 107 '' 28 '' 56 '' 38,50 lb Aluminium
+
-
Ref. LEEVEL200610RL
Code A0007789
200 MM DEEP ACCESS STEP LADDERS 10 STEPS
10 102 '' 118 '' 28 '' 62 '' 38,80 lb Aluminium
+
-
Ref. LEEVEL200611RL
Code A0007790
200 MM DEEP ACCESS STEP LADDERS 11 STEPS
11 111 '' 130 '' 28 '' 67 '' 41,88 lb Aluminium
+
-
Ref. LEEVEL200612RL
Code A0007791
200 MM DEEP ACCESS STEP LADDERS 12 STEPS
12 122 '' 141 '' 28 '' 73 '' 48,50 lb Aluminium
+
-
Ref. LEEVEL200613RL
Code A0007792
200 MM DEEP ACCESS STEP LADDERS 13 STEPS
13 132 '' 153 '' 28 '' 79 '' 48,50 lb Aluminium
+
-
Ref. LEEVEL200614RL
Code A0007793
200 MM DEEP ACCESS STEP LADDERS 14 STEPS
14 142 '' 164 '' 28 '' 84 '' 57,00 lb Aluminium
+
-
Ref. LEEVEL200615RL
Code A0007794
200 MM DEEP ACCESS STEP LADDERS 15 STEPS
15 151 '' 176 '' 28 '' 90 '' 61,00 lb Aluminium
+
-
Ref. LEEVEL200616RL
Code A0007795
200 MM DEEP ACCESS STEP LADDERS 16 STEPS
16 161 '' 187 '' 28 '' 96 '' 61,28 lb Aluminium
+
-
200 MM DEEP ACCESS STEP LADDERS 6 STEPS
Reference : LEEVEL200606RL
Number of walking 6
Support height ('') 63 ''
Length ('') 73 ''
Width ('') 28 ''
Spacing ('') 39 ''
Weight (lb) 22,00 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 7 STEPS
Reference : LEEVEL200607RL
Number of walking 7
Support height ('') 72 ''
Length ('') 84 ''
Width ('') 28 ''
Spacing ('') 45 ''
Weight (lb) 22,00 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 8 STEPS
Reference : LEEVEL200608RL
Number of walking 8
Support height ('') 82 ''
Length ('') 96 ''
Width ('') 28 ''
Spacing ('') 50 ''
Weight (lb) 31,00 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 9 STEPS
Reference : LEEVEL200609RL
Number of walking 9
Support height ('') 92 ''
Length ('') 107 ''
Width ('') 28 ''
Spacing ('') 56 ''
Weight (lb) 38,50 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 10 STEPS
Reference : LEEVEL200610RL
Number of walking 10
Support height ('') 102 ''
Length ('') 118 ''
Width ('') 28 ''
Spacing ('') 62 ''
Weight (lb) 38,80 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 11 STEPS
Reference : LEEVEL200611RL
Number of walking 11
Support height ('') 111 ''
Length ('') 130 ''
Width ('') 28 ''
Spacing ('') 67 ''
Weight (lb) 41,88 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 12 STEPS
Reference : LEEVEL200612RL
Number of walking 12
Support height ('') 122 ''
Length ('') 141 ''
Width ('') 28 ''
Spacing ('') 73 ''
Weight (lb) 48,50 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 13 STEPS
Reference : LEEVEL200613RL
Number of walking 13
Support height ('') 132 ''
Length ('') 153 ''
Width ('') 28 ''
Spacing ('') 79 ''
Weight (lb) 48,50 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 14 STEPS
Reference : LEEVEL200614RL
Number of walking 14
Support height ('') 142 ''
Length ('') 164 ''
Width ('') 28 ''
Spacing ('') 84 ''
Weight (lb) 57,00 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 15 STEPS
Reference : LEEVEL200615RL
Number of walking 15
Support height ('') 151 ''
Length ('') 176 ''
Width ('') 28 ''
Spacing ('') 90 ''
Weight (lb) 61,00 lb
Matiére Aluminium
Quantity :
+
-
Add to quote
200 MM DEEP ACCESS STEP LADDERS 16 STEPS
Reference : LEEVEL200616RL
Number of walking 16
Support height ('') 161 ''
Length ('') 187 ''
Width ('') 28 ''
Spacing ('') 96 ''
Weight (lb) 61,28 lb
Matiére Aluminium
Quantity :
+
-
Add to quote

Use

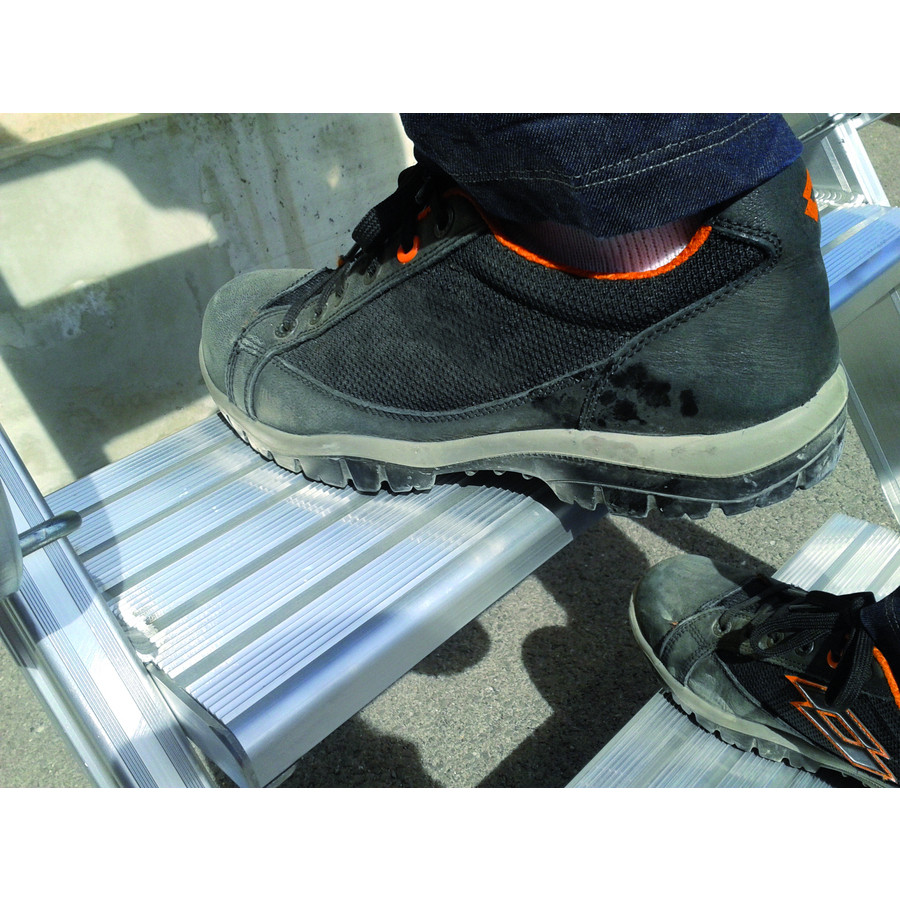

200 mm (7.87 in) deep chequered aluminum steps

250 mm (9.84 in) step spacing

Step width: 600 mm (23.6 in)

Overall ladder width: 651 mm (25.6 in)

Overall width with 2 handrails and hardware included: 733 mm (28.9 in) (without hardware: 700 mm (27.6 in))

Operating angle: 60°

Maximum load per step: 150 kg (331 lb)

Technical description

200 mm (7.87 in) deep chequered aluminum steps


250 mm (9.84 in) step spacing


Step width: 600 mm (23.6 in)


Overall ladder width: 651 mm (25.6 in)


Overall width with 2 handrails and hardware included: 733 mm (28.9 in) (without hardware: 700 mm (27.6 in))


Operating angle: 60°


Maximum load per step: 150 kg (331 lb)

Documentation

LEEVEL2006XX-LEEVEL20.PDF
ATTESTATION EN 131 EC.PDF
FP ECHELLE A MARCHES .PDF
