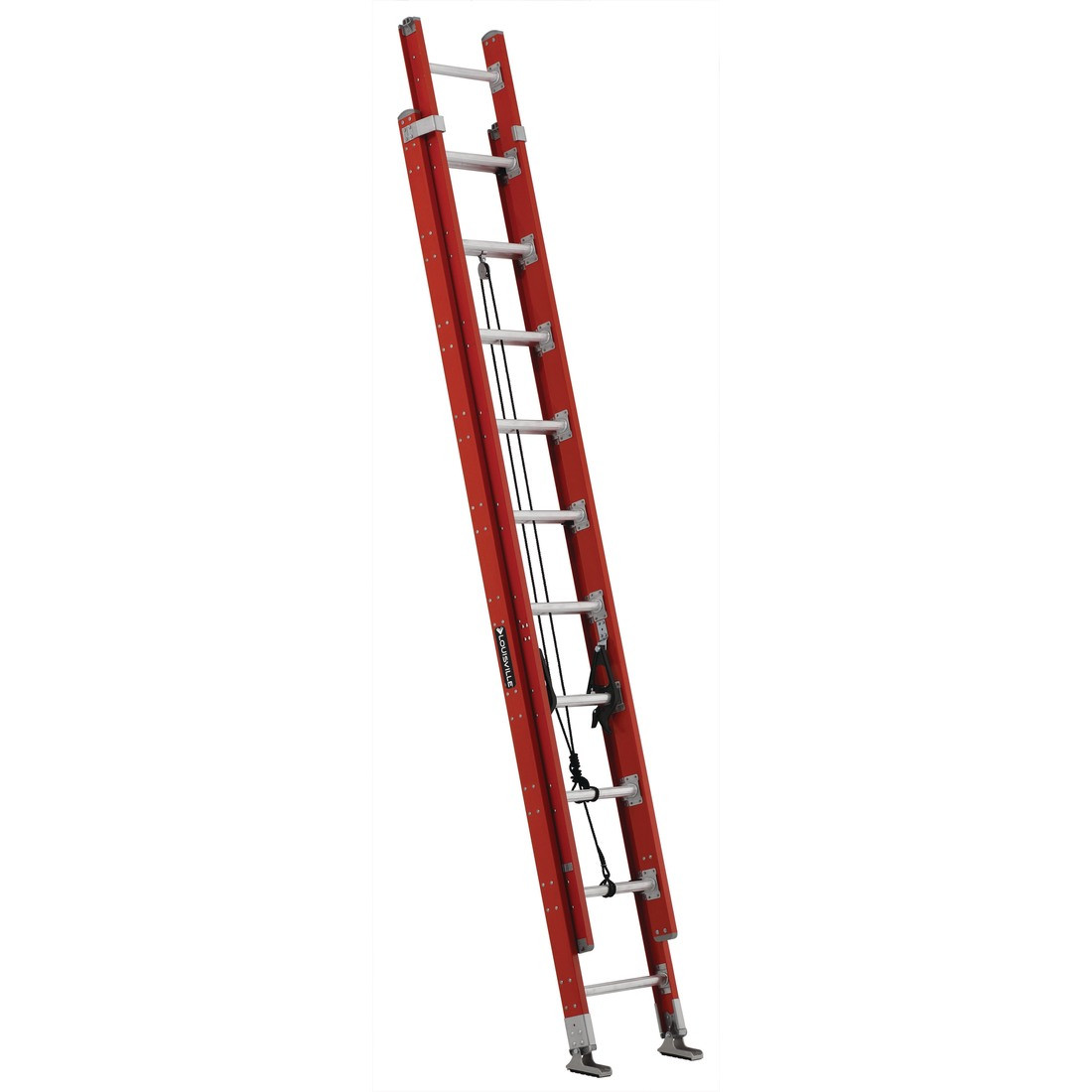

Louisville Ladder: FE7200 Fiberglass Extension Ladder (300 lb)
A rugged fiberglass extension ladder featuring the MaxLock rung lock, available up to 40 ft (12.19 m).
Advantages and strengths
Rugged fiberglass extension ladder, 300 lb (136 kg) duty rating, available in several sizes up to 40 ft (12.19 m).
MaxLock rung lock with QuickLatch, outside slide guides, and aluminum rung connector plates.
Technical characteristics
| Fiberglass Extension Ladder 20ft | |
|---|---|
| Reference : | FE7220 |
| characteristic.CANADA_HAUTEUR_TOTALE | 20 ft (6.10 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 17 ft (5.18 m) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 19 ft 10 in (6.05 m) |
| characteristic.CANADA_POIDS | 44 lb (20.0 kg) lb |
| Quantity : |
|

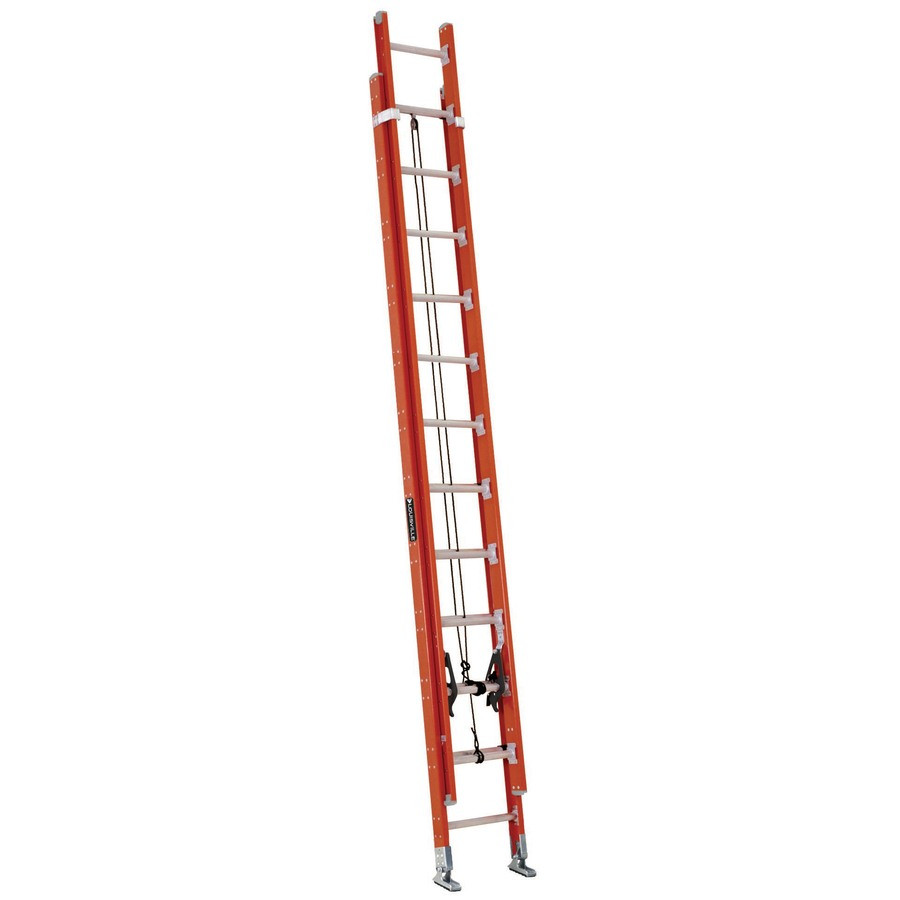

| Fiberglass Extension Ladder 24ft | |
|---|---|
| Reference : | FE7224 |
| characteristic.CANADA_HAUTEUR_TOTALE | 24 ft (7.32 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 21 ft (6.40 m) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 23 ft 8 in (7.21 m) |
| characteristic.CANADA_POIDS | 53 lb (24.0 kg) lb |
| Quantity : |
|

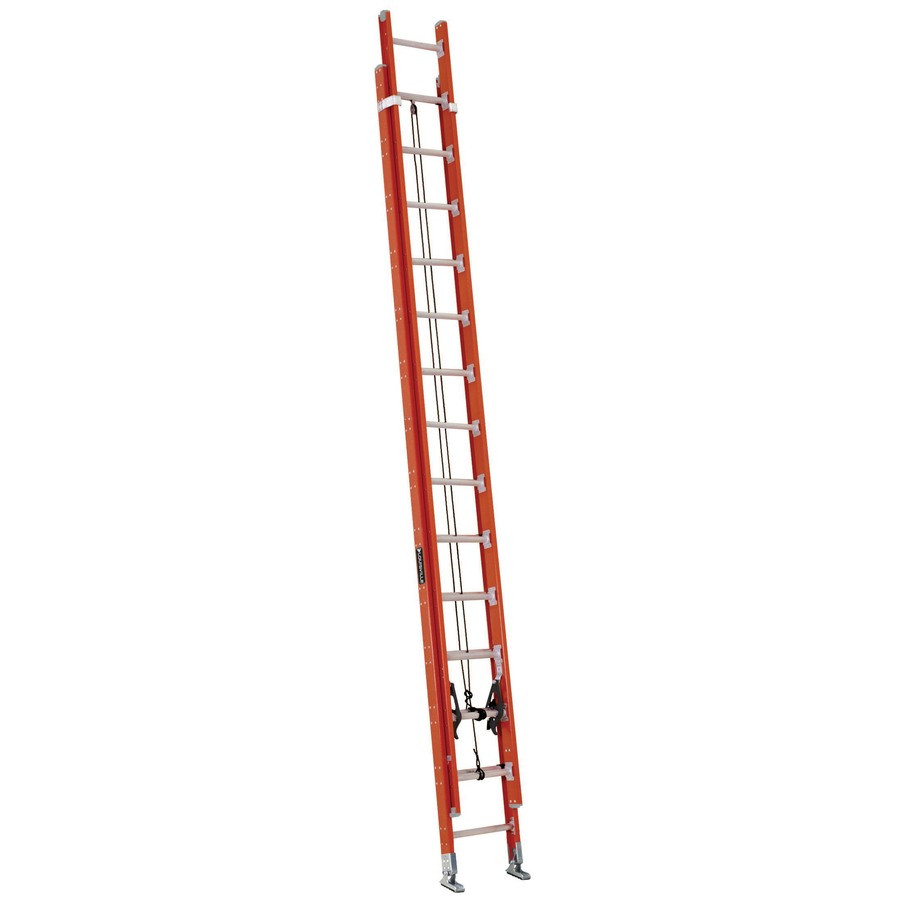

| Fiberglass Extension Ladder 28ft | |
|---|---|
| Reference : | FE7228 |
| characteristic.CANADA_HAUTEUR_TOTALE | 28 ft (8.53 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 25 ft (7.62 m) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 27 ft 7 in (8.41 m) |
| characteristic.CANADA_POIDS | 57 lb (25.9 kg) lb |
| Quantity : |
|

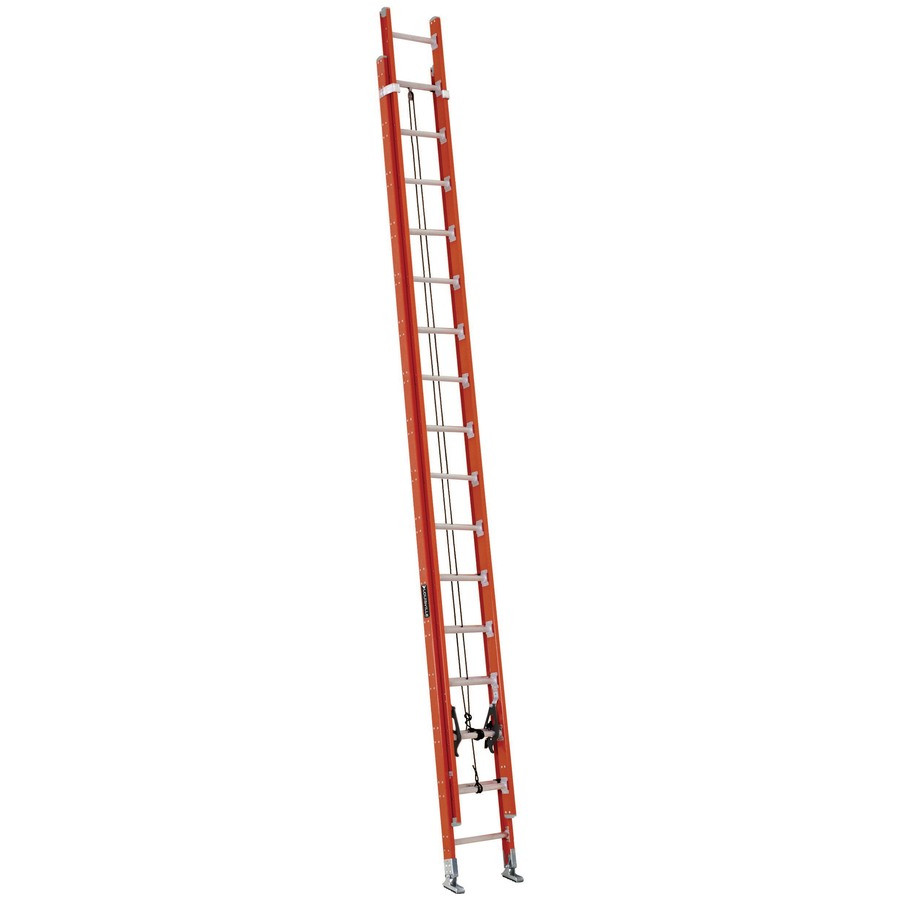

| Fiberglass Extension Ladder 32ft | |
|---|---|
| Reference : | FE7232 |
| characteristic.CANADA_HAUTEUR_TOTALE | 32 ft (9.75 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 29 ft (8.84 m) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 31 ft 5 in (9.58 m) |
| characteristic.CANADA_POIDS | 74 lb (33.6 kg) lb |
| Quantity : |
|
| Fiberglass Extension Ladder 36ft | |
|---|---|
| Reference : | FE7236 |
| characteristic.CANADA_HAUTEUR_TOTALE | 36 ft (10.97 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 32 ft (9.75 m) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 34 ft 4 in (10.46 m) |
| characteristic.CANADA_POIDS | 87 lb (39.5 kg) lb |
| Quantity : |
|

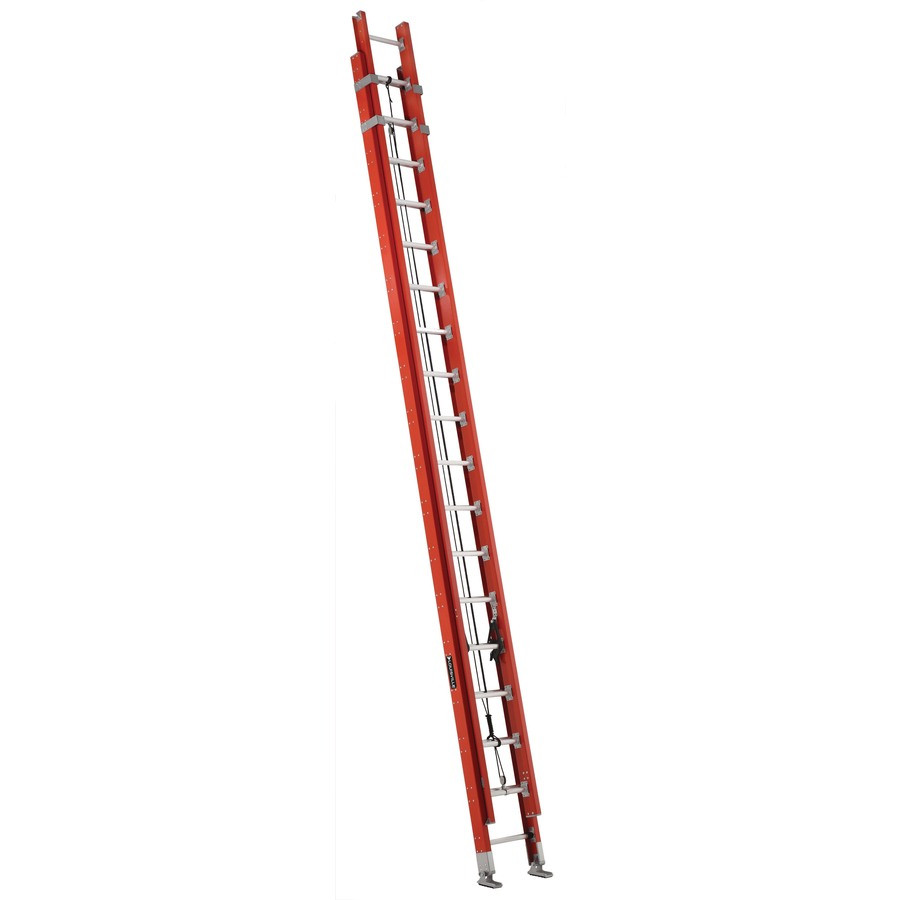

| Fiberglass Extension Ladder 40ft | |
|---|---|
| Reference : | FE7240 |
| characteristic.CANADA_HAUTEUR_TOTALE | 40 ft (12.19 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 35 ft (10.67 m) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 37 ft 3 in (11.35 m) |
| characteristic.CANADA_POIDS | 98 lb (44.5 kg) lb |
| Quantity : |
|
Use
Wide range of sizes

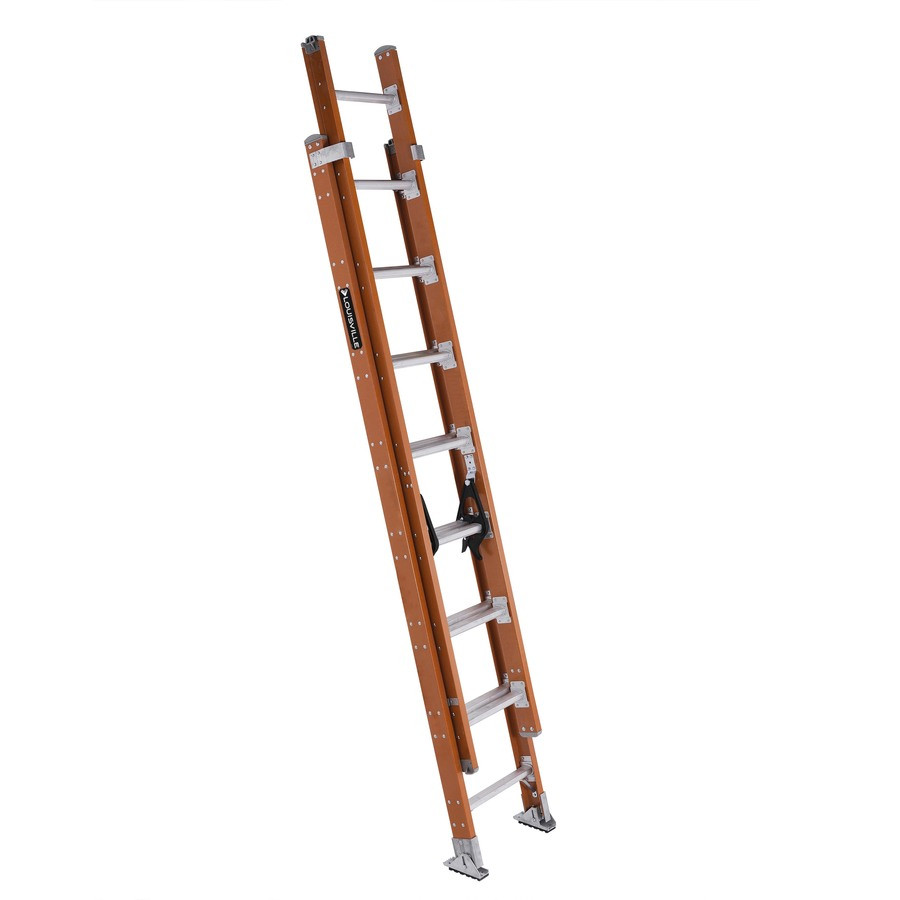

Available from 16 ft to 40 ft (4.88 m to 12.19 m), the FE7200 suits a wide variety of professional job sites.
MaxLock technology
The MaxLock rung lock with QuickLatch allows one-finger securing of extended sections, for fast and safe deployment.
Safety and stability
Outside slide guides prevent over-extension, while the swivel safety shoe ensures good ground stability.
Non-conductive
Fiberglass does not conduct electricity when clean and dry, an asset for work near live lines.
Regulatory compliance
Designed to meet or exceed ANSI A14.5 requirements, as well as applicable CSA standards for the Canadian market.
Technical description
Mar-resistant rail end caps: protect support surfaces from damage.

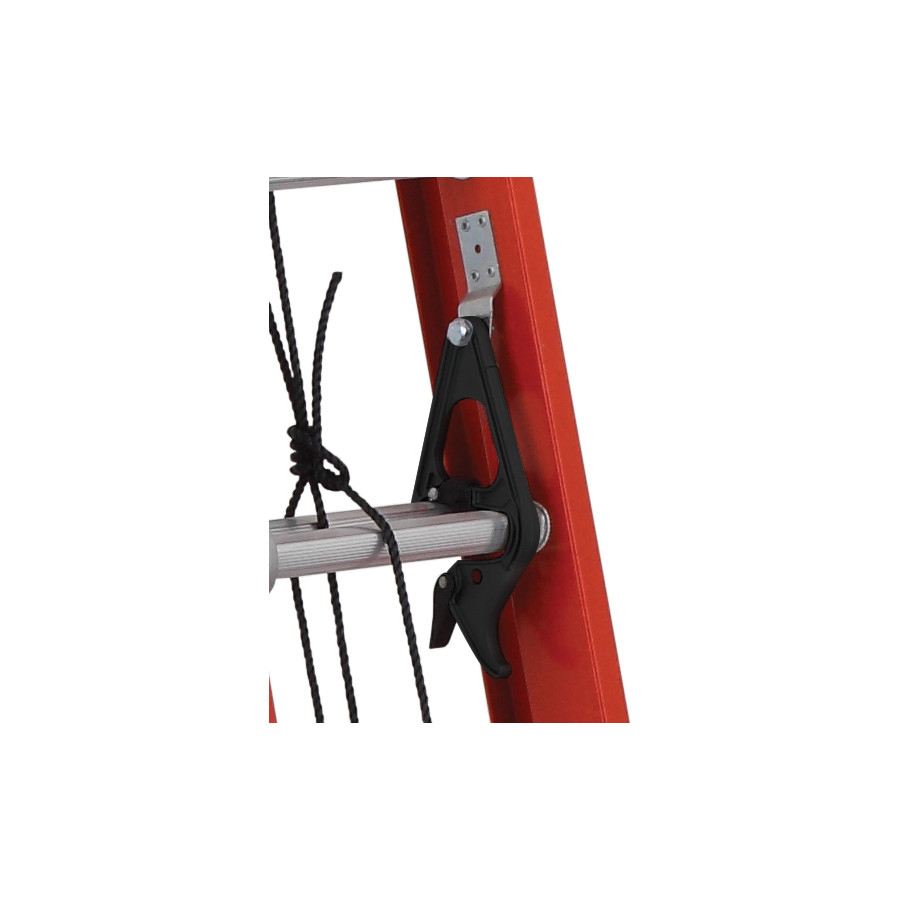

MaxLock with QuickLatch: one-finger securing of extended sections.

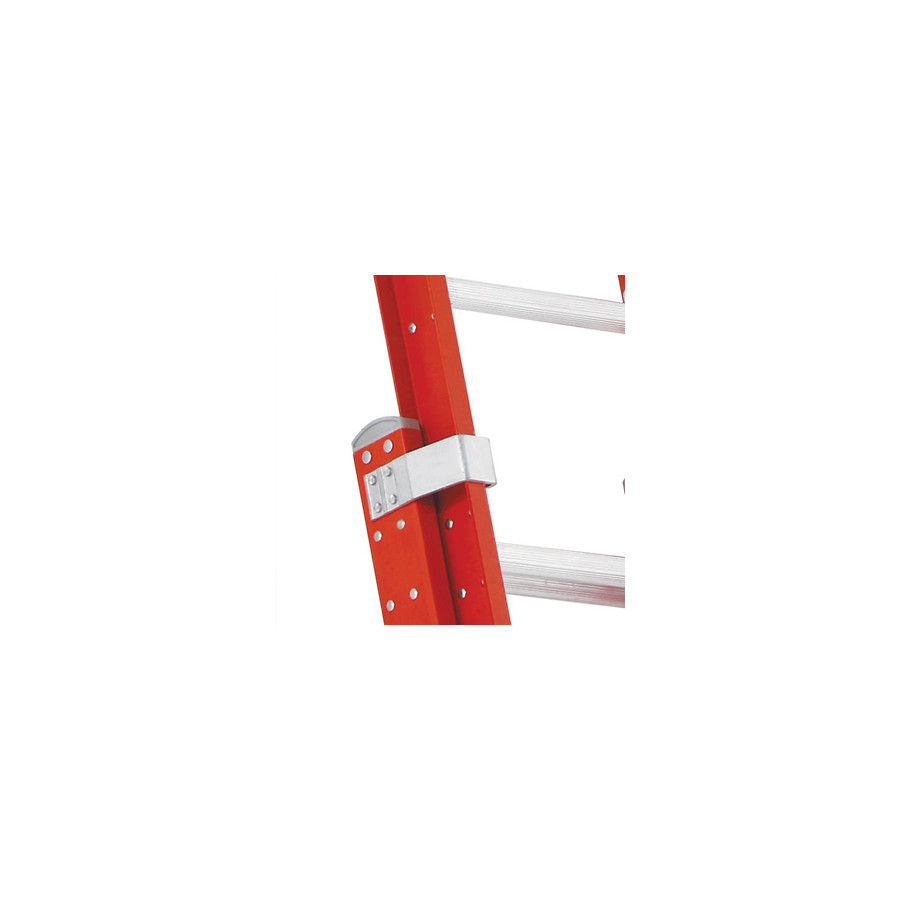

Outside slide guides: prevent over-extension of the fly section.

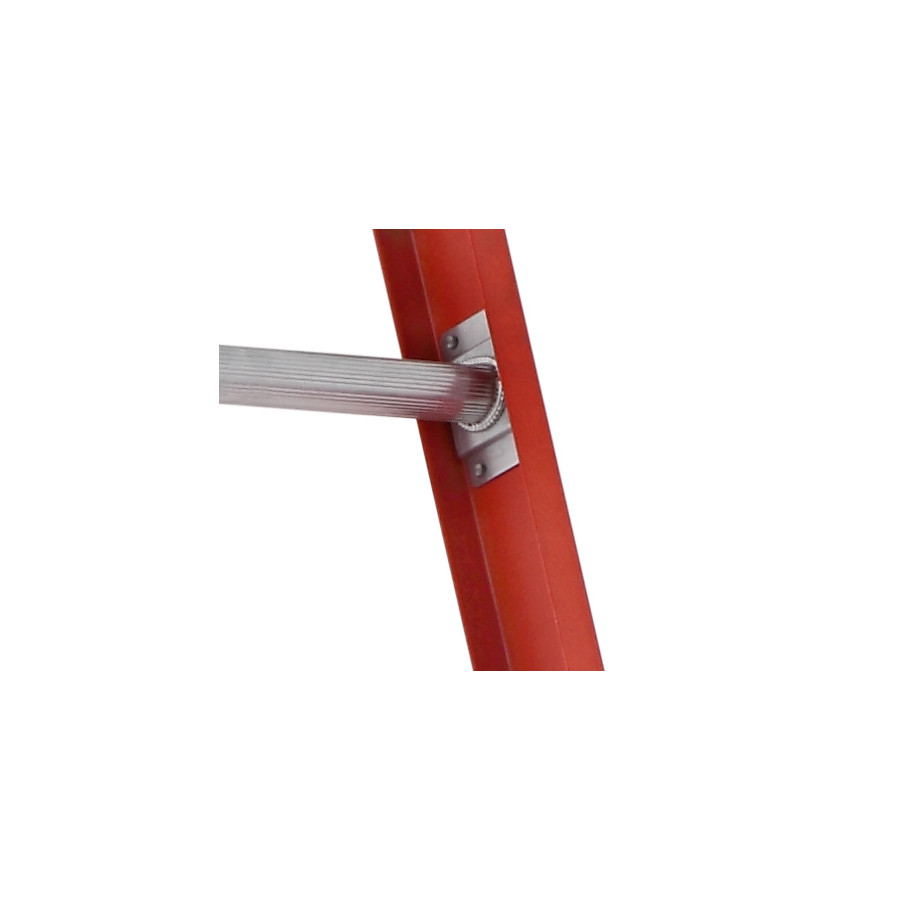

Aluminum connector plates: sturdy attachment of rungs to rails.

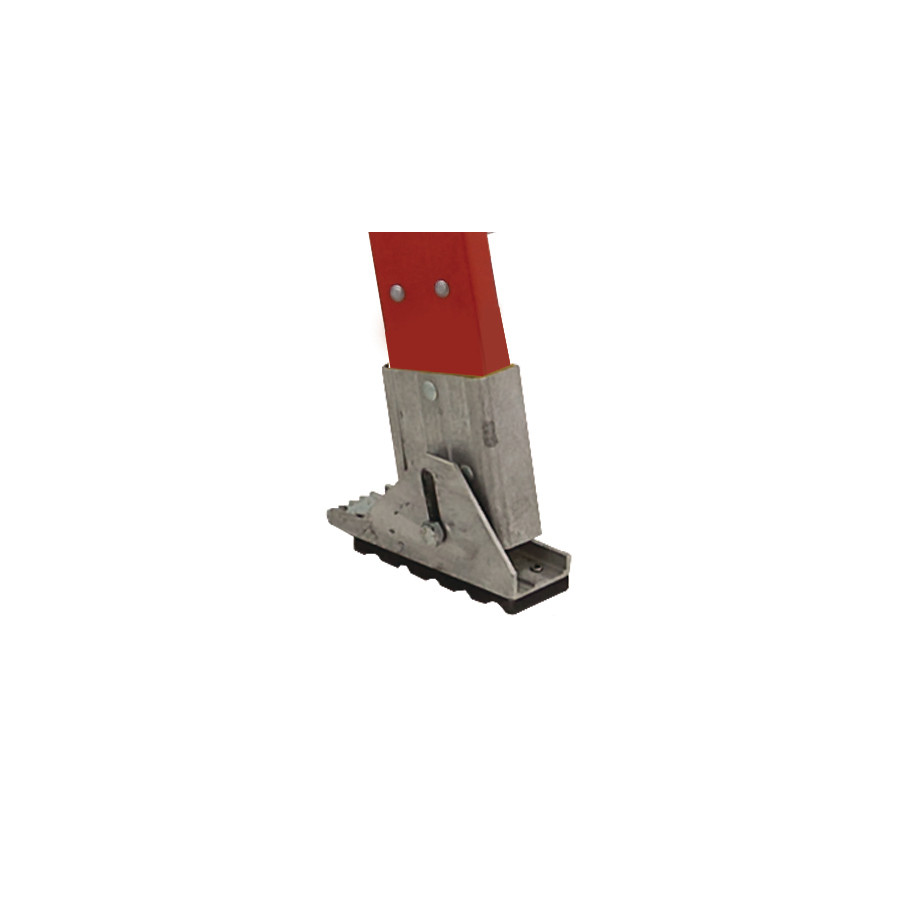

Swivel safety shoe with overmolded tread: improved grip on varied surfaces.
Duty rating: 300 lb (136 kg), Type IA, professional use.
