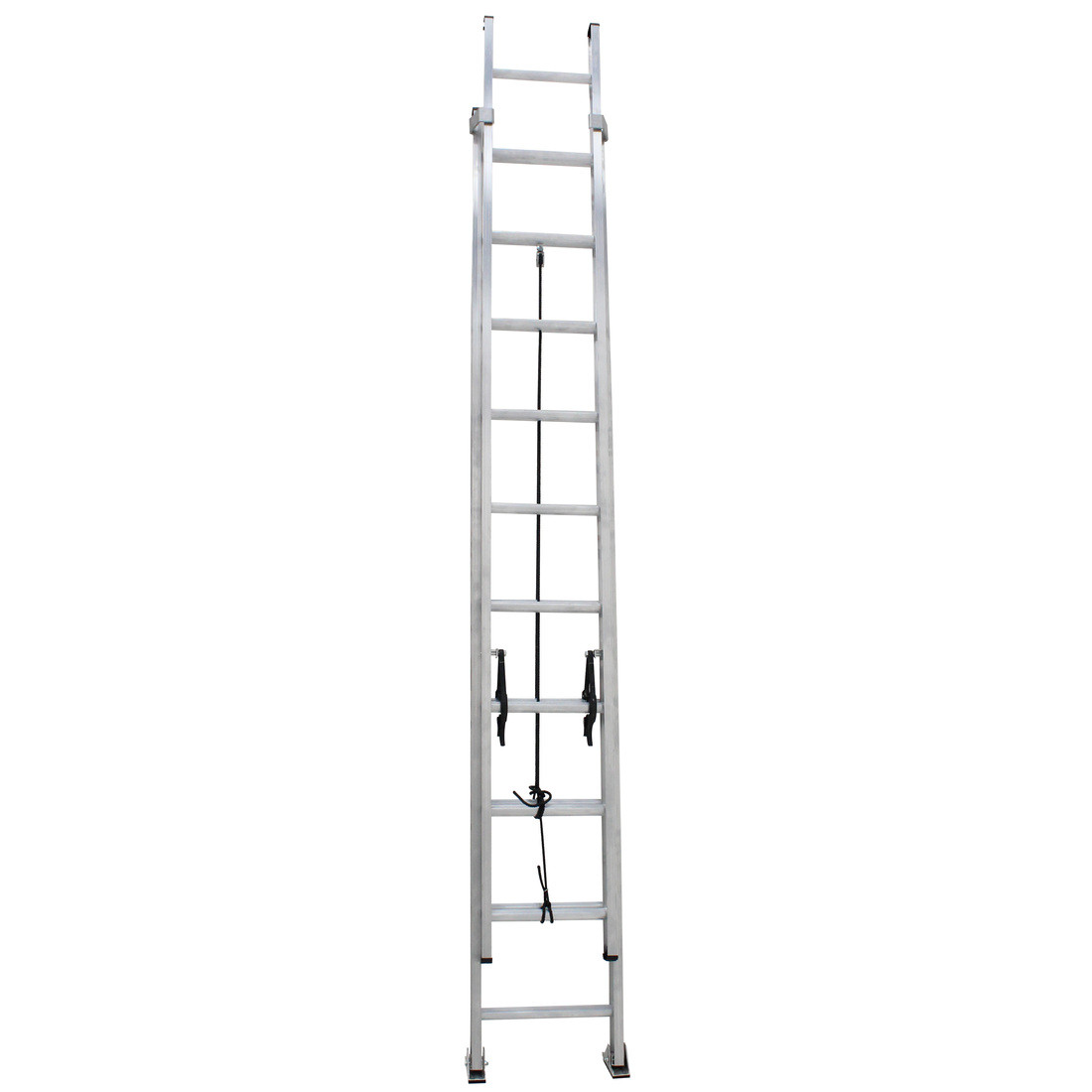

Louisville Ladder: AE2200 Aluminum Extension Ladder (300 lb)

Louisville Ladder: AE2200 Aluminum Extension Ladder (300 lb)

Standard: ANSI A14.2

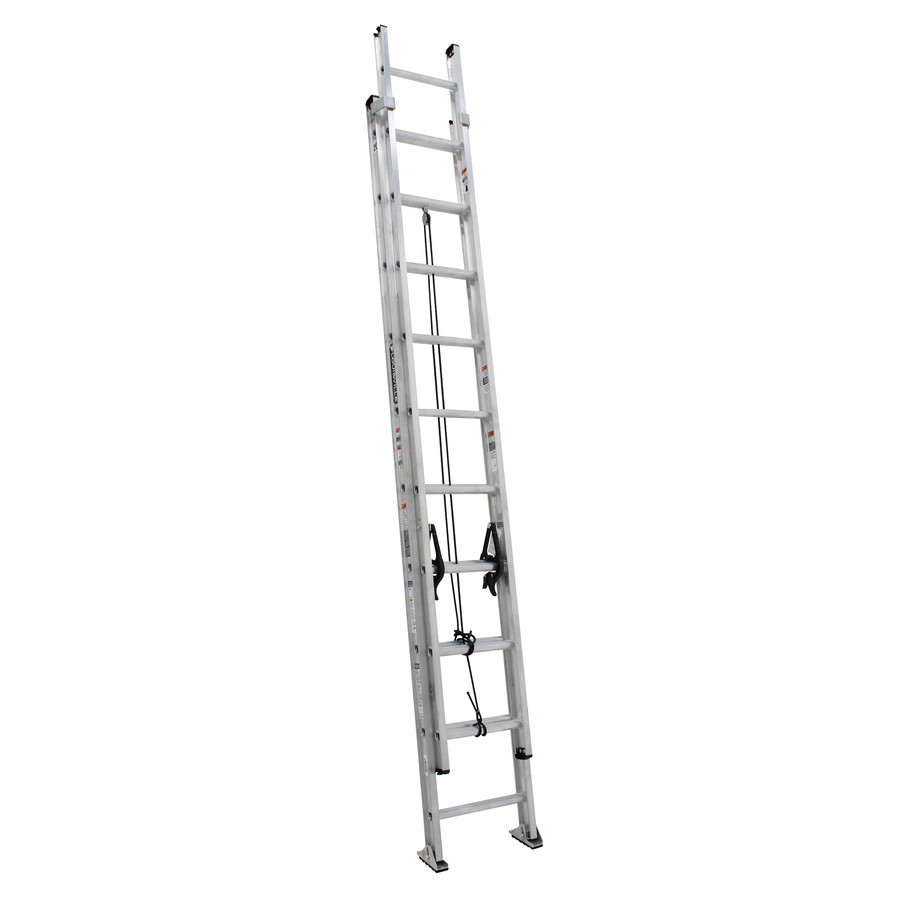

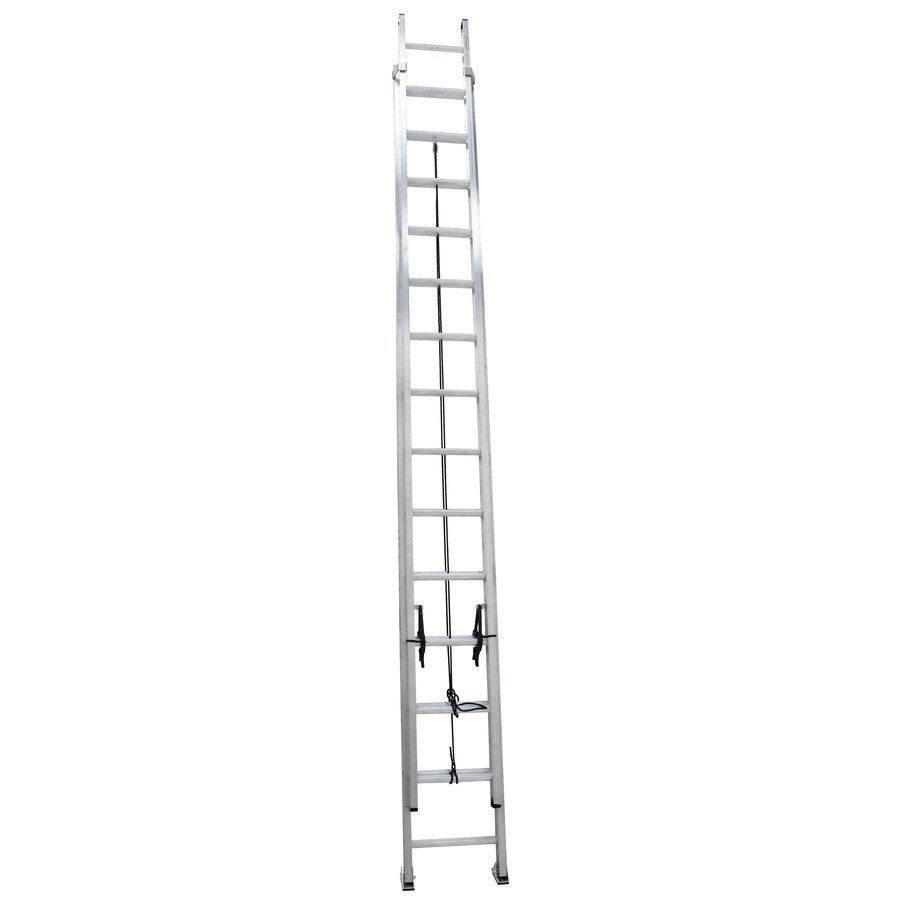

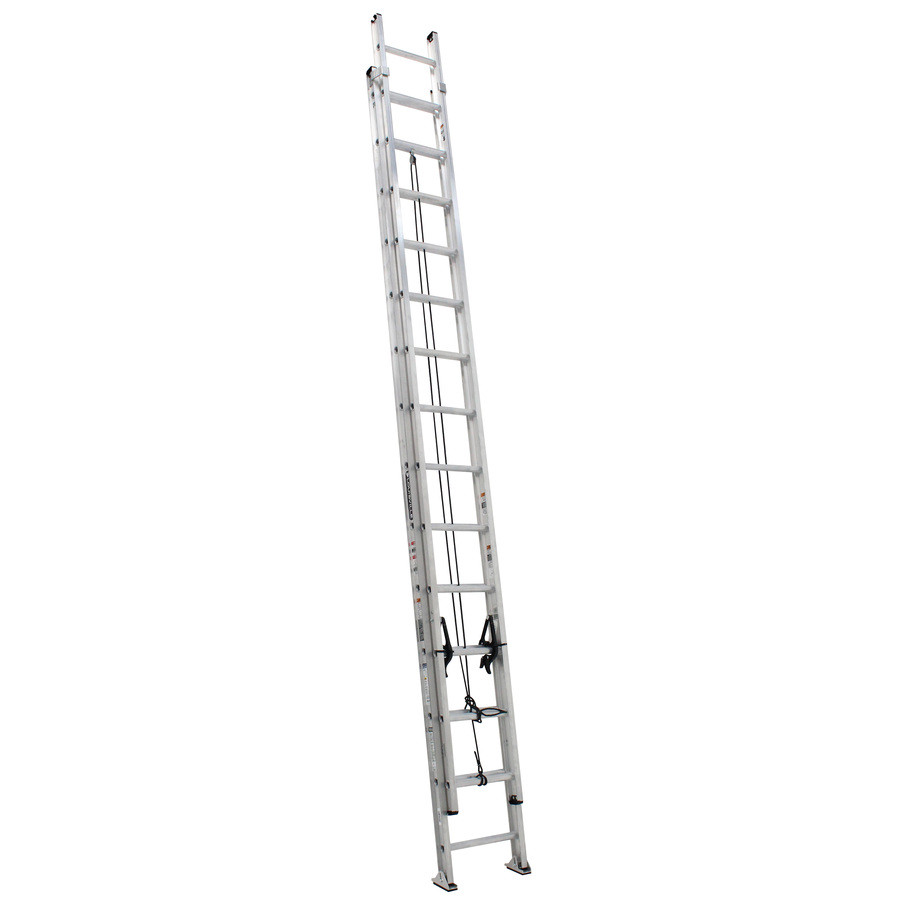

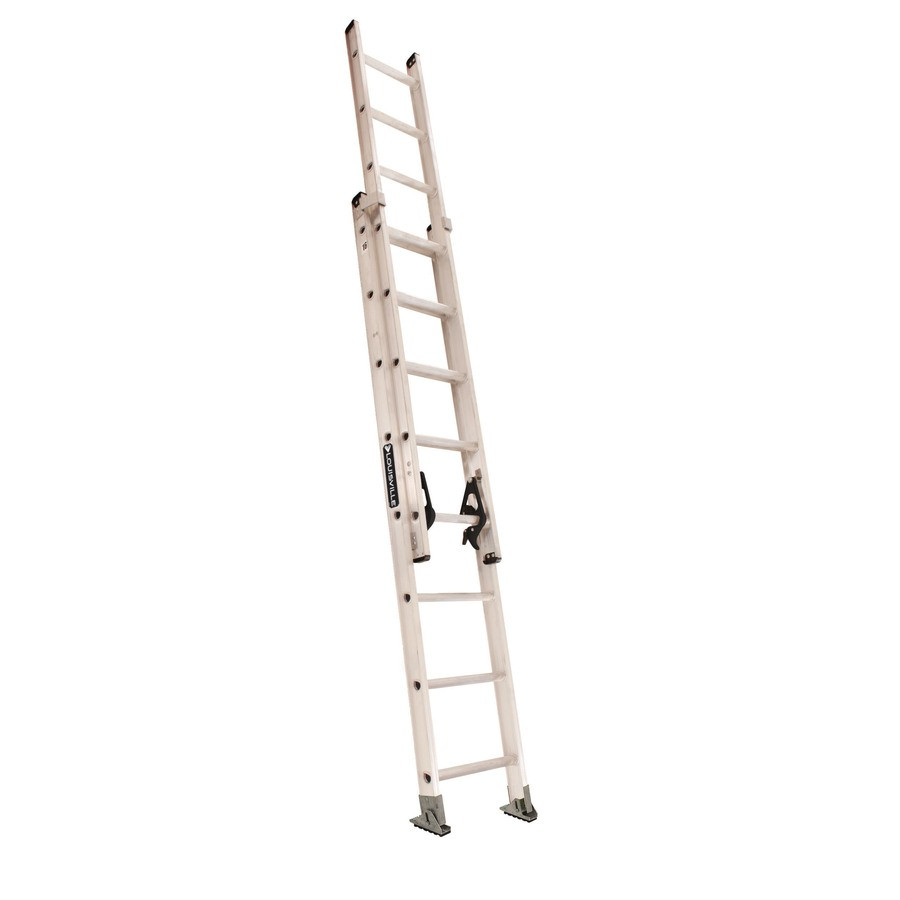

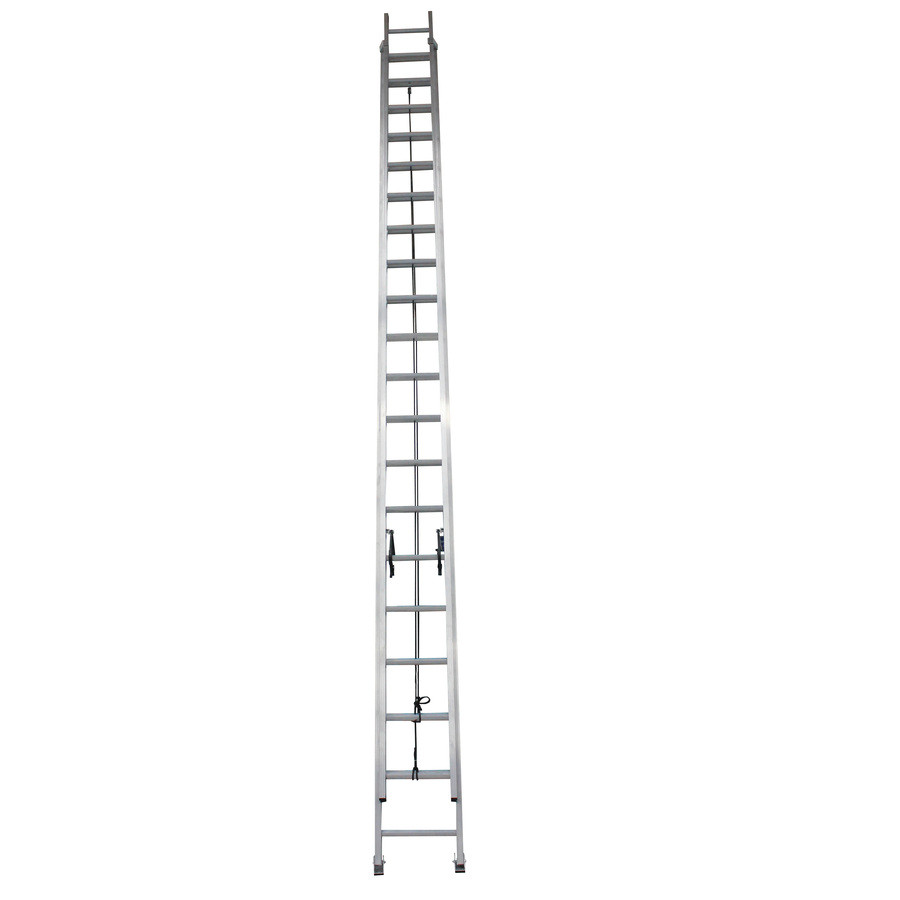

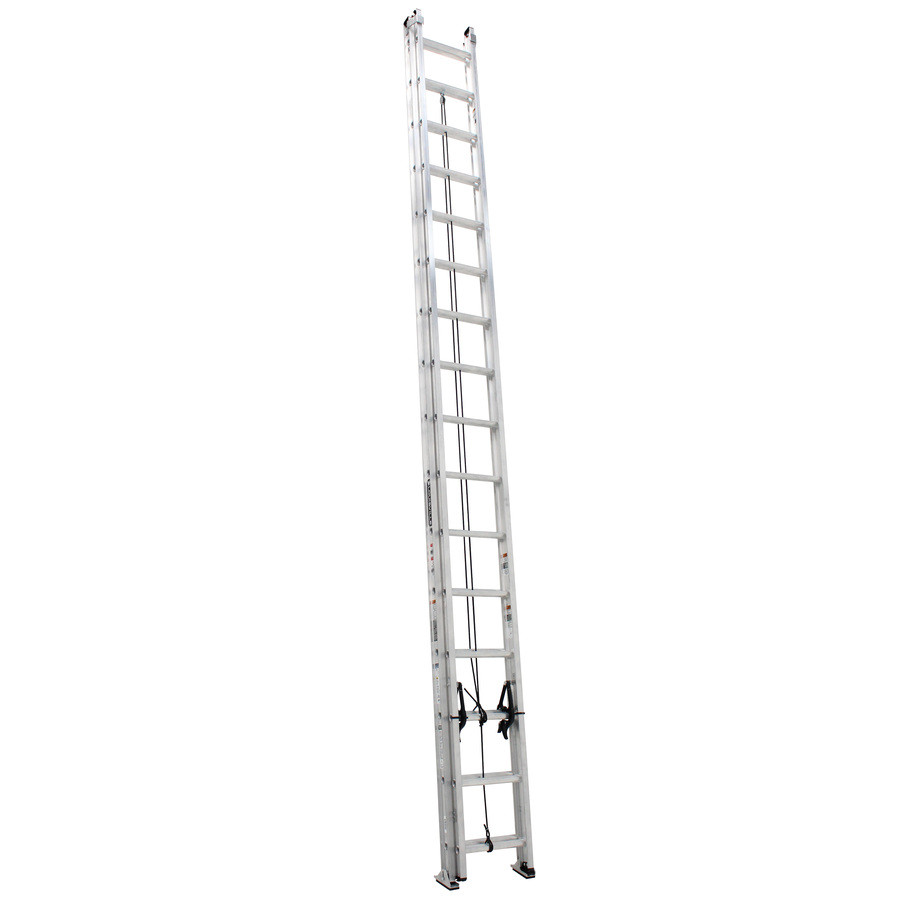

A rugged aluminum extension ladder featuring the MaxLock rung lock and full I-beam rails.

Select your reference

Quantity

Louisville Ladder: AE2200 Aluminum Extension Ladder (300 lb)

Advantages and strengths

Rugged aluminum extension ladder, 300 lb (136 kg) duty rating, for versatile professional use.
MaxLock rung lock with QuickLatch for one-finger securing, full I-beam rails, and D-shaped serrated rungs.

Technical characteristics

Reference	characteristic.CANADA_HAUTEUR_TOTALE	characteristic.CANADA_HAUTEUR_DEPLOYEE	characteristic.CANADA_LARGEUR_BASE	characteristic.CANADA_PORTEE_MAX_EXTENSION	characteristic.CANADA_POIDS	Quantity
Ref. AE2220 Échelle à rallonge en aluminium 20'	20 ft (6.10 m)	17 ft (5.18 m)	17 13/16 in (45.2 cm)	19 ft 10 in (6.05 m)	16,8 kg (37 lb) lb	Quantité maximum disponible pour ce magasin + -
Ref. AE2224 Échelle à rallonge en aluminium 24'	24 ft (7.32 m)	21 ft (6.40 m)	17 13/16 in (45.2 cm)	23 ft 8 in (7.21 m)	19,5 kg (43 lb) lb	Quantité maximum disponible pour ce magasin + -
Ref. AE2228 Échelle à rallonge en aluminium 28'	28 ft (8.53 m)	25 ft (7.62 m)	20 5/8 in (52.4 cm)	27 ft 7 in (8.41 m)	23,6 kg (52 lb) lb	Quantité maximum disponible pour ce magasin + -
Ref. AE2232 Échelle à rallonge en aluminium 32'	32 ft (9.75 m)	29 ft (8.84 m)	20 5/8 in (52.4 cm)	31 ft 5 in (9.58 m)	27,2 kg (60 lb) lb	Quantité maximum disponible pour ce magasin + -
Ref. AE2236 Échelle à rallonge en aluminium 36'	36 ft (10.97 m)	32 ft (9.75 m)	20 5/8 in (52.4 cm)	34 ft 4 in (10.46 m)	34,5 kg (76 lb) lb	Quantité maximum disponible pour ce magasin + -
Ref. AE2240 Échelle à rallonge en aluminium 40'	40 ft (12.19 m)	35 ft (10.67 m)	20 5/8 in (52.4 cm)	37 ft 3 in (11.35 m)	38,1 kg (84 lb) lb	Quantité maximum disponible pour ce magasin + -

Échelle à rallonge en aluminium 20'
Reference :	AE2220
characteristic.CANADA_HAUTEUR_TOTALE	20 ft (6.10 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE	17 ft (5.18 m)
characteristic.CANADA_LARGEUR_BASE	17 13/16 in (45.2 cm)
characteristic.CANADA_PORTEE_MAX_EXTENSION	19 ft 10 in (6.05 m)
characteristic.CANADA_POIDS	16,8 kg (37 lb) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Échelle à rallonge en aluminium 24'
Reference :	AE2224
characteristic.CANADA_HAUTEUR_TOTALE	24 ft (7.32 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE	21 ft (6.40 m)
characteristic.CANADA_LARGEUR_BASE	17 13/16 in (45.2 cm)
characteristic.CANADA_PORTEE_MAX_EXTENSION	23 ft 8 in (7.21 m)
characteristic.CANADA_POIDS	19,5 kg (43 lb) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Échelle à rallonge en aluminium 28'
Reference :	AE2228
characteristic.CANADA_HAUTEUR_TOTALE	28 ft (8.53 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE	25 ft (7.62 m)
characteristic.CANADA_LARGEUR_BASE	20 5/8 in (52.4 cm)
characteristic.CANADA_PORTEE_MAX_EXTENSION	27 ft 7 in (8.41 m)
characteristic.CANADA_POIDS	23,6 kg (52 lb) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Échelle à rallonge en aluminium 32'
Reference :	AE2232
characteristic.CANADA_HAUTEUR_TOTALE	32 ft (9.75 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE	29 ft (8.84 m)
characteristic.CANADA_LARGEUR_BASE	20 5/8 in (52.4 cm)
characteristic.CANADA_PORTEE_MAX_EXTENSION	31 ft 5 in (9.58 m)
characteristic.CANADA_POIDS	27,2 kg (60 lb) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Échelle à rallonge en aluminium 36'
Reference :	AE2236
characteristic.CANADA_HAUTEUR_TOTALE	36 ft (10.97 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE	32 ft (9.75 m)
characteristic.CANADA_LARGEUR_BASE	20 5/8 in (52.4 cm)
characteristic.CANADA_PORTEE_MAX_EXTENSION	34 ft 4 in (10.46 m)
characteristic.CANADA_POIDS	34,5 kg (76 lb) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Échelle à rallonge en aluminium 40'
Reference :	AE2240
characteristic.CANADA_HAUTEUR_TOTALE	40 ft (12.19 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE	35 ft (10.67 m)
characteristic.CANADA_LARGEUR_BASE	20 5/8 in (52.4 cm)
characteristic.CANADA_PORTEE_MAX_EXTENSION	37 ft 3 in (11.35 m)
characteristic.CANADA_POIDS	38,1 kg (84 lb) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

Strength and light weight

Full I-beam rails offer an excellent strength-to-weight ratio, for a ladder that is both rugged and manageable.

MaxLock technology

The MaxLock rung lock with QuickLatch allows one-finger securing of extended sections, for fast and safe deployment.

Safety and stability

Outside slide guides prevent over-extension, while D-shaped serrated rungs and the swivel safety shoe ensure good stability.

Electrical warning

Aluminum is an excellent conductor of electricity. This ladder must never be used near power lines or live circuits. A fiberglass ladder should be preferred for such contexts.

Regulatory compliance

Designed to meet or exceed ANSI A14.2 requirements, as well as applicable CSA standards for the Canadian market.

Technical description

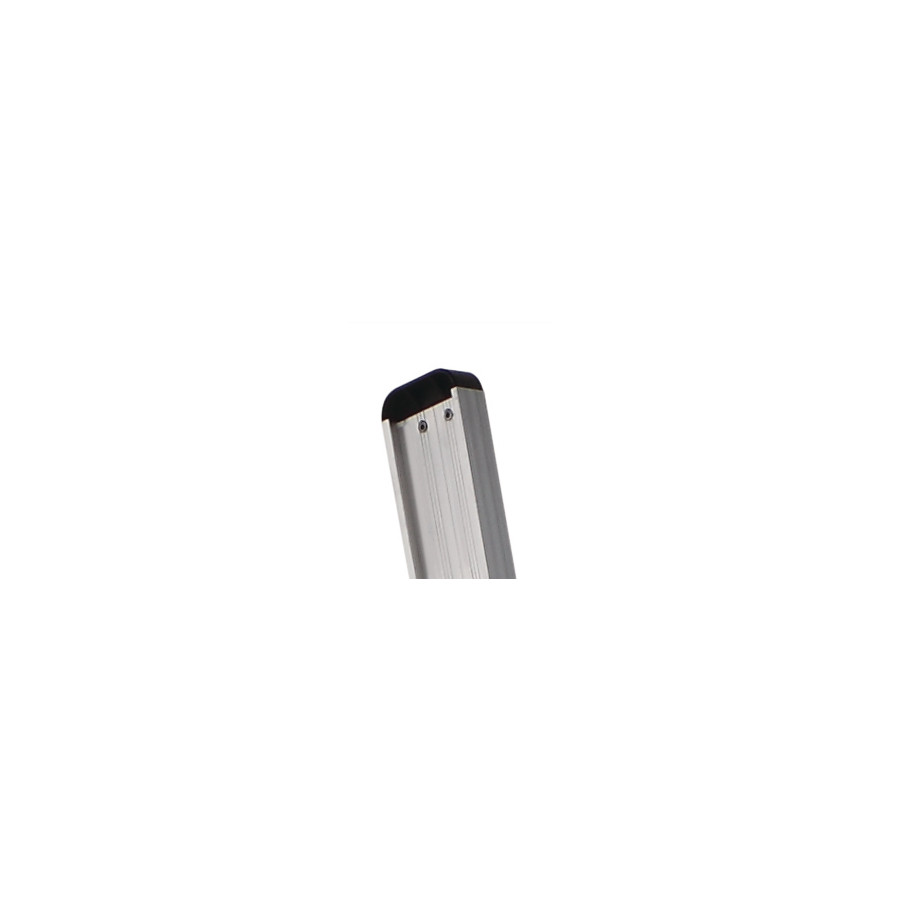

Mar-resistant rail end caps: protect support surfaces from damage.

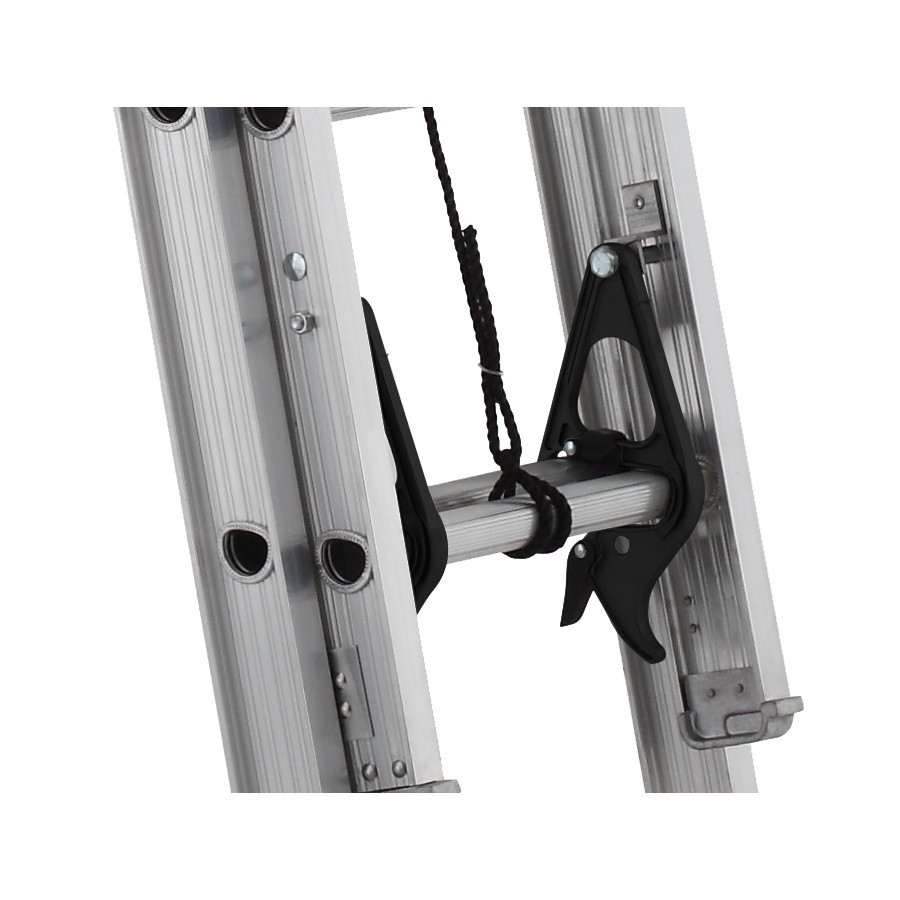

MaxLock with QuickLatch: one-finger securing of extended sections.

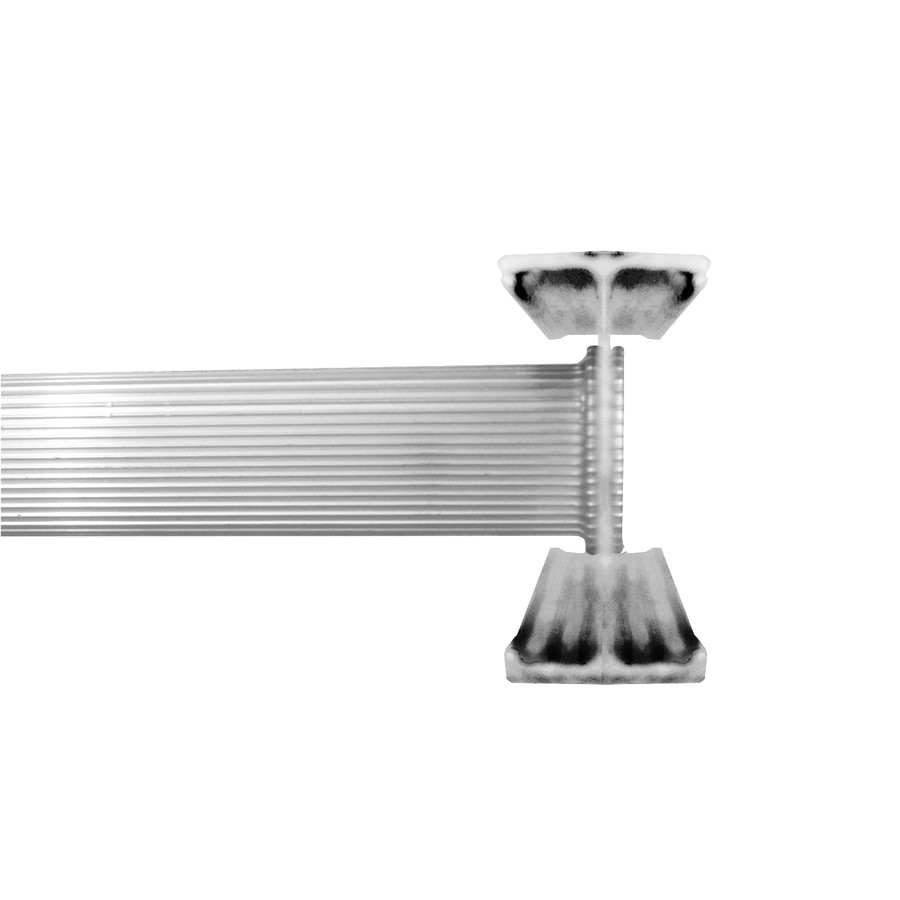

Full I-beam rails: maximum strength at reduced weight.

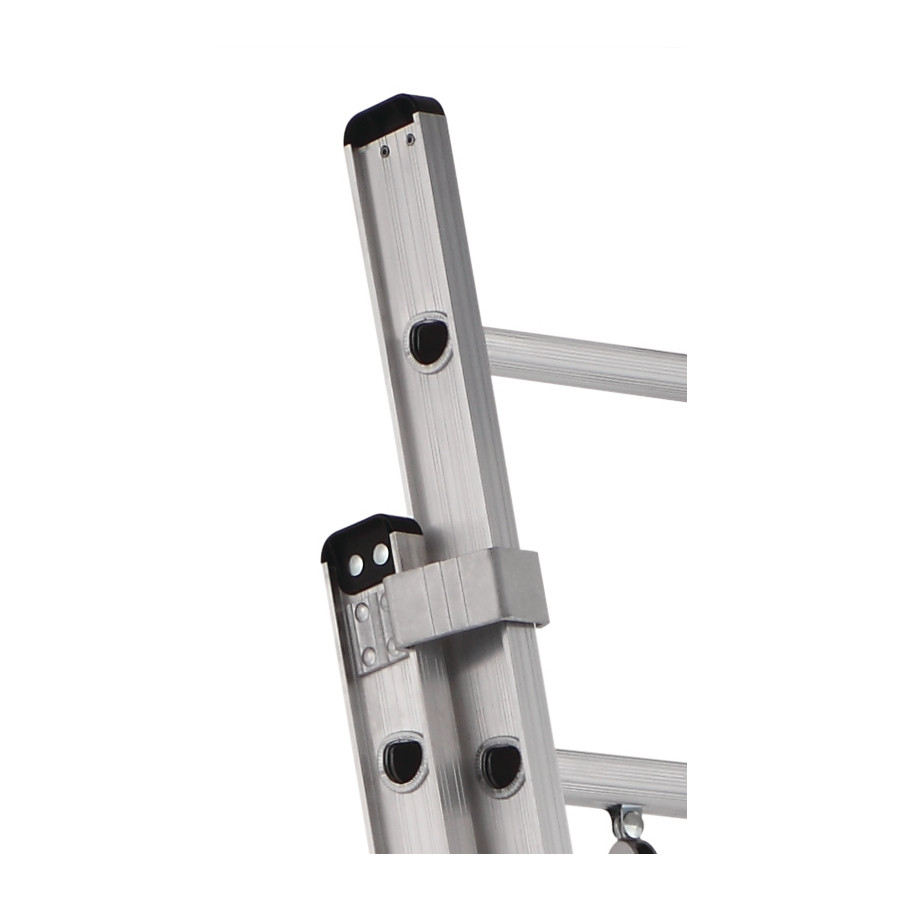

Outside slide guides: prevent over-extension of the fly section.

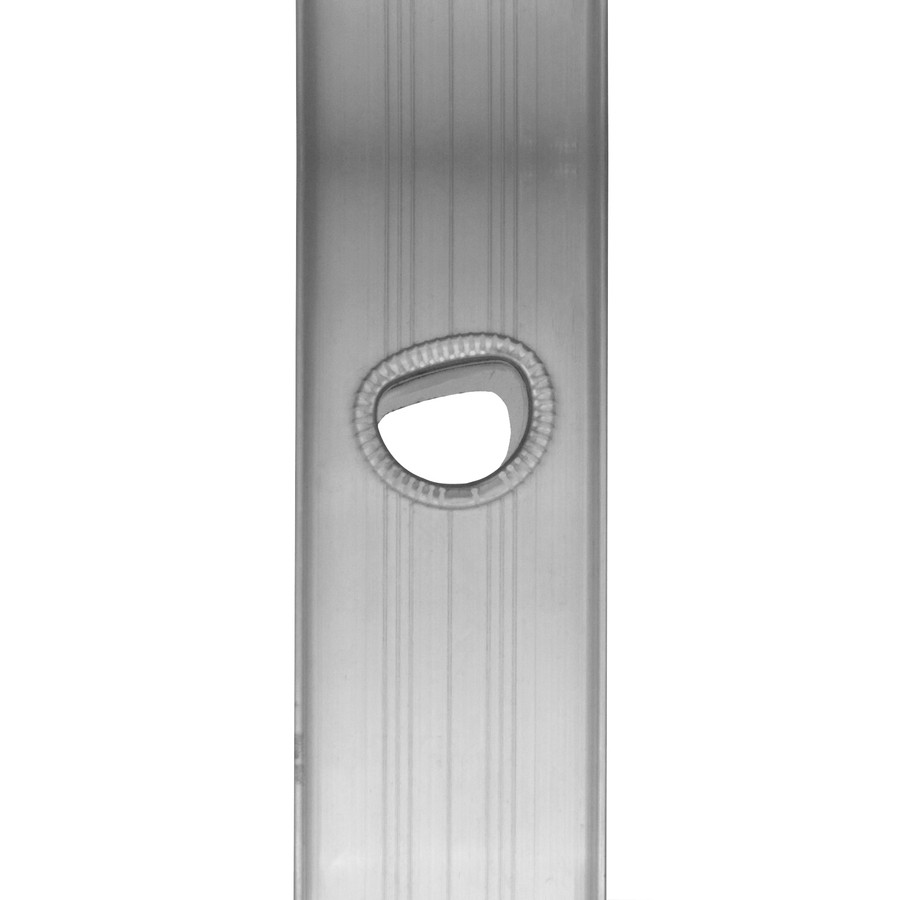

D-shaped serrated rungs: flat, slip-resistant standing surface.

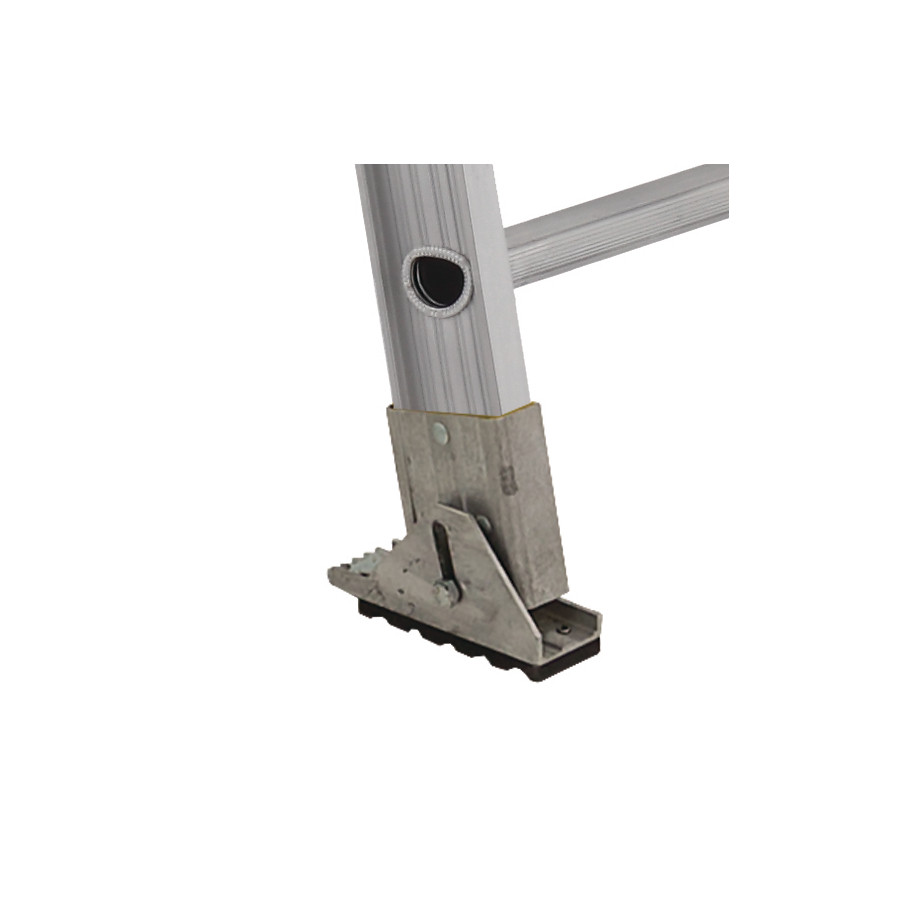

Swivel safety shoe with overmolded tread: improved grip on varied surfaces.

Duty rating: 300 lb (136 kg), Type IA, professional use.
