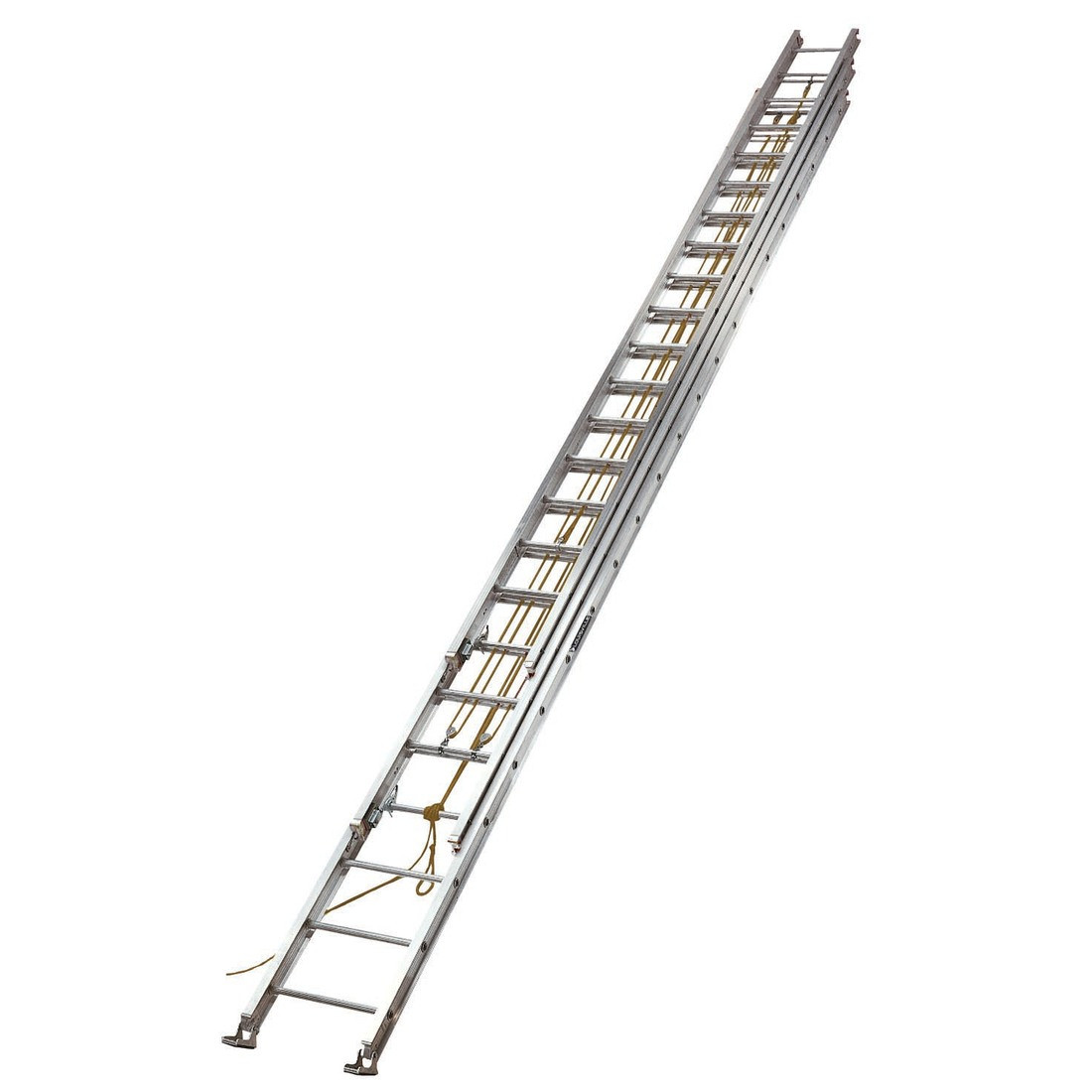

Louisville Ladder: AE1660 3-Section Aluminum Extension Ladder (250 lb)

Standard: ANSI A14.2

A 3-section aluminum extension ladder for reaching great heights, up to 49 ft 10 in (15.19 m) of reach.

Select your reference

Quantity

Louisville Ladder: AE1660 3-Section Aluminum Extension Ladder (250 lb)

Advantages and strengths

3-section aluminum extension ladder, 250 lb (113.4 kg) duty rating, for reaching great heights up to 49 ft 10 in (15.19 m) of reach.
Full I-beam rails, cast-aluminum rail end caps, and a double rope and pulley system for easier deployment of the 3 sections.

Technical characteristics

Reference	characteristic.CANADA_HAUTEUR_TOTALE	characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX	characteristic.CANADA_HAUTEUR_PORTEE	characteristic.CANADA_PROF_RAIL	characteristic.CANADA_POIDS	Quantity	Quote
Ref. AE1660 3-Section Aluminum Extension Ladder	60 ft (18.29 m)	48 ft (14.63 m)	49 ft 10 in (15.19 m)	4 in (10.2 cm)	169 lb (76.7 kg) lb	Quantité maximum disponible pour ce magasin + -

3-Section Aluminum Extension Ladder
Reference :	AE1660
characteristic.CANADA_HAUTEUR_TOTALE	60 ft (18.29 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX	48 ft (14.63 m)
characteristic.CANADA_HAUTEUR_PORTEE	49 ft 10 in (15.19 m)
characteristic.CANADA_PROF_RAIL	4 in (10.2 cm)
characteristic.CANADA_POIDS	169 lb (76.7 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

Extra-long reach in 3 sections

With its 3 sliding sections, the AE1660 reaches a maximum extension of 49 ft 10 in (15.19 m), for the most demanding elevated work.

Easier deployment

The double rope and pulley system eases section deployment, even on a ladder of this size.

Rugged construction

Full I-beam rails and cast-aluminum end caps ensure optimal strength and durability.

Electrical warning

Aluminum is an excellent conductor of electricity. This ladder must never be used near power lines or live circuits.

Regulatory compliance

Designed to meet or exceed ANSI A14.2 requirements, as well as applicable CSA standards for the Canadian market.

Technical description

Cast-aluminum rail end caps: increased strength and longevity.

Round rungs: slip-resistant surface, hydraulically crimped on both ends.

Double rope and pulley: eases section deployment.

Full I-beam rails: maximum strength at reduced weight.

Swivel safety shoe with overmolded tread: improved grip on varied surfaces.

3 sections: base 22 ft (6.71 m), center 20 ft (6.10 m), fly 18 ft (5.49 m).

Duty rating: 250 lb (113.4 kg), Type I, maximum reach 49 ft 10 in (15.19 m).
