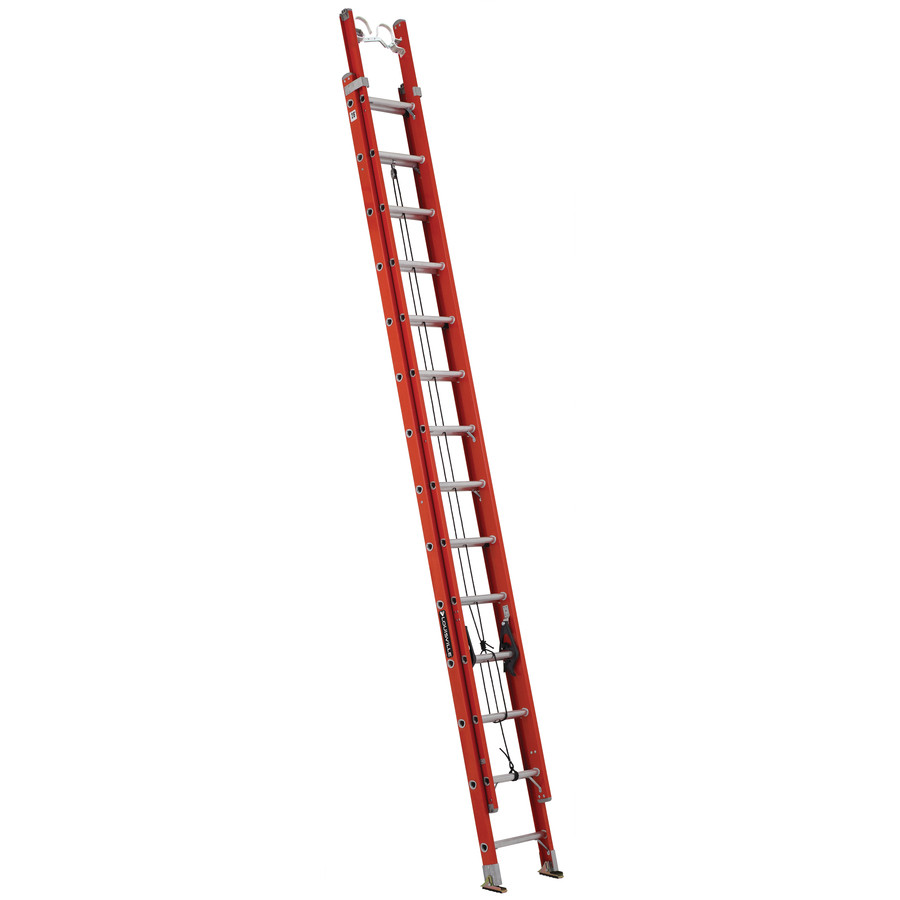

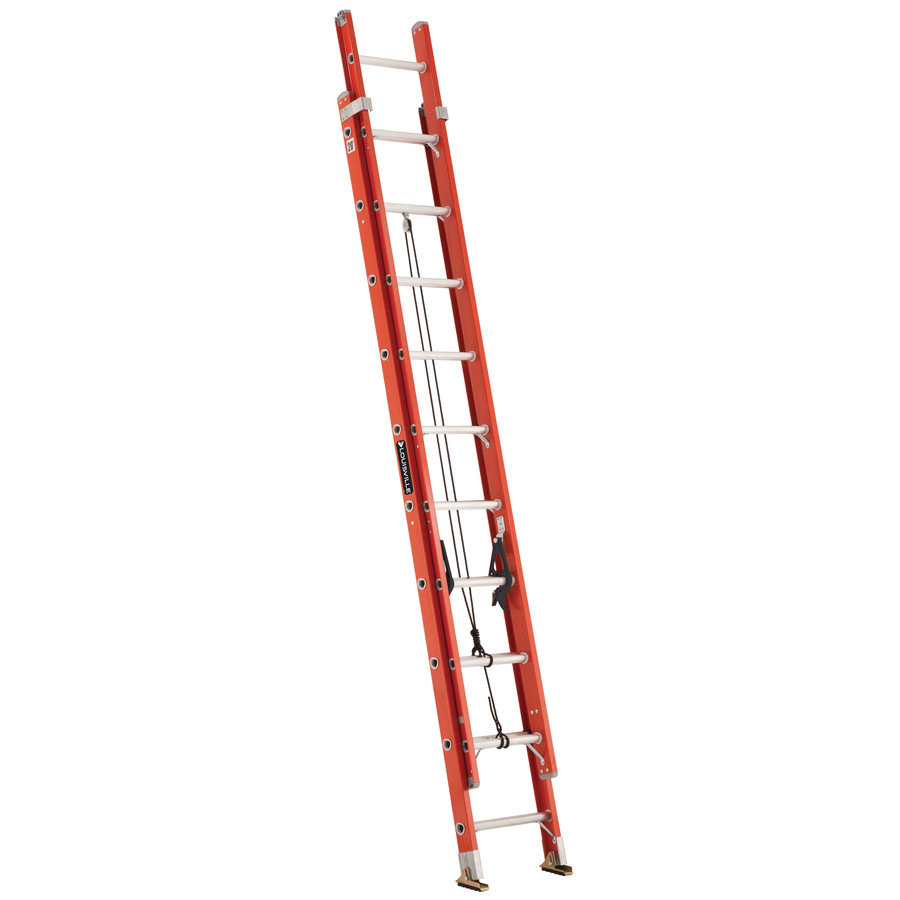

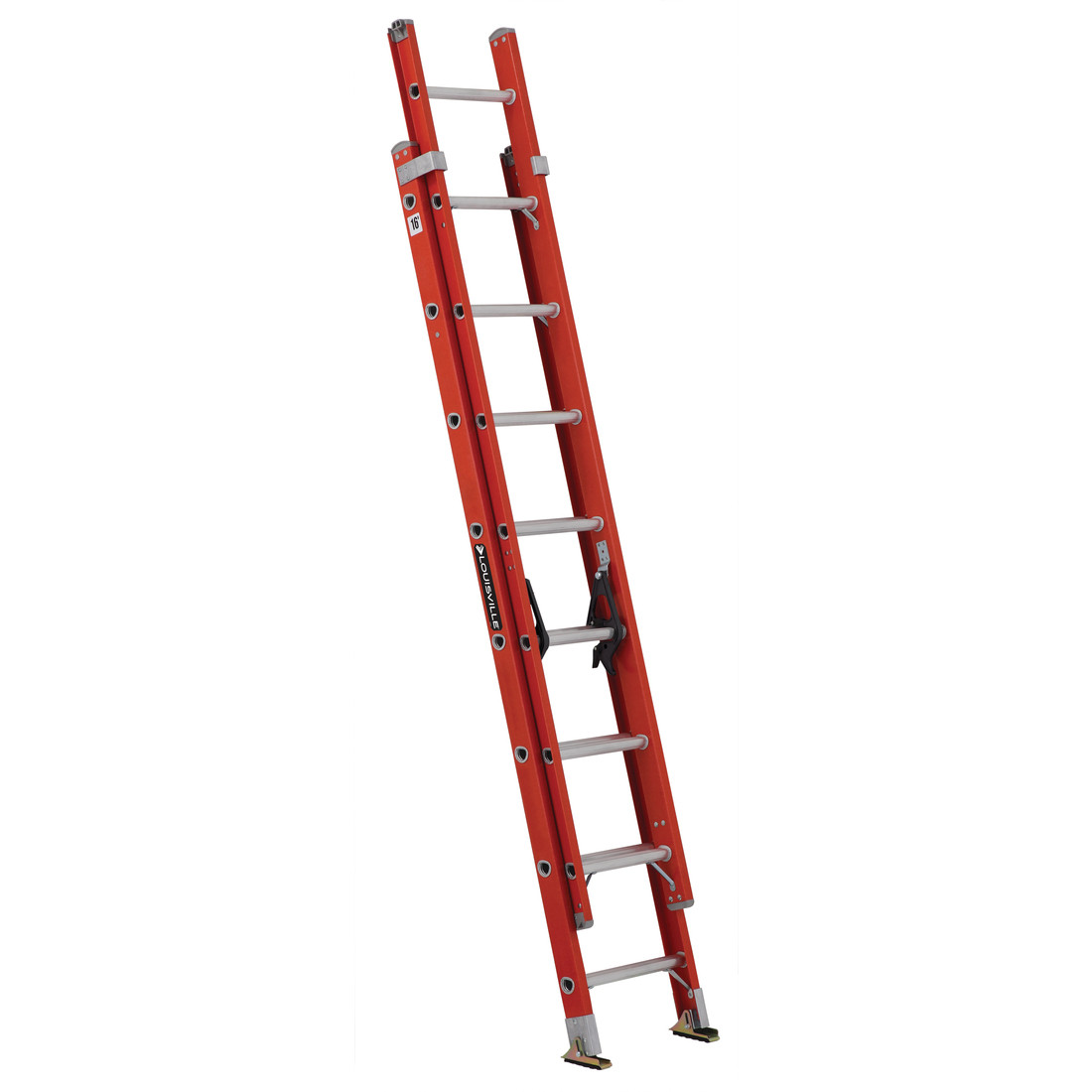

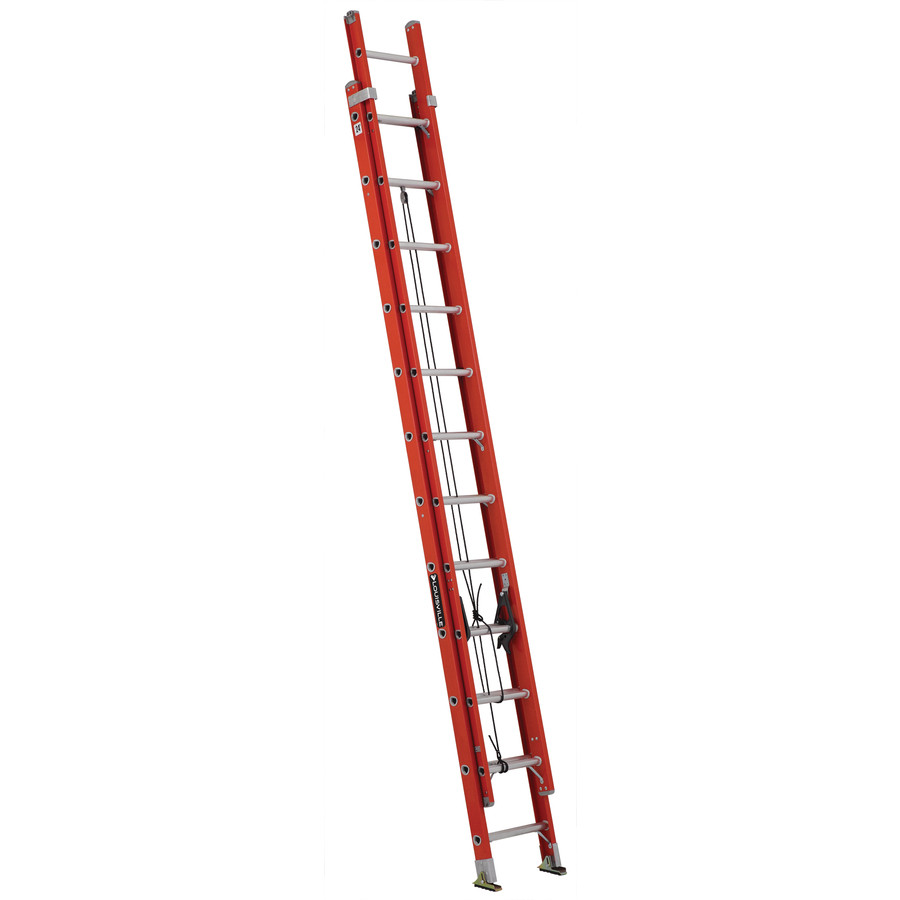

FE3200 Fiberglass Extension Ladder (300 lb) - Louisville ladder
A rugged fiberglass extension ladder featuring the MaxLock rung lock.
Advantages and strengths
Rugged fiberglass extension ladder, 300 lb (136 kg) duty rating, for versatile professional use.
MaxLock rung lock with QuickLatch for one-finger securing of extended sections, outside slide guides, and D-shaped serrated rungs.
WARNING: although non-conductive when clean and dry, this ladder must still be used with appropriate caution near electrical circuits.
Technical characteristics
| Fiberglass Extension Ladder 20 ft | |
|---|---|
| Reference : | FE3220 |
| characteristic.CANADA_HAUTEUR_TOTALE | 6,10 m (20 pi) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE | 5,18 m (17 ft) |
| characteristic.CANADA_LARGEUR_BASE | 43.3 cm (17 1/16 in) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 6.05 m (19 ft 10 in) |
| characteristic.CANADA_POIDS | 19,1 kg (42 lb) lb |
| Quantity : |
|
| Fiberglass Extension Ladder 24 ft | |
|---|---|
| Reference : | FE3224 |
| characteristic.CANADA_HAUTEUR_TOTALE | 7 ,32 m (24 ft) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE | 6,40 m (21 ft) |
| characteristic.CANADA_LARGEUR_BASE | 43.3 cm (17 1/16 in) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 7.21 m (23 ft 8 in) |
| characteristic.CANADA_POIDS | 23,1 kg (51 lb) lb |
| Quantity : |
|
| Fiberglass Extension Ladder 28 ft | |
|---|---|
| Reference : | FE3228 |
| characteristic.CANADA_HAUTEUR_TOTALE | 8,53 m (28 ft) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE | 7,62 m (25 ft) |
| characteristic.CANADA_LARGEUR_BASE | 43,3 cm (17 1/16 po) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 8.41 m (27 ft 7 in) |
| characteristic.CANADA_POIDS | 27,2 kg (60 lb) lb |
| Quantity : |
|
| Fiberglass Extension Ladder 32 ft | |
|---|---|
| Reference : | FE3232 |
| characteristic.CANADA_HAUTEUR_TOTALE | 9,75 m (32 ft) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE | 8,84 m (29 ft) |
| characteristic.CANADA_LARGEUR_BASE | 44.9 cm (17 11/16 in) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 9.58 m (31 ft 5 in) |
| characteristic.CANADA_POIDS | 30,4 kg (67 lb) lb |
| Quantity : |
|
| Fiberglass Extension Ladder 36 ft | |
|---|---|
| Reference : | FE3236 |
| characteristic.CANADA_HAUTEUR_TOTALE | 10,97 m (36 ft) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE | 9,75 m (32 ft) |
| characteristic.CANADA_LARGEUR_BASE | 44.9 cm (17 11/16 in) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 10.46 m (34 ft 4 in) |
| characteristic.CANADA_POIDS | 38,1 kg (84 lb) lb |
| Quantity : |
|
| Fiberglass Extension Ladder 40 ft | |
|---|---|
| Reference : | FE3240 |
| characteristic.CANADA_HAUTEUR_TOTALE | 12,19 m (40 ft) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE | 10,67 m (35 ft) |
| characteristic.CANADA_LARGEUR_BASE | 44.9 cm (17 11/16 in) |
| characteristic.CANADA_PORTEE_MAX_EXTENSION | 11.35 m (37 ft 3 in) |
| characteristic.CANADA_POIDS | 41,7 kg (92 lb) lb |
| Quantity : |
|
Use
Professional versatility

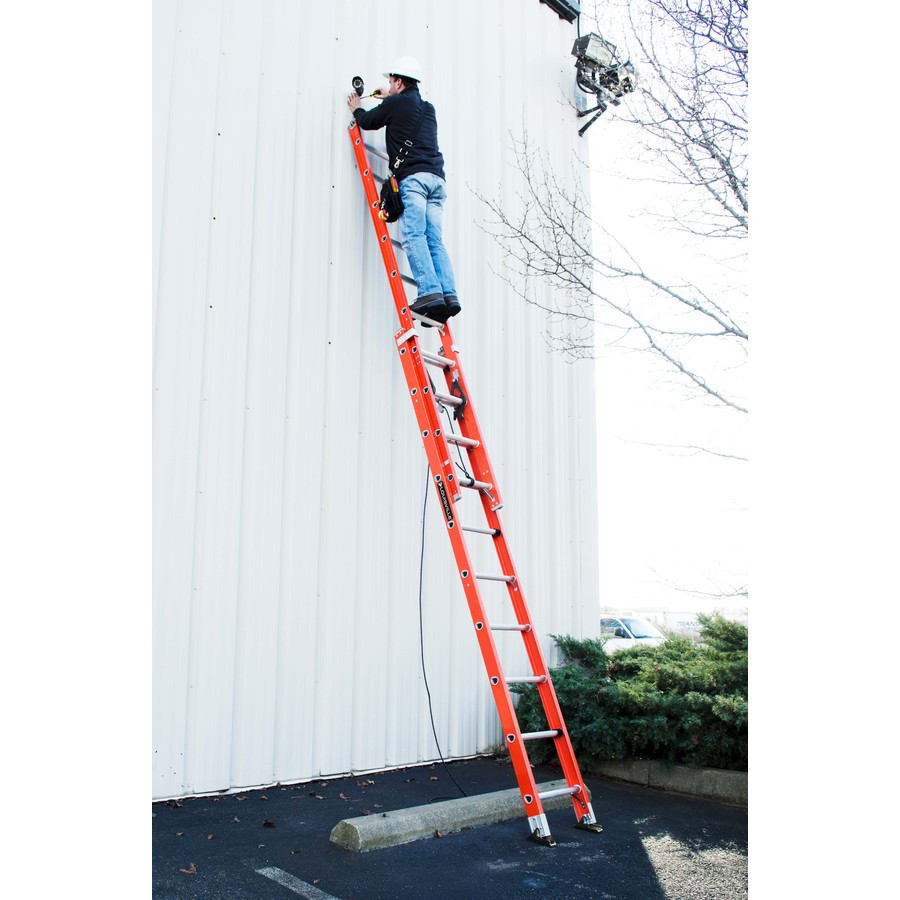

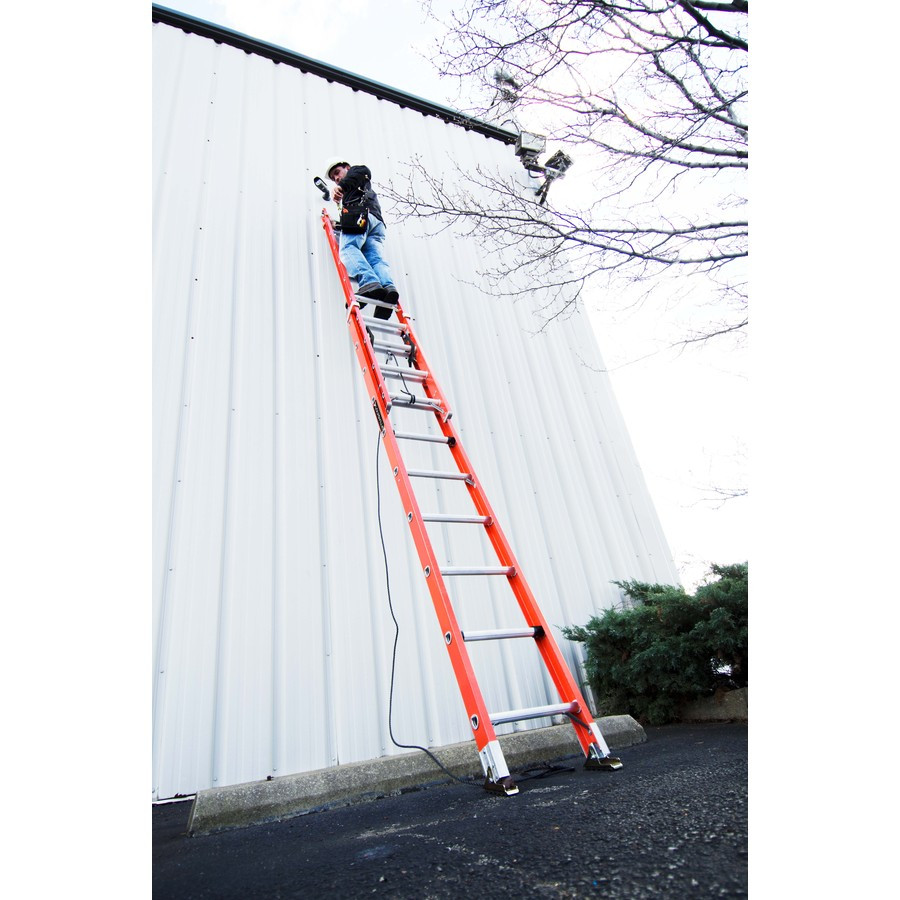

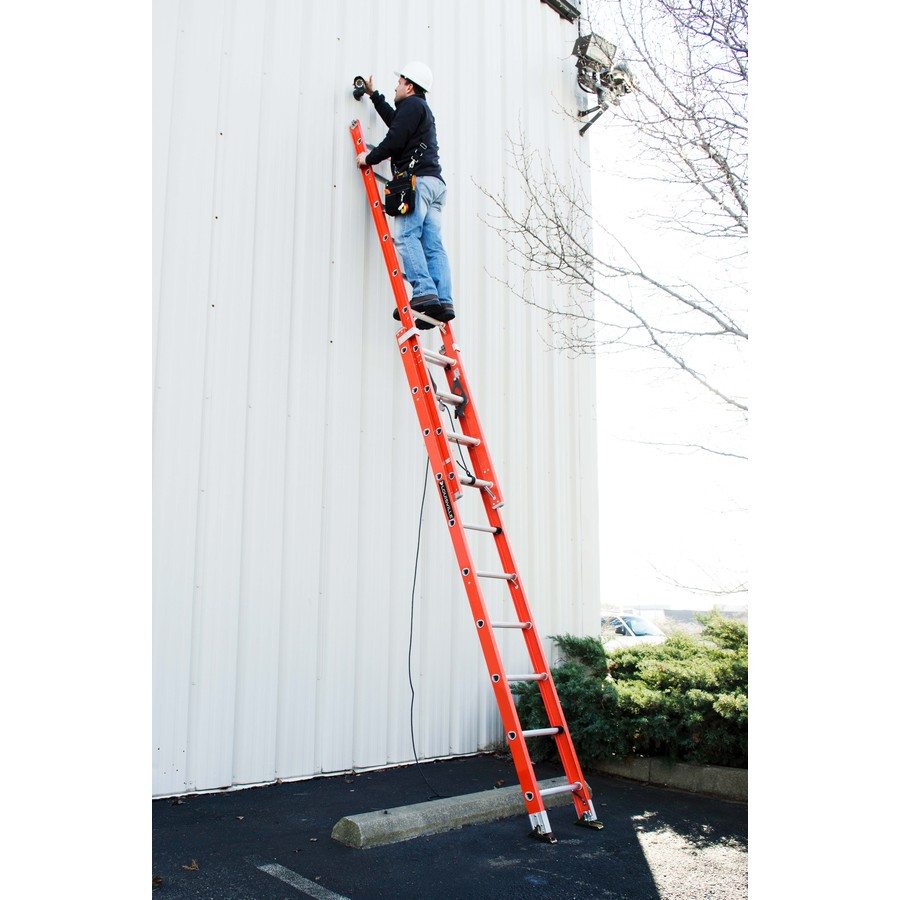

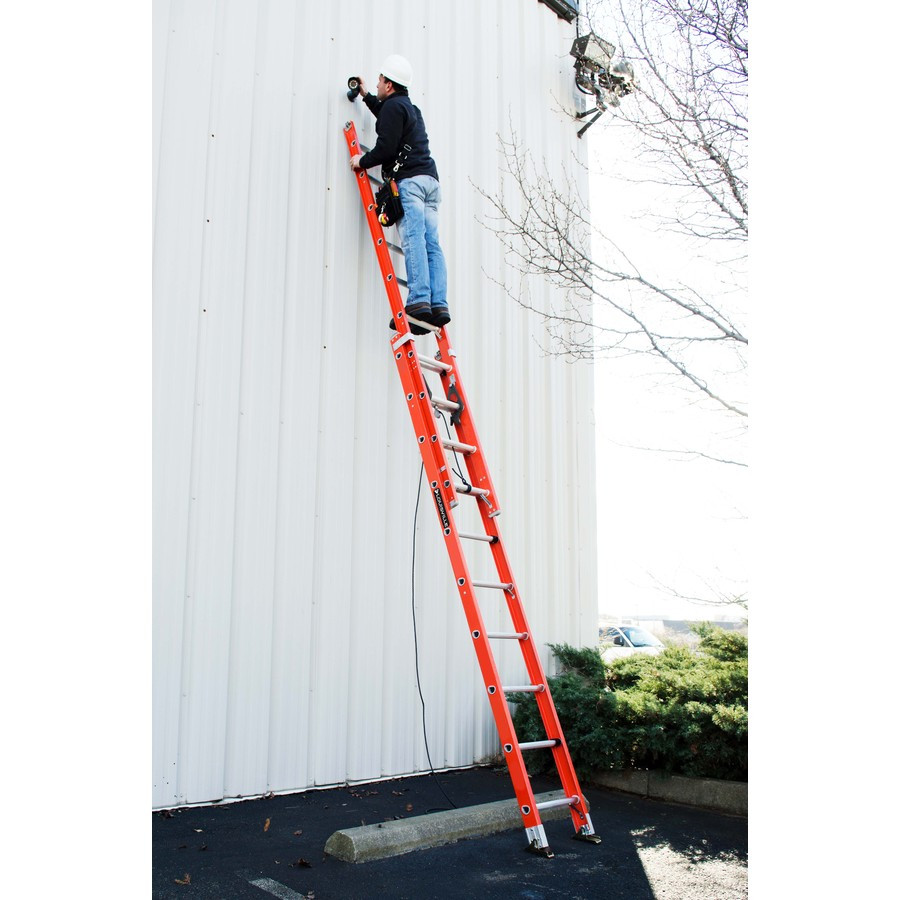

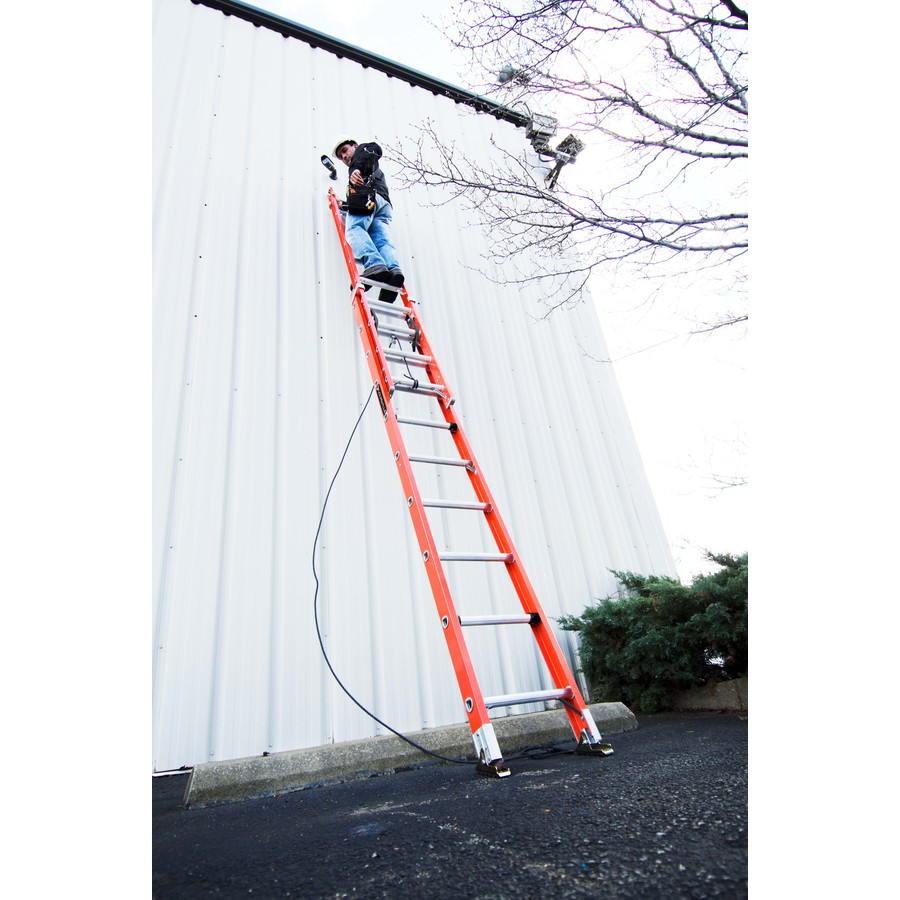

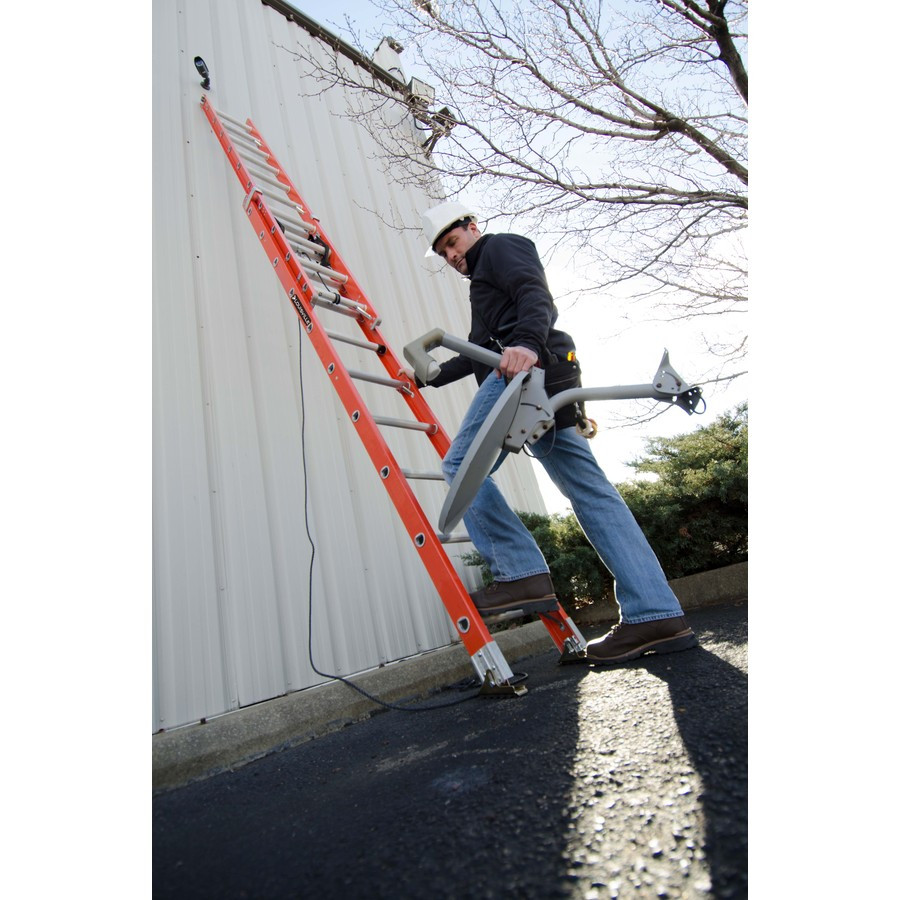

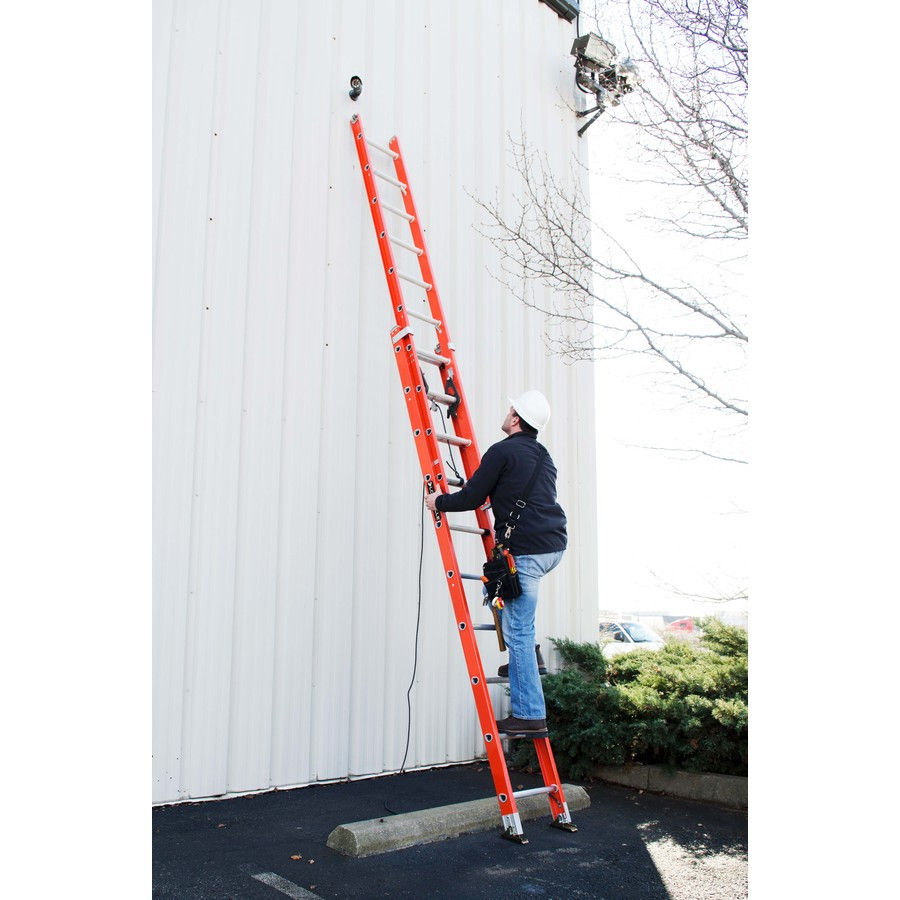

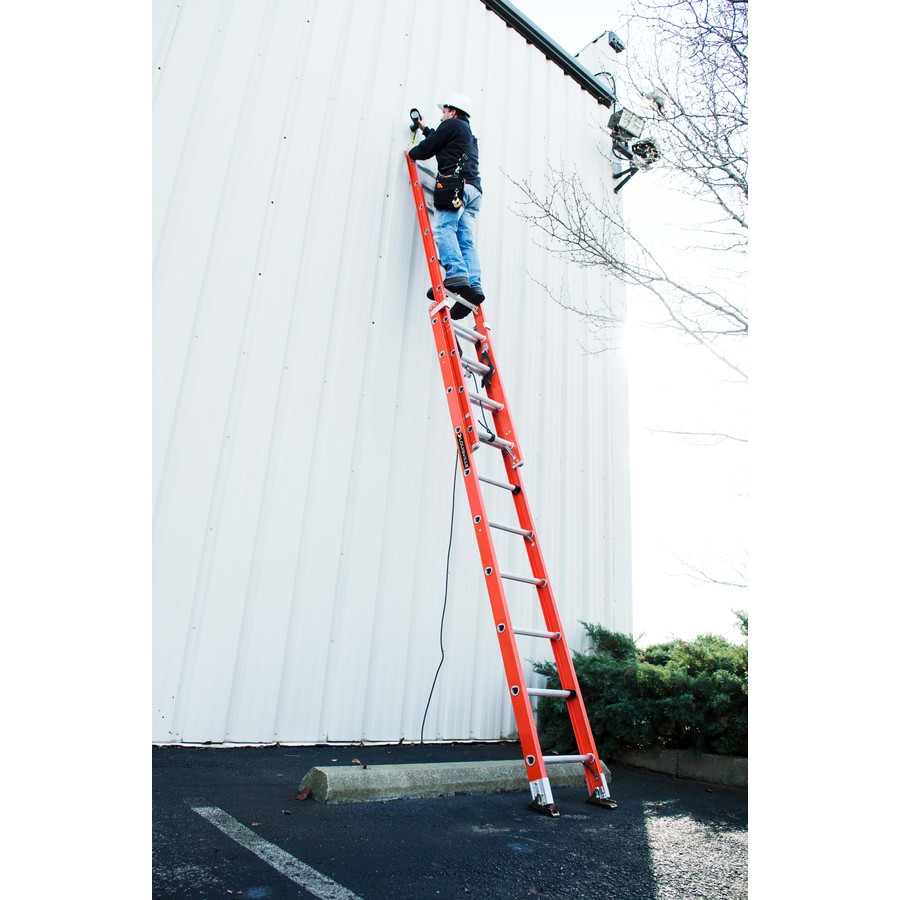

With a 300 lb (136 kg) rating, the FE3200 suits a wide range of professional tasks: building maintenance, roofing, construction.
MaxLock technology

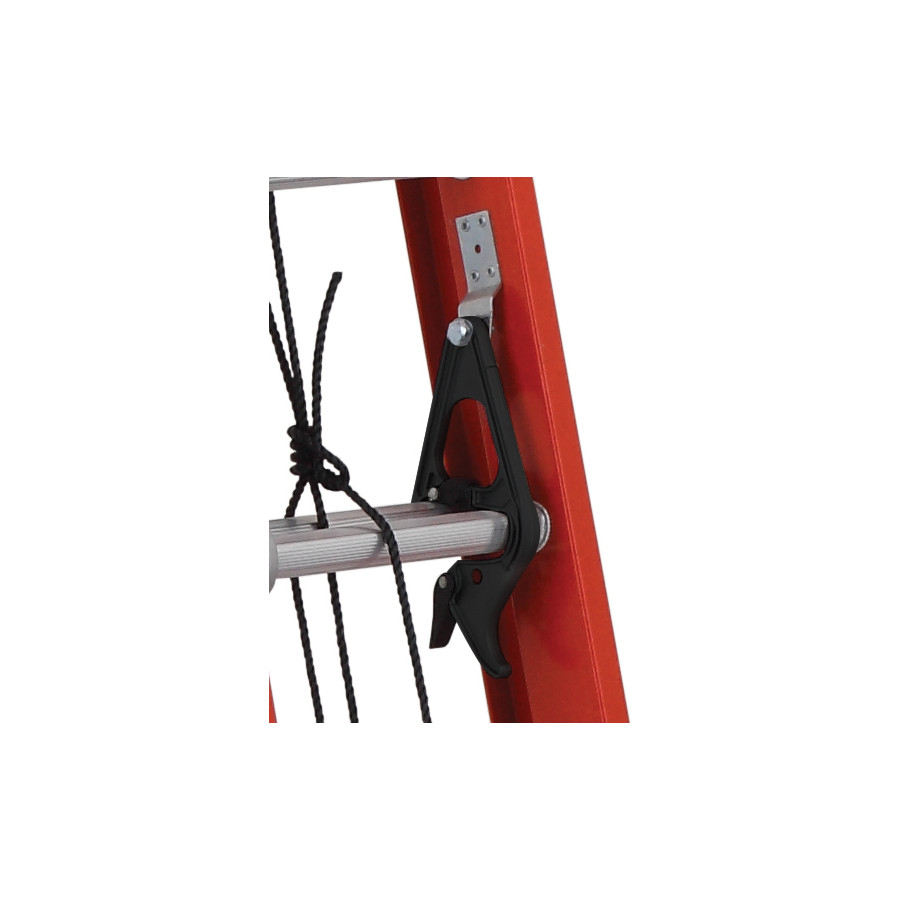

The MaxLock rung lock with QuickLatch allows one-finger securing of extended sections, for fast and safe deployment.
Safety and stability
Outside slide guides prevent over-extension, while D-shaped serrated rungs and the swivel safety shoe ensure good stability.
Non-conductive
Fiberglass does not conduct electricity when clean and dry, an asset for electrical work or work near live lines.
Regulatory compliance
Designed to meet or exceed ANSI A14.5 requirements, as well as applicable CSA standards for the Canadian marketTechnical description

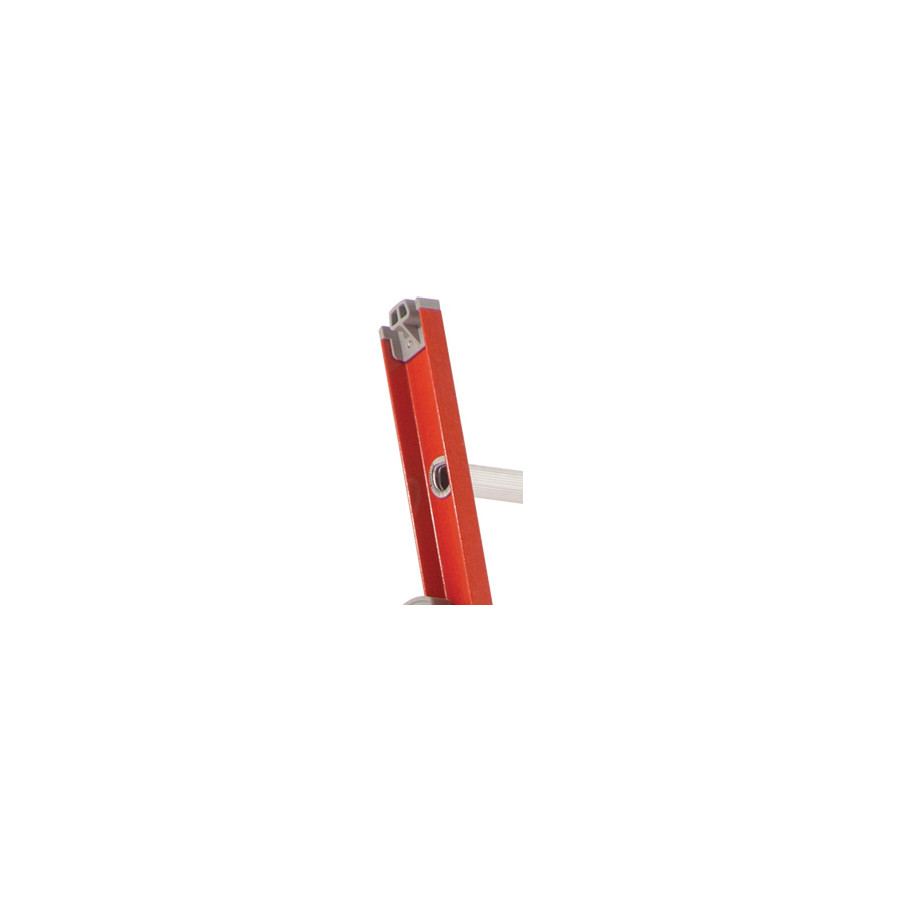

Mar-resistant rail end caps: protect support surfaces from damage.
MaxLock with QuickLatch: one-finger securing of extended sections.

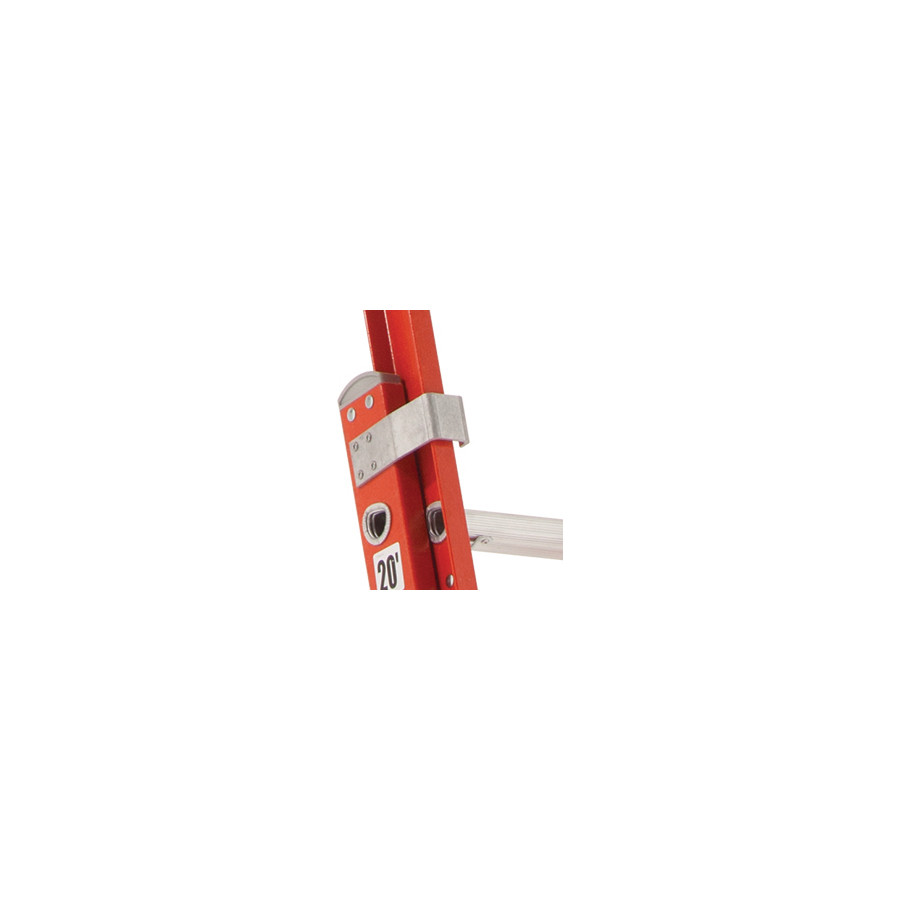

Outside slide guides: prevent over-extension of the fly section.
D-shaped serrated rungs: flat, slip-resistant standing surface.

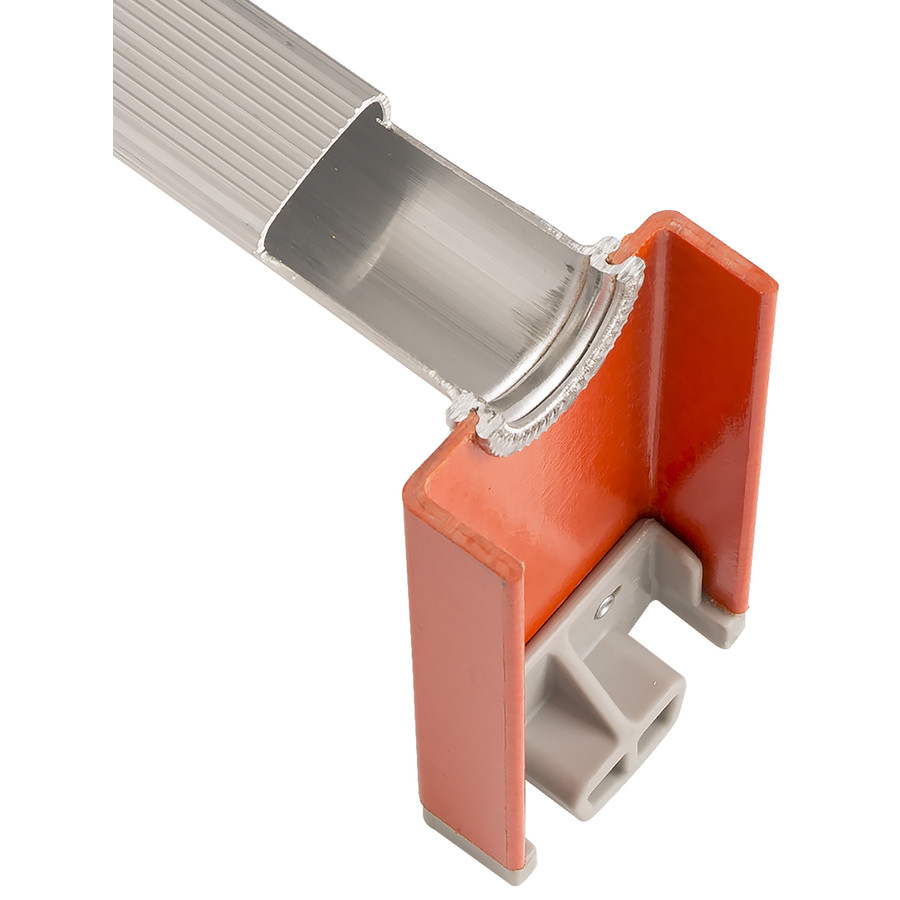

Direct rung-to-rail connection: reinforced structural continuity.

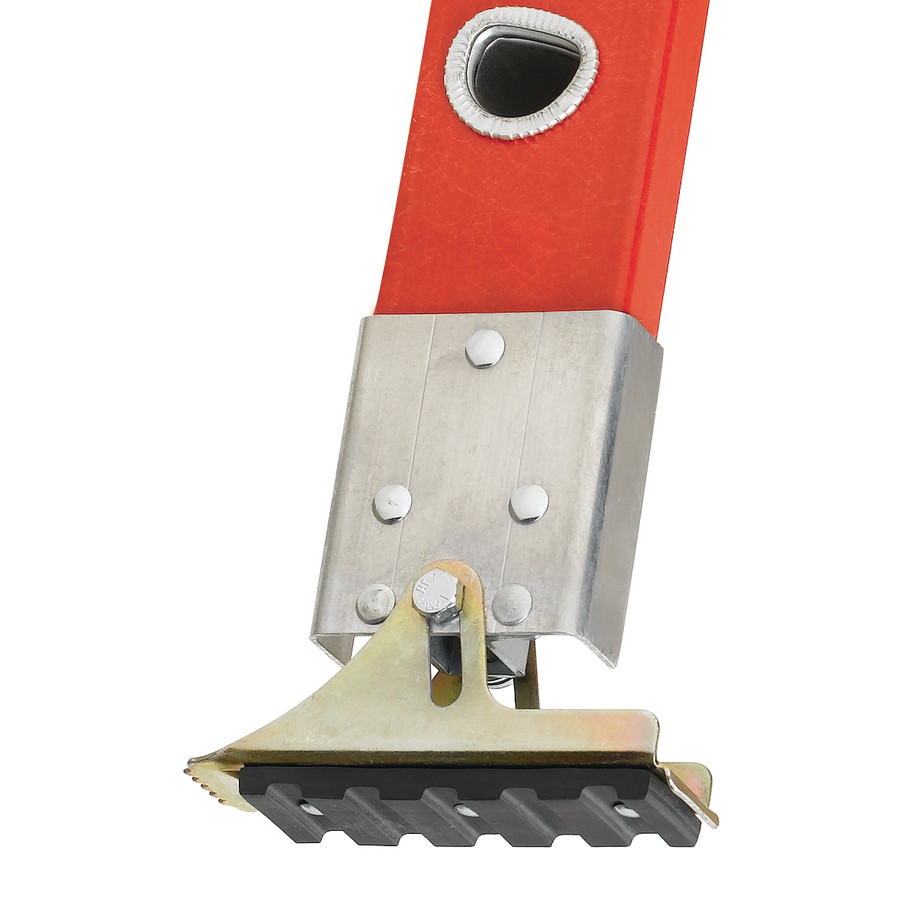

Swivel safety shoe with overmolded tread: improved grip on varied surfaces.
Duty rating: 300 lb (136 kg), Type IA, professional use.
