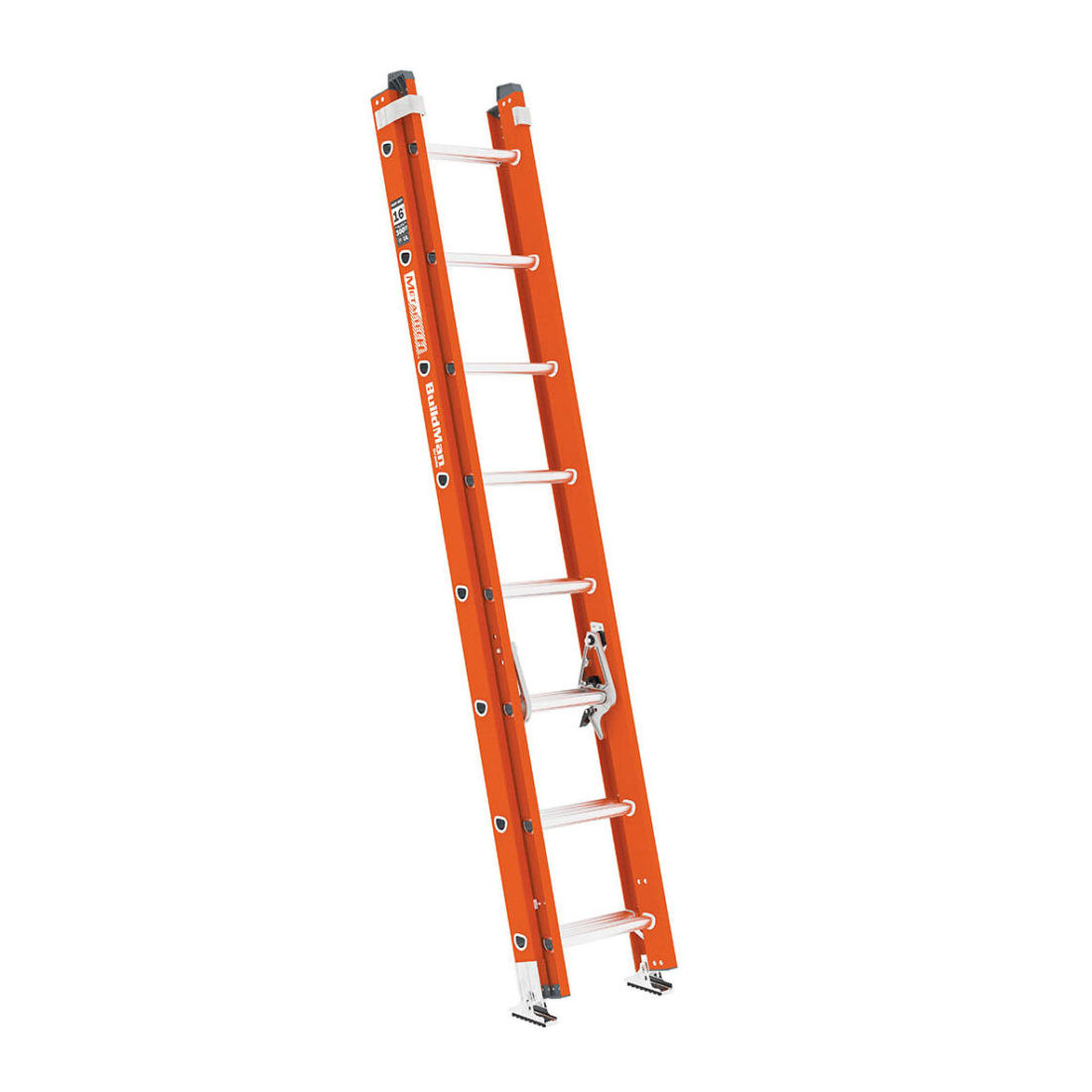

BuildMan Fiberglass Extension Ladder E-ELFB
A rugged fiberglass extension ladder from the BuildMan class, CSA Class 1A certified.
Advantages and strengths
BuildMan class fiberglass extension ladder, 300 lb (136 kg) duty rating, ANSI Type IA and CSA Class 1A certified.
Available in 7 sizes, from 16 ft (4.9 m) to 40 ft (12.2 m), to match the height required on the job site.
WARNING: although non-conductive when clean and dry, this ladder must still be used with appropriate caution near electrical circuits.
Technical characteristics
| Fiberglass telescoping ladder BuildMan 16 ft (4.9 m) | |
|---|---|
| Reference : | E-ELFB16T1A |
| characteristic.CANADA_MODELE | 16 ft (4.9 m) |
| characteristic.CANADA_LONGUEUR_SECTIONS | 8 ft (2.4 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 13 ft 4 in (4.1 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 16 ft 2 in (4.9 m) |
| characteristic.CANADA_HAUTEUR_DERNIERE_MARCHE | 9 ft 5 in (2.9 m) |
| characteristic.CANADA_POIDS | 36.6 lb (16.6 kg) lb |
| Quantity : |
|
| Fiberglass telescoping ladder BuildMan 20 ft (6.1 m) | |
|---|---|
| Reference : | E-ELFB20T1A |
| characteristic.CANADA_MODELE | 20 ft (6.1 m |
| characteristic.CANADA_LONGUEUR_SECTIONS | 10 ft (3.0 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 17 ft 4 in (5.3 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 20 ft 1 in (6.1 m) |
| characteristic.CANADA_HAUTEUR_DERNIERE_MARCHE | 13 ft 4 in (4.1 m) |
| characteristic.CANADA_POIDS | 45.5 lb (20.6 kg) lb |
| Quantity : |
|
| Fiberglass telescoping ladder BuildMan 24 ft (7.3 m) | |
|---|---|
| Reference : | E-ELFB24T1A |
| characteristic.CANADA_MODELE | 24 ft (7.3 m) |
| characteristic.CANADA_LONGUEUR_SECTIONS | 12 ft (3.7 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 21 ft 4 in (6.5 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 23 ft 11 in (7.3 m) |
| characteristic.CANADA_HAUTEUR_DERNIERE_MARCHE | 17 ft 2 in (5.2 m) |
| characteristic.CANADA_POIDS | 53.9 lb (24.4 kg) lb |
| Quantity : |
|
| Fiberglass telescoping ladder BuildMan 28 ft (8.5 m) | |
|---|---|
| Reference : | E-ELFB28T1A |
| characteristic.CANADA_MODELE | 28 ft (8.5 m) |
| characteristic.CANADA_LONGUEUR_SECTIONS | 14 ft (4.3 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 25 ft 4 in (7.7 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 27 ft 10 in (8.5 m) |
| characteristic.CANADA_HAUTEUR_DERNIERE_MARCHE | 21 ft 1 in (6.4 m) |
| characteristic.CANADA_POIDS | 59.3 lb (26.9 kg) lb |
| Quantity : |
|
| Fiberglass telescoping ladder BuildMan 32 ft (9.7 m) | |
|---|---|
| Reference : | E-ELFB32T1A |
| characteristic.CANADA_MODELE | 32 ft (9.7 m) |
| characteristic.CANADA_LONGUEUR_SECTIONS | 16 ft (4.9 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 29 ft 4 in (8.9 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 31 ft 8 in (9.7 m) |
| characteristic.CANADA_HAUTEUR_DERNIERE_MARCHE | 24 ft 11 in (7.6 m) |
| characteristic.CANADA_POIDS | 66.8 lb (30.3 kg) lb |
| Quantity : |
|
| Fiberglass telescoping ladder BuildMan 36 ft (10.5 m) | |
|---|---|
| Reference : | E-ELFB36T1A |
| characteristic.CANADA_MODELE | 36 ft (10.5 m) |
| characteristic.CANADA_LONGUEUR_SECTIONS | 18 ft (5.5 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 32 ft 4 in (9.9 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 34 ft 7 in (10.5 m) |
| characteristic.CANADA_HAUTEUR_DERNIERE_MARCHE | 27 ft 10 in (8.5 m) |
| characteristic.CANADA_POIDS | 74.3 lb (33.7 kg) lb |
| Quantity : |
|
| Fiberglass telescoping ladder BuildMan 40 ft (11.4 m) | |
|---|---|
| Reference : | E-ELFB40T1A |
| characteristic.CANADA_MODELE | 40 ft (11.4 m) |
| characteristic.CANADA_LONGUEUR_SECTIONS | 20 ft (6.1 m) |
| characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX | 35 ft 4 in (10.8 m) |
| characteristic.CANADA_HAUTEUR_PORTEE | 37 ft 5 in (11.4 m) |
| characteristic.CANADA_HAUTEUR_DERNIERE_MARCHE | 30 ft 8 in (9.4 m) |
| characteristic.CANADA_POIDS | 81.8 lb (37.1 kg) lb |
| Quantity : |
|
Use
BuildMan class
The E-ELFB is part of Metaltech's BuildMan class, designed for professional users seeking day-to-day ruggedness and reliability.
Non-conductive
Fiberglass does not conduct electricity when clean and dry, an asset for work near live lines.
A choice of sizes
Available in 7 sizes from 16 ft to 40 ft (4.9 m to 12.2 m), the E-ELFB suits most job site height requirements.
Regulatory compliance
Certified ANSI Type IA and CSA Class 1A, the E-ELFB meets Canadian and U.S. market requirements.
Technical description
Fiberglass rails, non-conductive when clean and dry.
Duty rating: 300 lb (136 kg).
Certification: ANSI Type IA, CSA Class 1A.
Available in 7 sizes: 16 ft to 40 ft (4.9 m to 12.2 m).
NON-CONDUCTIVE WHEN CLEAN AND DRY. ALWAYS INSPECT BEFORE USE NEAR ELECTRICAL CIRCUITS.
