6200 Non-Conductive Fiberglass Extension Ladder Cross-Over Bar Front Raise

Advantages and strengths

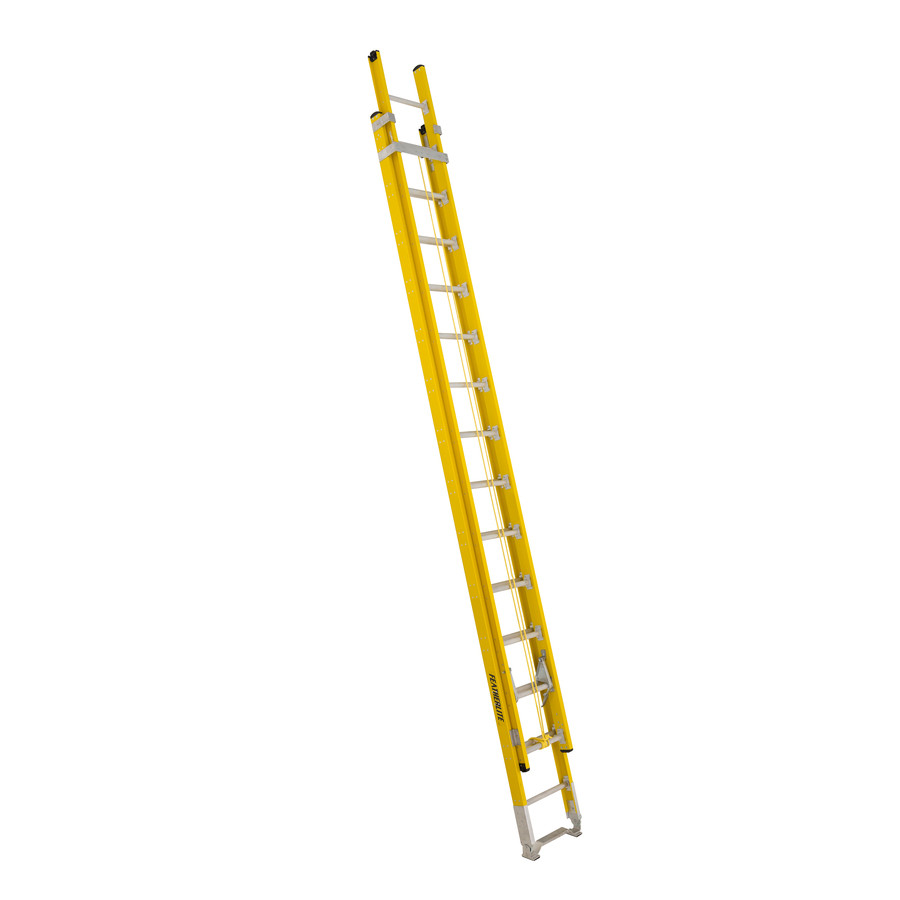

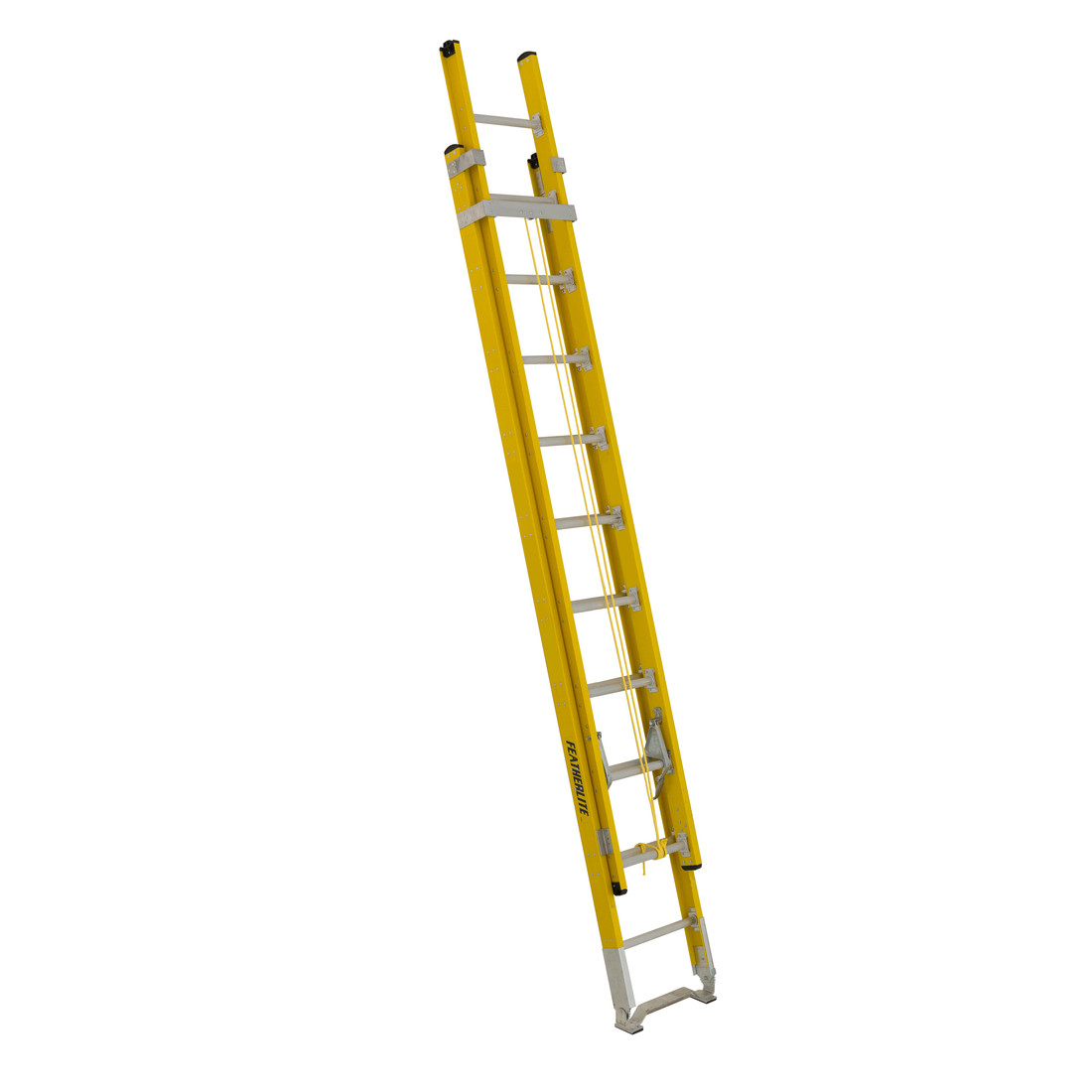

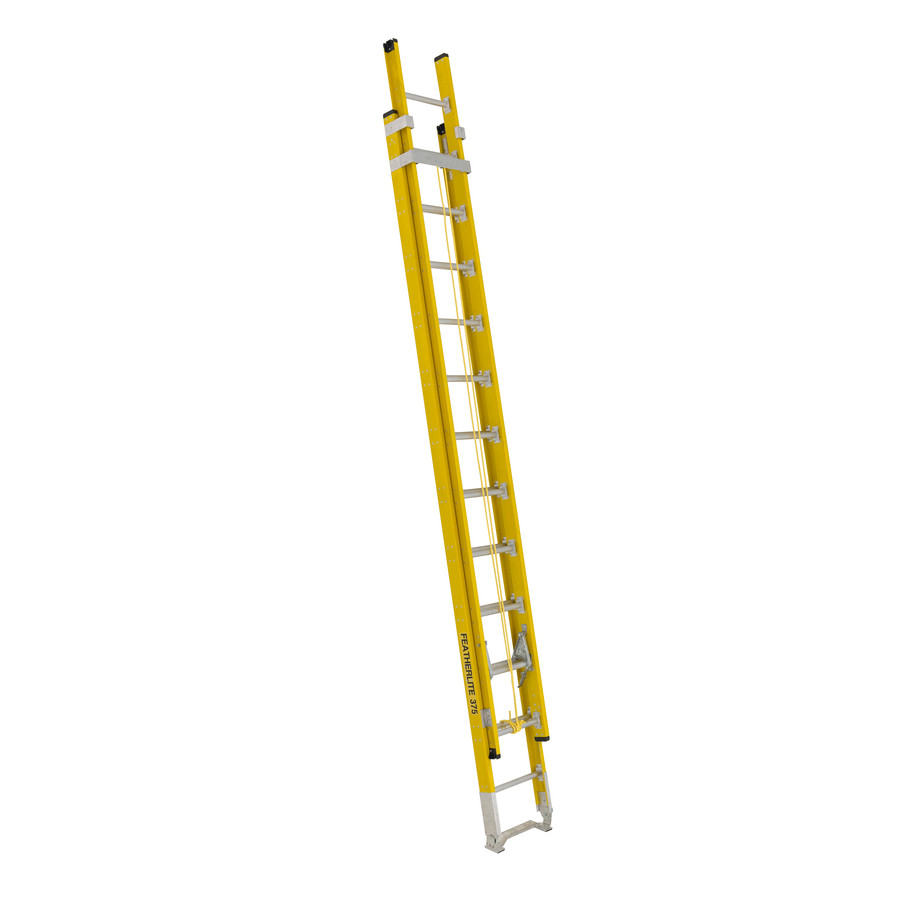

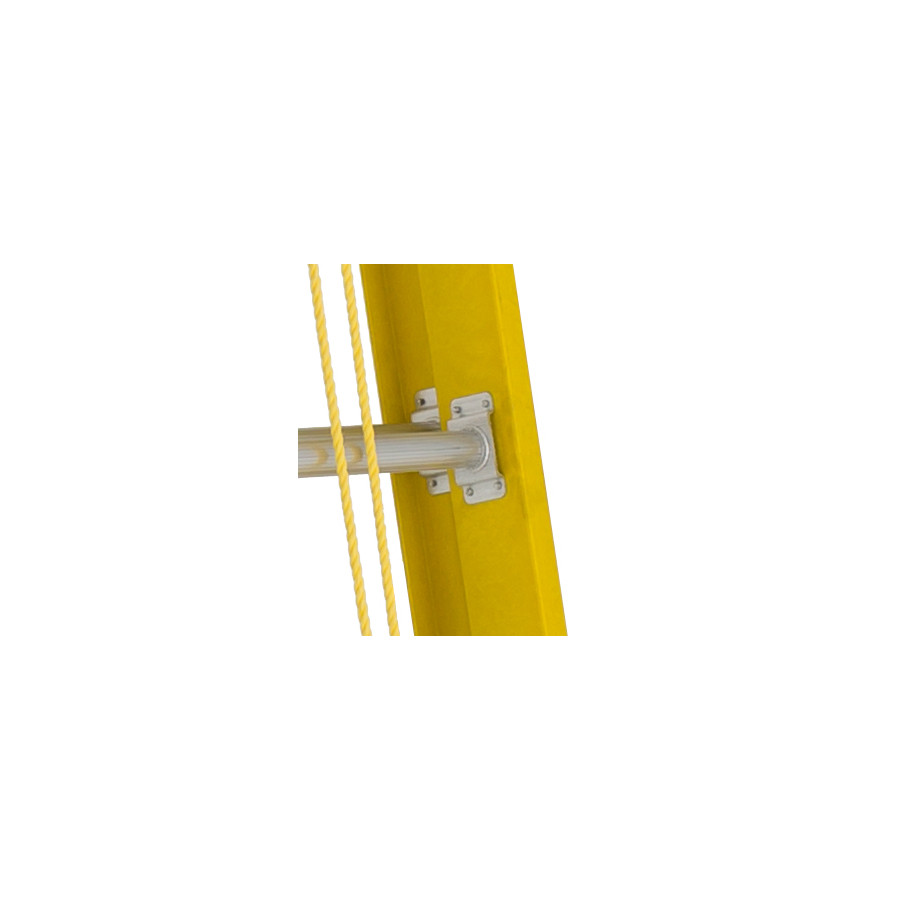

The Featherlite 6200 series extension ladder is manufactured from non-conductive high-visibility yellow C-channel fiberglass. Its top cross-over bar is the most distinctive structural feature of this series: it connects the two rails at the top of the base section and serves two simultaneous functions. Operationally, it allows the fly section to be raised and lowered from the front of the ladder, which suits installations where the rear of the ladder is not accessible. Structurally, it significantly increases the torsional stiffness of the assembly by acting as a fixed crosspiece between the two rails. The exclusive 1-piece spur wheel foot assembly further reinforces this rigidity by eliminating any mechanical play at the base. The riveted rung-to-rail connection maintains the continuous structural strength of the fiberglass fibres. Slip-resistant serrated round rungs. Meets or exceeds CSA Grade 1AA, ANSI Type IAA, and OSHA. Duty rating: 375 lbs (170 kg). Available in 5 sizes from 4.88 m to 9.75 m (16 to 32 feet).

Use

The Featherlite 6200 series extension ladder is designed for building professionals, industrial maintenance workers, and telecommunications technicians who need a fiberglass extension ladder combining maximum structural rigidity and impeccable base stability.

The top cross-over bar is the most distinctive element of the 6200 series and what most clearly distinguishes it from the 9200D series. On the 9200D, the fly section raises from the rear, with no structural cross-brace between the two base section rails at the top. On the 6200, the cross-over bar physically connects the two rails, creating an H-structure at the top of the base section: significantly more torsion-resistant than an open structure. This is the 6200's advantage for work that applies lateral loads to the ladder (door and window installation, masonry work, mechanical installations).

Front raising is an operational preference depending on the situation. For installations against a flat wall or facade with no obstacles, rear raising (9200D) is often more practical because the operator is not in front of the descending fly section. For installations in corridors, confined spaces, or against structures where the rear is not accessible, front raising (6200) is the only practical option.

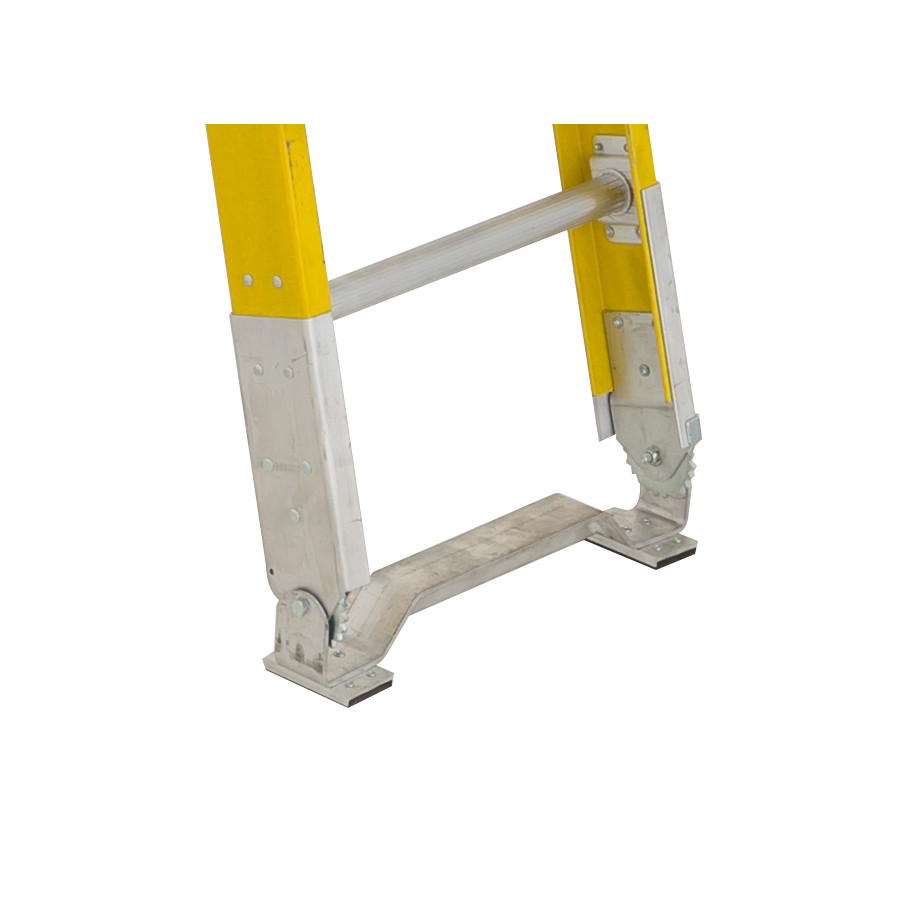

The exclusive 1-piece spur wheel foot assembly completes the system: no moving parts at the base, maximum torsion resistance at the ground contact point. Non-conductive high-visibility yellow fiberglass is required for work near electrical lines or equipment. Meets or exceeds CSA Grade 1AA, ANSI Type IAA, and OSHA. 5 sizes from 4.88 m to 9.75 m (16 to 32 feet).
