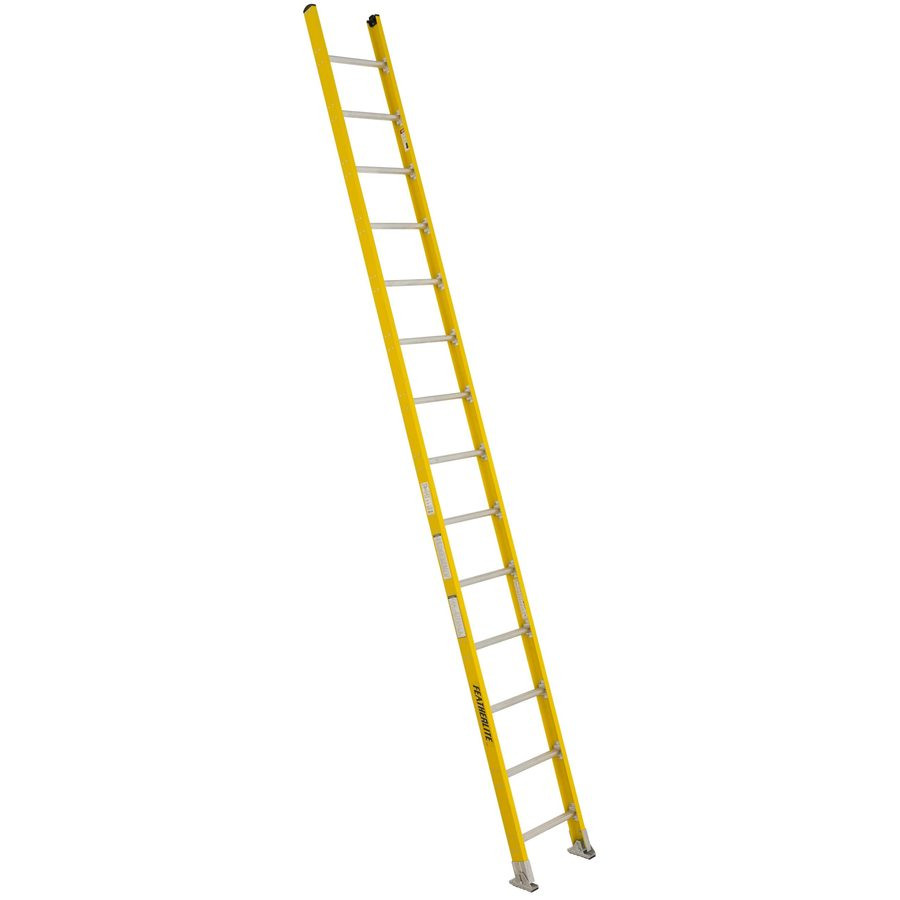

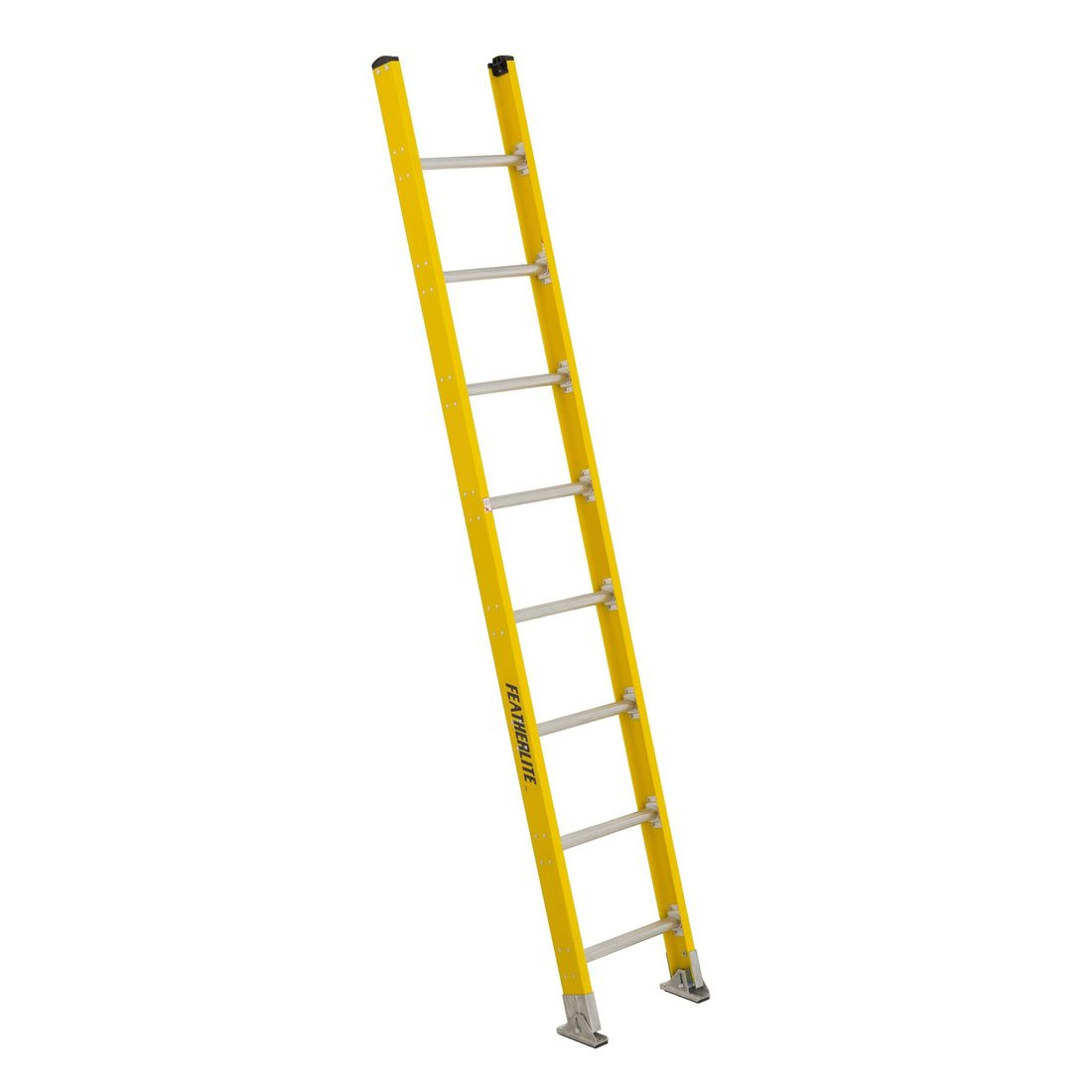

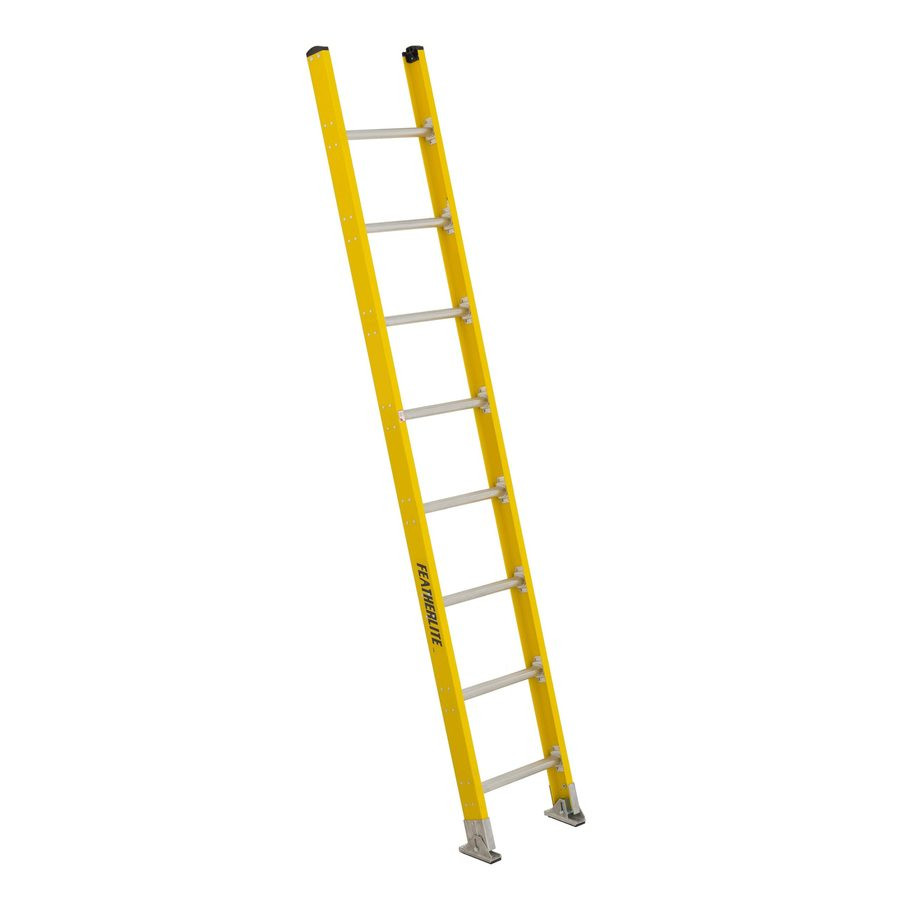

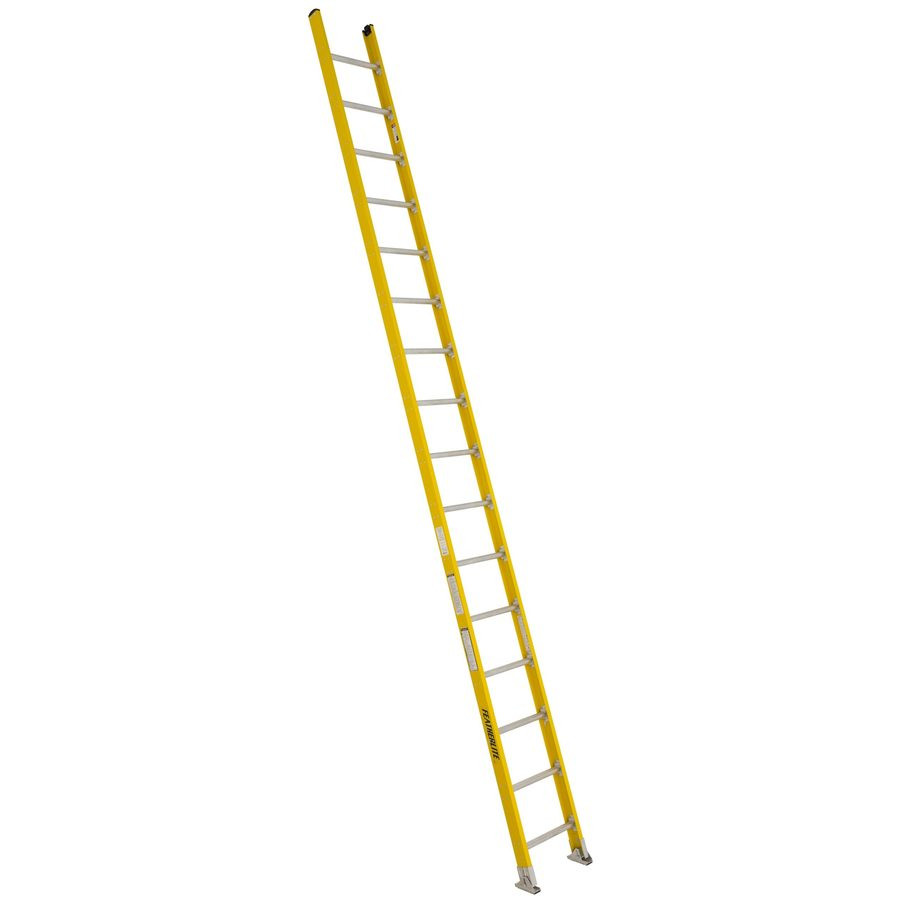

5600D - Non-Conductive Fiberglass Single Ladder, D-Shaped Rungs

Advantages and strengths

Non-conductive high-visibility yellow fiberglass single ladder. Type IAA duty rating (375 lbs / 170 kg). D-shaped rungs with heavy duty aluminum rung connector plates. Riveted rung-to-rail connection. Mar-resistant end caps. Swivel safety shoes with full metal boot. Meets or exceeds CSA Grade 1AA, ANSI Type IAA, and OSHA standards. 5 sizes, 2.44 m to 4.88 m (8 to 16 feet).

Use

The Featherlite 5600D series single ladder is designed for building professionals, industrial maintenance workers, and telecommunications technicians who need a non-conductive fiberglass straight ladder combining industrial-grade strength with climbing comfort for repeated or extended interventions.

The D-Shaped Rung Difference

Unlike the round rungs found on the 5300 series, the D-shaped rungs on the 5600D series feature a flat upper surface and a rounded lower surface. This geometry provides a significantly wider and more comfortable foot platform, reduces fatigue during repeated ascents and descents, and improves stability when the user needs to work hands-occupied at a fixed height. This is the preferred rung type for fixed industrial stairs and permanent access ladders.

Reinforced Construction for Industry

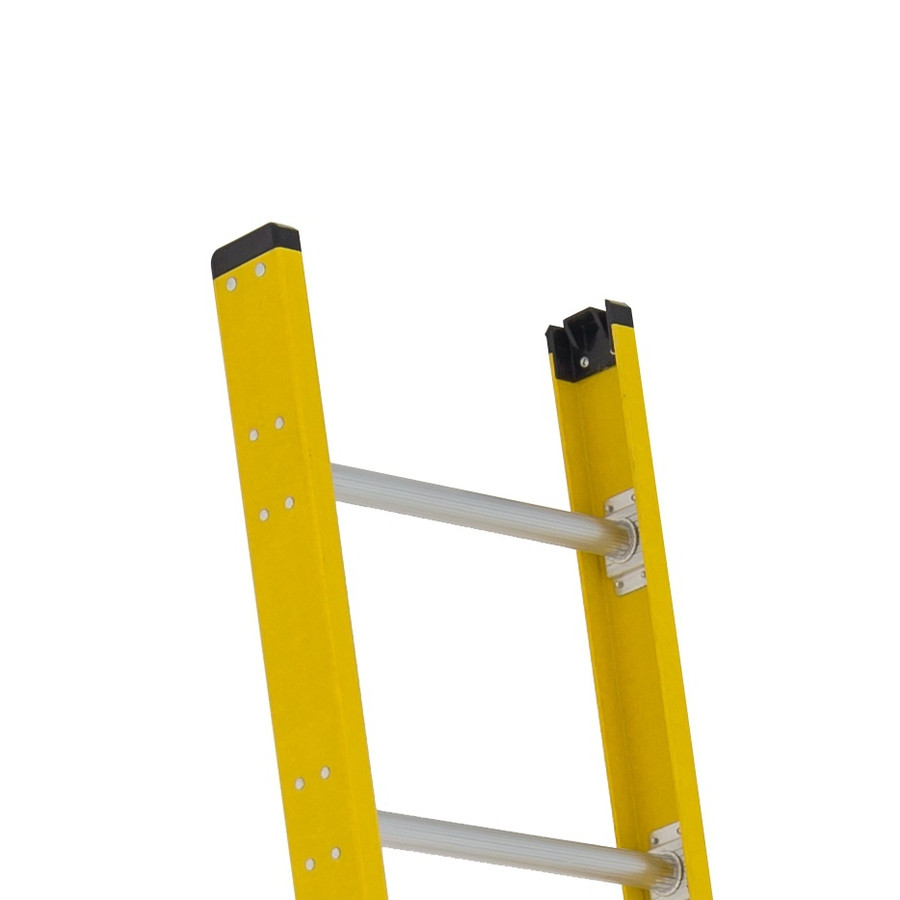

The heavy duty aluminum rung connector plates that join each rung to the fiberglass rails form a significantly stronger connection than simple riveted systems. The riveted connection itself maintains the continuous structural integrity of the fiberglass fibers along the full length of the rail, avoiding stress concentrations that can occur with other fastening systems.

Swivel Shoes with Full Metal Boot

The swivel safety shoes with full metal boot allow the ladder to automatically adapt to the installation angle, maintaining uniform ground contact across the full shoe surface. The metal boot adds mechanical resistance for hard surfaces (concrete, asphalt, metal) and demanding use conditions.

Safe for Electrical Environments

Non-conductive high-visibility yellow fiberglass is the recommended material for work near electrical lines or equipment. It reduces risk in case of accidental contact with a live conductor, unlike aluminum.

Compliance Information

Type IAA duty rating: 375 lbs (170 kg). Meets or exceeds CSA Grade 1AA, ANSI Type IAA, and OSHA standards. Available in 5 sizes from 2.44 m to 4.88 m (8 to 16 feet).
