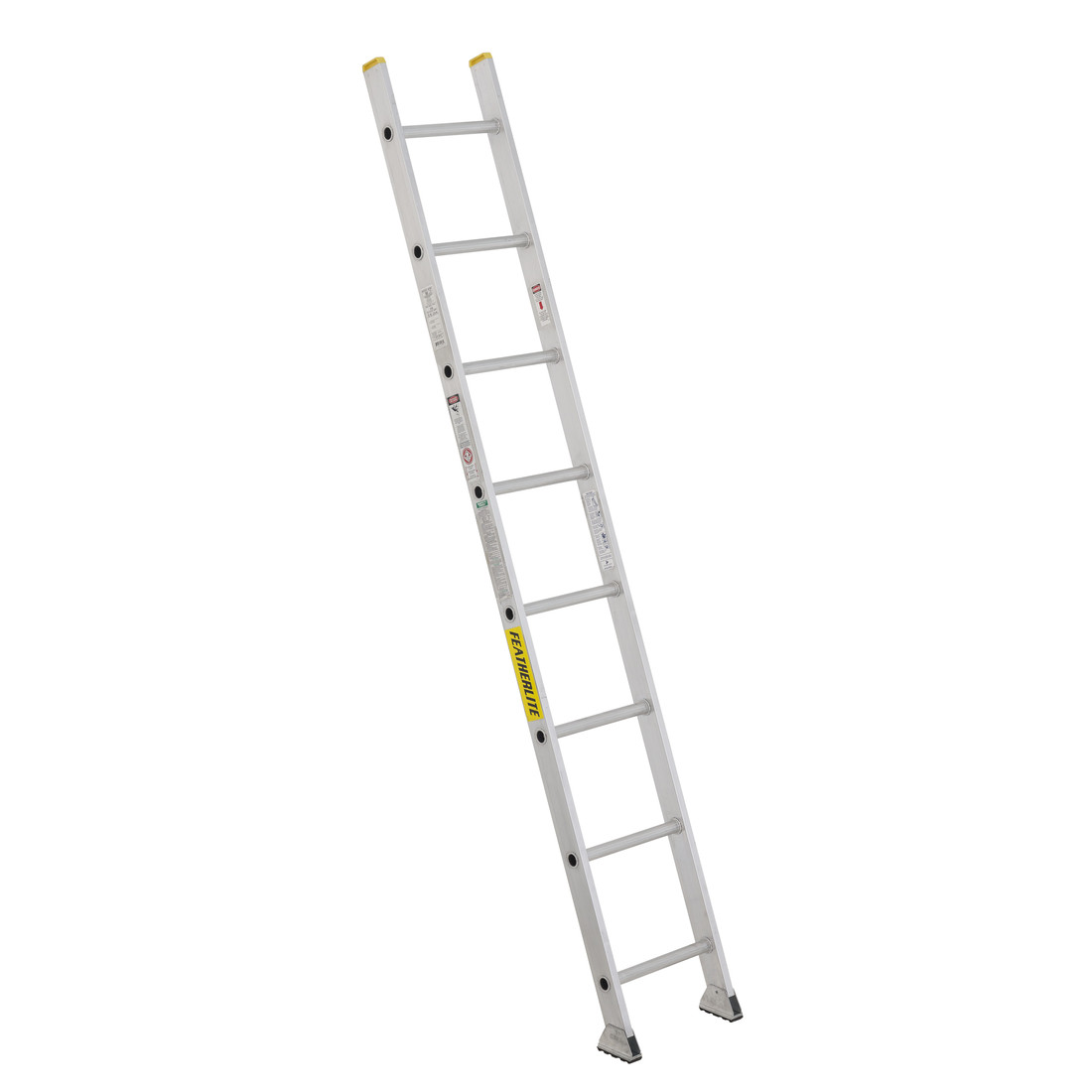

4100 - Extra-Heavy Duty Aluminum Single Ladder, Box Section
Aluminum single ladder with box section side rails: maximum rigidity and durability for professional exterior work.
Advantages and strengths
Aluminum single ladder. Duty rating 300 lbs (136 kg), meets or exceeds CSA Grade 1A and ANSI Type 1A standards. Rigid box section side rails. Slip-resistant serrated round rungs. Heavy-duty ribbed swivel feet with ice pick. Impact-resistant non-marring yellow ABS end caps. 8 sizes, 2.44 m to 7.32 m (8 to 24 feet).
Technical characteristics
| Aluminum single ladder 4108 | |
|---|---|
| Reference : | 4108 |
| characteristic.CANADA_MODELE | 8 ft (2.44 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 14 5/8 in (37.2 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 12 7/8 in (32.7 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 11 ft 1 in (3.38 m) |
| characteristic.CANADA_POIDS | 13.3 lbs (6.0 kg) lb |
| Quantity : |
|
| Aluminum single ladder 4110 | |
|---|---|
| Reference : | 4110 |
| characteristic.CANADA_MODELE | 10 ft (3.05 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 14 5/8 in (37.2 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 12 7/8 in (32.7 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 13 ft 0 in (3.96 m) |
| characteristic.CANADA_POIDS | 16.3 lbs (7.4 kg) lb |
| Quantity : |
|
| Aluminum single ladder 4112 | |
|---|---|
| Reference : | 4112 |
| characteristic.CANADA_MODELE | 12 ft (3.66 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 14 5/8 in (37.2 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 12 7/8 in (32.7 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 15 ft 0 in (4.57 m) |
| characteristic.CANADA_POIDS | 19.4 lbs (8.8 kg) lb |
| Quantity : |
|
| Aluminum single ladder 4114 | |
|---|---|
| Reference : | 4114 |
| characteristic.CANADA_MODELE | 14 ft (4.27 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 14 5/8 in (37.2 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 12 7/8 in (32.7 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 16 ft 11 in (5.16 m) |
| characteristic.CANADA_POIDS | 22.4 lbs (10.2 kg) lb |
| Quantity : |
|
| Aluminum single ladder 4116 | |
|---|---|
| Reference : | 4116 |
| characteristic.CANADA_MODELE | 16 ft (4.88 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 15 7/8 in (40.3 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 13 7/8 in (35.2 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 18 ft 10 in (5.74 m) |
| characteristic.CANADA_POIDS | 30.3 lbs (13.7 kg) lb |
| Quantity : |
|
| Aluminum single ladder 4118 | |
|---|---|
| Reference : | 4118 |
| characteristic.CANADA_MODELE | 18 ft (5.49 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 15 7/8 in (40.3 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 13 7/8 in (35.2 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 20 ft 9 in (6.32 m) |
| characteristic.CANADA_POIDS | 33.3 lbs (15.1 kg) lb |
| Quantity : |
|
| Aluminum single ladder 4120 | |
|---|---|
| Reference : | 4120 |
| characteristic.CANADA_MODELE | 20 ft (6.10 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 15 7/8 in (40.3 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 13 7/8 in (35.2 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 22 ft 8 in (6.91 m) |
| characteristic.CANADA_POIDS | 38.6 lbs (17.5 kg) lb |
| Quantity : |
|
| Aluminum single ladder 4124 | |
|---|---|
| Reference : | 4124 |
| characteristic.CANADA_MODELE | 24 ft (7.32 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 15 7/8 in (40.3 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 13 7/8 in (35.2 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 26 ft 7 in (8.10 m) |
| characteristic.CANADA_POIDS | 44.5 lbs (20.2 kg) lb |
| Quantity : |
|
Use
The Featherlite 4100 series single ladder is the reference aluminum straight ladder for construction contractors, painters, roofers, and building maintenance teams who need reliable equipment to access facades, gutters, and pitched rooftops.
Box Section: a Real Structural Difference
The closed box section profile of the 4100 series side rails offers greater bending and torsion resistance than an I-beam or C-channel profile at equal weight. On a long ladder (16 to 24 feet), this increased rigidity reduces rail flex under load and improves lateral stability, which is especially important during extended work where the user must lean to reach surfaces.
Rungs and Feet Built for the Jobsite
The serrated round aluminum rungs provide an ergonomic, slip-resistant footing even in rigid-soled work boots. The heavy-duty ribbed swivel feet automatically orient to maintain flat ground contact regardless of the ladder's angle, and the integrated ice pick provides anchorage on soft or icy surfaces.
Proper Setup and Installation
In accordance with CSA and ANSI standards, the ladder must be set up at a 75.5° angle (4:1 ratio: for every 4 ft of supported height, the base should be 1 ft from the wall). The highest permitted standing level is 4 rungs below the top. The ladder should always be secured at its upper contact point for extended work.
Electrical Warning
Aluminum is an electrical conductor. This ladder must never be used near overhead power lines, electrical panels, or any energized equipment. For electrical work environments, use only a non-conductive fiberglass ladder.
Compliance Information
Duty rating: 300 lbs (136 kg) including the user, tools, and equipment. Meets or exceeds CSA Grade 1A and ANSI Type 1A standards. Available in 8 sizes from 2.44 m to 7.32 m (8 to 24 feet).
Technical description

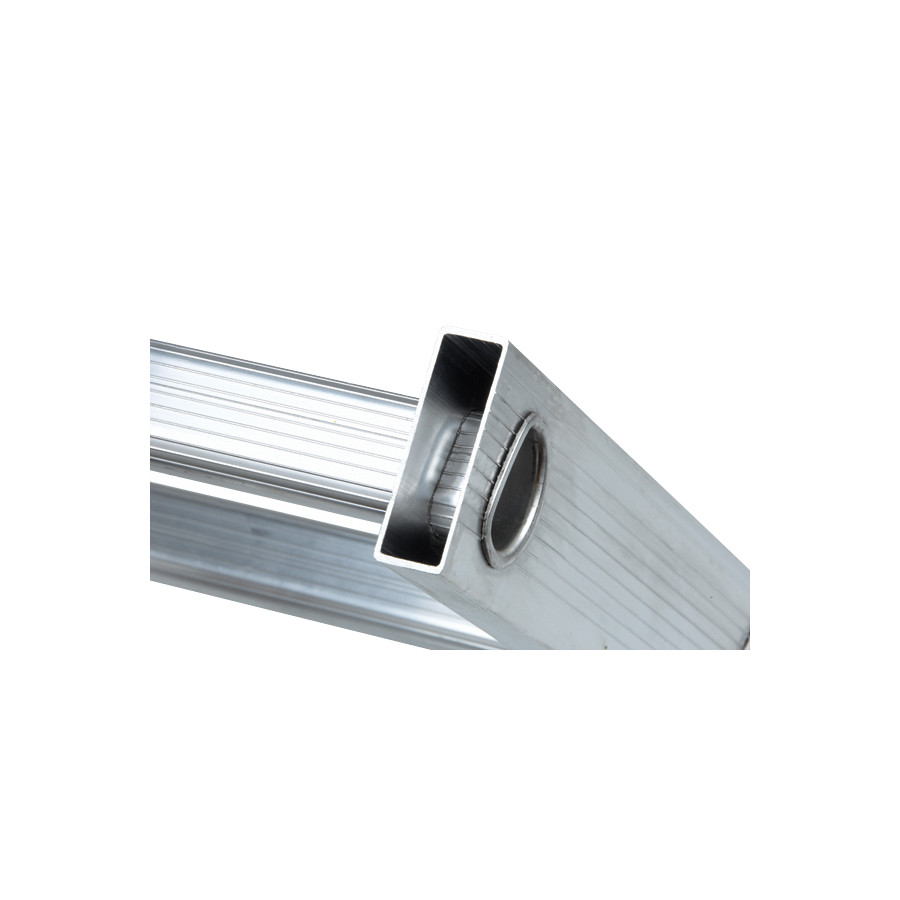

Rigid box section side rails: higher bending resistance and durability than I-beam or C-channel design
Slip-resistant serrated round aluminum rungs: reliable grip in all conditions

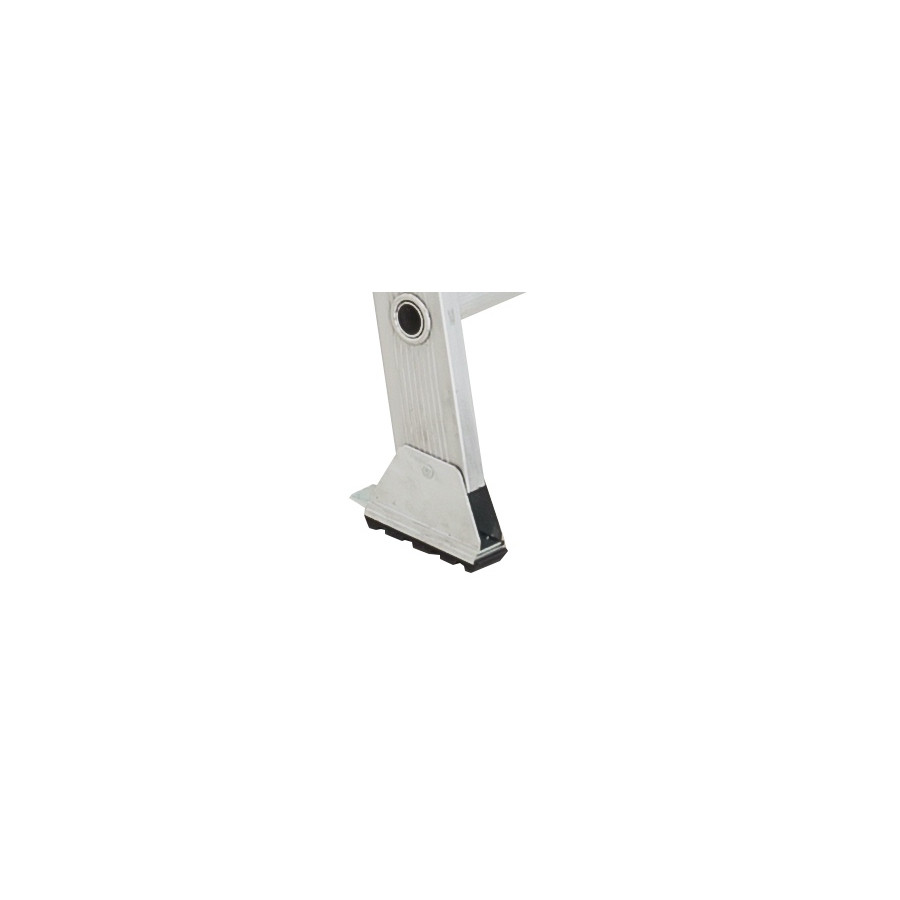

Heavy-duty ribbed swivel feet with ice pick: grip on hard or soft surfaces
Impact-resistant non-marring yellow ABS end caps: protects rails and contact surface
Lightweight aluminum construction: optimized strength-to-weight ratio for jobsite handling
Inside width 12 7/8 to 13 7/8 in: comfortable climbing space in work boots
Duty rating: 300 lbs (136 kg)
Meets or exceeds CSA Grade 1A and ANSI Type 1A standards
8 sizes available: 2.44 m to 7.32 m (8 to 24 feet)
WARNING: Aluminum conducts electricity. Do not use near energized electrical lines or equipment
