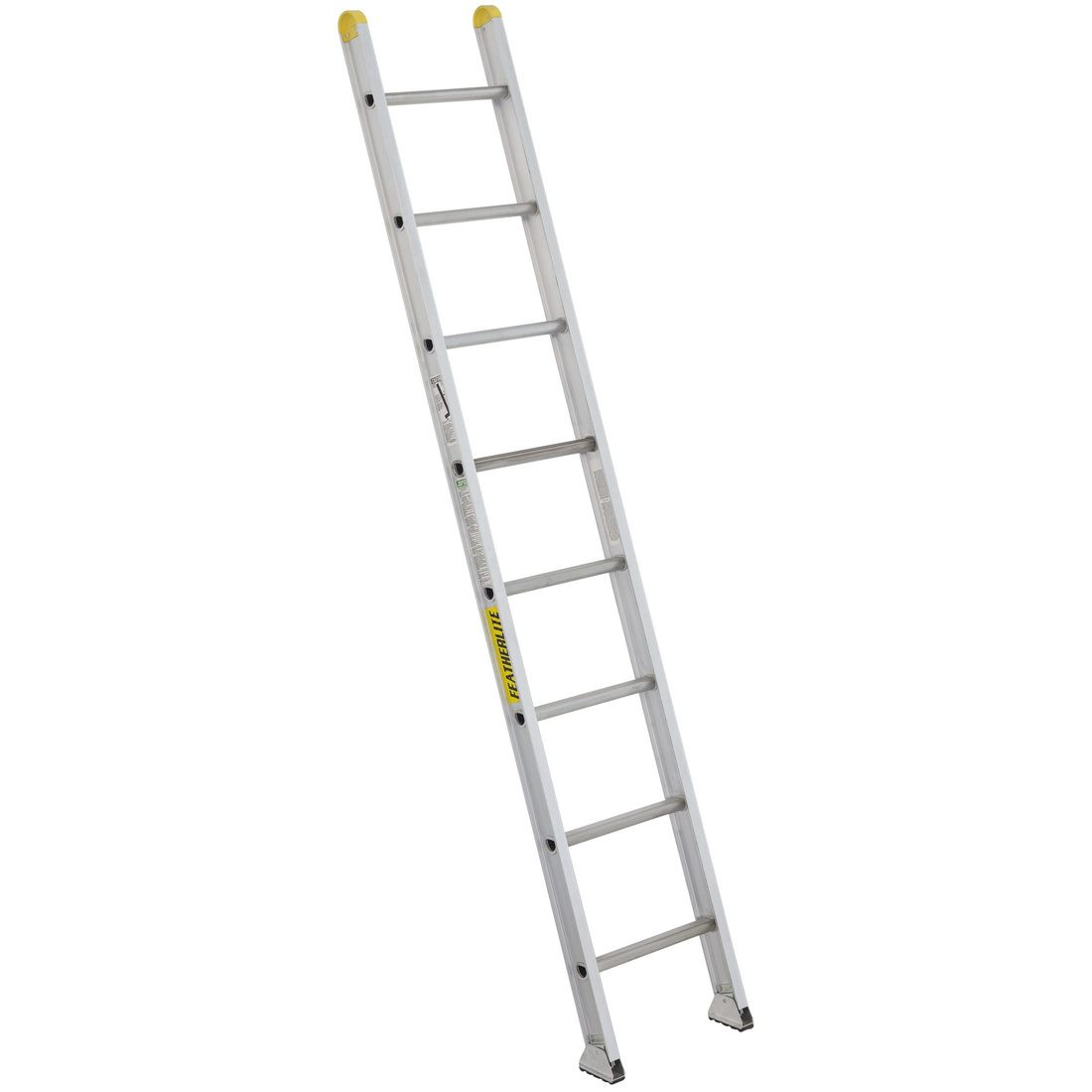

3100D - Aluminum Single Ladder with D-Shaped Rungs
Aluminum single ladder with I-beam rails and serrated D-shaped rungs: climbing comfort, professional strength, and wide inside clearance for construction and maintenance work.
Advantages and strengths
Robust I-beam rails: stability, torsion resistance, and excellent strength-to-weight ratio
Rails sized by height: wider section from 16 to 20 ft for increased rigidity on longer sizes

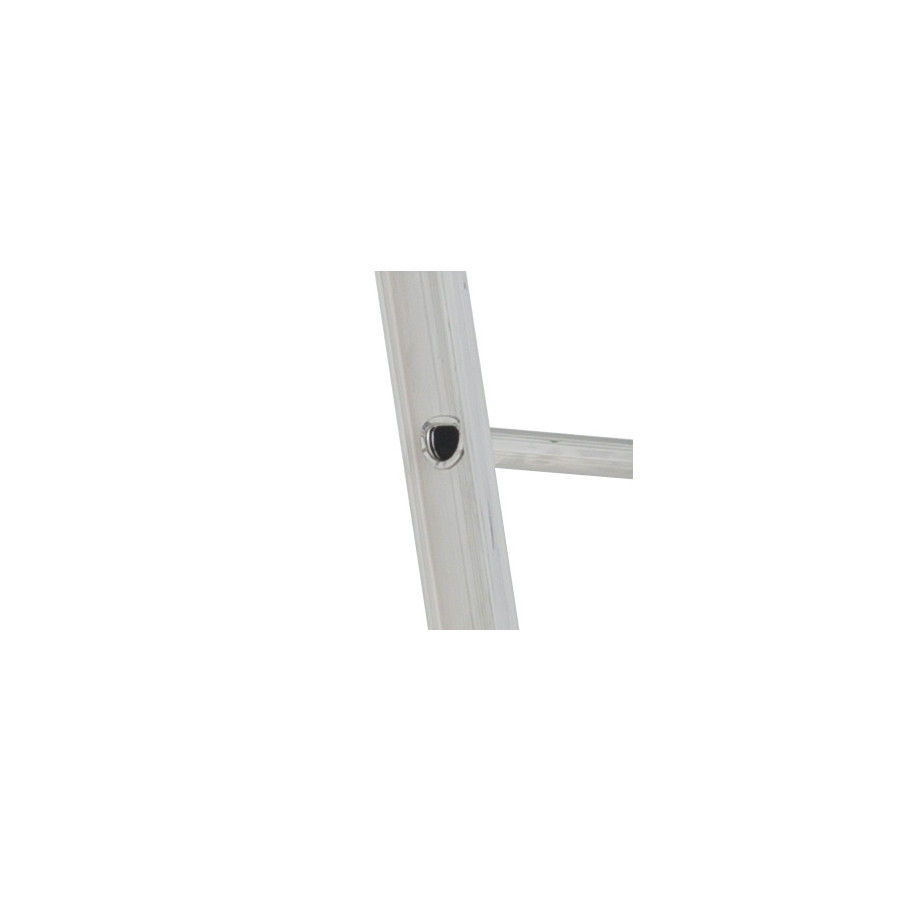

Serrated D-shaped rungs: flat, wide standing surface for maximum climbing comfort
Inside width 15 3/8 to 15 9/16 in: easy clearance with work boots or protective equipment

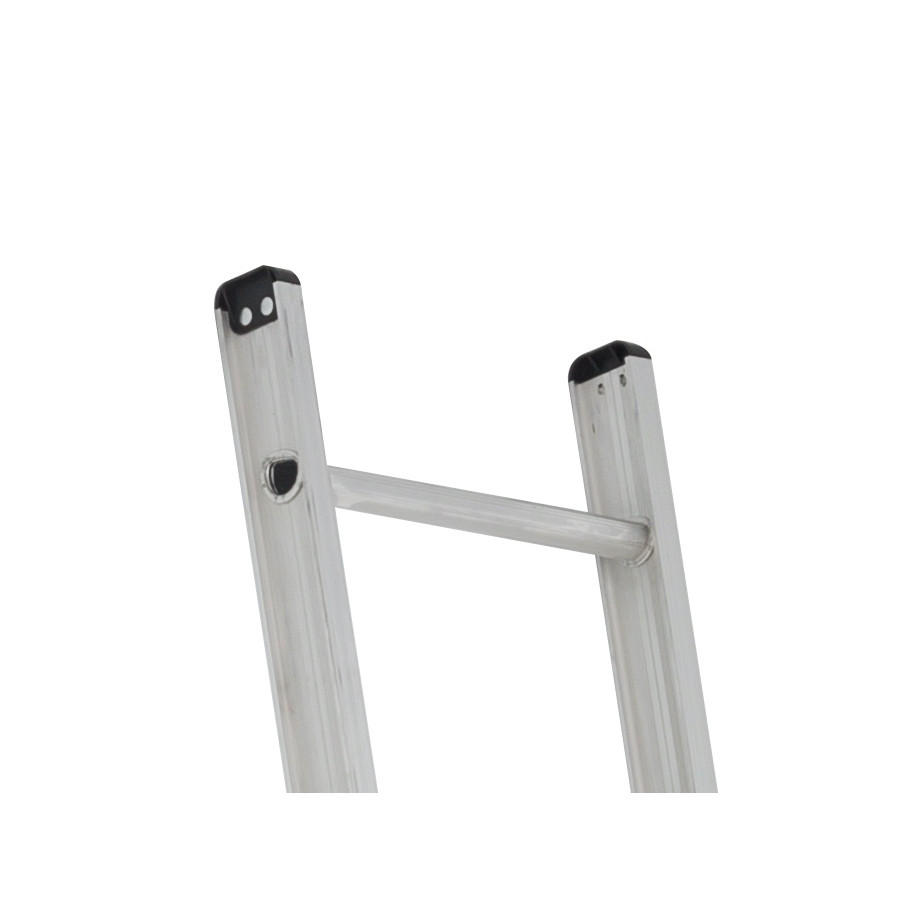

Black ABS impact-resistant non-marring end caps: protects contact surfaces

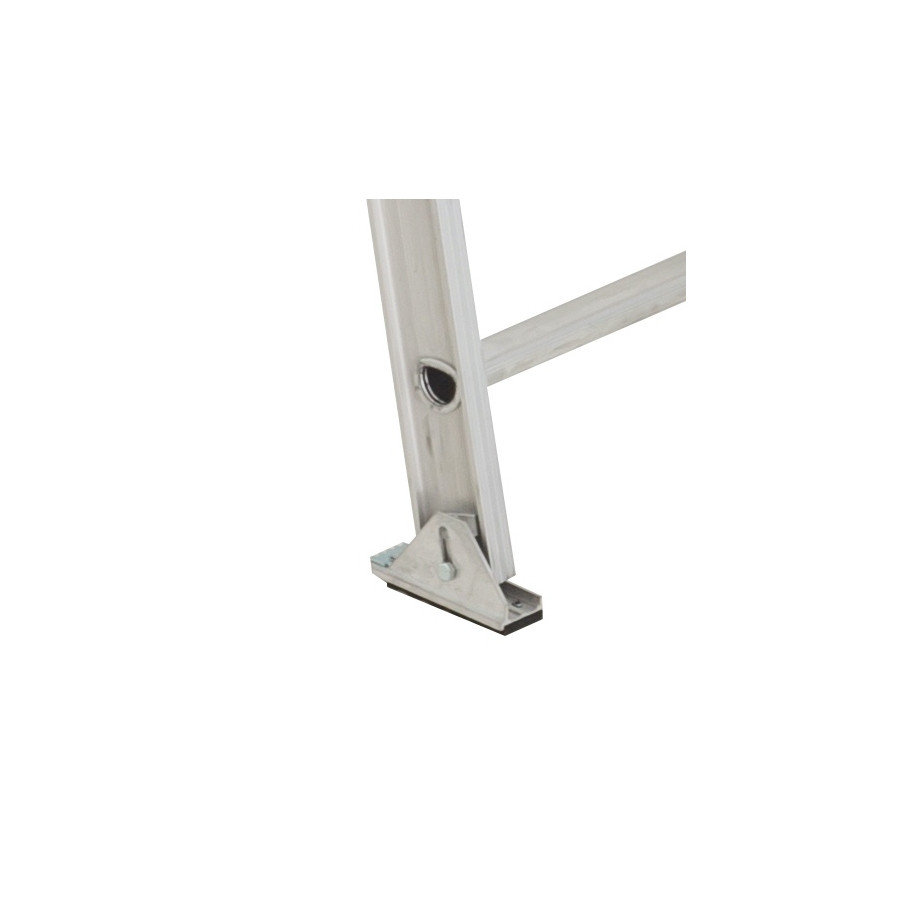

Heavy-duty swivel safety shoes: maintains uniform ground contact at all angles
Duty rating: 300 lbs (136 kg)
Meets or exceeds CSA Grade 1A, ANSI Type 1A, and OSHA standards
7 sizes available: 2.44 m to 6.10 m (8 to 20 feet)
WARNING: Aluminum conducts electricity. Do not use near energized electrical lines or equipment
Technical characteristics
| Aluminium single ladder 3108D | |
|---|---|
| Reference : | 3108D |
| Taille | 8 ft (2.44 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 17 13/16 in (45.2 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 15 9/16 in (39.5 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 11 ft 1 in (3.38 m) |
| characteristic.CANADA_POIDS | 13.5 lbs (6.1 kg) lb |
| Quantity : |
|
| Aluminium single ladder 3110D | |
|---|---|
| Reference : | 3110D |
| Taille | 10 ft (3.05 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 17 13/16 in (45.2 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 15 9/16 in (39.5 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 13 ft 0 in (3.96 m) |
| characteristic.CANADA_POIDS | 17.1 lbs (7.8 kg) lb |
| Quantity : |
|
| Aluminium single ladder 3112D | |
|---|---|
| Reference : | 3112D |
| Taille | 12 ft (3.66 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 17 13/16 in (45.2 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 15 9/16 in (39.5 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 15 ft 0 in (4.57 m) |
| characteristic.CANADA_POIDS | 20.1 lbs (9.1 kg) lb |
| Quantity : |
|
| Aluminium single ladder 3114D | |
|---|---|
| Reference : | 3114D |
| Taille | 14 ft (4.27 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 18 in (45.7 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 15 3/8 in (39.1 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 16 ft 11 in (5.16 m) |
| characteristic.CANADA_POIDS | 25.6 lbs (11.6 kg) lb |
| Quantity : |
|
| Aluminium single ladder 3116D | |
|---|---|
| Reference : | 3116D |
| Taille | 16 ft (4.88 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 18 in (45.7 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 15 3/8 in (39.1 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 18 ft 10 in (5.74 m) |
| characteristic.CANADA_POIDS | 29.3 lbs (13.3 kg) lb |
| Quantity : |
|
| Aluminium single ladder 3118D | |
|---|---|
| Reference : | 3118D |
| Taille | 18 ft (5.49 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 18 in (45.7 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 15 3/8 in (39.1 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 20 ft 8 in (6.30 m) |
| characteristic.CANADA_POIDS | 36.7 lbs (16.6 kg) lb |
| Quantity : |
|
| Aluminium single ladder 3120D | |
|---|---|
| Reference : | 3120D |
| Taille | 20 ft (6.10 m) |
| characteristic.CANADA_LARGEUR_TOTALE | 18 in (45.7 cm) |
| characteristic.CANADA_LARGEUR_PASSAGE | 15 3/8 in (39.1 cm) |
| characteristic.CANADA_HAUTEUR_PORTEE | 22 ft 8 in (6.91 m) |
| characteristic.CANADA_POIDS | 40.8 lbs (18.5 kg) lb |
| Quantity : |
|
Use
The Featherlite 3100D series single ladder is designed for building professionals, industrial maintenance workers, and contractors who need an aluminum straight ladder combining generous inside clearance, ergonomic rungs, and industrial-grade strength for repeated work at height.
I-Beam Rails with Progressive Sizing
The I-beam rail construction offers excellent longitudinal rigidity and torsion resistance above a simple C-channel profile. Featherlite sizes the rails by height: lighter section up to 14 ft for standard work, reinforced section from 16 to 20 ft where bending loads are greater. This progressive sizing maintains optimized weight while ensuring the necessary rigidity.
D-Shaped Rungs for Comfort and Safety
The serrated D-shaped rungs combine a flat upper surface (foot comfort and stability) with a rounded lower section. This profile offers a significantly wider and more comfortable foot platform than round rungs, reduces fatigue during repeated ascents, and improves stability when the user works hands-occupied.
Widest Inside Clearance in Featherlite's Aluminum Single Ladder Range
With an inside width of 15 3/8 to 15 9/16 inches (39.1 to 39.5 cm), the 3100D series offers the widest inside clearance among Featherlite aluminum single ladders - wider than the 4100 series (12 7/8 to 13 7/8 in). A real advantage for workers wearing harnesses, coveralls, or bulky protective equipment.
Electrical Warning
Aluminum is an electrical conductor. This ladder must never be used near overhead power lines, electrical panels, or any energized equipment. For electrical work environments, use only a non-conductive fiberglass ladder from the Featherlite range.
Compliance Information
Duty rating: 300 lbs (136 kg). Meets or exceeds CSA Grade 1A, ANSI Type 1A, and OSHA standards. Available in 7 sizes from 2.44 m to 6.10 m (8 to 20 feet).
Technical description
Aluminum single ladder with I-beam rails. Duty rating 300 lbs (136 kg), meets or exceeds CSA Grade 1A, ANSI Type 1A, and OSHA. Serrated D-shaped rungs. Rail section: 2.5 in x 1 in up to 14 ft, 3 in x 1 in from 16 ft and up. Non-marring black ABS end caps. Heavy-duty swivel safety shoes. 7 sizes, 2.44 m to 6.10 m (8 to 20 feet).
