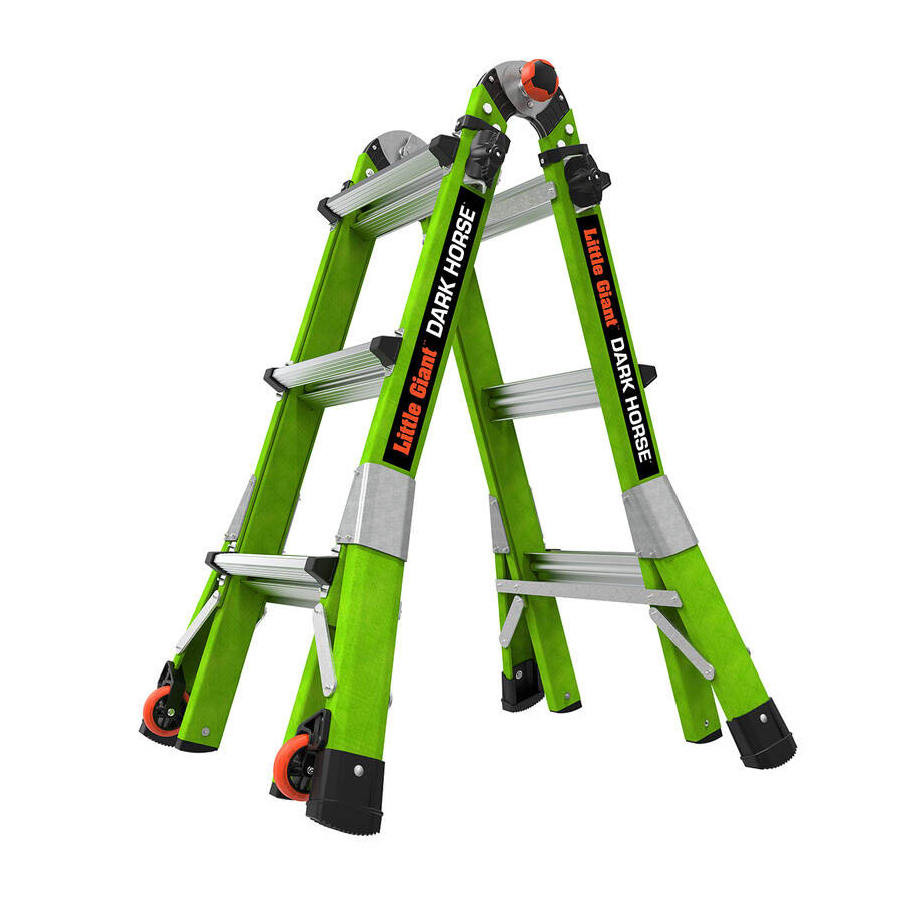

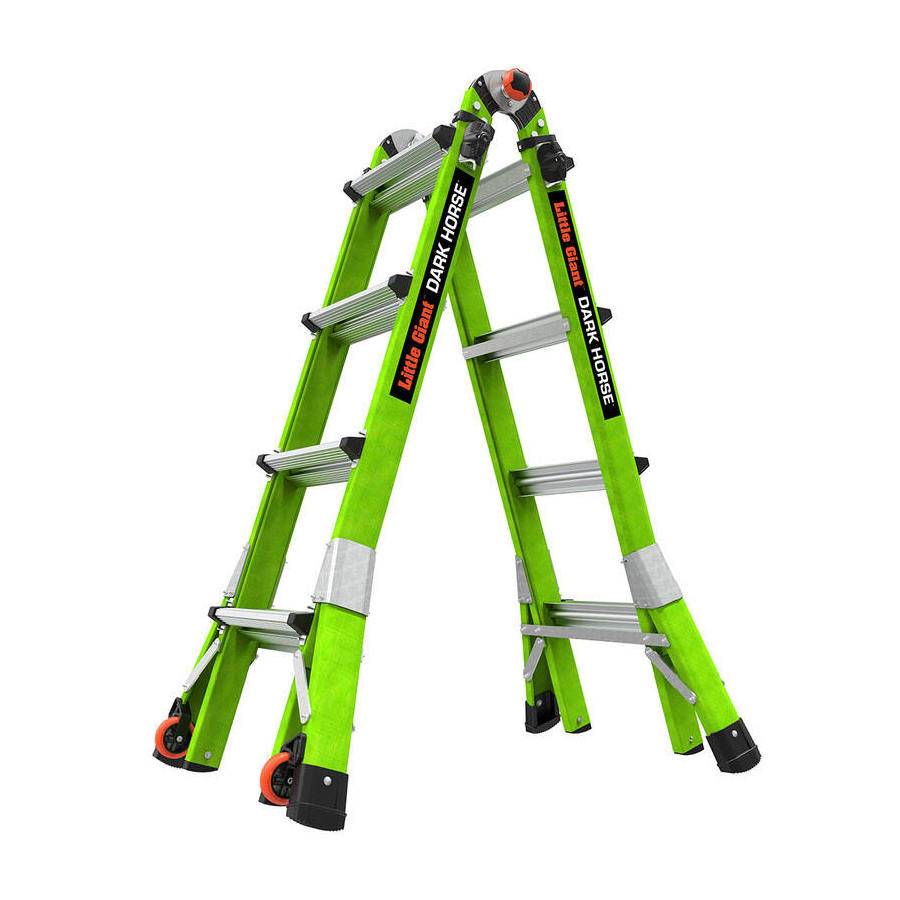

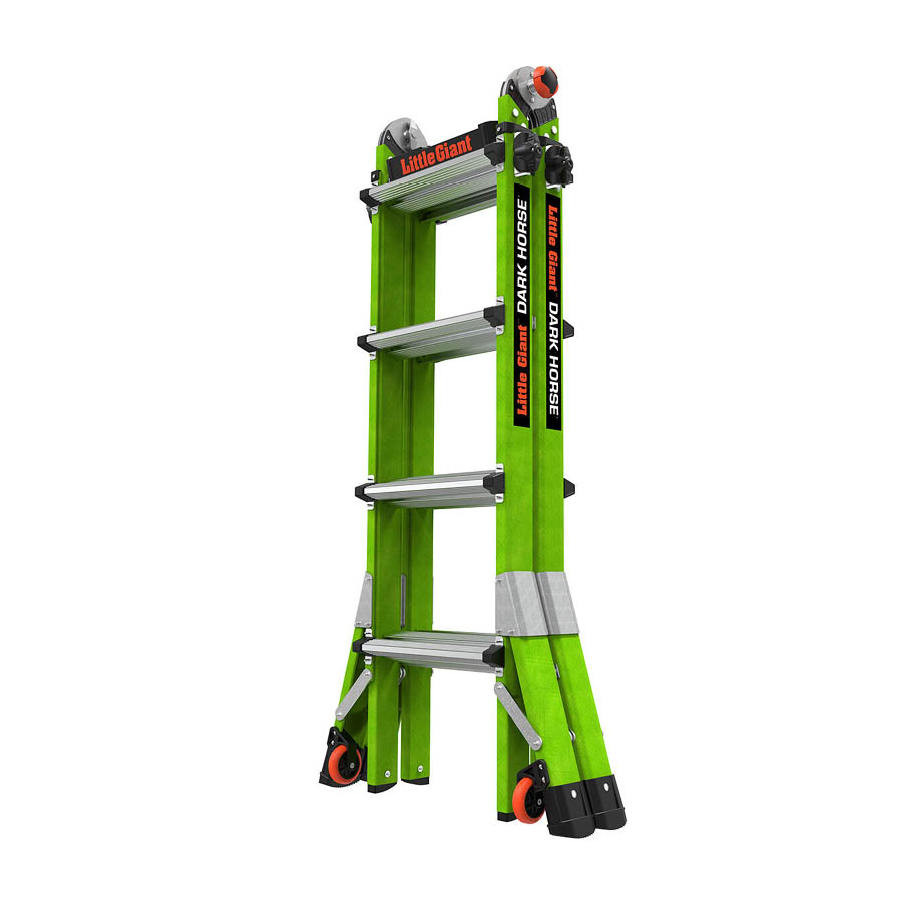

Dark Horse 2.0 - Non-Conductive Fiberglass Multi-Position Ladder

Standard: CSA Z11/CSA Class 1A

A non-conductive fiberglass multi-position ladder, convertible into a stepladder, extension ladder, 90-degree position, staircase, or scaffolding.

Select your reference

Quantity

Dark Horse 2.0 - Non-Conductive Fiberglass Multi-Position Ladder

Advantages and strengths

Non-conductive fiberglass multi-position ladder, 300 lb (136 kg) duty rating, available in 3 sizes (M13, M17, M22).
Palm buttons to move from storage to A-frame to extension configurations; patented Rapid Lock hinges for size adjustment.
Integrated Tip & Glide wheels, 10% lighter than the previous model, wide-flared base for improved side-tip stability.

Technical characteristics

Reference	characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_A	characteristic.CANADA_HAUTEUR_TRAVAIL_POSITION_A	characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_EXTENSIBLE	characteristic.CANADA_HAUTEUR_DE_TRAVAIL_EN_EXTENSION	characteristic.CANADA_POIDS	characteristic.CANADA_MODELE	Quantity
Ref. 15197-303 Dark horse 2.0 - 13ft	1 in to 2 ft 11 (0,30 a 0,89 m) m	9 ft 5 in (2,87 m) m	3 ft 10 in to 7 ft 9 in (1.17 to 2.36 m) m	14 ft 3 in (4.34 m) m	31.5 lbs (14,3 kg) lb	13 pi	Quantité maximum disponible pour ce magasin + -
Ref. 16117-303 Dark horse 2.0 - 17ft	1 ft 11 in to 4 (0,58 a 1,47 m) m	11 ft 4 in (3,45 m) m	5 ft 9 in to 11 ft 7 in (1.75 to 3.53 m) m	18 ft 1 in (5.51 m m	37.5 lbs (17 kg) lb	17 pi	Quantité maximum disponible pour ce magasin + -
Ref. 16122-303 Dark horse 2.0 - 22ft	2 ft 11 in to 6 (0,89 a 2,03 m) m	13 ft 2 in (4,01 m) m	7 ft 10 in to 15 ft 6 in (2.39 to 4.72 m) m	22 ft (6.71 m) m	46 lbs (20,9 kg) lb	22 pi	Quantité maximum disponible pour ce magasin + -

Dark horse 2.0 - 13ft
Reference :	15197-303
characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_A	1 in to 2 ft 11 (0,30 a 0,89 m) m
characteristic.CANADA_HAUTEUR_TRAVAIL_POSITION_A	9 ft 5 in (2,87 m) m
characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_EXTENSIBLE	3 ft 10 in to 7 ft 9 in (1.17 to 2.36 m) m
characteristic.CANADA_HAUTEUR_DE_TRAVAIL_EN_EXTENSION	14 ft 3 in (4.34 m) m
characteristic.CANADA_POIDS	31.5 lbs (14,3 kg) lb
characteristic.CANADA_MODELE	13 pi
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Dark horse 2.0 - 17ft
Reference :	16117-303
characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_A	1 ft 11 in to 4 (0,58 a 1,47 m) m
characteristic.CANADA_HAUTEUR_TRAVAIL_POSITION_A	11 ft 4 in (3,45 m) m
characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_EXTENSIBLE	5 ft 9 in to 11 ft 7 in (1.75 to 3.53 m) m
characteristic.CANADA_HAUTEUR_DE_TRAVAIL_EN_EXTENSION	18 ft 1 in (5.51 m m
characteristic.CANADA_POIDS	37.5 lbs (17 kg) lb
characteristic.CANADA_MODELE	17 pi
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Dark horse 2.0 - 22ft
Reference :	16122-303
characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_A	2 ft 11 in to 6 (0,89 a 2,03 m) m
characteristic.CANADA_HAUTEUR_TRAVAIL_POSITION_A	13 ft 2 in (4,01 m) m
characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_EXTENSIBLE	7 ft 10 in to 15 ft 6 in (2.39 to 4.72 m) m
characteristic.CANADA_HAUTEUR_DE_TRAVAIL_EN_EXTENSION	22 ft (6.71 m) m
characteristic.CANADA_POIDS	46 lbs (20,9 kg) lb
characteristic.CANADA_MODELE	22 pi
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

The Dark Horse 2.0 is the go-to articulating ladder for professionals who move between different types of jobs without wanting to haul multiple pieces of equipment. Built from non-conductive Hi-Viz green fiberglass, it handles four distinct configurations and is built for work near electrical hazards.

Four Positions, One Articulating Ladder

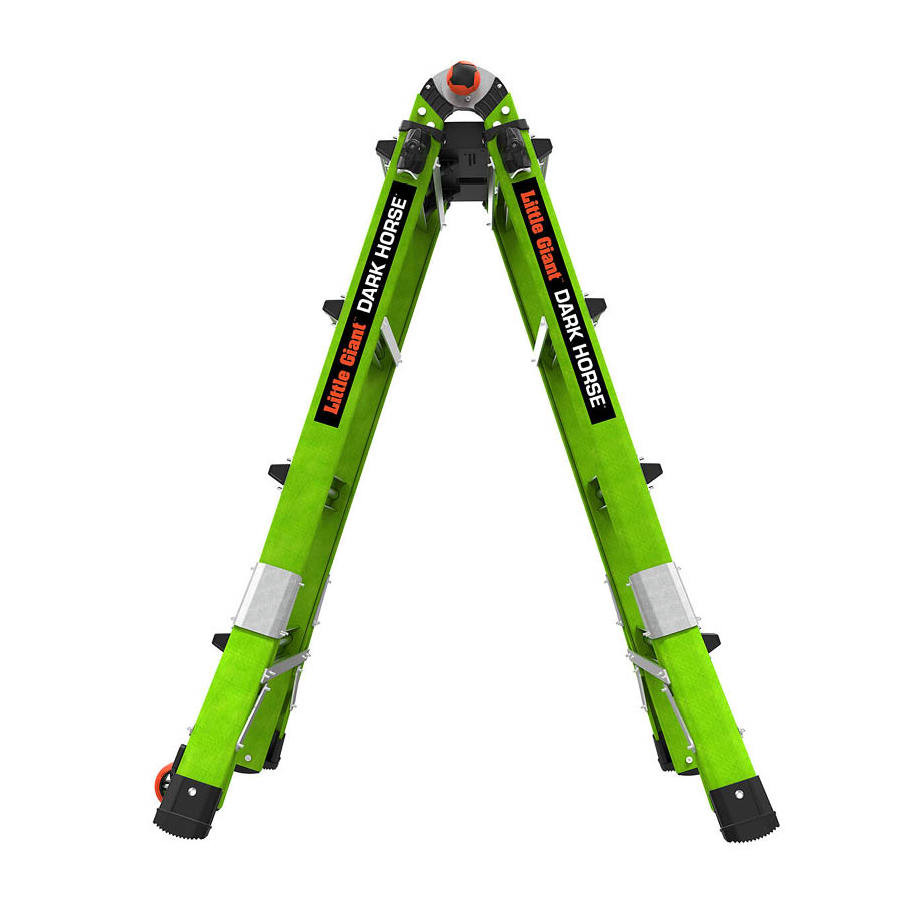

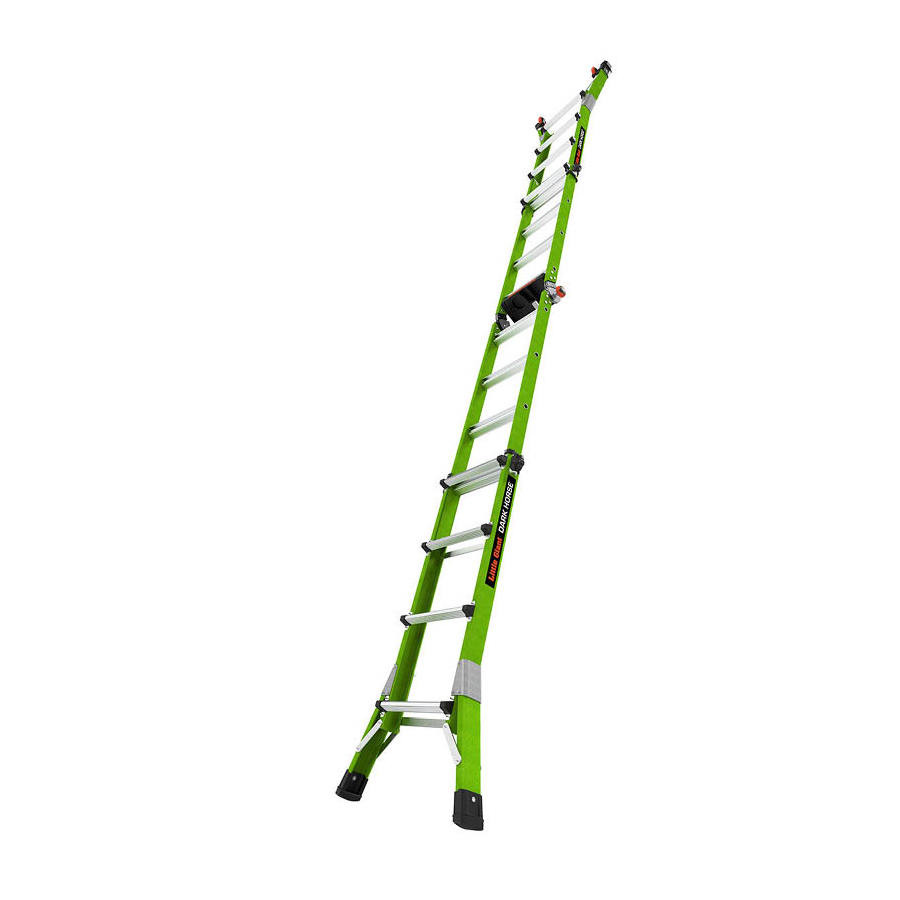

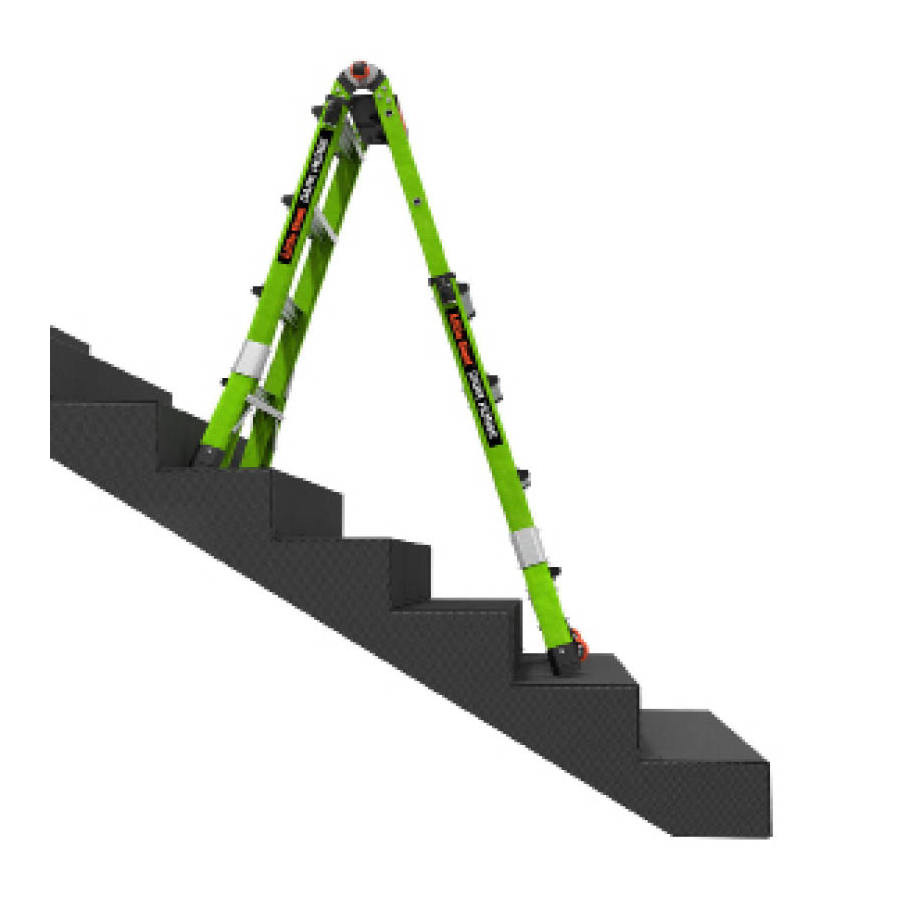

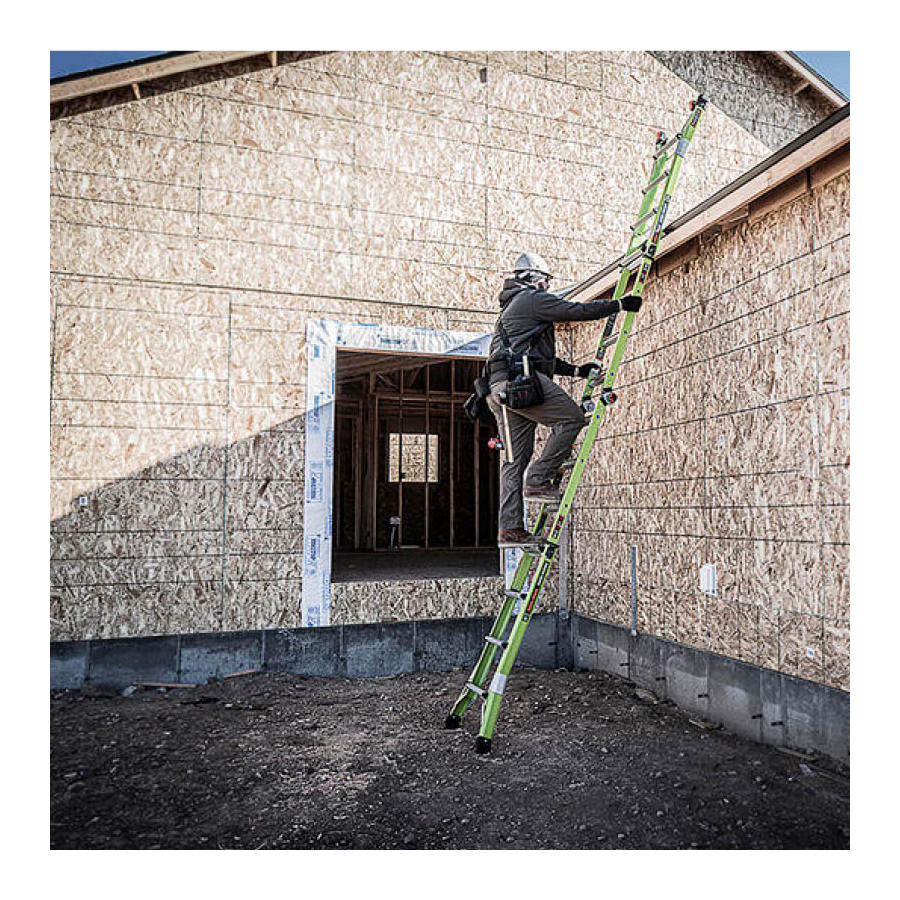

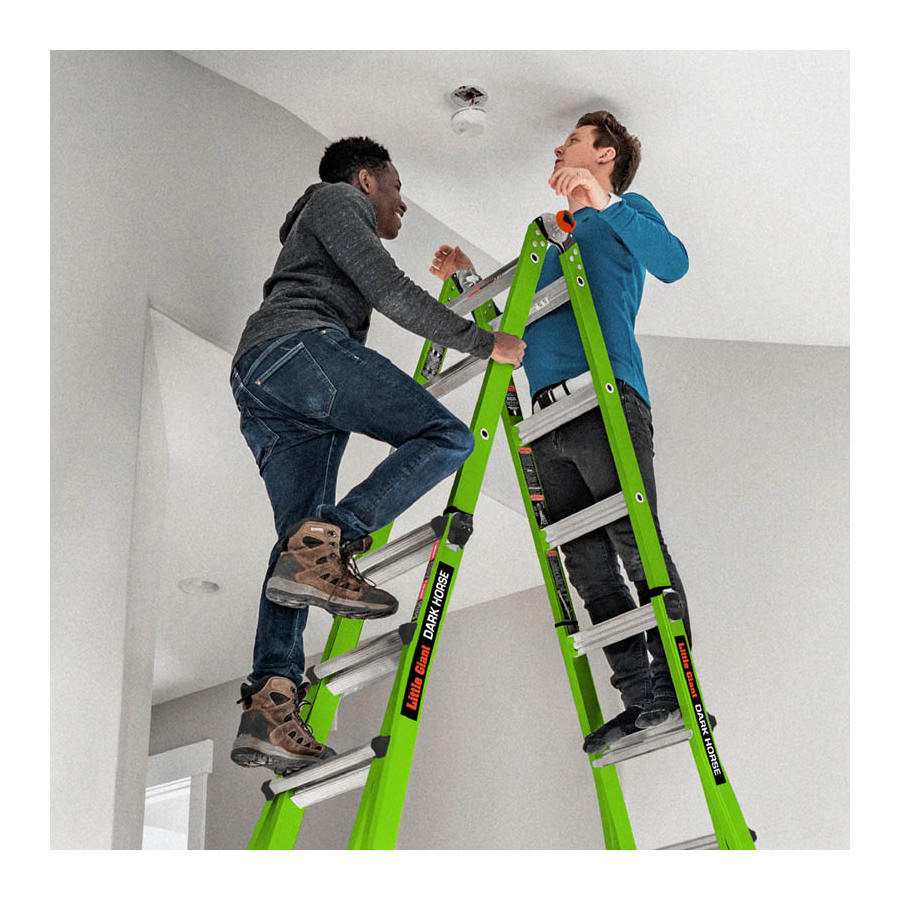

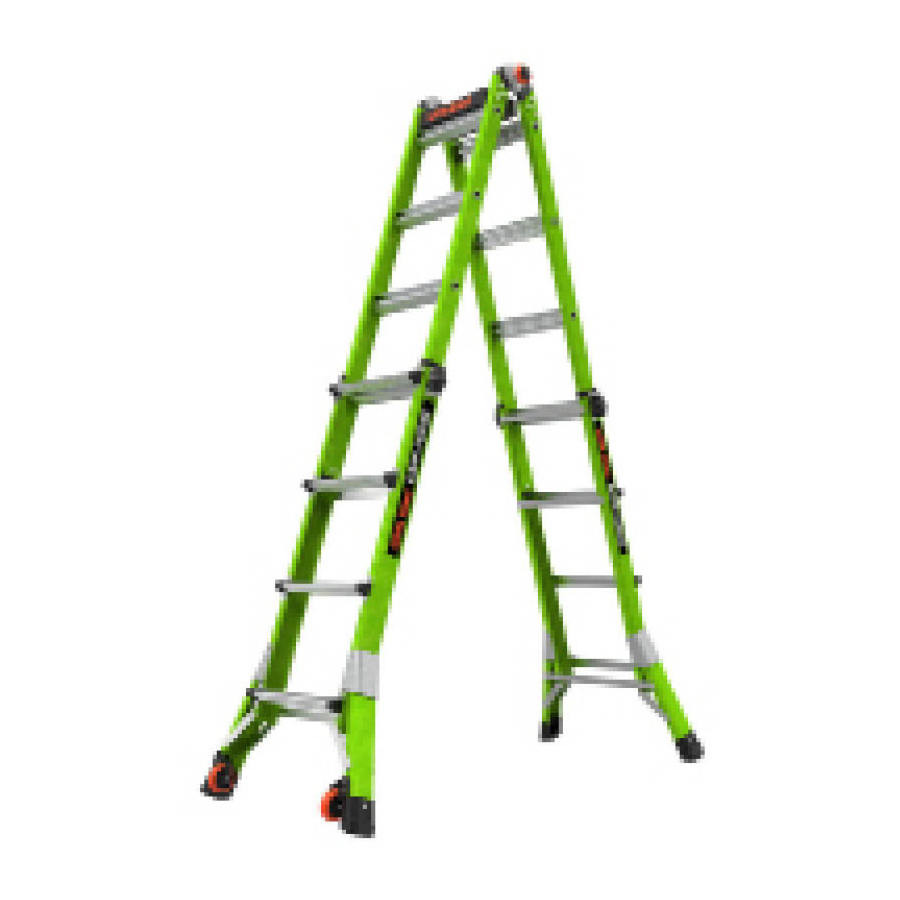

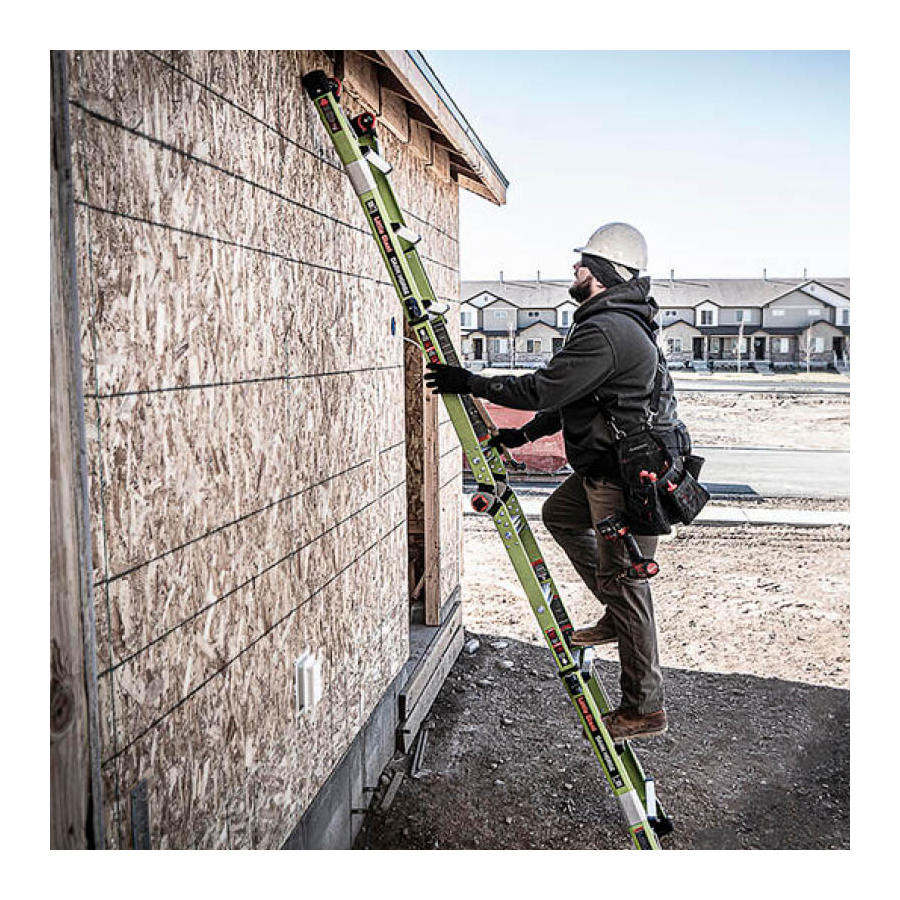

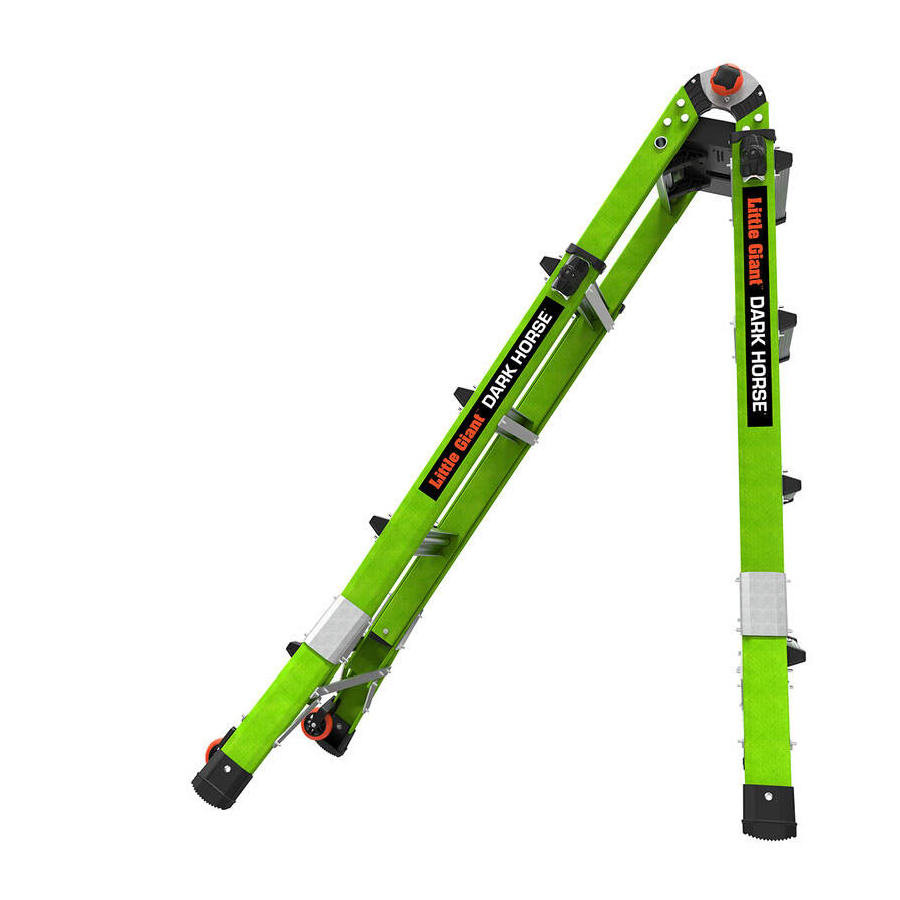

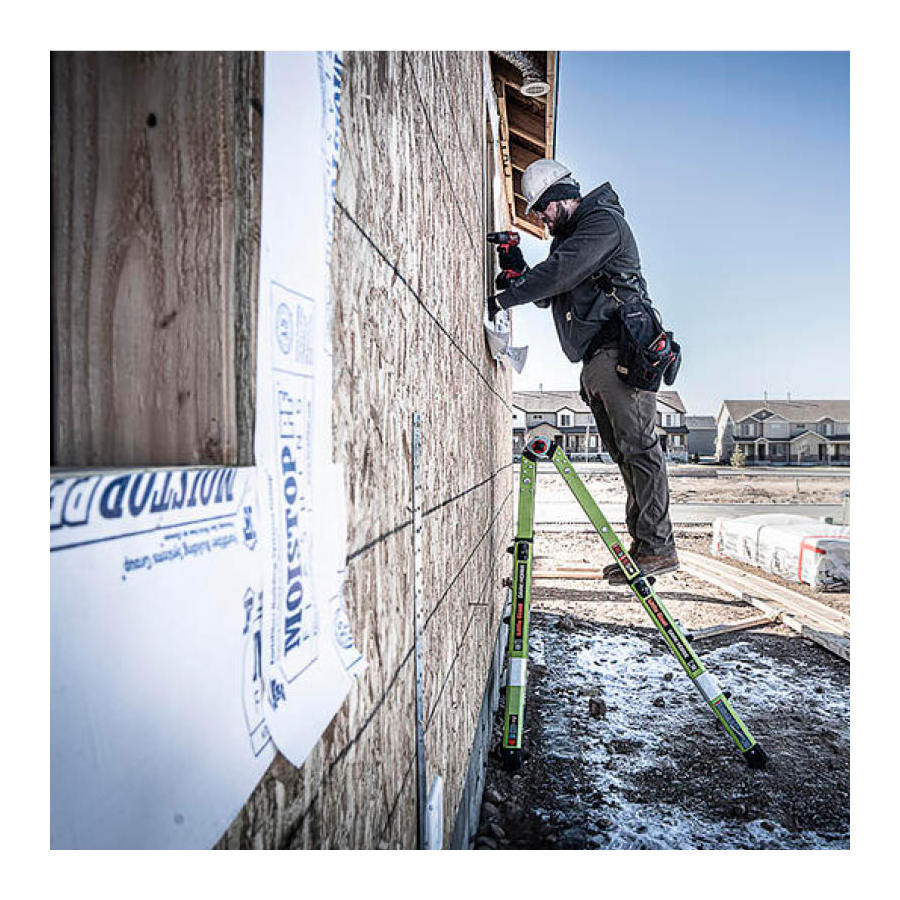

The Dark Horse 2.0 sets up as an A-frame for freestanding work at height, as an extension ladder for rooftops and elevated surfaces, at 90 degrees to work flush against walls, and in staircase mode for uneven surfaces. This multi-position ladder switches between configurations in seconds with the Rock Lock adjustment system, no tools required, no downtime on the job.

Safety and Stability

The wide-flared base reduces the risk of lateral tip-over when overreaching. The 4-pin hinge provides secure locking across all configurations. Non-conductive fiberglass reduces electrical risk in case of accidental contact with a live conductor, the recommended material under Canadian safety standards for work near electrical lines or energized equipment.

Jobsite Mobility

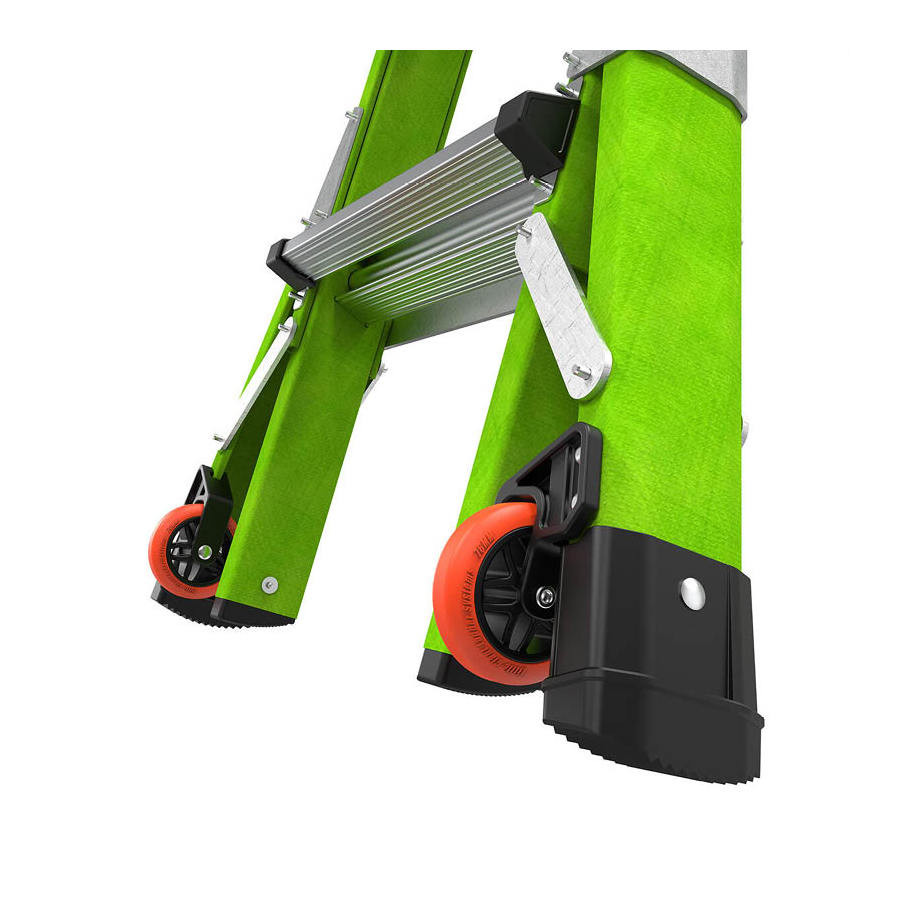

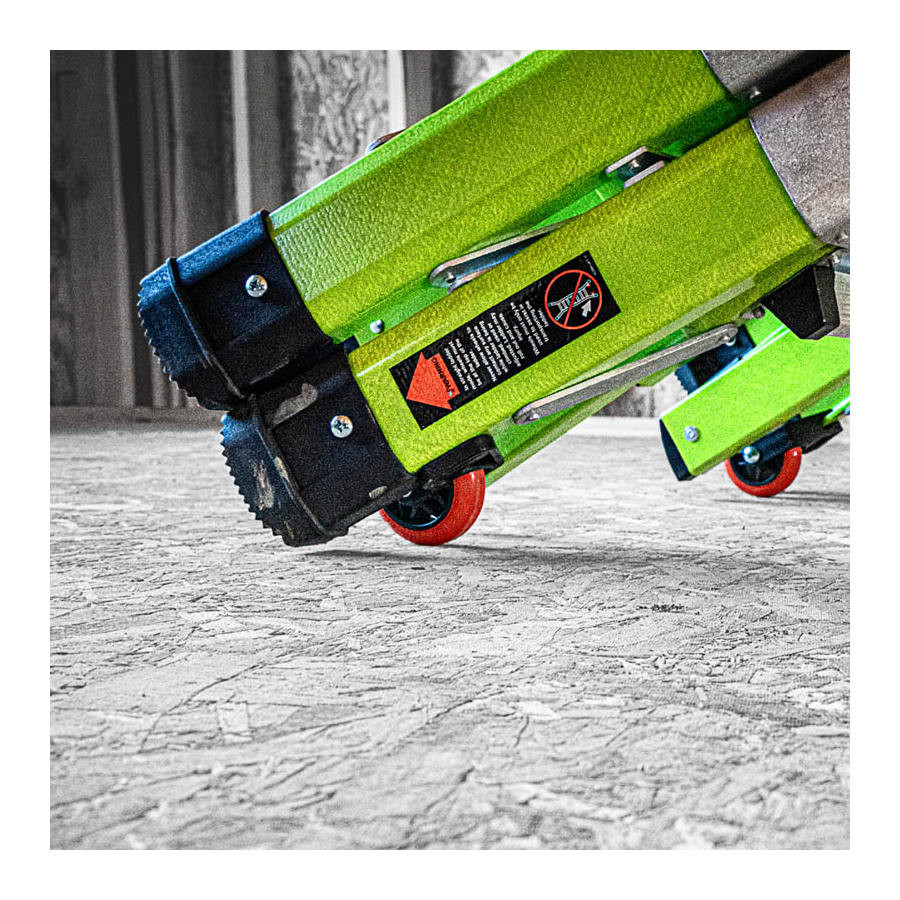

Built-in Tip & Glide wheels let you roll the articulating ladder between work areas without lifting it, reducing fatigue and back strain during repetitive repositioning.

Compliance Information

Type IA duty rating: maximum capacity of 300 lbs (136 kg), including the user, tools, and equipment. CSA Z11 compliant (Portable Ladders, Canada). Available in 13, 17, and 22 feet. Designed in the USA.

Technical description

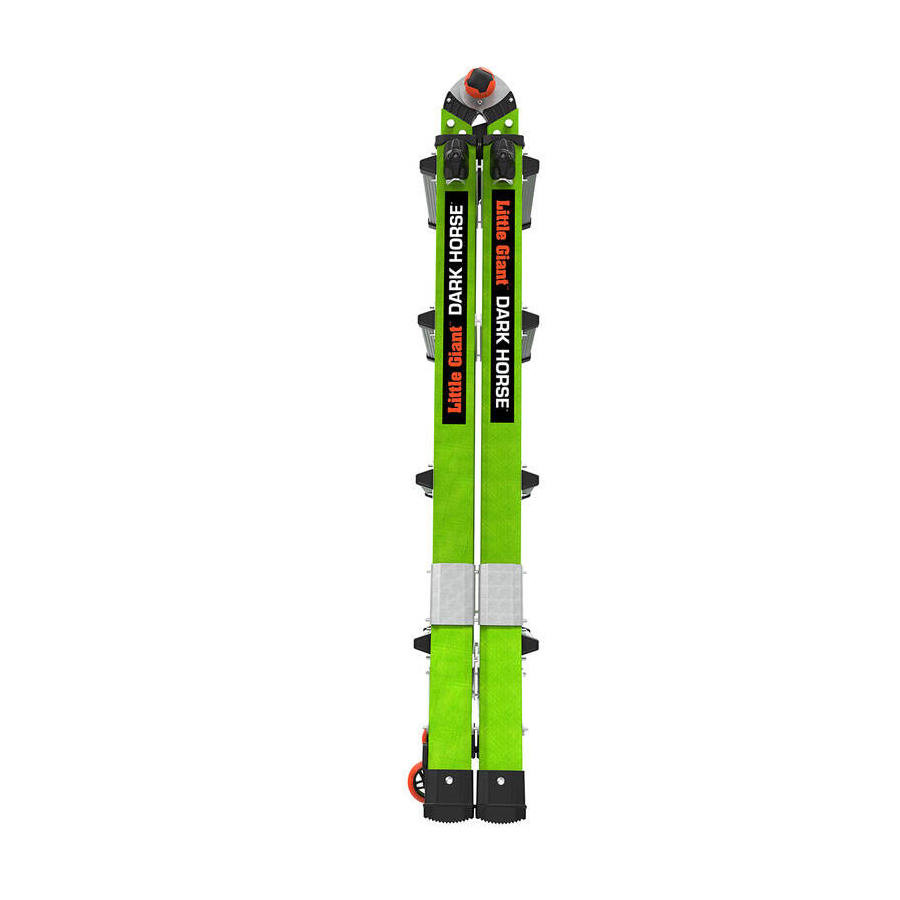

Palm buttons: quick transition between storage, A-frame, and extension configurations.

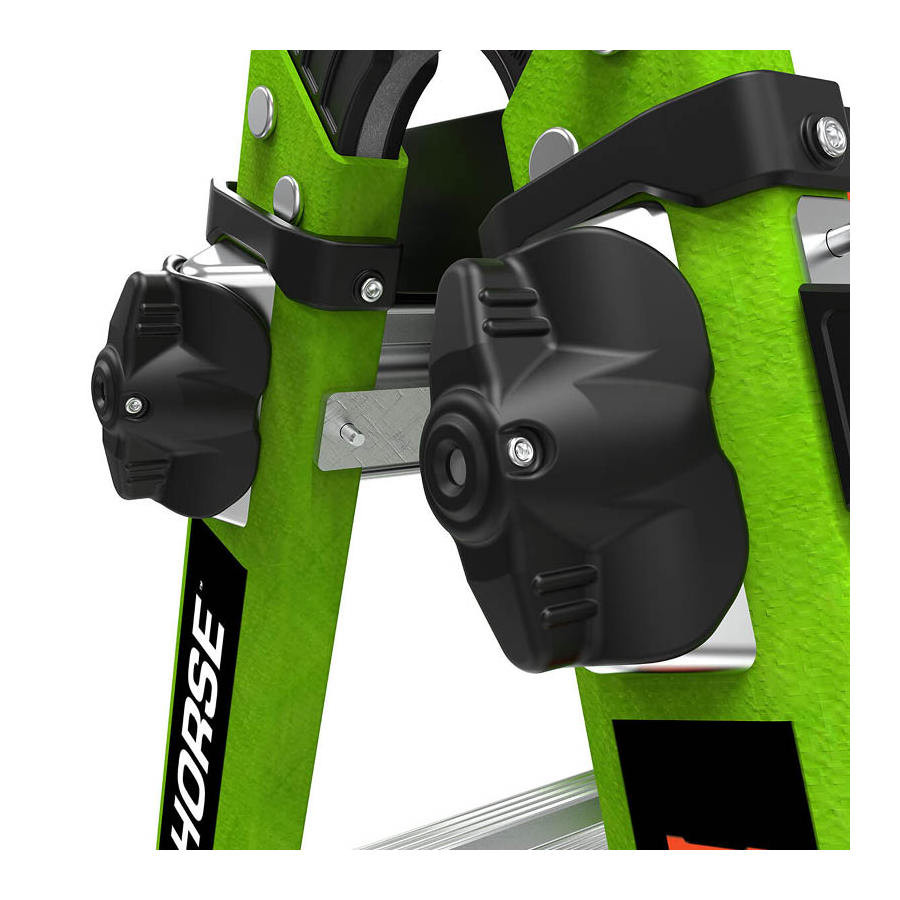

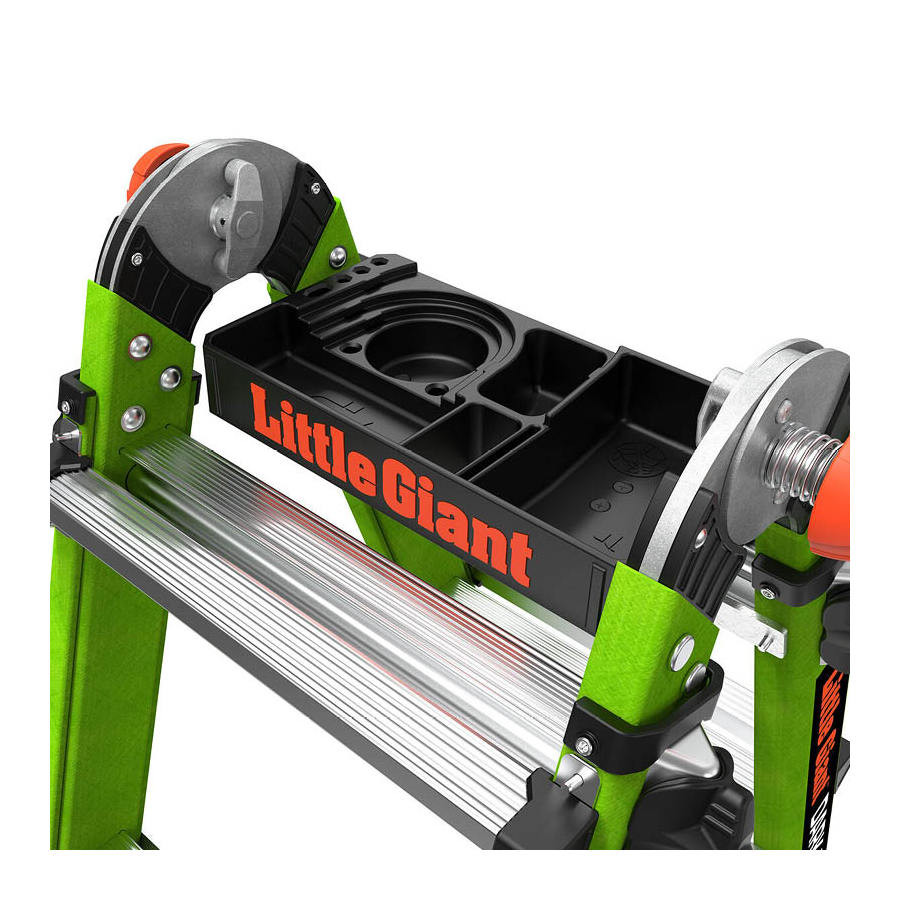

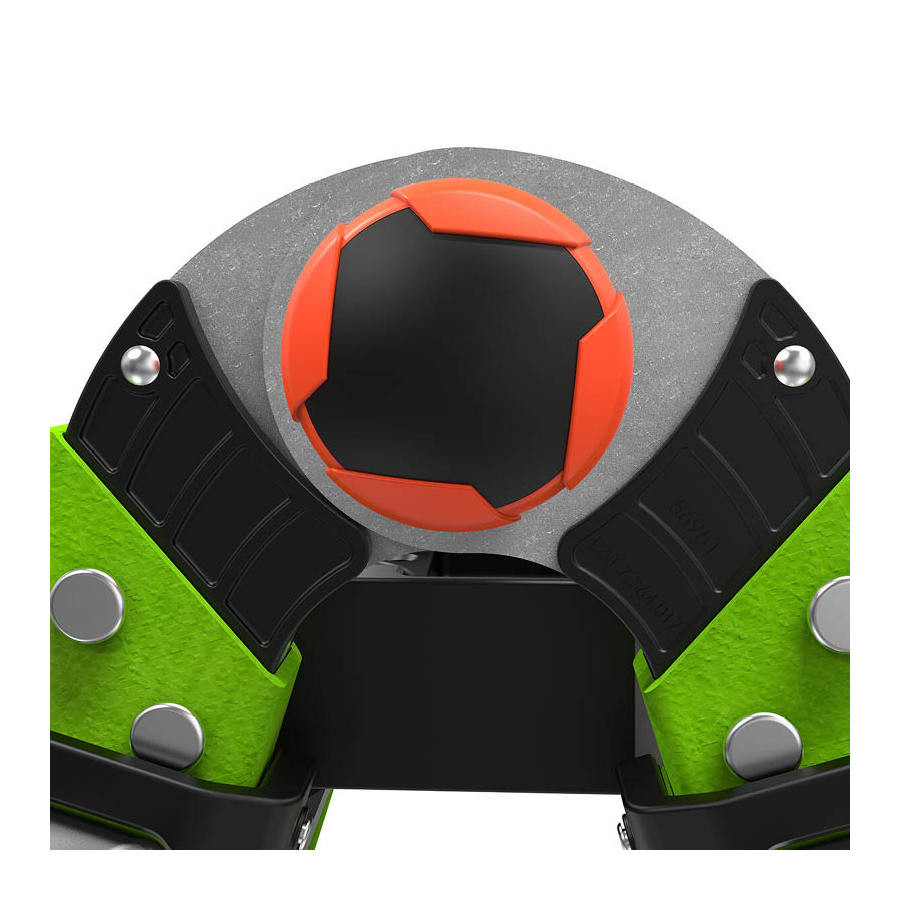

Patented Rapid Lock hinges: size adjustment with a simple twist and slide of the rails.

Integrated Tip & Glide wheels: easy to move the ladder from job to job.

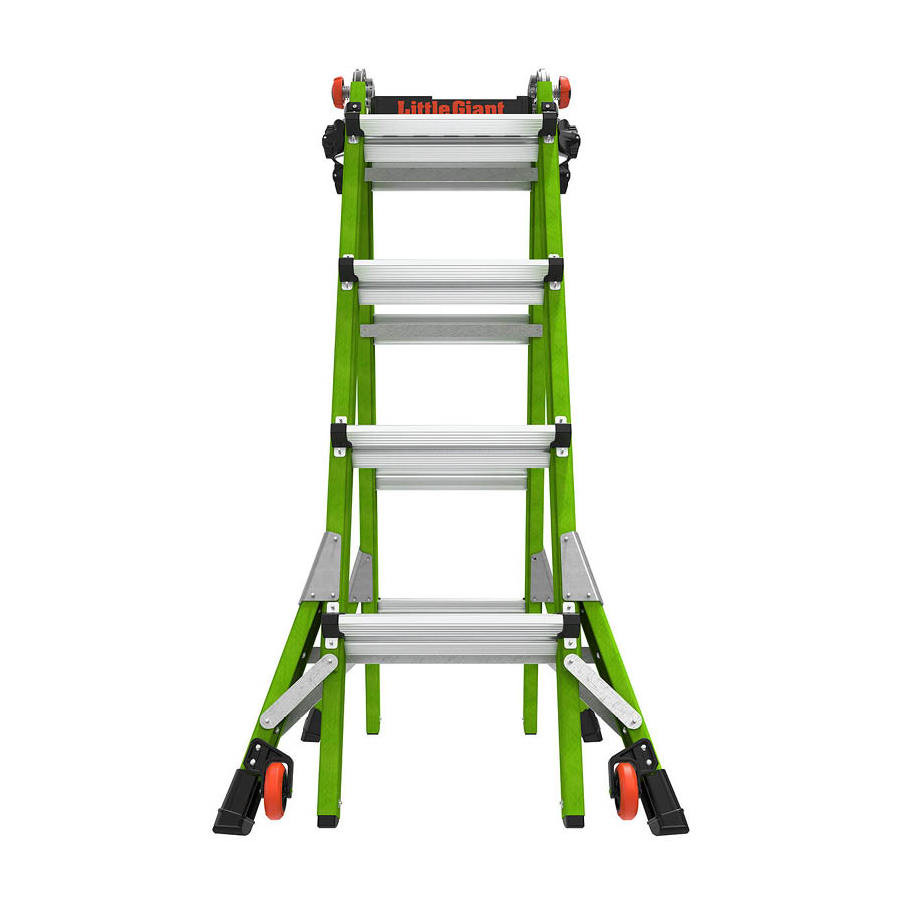

Wide-flared base: increased side-tip stability, reduces fall risk from side overreaching.

Triple-locking hinges, riveted non-marring feet, 30.5 cm (1 ft) inside clear width.

Available positions: stepladder (A-frame), extension ladder, 90-degree position, staircase, scaffolding (trestle-and-plank, brackets sold separately).

Duty rating: 136 kg (300 lb), Type IA, extra-heavy-duty use.
