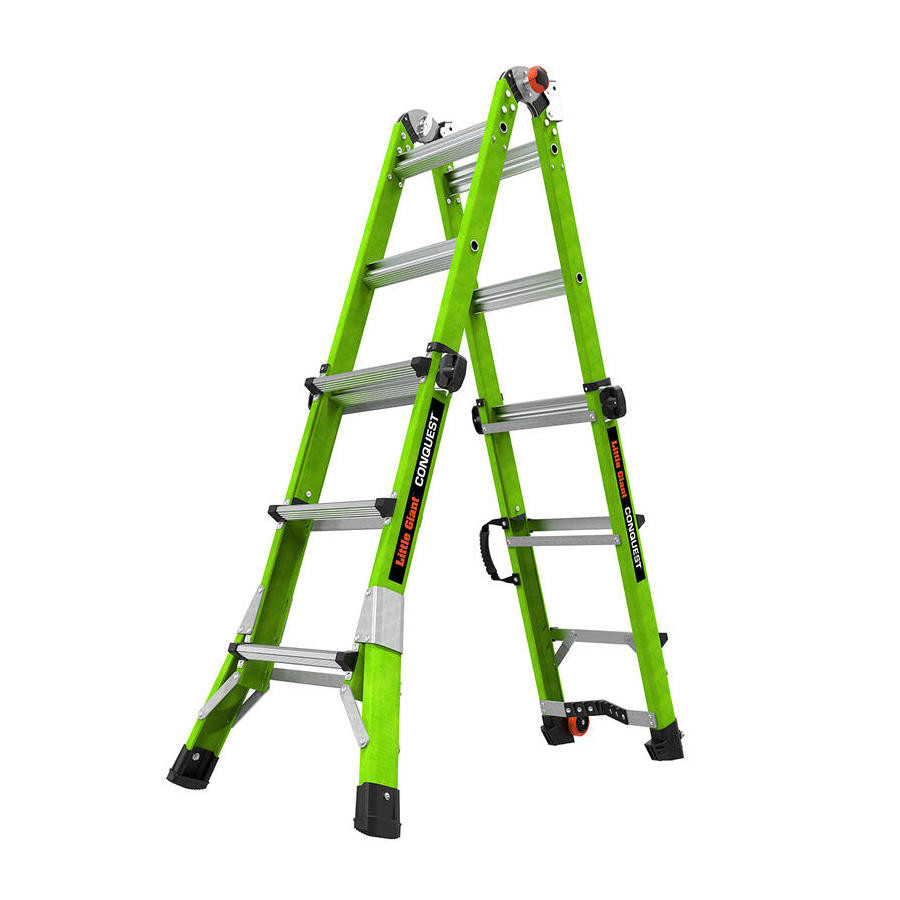

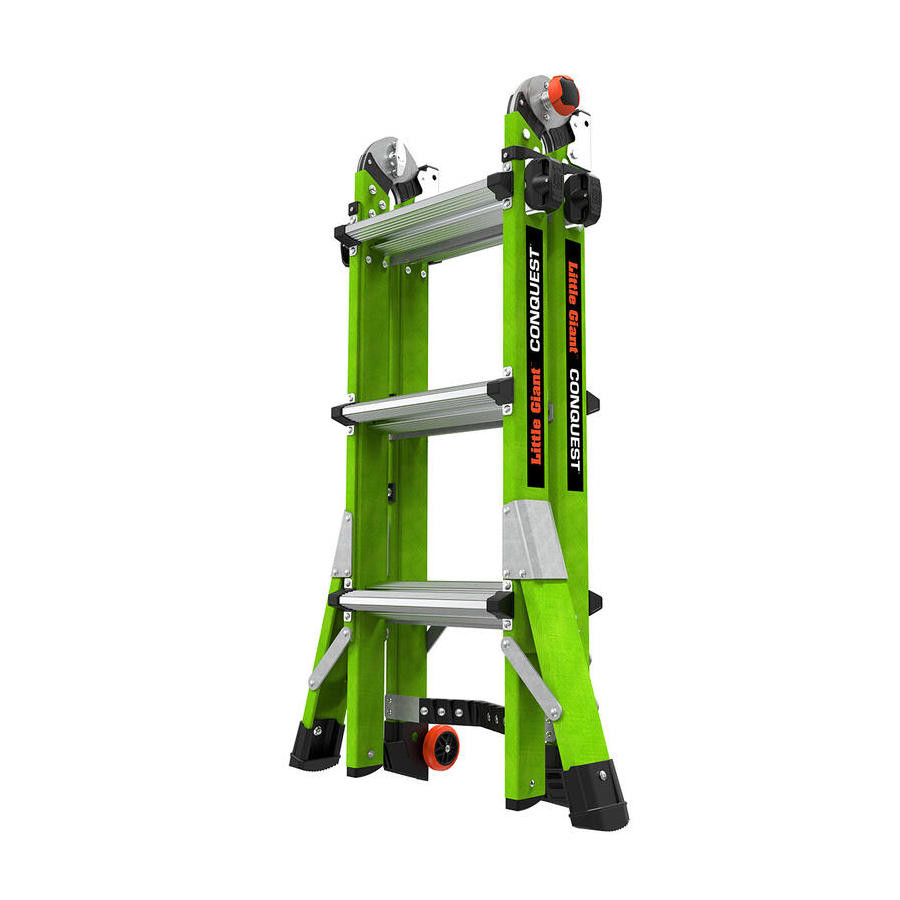

Conquest - Non-Conductive Fiberglass Adjustable Height Multi-Position Articulating Ladder

Standard: CSA Z11/CSA Class 1AA/ANSI Type IAA

Non-conductive fiberglass multi-position articulating ladder with independent side adjustment: work safely on stairs and uneven surfaces.

Select your reference

Quantity

Conquest - Non-Conductive Fiberglass Adjustable Height Multi-Position Articulating Ladder

Advantages and strengths

Non-conductive Hi-Viz green fiberglass multi-position articulating ladder. Independent side adjustment for safe use on stairs and uneven surfaces. Rapid Lock adjusters. Straight legs for tight spaces. Air Deck accessory ports. Corner feet. Optional V-bar. Integrated handle and wheels. CSA + ANSI compliant.

Technical characteristics

Reference	characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_EXTENSIBLE	characteristic.CANADA_HAUTEUR_DE_RANGEMENT	characteristic.CANADA_PROFONDEUR_DE_RANGEMENT	Standard	characteristic.CANADA_MODELE	characteristic.CANADA_HAUTEUR_PORTEE	characteristic.CANADA_HAUTEUR_TOTALE	characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX	characteristic.CANADA_POIDS	Quantity
Ref. 17113-001 Multi-position articulating ladder CONQUEST 13ft	6 ft 11 in to 10 ft 11 in (2.1 to 3.3 m) m	3 ft 7 in (1.1 m) m	10 ft (3.04 m) m	IAA - 375 lbs	13 ft (3.9 m)	14 ft 3 in (4.3 m)	3 ft 6 in to 5 ft 6 in (1.06 to 1.7 m)	3 ft 10 in to 7 ft 9 in (1.17 to 2.4 m)	32 lbs (14.5 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. 17117-303 Multi-position articulating ladder CONQUEST 17ft	5 ft 1 in to 11 ft 7 in (1.5 to 3.5 m) m	4 ft 7 in (1.4 m) m	10 ft (3.04 m) m	IA - 300 lbs	17 ft (5.2 m)	18 ft 1 in (5.5 m)	4 ft 6 in to 7 ft 6 in (1.4 to 2.3 m)	9 ft to 15 ft (2.75 to 4.6 m)	37.5 lbs (17 kg) lb	Quantité maximum disponible pour ce magasin + -
Ref. 17122-303 Multi-position articulating ladder CONQUEST 22ft	7 ft 10 in to 15 ft 6 in (2.4 to 4.7 m) m	5 ft 7 in (1.7 m) m	10 ft (3.04 m) m	IA - 300 lbs	22 ft (6.7 m)	22 ft (6.7 m)	5 ft 6 in to 9 ft 6 in (1.7 to 2.9 m)	11 ft to 19 ft (3.35 to 5.8 m)	46 lbs (20.8 kg) lb	Quantité maximum disponible pour ce magasin + -

Multi-position articulating ladder CONQUEST 13ft
Reference :	17113-001
characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_EXTENSIBLE	6 ft 11 in to 10 ft 11 in (2.1 to 3.3 m) m
characteristic.CANADA_HAUTEUR_DE_RANGEMENT	3 ft 7 in (1.1 m) m
characteristic.CANADA_PROFONDEUR_DE_RANGEMENT	10 ft (3.04 m) m
Standard	IAA - 375 lbs
characteristic.CANADA_MODELE	13 ft (3.9 m)
characteristic.CANADA_HAUTEUR_PORTEE	14 ft 3 in (4.3 m)
characteristic.CANADA_HAUTEUR_TOTALE	3 ft 6 in to 5 ft 6 in (1.06 to 1.7 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX	3 ft 10 in to 7 ft 9 in (1.17 to 2.4 m)
characteristic.CANADA_POIDS	32 lbs (14.5 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Multi-position articulating ladder CONQUEST 17ft
Reference :	17117-303
characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_EXTENSIBLE	5 ft 1 in to 11 ft 7 in (1.5 to 3.5 m) m
characteristic.CANADA_HAUTEUR_DE_RANGEMENT	4 ft 7 in (1.4 m) m
characteristic.CANADA_PROFONDEUR_DE_RANGEMENT	10 ft (3.04 m) m
Standard	IA - 300 lbs
characteristic.CANADA_MODELE	17 ft (5.2 m)
characteristic.CANADA_HAUTEUR_PORTEE	18 ft 1 in (5.5 m)
characteristic.CANADA_HAUTEUR_TOTALE	4 ft 6 in to 7 ft 6 in (1.4 to 2.3 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX	9 ft to 15 ft (2.75 to 4.6 m)
characteristic.CANADA_POIDS	37.5 lbs (17 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Multi-position articulating ladder CONQUEST 22ft
Reference :	17122-303
characteristic.CANADA_HAUTEUR_MAX_DE_MONTEE_EN_EXTENSIBLE	7 ft 10 in to 15 ft 6 in (2.4 to 4.7 m) m
characteristic.CANADA_HAUTEUR_DE_RANGEMENT	5 ft 7 in (1.7 m) m
characteristic.CANADA_PROFONDEUR_DE_RANGEMENT	10 ft (3.04 m) m
Standard	IA - 300 lbs
characteristic.CANADA_MODELE	22 ft (6.7 m)
characteristic.CANADA_HAUTEUR_PORTEE	22 ft (6.7 m)
characteristic.CANADA_HAUTEUR_TOTALE	5 ft 6 in to 9 ft 6 in (1.7 to 2.9 m)
characteristic.CANADA_HAUTEUR_DEPLOYEE_MAX	11 ft to 19 ft (3.35 to 5.8 m)
characteristic.CANADA_POIDS	46 lbs (20.8 kg) lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

The Conquest is a Hi-Viz green fiberglass multi-position articulating ladder that builds on the standard multi-position concept (A-frame, extension, staircase) and adds the most differentiating feature in its category: independent adjustment of each side of the ladder. This allows safe use on stairs and uneven surfaces without improvising or taking risks.

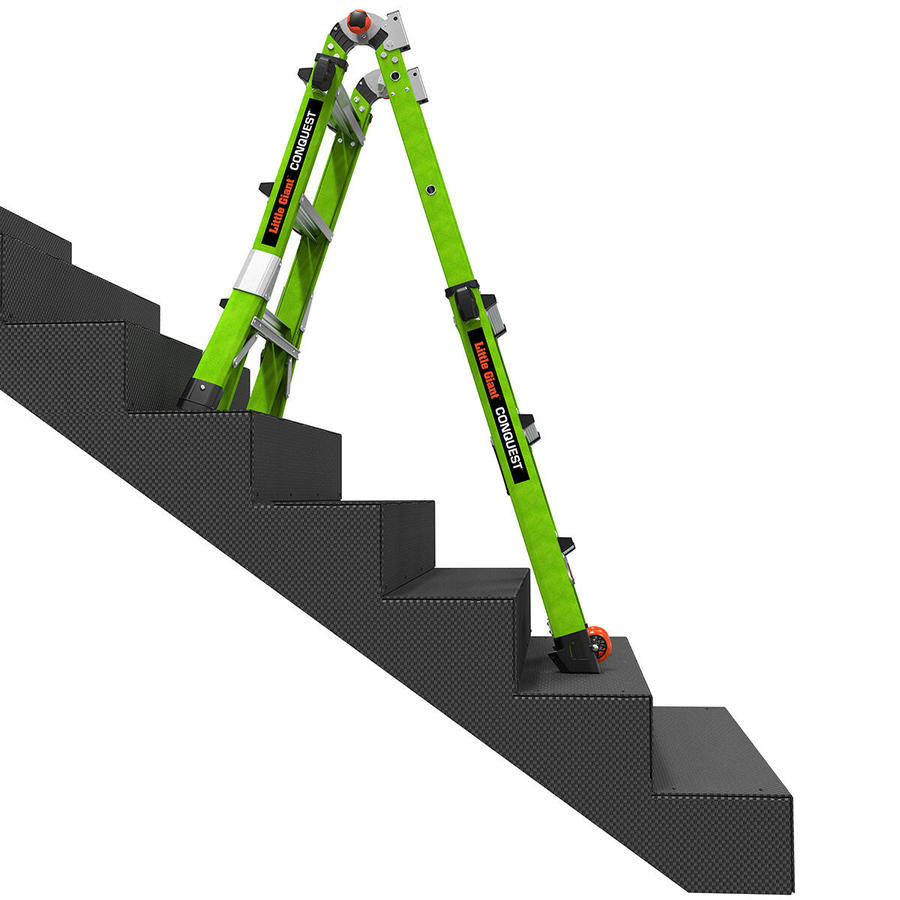

Independent Side Adjustment: the Key for Stairs

On a standard articulating ladder, both sides adjust together to the same height. On the Conquest, each side adjusts independently, letting you adapt the length of each rail to the surface it rests on. For home renovations, stairwell ceiling work, or sloped surfaces, this is a concrete advantage that eliminates the need for makeshift shimming.

Access to Tight Spaces

The Conquest's straight legs allow access to tight spaces between studs and roof joists, and through attic hatch openings. Air Deck accessory ports allow connecting Little Giant work platforms to create a true elevated workstation (sold separately).

Versatility and Transport

The optional V-bar allows leaning the ladder in extension position on poles and outside corners. Corner feet provide added stability on angled surfaces. The integrated handle and wheels make jobsite repositioning effortless without lifting the ladder.

Two Duty Ratings in One Product Line

The 13 ft model is rated Type IAA (375 lbs / 170 kg). The 17 and 22 ft models are rated Type IA (300 lbs / 136 kg). All are CSA + ANSI compliant.

Technical description

Independent side adjustment: safe use on stairs and uneven surfaces

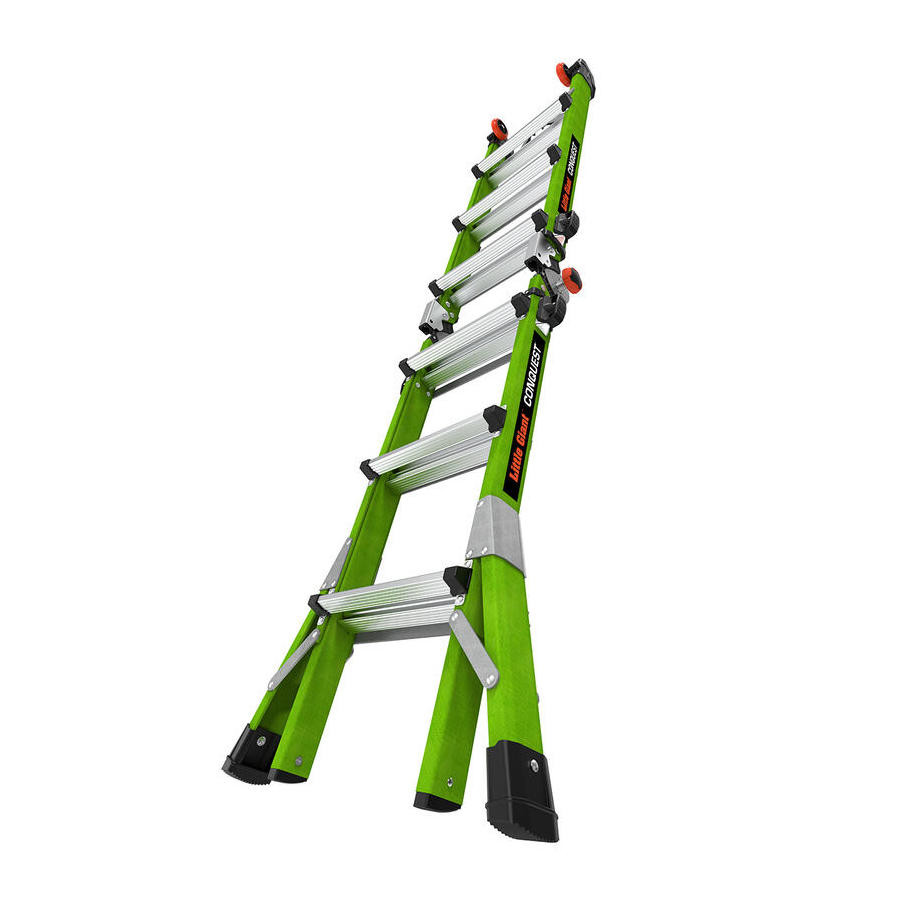

Multi-position articulating ladder: A-frame, extension, and staircase positions

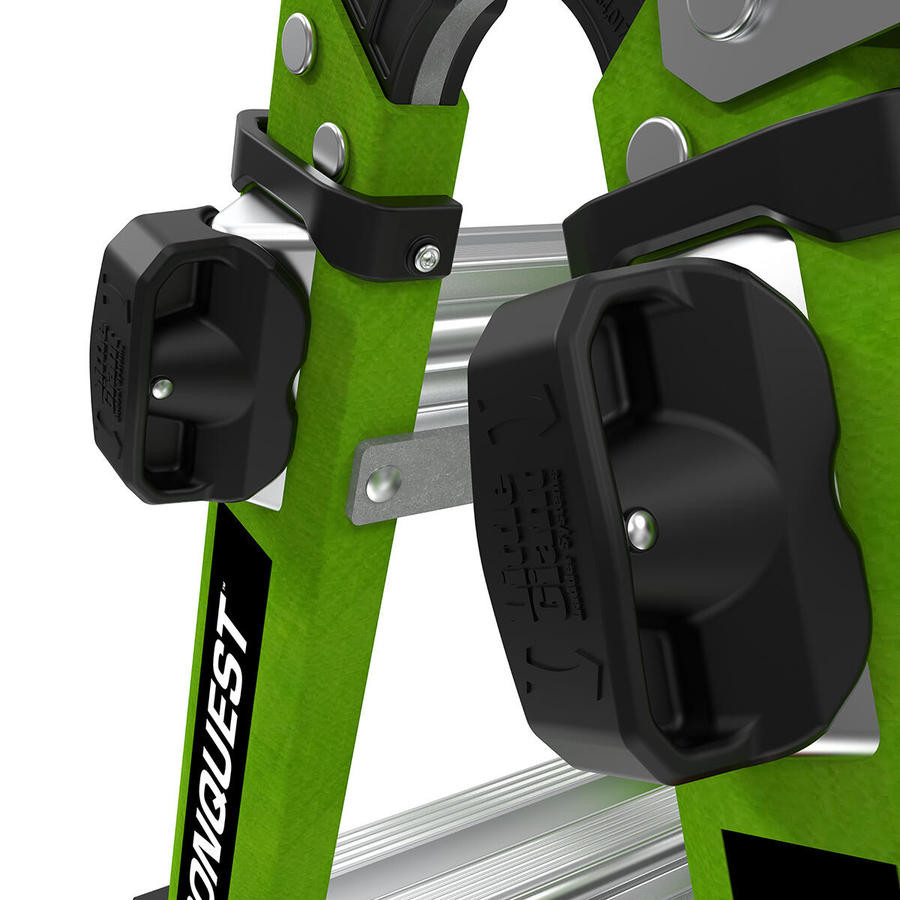

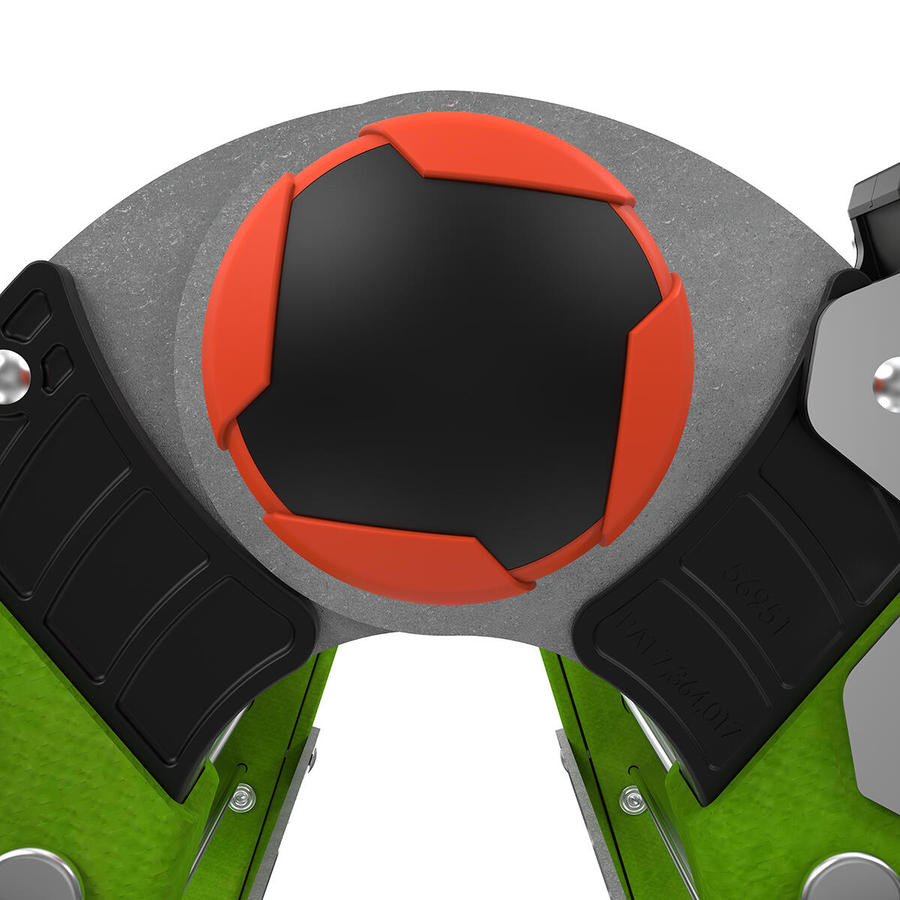

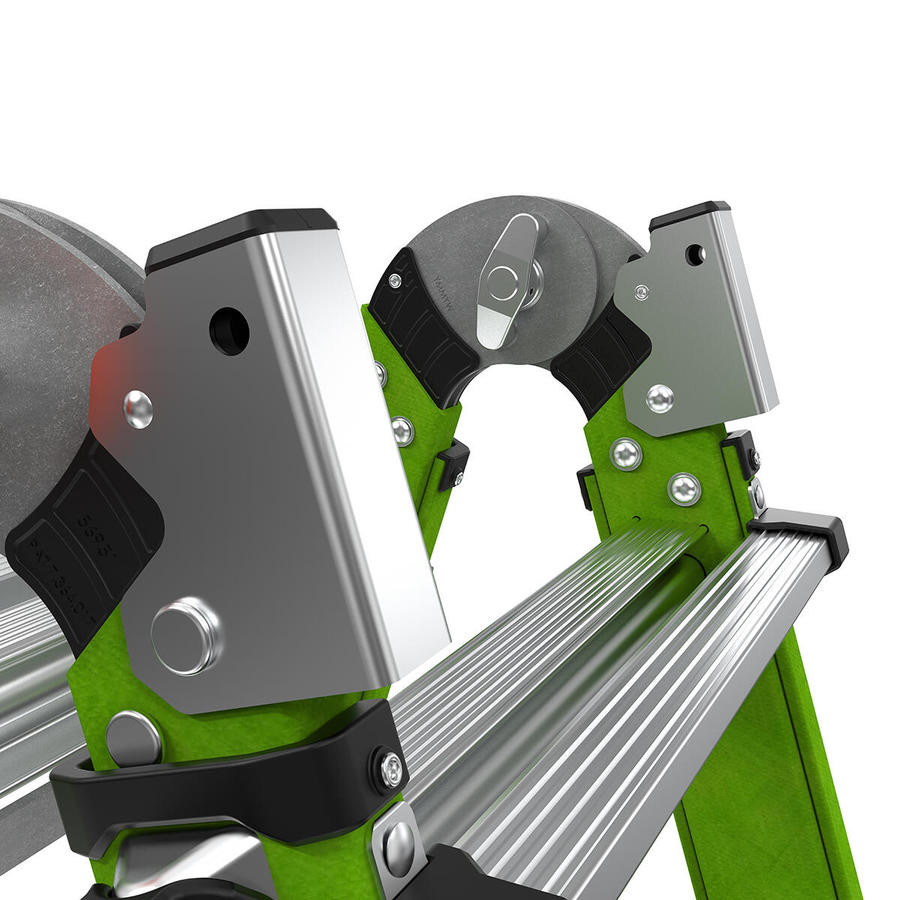

Rapid Lock adjusters: fast, reliable configuration changes

Non-conductive Hi-Viz green fiberglass: safe for use near electrical hazards

Straight legs: access to tight spaces between studs and roof joists

Air Deck accessory ports: compatible with Little Giant work platforms (sold separately)

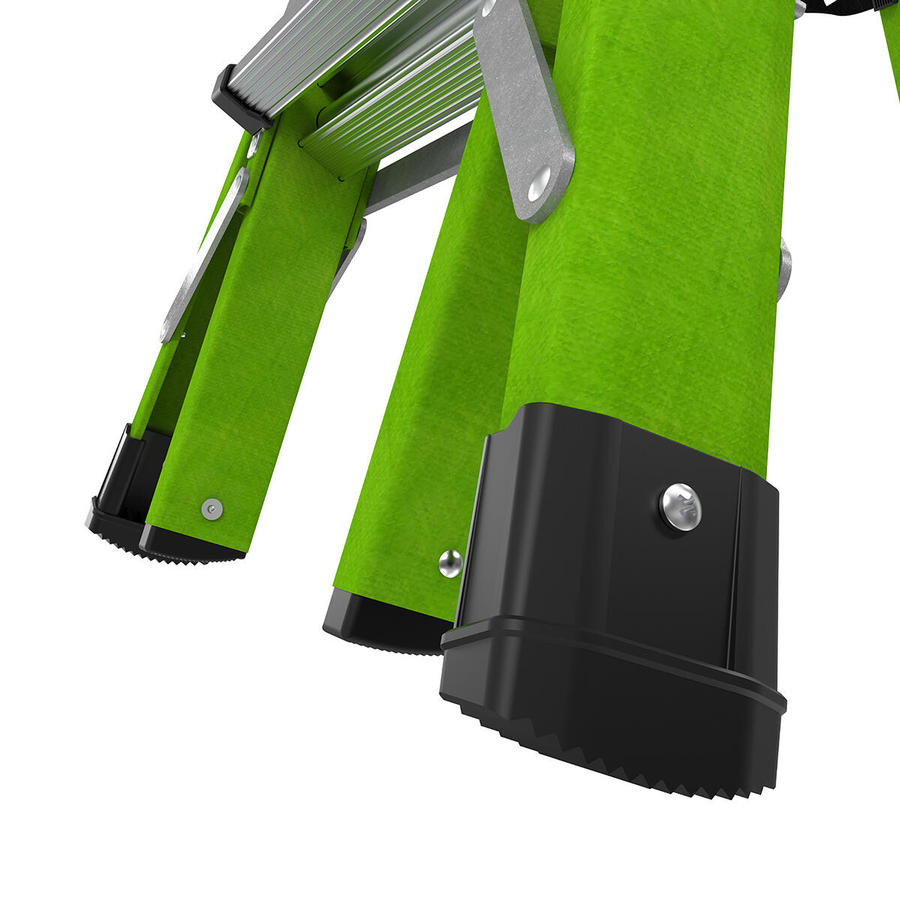

Corner feet: stability on angled surfaces

V-bar compatible (optional): leans on poles and outside corners

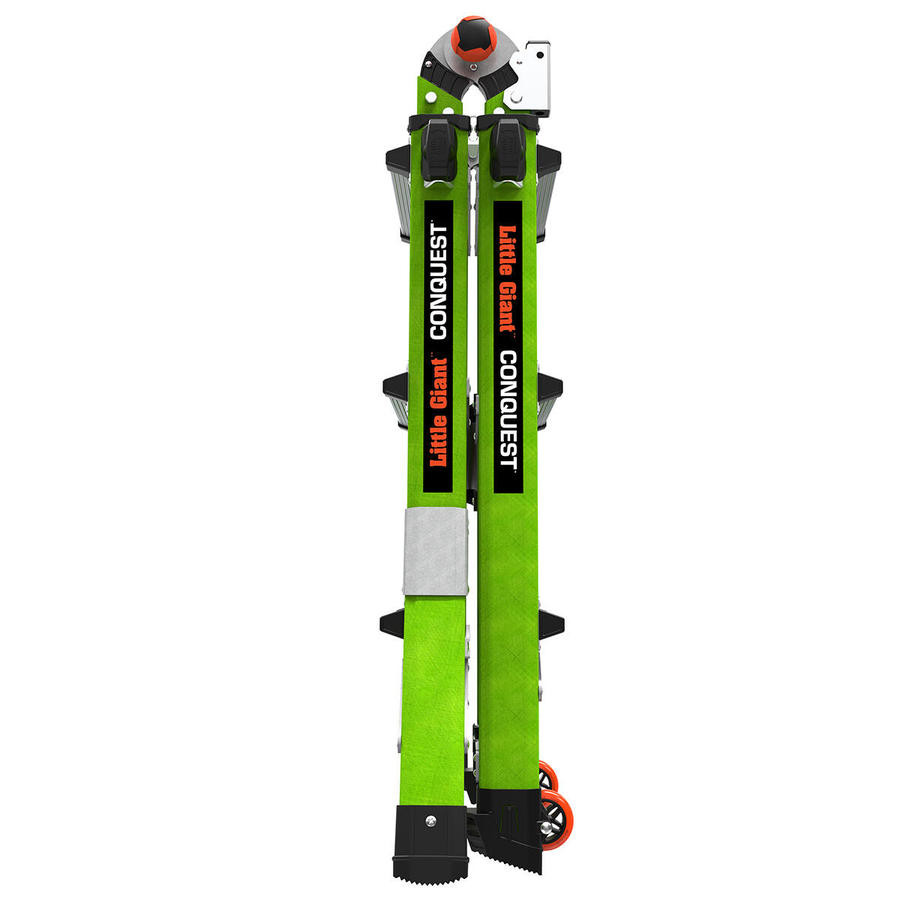

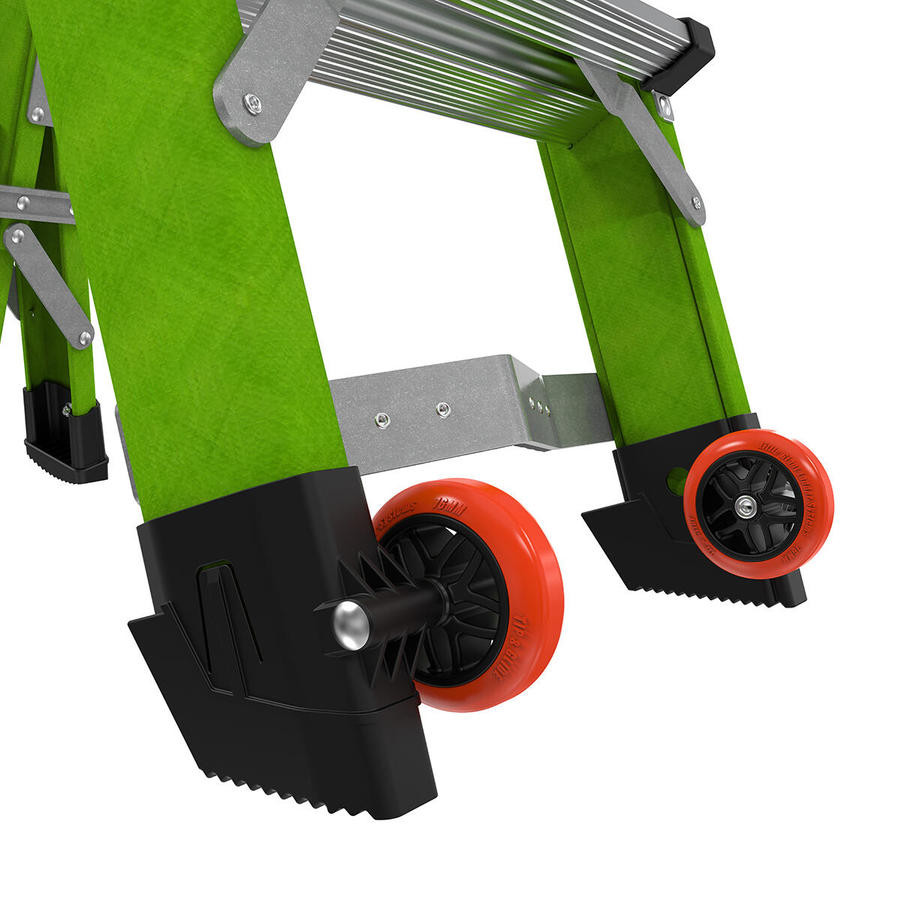

Integrated handle and wheels: easy jobsite transport

Compact body: converts into a large extension ladder

13 ft model: Type IAA, 375 lbs (170 kg) / 17 and 22 ft models: Type IA, 300 lbs (136 kg)

CSA + ANSI compliant
