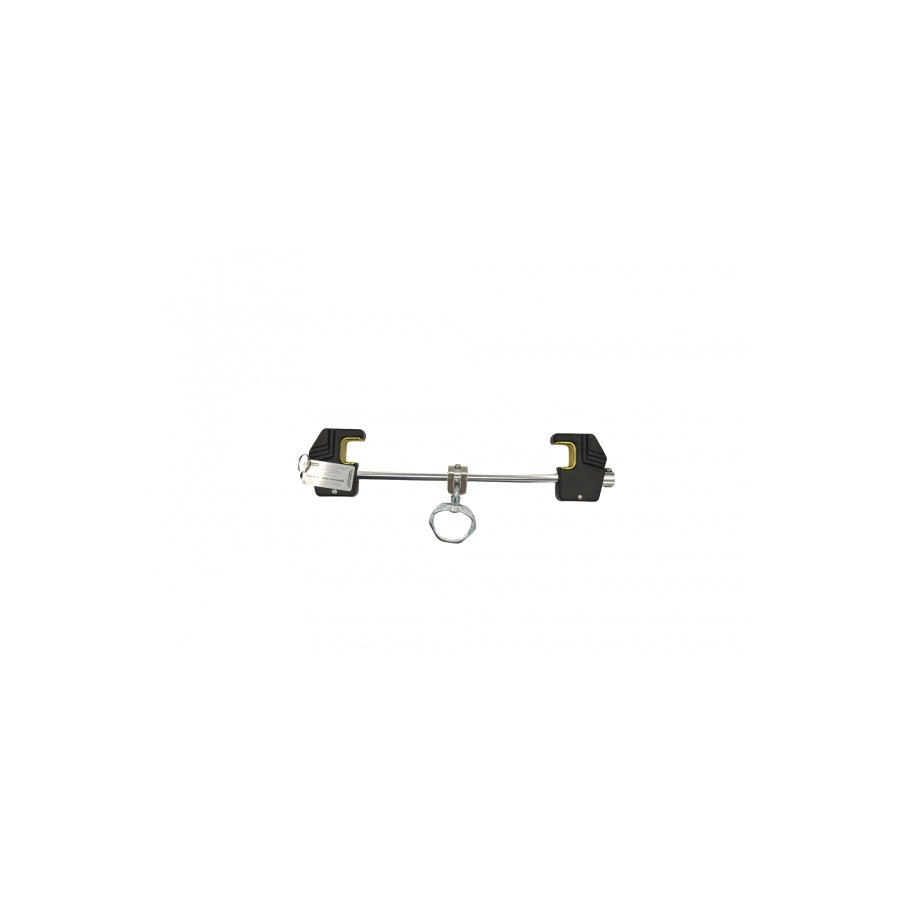

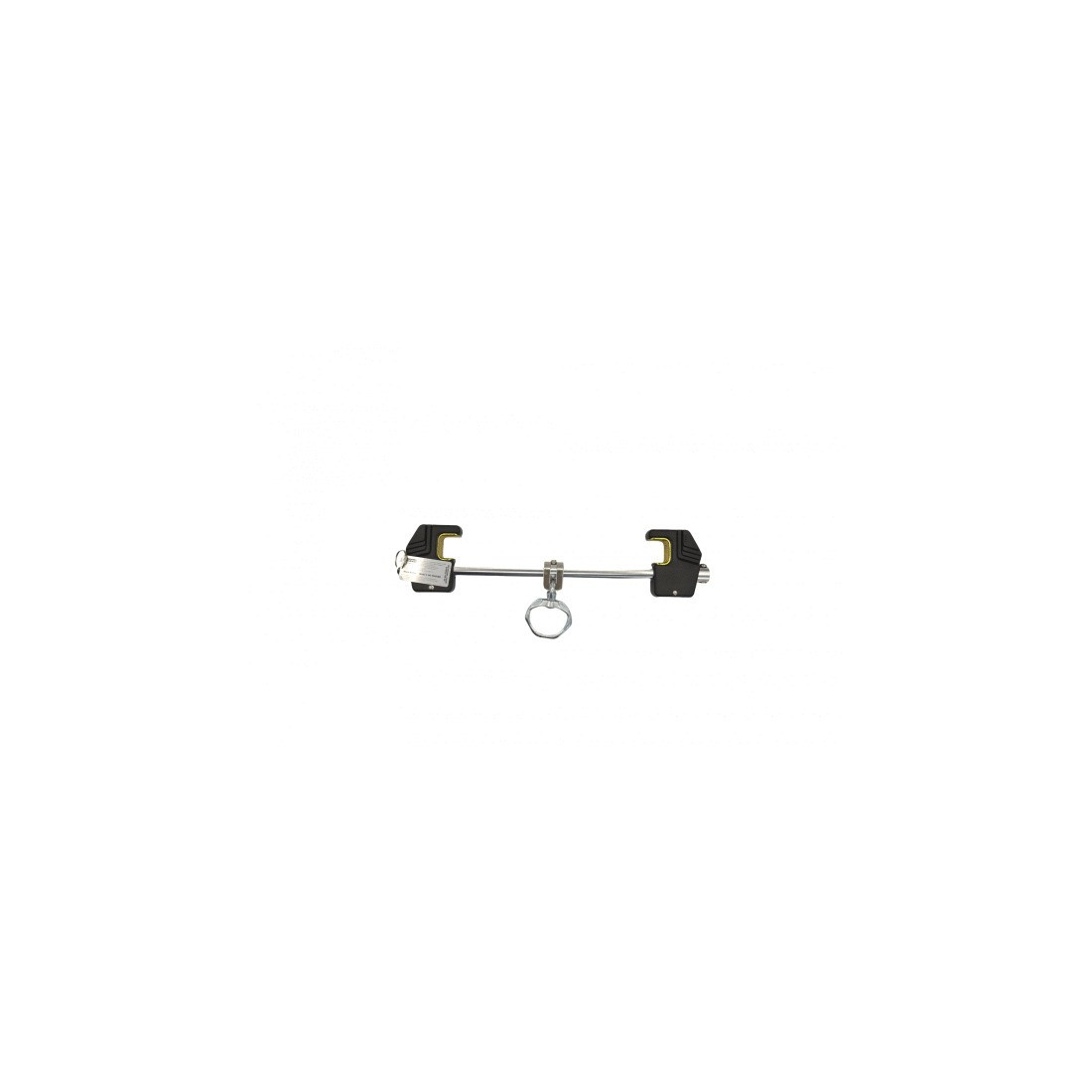

HiiGARD Temporary I-Beam Anchor
A quick-install temporary anchor, for horizontal I-beams.
Advantages and strengths
The aluminum crossbar, combined with steel clamps and nylon slide pads, protects the beam from damage during installation.
The alloy steel D-ring stays centered on the crossbar, regardless of the worker's position.
The two adjustment clamps with concealed locking latches allow quick, secure installation, with no specialized tools.
Technical characteristics
| Reference | characteristic.CANADA_PLAGE_AJUSTEMENT | characteristic.CANADA_CAPACITE | Quantity | Quote |
|---|---|---|---|---|
|
Ref. HG-1540CBA
Temporary I-Beam Anchor
|
9 to 35.5 cm (3.5 to 14 in) | 140 kg (310 lb) |
|
| Temporary I-Beam Anchor | |
|---|---|
| Reference : | HG-1540CBA |
| characteristic.CANADA_PLAGE_AJUSTEMENT | 9 to 35.5 cm (3.5 to 14 in) |
| characteristic.CANADA_CAPACITE | 140 kg (310 lb) |
| Quantity : |
|
Use
Built for mobility
This anchor moves easily from one beam to another, with no drilling or welding, to create a temporary anchor point wherever it's needed.
Tool-free installation
Clamps with concealed latches allow quick installation and removal, with no specialized tools.
Structure protection
Nylon slide pads protect the beam from scratches and damage during installation.
Target audience
Recommended for construction and industrial workers who need a temporary anchor point on steel beams.
Technical description
The HiiGARD temporary I-beam anchor is made of an aluminum crossbar and steel clamps with nylon slide pads.
It fits beam flanges from 9 to 35.5 cm (3.5 to 14 in) wide, up to 3.2 cm (1.25 in) thick.
Load capacity is 140 kg (310 lb). Breaking strength is 22.2 kN (5000 lb).
The product is certified to ANSI Z359.4-2013 and ANSI Z359.2-2017.
