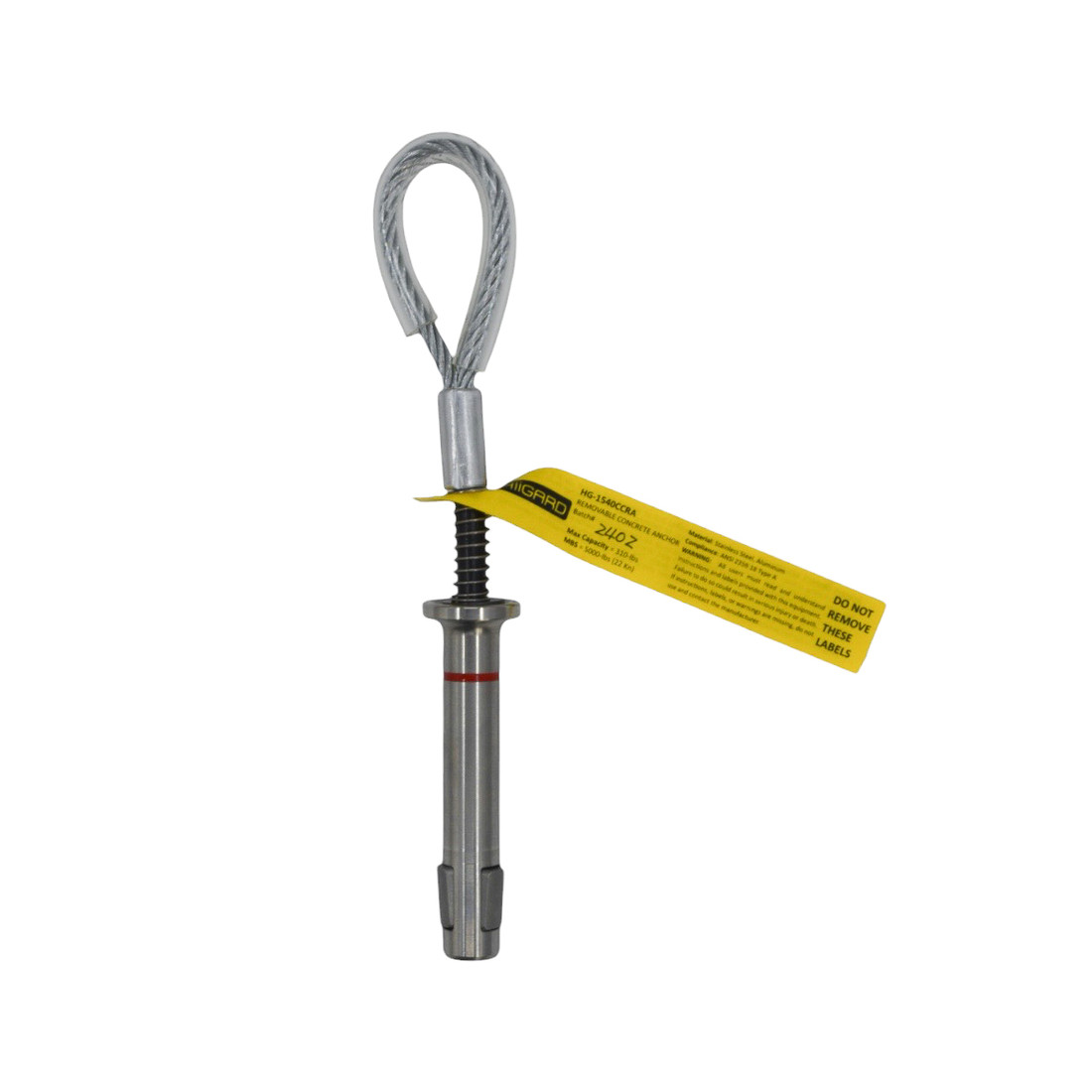

HiiGARD Removable Concrete Anchor
A removable sleeve-type anchor, for a discreet, reusable anchor point in concrete.
Advantages and strengths
The removable sleeve lets the anchor be taken out when not in use, leaving only the drilled hole visible on the surface.
The stainless steel and aluminum construction provides good corrosion resistance.
A practical choice for permanent anchor points requiring a discreet installation.
Technical characteristics
| Removable Concrete Anchor | |
|---|---|
| Reference : | HG-1540CCRA |
| characteristic.CANADA_CAPACITE | 140 kg (310 lb) |
| characteristic.CANADA_DIAM_TROU | 19 mm (3/4 po) |
| characteristic.CANADA_RUPTURE | 22 kN (5000 lb) |
| Quantity : |
|
Use
Built for a discreet finish
Once installed in concrete, this anchor can be removed when not in use, leaving only a discreet hole on the surface.
Corrosion resistance
The stainless steel and aluminum construction holds up well over time, even in outdoor environments.
Permanent installation, flexible use
With the hole drilled once, the anchor can be reinstalled as needed, with no further work on the concrete.
Target audience
Recommended for permanent anchor points on a roof or concrete platform, where a discreet installation is desired.
Technical description
The HiiGARD removable concrete anchor is made of stainless steel and aluminum, in a sleeve-type design.
Total length is 26 cm (10.25 in). The required drilled hole diameter is 19 mm (3/4 in), to a depth of 88.9 mm (3.5 in).
Load capacity is 140 kg (310 lb). Breaking strength is 22 kN (5000 lb).
The product is certified to ANSI Z359.18 Type A.
