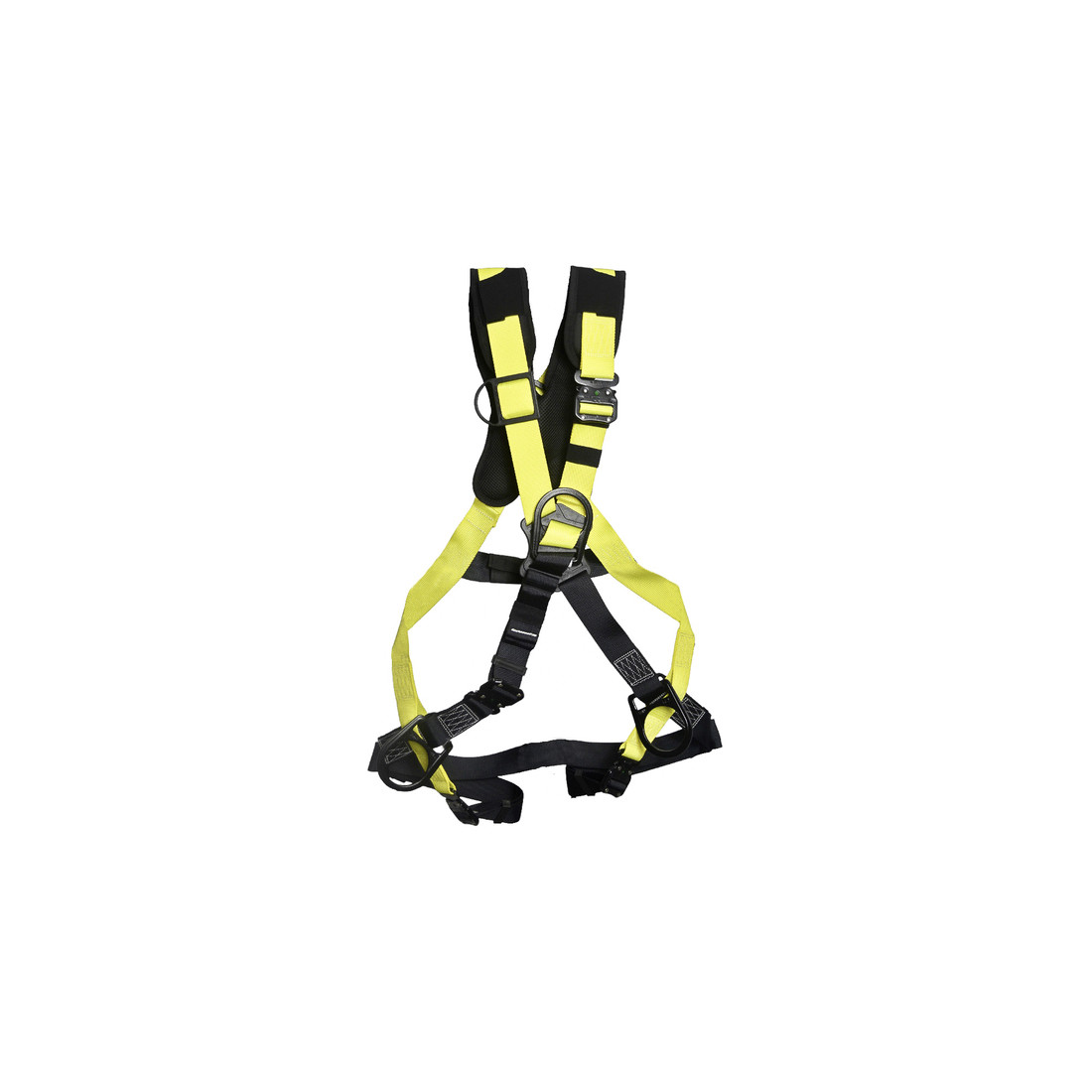

HiiGARD Cross-Style Quick-Connect Harness (Class A, L, P)

Standard: CSA Z259-10/A, L, P Class

A versatile cross-style harness with a frontal ring for ladder climbing and quick-connect buckles for faster donning.

Select your reference

Quantity

HiiGARD Cross-Style Quick-Connect Harness (Class A, L, P)

Advantages and strengths

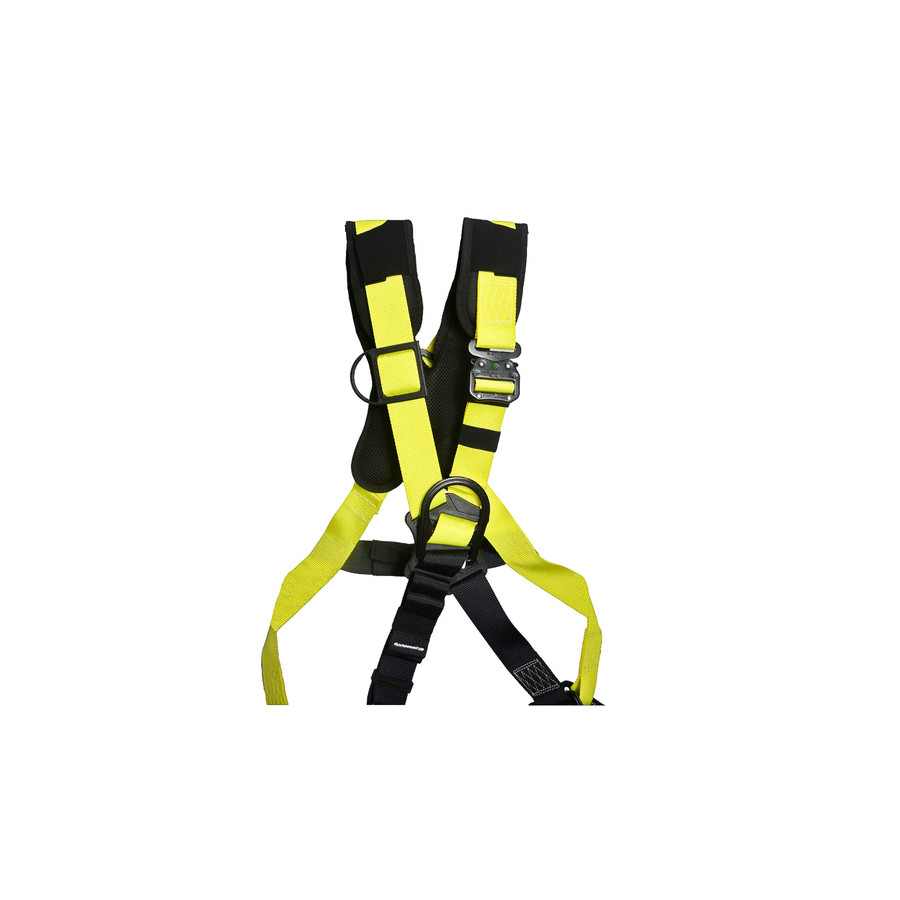

HiiGARD cross-style fall arrest harness, featuring a dorsal D-ring, a frontal ring, and side positioning D-rings. Quick-connect buckles at the chest and thighs. Polyester construction, zinc-plated steel hardware. Colours: hi-vis yellow and black. Universal size.

Technical characteristics

Reference	Load-bearing capacity (lb)	Quantity	Quote
Ref. HG-1540CYHQ-U Code HG-1540CYHQ-U Universal size	0 lb	Quantité maximum disponible pour ce magasin + -

Universal size
Reference :	HG-1540CYHQ-U
Load-bearing capacity (lb)	0 lb
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

Use

Built for versatility

Thanks to its frontal ring and side positioning D-rings, this harness supports several task types: secure ladder climbing, structural positioning, and standard fall arrest connection.

Comfort and load distribution

The cross-style design spreads the load over a larger area of the body, reducing localized pressure during extended positioning.

Fast donning

Quick-connect buckles at the chest and thighs allow adjustment in seconds, an asset for crews with frequent shift rotation.

Safety and end of service life

Built-in fall indicators deploy automatically in the event of a fall, clearly signalling that the harness must be removed from service and replaced.

Target audience

Recommended for workers who alternate between ladder climbing, structural positioning, and vertical movement, particularly in construction.

Technical description

Dorsal D-ring for fall arrest connection

Frontal ring for secure ladder climbing

Side positioning D-rings for structural work

Cross-style design for better load distribution across the body

Quick-connect buckles at the chest and thighs for faster donning

Chest lanyard keepers, designed to release under 54 kg (120 lb) of force in the event of a fall

Built-in fall indicators signalling the harness must be taken out of service

Total load capacity of 160 kg (352 lb)

Certified to CSA Z259-10, Class A, L and P

Universal size, fits small to large body types

Polyester construction, zinc-plated steel hardware
