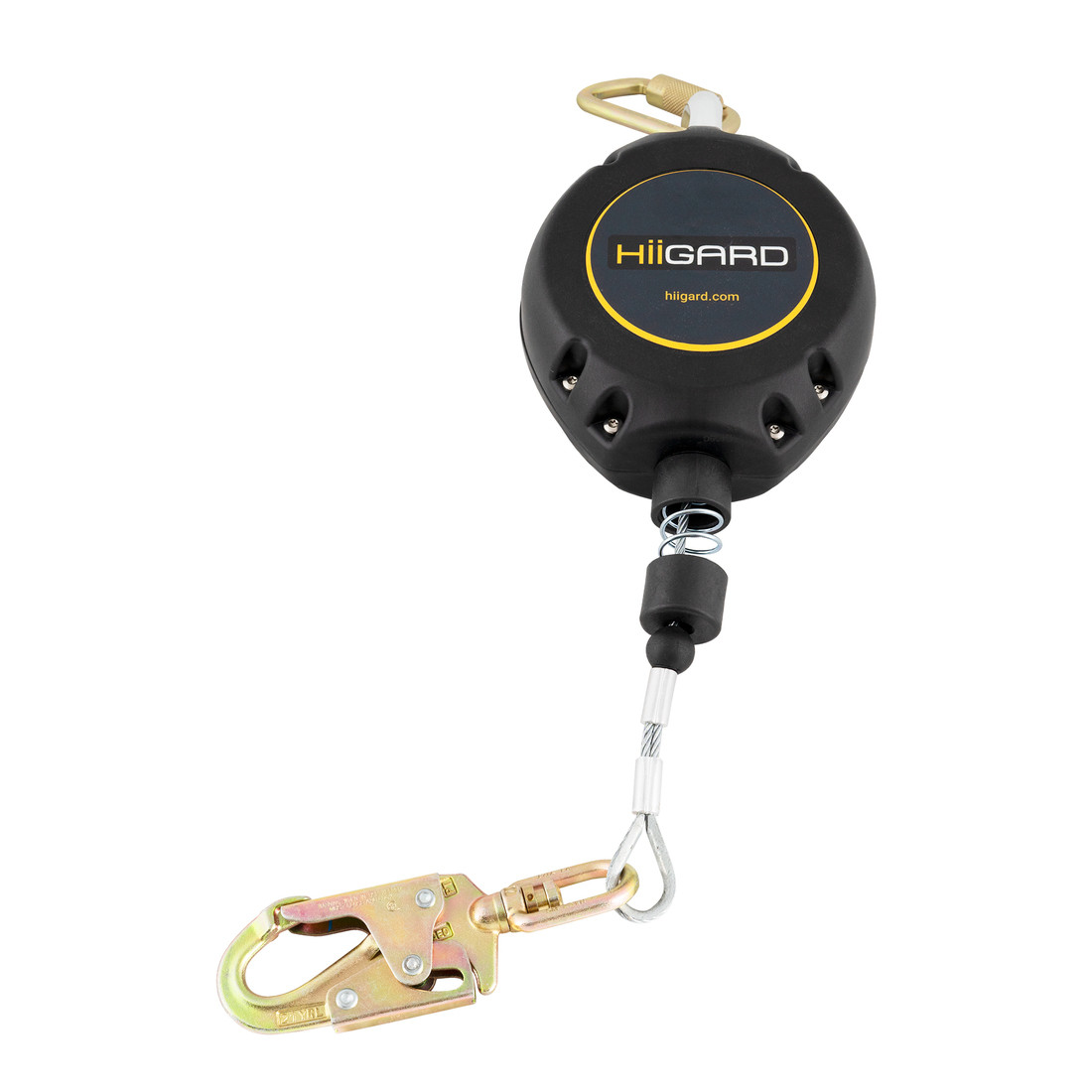

HiiGARD Steel Cable Self-Retracting Lifeline
A steel cable self-retracting lifeline, for smooth fall protection during movement.
Advantages and strengths
The self-retracting mechanism eliminates cable slack, reducing tripping hazards and the free-fall distance in the event of an incident.
The swivel hook limits cable twisting during lateral movement, while the built-in fall indicator visually signals whether the device has arrested a fall.
The swivel eye at the top of the housing allows smooth orientation, regardless of the pull angle.
Offered in four lengths, this lifeline adapts to most working heights found in construction and industry.
Technical characteristics
| 11' | |
|---|---|
| Reference : | HG-1540RC-11 |
| characteristic.CANADA_CAPACITE | 140 kg (310 lb) |
| characteristic.CANADA_ARRET_DE_CHUTE | 24 in (61 cm) |
| Quantity : |
|
| 20' | |
|---|---|
| Reference : | HG-1540RC-20 |
| characteristic.CANADA_CAPACITE | 140 kg (310 lb) |
| characteristic.CANADA_ARRET_DE_CHUTE | 24 in (61 cm) |
| Quantity : |
|
| 33' | |
|---|---|
| Reference : | HG-1540RC-33 |
| characteristic.CANADA_CAPACITE | 140 kg (310 lb) |
| characteristic.CANADA_ARRET_DE_CHUTE | 24 in (61 cm) |
| Quantity : |
|
| 50' | |
|---|---|
| Reference : | HG-1540RC-50 |
| characteristic.CANADA_CAPACITE | 140 kg (310 lb) |
| characteristic.CANADA_ARRET_DE_CHUTE | 24 in (61 cm) |
| Quantity : |
|
Use
Built for smooth movement
The self-retracting mechanism automatically adjusts cable length as the worker moves, with no excess slack to manage manually.
Visible safety
The fall indicator built into the hook makes it easy to spot whether the device has already arrested a fall and must be removed from service.
Choice of lengths
Available in four lengths, from 11 to 50 ft, this lifeline suits a wide range of working heights.
Target audience
Recommended for construction and industrial workers who need smooth, reliable vertical fall protection.
Technical description
The HiiGARD self-retracting lifeline is made of a 4.8 mm (3/16 in) diameter galvanized steel cable, housed in a thermoplastic casing.
The steel hook at the end of the cable is a swivel type, fitted with a built-in fall indicator.
Arrest force is 1350 lb (6 kN). Load capacity is 140 kg (310 lb).
The product is certified to CSA Z259.2.2-17. Available in 11, 20, 33, and 50 ft lengths.
