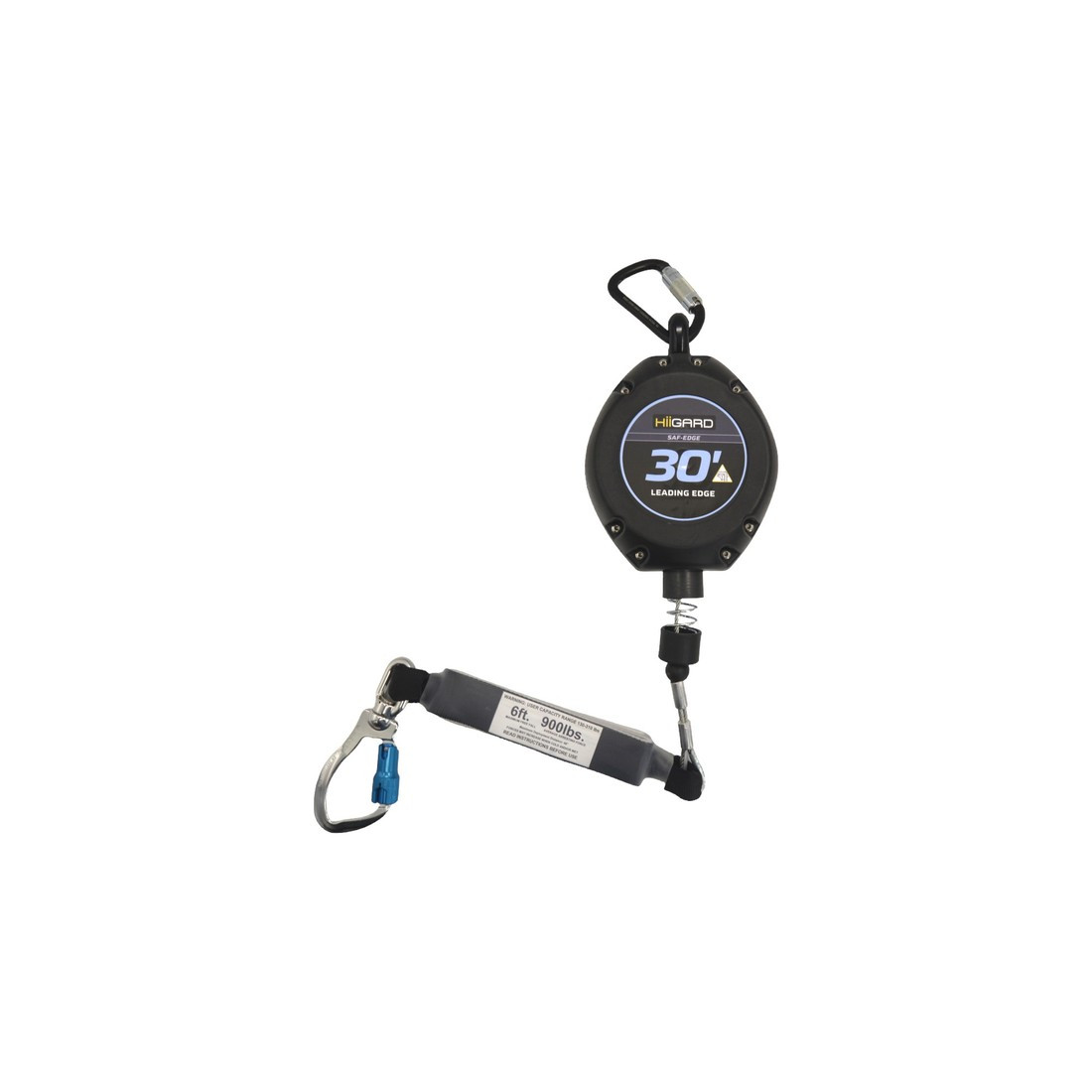

HiiGARD Self-Retracting Lifeline for Sharp Edges
A self-retracting lifeline certified for use near a sharp edge.
Advantages and strengths
Unlike a standard self-retracting lifeline, this model is specifically designed and certified for foot-level anchoring, even with a sharp edge present near the fall point.
The swivel snap hook reduces cable twisting during the worker's lateral movements.
The thermoplastic housing protects the internal mechanism from dust and moisture found on outdoor jobsites.
A suitable choice for roofing work, where foot-level anchoring is often the only practical option.
Technical characteristics
| 30' | |
|---|---|
| Reference : | HG-1540RCLE-30' |
| characteristic.CANADA_CAPACITE | 140 kg (310 lb) |
| characteristic.CANADA_ARRET_DE_CHUTE | 54 po (137 cm) |
| Quantity : |
|
| 50' | |
|---|---|
| Reference : | HG-1540RCLE-50' |
| characteristic.CANADA_CAPACITE | 140 kg (310 lb) |
| characteristic.CANADA_ARRET_DE_CHUTE | 54 po (137 cm) |
| Quantity : |
|
Use
Built for sharp edges
This self-retracting lifeline has been tested and certified to withstand a fall that drags across a sharp edge, a common scenario during roofing or platform work.
Foot-level anchoring
Its certification allows anchoring at the worker's foot level, a configuration that is often more practical than overhead anchoring, but that requires a product specifically designed for sharp edges.
Rugged construction
The galvanized steel cable and thermoplastic housing provide proven durability in demanding outdoor environments.
Target audience
Recommended for roofers and workers operating near a roof or platform edge, where overhead anchoring is not always available.
Technical description
The HiiGARD self-retracting lifeline for sharp edges is made of a 4.8 mm (3/16 in) diameter galvanized steel cable, housed in a thermoplastic casing.
The aluminum hook at the end of the cable is a swivel type, reducing twisting during movement.
Fall arrest distance is 54 in (137 cm). Arrest force is 1350 lb (6 kN). Load capacity is 140 kg (310 lb).
The product is certified to CSA Z259.2.2-17. Available in 30 ft (10 m) and 50 ft (15 m) lengths.
