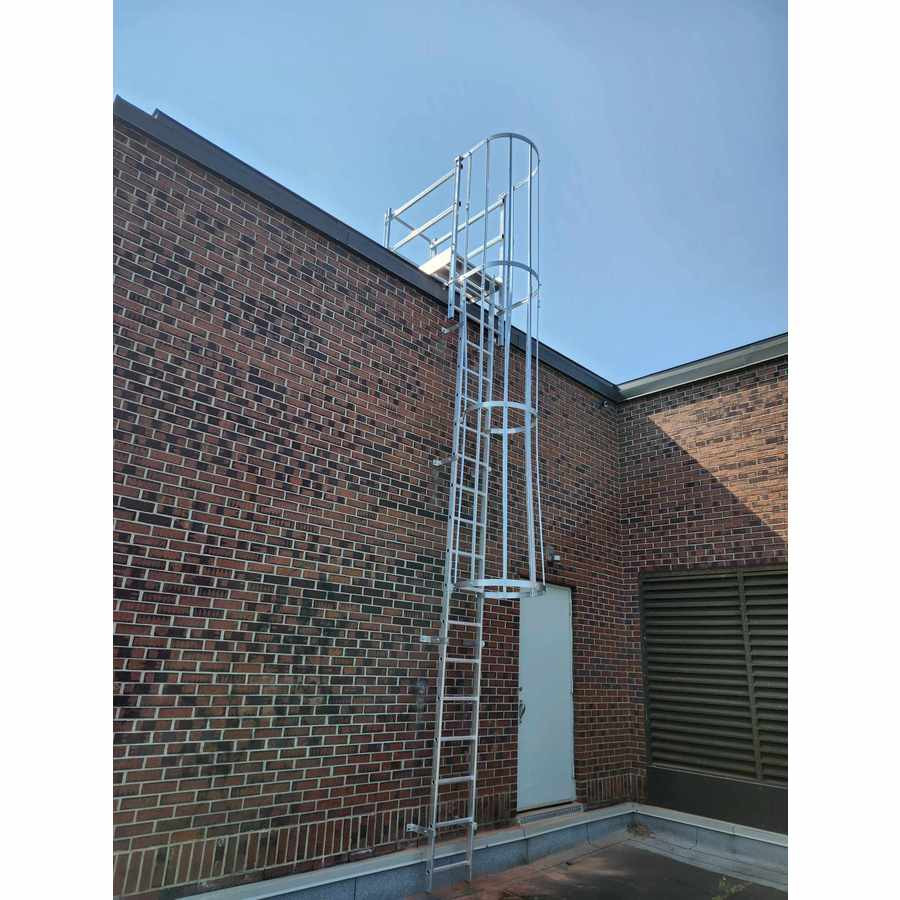

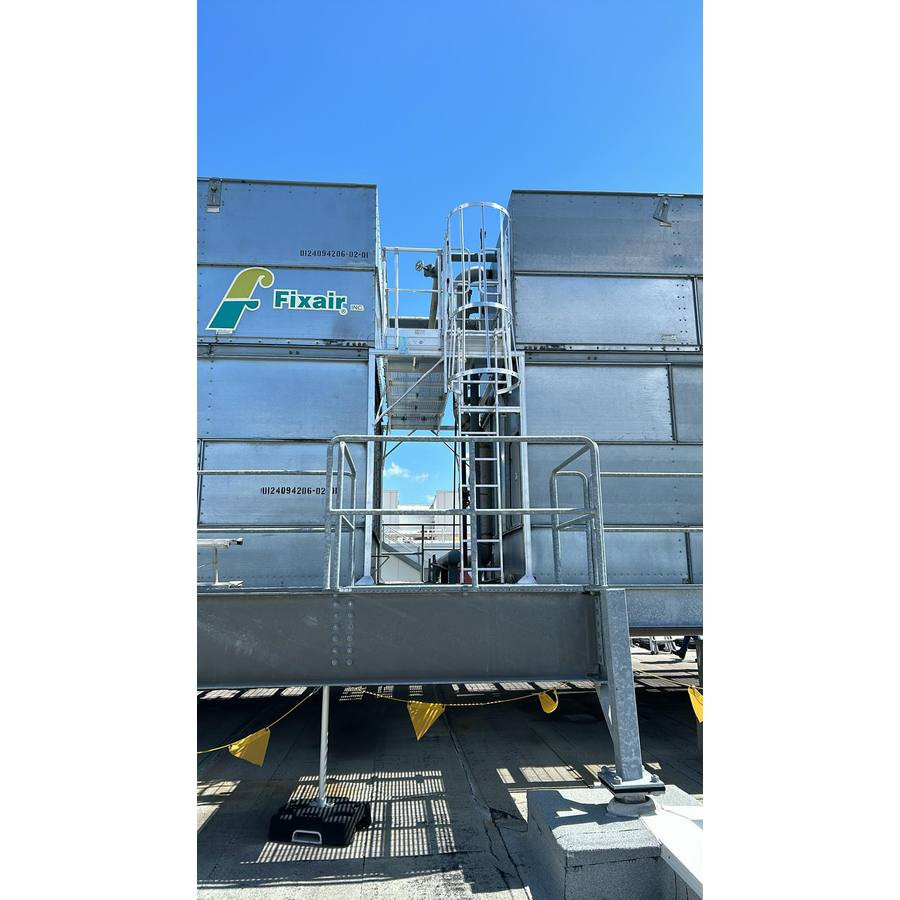

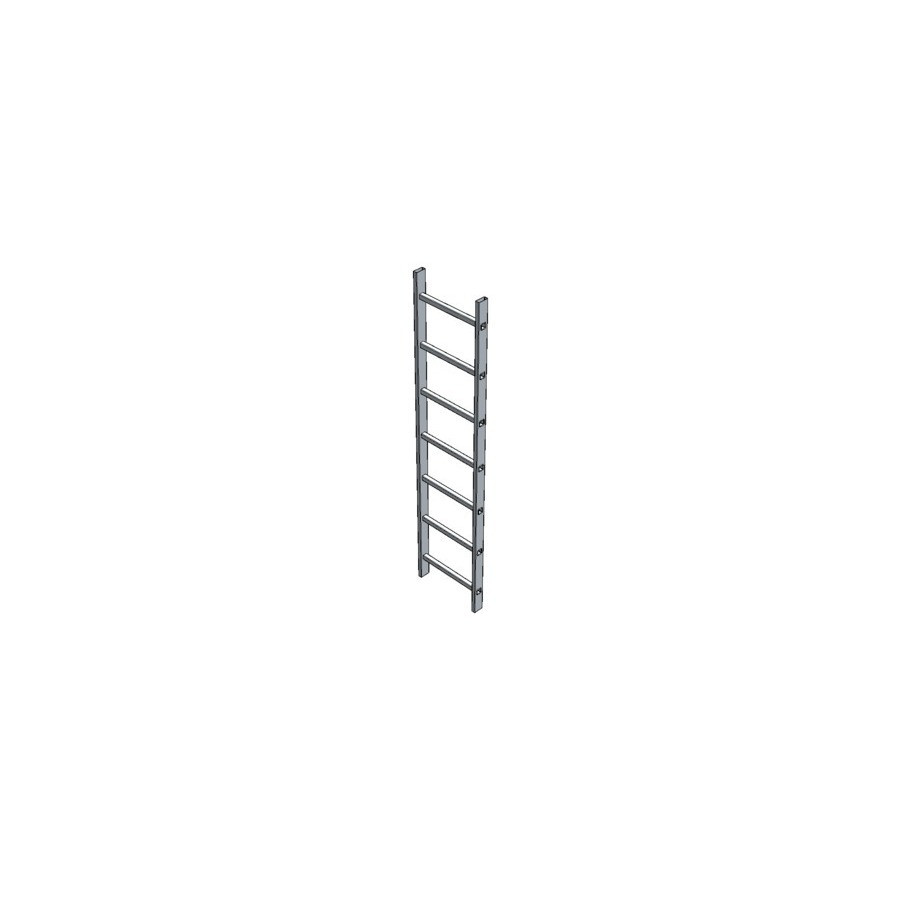

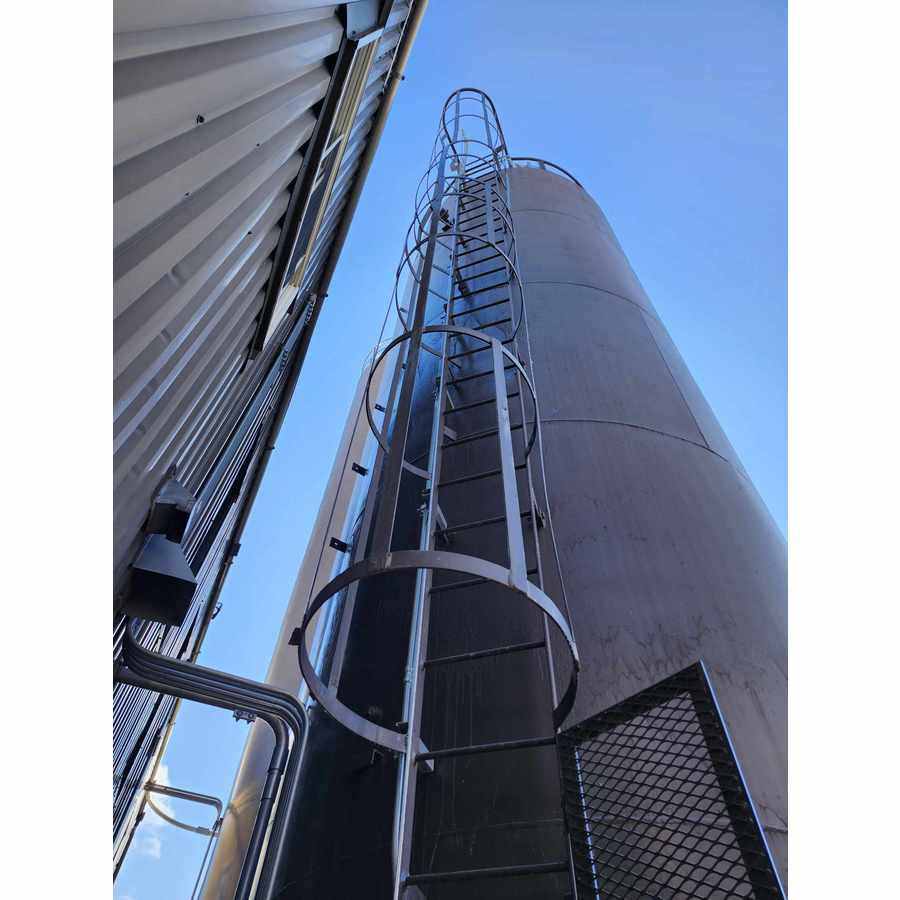

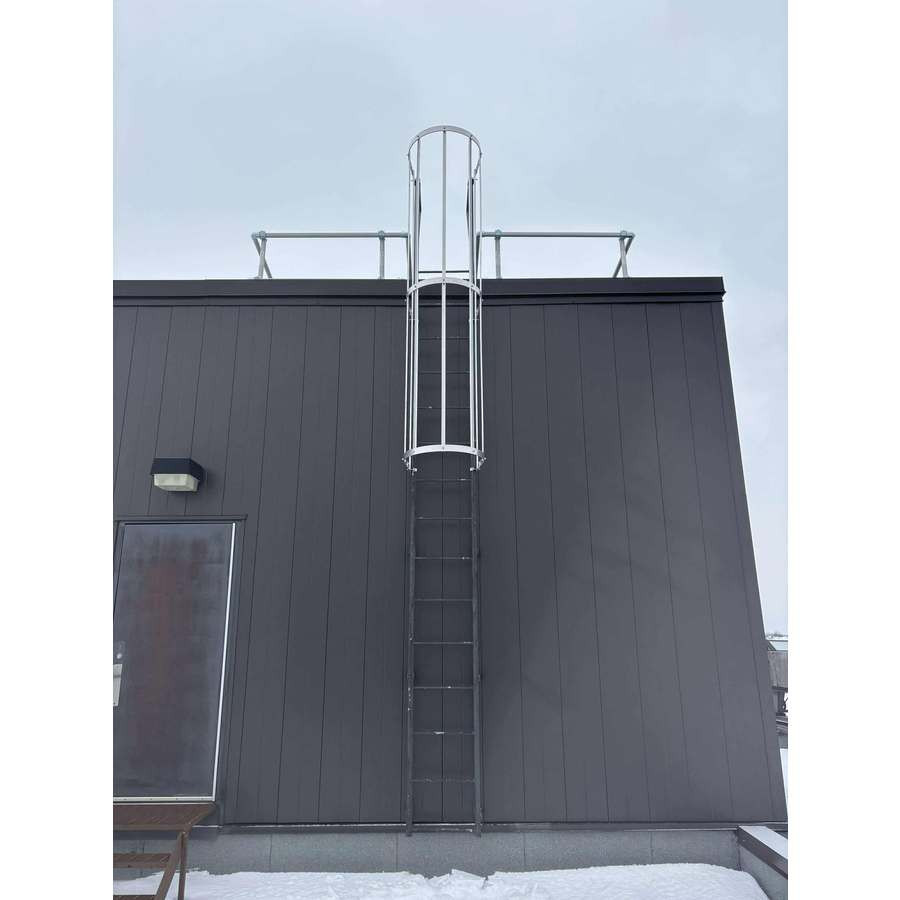

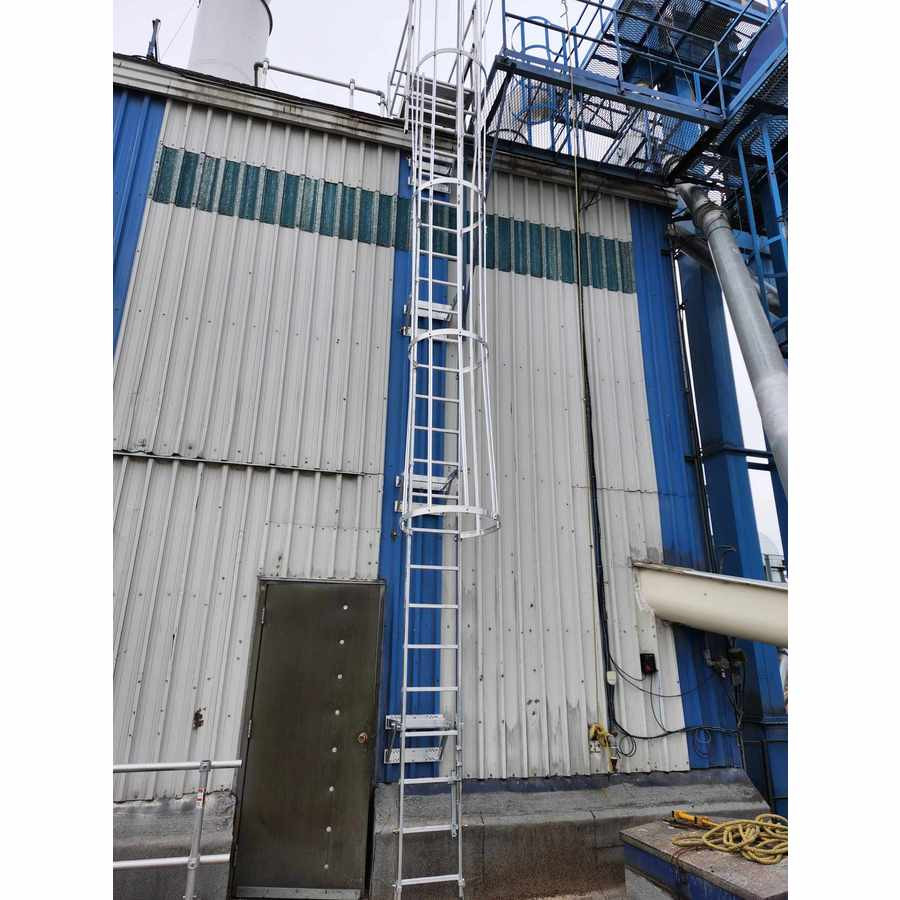

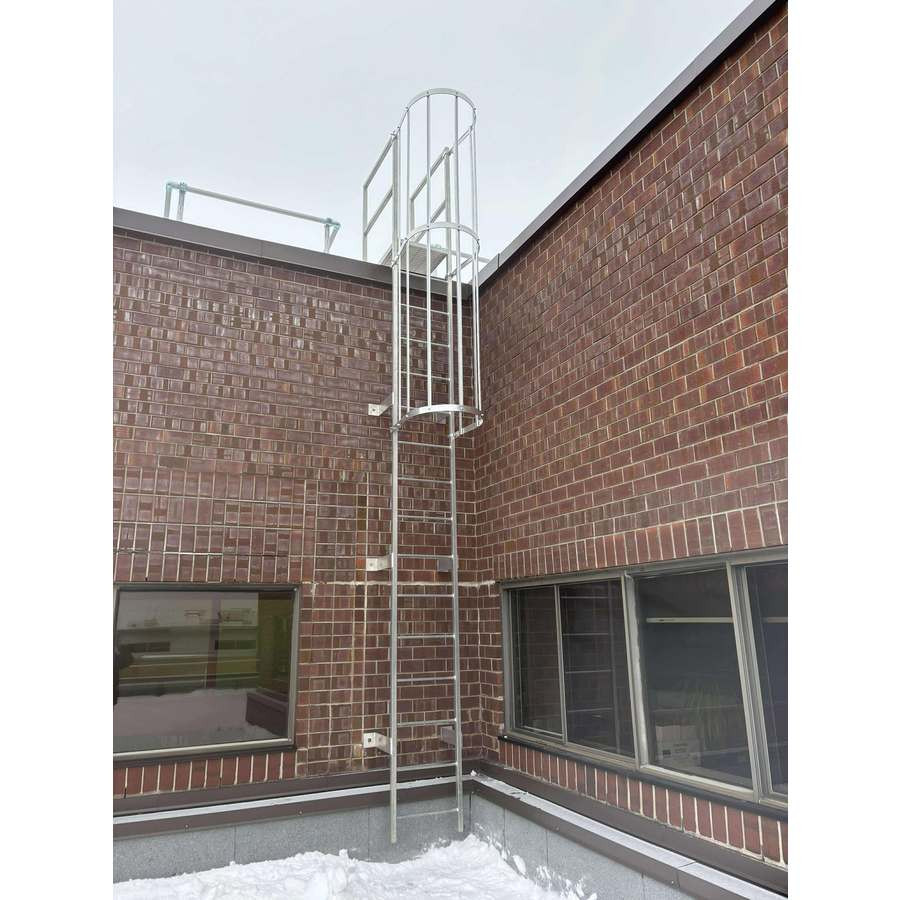

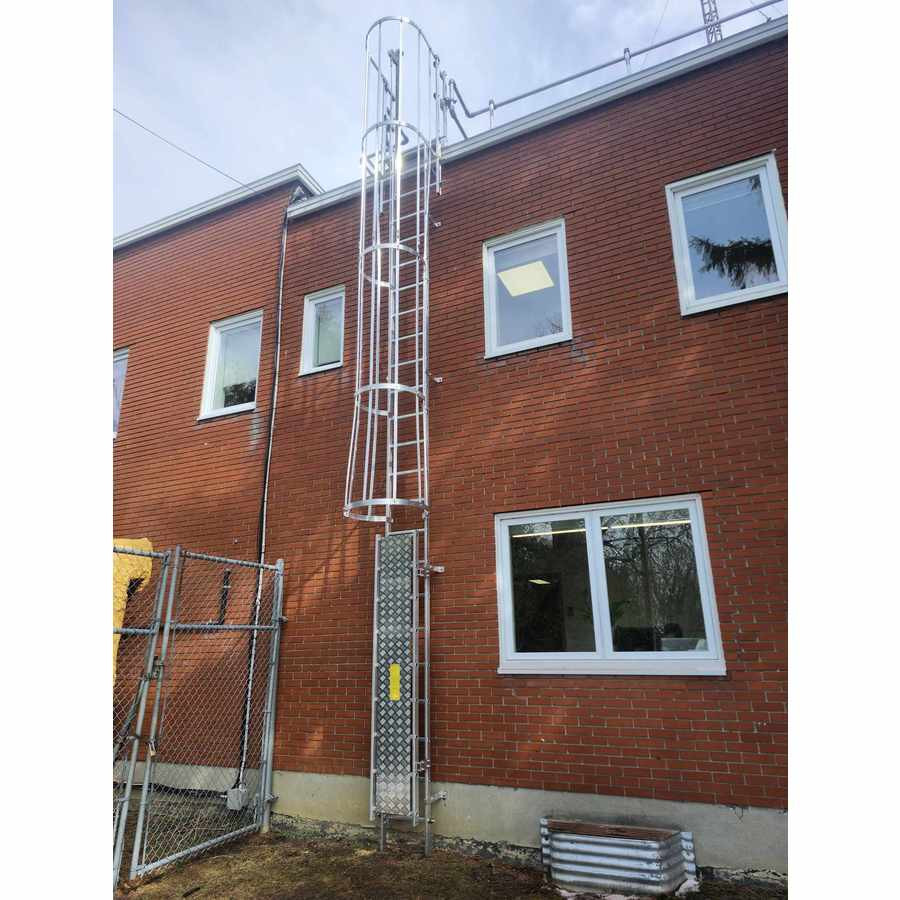

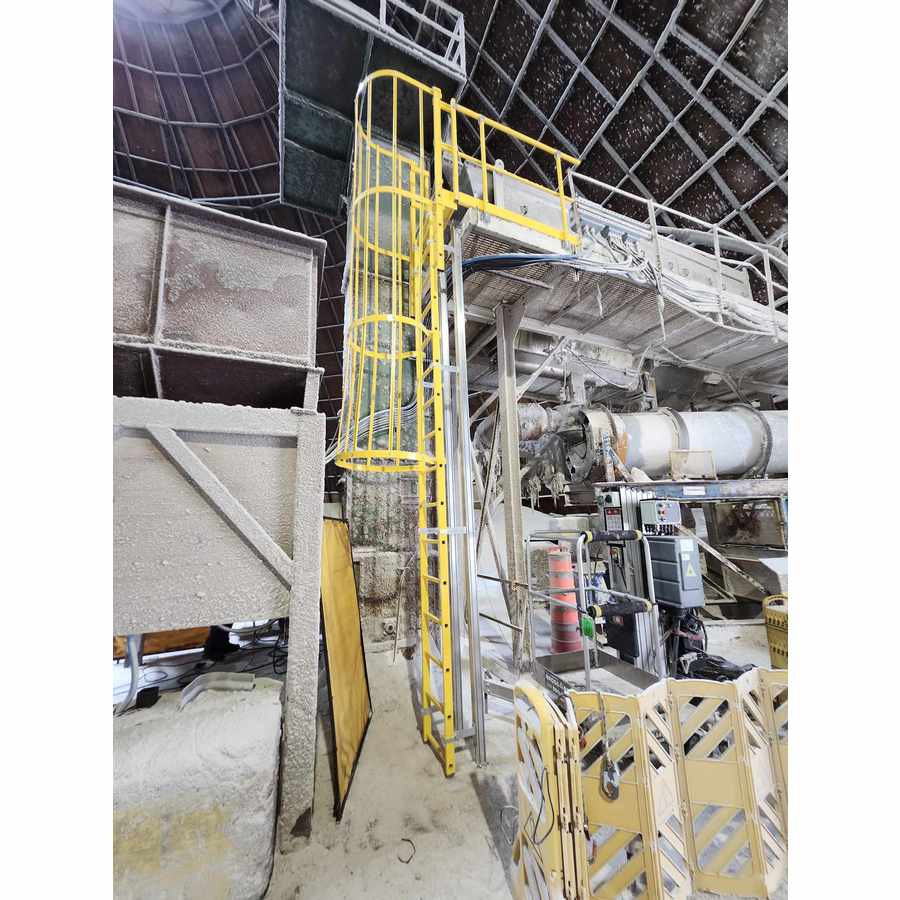

Supply and installation of custom-made Fixup Fixed ladder
Advantages and strengths
Designed for easy, maintenance-free assembly, the ladders arrive at your job site with pre-drilled modules equipped with all the necessary hardware.
Hardware is shipped and pre-installed on the hoops to reduce on-site preparation.
Use

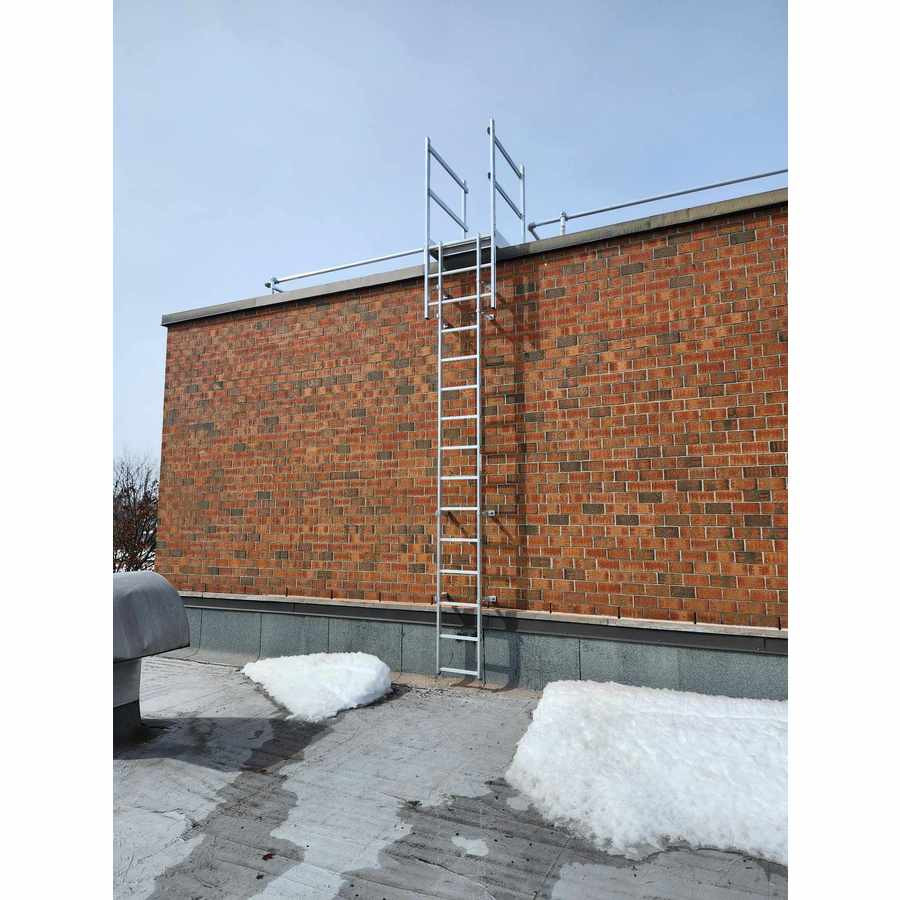

Discover our hoopless fixed ladder, made entirely of aluminum.
The benefits of our fixed ladders
No welding, fast on-site assembly: Thanks to an ingenious weld-free design, our ladder can be assembled quickly and easily, directly on site.
Lightweight materials, fast installation without a crane or heavy equipment: Made of aluminum, our ladder is lightweight and can be installed without the need for cranes or other heavy equipment, simplifying and speeding up the installation process.
Optimal adaptation to your site: Our fixed ladder adapts perfectly to your site, ensuring maximum safety and optimal use.
Hardware shipped and pre-installed on the hoops, less on-site preparation: The hardware is supplied and pre-installed on the hoops, significantly reducing on-site preparation time.
Aluminum construction that requires no maintenance: The aluminum used in our ladder's construction ensures exceptional durability with no maintenance required, giving you peace of mind and long-term savings.
Technical specifications
- Rung dimensions: 30 x 30 mm
- Passage diameter: 700 mm
- Spacing between rungs: 280 mm
- Number of rails: 5
- Overall ladder width: 448 mm
- Ladder profile: 63 x 25 mm
Tools required for assembly
For quick and easy installation, you will need the following tools:
- Hammer drill
- 10 mm and 13 mm drill bits
- Impact wrench
- 13 mm and 17 mm wrenches
- Screwdriver/drill driver
- Manual rivet gun
Technical description
- Stainless steel hardware
- Complete safety hoop (with Halfen bolts) Qty: 1
- Exit hoop without clamp Qty: 1
- Rubber feet Qty: 2
- Caged ladder, 1960 mm 1
- Connecting pieces for rail 5
- Rail, length 2800 mm 5
- Standard complete brackets, 180 mm, Qty: 2
- Reinforced complete brackets pair, Qty: 1

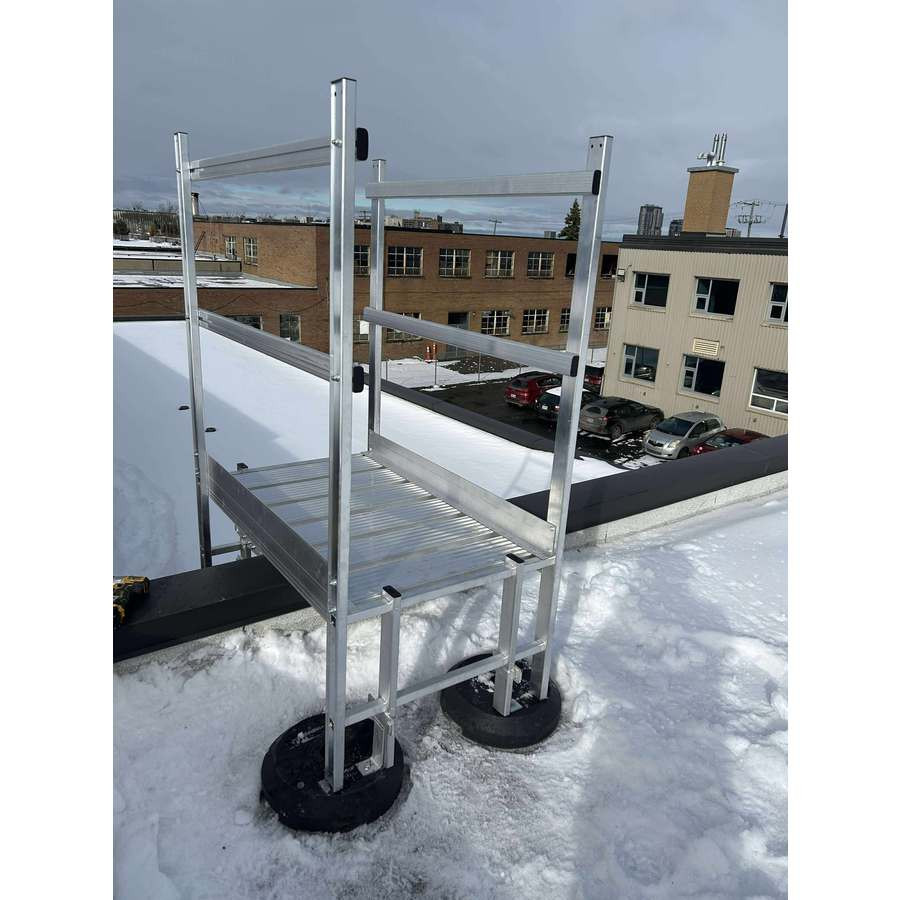

- Standard exit, 700 mm, with landing step and access gate, Qty: 1
